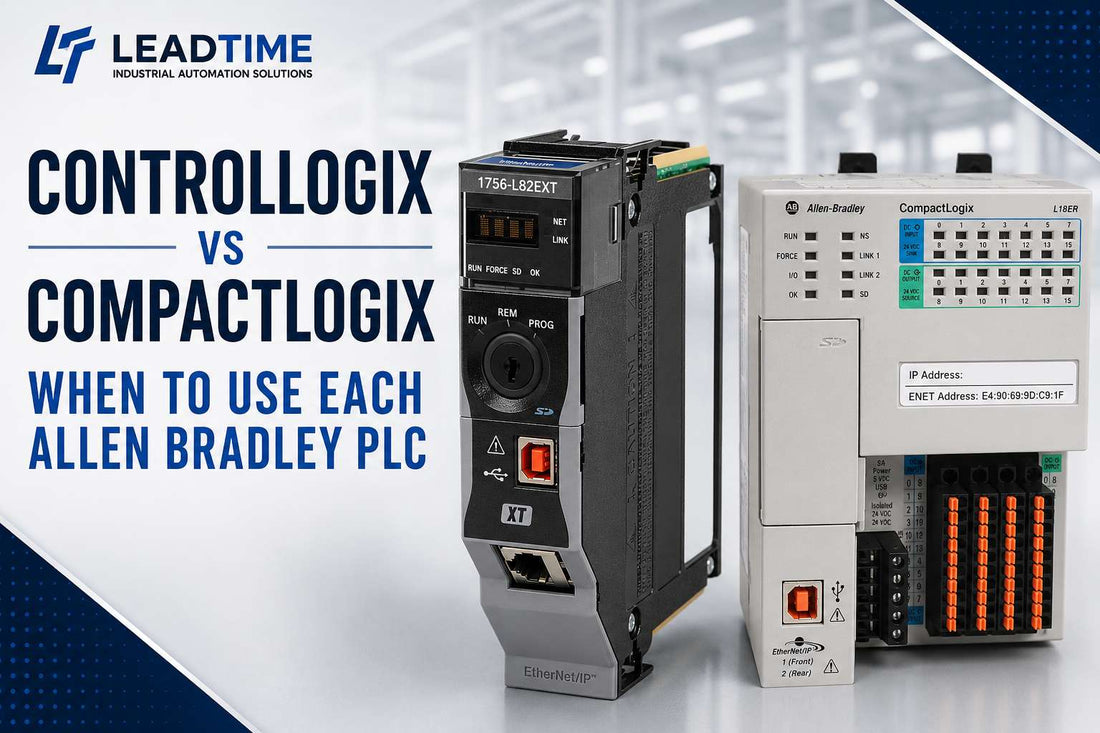

Allen-Bradley ControlLogix 5580 and CompactLogix 5380 controllers side by side for industrial PLC platform comparison

ControlLogix vs CompactLogix: When to Use Each Allen-Bradley PLC

Controls engineers and system designers searching for the right Allen-Bradley platform typically already know they are working within the Logix 5000 family — the question is which tier fits the job. The ControlLogix 5580 Controllers and CompactLogix 5380 Controllers share Studio 5000 Logix Designer, tag-based programming, and a common instruction set, yet they target fundamentally different system scales. Choosing the wrong one early can mean running into hard limits on I/O count, node capacity, or redundancy support mid-project — or paying significantly more than the application requires.

If you have already narrowed your selection and need to confirm availability, contact the LeadTime.ca team directly — we source both ControlLogix and CompactLogix hardware and ship worldwide.

Who Should Choose ControlLogix, Who Should Choose CompactLogix — and Who Should Pause

Both platforms are strong options within the Logix 5000 family. The decision turns on a specific combination of technical requirements, not a simple cost preference.

CompactLogix is the right fit when all of the following apply:

  • The system is a standalone machine, OEM skid, or small cell with I/O counts typically in the hundreds or fewer
  • EtherNet/IP is the primary — or only — network required
  • Motion axis counts are modest and machine-level in scope
  • Panel space is constrained and a compact form factor is a genuine design requirement
  • Controller redundancy is not required by the application or site safety standards
  • The system is unlikely to grow beyond typical machine-level I/O or node counts

If your project requires controller redundancy, hundreds of EtherNet/IP nodes, multiple network types (such as ControlNet or DeviceNet alongside EtherNet/IP), high-axis coordinated motion, or plant-wide scalability across many distributed racks, CompactLogix is generally not the right platform. In those cases, review the ControlLogix 5580 family instead — or contact LeadTime.ca to validate your architecture before specifying hardware.

On this page:

Where ControlLogix and CompactLogix Sit in the Logix 5000 Family

Rockwell Automation's Logix 5000 family is the unified controller architecture that spans from compact machine controllers to large plant-wide PAC systems. ControlLogix and CompactLogix occupy adjacent but distinct tiers within that family. Both use Studio 5000 Logix Designer as the single programming environment, both support tag-based logic, Add-On Instructions (AOIs), and User-Defined Data Types (UDTs), and both execute the same Logix instruction set. This shared foundation is genuinely useful: an engineer who knows one platform can work on the other without a full retraining cycle, and logic libraries can often be adapted between platforms with hardware-specific adjustments.

Below ControlLogix and CompactLogix in the family sit MicroLogix and Micro800 platforms, which target simpler standalone machines at the low end of the spectrum. Understanding where these tiers begin and end matters: many specification mistakes come from engineers treating ControlLogix and CompactLogix as nearly identical or as simple substitutes for one another, when the technical gap between them — particularly on redundancy, network flexibility, and I/O scale — is significant for the right application.

What Each Platform Actually Does in the Field

The ControlLogix 5580 Controllers are Rockwell Automation's large-system PAC platform, built around the 1756 chassis with plug-in modules for I/O, communication, and power. In the field, ControlLogix typically appears as the central controller for an entire production line, a large process unit, a batch system, or a plant-wide backbone where many distributed racks, high EtherNet/IP node counts, and multiple network types must be coordinated. The platform is designed to handle thousands of digital and analog I/O points across multiple chassis, and it supports native controller redundancy on specific models — a requirement that immediately rules out CompactLogix for many process industries.

The CompactLogix 5380 Controllers are defined by Rockwell Automation as small to medium control systems. In practice, CompactLogix is the dominant choice for standalone machines, OEM skid packages, and cell-level control where the I/O count is in the hundreds, EtherNet/IP is the primary network, and the machine is unlikely to need plant-scale expansion. The integrated dual Ethernet ports on many CompactLogix 5380 models reduce wiring complexity and hardware cost compared to adding separate communication modules to a ControlLogix chassis. The result is a smaller panel footprint and a lower total hardware bill for applications that genuinely fit within CompactLogix limits.

The important nuance is that there is an overlap zone where either platform is technically capable. A mid-size system with a couple hundred I/O and moderate motion could run on either. In that overlap, the decision tips on future growth projections, redundancy requirements, and the specific node counts expected at full system buildout — not on a single threshold number.

Hardware Architecture: Chassis-Based vs Compact Form Factor

The most immediately visible difference between these platforms is physical. ControlLogix is built on the 1756 chassis: a backplane-connected rack into which the CPU, I/O modules, and communication modules are individually inserted. A ControlLogix system can span multiple racks and multiple chassis, connected over EtherNet/IP, ControlNet, or other backplane-compatible architectures. This modular approach provides a high degree of flexibility — the right mix of I/O types, communication modules, and redundancy hardware can be assembled for almost any large system requirement — but it also means more hardware to mount, wire, and power. Panel space requirements are significantly larger than CompactLogix for equivalent logic, particularly when the full rack of I/O and communication modules is populated.

CompactLogix integrates the CPU, communication interfaces, and the foundation for local I/O expansion into a single compact assembly. Expansion I/O is added via 1769 or 5069 series modules mounted directly to the side of the controller. The result is a physically smaller assembly that is easier to fit into standard machine panels and typically faster to wire for straightforward applications. The trade-off is a ceiling on local I/O expansion: CompactLogix is optimized for systems with moderate I/O that can be managed within the constraints of the side-mounted expansion bus, rather than systems requiring many remote racks spread across a large facility.

Panel layout implications are real and worth quantifying early in design. A ControlLogix chassis with a full set of I/O and communication modules consumes substantially more DIN rail and enclosure space than a CompactLogix unit with its expansion modules. For OEM builders shipping pre-wired panels, this difference directly affects enclosure sizing, shipping weight, and installation time at the customer site.

I/O Capacity, Node Count, and Scalability

I/O capacity is one of the most common decision drivers in platform selection, and also one of the most frequently misunderstood. Rockwell Automation documents ControlLogix platforms as large control systems with support for very high digital and analog I/O counts across multiple chassis — the specific maximums are variant-dependent and can be confirmed in the controller's technical specifications. CompactLogix 5380 Controllers are documented as small to medium control systems, with I/O expansion optimized for machine-level applications. Practical guidance from the field consistently points to systems with I/O counts in the hundreds as the natural home for CompactLogix, with larger systems favouring ControlLogix.

EtherNet/IP node count is a second, equally important dimension that is often overlooked at specification time. ControlLogix supports higher practical node counts for large distributed systems — the type of count that a multi-line food and beverage plant or a large process unit would accumulate. CompactLogix integrated Ethernet ports are well-suited to smaller machines where the node count stays well within machine-level practical limits. Engineers specifying systems where the full EtherNet/IP device count — including drives, I/O adapters, HMIs, and instruments — could approach or exceed CompactLogix practical limits should plan conservatively and confirm specific CIP connection counts for the selected controller variant before committing to a platform.

Expansion paths differ in a structurally important way. ControlLogix scales by adding racks and chassis over EtherNet/IP or ControlNet, which allows a system to grow substantially without replacing the central controller. CompactLogix scales by adding expansion modules to the side rail, which has physical and electrical limits. If realistic future growth projections could push a system beyond CompactLogix expansion limits, beginning on ControlLogix avoids a costly mid-lifecycle platform migration.

Performance, Memory, and Program Size

Both ControlLogix 5580 and CompactLogix 5380 Controllers offer user memory in the multi-megabyte range, with ControlLogix variants typically providing greater maximum memory for large applications than their CompactLogix counterparts. CompactLogix 5380 user memory ranges from under 1 MB up to around 10 MB depending on the specific model. ControlLogix 5580 variants offer user memory ranging from several MB up to tens of MB depending on the model selected. For most machine-level applications — even those with substantial AOI libraries, recipe management, and data logging — CompactLogix memory is sufficient. It is when program complexity begins to reflect plant-level batch logic, large historian datasets, or extensive SCADA integration that the memory ceiling of CompactLogix starts to matter.

Both platforms share the same execution model: tasks, programs, and routines executing within Logix Designer. The practical scan time and motion execution performance differences between the two platforms are qualitative rather than expressed as a single benchmark number — ControlLogix 5580 is positioned by Rockwell Automation as the higher-performance platform for demanding applications. Engineers designing systems where scan time directly affects process quality, where very tight motion coordination is required, or where large data arrays must be processed continuously should evaluate ControlLogix performance documentation for the specific variants under consideration.

Motion Control and Axis Count Guidance

Both platforms support integrated motion over EtherNet/IP and are compatible with Kinetix servo drives in typical motion architectures. CompactLogix is well-suited to machine-level motion with modest axis counts — standalone packaging machines, simple pick-and-place cells, and skids with a handful of servo axes are natural applications. The brief identifies a standalone packaging machine with up to 8 motion axes as a scenario where CompactLogix is the recommended platform, which gives a practical reference point for machine builders evaluating axis budgets.

When axis counts climb higher and the application involves demanding coordinated motion profiles — robotic cells combined with multiple servo stations, or high-axis gantry systems — ControlLogix is the more appropriate platform. Higher practical axis counts and the performance headroom for complex coordinated motion are among the reasons ControlLogix is recommended for high-axis motion lines in the decision scenarios documented in this article. The specific maximum axis counts supported are variant-dependent and should be verified against the controller's technical documentation for the exact model under consideration.

Networking, Protocols, and Legacy Integration

Network flexibility is one of the clearest structural differences between the two platforms. ControlLogix can host multiple communication modules simultaneously — EtherNet/IP, ControlNet, DeviceNet, and legacy network modules can coexist in the same chassis depending on the specific variant and available slots. This makes ControlLogix the primary option for plants with mixed-network architectures, for facilities that still operate legacy DeviceNet or Remote I/O devices, and for applications where EtherNet/IP must bridge to older field bus networks as part of a phased modernization.

CompactLogix integrates dual Ethernet ports on many 5380 models and supports USB, but has limited options for external legacy network integration compared to ControlLogix. For a machine that will only ever communicate over EtherNet/IP — which covers the majority of modern standalone machine designs — this limitation is irrelevant. For any system that must integrate with legacy networks or where the plant standard requires ControlNet or DeviceNet segments, CompactLogix is generally not the right platform, and attempting to force that network combination will create integration risks that are difficult to resolve after hardware selection is locked in.

Enterprise integration, SCADA, and Historian connectivity work well on both platforms over EtherNet/IP. The distinction becomes relevant again when the number of SCADA-connected nodes and the complexity of the plant historian architecture grow beyond what CompactLogix is designed to anchor.

Redundancy, High Availability, and Fault Tolerance

Controller redundancy is available on specific ControlLogix models — including the L7xS family with associated redundancy modules — and represents a capability that simply does not exist natively in CompactLogix. For any application where controller failure would result in a process shutdown with serious consequences — continuous chemical processes, critical batch systems, high-uptime manufacturing lines — this difference is decisive. Asking about redundancy requirements at the architecture stage, before hardware is specified, is one of the most important habits in platform selection. Projects that discover a redundancy requirement at the commissioning or safety review stage and then face a platform switch are a well-documented source of cost overruns in industrial automation.

Network redundancy options and system fault tolerance architecture also differ between platforms. ControlLogix's modular design allows redundant communication paths and power supplies to be included in the chassis build. CompactLogix offers more limited fault tolerance options by virtue of its compact, integrated form factor. For applications in food and beverage, oil and gas, water treatment, and chemical processing where uptime is a documented engineering requirement, the redundancy conversation should happen in the first architecture meeting.

Engineering, Programming, and Maintenance Across Both Platforms

One of the genuine strengths of the Logix 5000 family is that an engineer who programs one platform can work on the other. Studio 5000 Logix Designer is the single development environment for both ControlLogix and CompactLogix, and the tag-based programming model, AOI libraries, and UDT structures are portable between platforms with hardware-specific adaptation. This means a facility that standardizes across both tiers does not need two separate engineering skill sets — it needs engineers who understand where the hardware boundaries are between platforms.

Program portability is real but requires care. Logic referencing specific I/O module slots, hardware-specific motion configurations, or communication module addresses must be adapted when moving between ControlLogix and CompactLogix. The instruction set itself is largely the same; the hardware mapping is not. Maintenance considerations also differ: ControlLogix allows individual module replacement in a populated chassis — a failed I/O or communication module can often be swapped without disturbing adjacent modules. CompactLogix CPU and expansion module replacement is also straightforward for trained maintenance teams, though the compact assembly means less modularity in some configurations.

Physical Installation, Panel Space, and Power

ControlLogix installations require planning for the 1756 chassis, the power supply module, and the full set of I/O and communication modules — all of which must be mounted, wired, and powered within the enclosure. For large systems this is routine and the chassis format is well-understood by panel shops with Rockwell Automation experience. For smaller machines, the same chassis format can create panels that are physically larger and more complex to wire than the application strictly requires.

CompactLogix installations are faster to complete for typical machine builds. The integrated CPU and expansion I/O reduce the total component count and the wiring effort compared to an equivalent ControlLogix rack. Power supply requirements differ: ControlLogix chassis require a chassis power supply module, while CompactLogix controllers use a different power arrangement that should be confirmed against the specific controller model's documentation. Grounding, noise immunity, and environmental ratings are variant-specific for both platforms and must be verified against the installation environment before final hardware selection.

Total Installed Cost and What Actually Drives It

CompactLogix typically has a lower entry cost for the controller and a limited I/O configuration — and for applications that genuinely fit within its scope, the total installed cost is meaningfully lower than an equivalent ControlLogix system. The cost gap narrows, and can reverse, when a CompactLogix system requires extensive expansion modules, multiple communication options, or design work to work around redundancy limitations that ControlLogix would have handled natively.

ControlLogix has higher hardware costs for the chassis, individual modules, and expansion architecture. For large systems, that hardware cost is justified by the scalability, redundancy options, and network flexibility the platform delivers. For small machines, it represents unnecessary spending on capability that the application will never use. The worst cost outcome in platform selection is choosing CompactLogix primarily because it looks cheaper and then discovering late in the project that the system requires a ControlLogix-tier capability — the cost of migration at that point typically exceeds the original hardware cost difference several times over.

Current pricing for both ControlLogix and CompactLogix hardware requires distributor confirmation — list prices for Rockwell Automation hardware are not published openly and vary by configuration, volume, and region. Contact LeadTime.ca for current pricing and availability on specific part numbers for either platform.

Decision Scenarios: Which Platform Fits Your Application

The following scenarios are drawn from the decision framework in this brief and represent common application types where platform selection has a clear recommended outcome. Each reflects a combination of I/O scale, motion requirements, network architecture, and redundancy needs — the four variables that together determine the right platform more reliably than any single threshold number.

Application Scenario Recommended Platform Primary Rationale
Standalone packaging machine (under 250 I/O, up to 8 motion axes, EtherNet/IP only) CompactLogix I/O and axis count within CompactLogix capabilities; integrated Ethernet ports simplify wiring; compact panel fits tight footprint
Multi-line food and beverage plant with several hundred EtherNet/IP nodes and central historian ControlLogix for plant-level; CompactLogix at machine level where appropriate Node count and central coordination favour ControlLogix as the backbone; individual machines may still use CompactLogix
Redundancy-critical chemical process unit with continuous operation and high uptime requirements ControlLogix with supported redundancy controller and modules Native controller redundancy options exist in ControlLogix; CompactLogix generally lacks redundancy support for critical applications
OEM manufacturing skid shipped globally, moderate I/O, simple motion, panel space constrained CompactLogix Compact form factor, straightforward EtherNet/IP connectivity, and lower hardware complexity suit OEM panel requirements
High-axis motion line (robotic cell plus multiple servo stations) with demanding coordination ControlLogix High motion axis count and complex coordination place demands on controller performance; ControlLogix is better suited
Small water/wastewater station with few pumps, valves, and modest SCADA integration CompactLogix Low I/O and moderate SCADA needs can be met by CompactLogix, keeping hardware and panel size manageable
Existing plant upgrading from multiple MicroLogix/SLC panels to a unified platform with room for growth Mixed: CompactLogix for smaller machine panels; ControlLogix for larger process areas and central coordination Tiered approach allows cost optimization while ensuring large areas have ControlLogix scalability and expansion capacity

ControlLogix vs CompactLogix: Side-by-Side Specification Comparison

The tables below compare both platforms across core system role, hardware architecture, networking, performance, and cost drivers. All values are illustrative and variant-dependent — confirm specific limits against the controller model's technical documentation before finalizing a specification.

Feature ControlLogix (e.g., 5580 family) CompactLogix (e.g., 5380 family)
System role Large plant / line controller Machine / cell / skid controller
Form factor 1756 chassis with plug-in modules Compact CPU with side-mounted I/O expansion
Typical I/O scale Thousands of I/O across multiple racks (variant-dependent) Hundreds of I/O on one machine or skid (variant-dependent)
Redundancy options Controller redundancy available on specific models (e.g., L7xS family) No native controller redundancy
Networks EtherNet/IP plus optional ControlNet, DeviceNet, legacy networks via modules Primarily EtherNet/IP and USB; limited legacy options
Ethernet ports Built-in and/or via communication modules Integrated dual Ethernet ports on many models
User memory range Several MB up to tens of MB depending on model Under 1 MB up to around 10 MB depending on model
Motion capability Higher practical axis counts and complex coordinated motion Suitable for modest axis counts on machine-level applications
Programming environment Studio 5000 Logix Designer; tag-based, AOIs, UDTs Same environment; programs largely portable with hardware adaptation
Typical deployment Large plants, multi-cell lines, centralized architectures Individual machines, OEM skid packages, smaller systems
Cost and Deployment Aspect ControlLogix CompactLogix
Hardware cost drivers Higher chassis, module, and expansion hardware costs; suited to large systems Lower entry cost for controller and limited I/O; suited to small and mid-size machines
Panel space Generally larger footprint due to chassis and modules More compact, easier to fit in small panels
Installation complexity More components to mount and wire; modular flexibility is an advantage at scale Faster typical machine panel build; fewer components for straightforward applications
Current pricing Requires distributor confirmation Requires distributor confirmation

For current availability and pricing on specific ControlLogix or CompactLogix part numbers, check with the LeadTime.ca team — we source both platforms and ship worldwide.

Expert Verdict: Which Platform Should You Choose?

For most OEM machine builders and engineers specifying standalone machines, skids, or mid-size systems, the CompactLogix 5380 Controllers deliver the right balance of capability, physical footprint, and hardware cost. When EtherNet/IP is the primary network, motion axis counts are modest, and I/O is in the hundreds rather than the thousands, CompactLogix covers the technical requirements without the overhead of a chassis-based architecture. The integrated dual Ethernet ports, simpler panel layout, and lower entry-level hardware cost make it the natural choice for applications that fit within its documented capabilities. Where CompactLogix becomes a risk is when engineers treat it as a general-purpose substitute for ControlLogix without carefully checking node counts, redundancy requirements, and realistic growth projections — and then encounter a hard ceiling mid-project.

ControlLogix 5580 Controllers are justified when the application demands plant-scale scalability, high EtherNet/IP node counts, multiple network types, controller redundancy, or high-axis coordinated motion. None of these are marginal advantages — for a redundancy-critical chemical process unit or a multi-line plant with several hundred EtherNet/IP nodes and a central historian, ControlLogix is the correct platform and CompactLogix is not a viable alternative. A practical strategy for facilities with diverse system sizes is to deploy CompactLogix at machine level and ControlLogix at line and plant level, using each platform where it is genuinely suited rather than forcing one platform to cover the entire range.

The worst outcome in this decision is choosing purely on apparent upfront hardware cost — selecting CompactLogix because it looks cheaper without verifying I/O limits, node counts, and future growth, or choosing ControlLogix because it is the biggest option without a genuine need for its scalability. If you are at the architecture stage and want to validate your assumptions before specifying hardware, the LeadTime.ca team can help evaluate the fit and confirm availability for both platforms — check current stock and configuration options on the product pages at LeadTime.ca, or contact us directly for volume pricing and lead-time confirmation.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we source both ControlLogix and CompactLogix hardware and ship worldwide.

What Engineers Are Saying About Both Platforms

Community feedback on the ControlLogix vs CompactLogix question is consistent across automation forums, engineering blogs, and educational content: ControlLogix is routinely praised for its scalability, ability to handle thousands of I/O, support for multiple network types, and the availability of controller redundancy. Engineers working on large plant-scale systems or redundancy-critical process units frequently describe ControlLogix as the natural choice — the platform that does not impose a ceiling on growth. The recurring complaint from the same community is that ControlLogix is often over-specified for simple standalone machines, resulting in more hardware, more panel space, and more engineering time than the application actually needed.

CompactLogix receives consistent praise for its compact form factor, integrated Ethernet ports, simpler wiring, and cost-effectiveness for machine-level applications. OEM machine builders in particular value the ability to ship a complete, pre-wired panel with a CompactLogix system that fits standard enclosures. The complaints that surface regularly are mirror images of the ControlLogix complaints: users report running into I/O count or EtherNet/IP node limits when a system grows beyond the original specification, and the lack of native controller redundancy creates problems for anyone who assumed — incorrectly — that CompactLogix could be used in a high-availability application. These are not obscure edge cases; they are among the most frequently cited ordering and specification mistakes in the Allen-Bradley user community.

One theme that recurs in community discussions is the difficulty of applying a single numeric threshold to the decision. Experienced engineers consistently note that there is no single I/O count or axis count at which CompactLogix automatically becomes the wrong choice — the decision depends on the combination of I/O scale, node count, motion demands, redundancy requirements, and program complexity together. Community guidance converges on a practical approach: use CompactLogix for machines, use ControlLogix for plants and large lines, and apply a tiered strategy in facilities where both system types coexist. Projects that started on CompactLogix and later migrated to ControlLogix as system complexity grew are documented examples of what happens when growth projections are not factored into the initial platform decision.

Migration and Standardization: Moving from SLC, MicroLogix, or Mixed Platforms

Engineers migrating from SLC 500 or MicroLogix platforms to the Logix 5000 family face the same platform selection decision, compounded by the need to assess whether existing logic can be adapted or must be rewritten. Both ControlLogix and CompactLogix represent significant architectural upgrades from older Allen-Bradley platforms — the tag-based programming model, Studio 5000 environment, and EtherNet/IP connectivity are fundamentally different from legacy ladder-only programming and serial communication architectures. Migration tools and Rockwell Automation documentation exist to assist with the transition, but the I/O module form factors and addressing conventions are different and require deliberate adaptation work.

Facilities standardizing on the Logix family across a site with diverse system sizes benefit from a tiered strategy: CompactLogix at machine level, ControlLogix at line and plant level. This approach allows cost optimization for smaller machines while ensuring that large process areas and central coordination functions have the ControlLogix scalability and network options they require. The risk of standardizing on a single platform across all system sizes — using only CompactLogix to save cost, or only ControlLogix to simplify training — is that either approach will be a poor fit at one end of the system size range. A clear, documented rationale for where the cut-off between platforms sits within a facility is an important part of a platform standardization strategy, and one that is worth developing before hardware procurement begins rather than after.

Wrong-Platform Checklist: Seven Questions Before You Commit

Before finalizing platform selection for any new system, migration, or standardization project, work through the following checks. These are drawn directly from the decision framework for this comparison and represent the most common points where platform selection errors occur.

  1. Do you require controller or network redundancy? If yes, CompactLogix is generally not suitable.
  2. Will the EtherNet/IP node count approach several hundred devices? If yes, favour ControlLogix.
  3. Could the I/O count grow beyond roughly a few hundred points per machine or require many remote racks? If yes, consider ControlLogix.
  4. Do you need multiple networks (e.g., EtherNet/IP and ControlNet/DeviceNet/Remote I/O) in one architecture? If yes, ControlLogix is the primary option.
  5. Is the machine footprint extremely constrained, with limited panel space and simple I/O? If yes, CompactLogix likely fits better.
  6. Are you standardizing on one platform across a plant with mixed machine sizes? If yes, plan clear cut-offs where CompactLogix no longer scales comfortably.
  7. Are you assuming the cheaper-looking option will always cost less overall? If yes, re-evaluate total installed cost, including modules, networks, and expansion.

If any of the first four checks returns a yes and you have specified CompactLogix, stop and review the architecture before ordering hardware. Contact LeadTime.ca for technical support on platform selection and to confirm availability on specific controller and module part numbers before your project schedule is locked in.

Frequently Asked Questions

Is CompactLogix always cheaper than ControlLogix when you account for total installed cost?

Not always. CompactLogix has a lower entry cost for the controller and a limited I/O configuration, which makes it genuinely more economical for straightforward machine-level applications. The cost advantage narrows when the system requires extensive expansion modules, multiple communication options, or workarounds for capabilities — particularly redundancy — that ControlLogix provides natively. Total installed cost should account for controller, I/O modules, communication modules, chassis (for ControlLogix), power supplies, panel space, and engineering time. Current pricing for both platforms requires distributor confirmation.

Can I migrate a CompactLogix project directly to ControlLogix without rewriting logic?

Logic built in Studio 5000 Logix Designer using tag-based programming, AOIs, and UDTs is largely portable between platforms, but hardware-specific references — I/O module slot addresses, motion configurations, and communication module paths — must be adapted for the new hardware. The instruction set is shared across both platforms, which means the core logic structure transfers without a full rewrite. Engineers should plan for a structured hardware adaptation and testing process rather than a direct drop-in migration.

Does CompactLogix support controller redundancy for high-availability applications?

CompactLogix generally does not support native controller redundancy. Controller redundancy is available on specific ControlLogix models, including the L7xS family with associated redundancy modules. Any application where controller failure would result in a process shutdown with unacceptable consequences should be specified on a ControlLogix model that supports redundancy — this requirement should be identified at the architecture stage, not at commissioning.

At what point do motion axis counts force a move from CompactLogix to ControlLogix?

There is no single published universal threshold because the practical limit is variant-dependent and interacts with other system demands. The decision framework identifies a standalone packaging machine with up to 8 motion axes as a natural CompactLogix application, while a robotic cell combined with multiple servo stations involving demanding coordinated motion is identified as a ControlLogix application. When motion requirements involve high axis counts combined with complex coordinated motion profiles, ControlLogix is the appropriate platform. Verify maximum axis counts against the specific controller model's documentation for the configuration under consideration.

Can both platforms share the same Studio 5000 Logix Designer licenses and development environment?

Yes. Both ControlLogix and CompactLogix use Studio 5000 Logix Designer as the single programming environment. Tag-based programming, AOIs, UDTs, and the common instruction set are shared across both platforms. This is one of the genuine benefits of the Logix 5000 family: engineering skills, libraries, and tools developed on one platform are directly applicable to the other, with hardware-specific adaptation required for I/O and communication configuration.

What if a plant wants a single standard PLC platform — is one tier enough?

Using only one platform across all system sizes typically results in a poor fit at one end of the range. Standardizing on CompactLogix alone will encounter limits when larger process areas require redundancy, high node counts, or multiple network types. Standardizing on ControlLogix alone means over-specifying and over-spending on simple standalone machines. The recommended approach is a tiered standardization strategy: CompactLogix at machine level, ControlLogix at line and plant level, with a clearly documented rationale for where the cut-off between platforms sits. This approach allows both cost optimization and technical adequacy across diverse system sizes.

Why Source Through LeadTime.ca

  • LeadTime.ca sources both ControlLogix and CompactLogix hardware — controllers, I/O modules, communication modules, chassis, and power supplies — and ships worldwide
  • We help controls engineers and procurement teams validate platform selection assumptions and confirm specific part numbers before purchase
  • Volume pricing and lead-time confirmation available directly from our team for project-scale orders
  • Useful for locating specific controller variants and expansion modules that may have longer lead times through standard channels
  • Both CTAs below connect you to the right starting point depending on whether you need pricing or technical support:

At-a-Glance Summary

  • Both ControlLogix 5580 and CompactLogix 5380 Controllers are part of Rockwell Automation's Logix 5000 family and share Studio 5000 Logix Designer, tag-based programming, and a common instruction set
  • ControlLogix is defined by Rockwell Automation as a large control system platform; CompactLogix is defined as a small to medium control system platform
  • ControlLogix 5580 user memory ranges from several MB up to tens of MB depending on model; CompactLogix 5380 user memory ranges from under 1 MB up to around 10 MB depending on model
  • Controller redundancy is available on specific ControlLogix models (e.g., L7xS family with redundancy modules); CompactLogix does not support native controller redundancy
  • ControlLogix supports EtherNet/IP plus optional ControlNet, DeviceNet, and legacy networks via plug-in communication modules; CompactLogix is primarily EtherNet/IP and USB with limited legacy network options
  • Many CompactLogix 5380 models include integrated dual Ethernet ports; ControlLogix uses built-in ports and/or separate communication modules
  • A standalone packaging machine with under 250 I/O and up to 8 motion axes is a documented CompactLogix application; a robotic cell with demanding coordinated motion and high axis counts is a documented ControlLogix application
  • A tiered strategy — CompactLogix at machine level, ControlLogix at line and plant level — is the recommended approach for facilities with diverse system sizes
  • Current pricing for both platforms requires distributor confirmation; contact LeadTime.ca for availability and pricing on specific part numbers
