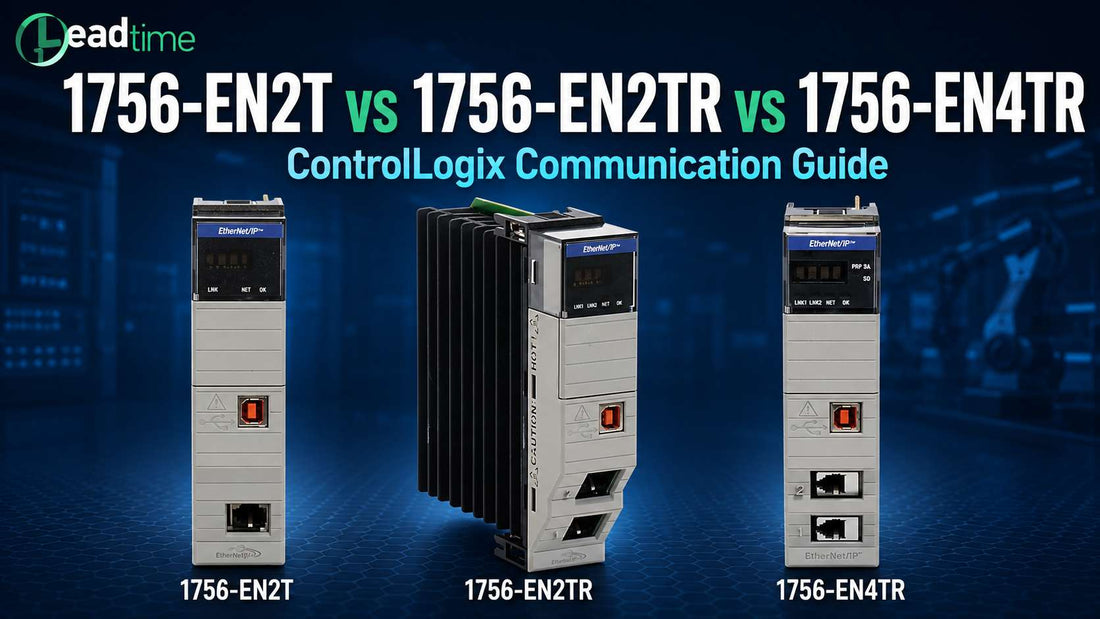

1756-EN2T vs EN2TR vs EN4TR ControlLogix EtherNet/IP Comparison Guide

Controls engineers designing or upgrading ControlLogix-based systems face a specific decision point: which EtherNet/IP communication module belongs in the chassis. The ControlLogix EtherNet/IP Communication Module (1756-EN2T), the ControlLogix EtherNet/IP Communication Module (1756-EN2TR), and the ControlLogix EtherNet/IP Communication Module (1756-EN4TR) are three distinct performance tiers within the same 1756 family — and choosing the wrong one affects topology, redundancy, motion capacity, security posture, and total system cost. This guide walks through every decision criterion so you can confirm the right catalog number before the bill of materials is finalized.

If you have already confirmed which module fits your architecture, check current pricing and availability at LeadTime.ca — ships worldwide.

Which ControlLogix Ethernet Module Is Right for Your System?

This comparison is relevant to controls engineers and system integrators working with ControlLogix 1756 chassis who need to match an EtherNet/IP communication module to their topology, traffic load, redundancy requirements, and security standards. Use the criteria below as a first-pass screen before going deeper into specification tables and scenarios.

  • You need a single-port 10/100 Mbps connection for a small to moderate star topology network with no Device Level Ring requirement — the 1756-EN2T is the starting point.
  • You require dual-port Device Level Ring redundancy with fast cable-failure recovery for a critical process cell at moderate scale — the 1756-EN2TR is the natural choice.
  • You are building a large plant network with many EtherNet/IP devices, multiple DLR segments, high drive and axis counts, or Gigabit bandwidth needs — the 1756-EN4TR is the appropriate tier.
  • Your facility is aligning with ISA/IEC 62443 guidance or requires modern security capabilities such as CIP Security — only the 1756-EN4TR's enhanced feature set addresses this direction.
  • You are upgrading from a legacy ENBT or an overloaded 1756-EN2T and need to assess whether the next step is EN2TR for DLR or EN4TR for growth and performance.

If your system is small, non-redundant, and budget-sensitive, the 1756-EN2T remains a valid and widely deployed option. If DLR is mandatory but scale is moderate, the 1756-EN2TR avoids unnecessary complexity. The 1756-EN4TR is not the default for every project — it is the right choice when topology, motion, bandwidth, or security requirements genuinely justify the step up.

On this page:

Where Each Module Sits in the ControlLogix Architecture

All three modules — the 1756-EN2T, 1756-EN2TR, and 1756-EN4TR — belong to the ControlLogix 1756 EtherNet/IP communication module family and serve the same fundamental purpose: bridging the ControlLogix backplane to an EtherNet/IP network for real-time I/O communication, messaging, and integration with drives, HMIs, and remote I/O. The difference is not in what they do conceptually, but in how much they can handle and what topologies they support.

The 1756-EN2T occupies the entry-to-mid tier of this family. It is a single-port module suited to standalone machines, smaller distributed I/O networks, and applications where a managed external switch handles all physical redundancy. The 1756-EN2TR steps up to dual-port operation with an integrated switch, enabling Device Level Ring without an external ring controller — making it the default for high-availability cells where cable-fault recovery time is a specification, not an afterthought. The 1756-EN4TR represents a different tier entirely: multiple ports, Gigabit Ethernet capability, multi-ring support, and an enhanced feature set that positions it for large plant architectures, extensive motion networks, and environments where security capabilities must evolve over time.

All three modules pair with ControlLogix processors including the 1756-L7x and 1756-L8x families. Controller firmware and module revision compatibility must be confirmed using Rockwell's Product Compatibility and Download Center before finalizing any design — this applies equally to all three catalog numbers.

Typical System Architecture

Each module sits between the ControlLogix backplane and the plant Ethernet network, acting as the gateway through which the controller communicates with all connected EtherNet/IP devices. A typical component chain looks like this:

  • ControlLogix 1756 chassis with processor (e.g., 1756-L7x or 1756-L8x) communicating over the backplane to the EtherNet/IP module.
  • 1756-EN2T, 1756-EN2TR, or 1756-EN4TR installed in the chassis, with its RJ45 port(s) connected to the plant Ethernet infrastructure.
  • Managed Ethernet switches (for EN2T star topologies) or direct device ring connections (for EN2TR and EN4TR DLR topologies) connecting downstream devices.
  • EtherNet/IP I/O adapters, variable frequency drives, servo drives, and HMI panels as end nodes on the network.
  • For EN4TR deployments: multiple ports may connect to separate DLR rings, VLANs, or network segments, with routing or firewall appliances separating traffic where required.

Physical Ports, Speeds, and Supported Network Topologies

The most immediate physical difference between these three modules is port count and network speed — and both have direct consequences for topology design.

The 1756-EN2T provides a single RJ45 copper port operating at 10/100 Mbps. With one port, the module connects to a single network segment through an upstream managed switch. Star topologies and linear daisy-chain configurations supported by external switches are the natural habitat for this module. It has no integrated switch and cannot participate in a Device Level Ring as a ring supervisor or ring member without external ring controller hardware.

The 1756-EN2TR provides dual RJ45 copper ports at 10/100 Mbps, with an integrated two-port switch. This integrated switch is what enables Device Level Ring: the two ports connect into a ring of EtherNet/IP devices, and the module can act as the DLR ring supervisor, detecting and recovering from a single cable or device failure without external switch involvement. For a single critical cell or production line requiring fast fault recovery, the 1756-EN2TR's dual-port DLR implementation is purpose-matched.

The 1756-EN4TR provides multiple RJ45 copper ports — commonly cited as four — with an integrated switch and 10/100/1000 Mbps (Gigabit) capability. Multiple ports enable the module to connect to several DLR rings simultaneously, to segment traffic across different network zones, or to support high-density device environments where bandwidth saturation at 10/100 Mbps would otherwise become the bottleneck. The Gigabit capability matters most in large motion networks, high-frequency data logging applications, and architectures where many devices share the same backplane gateway.

Performance, Bandwidth, and CIP Connection Capacity

Bandwidth tier is one of the clearest differentiators in this comparison. The 1756-EN2T and 1756-EN2TR both operate at a maximum of 10/100 Mbps, while the 1756-EN4TR supports up to 1 Gbps — a tenfold step in raw throughput capacity. In practice, most small to moderate EtherNet/IP networks never saturate a 100 Mbps link, which means bandwidth alone is not a reason to select EN4TR. The decision shifts when motion axes, historian data collection, and high-speed I/O scanning combine to generate traffic that approaches the limits of a 100 Mbps link.

CIP connection capacity follows a similar qualitative pattern: the 1756-EN2T supports a lower relative count, the 1756-EN2TR a medium count, and the 1756-EN4TR a higher count. Exact limits depend on the specific module revision and firmware version — engineers must consult Rockwell's 1756-TD003 technical data publication for the definitive figures before sizing. A frequently applied engineering practice is to stay below the maximum connection count rather than designing to the nameplate limit, leaving headroom for diagnostic connections, HMI polling, and future device additions.

Packet-per-second rates follow the same relative hierarchy. This matters in motion control applications where update rates on servo axes directly affect system performance, and in historian or data logging architectures where large numbers of tags are polled at high frequency.

Device Level Ring, Redundancy, and High-Availability Design

For many engineers, the single most important differentiator in this comparison is Device Level Ring support. DLR is a ring redundancy protocol defined within the EtherNet/IP specification that allows a single cable break anywhere in the ring to be detected and healed — typically in milliseconds — without dropping I/O connections or causing a controller fault. The ability to deliver this without external ring controllers or managed switches with RSTP/MRP configured is what makes dual- and multi-port ControlLogix Ethernet modules operationally significant in critical processes.

The 1756-EN2T has no DLR capability. Its single port connects to a managed switch, and any redundancy at the cable or switch level depends entirely on the external network infrastructure — spanning tree protocols, redundant switch links, or upstream RSTP configurations. For many applications this is completely adequate. For applications with uptime requirements that cannot tolerate the longer recovery times of managed switch redundancy, it is not.

The 1756-EN2TR supports a single Device Level Ring. Its dual ports connect directly into one ring of EtherNet/IP devices, with the module acting as the ring supervisor. This is the correct choice for a production cell, a conveyor line, or a packaging machine where a single ring of I/O adapters and drives must survive a cable failure without stopping the process.

The 1756-EN4TR supports multiple DLR segments and advanced ring configurations. With multiple ports and Gigabit capability, it enables more complex topologies — connecting to more than one DLR ring simultaneously, separating motion traffic from I/O traffic at the port level, or supporting plant-scale redundant networks with multiple rings feeding a single controller chassis. For large distributed systems where a single ring is insufficient, the 1756-EN4TR is the module that makes the architecture work.

Controller redundancy using a 1756-RM2 chassis redundancy module is a separate consideration that applies to all three Ethernet modules. Multiple communication modules per chassis can also be combined — for example, an EN2T for standard I/O and an EN2TR for a critical ring — and the total loading on the chassis power supply and backplane must be evaluated when doing so.

Motion Control Capabilities and Limits by Module

Motion over EtherNet/IP — controlling servo drives and variable frequency drives directly over the EtherNet/IP network — places higher demands on the communication module than standard I/O polling. High axis counts, fast update rates, and the combination of motion and I/O on the same network all consume connection capacity and packet-per-second budget simultaneously.

The 1756-EN2T is suitable for modest motion applications: a machine with a small number of axes at standard update rates, where motion and I/O together do not approach the module's connection ceiling. Engineers frequently use it in packaging machines, conveyor systems, and assembly stations with limited drive counts. As axis counts climb or update rates tighten, the EN2T becomes the bottleneck.

The 1756-EN2TR provides improved motion capacity compared to the 1756-EN2T and is appropriate for cell-level motion control — a work cell with several servo axes and distributed I/O on the same ring. It is still a mid-range module from a performance standpoint, and very large motion networks with many drives should be evaluated against its connection and bandwidth limits before it is specified.

The 1756-EN4TR is described by Rockwell sources as supporting high axis counts and motion-heavy applications at the plant scale. Its Gigabit bandwidth and higher CIP connection capacity make it the natural fit for drive-heavy architectures — multi-axis servo systems, large VFD networks, or plants where motion and I/O coexist on the same physical infrastructure. Exact axis counts and update rate limits depend on controller model, firmware revision, and system configuration; consult the 1756-TD003 technical data and Rockwell's sizing tools for application-specific confirmation.

CIP Security, Network Segmentation, and Modern Ethernet Features

Industrial network security has moved from a peripheral consideration to a core design requirement in most regulated industries. Facilities aligning with ISA/IEC 62443 guidance, responding to corporate cybersecurity mandates, or planning for future security capability upgrades need to factor module security features into the selection decision — not as an afterthought after the architecture is built.

The 1756-EN2T and 1756-EN2TR rely on conventional EtherNet/IP security measures: network segmentation through external managed switches, firewall appliances, VLAN configuration at the infrastructure layer, and access control enforced outside the module itself. These approaches are well-established and remain appropriate for facilities where advanced in-module security is not a current requirement. They are limited, however, in environments where in-device authentication, encryption, or CIP Security capabilities are being mandated.

The 1756-EN4TR carries an enhanced feature set that sources indicate includes support for newer security capabilities, including CIP Security. CIP Security is a set of security profiles defined within the EtherNet/IP specification that enables authentication and encryption at the device level, reducing exposure to unauthorized commands and data manipulation. Engineers working in environments referencing ISA/IEC 62443 — or planning to — should confirm the specific CIP Security capabilities supported by the 1756-EN4TR firmware revision they are targeting, using Rockwell's official documentation, before specifying the module on that basis.

The multi-port design of the 1756-EN4TR also has practical security relevance: separate ports can be connected to separate VLANs or network zones, enabling logical traffic segmentation at the module level rather than relying entirely on upstream switch configuration. This simplifies the network security architecture in high-density deployments. Any EN4TR deployment with multiple ports should include a deliberate IP addressing and VLAN plan developed in coordination with the facility's IT or OT network team — using EN4TR as a simple port expansion without network design creates flat, unmanaged network conditions that undermine the security benefits the module enables.

Five Real Decision Scenarios with Module Recommendations

The right module is always determined by the specific application architecture, not by brand preference or default specification. The five scenarios below represent the most common situations engineers face when choosing between these three catalog numbers.

Scenario 1 — Compact machine, limited I/O, no DLR requirement: One ControlLogix controller, fewer than approximately 50 EtherNet/IP devices including I/O, HMIs, and drives, connected through a standard managed switch in a star topology. No ring redundancy is required. The 1756-EN2T is the correct choice: a single 10/100 Mbps port is adequate, cost is lower, and configuration is straightforward. The 1756-EN2TR is functional but adds unnecessary dual-port complexity. The 1756-EN4TR is not justified at this scale.

Scenario 2 — High-availability cell requiring Device Level Ring: A critical process cell with one or two ControlLogix controllers, a requirement for fast recovery from single cable failures, and a moderate number of EtherNet/IP devices forming a ring. The 1756-EN2TR is the right choice: its dual-port DLR implementation handles single-ring high-availability without requiring additional hardware. The 1756-EN2T cannot provide DLR and is disqualified. The 1756-EN4TR may be justified if future expansion is planned or if the ring device count is already high.

Scenario 3 — Plant-wide network with many devices and motion axes: Large distributed I/O, many drives and servo axes, multiple DLR ring segments, and extensive data logging to a historian. The 1756-EN4TR is the correct choice: Gigabit bandwidth, higher CIP connection capacity, multiple ports for ring segmentation, and support for large motion applications. The 1756-EN2T is inadequate at this scale. The 1756-EN2TR may be a limiting factor if connection counts or bandwidth demands are high.

Scenario 4 — Upgrade from legacy ENBT or overloaded EN2T: An existing system with an ENBT or 1756-EN2T module approaching connection limits, with some motion and a growing device count. If the primary driver is DLR and moderate capacity growth, the 1756-EN2TR is the logical step. If performance growth and motion demands are the central concern — or if the plant expects significant future expansion — the 1756-EN4TR is the better long-term investment. Staying with the 1756-EN2T in this scenario is a disadvantage.

Scenario 5 — Security- and compliance-focused environment: A facility aligning with ISA/IEC 62443, with a strong security policy requiring modern capabilities and structured segmentation. The 1756-EN4TR's enhanced feature set, including support for newer security capabilities such as CIP Security, and its multi-port design for network segmentation make it the correct choice. The 1756-EN2T and 1756-EN2TR both rely on external measures for advanced security and are at a disadvantage in this context.

Head-to-Head Specification Tables

Physical Interfaces and Network Topology

Attribute 1756-EN2T 1756-EN2TR 1756-EN4TR
Ethernet Speed 10/100 Mbps copper 10/100 Mbps copper Up to 1 Gbps copper (Gigabit)
Port Count Single RJ45 Dual RJ45 with integrated switch Multiple RJ45 (commonly cited as four) with integrated switch
DLR Support No Yes — single Device Level Ring Yes — multiple DLR segments
Typical Topology Star via managed switch Single DLR ring or star Multiple rings, segmented networks, star

Performance and Connection Capacity (Qualitative)

Attribute 1756-EN2T 1756-EN2TR 1756-EN4TR
Relative CIP Connections Lower Medium Higher
Relative Packet Rate Lower Medium Higher
Suitable System Size Small to moderate Moderate to large cells Large systems and plants
Motion Fit Few axes, modest demands Cell-level motion control High axis counts, drive-heavy plants

Security and Lifecycle Features

Attribute 1756-EN2T 1756-EN2TR 1756-EN4TR
Security Feature Set Basic EtherNet/IP; external measures Basic EtherNet/IP; external measures Enhanced; sources indicate CIP Security support
Best Fit Standard, non-regulated facilities High-availability, traditional security Security-conscious, modern plant architectures

Cost and Availability Context (Qualitative)

Attribute 1756-EN2T 1756-EN2TR 1756-EN4TR
Relative Price Tier Lowest Medium Highest
Availability Pattern Common Common Newer; may be more variable
Note Market-typical estimates only — verify current pricing and availability with distributor before quoting.

Full technical specifications and current pricing are available on the product page at LeadTime.ca. If your connection or motion requirements push toward the 1756-EN4TR, contact the LeadTime.ca team to confirm current availability before committing to a build schedule.

Expert Verdict: EN2T vs EN2TR vs EN4TR — Which One Do You Actually Need?

The 1756-EN2T remains a legitimate, widely deployed choice for controls engineers building small to moderate ControlLogix systems on straightforward star topologies. Its single 10/100 Mbps port is more than adequate for applications with limited EtherNet/IP device counts, no DLR requirement, and modest motion demands. For budget-sensitive projects — standalone machines, retrofit applications, and systems where external managed switches handle all network redundancy — it delivers reliable EtherNet/IP communication without the overhead of features the application does not need. The mistake is not choosing EN2T for the right application; it is choosing it for applications that have already outgrown its capacity or require topology features it cannot provide.

The 1756-EN2TR is the correct specification the moment Device Level Ring becomes a real requirement. Dual-port DLR support, delivered without external ring controllers, defines the EN2TR's role: high-availability cells, critical process lines, and applications where cable-fault recovery time is a functional specification. It is not a universal upgrade over the EN2T — it adds cost and dual-port topology complexity that is unnecessary in simpler networks. It also has real limits in large systems. Engineers who find themselves asking whether their growing device count or motion load is pushing past EN2TR's connection capacity ceiling should take that question seriously, and the answer often points toward the 1756-EN4TR rather than adding a second EN2TR. When system growth, motion scaling, multiple ring segments, or security requirements enter the picture, the 1756-EN4TR is the appropriate choice — not a premium option to consider, but the correct tier for that architecture.

From a procurement standpoint, the 1756-EN2T and 1756-EN2TR are well-established catalog numbers with consistent availability. The 1756-EN4TR is a newer module and availability can be more variable — confirming lead times before committing to a project schedule matters more with this catalog number than with the others. Pricing follows a clear qualitative tier: EN2T is the lowest-cost option, EN2TR is mid-tier, and EN4TR carries the highest price point. Current pricing for all three is available on the product page at LeadTime.ca. For volume orders, phased upgrade planning, or lead time confirmation before a project deadline, contact the LeadTime.ca team directly — we source Allen-Bradley ControlLogix modules and ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About the EN2T, EN2TR, and EN4TR

Community sentiment across forums including Reddit's r/PLC and general industrial automation discussions follows a consistent pattern that aligns closely with the functional differences between these modules. Engineers treat the 1756-EN2T as the entry-level workhorse: frequently praised for simplicity and reliability in smaller applications, and just as frequently flagged as the first bottleneck when systems grow. The most common complaint is straightforward — the EN2T is easy to overload in larger architectures, and engineers who designed a system at modest scale often find themselves revisiting the module choice as I/O points, drives, and HMI connections accumulate. Motion-heavy applications and high-speed data logging to historians surface as the most consistent performance pain points for EN2T deployments at scale.

The 1756-EN2TR has earned a reputation as the standard choice when DLR is a requirement and system size is moderate. It is described in community discussions as the default for mission-critical cells — the module engineers reach for when a single cable break cannot be allowed to take down a production line. The recurring caveat is the same one the specifications suggest: as systems grow beyond a single ring or start pushing connection limits, the EN2TR begins to show its mid-tier ceiling. Some engineers report specifying EN4TR proactively on new projects specifically to avoid having to upgrade EN2TR modules when the system expands beyond its original scope.

The 1756-EN4TR draws positive commentary from engineers working on large plant networks, drive-heavy systems, and Industry 4.0-oriented architectures. High performance, many connections, and strong motion support are the recurring points of praise. The most common concerns are cost, configuration complexity relative to the simpler modules, and ensuring controller firmware is correctly aligned before commissioning — particularly for security features like CIP Security. Upgrading from ENBT or EN2T to EN4TR in existing systems draws generally positive feedback when the migration is well-planned, with performance improvements noted in high-load environments. The community consensus is clear: EN2T for simple applications, EN2TR for cost-effective DLR, EN4TR for demanding and future-ready systems. Exact connection limits and motion axis capacities remain a persistent source of confusion, reinforcing the value of datasheet-based sizing against the 1756-TD003 rather than relying on community rule-of-thumb figures.

Configuration and Commissioning Overview

All three modules are configured within Studio 5000 Logix Designer using their respective Add-On Profiles. The configuration process follows the same general workflow, with differences in parameters related to port count, DLR ring settings, and advanced feature configuration for the EN4TR. Key points to verify before and during commissioning:

  • Assign IP addresses using BOOTP/DHCP or a static address — identify each module by its MAC address, which is printed on the module label.
  • For 1756-EN2TR and 1756-EN4TR, configure DLR ring supervisor settings in the module properties; confirm ring topology is correctly cabled before enabling the ring supervisor function.
  • Verify controller firmware and module firmware compatibility using Rockwell's Product Compatibility and Download Center before adding the module to an existing chassis configuration.
  • For 1756-EN4TR deployments with multiple active ports, confirm IP addressing scheme, VLAN assignments, and port usage with the facility network team before going live.
  • When migrating from an EN2T or EN2TR to an EN4TR, update the module definition in the Studio 5000 project and verify all I/O connection parameters — do not assume configuration transfers without review.

Full configuration procedures are documented in Rockwell's ControlLogix EtherNet/IP Network Configuration User Manual. Engineers performing first-time EN4TR commissioning or migrating from EN2T/EN2TR should reference that document directly.

Backplane Loading and Module Count Per Chassis

The number of communication modules in a ControlLogix chassis has both backplane electrical loading implications and architectural design implications. When upgrading from EN2T or EN2TR to EN4TR, or when combining multiple communication modules in a single chassis for redundant or segmented designs, the following factors apply:

  • Each communication module draws power from the ControlLogix chassis power supply — confirm total backplane current budget against the power supply rating when adding or upgrading modules.
  • Multiple Ethernet modules in one chassis are architecturally valid and commonly deployed for segmentation or redundancy; the real bottlenecks in high-density configurations are typically on the Ethernet network side, not the backplane itself.
  • When combining an EN4TR with other modules for segmented networks, plan chassis slot allocation early — communication modules and I/O modules share the same backplane bandwidth.
  • EN4TR's multi-port capability may reduce the total number of communication modules needed per chassis in some architectures, consolidating what would previously require multiple EN2TR modules into one slot.

Common Selection Mistakes and How to Avoid Them

The five mistakes below represent the most frequent errors engineers and procurement specialists make when specifying these modules. Reviewing this checklist before finalizing a bill of materials prevents costly field changes.

  1. Confirm whether the architecture requires Device Level Ring; do not choose EN2T if DLR is mandatory.
  2. Verify controller firmware supports the selected module revision and any advanced features (DLR, CIP Security).
  3. Size for realistic connection counts and traffic, not just nameplate maximums; apply Rockwell's typical 80% rule where applicable.
  4. Check motion axis counts and update rates; do not assume all modules support identical motion capacity.
  5. Evaluate IP addressing scheme and VLANs for multi-port EN4TR deployments; avoid flat, unmanaged networks on high-density modules.
  6. Confirm existing infrastructure (switches, cabling) can handle Gigabit links if EN4TR is selected.
  7. Validate backplane loading and number of communication modules per chassis when upgrading from EN2T/EN2TR to EN4TR.

If you are not certain which catalog number is correct for your architecture after working through this checklist, contact the LeadTime.ca team before ordering — getting the module right before the chassis is assembled is significantly less expensive than a post-installation swap.

Frequently Asked Questions

Does the 1756-EN2T support Device Level Ring, or do I need an external ring controller?

The 1756-EN2T does not support Device Level Ring. It provides a single RJ45 port and connects to the network through an upstream managed switch. DLR requires a dual- or multi-port module with an integrated switch — either the 1756-EN2TR for a single ring or the 1756-EN4TR for multiple rings. If DLR is a requirement, the 1756-EN2T is disqualified regardless of cost considerations.

Can I mix 1756-EN2TR and 1756-EN4TR modules in the same ControlLogix chassis or plant?

Yes. Multiple EtherNet/IP communication modules from the same 1756 family can coexist in a ControlLogix chassis and within the same plant network. A common architecture uses one module for a critical DLR ring and another for general I/O or HMI connectivity. When mixing modules, verify total backplane power draw against the chassis power supply capacity and confirm that each module's firmware is compatible with the installed controller firmware revision.

How do I estimate whether my application will exceed the connection capacity of the EN2T or EN2TR?

Count all EtherNet/IP connections the controller will maintain through the module: each I/O adapter, each drive, each HMI polling connection, and any message-based connections to other controllers or devices. Compare the total against the module's connection limit from Rockwell's 1756-TD003 technical data for the specific firmware revision you are using. Applying a margin below the maximum — a commonly referenced guideline is to target around 80% of the nameplate limit — provides headroom for peak loads and future device additions. If the estimate approaches the limit, move to the next tier.

Will upgrading from a 1756-EN2T to a 1756-EN4TR require changes to my network switches or IP addressing?

Potentially yes. The 1756-EN4TR's multiple ports and Gigabit capability may require switch ports configured for Gigabit operation and a planned IP addressing and VLAN scheme if the additional ports are being used for network segmentation. Simply replacing an EN2T with an EN4TR in a slot and connecting only one port in a star topology is possible, but it foregoes the multi-port and multi-ring capabilities that justify the EN4TR's higher cost. Before upgrading, review port usage intent with your network team and update the Studio 5000 module definition — do not assume the existing configuration transfers without change.

Where do I find the official connection count and motion axis limits for each module?

Rockwell Automation publishes this data in the 1756-TD003 EtherNet/IP Modules Technical Data document, available through literature.rockwellautomation.com. Limits vary by module revision and controller firmware version, so always use the version-specific datasheet rather than generic figures from forums or third-party sources. For motion axis limits, also reference the ControlLogix Motion and Drive specifications relevant to your controller model and the motion application profile you are configuring.

Is the 1756-EN4TR compatible with existing ControlLogix controllers, or does it require a newer processor?

The 1756-EN4TR is designed for the ControlLogix 1756 platform and is compatible with controllers including the 1756-L7x and 1756-L8x families, subject to firmware revision requirements. Some advanced features — including any CIP Security capabilities — may require specific minimum firmware versions on both the module and the controller. Confirm compatibility using Rockwell's Product Compatibility and Download Center for your specific controller model and firmware version before specifying the EN4TR in a project.
