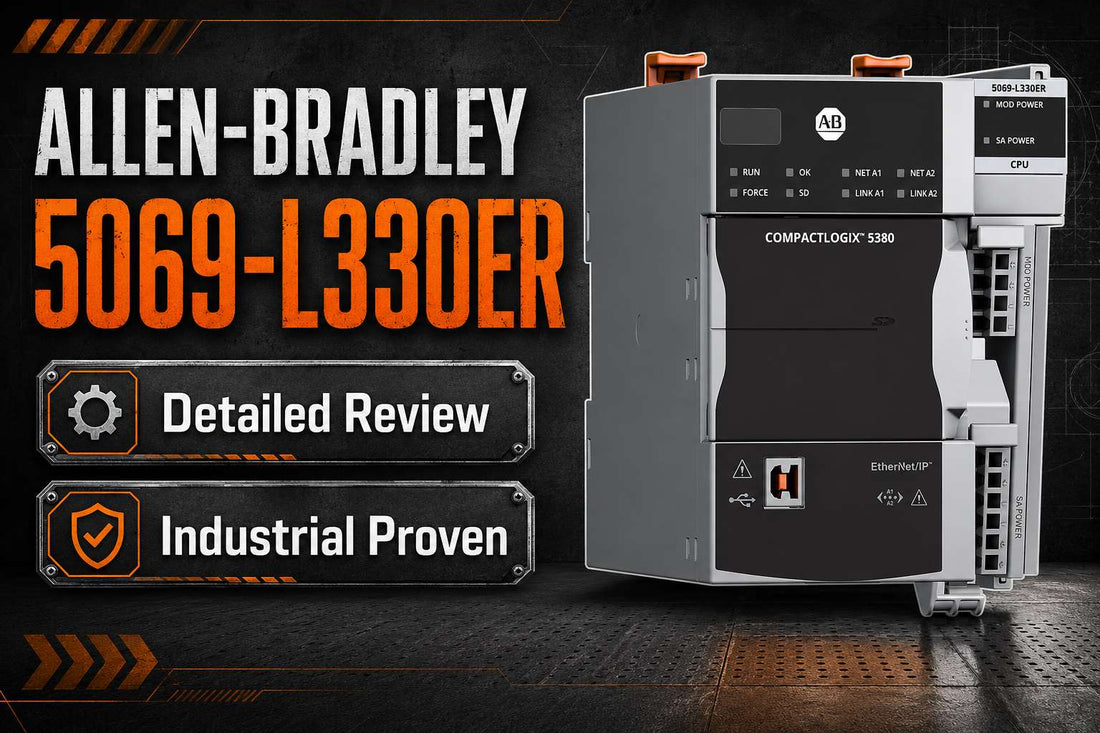

Allen-Bradley 5069-L330ER CompactLogix 5380 — Specs & Buyer's Guide
Allen-Bradley 5069-L330ER CompactLogix 5380 Controller: Specs, Pricing, Selection Guide, and Expert Review
If you are specifying a mid-range controller for a packaging line, material handling cell, or process skid inside a Rockwell-standard plant, the Allen-Bradley 5069-L330ER CompactLogix 5380 Controller is almost certainly on your shortlist. This is a standard, non-safety, non-integrated-motion Logix CPU with 3 MB of application memory and dual EtherNet/IP ports, sitting in the Compact 5000 (5069) platform and programmed through Studio 5000 Logix Designer. The central decision for most buyers is not whether this controller is capable — it is whether it is the right specific variant for their application.
If you have already confirmed this is the correct part for your BOM, check current pricing and availability for the 5069-L330ER at LeadTime.ca — we ship worldwide.
Who Should Buy the 5069-L330ER — and Who Shouldn't
The Allen-Bradley 5069-L330ER CompactLogix 5380 Controller is the right choice if all of the following apply to your project:
- Your application requires 3 MB of application memory for logic, data tables, and recipe storage — and that capacity covers current needs plus foreseeable expansion.
- Your network architecture uses EtherNet/IP with star, Device Level Ring (DLR), or linear topology, connecting drives, HMIs, remote I/O, and field devices.
- Your local I/O is built on 5069 Compact 5000 I/O modules with a compatible 5069 power supply — not older 1769 Compact I/O.
- Your plant standard is the Rockwell ecosystem: Studio 5000 Logix Designer, PanelView HMIs, and Allen-Bradley drives.
- You do not require integrated safety control in the CPU (that need is served by GuardLogix 5380 variants) and you do not require integrated Kinetix motion axes (that need is served by ERM variants such as the 5069-L330ERM).
If you need integrated safety control, look at the GuardLogix 5380 family (5069-L3xERMS variants). If your machine coordinates Kinetix servo axes from the controller itself, the 5069-L330ERM or another ERM variant is the correct choice. If 3 MB is tight for your application, step up to a higher-memory 5380 CPU or evaluate the ControlLogix 5580 platform.
On this page:
- Who Should Buy the 5069-L330ER — and Who Shouldn't
- What the 5069-L330ER Actually Does in a Control System
- Typical System Architecture for a 5069-L330ER Application
- Industries and Applications Where the 5069-L330ER Fits
- Key Specifications and Variant Comparison
- Expert Verdict: Is the 5069-L330ER the Right Controller for Your Project?
- What Engineers Are Saying About the CompactLogix 5380 5069-L330ER
- Installation and Wiring Overview
- Wrong-Part Prevention Checklist Before You Order
- Frequently Asked Questions
- Why Order the 5069-L330ER Through LeadTime.ca
- At-a-Glance Summary
What the 5069-L330ER Actually Does in a Control System
The Allen-Bradley 5069-L330ER is the central execution engine of a Compact 5000-based machine or skid. It runs Logix application code — ladder diagram, function block, structured text, or sequential function chart — storing and executing that code from its 3 MB of application memory. Every tag, every task, every connection to a drive, HMI, or remote I/O rack is owned and managed by this CPU. It is the intelligence that decides when a conveyor starts, when a valve opens, and whether a fault condition requires a machine stop.
What distinguishes the 5380 generation from older CompactLogix 1769 controllers is both performance and connectivity. The 5069-L330ER carries two EtherNet/IP ports operating at up to 1000 Mbps, supporting Device Level Ring (DLR) topology in addition to conventional star and linear wiring. This matters practically: engineers designing machines with ring redundancy for network fault tolerance no longer need an external managed switch at the controller level. The dual-port design also supports linear daisy-chain topologies that reduce wiring costs on line-format machines.
The controller is a standard, non-safety CompactLogix 5380 CPU. It does not contain an integrated safety processor or SIL-rated safety task execution. Safety I/O, emergency stop logic, and safety-rated network functions must be handled at the system level — either through a separate GuardLogix CPU or through certified safety I/O modules on the network. Similarly, it carries no integrated motion execution engine for Kinetix servo drives; that capability lives in ERM-suffix variants of the 5380 family.
Programming is done exclusively through Studio 5000 Logix Designer, which is the common platform across CompactLogix and ControlLogix families. Engineers familiar with any Logix-family controller will find the 5069-L330ER immediately familiar, making it a practical choice for plants that have already invested in Rockwell tooling and training.
Typical System Architecture for a 5069-L330ER Application
The 5069-L330ER sits at the top of the local Compact 5000 backplane, connected downstream to I/O modules and upstream to the plant Ethernet network and engineering workstations. Here is how a typical deployment looks:
- A 5069 power supply module mounts directly adjacent to the 5069-L330ER on DIN rail, feeding the backplane and I/O modules — external protection devices (fuses or breakers) are required upstream of the power supply per the installation manual.
- 5069 Compact 5000 I/O modules connect on the local backplane for digital and analog signals at the machine — these are distinct from and not compatible with older 1769 Compact I/O.
- The two EtherNet/IP ports connect the 5069-L330ER to a plant switch (star topology) or directly to devices in a DLR or linear chain — common connected devices include Allen-Bradley drives, PanelView HMIs, remote 5069 I/O racks, and barcode scanners.
- Studio 5000 Logix Designer on an engineering workstation connects via Ethernet to create, modify, download, and monitor the Logix project.
- A nonvolatile SD card (typically the 1784-SD2 2 GB card) provides backup and restore capability, allowing program and configuration recovery without a connected PC.
Industries and Applications Where the 5069-L330ER Fits
The 5069-L330ER is most at home as the main CPU on mid-sized OEM machines in packaging, material handling, and assembly. Case packers, cartoners, palletizers, and label applicators that coordinate conveyor drives, sensors, and an HMI over EtherNet/IP represent the core use case. The 3 MB memory and dual Ethernet ports give enough headroom for typical machine sequences, motion coordination through external drives, and a modest number of network-connected devices without needing a full ControlLogix chassis.
Automotive and tier-1 manufacturing cells are another strong fit — particularly robotic workcells where the 5069-L330ER acts as a cell coordinator, communicating with robots via gateway devices, conveyor drives, and barcode verification systems over EtherNet/IP. The controller does not run robot motion natively, but it orchestrates the cell sequence and manages device communications.
Process skids — mixing, batching, and CIP units — with moderate analog and digital I/O counts are well served by the 5069-L330ER's local backplane and Ethernet connectivity. Water and wastewater packaged systems and life sciences skids where CompactLogix is an approved controller are additional secondary applications.
The 5069-L330ER is also a go-to choice when retrofitting older CompactLogix 1769 or SLC-based panels to a current-generation platform, particularly when the plant wants to stay within the Rockwell ecosystem and leverage existing Studio 5000 competency.
| Application | Typical Deployment |
|---|---|
| Packaging machine (case packer, cartoner) | Main CPU coordinating drives, conveyors, sensors, and PanelView HMI over EtherNet/IP |
| Robotic workcell controller | Cell coordinator managing robot gateways, drives, and vision/barcode devices on DLR network |
| Process skid (batching, CIP, mixing) | Local 5069 analog and digital I/O with EtherNet/IP connection to plant SCADA or higher-level controller |
| Material handling line segment | Zone controller with linear or star EtherNet/IP topology connecting conveyor drives and sensors |
| Retrofit of older CompactLogix or SLC panel | Drop-in platform upgrade to 5069 Compact 5000 I/O and Studio 5000 environment |
| Distributed control node under ControlLogix | Sub-controller reporting to a ControlLogix 5580 at the plant level via EtherNet/IP messaging |
Key Specifications and Variant Comparison for the 5069-L330ER
| Parameter | Value | Notes |
|---|---|---|
| Catalog Number | 5069-L330ER | CompactLogix 5380 family, 5069 platform |
| Controller Type | CompactLogix 5380 standard controller | Non-safety, non-integrated-motion variant |
| Application Memory | 3 MB | Verify adequacy for logic, data tables, and future expansion |
| Programming Software | Studio 5000 Logix Designer | Confirm required major revision matches plant standard |
| Communication Ports | 2 x EtherNet/IP, 1 x USB | Ethernet supports 10/100/1000 Mbps |
| Network Topologies Supported | Star, Device Level Ring (DLR), Linear | Per CompactLogix 5380 documentation |
| Local I/O Platform | 5069 Compact 5000 I/O modules | Not compatible with 1769 Compact I/O |
| Power Supply | Supplied via 5069 power supply module | Requires external protection upstream; select matching PSU |
| Nonvolatile Storage | SD card (1784-SD2, 2 GB typically supplied) | Used for program backup and restore; confirm for specific shipment |
| Mounting | DIN rail, inside control panel | Vertical orientation and spacing per installation manual |
Full technical specifications are available on the product page at LeadTime.ca.
| Model | Memory | Integrated Motion | Integrated Safety | Typical Application |
|---|---|---|---|---|
| 5069-L306ER | Lower than 5069-L330ER | No | No | Smaller machines, cost-sensitive builds |
| 5069-L310ER | Lower than 5069-L330ER | No | No | Compact machines with moderate I/O |
| 5069-L320ER | Lower than 5069-L330ER | No | No | Mid-small machines below 3 MB requirement |
| 5069-L330ER | 3 MB | No | No | Mid-range machines, packaging, process skids |
| 5069-L330ERM | 3 MB | Yes (Kinetix) | No | Mid-range machines requiring integrated servo motion |
| 5069-L340ER | Higher than 5069-L330ER | No | No | Larger machines needing more memory headroom |
| 5069-L3xERMS (GuardLogix 5380) | Varies by catalog | No | Yes (SIL-rated) | Applications requiring integrated safety control in the CPU |
| ControlLogix 5580 | Higher | Yes (with motion module) | Yes (GuardLogix) | Large plant-wide systems, high I/O counts, complex motion |
If your application requires Kinetix servo axis coordination from the CPU or an integrated safety task, the 5069-L330ER is not the correct variant — see the product page at LeadTime.ca or contact the team to confirm the right catalog number before ordering.
Expert Verdict: Is the 5069-L330ER the Right Controller for Your Project?
The Allen-Bradley 5069-L330ER CompactLogix 5380 Controller earns its place as the default mid-range CPU for Rockwell-standard OEM machines and plant skids. The combination of 3 MB application memory, dual Gigabit EtherNet/IP ports with DLR support, and the well-established Studio 5000 programming environment gives controls engineers a capable, current-generation platform without the cost or complexity of a full ControlLogix 5580 chassis. For packaging machines, material handling cells, process skids, and distributed sub-controllers under a ControlLogix system, this controller fits the performance and connectivity profile well. Plants already invested in the Rockwell ecosystem — with existing PanelView HMIs, Allen-Bradley drives, and Studio 5000 licenses — will find the 5069-L330ER integrates without friction into their standard architecture.
The real limits are predictable and well-defined: this controller does not support integrated safety control, so applications requiring SIL-rated safety tasks in the CPU belong on a GuardLogix 5380 variant such as the 5069-L3xERMS. Applications that need the controller to directly coordinate Kinetix servo axes require an ERM-suffix variant like the 5069-L330ERM, not this catalog number. And if your application's logic, data arrays, and device connections are pushing the limits of 3 MB today, the right move before ordering is to step up to the 5069-L340ER or confirm whether ControlLogix 5580 is justified. The most common project problems with this controller are not hardware failures — they are selection errors caught too late in the build cycle.
From a procurement standpoint, the 5069-L330ER is a current-generation controller on Rockwell's active product roadmap, which matters for long-term spare part planning and firmware support. Lead times for Rockwell CompactLogix 5380 controllers can move to multi-week ranges during supply constraint periods, which makes early ordering and holding at least one critical-line spare a sound strategy. Buying through a specialist distributor that knows the Compact 5000 platform means you get variant validation, firmware version alignment with your plant standard, and realistic lead time guidance before you commit to a build schedule — not after a wrong-part delivery arrives. Check current availability and pricing for the 5069-L330ER at LeadTime.ca — we ship worldwide.
For volume pricing, spare-part stocking arrangements, or lead time confirmation before committing to a project BOM, contact the LeadTime.ca team directly — we ship worldwide and can support procurement from any region.
What Engineers Are Saying About the CompactLogix 5380 5069-L330ER
Across communities including Reddit r/PLC, Reddit r/industrialautomation, PLCTalk, PLCS.net, and MrPLC, the CompactLogix 5380 family — and the 5069-L330ER in particular — draws consistently positive feedback on one specific point: performance relative to the older 1769 CompactLogix generation. Engineers who have made the platform transition report noticeably faster scan times and more responsive EtherNet/IP communications, particularly on machines with higher device counts. The dual Gigabit ports with native DLR support receive specific praise from integrators who design ring-topology networks, as it removes the need for a separate managed switch at the controller level for basic ring configurations.
The most consistent criticism is the cost structure of the Rockwell platform overall. Studio 5000 Logix Designer licensing is a recurring frustration, particularly for smaller integrators or OEMs who need to maintain multiple seat licenses. Controllers in the CompactLogix 5380 family sit in the upper mid-range of the market from a unit price perspective, and community discussions frequently compare this to lower-cost platforms for cost-sensitive projects. The second notable complaint is firmware and Studio 5000 version sensitivity — users report that mismatches between the firmware loaded on the controller and the version of Studio 5000 on the engineering PC cause connection and download failures. This is not a hardware defect but a discipline issue; plants with tight firmware change-control processes rarely encounter this problem.
The most frequently discussed ordering mistake in community threads involves the ER versus ERM versus GuardLogix distinction. Engineers have reported ordering the 5069-L330ER and discovering during detailed design review — or worse, during commissioning — that integrated Kinetix motion or an integrated safety task was actually required. This confusion is compounded by how similar the catalog numbers look across variants. A secondary ordering error that surfaces repeatedly is specifying the controller without the correct 5069 power supply and I/O modules, or inadvertently including older 1769 Compact I/O in the BOM. The 5069 platform uses 5069 Compact 5000 I/O exclusively on the local backplane; 1769 modules are not compatible and require a separate controller or adapter.
Installation and Wiring Overview for the 5069-L330ER
- Mount the 5069 power supply module first on the DIN rail, followed immediately by the 5069-L330ER controller and then the 5069 I/O modules in sequence — maintain spacing and orientation per the Rockwell installation manual and ensure locking tabs are fully engaged before applying power.
- Wire incoming AC or DC supply power to the 5069 power supply through appropriate external protection devices (fuses or circuit breakers) rated per local electrical codes and the Rockwell power supply specifications.
- Connect Ethernet cables from both EtherNet/IP ports to plant network infrastructure or directly to devices — use cable types and shielding recommended in Rockwell's CompactLogix 5380 installation documentation, and observe bend radius and routing separation from power wiring.
- Ensure proper grounding and bonding of the control panel enclosure, DIN rail, and cable shield terminations to meet EMC requirements and local electrical safety standards.
- Before applying power for the first time, verify all 5069 I/O modules are the correct catalog numbers for this platform, confirm the SD card is seated if used for backup, and check that no 1769 modules have been inadvertently included in the backplane build.
Initial Commissioning Steps for the 5069-L330ER
- Launch Studio 5000 Logix Designer, create a new project, and select catalog number 5069-L330ER with the firmware revision that matches your plant standard — mismatches at this step cause download failures that are avoidable.
- Configure Ethernet IP address, subnet mask, and gateway using the controller's BOOTP/DHCP server, a static address set via the front panel or software, and download the project over Ethernet.
- Add all local 5069 I/O modules and EtherNet/IP devices to the I/O configuration tree with correct catalog numbers and IP addresses, then go online and verify no major faults are present and all modules show healthy status.
- Test critical machine sequences in manual or setup mode, monitoring controller tags and I/O status in Studio 5000 before enabling automatic production sequences.
- Save a backup of the project and controller configuration to the SD card (1784-SD2) as the baseline commissioning archive before handing over to production or maintenance teams.
Wrong-Part Prevention Checklist Before You Order the 5069-L330ER
Run through this checklist before placing an order. Every item represents a real ordering or commissioning mistake that has cost projects time and money.
- Confirm this is a standard non-safety CompactLogix 5380 CPU (not GuardLogix) and that safety needs are handled elsewhere if required.
- Verify no requirement for integrated Kinetix motion axes; if motion is required, validate whether an "ERM" variant is needed.
- Check that 3 MB application memory is enough for the project's logic, data, and future expansion.
- Confirm the system will use 5069 Compact I/O and appropriate 5069 power supply modules (not older 1769 Compact I/O).
- Verify the required Studio 5000 Logix Designer major revision is available in-house and licensed.
- Confirm local and EtherNet/IP I/O counts and node counts fit within 5069-L330ER limits.
- Check environmental ratings against the panel conditions (temperature, vibration, marine/ATEX if applicable).
- Ensure the controller catalog number (5069-L330ER) matches the plant's approved part list and firmware standard.
If any of these checks raise a question before you order, contact the LeadTime.ca team — we can help confirm the correct catalog number, power supply selection, and I/O compatibility before your order is placed.
Frequently Asked Questions
Does the 5069-L330ER support integrated motion control for Kinetix servo drives?
No. The 5069-L330ER is a standard CompactLogix 5380 controller without an integrated motion execution engine. If your application requires the controller to directly coordinate Kinetix servo axes, you need an ERM-suffix variant such as the 5069-L330ERM. The 5069-L330ER can still communicate with drives over EtherNet/IP for speed and torque references in non-integrated motion schemes, but it does not support Logix Integrated Motion on EtherNet/IP (IMEC) natively.
Can I use my existing 1769 Compact I/O modules with the 5069-L330ER?
No. The 5069-L330ER is part of the 5069 Compact 5000 platform, which uses 5069 Compact 5000 I/O modules exclusively on its local backplane. Older 1769 Compact I/O modules are not compatible and cannot be mixed into a 5069 backplane. If you are retrofitting an older CompactLogix 1769-based panel, the 5069 I/O modules must be specified and ordered alongside the controller.
Which Studio 5000 version do I need to program and connect to the 5069-L330ER?
The 5069-L330ER requires Studio 5000 Logix Designer. The specific major revision required depends on the firmware revision loaded on the controller — they must match. Check your plant's approved firmware and Studio 5000 version standard before creating a project, and ensure your engineering workstation's license covers the required revision. Mismatches between controller firmware and Studio 5000 version are among the most commonly reported commissioning issues for this platform.
Does the 5069-L330ER ship with an SD card installed, and how is it used?
The 5069-L330ER typically ships with a 1784-SD2 2 GB SD card, though you should confirm this for your specific shipment with your distributor. The SD card provides nonvolatile storage for program backup and restore — it allows a controller to be replaced and the program restored without a connected PC, which is an important maintenance and spare-part management capability for production environments.
How many EtherNet/IP devices can the 5069-L330ER realistically support before network performance degrades?
The specific EtherNet/IP node and connection limits for the 5069-L330ER are defined in Rockwell's technical data and should be verified against the latest published specifications for your firmware revision. Community experience suggests that pushing EtherNet/IP connections to the controller's documented limits without proper network segmentation and topology design can affect scan time and communication responsiveness. Validate your device count against Rockwell's published limits early in the design phase and consider network segmentation if device counts are high.
Can the 5069-L330ER directly replace an older 1769 CompactLogix controller without rewiring the panel?
Not as a direct plug-in swap. The 5069 platform uses a different backplane and I/O module form factor than the older 1769 platform, so a retrofit requires replacing both the controller and the I/O modules with 5069-series equivalents, along with a compatible 5069 power supply. The program logic can often be migrated using Studio 5000's conversion tools, but physical I/O wiring to module terminals will need to be re-terminated to 5069 I/O modules. Plan for a full I/O panel redesign when upgrading from 1769 to 5069.
Why Order the 5069-L330ER Through LeadTime.ca
- LeadTime.ca ships worldwide — buyers in Canada, the United States, and internationally can source the 5069-L330ER and supporting 5069 platform components through a single distributor.
- Our team specializes in industrial automation components and can help validate that the 5069-L330ER is the correct variant before you order — not after the wrong part arrives on site.
- We provide realistic lead time guidance based on current inventory and channel conditions, which matters when CompactLogix 5380 controllers are subject to multi-week lead times during supply constraint periods.
- Volume pricing and spare-part stocking arrangements are available for OEMs and plants standardizing on the CompactLogix 5380 platform — contact the team to discuss.
- View pricing and availability for the 5069-L330ER at LeadTime.ca
- Contact LeadTime.ca for a quote, volume pricing, or sourcing support
At-a-Glance Summary: Allen-Bradley 5069-L330ER CompactLogix 5380 Controller
- Catalog number 5069-L330ER is a standard CompactLogix 5380 controller — non-safety, non-integrated-motion.
- Application memory: 3 MB, configured and programmed through Studio 5000 Logix Designer.
- Two EtherNet/IP ports at up to 1000 Mbps, supporting star, Device Level Ring (DLR), and linear topologies.
- Local I/O uses 5069 Compact 5000 modules exclusively — not compatible with 1769 Compact I/O.
- Nonvolatile storage via 1784-SD2 SD card (2 GB, typically supplied) for program backup and restore.
- Best fit: mid-sized packaging machines, material handling cells, process skids, and distributed sub-controllers in Rockwell-standard plants.
- Not the right choice if integrated Kinetix motion (choose 5069-L330ERM) or integrated safety (choose GuardLogix 5380 variant) is required.
- Available through LeadTime.ca with worldwide shipping — confirm lead time before committing to a build schedule.
