Allen-Bradley 5069-L320ER CompactLogix 5380 — Specs & Buyer Review

By Abdullah Zahid
15 min read

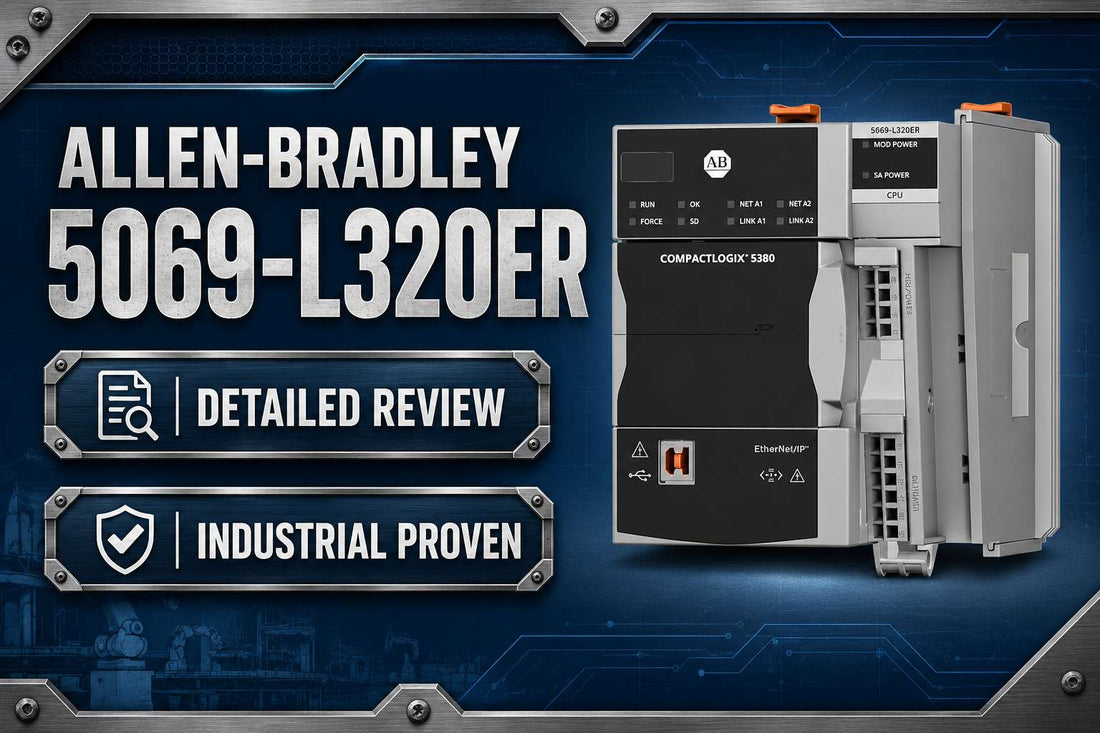

Allen-Bradley 5069-L320ER CompactLogix 5380 quad-core PAC controller with dual 1 Gb EtherNet/IP ports for machine and process automation

Allen-Bradley 5069-L320ER CompactLogix 2MB Enet Controller — Specs, Review, and Best Alternatives

Controls engineers evaluating the Allen-Bradley 5069-L320ER are typically deciding between CompactLogix 5380 memory tiers and asking one core question: does 2 MB of user memory, dual 1 Gb EtherNet/IP ports, and Compact 5000 I/O support cover the full scope of this machine or cell — now and in two years? The 5069-L320ER is a quad-core CompactLogix 5380 PAC that sits in the mid-range of the Compact 5000 controller lineup, running Logix 5000 programs and coordinating EtherNet/IP devices across star, linear, and DLR-capable topologies. For OEMs, systems integrators, and plant engineers standardizing on Rockwell's ecosystem, this controller hits the balance point between performance headroom and cost control — provided the sizing work is done correctly before the PO is placed.

If you have already confirmed this is the right part, check current pricing and availability for the 5069-L320ER at LeadTime.ca — ships worldwide.

Who Should Buy the 5069-L320ER — and Who Shouldn't

The Allen-Bradley 5069-L320ER is the right controller for controls engineers and OEM machine builders who need a mid-range CompactLogix 5380 PAC with proven Logix 5000 compatibility, dual Gigabit EtherNet/IP ports, and a compact form factor suited to panel-mounted DIN rail installation. Specify this model when:

  • Your application program fits comfortably within 2 MB of user memory, with realistic margin for future growth and additional routines.
  • Your local and remote I/O count and EtherNet/IP device node count fall within the limits defined for the L320ER in the CompactLogix 5380 family specifications.
  • Your network design relies on dual 1 Gb EtherNet/IP ports with support for star, linear, or DLR topologies — and you understand that the two ports are not isolated from each other.
  • Your project operates within the CompactLogix 5380 environmental envelope, including operation up to 2000 m altitude without derating in pollution degree 2 environments.
  • Your facility is already standardized on Studio 5000 Logix Designer and Logix 5000 firmware, and your IT and engineering teams can align versions across all modules in the project.

If your design is pressing against the 2 MB memory ceiling, requires integrated safety or specialized motion features in the CPU, or demands higher I/O and node capacity, the 5069-L330ER, 5069-L340ER, or a higher-tier CompactLogix 5380 variant is the correct path — not a workaround on the L320ER.

On this page:

What the 5069-L320ER Actually Does in a Running System

The Allen-Bradley 5069-L320ER is the main program execution engine in a CompactLogix 5380 system. It runs Logix 5000 ladder, function block, structured text, and sequential function chart programs across multiple tasks and programs per task, manages the cyclic scan of local Compact 5000 I/O modules, and coordinates EtherNet/IP communications to remote I/O, drives, HMIs, and other network-connected devices. The quad-core processor provides the execution speed that distinguishes CompactLogix 5380 from earlier CompactLogix generations, and the 2 MB user memory supports small to large applications with relatively low axis and I/O counts — an important constraint to quantify before ordering.

Non-volatile memory is handled via compatible Rockwell SD cards from the 1784-series, allowing the controller to store and load programs without a PC connection — useful for commissioning spares and rapid replacement scenarios in production environments. The 5069-L320ER is a standard controller: it does not include integrated safety or motion features in the CPU itself. Applications requiring CIP Safety or high-axis coordinated motion in the same CPU will need a different CompactLogix 5380 variant.

The two integrated 1 Gb EtherNet/IP ports function as an integrated switch, giving the controller flexible connectivity for star, linear, and Device Level Ring topologies. Rockwell specifies that there is no isolation between the two Ethernet ports, a factor that must be accounted for in network segmentation planning alongside plant IT and controls engineering teams.

Where the 5069-L320ER Sits in Your System Architecture

The 5069-L320ER sits at the top of a CompactLogix 5380 local I/O bank, acting as the execution and communications hub that connects supervisory systems and field devices through EtherNet/IP. A typical deployment chain looks like this:

  • Plant network or cell supervisor (SCADA, MES, or FactoryTalk application) communicates to the 5069-L320ER via EtherNet/IP over the plant Ethernet backbone.
  • The 5069-L320ER manages local Compact 5000 I/O modules mounted directly on the same DIN rail, providing fast deterministic I/O scan for digital and analog field signals.
  • Remote Compact 5000 I/O adapters, distributed EtherNet/IP I/O modules, and remote panel I/O banks connect back to the controller via one or both Ethernet ports.
  • EtherNet/IP drives, servo amplifiers, safety modules (standalone), and HMI terminals appear as nodes on the EtherNet/IP network, all coordinated by the 5069-L320ER's scan cycle.
  • A programming PC running Studio 5000 Logix Designer connects via USB or Ethernet for configuration, download, monitoring, and firmware management.

Typical Applications and Deployment Scenarios

The 5069-L320ER is well suited to discrete manufacturing lines where a single mid-range controller manages machine motion, I/O, and EtherNet/IP field devices without requiring the highest-tier CompactLogix 5380 models. Packaging lines, filling stations, labeling machines, and automated assembly cells are classic fits: the controller handles conveyor logic, sensor inputs, drive coordination, and HMI communications within a single compact panel footprint.

OEM machine builders are a primary market segment for this model. When a machine builder standardizes on the CompactLogix 5380 platform, the 5069-L320ER represents the performance and memory tier that covers the majority of standard machine variants without the cost of stepping to a 5069-L330ER or higher. The common Logix 5000 programming environment across CompactLogix and ControlLogix platforms means engineering teams can share code, function blocks, and commissioning workflows across projects.

Modernization and migration projects represent another strong use case. Plants replacing legacy SLC-500 or older CompactLogix 5370 controllers can often reuse existing EtherNet/IP field devices — drives, remote I/O, and network-capable instrumentation — with the 5069-L320ER as the new controller, reducing retrofit scope and cost. The transition to Studio 5000 from RSLogix 5000 is well-documented in the Rockwell ecosystem, and the CompactLogix 5380 platform supports gradual migration strategies.

Process skids, utility systems, water treatment auxiliaries, and boiler control panels also appear regularly in CompactLogix 5380 deployments where a compact panel footprint, integrated networking, and Logix 5000 compatibility are priorities over extreme I/O density or motion count.

Application Typical Deployment
Packaging and filling lines Main machine controller with local Compact 5000 I/O, EtherNet/IP drives, and HMI over dual Ethernet ports
Automotive cell controller Coordinating robots, drives, and distributed I/O; safety handled by separate safety module or controller
OEM standard machine platform Mid-range CompactLogix 5380 as cost-balanced standard CPU across machine variants in a product family
Legacy SLC or CompactLogix migration Drop-in controller replacement reusing existing EtherNet/IP field hardware and incrementally migrating program logic
Multi-zone conveyor and material handling Central controller with remote Compact 5000 I/O adapters distributed along conveyor zones via EtherNet/IP
Process skids and utility systems Compact panel controller for water treatment, boiler auxiliary, or HVAC skid with moderate analog and digital I/O

Key Specifications for Purchase Decisions

Parameter Value
Catalog Number 5069-L320ER
Product Family CompactLogix 5380
Controller Type Standard CompactLogix PAC — not a safety or integrated motion CPU
User Memory 2 MB
Non-Volatile Memory SD card-based, Rockwell 1784-series compatible cards
Processor Quad-core
Ethernet Ports 2 x 1 Gb EtherNet/IP integrated ports (no isolation between ports)
Supported Topologies Star, linear, DLR (Device Level Ring) where applicable per Rockwell guidelines
MOD Power Input 18–32 V DC
Operating Altitude Up to 2000 m without derating (pollution degree 2 per EN/IEC standards)

Full technical specifications are available on the product page at LeadTime.ca.

5069-L320ER vs. Other CompactLogix 5380 Models — Which One Do You Actually Need?

The CompactLogix 5380 family spans multiple memory and capability tiers. Choosing the wrong tier is the most common ordering mistake in this product line, so the comparison below is worth reviewing carefully before finalizing your BOM.

Model User Memory Key Differentiator Best Fit
5069-L310ER 1 MB Entry-level CompactLogix 5380 memory tier Small machines with minimal program growth expectation
5069-L320ER 2 MB Mid-range balance of memory, cost, and dual Gb Ethernet Mid-sized OEM machines, packaging lines, process skids
5069-L330ER 3 MB Additional memory headroom over L320ER Applications near the L320ER memory ceiling or requiring more I/O and node capacity
5069-L340ER 4 MB High-capacity standard controller in the 5380 family Large machines or cells with substantial I/O, nodes, and complex logic
CompactLogix 5380 Safety/Motion variants Varies Integrated CIP Safety or motion features in the CPU Applications requiring safety or coordinated motion within a single CPU

If your program size estimate puts you within 20% of the 2 MB limit, the 5069-L330ER is typically the safer commercial decision — the cost delta is smaller than the commissioning and retrofit cost of hitting a memory wall mid-project. Check current availability for the 5069-L320ER and related CompactLogix 5380 models at LeadTime.ca.

Expert Verdict: Is the 5069-L320ER Worth Specifying?

The Allen-Bradley 5069-L320ER earns its place in the CompactLogix 5380 lineup as the mid-range controller that covers the widest range of real-world machine and cell applications without pushing into the highest-cost models. Its quad-core processor, 2 MB user memory, and dual 1 Gb EtherNet/IP ports represent the performance tier where most OEM machine builders and plant controls engineers find themselves: enough horsepower and network flexibility to handle packaging lines, conveyor systems, process skids, and distributed I/O architectures, while keeping the controller cost within reach for standard machine budgets. For engineers standardizing on Rockwell's Logix 5000 ecosystem, the 5069-L320ER integrates without friction — the same Studio 5000 Logix Designer environment, the same Compact 5000 I/O infrastructure, and the same EtherNet/IP device library used across the broader Rockwell portfolio.

The honest limits are equally clear. The 5069-L320ER is the wrong controller for applications that need more than 2 MB of user memory — and more often than expected, programs grow past initial estimates. When local I/O module counts, EtherNet/IP node counts, or program complexity push toward the ceiling, the 5069-L330ER or 5069-L340ER are the correct next steps rather than trying to optimize within the L320ER's constraints. If integrated CIP Safety or specialized motion functions in the CPU are required, the standard L320ER will not meet those needs — a safety or motion-capable CompactLogix 5380 variant must be specified instead. And for projects where Rockwell's controller pricing is a serious budget constraint, it is worth acknowledging that competing mid-range PAC platforms exist — though for plants already running Logix 5000, the switching cost and retraining burden usually outweigh any hardware savings.

From a procurement standpoint, the 5069-L320ER is a core Rockwell SKU — not a niche part — but that does not make it immune to supply chain variability. Specific series and firmware revisions can tighten in availability during demand surges, and ordering without confirming series compatibility with your existing modules has caused real commissioning delays in the field. Buying through a specialist distributor who knows the Rockwell product line means you get a firmware compatibility check, a realistic lead-time window, and a direct path to an alternative SKU strategy if stock is constrained. View current pricing and stock status for the 5069-L320ER at LeadTime.ca — we ship worldwide.

For volume orders, project-critical lead time confirmation, or help comparing CompactLogix 5380 variants before committing to a BOM, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About the CompactLogix 5380 Family

Across communities including Reddit r/PLC, Reddit r/automation, PLCTalk, PLCS.net, and MrPLC, the CompactLogix 5380 platform — including models at the 5069-L320ER tier — consistently draws positive feedback on performance and integration. Controls engineers who have migrated from older CompactLogix generations frequently note the improved execution speed of the quad-core architecture and the convenience of having dual 1 Gb Ethernet ports built into a compact controller. The ability to coordinate EtherNet/IP drives, HMIs, remote I/O, and network instrumentation from a single controller without external Ethernet switches in smaller topologies is a recurring selling point in user discussions.

The most consistent criticism across forum threads is cost. Rockwell's controllers command a price premium over competing PAC platforms, and this comes up regularly when integrators are evaluating options for price-sensitive customers or when procurement teams push back on controller line items. A second recurring theme is supply chain and lead time unpredictability for specific catalog numbers during periods of high demand — users report building controller spares inventories into machine BOMs as a risk mitigation strategy rather than relying on just-in-time availability. The third pain point that appears regularly in community discussions is firmware and Studio 5000 version alignment: engineers new to the 5380 platform or working across facilities with different version standards report download errors and incompatibility issues when controller firmware and software versions are not matched carefully before commissioning.

Ordering mistakes flagged in community posts follow a predictable pattern. The most common is selecting a CompactLogix 5380 model based on initial program size without adequate margin, and then discovering memory constraints when the machine scope expands during development. A related mistake is ordering without confirming the controller series against existing modules, resulting in firmware mismatches that require controller replacement or firmware upgrade cycles before the project can proceed. Engineers experienced with the platform consistently advise: size up on memory when in doubt, lock the firmware version standard early, and confirm series compatibility across every module in the I/O tree before the PO is placed.

Installation and Wiring Overview for the 5069-L320ER

Installation of the 5069-L320ER follows Rockwell's CompactLogix 5380 installation instructions. The key points controls engineers need to verify before beginning installation:

  • Mount the controller on a properly grounded DIN rail, hooking the top groove onto the rail edge and pressing the bottom until the latch clicks; adjacent Compact 5000 I/O modules must interlock mechanically with the controller and with each other, and the required end cap must be installed on the last module before power is applied.
  • MOD power is supplied at 18–32 V DC to the designated terminals; verify polarity, use appropriate wire sizing, tighten terminals to Rockwell's specified torque, and connect protective earth per installation instructions and local electrical codes.
  • External protection devices — fuses or circuit breakers — must be installed upstream of the controller as specified by Rockwell; the controller does not include self-contained upstream protection.
  • Connect EtherNet/IP cables to the two integrated 1 Gb ports according to your chosen topology (star, linear, or DLR); because the ports share an integrated switch with no isolation between them, IP addressing and network segmentation must be coordinated with plant network design before wiring begins.
  • For first-time commissioning, connect a programming PC via USB or Ethernet, assign the controller's IP address via BOOTP/DHCP or Studio 5000, and confirm that controller firmware revision matches the Studio 5000 Logix Designer version and the project file before downloading.

What Engineers Get Wrong When Ordering the 5069-L320ER

The following checklist is derived directly from the most common specification and ordering errors identified in Rockwell documentation and field experience with the CompactLogix 5380 platform. Review every item before placing your order:

  1. Confirm 2 MB user memory is sufficient for the final application program size plus future expansion.
  2. Confirm the I/O count and node count supported by the 5069-L320ER match project requirements (including local Compact 5000 I/O modules and EtherNet/IP devices).
  3. Verify power supply requirements (MOD power and SA power ranges) align with panel design and that external protection is in place as specified by Rockwell.
  4. Confirm firmware and Studio 5000 Logix Designer version compatibility across all Logix 5000 controllers and modules in the project.
  5. Check that the application does not require integrated safety or motion features that would push you to a different CompactLogix 5380 variant.
  6. Verify physical form factor (DIN rail mounting, depth and height) fits in the intended enclosure with proper spacing and ventilation.
  7. Confirm environmental ratings (temperature, altitude, vibration, certifications) meet the installation location requirements.
  8. Verify lifecycle status and local distribution availability for Canada / North America before standardizing on this model.

If any item on this checklist raises a question your team cannot resolve from the datasheet alone, contact LeadTime.ca before ordering — our team can validate compatibility and flag alternatives when needed.

Frequently Asked Questions

How do I decide between the 5069-L320ER and the 5069-L330ER for my application?

The deciding factor is almost always program memory and projected I/O or node growth. The 5069-L320ER provides 2 MB of user memory, while the 5069-L330ER steps up to 3 MB. If your initial program estimate uses more than roughly 70–80% of 2 MB, or if the machine scope is likely to expand with additional axes, nodes, or logic modules, the 5069-L330ER is the more conservative and commercially prudent choice. The cost difference between adjacent CompactLogix 5380 memory tiers is typically much smaller than the cost of hitting a memory constraint mid-commissioning.

What Studio 5000 Logix Designer version and firmware revision do I need for the 5069-L320ER?

Firmware and software version compatibility is controller-series and firmware-revision specific — there is no single universal answer. You must match the controller's firmware revision to a compatible Studio 5000 Logix Designer release, and verify that all other Logix 5000 controllers and I/O modules in the project are running compatible firmware. Rockwell publishes firmware and software compatibility matrices; review these before ordering and before downloading a project to a new controller. Mismatched versions are a leading cause of commissioning delays reported by engineers in the field.

Can I reuse my existing EtherNet/IP field devices and remote I/O with the 5069-L320ER without major changes?

In most cases, yes — EtherNet/IP is an open protocol and the 5069-L320ER supports standard EtherNet/IP connections to compatible drives, HMIs, remote I/O adapters, and instrumentation. The key verification steps are confirming that each device's EDS file and firmware are compatible with the Studio 5000 project version, and that the total EtherNet/IP node count stays within the limits specified for the 5069-L320ER. Devices that previously connected to an older CompactLogix or SLC controller via a different network protocol (DeviceNet, for example) will require an adapter or replacement with EtherNet/IP-capable hardware.

Does the 5069-L320ER support Device Level Ring (DLR) topology?

The CompactLogix 5380 family, including the 5069-L320ER, supports DLR where applicable per Rockwell's network topology guidelines and the capabilities of the connected EtherNet/IP devices. Star and linear topologies are also supported. DLR provides network fault tolerance by allowing communication to continue if a single link in the ring is broken, which is valuable in machine wiring where cable damage is a realistic risk. Confirm DLR support with Rockwell documentation for your specific firmware revision and connected devices before committing to a ring topology design.

How should I plan for spares and lead time when the 5069-L320ER is a critical production controller?

Treat the 5069-L320ER as a project-critical long-lead item, not a commodity with guaranteed shelf stock. Supply chain conditions for specific CompactLogix 5380 catalog numbers have varied, and availability of a particular series or firmware revision is not always predictable. Best practice is to include at least one spare controller in the project BOM, confirm current stock and lead time with your distributor at the time of order placement, and document the exact series and firmware revision of the installed controller for future replacement. Storing the project file and firmware revision on the controller's SD card speeds up replacement if a swap is needed.

Is the 5069-L320ER a direct replacement for older CompactLogix 5370 or SLC-500 controllers?

The 5069-L320ER is not a plug-and-play physical replacement for CompactLogix 5370 or SLC-500 hardware — form factor, I/O backplane architecture, and programming environments differ. However, it is the intended upgrade target for those platforms within the Rockwell ecosystem: programs can be migrated using Rockwell's migration tools, and EtherNet/IP field devices can typically be reused. Physical panel modifications will be required in most cases, and a thorough firmware and I/O compatibility review is mandatory before treating any prior-generation controller as a direct swap candidate.

Why Order the 5069-L320ER Through LeadTime.ca

  • LeadTime.ca ships the Allen-Bradley 5069-L320ER and related CompactLogix 5380 parts worldwide — no geographic restrictions on quoting or fulfillment.
  • Our team can verify series, firmware revision, and compatibility with your existing Compact 5000 I/O and EtherNet/IP modules before an order is placed — reducing the risk of a costly return or emergency replacement.
  • We provide realistic lead-time windows based on current stock levels, not catalog estimates — critical for project-schedule management on production-critical controllers.
  • Volume pricing is available for OEM machine builders and multi-site procurement programs — contact us directly for project BOMs with multiple controller SKUs.

At-a-Glance Summary

  • Catalog number: Allen-Bradley 5069-L320ER — CompactLogix 5380 standard PAC, not a safety or integrated motion CPU.
  • User memory: 2 MB; non-volatile memory via Rockwell 1784-series SD cards.
  • Processor: Quad-core, providing improved execution speed versus prior CompactLogix generations.
  • Networking: Two integrated 1 Gb EtherNet/IP ports, no isolation between ports; supports star, linear, and DLR topologies per Rockwell guidelines.
  • Power input: MOD power 18–32 V DC; external upstream protection required as specified by Rockwell.
  • Environmental: Operates up to 2000 m altitude without derating in pollution degree 2 environments per EN/IEC standards.
  • Mounting: DIN rail; height 123 mm (approx. 4.84 in), depth 136.81 mm (approx. 5.39 in).
  • Programming: Studio 5000 Logix Designer; firmware version must be matched to software release and all modules in the project.
  • Step up to 5069-L330ER or 5069-L340ER when program memory, I/O count, or node count exceeds L320ER limits.
  • Available through LeadTime.ca with worldwide shipping — contact for current pricing, lead time, and volume orders.
