Allen-Bradley 5069-L310ER — CompactLogix 5380 Buying Guide

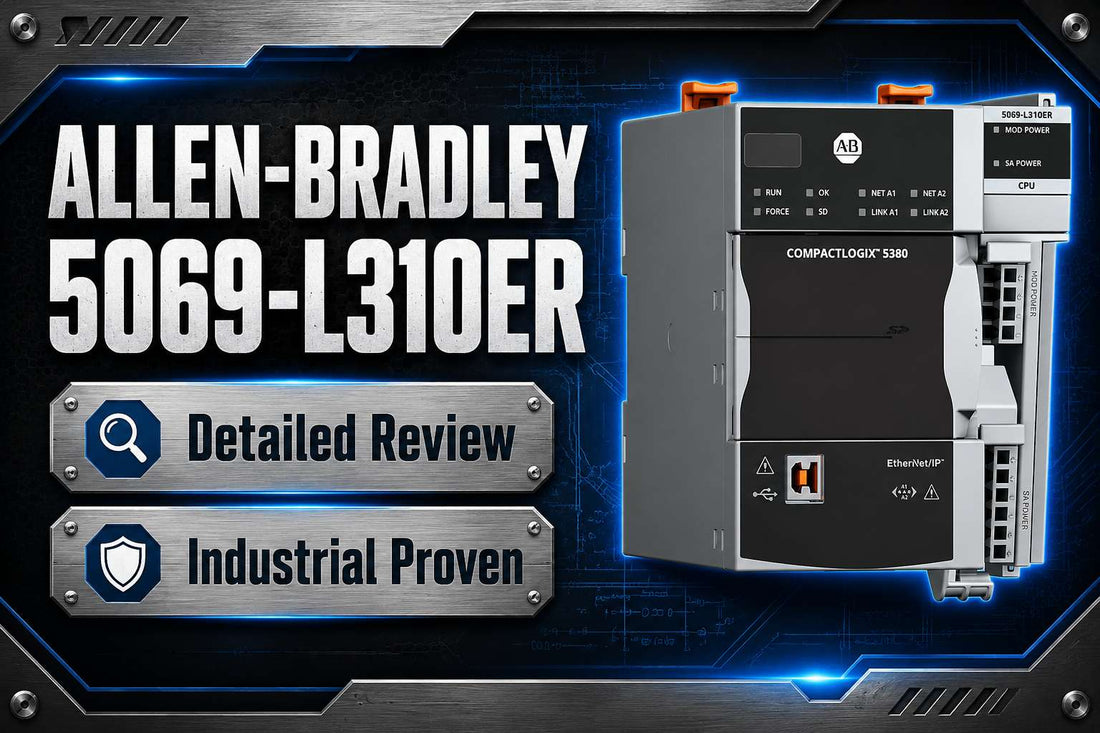

Allen-Bradley 5069-L310ER CompactLogix 5380 Controller, 1 MB — Specs, Selection Guide & Expert Review
Controls engineers and OEM machine designers searching for the Allen-Bradley 5069-L310ER CompactLogix 5380 controller are typically at the final validation stage — confirming that 1 MB of application memory, up to 24 EtherNet/IP nodes, and support for up to 8 local Compact 5000 (5069) I/O modules are the right fit before the purchase order goes out. This review gives you the technical clarity and honest selection guidance to make that call with confidence, including when to step up to a larger variant.
If you have already confirmed this is the correct catalog number, check current pricing and availability for the 5069-L310ER at LeadTime.ca — ships worldwide.
Who Should Buy the 5069-L310ER — and Who Should Not
The Allen-Bradley 5069-L310ER is the right controller when your project meets all of the following criteria:
- Your application memory requirement fits within 1 MB — accounting for tag counts, AOIs, structured data, and any logging overhead.
- Your total EtherNet/IP device count — remote I/O adapters, drives, HMIs, other controllers — is 24 nodes or fewer.
- Your local I/O requirement fits within 8 Compact 5000 (5069) I/O modules, with additional I/O planned over EtherNet/IP if needed.
- The application is a standard (non-safety) control system — no functional safety or GuardLogix requirements.
- Integrated motion axes are not required — coordinating drives over EtherNet/IP is sufficient for your machine.
- Your engineering environment runs a compatible Studio 5000 Logix Designer version aligned to the target firmware revision.
If your project requires integrated safety, larger memory, more than 24 EtherNet/IP nodes, or integrated motion axes, the 5069-L320ER, 5069-L330ER, 5069-L340ER, or the Compact GuardLogix 5380 (5069-L3xERS2) variants are the more appropriate choices — those alternatives are covered in the comparison section below.
On this page:
- Where the 5069-L310ER Sits in the CompactLogix 5380 Platform
- Typical System Architecture for a 5069-L310ER Deployment
- Applications and Industries Where the 5069-L310ER Performs
- Key Specifications: What the Datasheet Actually Tells You
- 5069-L310ER vs Other CompactLogix 5380 Variants: Which Do You Actually Need?
- Expert Verdict: Is the 5069-L310ER a Defensible Spec?
- What Engineers Need to Know Before Ordering the 5069-L310ER
- Installation and Wiring: What to Verify Before Power-Up
- Compatible I/O Modules and System Expansion
- Wrong-Part Prevention Checklist
- Frequently Asked Questions
- Why Order the 5069-L310ER From LeadTime.ca
- At-a-Glance Summary
Where the 5069-L310ER Sits in the CompactLogix 5380 Platform
The Allen-Bradley 5069-L310ER is the entry point of the CompactLogix 5380 controller range within the Compact 5000 (5069 series) platform. The CompactLogix 5380 family represents a meaningful step forward from earlier 1769-based CompactLogix systems — the dual 10/100/1000 Mbps EtherNet/IP ports, higher throughput, and support for modern network topologies including Device Level Ring distinguish it from its predecessors.
Within the L3x0ER lineup, the 5069-L310ER carries 1 MB of application memory and supports up to 24 EtherNet/IP nodes and 8 local 5069 I/O modules. This positions it squarely in the mid-range: more capable than micro-class controllers, and considerably more cost-effective than larger CompactLogix 5380 variants or ControlLogix systems for applications that do not demand high node counts or large program footprints. It is a non-safety, non-motion controller by design — selecting it for safety or integrated axis control is a specification error, not a configuration option.
Typical System Architecture for a 5069-L310ER Deployment
The 5069-L310ER functions as the central Logix execution engine in a CompactLogix 5380 system, sitting between the engineering workstation running Studio 5000 and all downstream I/O, drives, and HMIs on the EtherNet/IP network.
- Engineering workstation (Studio 5000 Logix Designer) connects via USB 2.0 Type B or EtherNet/IP for programming and diagnostics.
- 5069-L310ER controller mounts on DIN rail with up to 8 Compact 5000 (5069) I/O modules attached directly to the right of the controller on the local chassis.
- Both onboard RJ45 EtherNet/IP ports connect to the plant or machine network — supporting star, linear, or Device Level Ring (DLR) topology.
- Remote EtherNet/IP nodes — including remote 5069 I/O adapters, variable frequency drives, HMI panels, and other controllers — connect through the network, up to the 24-node limit.
- An external 18…32 VDC power supply provides controller power, with overcurrent protection required per Rockwell Automation installation guidance.
Applications and Industries Where the 5069-L310ER Performs
OEM machine builders are among the most consistent buyers of the 5069-L310ER. A packaging machine with local digital and analog I/O, several drives on EtherNet/IP, and a touchscreen HMI maps almost exactly onto what this controller was sized for — the 24-node limit is comfortable, the 1 MB memory handles typical recipe and motion-coordination logic offloaded to the drives, and the compact footprint fits within a standard panel enclosure.
Material handling and conveyor system integrators also specify this controller frequently, particularly for individual zones or cells within a larger system. A zone controller managing a handful of VFDs, distributed I/O, and a safety relay (handled externally, since this is a non-safety controller) is a well-matched application. The Device Level Ring topology support is especially useful here, where cable runs between panels benefit from ring redundancy.
Process skids in food and beverage, water treatment sub-systems, and life sciences equipment commonly use the 5069-L310ER when the I/O point count and node count are moderate and the mechanical design calls for a compact controller footprint. The 0…60 °C operating temperature range and IP20 open-type enclosure rating mean the controller must be housed in an appropriate cabinet — standard practice for skid and panel builds in these industries.
Facilities upgrading from 1769-based CompactLogix systems to the CompactLogix 5380 platform also specify the 5069-L310ER as part of migration projects, benefiting from the higher Ethernet performance while keeping a similar Logix programming model in Studio 5000.
| Application | Typical Deployment |
|---|---|
| OEM packaging machine | Local 5069 I/O for sensors and actuators, drives and HMI on EtherNet/IP star topology |
| Material handling conveyor zone | Multiple VFDs and distributed I/O over EtherNet/IP, DLR topology for cable redundancy |
| Food and beverage process skid | Local analog and digital I/O modules, remote I/O panels via EtherNet/IP linear network |
| CompactLogix 1769 migration | Controller swap to CompactLogix 5380, retaining Logix programming model with updated I/O modules |
| Life sciences or water/wastewater sub-system | Compact panel with local 5069 I/O, HMI and remote I/O connected over EtherNet/IP |
Key Specifications: What the Datasheet Actually Tells You
| Parameter | Value | Notes |
|---|---|---|
| Catalog number | 5069-L310ER | Standard CompactLogix 5380 controller, non-safety, non-motion |
| Application memory | 1 MB | Covers tags, logic, AOIs, and data for mid-size applications |
| Local I/O capacity | Up to 8 Compact 5000 (5069) I/O modules | Additional I/O via remote EtherNet/IP adapters within node limit |
| EtherNet/IP nodes | Up to 24 nodes | Includes remote I/O adapters, drives, HMIs, and other EtherNet/IP devices |
| Onboard communication ports | 2 × EtherNet/IP (RJ45), 1 × USB 2.0 Type B | Both Ethernet ports support 10/100/1000 Mbps full-duplex operation |
| Supported EtherNet/IP topologies | Star, linear, Device Level Ring (DLR) | Topology selected based on network design requirements |
| Integrated motion axes | 0 | Drive coordination over EtherNet/IP is possible; integrated axis control requires ERM variants |
| Supply voltage | 18…32 VDC external | External overcurrent protection required per Rockwell installation guidance |
| Operating temperature | 0…60 °C (32…140 °F) | Open-type controller, IP20 — requires installation in suitable enclosure |
| Non-volatile storage | 1784-SD2 SD card (2 GB) shipped with controller per family documentation | Additional SD and security card options supported per user manual |
Full technical specifications are available on the product page at LeadTime.ca.
5069-L310ER vs Other CompactLogix 5380 Variants: Which Do You Actually Need?
| Model | Memory | EtherNet/IP Nodes | Local I/O Modules | Safety | Motion | Best For |
|---|---|---|---|---|---|---|
| 5069-L310ER | 1 MB | Up to 24 | Up to 8 | No | No | Mid-size machines, moderate program size, no safety or motion |
| 5069-L310ER-NSE | 1 MB | Up to 24 | Up to 8 | No | No | Same capacity as L310ER but with different RTC behavior — verify requirement before ordering |
| 5069-L310ERM | 1 MB | Up to 24 | Up to 8 | No | Yes (integrated motion support) | Applications requiring integrated motion axis control within the same memory class |
| 5069-L320ER | 2 MB | Up to 24 | Up to 8 | No | No | Larger programs, more tag data, same network and I/O footprint |
| 5069-L330ER | 3 MB | Up to 32 | Up to 8 | No | No | Larger system with more EtherNet/IP nodes and program complexity |
| 5069-L340ER | 4 MB | Up to 32 | Up to 8 | No | No | High-complexity systems with maximum CompactLogix 5380 capacity |
| 5069-L3xERS2 (Compact GuardLogix 5380) | Varies by variant | Varies by variant | Up to 8 | Yes (SIL 2/PLd) | Varies | Applications with integrated functional safety requirements |
If your tag count, logic complexity, or network size is pushing against the 1 MB and 24-node ceiling of the 5069-L310ER, the 5069-L320ER is the natural next step — check current availability for the full CompactLogix 5380 range at LeadTime.ca.
Expert Verdict: Is the 5069-L310ER a Defensible Spec?
The Allen-Bradley 5069-L310ER earns its place in the CompactLogix 5380 lineup for a specific and common buyer profile: controls engineers and OEM designers building small to mid-size machines or process skids that need dual gigabit EtherNet/IP, a modern Logix execution environment, and a compact form factor — without the cost overhead of safety variants or high-memory models. With 1 MB of application memory, 24 EtherNet/IP nodes, and support for up to 8 local 5069 I/O modules, it covers a wide swath of mainstream packaging, material handling, and OEM machine applications. The two onboard 10/100/1000 Mbps EtherNet/IP ports and Device Level Ring support give it networking credentials that older CompactLogix generations simply cannot match.
Where the 5069-L310ER falls short is equally clear and worth stating plainly. If your application demands integrated functional safety, the Compact GuardLogix 5380 (5069-L3xERS2) is the correct controller — the 5069-L310ER cannot be configured for safety control regardless of how it is programmed. If you need integrated motion axes rather than just drive coordination over EtherNet/IP, the 5069-L310ERM is the appropriate variant. And if your honest memory sizing exercise — accounting for tag growth, AOIs, and data logging over the machine's service life — puts you above 1 MB, the 5069-L320ER or 5069-L330ER is the smarter long-term investment. The cost difference between controller variants is small relative to the cost of a retrofit two years into a machine's life.
From a procurement standpoint, the 5069-L310ER is an active product with established availability through authorized Allen-Bradley distribution channels worldwide. Lead times can range from stock to several weeks depending on distributor and regional supply conditions — a factor worth confirming before locking in a build schedule. Working with a specialist automation distributor pays a practical dividend here: getting confirmation that the firmware revision shipped with your unit aligns with your Studio 5000 Logix Designer version, and getting a realistic lead time assessment rather than a catalog listing, can prevent costly project delays. View current pricing and availability for the 5069-L310ER at LeadTime.ca, where we ship to customers worldwide.
For volume pricing, project-specific lead time confirmation, or help validating your catalog number selection before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Need to Know Before Ordering the 5069-L310ER
Model-specific community discussion for the 5069-L310ER is sparse across the forums and communities searched — including r/PLC, r/automation, PLCTalk, PLCS.net, MrPLC, and Rockwell Automation user forums. What does exist tends to address the CompactLogix 5380 platform broadly rather than this catalog number specifically. That absence of dense community feedback is not a negative signal about the product — it reflects the reality that engineers working in the Rockwell ecosystem at this level tend to consult manufacturer documentation and specialist distributors rather than public forums for final validation decisions.
What the platform-level community discussion does surface consistently is the importance of firmware and Studio 5000 version alignment. Engineers working on CompactLogix 5380 systems report that mismatches between the firmware revision shipped on a controller and the Studio 5000 Logix Designer version installed on engineering workstations can stall commissioning. This is particularly relevant when ordering replacement or spare units — a controller that ships with a newer firmware major revision than your existing project may require a Studio 5000 upgrade before you can go online. Confirming the target firmware revision at the time of order, rather than after delivery, is a straightforward step that saves real time on the floor.
The other recurring theme at the family level is the distinction between safety and non-safety catalog numbers. The suffix structure — ER for standard, ERS2 for GuardLogix safety, ERM for motion — is not always obvious to buyers who are less familiar with Allen-Bradley catalog conventions. Procurement teams working from a bill of materials provided by an engineering team should verify the exact suffix before placing an order. A specialist distributor familiar with the CompactLogix 5380 family can catch these errors before shipment — which is precisely where LeadTime.ca's application knowledge adds value over a generic catalog channel.
Installation and Wiring: What to Verify Before Power-Up
- Mount the 5069-L310ER on a DIN rail per the user manual orientation and clearance requirements — the open-type IP20 enclosure rating requires installation inside a suitable industrial cabinet with adequate ventilation around the controller and I/O modules.
- Connect an external 18…32 VDC supply to the controller power terminals with correct polarity; install external overcurrent protection as required by Rockwell Automation installation documentation and applicable local electrical codes.
- Install Compact 5000 (5069) I/O modules to the right of the controller, confirming proper mechanical engagement of the bus connectors and correct slot order to match the Studio 5000 I/O tree configuration.
- Connect industrial-rated Ethernet cabling to both RJ45 EtherNet/IP ports according to your planned topology — star, linear, or Device Level Ring — and verify cable routing is separated from high-voltage field wiring per Rockwell grounding and shielding guidelines.
- Before applying power, verify earth ground connections, confirm the 1784-SD2 SD card is correctly seated if used for non-volatile storage, and check that all field wiring terminations are torqued per module specifications.
Compatible I/O Modules and System Expansion
The 5069-L310ER operates exclusively with Compact 5000 (5069 series) I/O modules on its local chassis — it is not compatible with older 1769 Compact I/O modules without a separate architecture or migration plan. Within the 5069 platform, the following module types are used in typical deployments:
- 5069 digital input and output modules — standard and high-density variants for discrete machine control signals.
- 5069 analog input and output modules — for process measurement and control in skid and process applications.
- 5069 specialty I/O modules — including high-speed counter and encoder input types for motion feedback or counting applications coordinated over EtherNet/IP.
- 5069 EtherNet/IP communication adapter modules — for extending the Compact 5000 I/O system to remote panels connected over the EtherNet/IP network, subject to the 24-node limit of the 5069-L310ER.
- 1784-SD2 SD card (2 GB) — shipped with the controller per CompactLogix 5380 family documentation; supports non-volatile storage for project backup and load-from-SD operations.
Wrong-Part Prevention Checklist
Before submitting a purchase order for the Allen-Bradley 5069-L310ER, verify each of the following points against your project design:
- Confirm 1 MB memory and 24 EtherNet/IP nodes are adequate for the planned tags, tasks, and networked devices.
- Verify that you need a standard CompactLogix 5380 controller, not a GuardLogix safety controller (5069-L3xERS2) or NSE variant (5069-L310ER-NSE with different RTC behavior).
- Ensure local I/O requirements fit within 8 Compact 5000/5069 modules or plan additional remote I/O on EtherNet/IP.
- Check Studio 5000 Logix Designer version and required firmware revision for the 5069-L310ER to avoid version incompatibilities.
- Confirm the system power design includes an appropriate external 18…32 VDC power supply and that environmental conditions (temperature, vibration, enclosure) meet spec.
- Make sure the system uses 5069/Compact 5000 I/O, not older 1769 Compact I/O, unless a suitable architecture or migration path is planned.
If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can help validate catalog numbers, firmware revisions, and system compatibility worldwide.
Frequently Asked Questions
How many EtherNet/IP nodes and local I/O modules can the 5069-L310ER support?
The 5069-L310ER supports up to 24 EtherNet/IP nodes — this count includes all remote I/O adapters, variable frequency drives, HMI panels, and any other EtherNet/IP devices connected to the controller. On the local chassis, it supports up to 8 Compact 5000 (5069) I/O modules. Applications requiring more nodes or I/O modules should be sized against the 5069-L320ER, 5069-L330ER, or 5069-L340ER variants.
Is the 5069-L310ER a safety controller, or does it require a separate safety PLC?
The 5069-L310ER is a standard, non-safety CompactLogix 5380 controller and cannot be used as a GuardLogix or SIL-rated safety controller regardless of configuration. Applications with integrated functional safety requirements must use the Compact GuardLogix 5380 (5069-L3xERS2) series. If safety functions are needed but the 5069-L310ER is already specified for standard control, a separate safety controller or safety relay system must be designed into the architecture.
Can the 5069-L310ER be used for integrated motion control?
No — the 5069-L310ER has 0 integrated motion axes. It cannot run Logix integrated motion axis configuration. For applications requiring CIP Motion or integrated axis control, the 5069-L310ERM or larger ERM variants are the correct choice. The 5069-L310ER can still coordinate drives over EtherNet/IP using drive-level control instructions, which is sufficient for many conveyor and pump applications that do not require closed-loop position control.
What Studio 5000 Logix Designer version is required to program the 5069-L310ER?
The 5069-L310ER requires a compatible version of Studio 5000 Logix Designer that supports the firmware major revision the controller is shipped with or updated to. Because firmware revision requirements vary and Rockwell Automation periodically updates compatibility matrices, the correct approach is to confirm the target firmware revision at order time and verify that your installed Studio 5000 version supports it — using Rockwell's published compatibility data or by consulting your distributor. Version mismatches discovered after delivery are a common cause of commissioning delays.
What is the difference between the 5069-L310ER and the 5069-L310ER-NSE?
Both share the same 1 MB memory, 24 EtherNet/IP node, and 8 local I/O module capacity. The key difference is in real-time clock (RTC) behavior — the NSE variant has different RTC characteristics compared to the standard 5069-L310ER. Unless your application specifically requires the NSE variant's RTC behavior, the standard 5069-L310ER is the default choice. Verify the exact requirement in your design before ordering to avoid specifying the wrong suffix.
What are typical lead times for the 5069-L310ER, and does LeadTime.ca ship outside Canada?
Lead times for the 5069-L310ER can range from immediate availability through to several weeks depending on distributor stock positions and regional supply chain conditions at the time of order. LeadTime.ca ships the 5069-L310ER worldwide — not limited to Canada or North America. Current availability and pricing are listed on the product page, and the LeadTime.ca team can provide lead time confirmation for your specific delivery location before you commit to a build schedule.
Why Order the 5069-L310ER From LeadTime.ca
- LeadTime.ca ships the Allen-Bradley 5069-L310ER to customers worldwide — no geographic restrictions on ordering.
- Specialist automation knowledge means the team can verify firmware revision compatibility and catalog number accuracy before your order ships.
- Real lead time confirmation — not just a catalog listing — so you can plan build schedules without surprises.
- Volume pricing available for OEMs and system integrators ordering multiple units or building a spare parts strategy around the CompactLogix 5380 platform.
- Hard-to-find and expedited sourcing support for time-sensitive projects where standard distribution lead times are not acceptable.
- View pricing and availability for the 5069-L310ER at LeadTime.ca
- Contact LeadTime.ca for a quote or lead time confirmation
At-a-Glance Summary
- Catalog number: Allen-Bradley 5069-L310ER — CompactLogix 5380 controller, 1 MB application memory.
- Local I/O: Up to 8 Compact 5000 (5069) I/O modules on the local chassis.
- Network capacity: Up to 24 EtherNet/IP nodes including remote I/O, drives, HMIs, and other EtherNet/IP devices.
- Onboard ports: 2 × EtherNet/IP RJ45 (10/100/1000 Mbps full-duplex), 1 × USB 2.0 Type B.
- Supported topologies: Star, linear, Device Level Ring (DLR).
- Integrated motion axes: 0 — for integrated motion use 5069-L310ERM or appropriate ERM variant.
- Safety: Non-safety controller — GuardLogix 5380 (5069-L3xERS2) required for functional safety applications.
- Power supply: 18…32 VDC external, with external overcurrent protection required.
- Operating temperature: 0…60 °C (32…140 °F), IP20 open type — panel enclosure required.
- Non-volatile storage: 1784-SD2 SD card (2 GB) included per CompactLogix 5380 family documentation.
- Right for: OEM machines, packaging lines, material handling cells, process skids — mid-size applications with moderate memory and node requirements, no safety or integrated motion.
- Upgrade path: 5069-L320ER (more memory), 5069-L330ER / 5069-L340ER (more memory and nodes), 5069-L3xERS2 (safety), 5069-L310ERM (integrated motion).
