Allen-Bradley 5069-L306ER — CompactLogix 5380 Buyer's Guide

By Abdullah Zahid
13 min read

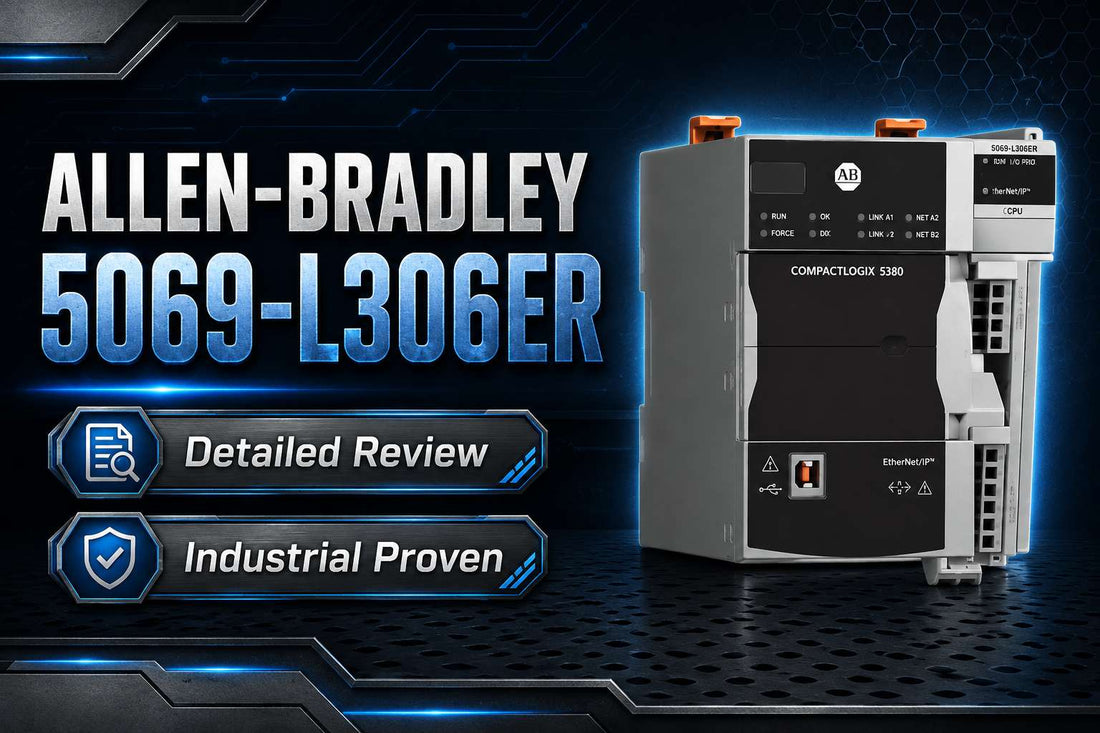

Allen-Bradley 5069-L306ER CompactLogix 5380 controller mounted on DIN rail with Compact 5000 I/O modules for OEM machine control

Allen-Bradley 5069-L306ER CompactLogix 5380 Controller – Specs, Price and Alternatives Guide

Controls engineers and OEM machine designers searching for the Allen-Bradley 5069-L306ER are typically at the same decision point: they need a modern, mid-range CompactLogix 5380 controller with dual EtherNet/IP ports, Compact 5000 I/O support, and enough user memory for small to medium machines — without paying for capabilities the application does not need. The 5069-L306ER sits in the lower-mid tier of the CompactLogix 5380 family with approximately 0.6 MB of user memory, two embedded EtherNet/IP ports, a USB 2.0 programming port, and integrated motion on EtherNet/IP for low axis count applications. Whether it is the right controller for your project comes down to a handful of hard constraints — and this guide works through every one of them.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 5069-L306ER — and Who Should Not

The Allen-Bradley 5069-L306ER is the right controller if your project meets all of the following criteria:

  • You need a standard (non-safety) CompactLogix 5380 controller — integrated safety is not required at the controller level.
  • Your application fits within approximately 0.6 MB of user memory, with program complexity and task count consistent with small to medium machine control.
  • Your I/O architecture is built around Compact 5000 I/O modules — legacy 1769 I/O is not compatible with this platform.
  • Dual EtherNet/IP ports and USB 2.0 are sufficient for your connectivity needs — there is no built-in serial, DH+, or ControlNet on this controller.
  • Your motion requirements fall within the low axis count range supported by integrated motion on EtherNet/IP for this model tier.
  • Your Studio 5000 Logix Designer version and plant firmware standards are aligned with the controller's supported firmware major revision.

If your application requires integrated safety at the controller level, the 5069-L306ERS is the correct variant. If you need more memory, a higher EtherNet/IP node count, or more motion axes, step up to a larger CompactLogix 5380 model such as the 5069-L310ER or 5069-L320ER.

On this page:

Where the 5069-L306ER Sits in a Rockwell EtherNet/IP Architecture

The Allen-Bradley 5069-L306ER is a programmable automation controller (PAC) in the CompactLogix 5380 family within Rockwell's broader Logix 5000 series. It is listed by Rockwell Automation as intended for a range of small to larger applications using Compact 5000 I/O and EtherNet/IP networks, placing it squarely in the mid-range of that family at the lower-memory end. Compared with the Micro800 platform, the 5069-L306ER delivers substantially more processing performance, motion capability, and network flexibility. Compared with ControlLogix, it is scaled for machine-level control rather than large plant-wide or process-intensive architectures.

In a typical deployment, the 5069-L306ER acts as the central logic and motion controller, with Compact 5000 I/O modules mounted directly to its right on a DIN rail and remote EtherNet/IP devices — drives, additional I/O banks, HMIs — connected across the two embedded Ethernet ports. The signal and data chain looks like this in practice:

  • Studio 5000 Logix Designer programming environment connects over USB 2.0 or Ethernet for download, commissioning, and diagnostics.
  • The 5069-L306ER controller mounts on DIN rail with a compatible 5069 power supply and local Compact 5000 I/O modules in sequence, terminated with the correct end cap.
  • Two embedded EtherNet/IP ports connect the controller to an industrial Ethernet switch or directly into a linear, star, or ring network topology.
  • Remote EtherNet/IP devices — PowerFlex drives, remote Compact 5000 I/O adapters, PanelView HMIs — communicate as nodes on the same EtherNet/IP network.
  • Integrated motion on EtherNet/IP coordinates servo drives at low axis counts directly from the controller without a separate motion network.

Which Applications and Industries Fit the 5069-L306ER

OEM machine builders in packaging and material handling are among the most common users of the 5069-L306ER. A mid-sized packaging machine with discrete and analog I/O, one to several EtherNet/IP drives, and a modest motion requirement sits squarely in the application window this controller is sized for. The dual EtherNet/IP ports simplify integration of drives, HMIs, and remote I/O without requiring an additional communication module.

Assembly and robotic cell applications where safety logic is handled by dedicated safety devices — rather than by the controller itself — are also a natural fit. The 5069-L306ER handles the primary logic and coordinates multiple EtherNet/IP devices while safety monitoring is managed externally, keeping the BOM straightforward.

Process skid applications — pumping, blending, and dosing systems — with modest analog and digital I/O counts are well-served by this controller. The Compact 5000 I/O family covers a wide range of analog, digital, and specialty modules, and the 0.6 MB user memory is generally adequate for the program complexity typical of these systems.

Plants upgrading from CompactLogix 5370 or MicroLogix-based machines to a current-generation EtherNet/IP-centric platform frequently land on the 5069-L306ER as the natural step up, provided they are also transitioning their I/O to Compact 5000 modules. Legacy 1769 I/O does not connect directly to the 5380 platform.

Application Typical Deployment
Packaging machine control Local Compact 5000 I/O, EtherNet/IP drives, PanelView HMI on dual Ethernet ports
Material handling conveyor system Remote EtherNet/IP I/O adapters, multiple drives coordinated over star or ring topology
Assembly cell with external safety Standard CompactLogix 5380 for primary logic, safety relay or safety PLC for guard logic
Process skid (pump, mix, dose) Mixed analog and digital Compact 5000 I/O, EtherNet/IP HMI and instrumentation
Platform upgrade from CompactLogix 5370 New 5380 controller with Compact 5000 I/O replacing 1769-based system, same EtherNet/IP network
Small production cell coordination Multiple EtherNet/IP nodes, drives, and remote I/O managed from a single 5380 controller

Key Specifications for the 5069-L306ER

Rockwell Automation's technical data confirms the 5069-L306ER carries approximately 0.6 MB of user memory, placing it at the lower-mid tier of the CompactLogix 5380 family. Official literature confirms support for integrated motion on EtherNet/IP for low axis count applications. The two embedded EtherNet/IP ports support linear, star, and ring network topologies at the machine level, and the USB 2.0 port handles programming, firmware updates, and maintenance tasks.

Parameter Value
Catalog Number 5069-L306ER
Product Family CompactLogix 5380 / Logix 5000
User Memory Approximately 0.6 MB
EtherNet/IP Ports 2 x embedded EtherNet/IP
USB Port 1 x USB 2.0 (programming and maintenance)
Motion Support Integrated motion on EtherNet/IP, low axis count
Local I/O Support Compact 5000 I/O modules (legacy 1769 I/O not supported)
Network Topologies Linear, star, and ring via EtherNet/IP
Power Supply Input 18–32 VDC via compatible 5069 power supply
Integrated Safety Not included — safety variant is 5069-L306ERS

Full technical specifications are available on the product page at LeadTime.ca.

5069-L306ER vs 5069-L306ERS vs Larger 5380 Models — Which Do You Actually Need?

The CompactLogix 5380 family spans a range of memory sizes, axis counts, and safety configurations. Choosing the wrong variant is the most common ordering mistake with this product line. The table below maps the key decision points.

Model Memory Tier Integrated Safety Best Fit
5069-L306ER ~0.6 MB (lower-mid) No Small to medium machines, standard control, low axis count motion
5069-L306ERS ~0.6 MB (lower-mid) Yes (Compact GuardLogix) Same machine scale with integrated safety logic required at controller level
5069-L310ER Higher than 5069-L306ER No Larger programs, more EtherNet/IP nodes, or higher motion axis count
5069-L320ER Higher No More complex systems requiring greater memory and network capacity
Micro800 series Lower No Very small, cost-sensitive machines where CompactLogix scale is unnecessary

If your application requires integrated safety at the controller level, the 5069-L306ERS is the correct choice — the 5069-L306ER cannot fulfill that requirement regardless of configuration. If your program or node count is pushing the limits of the 5069-L306ER's memory tier, check current availability at LeadTime.ca and ask about the next model up before committing to your BOM.

Expert Verdict: Is the 5069-L306ER the Right Controller for Your System?

The Allen-Bradley 5069-L306ER earns its place as the practical workhorse choice in the CompactLogix 5380 family for controls engineers and OEM designers who are already standardized on the Rockwell Logix 5000 ecosystem. With approximately 0.6 MB of user memory, dual embedded EtherNet/IP ports, and integrated motion on EtherNet/IP for low axis count applications, it delivers genuine performance headroom for small to medium machines without the cost of stepping into higher-memory 5380 models. The common Studio 5000 programming environment across the Logix 5000 family is a tangible advantage for plants running multiple controller generations — code libraries, training, and diagnostic practices transfer directly.

Where this controller has real limits is in fit rather than quality. If your project requires integrated safety logic at the controller level, the 5069-L306ER is simply the wrong part — the 5069-L306ERS exists for exactly that requirement. If your application involves a high axis count, very large program size, or a large number of EtherNet/IP nodes, you will find yourself constrained by the 0.6 MB memory tier and should evaluate the 5069-L310ER or 5069-L320ER before finalizing the BOM. At the other end, for a very simple, cost-sensitive machine where a Micro800 would handle the logic adequately, the 5380 platform carries more overhead than the application justifies.

From a procurement standpoint, the multi-week lead time Rockwell indicates for the 5069-L306ER means that last-minute sourcing decisions can stall a build. A specialist distributor adds real value here — not just in confirming whether the 5069-L306ER is the right variant, but in identifying in-stock alternatives, confirming firmware revision compatibility with your Studio 5000 version, and ensuring your Compact 5000 I/O, 5069 power supply, and end cap modules are all on the same order. Check current pricing and lead time for the 5069-L306ER at LeadTime.ca — the team ships worldwide and can validate your complete BOM before you commit.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 5069-L306ER

Model-specific community discussion for the 5069-L306ER is limited — most forum activity on platforms like r/PLC, PLCTalk, PLCS.net, MrPLC, and Rockwell's own user forums happens at the CompactLogix 5380 family level. That pattern itself is instructive: engineers who have worked with this platform tend to evaluate it as a family, and the ordering mistakes that surface in those communities apply directly to the 5069-L306ER.

The recurring praise is consistent: CompactLogix 5380 controllers are widely valued for their step up in performance and network responsiveness compared with older 5370 and 1769-based systems, particularly in motion and EtherNet/IP-heavy applications. Engineers who are already in the Logix 5000 ecosystem also cite the shared programming environment as a genuine advantage — Studio 5000 project structures, function block libraries, and diagnostic workflows carry across controller generations without retraining. The dual EtherNet/IP ports draw specific positive comments for how much they simplify machine-level ring and star topologies compared with adding a separate communication module.

The recurring frustrations are equally consistent. Price is the most commonly cited concern — the CompactLogix 5380 carries a noticeable cost premium versus Micro800 and some competing platforms, and engineers on tighter budgets feel it. Firmware and Studio 5000 version management is a close second: plants maintaining multiple projects across different controller generations regularly encounter compatibility friction, and the 5069-L306ER is not exempt from this. The third frustration is migration friction from 1769-based systems — the move to Compact 5000 I/O is not a drop-in swap, and underestimating that transition has extended commissioning timelines on more than a few projects. When community feedback is sparse on a specific model, that is precisely the moment to engage a specialist distributor who has worked through these scenarios before the PO is issued.

Wiring and Installation Overview

The following is an overview of key installation requirements. Full wiring diagrams, detailed mounting sequences, and commissioning procedures are contained in Rockwell's official installation instructions for the 5069-L306ER — always consult that documentation before installation.

  • Mount the 5069-L306ER on a DIN rail inside a suitable enclosure rated for the operating environment; the controller itself requires a cabinet for environmental and IP protection.
  • Attach Compact 5000 I/O modules in the correct sequence directly to the right of the controller, then install the required end cap module — an incomplete end cap configuration will prevent normal operation.
  • Wire the compatible 5069 power supply to the controller's power input terminals within the 18–32 VDC range; external overcurrent and short-circuit protection is required per Rockwell's installation instructions.
  • Connect the two EtherNet/IP ports using industrial-rated Ethernet cables to a managed or unmanaged switch, or directly in a linear daisy-chain topology; linear, star, and ring topologies are supported.
  • Verify grounding and bonding of the DIN rail, power supply, and enclosure to minimize electrical noise before applying power and checking status LEDs.

Wrong-Part Prevention Checklist Before You Issue a PO

These checks reflect the most common ordering errors with the Allen-Bradley 5069-L306ER CompactLogix 5380 controller. Work through every item before submitting your purchase order.

  1. Confirm you need a standard (non-safety) CompactLogix 5380 controller; if you require integrated safety, this exact model is not suitable.
  2. Verify that 0.6 MB of user memory and the supported task/program limits are sufficient for your application scale and future expansion.
  3. Check that your design uses Compact 5000 I/O and EtherNet/IP devices; this controller does not support legacy local 1769 I/O.
  4. Confirm dual EtherNet/IP and USB-only connectivity are acceptable (no built-in serial, DH+, or ControlNet).
  5. Match the required firmware major revision with your installed Studio 5000 Logix Designer version and plant standards.
  6. Ensure you have specified compatible 5069 power supply and end cap modules, and that panel space and environmental conditions meet Rockwell's installation requirements.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — our team can validate your BOM, confirm firmware compatibility, and identify in-stock alternatives if lead times are a concern.

Frequently Asked Questions

Is the 5069-L306ER a safety controller, or do I need a different model for integrated safety?

The 5069-L306ER is a standard CompactLogix 5380 controller and does not include integrated safety functionality. If your application requires safety logic at the controller level — for example, GuardLogix-class SIL or PLe compliance — you need the 5069-L306ERS, which is the Compact GuardLogix safety variant in the same family. External safety relays or safety PLCs can be used alongside the 5069-L306ER for applications where safety is handled outside the primary controller.

Can I reuse my existing 1769 I/O modules with the 5069-L306ER?

No. The 5069-L306ER is a CompactLogix 5380 controller and uses Compact 5000 I/O modules exclusively for local I/O. Legacy 1769 Compact I/O modules used with CompactLogix 5370 controllers are not directly compatible. When migrating from a 5370 or 1769-based system, a new Compact 5000 I/O BOM — including modules, terminal bases, and the end cap — must be specified as part of the project.

How do I avoid firmware and Studio 5000 version mismatches when ordering the 5069-L306ER?

Firmware and Studio 5000 version compatibility is one of the most commonly reported pain points with CompactLogix 5380 deployments. Before ordering, identify your plant's current Studio 5000 Logix Designer version and the firmware major revision it supports, then specify that revision in your purchase order or ask your distributor to confirm it before shipment. If the controller is delivered with a different firmware major revision, a firmware update using Rockwell's recommended tools will be required before the project can be downloaded successfully.

Does the 5069-L306ER have built-in I/O?

No. The 5069-L306ER does not include any on-board I/O points. All discrete, analog, and specialty I/O must be provided by Compact 5000 I/O modules mounted directly to the controller or via remote EtherNet/IP I/O adapters. This is a common source of incomplete BOMs for engineers migrating from platforms that do include integrated I/O.

What network topologies does the 5069-L306ER support, and does it work with Device Level Ring?

The two embedded EtherNet/IP ports on the 5069-L306ER support linear, star, and ring network topologies. Device Level Ring (DLR) support is consistent with CompactLogix 5380 family capabilities — confirm DLR requirements against the current Rockwell technical data document for the 5069-L306ER to ensure your planned topology is fully supported before finalizing the network design.

What are the key considerations when migrating from a CompactLogix 5370 to the 5069-L306ER?

The primary migration considerations are the I/O platform change from 1769 to Compact 5000, the firmware and project conversion process in Studio 5000, and any differences in task and program structure between your existing project and the 5380 platform. Rockwell provides migration guidance that covers project conversion steps and I/O mapping changes — using that documentation alongside a specialist distributor's application support will reduce the risk of extended commissioning time.

Why Order the 5069-L306ER from LeadTime.ca

  • LeadTime.ca ships the Allen-Bradley 5069-L306ER worldwide — no regional restrictions on quoting or fulfillment.
  • Specialist sourcing support helps confirm the correct CompactLogix 5380 variant (standard vs safety, correct memory tier) before the PO is issued.
  • When lead times are extended on the 5069-L306ER, the team can identify in-stock alternatives and compatible accessory modules to keep your project on schedule.
  • BOM review assistance covers the complete 5069 system — power supply, Compact 5000 I/O modules, end cap, and firmware revision alignment.
  • Volume pricing and project-level quotes available on request for OEM and integrator customers.

At-a-Glance Summary

  • Catalog number: 5069-L306ER — CompactLogix 5380 controller in the Logix 5000 family.
  • User memory: approximately 0.6 MB, lower-mid tier of the CompactLogix 5380 range.
  • Connectivity: 2 x embedded EtherNet/IP ports, 1 x USB 2.0 — no serial, DH+, or ControlNet.
  • Motion: integrated motion on EtherNet/IP for low axis count applications.
  • Local I/O: Compact 5000 I/O modules only — 1769 legacy I/O is not supported.
  • Power: 18–32 VDC via compatible 5069 power supply; external overcurrent protection required.
  • Network topologies: linear, star, and ring via EtherNet/IP.
  • Safety: standard controller only — safety variant is 5069-L306ERS.
  • Lead time: multi-week per Rockwell manufacturer indications; confirm current availability before committing to a build schedule.
  • Warranty: standard one-year manufacturer warranty per Rockwell product listing.
