Allen-Bradley 5069-IY4 — Universal Analog Input Buying Guide

By Abdullah Zahid
15 min read

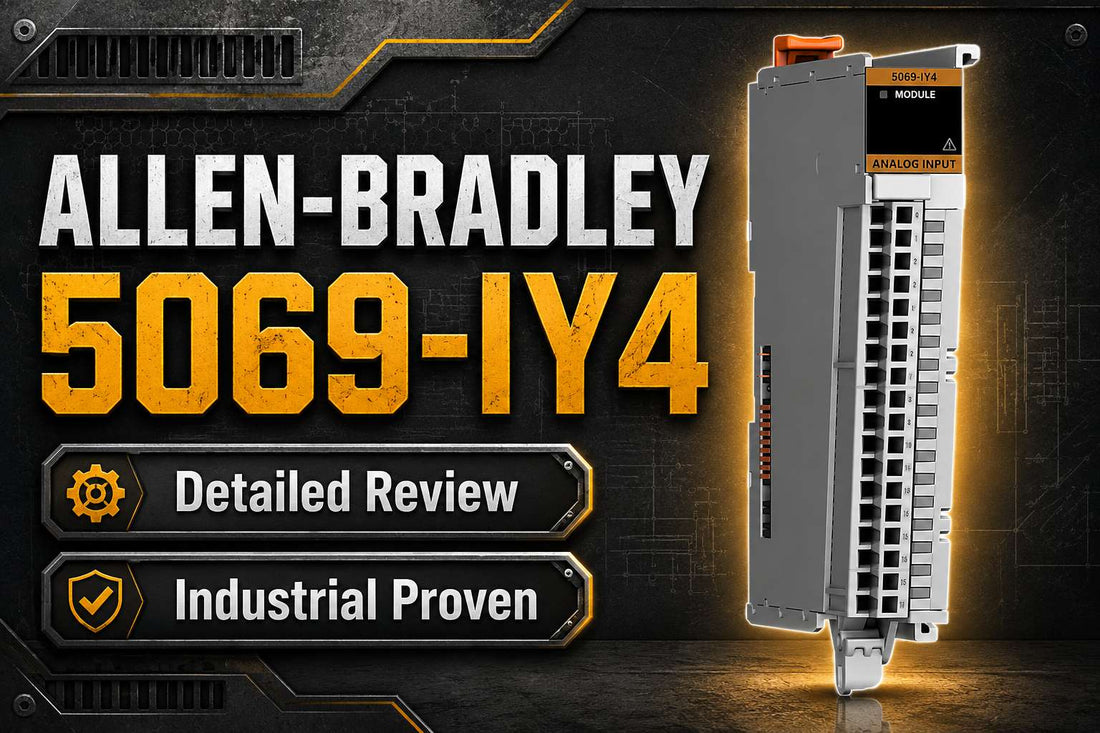

Allen-Bradley 5069-IY4 Compact 5000 universal analog input module for CompactLogix mixed-signal panel applications

Allen-Bradley 5069-IY4 Compact 5000 Universal Analog Input Module — Specs, Review, Pricing and Alternatives

Controls engineers specifying analog I/O for CompactLogix 5380, CompactLogix 5480, or ControlLogix 5580 systems frequently land on the Allen-Bradley 5069-IY4 when a single panel rack needs to accept voltage, current, RTD, and thermocouple signals without dedicating a separate module to each sensor type. The 5069-IY4 delivers 4-channel universal analog input on a 22 mm wide body, with 16-bit resolution at a typical conversion rate of 10 Hz, and full configuration managed inside Studio 5000 Logix Designer. If your design involves mixed field signal types and limited panel space, this module was built for exactly that tradeoff.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 5069-IY4 — and Who Shouldn't

The 5069-IY4 is the right choice when all five of the following conditions apply to your project:

  • Your controller is a CompactLogix 5380, CompactLogix 5480, or ControlLogix 5580 operating within a Compact 5000 I/O architecture.
  • At least some channels will be used for mixed signal types — combining voltage, 4–20 mA current loops, RTDs, and thermocouples on a single module.
  • Four universal input channels are sufficient for the rack or remote drop in question.
  • The operating environment does not require conformal-coated electronics (standard variant; see 5069-IY4K if corrosion or condensation is a concern).
  • The panel has DIN rail space conforming to EN 50022 35 x 7.5 mm, and the power budget on the Compact 5000 carrier accommodates the module's backplane current draw.

If your application uses only a single signal type across all channels — for example, exclusively 4–20 mA transmitters — the 5069-IF4 or 5069-IF8 will typically deliver a lower cost per channel without the universal overhead. For harsh or corrosive environments, the conformal-coated 5069-IY4K is the correct variant.

On this page:

What the 5069-IY4 Actually Does in a Compact 5000 System

The Allen-Bradley 5069-IY4 is a 4-channel universal analog input module belonging to the Compact 5000 I/O family. Its defining characteristic is that each of its four channels is independently configurable for a different signal type: DC voltage, DC current (including 4–20 mA loops), RTD (resistance temperature detectors including Pt100, Pt1000, and nickel and copper variants), or thermocouple inputs spanning types B, C, D, E, J, K, L, N, R, S, T, and others. This is not a module with a single fixed input range shared across all channels — the per-channel configurability is the technical reason engineers choose it over dedicated single-type analog modules when the field wiring is mixed.

At the hardware level, the 5069-IY4 delivers 16-bit resolution at a typical conversion rate of 10 Hz. The 22 mm module width is among the narrower footprints available in the Compact 5000 series, which directly supports higher I/O density in both local chassis and remote I/O drops. The module does not ship with a terminal block — the removable terminal block (RTB) is a separately ordered item, and selecting the correct one is a critical ordering step covered in the checklist below.

The module integrates natively into Studio 5000 Logix Designer using standard Compact 5000 I/O module profiles. Channel configuration, engineering unit scaling, filter settings, and diagnostic tag mapping are all handled inside the project file, with no additional configuration software required.

Typical System Architecture and Signal Chain

In a typical deployment, the 5069-IY4 sits between the field sensor layer and the controller's I/O tree, converting analog field signals into digital process values that the PLC scan cycle reads as floating-point or integer tags. Here is how that chain typically looks:

  • CompactLogix 5380 or ControlLogix 5580 controller communicates over the Compact 5000 backplane to local I/O, or over EtherNet/IP to a remote Compact 5000 I/O adapter.
  • The Compact 5000 I/O carrier or adapter mounts on EN 50022 DIN rail; the 5069-IY4 snaps into a carrier slot.
  • Field devices — thermocouples, RTD probes, 4–20 mA transmitters, 0–10 V transducers — wire to the removable RTB terminal block installed on the module face.
  • The 5069-IY4 converts each channel's analog signal to a 16-bit digital value and presents it as a controller tag readable in Studio 5000 ladder, function block, or structured text routines.
  • Module and channel status bits in the I/O tag structure surface fault conditions — overrange, underrange, open circuit — to the controller program for alarming or interlock logic.

Where Engineers Deploy the 5069-IY4

Temperature monitoring applications are among the most common drivers for the 5069-IY4. Ovens, chillers, process vessels, and climate-control loops frequently mix RTD probes on some channels with thermocouple sensors on others. Rather than populating a rack with both a dedicated RTD module and a dedicated thermocouple module, the 5069-IY4 consolidates those inputs into one slot, simplifying the panel BOM and the spare parts list.

OEM machine builders are frequent users of this module precisely because their machines ship with different sensor configurations for different customers. A single 5069-IY4 module profile in the machine program handles voltage-output position sensors, 4–20 mA pressure transmitters, and RTD temperature inputs depending on what the end customer specifies — without redesigning the electrical panel or the PLC program for each variant.

Distributed and remote I/O architectures benefit from placing the 5069-IY4 close to the field devices. Running 4–20 mA or thermocouple signals back to a central panel over long cable runs introduces noise and signal degradation. Mounting a Compact 5000 remote I/O drop near the process and connecting it back to the controller over EtherNet/IP keeps analog wiring short and signal quality high.

Water and wastewater infrastructure, food and beverage processing lines, and petrochemical skids represent secondary deployment environments where the combination of loop-powered 4–20 mA transmitters and RTD temperature elements on the same I/O rack is routine.

Application Typical Deployment
Temperature monitoring in process industry RTD and thermocouple channels on same 5069-IY4 in a local CompactLogix rack
OEM machine with variable sensor options Single 5069-IY4 module profile covering V, mA, RTD, and TC sensor options per customer spec
Remote I/O drop near field devices Compact 5000 EtherNet/IP adapter with 5069-IY4 mounted at the process skid
Mixed transmitter and temperature panel 4–20 mA pressure/flow transmitters and RTD probes on shared module to minimize slot count
Food and beverage processing line 5069-IY4 handling sanitary RTD probes and loop-powered 4–20 mA flow meters in a CompactLogix system
Water and wastewater instrumentation Mixed analog signals from field instruments consolidated in a remote Compact 5000 drop

Key Specifications and Input Ranges

Parameter Value Notes
Catalog Number 5069-IY4 Standard variant; conformal-coated variant is 5069-IY4K
Product Family Compact 5000 I/O Compatible with CompactLogix 5380/5480 and ControlLogix 5580
Number of Channels 4 Each channel independently configurable
Supported Input Types Voltage, Current, RTD, Thermocouple Per-channel selection in Studio 5000
Voltage Ranges -10…10 V DC, 0…5 V, 0…10 V Main ranges; verify full list in datasheet
Current Ranges 0…20 mA, 4…20 mA Supports loop-powered and externally powered transmitters
RTD Types Supported Pt100, Pt1000, Nickel, Copper variants Resistance-based temperature measurement
Thermocouple Types Supported B, C, D, E, J, K, L, N, R, S, T and others CJC terminal block required for TC inputs — see accessories
Resolution 16-bit at typical 10 Hz conversion rate Filter settings affect update rate and noise rejection
Module Width 22 mm Mounts on EN 50022 35 x 7.5 mm DIN rail

Full technical specifications are available on the product page at LeadTime.ca.

5069-IY4 vs 5069-IY4K vs 5069-IF4 and IF8 — Which One Do You Actually Need?

Module Channels Input Types Conformal Coat Typical Use Case Notes
5069-IY4 4 V, mA, RTD, TC (universal) No Mixed signal panels, OEM machines, standard environments Standard variant; RTB sold separately
5069-IY4K 4 V, mA, RTD, TC (universal) Yes Harsh, corrosive, or high-humidity environments Identical functionality to 5069-IY4; specify K variant for environmental protection
5069-IF4 4 Voltage and Current only No Dedicated V/mA panels where RTD/TC not required Lower cost per channel when universal inputs are not needed
5069-IF8 8 Voltage and Current only No High-density V/mA applications Better cost per channel for large channel counts without temperature sensors
5069-IR6 6 RTD only No Dedicated RTD temperature measurement More channels for RTD-heavy applications; no TC or V/mA
5069-IT6 6 Thermocouple only No Dedicated thermocouple temperature measurement More TC channels per slot; no RTD or V/mA

If your application uses only voltage and current signals across all channels, the 5069-IF4 or 5069-IF8 will provide a better cost-per-channel outcome — check current availability and compare at LeadTime.ca.

Expert Verdict: Is the 5069-IY4 Worth the Premium?

The Allen-Bradley 5069-IY4 earns its place on the BOM when the application genuinely demands mixed analog signal types on a single module. Controls engineers and OEM machine designers working within CompactLogix 5380, CompactLogix 5480, or ControlLogix 5580 architectures will find that the per-channel universal configurability directly reduces the total number of I/O slots consumed, simplifies the spare parts strategy to a single catalog number, and keeps Studio 5000 configuration straightforward within the native Compact 5000 I/O module profile ecosystem. The 16-bit resolution at 10 Hz and the 22 mm module width are concrete advantages for process applications where accuracy and panel space both matter.

The honest limits of this module are equally important to state. If every channel in your rack will carry 4–20 mA process transmitter signals and nothing else, the 5069-IY4 is technically overkill — the 5069-IF4 or 5069-IF8 will handle the job at a lower cost per channel without the thermocouple and RTD overhead. For applications in corrosive atmospheres, persistent condensation, or environments that push humidity and temperature extremes, the 5069-IY4K is the correct selection, not the standard variant. And for applications requiring six or more RTD or thermocouple channels on a single slot, the dedicated 5069-IR6 and 5069-IT6 modules offer higher channel density for their respective sensor types.

From a procurement standpoint, the 5069 series sits in the premium segment of Allen-Bradley analog I/O pricing — that reflects the tight CompactLogix integration and the engineering flexibility delivered. Stock availability can vary across major distributors, and during periods of high demand, lead times on Compact 5000 analog modules have historically extended beyond standard expectations. Ordering early against a confirmed project schedule and working with a distributor who can provide accurate real-time lead time data is a material risk-reduction step, not a formality. Check current pricing and stock status for the 5069-IY4 at LeadTime.ca — the product page reflects live availability and ships worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 5069-IY4

Across the Allen-Bradley controls engineering community — including active discussions on Reddit r/PLC, PLCTalk, PLCS.net, MrPLC, and distributor product Q&A sections — the recurring theme around the 5069-IY4 and the broader Compact 5000 analog family is positive, but that positive sentiment comes with consistent field-sourced caveats that any buyer should absorb before placing an order.

The praise is specific and repeatable: engineers consistently highlight that having universal inputs on every channel genuinely simplifies both panel design and the spares cabinet. When a machine needs to handle a thermocouple on channel one, a 4–20 mA flow transmitter on channel two, an RTD on channel three, and a 0–10 V position sensor on channel four, the 5069-IY4 handles all of that from a single module profile in Studio 5000 without requiring the integrator to mix multiple dedicated modules. The compact 22 mm width also draws specific mention from engineers retrofitting older panels with limited slot space. Configuration experiences in Studio 5000 are broadly described as straightforward, provided the correct module profile and firmware revision are used. The warnings in the community, however, are equally consistent: noisy or unstable analog readings appear repeatedly in troubleshooting threads, and in nearly every case the root cause is inadequate wiring practices — unshielded cable runs in electrically noisy environments, shields not grounded correctly, or analog and power wiring sharing conduit. Thermocouple channels are specifically called out as sensitive to these issues over longer cable runs.

The ordering mistakes found in community discussions are preventable and directly relevant to anyone specifying this module for the first time. The single most common error is arriving at installation without the removable terminal block — the 5069-IY4 does not ship with an RTB, and the correct kit depends on both wiring style preference and whether thermocouple inputs are in use (the CJC terminal block variants are required for accurate thermocouple cold-junction compensation). A second recurring mistake is confusing the 5069-IY4 with the 5069-IF4, which does not support RTD or thermocouple inputs — an error that only surfaces when field wiring is already complete. The third is specifying the standard 5069-IY4 for an environment that warrants the conformal-coated 5069-IY4K, a substitution that is far easier to make at the BOM stage than after installation. These are not edge-case scenarios; they appear with enough frequency across the community that validating these points with a specialist distributor before ordering is a genuine risk mitigation step, particularly when community feedback on your exact configuration is limited and the Rockwell documentation is the authoritative source.

Wiring and Installation Overview

  • Mount the Compact 5000 carrier on EN 50022 35 x 7.5 mm DIN rail, snap the 5069-IY4 into a carrier slot with the backplane connector fully seated, then install the selected RTB terminal block until the locking tabs engage.
  • Use shielded twisted-pair cable for all analog signal wiring; ground cable shields at one end per Rockwell recommendations to avoid ground loops, and keep analog signal cables physically separated from high-voltage power wiring.
  • For thermocouple inputs, the CJC (cold-junction compensation) terminal block — either 5069-RTB14CJC-SCREW or 5069-RTB14CJC-SPRING — is required; the standard RTB18 variants do not provide cold-junction compensation and will produce inaccurate temperature readings on TC channels.
  • Before applying power, verify each channel's wiring against the installation manual terminal diagram, confirm correct polarity for current loops and RTD connections, and apply adequate strain relief to all conductors at the terminal block.
  • After restoring power, verify backplane communication is established, then in Studio 5000 confirm each channel's configured signal type and range matches the field device wiring before placing the controller in RUN mode.

Compatible Terminal Kits and System Expansion

The 5069-IY4 requires a separately purchased removable terminal block. Four RTB variants are available, and selecting the wrong one is the most common ordering error for this module:

  • 5069-RTB18-SCREW — Standard 18-position screw-clamp terminal block for voltage, current, and RTD wiring configurations.
  • 5069-RTB18-SPRING — Standard 18-position spring-clamp terminal block for voltage, current, and RTD wiring; spring clamp preferred in high-vibration environments.
  • 5069-RTB14CJC-SCREW — 14-position cold-junction compensation terminal block with screw clamp; required when any channel is configured for thermocouple input.
  • 5069-RTB14CJC-SPRING — 14-position CJC terminal block with spring clamp; required for thermocouple inputs in vibration-prone installations.
  • 5069-IY4K — Conformal-coated variant of the 5069-IY4 for harsh or corrosive environments; identical electrical and software specification, different environmental protection.

Wrong-Part Prevention Checklist

Before placing your purchase order for the 5069-IY4, verify every item on this checklist. These are the exact checks that prevent the most common and costly ordering mistakes for this module:

  1. Confirm the controller family and network architecture support Compact 5000 I/O and the 5069 series.
  2. Verify you truly need universal inputs (V/mA/RTD/TC) on each channel; if only one signal type is used, compare to dedicated 5069 analog modules.
  3. Check that 4 channels are sufficient; if more are required, evaluate multiple modules or higher-density options.
  4. Select the correct terminal kit: 5069-RTB18-SCREW, 5069-RTB18-SPRING, 5069-RTB14CJC-SCREW, or 5069-RTB14CJC-SPRING depending on wiring style and thermocouple needs.
  5. Confirm environmental requirements (operating temperature, humidity, shock/vibration) and whether the conformal-coated 5069-IY4K is required instead.
  6. Ensure panel space and DIN rail type (EN 50022 35 x 7.5 mm) are available.
  7. Verify input ranges and resolution meet process accuracy requirements (voltage/current/RTD/TC ranges and 16-bit resolution).
  8. Check power budget and backplane current consumption against the chosen Compact 5000 I/O carrier or adapter.

If any item on this checklist raises a question about the right variant or terminal kit, contact the LeadTime.ca team before ordering — we can validate compatibility and confirm availability for your specific configuration.

Frequently Asked Questions

Can each channel on the 5069-IY4 be configured for a completely different signal type — for example, channel 1 as 4–20 mA, channel 2 as RTD, and channel 3 as thermocouple?

Yes. Each of the four channels on the 5069-IY4 is independently configurable for a different signal type and range within Studio 5000 Logix Designer. This per-channel flexibility is the primary technical distinction that separates the 5069-IY4 from dedicated single-type analog modules and the core reason it is chosen for mixed-signal panel designs.

Do I need a special terminal block for thermocouple inputs, and what is the difference between the RTB18 and RTB14CJC variants?

Yes — thermocouple inputs require the CJC (cold-junction compensation) terminal block, either 5069-RTB14CJC-SCREW or 5069-RTB14CJC-SPRING, depending on your wiring preference. The standard RTB18 variants do not include cold-junction compensation circuitry and will produce inaccurate temperature readings on thermocouple channels. If your design uses any thermocouple on any channel, the CJC terminal block must be on the purchase order.

What causes overrange or bad-data fault flags on 5069-IY4 channels, and where do I start troubleshooting?

The most common causes are channel configuration mismatches (a channel configured for voltage while wired for 4–20 mA, or an RTD channel set to the wrong sensor type), open-circuit conditions at the field device or terminal, and wiring issues including noise from inadequate shielding or improper grounding. Start by checking that the configured signal type and range in Studio 5000 matches the wiring diagram, verify the terminal block is fully seated, and inspect the field device connection before investigating electrical noise sources.

What is the difference between the 5069-IY4 and the 5069-IY4K, and how do I decide which one to order?

The 5069-IY4K is the conformal-coated variant of the 5069-IY4. Both modules are electrically and functionally identical — same channel count, same universal input types, same 16-bit resolution, same Studio 5000 integration. The K suffix indicates a conformal coating applied to the PCB to protect against moisture, corrosive gases, and condensation. Specify 5069-IY4K when the installation environment involves elevated humidity, condensation risk, or exposure to chemicals; specify 5069-IY4 for standard controlled enclosure environments.

Is the 5069-IY4 a direct drop-in replacement for older CompactLogix analog modules, and do I need to update firmware?

The 5069-IY4 is a Compact 5000 I/O series module and is not a backplane-compatible drop-in replacement for 1769 CompactLogix or 1756 ControlLogix analog modules from earlier generations — the Compact 5000 backplane and carrier architecture are different. When migrating from an older platform, verify controller compatibility (CompactLogix 5380/5480 or ControlLogix 5580), the required Studio 5000 firmware revision for the 5069-IY4 module profile, and update your I/O tree configuration accordingly. Rockwell Automation's migration documentation is the authoritative reference for this process.

How close can the 5069-IY4 be mounted to high-voltage equipment without affecting analog signal quality?

The 5069-IY4 uses non-isolated input channels, which means grounding and cable routing practices directly affect signal quality. Rockwell's installation guidance recommends maintaining physical separation between analog signal wiring and high-voltage AC or variable-frequency drive cables, using shielded twisted-pair conductors for all analog runs, and grounding shields per the installation manual. The specific minimum separation distances depend on the voltage levels involved and conduit routing — consult the 5069-IY4 installation manual for the definitive requirements applicable to your installation.

Why Order From LeadTime.ca

  • LeadTime.ca ships Allen-Bradley Compact 5000 I/O hardware worldwide — no geographic restrictions on sourcing.
  • Specialist distributor knowledge means compatibility validation before the order ships, not after installation — particularly valuable for confirming the correct RTB terminal kit alongside the 5069-IY4.
  • Real-time stock and lead time visibility on 5069 series modules, including the ability to identify alternate stocking locations or equivalent variants when primary stock is constrained.
  • Volume pricing available for project quantities — contact for current pricing when building a multi-module BOM.
  • Fast response for urgent replacement and MRO orders; no account setup delays for most worldwide destinations.

At-a-Glance Summary

  • Catalog number: 5069-IY4 — Compact 5000 I/O universal analog input module.
  • 4 channels, each independently configurable for voltage, current (4–20 mA), RTD (Pt100, Pt1000, Ni, Cu), or thermocouple (B, C, D, E, J, K, L, N, R, S, T and others).
  • 16-bit resolution at a typical conversion rate of 10 Hz.
  • 22 mm module width on EN 50022 35 x 7.5 mm DIN rail — compact footprint for high I/O density.
  • Compatible with CompactLogix 5380, CompactLogix 5480, and ControlLogix 5580 controllers in local or remote Compact 5000 I/O configurations.
  • Terminal block sold separately — 5069-RTB18-SCREW or SPRING for V/mA/RTD; 5069-RTB14CJC-SCREW or SPRING required for thermocouple inputs.
  • Conformal-coated variant: 5069-IY4K — specify for harsh or corrosive environments.
  • Configuration managed entirely in Studio 5000 Logix Designer using native Compact 5000 I/O module profiles.
  • Pricing is in the premium segment for Allen-Bradley analog I/O — availability and lead times vary; verify with distributor before project commitment.
  • Primary alternatives: 5069-IF4 and 5069-IF8 for voltage/current-only applications; 5069-IR6 and 5069-IT6 for dedicated RTD or thermocouple density.
