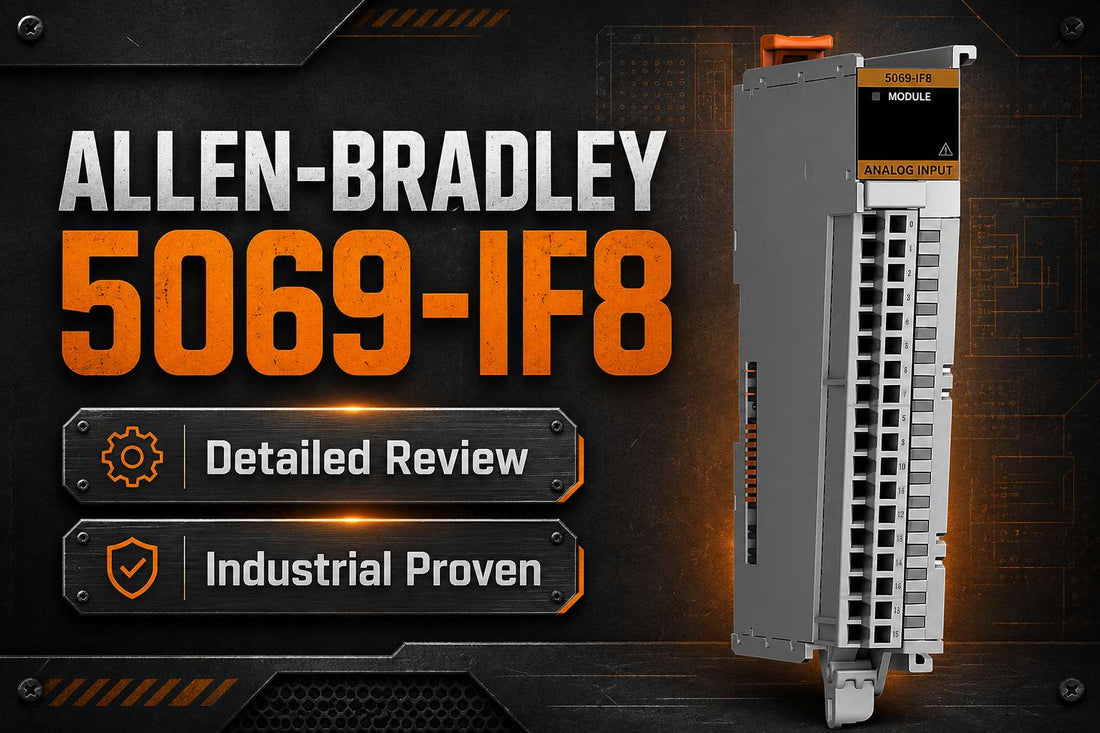

Allen-Bradley 5069-IF8 Compact 5000 8-channel analog input module for CompactLogix 5380 systems

Allen-Bradley 5069-IF8 Compact 5000 Analog 8-Channel Current/Voltage Input Module — Specs, Review and Buying Guide

Controls engineers specifying analog I/O for a CompactLogix 5380 or Compact GuardLogix 5380 system eventually land on the same question: which 5069 analog input module gives me the right channel count, signal flexibility, and studio integration without overcomplicating the BOM? The Allen-Bradley 5069-IF8 answers that question with 8 differential analog input channels, support for both voltage and current ranges including ±10 V, 0–10 V, 0–5 V, 0–20 mA, and 4–20 mA, and 16-bit signed resolution — all in a 22 mm-wide Compact 5000 I/O footprint that preserves panel real estate on dense builds.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 5069-IF8 — and Who Shouldn't

The Allen-Bradley 5069-IF8 is the right selection for controls engineers and OEM designers who are building or expanding a system on the 5069 Compact 5000 I/O platform and need a single module to cover eight channels of mixed analog input. Confirm all of the following before ordering:

  • Your system uses the 5069 Compact 5000 I/O platform with a CompactLogix 5380, Compact GuardLogix 5380, or a Logix 5000 controller via a 5069 distributed I/O adapter — not a 1756 ControlLogix or 1769 Compact I/O chassis.
  • You require exactly 8 analog input channels; if fewer are needed or you need analog outputs, review other 5069 analog module options first.
  • All field devices output signals within the module's supported ranges: ±10 V, 0–10 V, 0–5 V, 0–20 mA, or 4–20 mA.
  • Non-isolated channels sharing a common reference are acceptable for your grounding and noise environment.
  • Your controller firmware and Studio 5000 version are confirmed compatible with the 5069-IF8 and its installed firmware revision.
  • The operating environment falls within the module's rated temperature range of 0 to 60 °C and up to 95% relative humidity, non-condensing.

If you need fewer channels, consider the 5069-IF4. If your application requires isolated analog channels, a different module is the correct specification. Projects not committed to the 5069 platform should evaluate their PLC ecosystem before selecting this part.

On this page:

What the Allen-Bradley 5069-IF8 Does in a Real Control System

The Allen-Bradley 5069-IF8 is a Compact 5000 Analog 8-channel Current/Voltage Input Module that bridges field-level analog devices — pressure transmitters, level sensors, flow meters, drive feedback signals, and valve position transducers — to a Logix 5000 controller through the 5069 Compact 5000 I/O backplane. Its role is signal acquisition: taking the raw milliamp or voltage output of a field instrument and delivering a 16-bit signed digital representation of that value to the controller at the configured Requested Packet Interval.

What makes the 5069-IF8 a practical BOM simplifier is that a single module handles both voltage and current inputs simultaneously across its eight differential channels. Engineers designing systems with mixed instrumentation — some devices outputting 4–20 mA, others outputting 0–10 V — do not need separate modules for each signal type. That combination of channel density, signal flexibility, and the native integration with Studio 5000 Logix Designer keeps the hardware count low and the engineering straightforward on a Compact 5000 rack.

The module is rated for operation at temperatures from 0 to 60 °C, making it suitable for standard industrial control panel environments. It occupies only 22 mm of backplane width, which matters on constrained panel layouts where every millimeter of DIN rail is accounted for. Channels are differential inputs but share a common reference — a factor that affects grounding strategy and must be reviewed against the noise environment of the installation.

Typical System Architecture for the 5069-IF8

The 5069-IF8 sits between the field instrumentation layer and the controller's program logic, converting analog field signals into digital data tags that Logix 5000 ladder or structured text routines can act on. Here is where it typically appears in a Compact 5000 deployment:

  • Controller: CompactLogix 5380 or Compact GuardLogix 5380 (local I/O) or a Logix 5000 controller connected via a 5069 EtherNet/IP adapter for distributed I/O racks.
  • 5069 I/O assembly: The 5069-IF8 snaps onto the Compact 5000 I/O backplane alongside digital I/O, analog output, and specialty modules in the same chassis.
  • 5069-IF8: Receives analog signals from up to 8 field devices via a Compact 5000 terminal base or field wiring assembly.
  • Field devices: 4–20 mA transmitters, 0–10 V sensors, drive analog outputs, and similar instruments connected through shielded twisted-pair cabling.
  • Studio 5000 Logix Designer: Configuration environment where each channel's input type, range, scaling, and diagnostics are set and monitored online.

Typical Applications and Deployment Scenarios

The 5069-IF8 is a common selection on packaging lines and assembly machines built around CompactLogix 5380 controllers, where analog feedback from pneumatic pressure regulators, servo drives, and web tension sensors must be consolidated into a single compact I/O rack. Eight channels is often the right count for mid-complexity machines with a mix of process monitoring and closed-loop control inputs.

Process skids standardized on the Rockwell Logix 5000 platform — including water and wastewater sub-systems, boiler control skids, and small chemical process loops — regularly use the 5069-IF8 to aggregate 4–20 mA signals from pressure, flow, level, and temperature transmitters. The module's support for both 0–20 mA and 4–20 mA ranges accommodates the instrumentation mix typically found on utility skids without requiring separate loop-powered signal conditioners.

Modernization projects replacing older 1769 Compact I/O analog modules with Compact 5000 I/O represent another major use case. When a plant upgrades to a CompactLogix 5380 controller, the 5069-IF8 provides the analog input equivalent in the new platform while fitting into a revised panel layout that benefits from the module's 22 mm width.

Distributed I/O architectures that use 5069 EtherNet/IP adapters to extend I/O away from the main controller cabinet also use the 5069-IF8 at remote drops, allowing analog field devices near equipment to be wired locally rather than running long analog cable runs back to the main panel.

Application Typical Deployment
Packaging and assembly machines Local I/O on CompactLogix 5380, reading pressure and tension feedback from 8 or fewer analog devices
Process skids (water, utilities, boilers) 4–20 mA transmitters for pressure, flow, level, and temperature consolidated on a single 5069-IF8
Material handling and conveyor systems Analog speed feedback and load cell signals on a CompactLogix 5380 local rack
OEM machine modernization Replacing 1769 analog input modules in a panel upgrade to Compact 5000 I/O
Distributed remote I/O drops 5069 adapter-based remote rack reading analog field instruments close to equipment

Key Specifications and Variant Comparison for the Allen-Bradley 5069-IF8

Specification Detail
Catalog Number 5069-IF8
Product Family Compact 5000 I/O
Analog Input Channels 8 differential input channels
Input Types Voltage and current
Voltage Ranges ±10 V, 0–10 V, 0–5 V
Current Ranges 0–20 mA, 4–20 mA
Resolution 16-bit signed
Module Width 22 mm
Operating Temperature 0 to 60 °C
Relative Humidity Up to 95% non-condensing

Full technical specifications are available on the product page at LeadTime.ca.

5069-IF8 vs Key Compact 5000 Analog Module Variants

Module Channels Signal Types Best Fit
5069-IF8 8 analog inputs Voltage and current Systems needing maximum analog input density in one slot on a 5069 rack
5069-IF4 4 analog inputs Voltage and current Smaller machines or panels where 4 channels is sufficient and cost or slot count is a factor
5069 analog output modules Varies Analog outputs Applications requiring analog command signals to drives, valves, or positioners
1756-IF8 (ControlLogix) 8 analog inputs Voltage and current Larger chassis-based ControlLogix systems — not compatible with 5069 backplane

If your project requires only four analog inputs and slot count or budget is a constraint, the 5069-IF4 is the logical step down — check current 5069-IF8 availability and pricing at LeadTime.ca to compare options before finalizing your BOM.

Expert Verdict: When to Buy the Allen-Bradley 5069-IF8 and When to Walk Away

The Allen-Bradley 5069-IF8 is the default eight-channel analog input selection for controls engineers building or expanding systems on the Compact 5000 I/O platform. Its value proposition is straightforward: 8 differential channels of mixed voltage and current input, 16-bit signed resolution, and native Studio 5000 integration in a 22 mm-wide module that keeps panel layouts tight. For OEMs standardized on CompactLogix 5380 or plants with an established Rockwell Logix 5000 infrastructure, this module simplifies the BOM by covering the most common industrial analog signal ranges in a single catalog number. Engineers who regularly specify pressure, flow, level, and temperature transmitters alongside drive feedback signals will find that one 5069-IF8 handles the mix without requiring separate signal conditioning hardware.

The honest limits are equally clear. The 5069-IF8 is not the right choice for systems that have not committed to the 5069 Compact 5000 I/O platform — ordering this module for a 1756 ControlLogix chassis or a 1769 Compact I/O system is a guaranteed wrong-part scenario. Applications that require channel-to-channel isolation will need to look beyond this module, as its channels share a common reference. If your analog input count is four or fewer, the 5069-IF4 offers a lower cost entry point. And if your project is still flexible on PLC platform, the ecosystem lock-in and typical Rockwell pricing are factors worth evaluating before committing to Compact 5000 I/O as the architecture.

From a procurement standpoint, the 5069-IF8 is a catalogued Rockwell module that moves in and out of distributor stock depending on regional demand cycles. Lead times when not in stock are commonly quoted in weeks, which can affect project schedules if the module is specified late. Ordering through a specialist distributor who understands the Rockwell product family helps avoid the most expensive mistake in this category — receiving a 1769 or 1756 analog module on a 5069 system design. Check current pricing and lead time for the 5069-IF8 at LeadTime.ca — available to buyers worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Allen-Bradley 5069-IF8

Public forum discussions about the 5069-IF8 specifically are sparse — most community conversation about Compact 5000 analog I/O stays at the platform level rather than addressing individual module catalog numbers. That reality means engineers specifying this module are working primarily from manufacturer documentation, project requirements, and the kind of guidance that comes from a distributor who handles Rockwell hardware daily. Rather than leaving a gap where community feedback would normally appear, the most useful thing here is direct advice drawn from the ordering and application patterns that cause problems in practice.

The single most common point of confusion with the 5069-IF8 is I/O family mix-up. The 5069, 1769, and 1756 product lines are distinct platforms with incompatible backplanes, and the module designations can look similar to buyers who are not deeply familiar with the Rockwell catalog structure. A purchasing agent ordering against a hand-written part number, or an engineer copying a spec from an older project, can easily land on the wrong family. The 5069-IF8 belongs exclusively to the Compact 5000 I/O platform and will not install or function in a 1756 ControlLogix or 1769 Compact I/O chassis under any circumstances.

Firmware version alignment is the second area where experienced integrators invest attention before an order ships. The physical module carries a specific firmware revision, and that revision must be supported by the Studio 5000 Logix Designer version in use on the project. A mismatch does not break hardware, but it will generate module faults and prevent commissioning until resolved. Confirming firmware compatibility before purchase — particularly when sourcing from distributor stock that may carry different revision levels — is a step that specialist distributors can assist with directly.

Wiring and Installation Overview for the Allen-Bradley 5069-IF8

  • Mount the 5069-IF8 on the Compact 5000 I/O assembly in the correct slot position, with the appropriate Compact 5000 terminal base or field wiring accessory installed and backplane power confirmed before connecting field wiring.
  • Use shielded twisted-pair cable for all analog input wiring, routed separately from high-voltage conductors, motor cables, and sources of electrical noise to protect 16-bit signal integrity.
  • Wire each transmitter following the differential input configuration in the Rockwell installation instructions — connect the positive signal lead to the channel positive terminal and the return to the appropriate common terminal, consistent with the module's non-isolated, shared-common-reference architecture.
  • Terminate cable shields at one end only, at the designated grounding point per Rockwell shielding recommendations, to avoid ground loops that cause fluctuating analog readings.
  • The 5069-IF8 does not integrate over-current protection; provide external fusing or surge protection as required by your installation's electrical codes and the field device specifications before energizing.

For complete wiring diagrams and torque specifications, refer to the Rockwell Automation 5069-IF8 installation instructions document.

Compatible Modules and System Expansion

The 5069-IF8 operates within the broader Compact 5000 I/O ecosystem. The following components are typically part of a complete 5069 system design:

  • CompactLogix 5380 / Compact GuardLogix 5380 controllers: Primary local I/O host controllers for the 5069 Compact 5000 I/O platform.
  • 5069 EtherNet/IP adapters: Enable distributed I/O configurations where 5069 racks — including the 5069-IF8 — are deployed remotely from the main controller over EtherNet/IP.
  • Compact 5000 terminal bases and field wiring accessories: Required for physical field wiring connections to the 5069-IF8 — must be included in the BOM; the module alone is not sufficient for installation.
  • 5069 power distribution modules: Provide backplane and field power within the Compact 5000 I/O assembly; verify power budget when adding multiple analog modules to a rack.
  • 5069-IF4: Four-channel analog input companion module for applications where fewer channels are needed alongside the 5069-IF8 in the same rack.

Wrong-Part Prevention Checklist for the Allen-Bradley 5069-IF8

Before submitting a purchase order for the Allen-Bradley 5069-IF8, verify every item on this checklist against your project documentation:

  1. Confirm the system uses the 5069 Compact 5000 I/O platform; do not substitute 1756 (ControlLogix) or 1769 (Compact I/O) modules.
  2. Verify that 8 analog input channels are required; if fewer are needed or analog outputs are required, check other 5069 analog modules.
  3. Check signal types from field devices (voltage vs current) and ranges; ensure all are within 5069-IF8 supported ranges (±10 V, 0–10 V, 0–5 V, 0/4–20 mA).
  4. Confirm non-isolated channels with a common reference are acceptable for the application.
  5. Ensure the chosen controller firmware and Studio 5000 version support the 5069-IF8 module and its firmware revision.
  6. Make sure required accessories (Compact 5000 terminal block / base, power distribution, 5069 chassis/adapter) are included in the BOM.
  7. Verify environmental and enclosure conditions (temperature, vibration, ingress protection) fall within the module's ratings.
  8. For Canadian sites, confirm required approvals and standards are met (cULus, CE, etc. as listed in Rockwell documentation).

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — our specialists can verify platform fit and help you avoid a costly wrong-part return.

Frequently Asked Questions

Can I mix voltage and current inputs on different channels of the same 5069-IF8?

Yes. Each of the eight channels on the 5069-IF8 can be individually configured in Studio 5000 for either a voltage range (±10 V, 0–10 V, 0–5 V) or a current range (0–20 mA, 4–20 mA). This per-channel flexibility is one of the key reasons the module simplifies BOM design on systems with mixed instrumentation. Confirm each channel's configuration matches the wired field device before commissioning.

Do I need isolated analog inputs, or is the 5069-IF8 sufficient for my application?

The 5069-IF8 uses differential inputs that share a common reference — channels are not isolated from one another. For most standard industrial analog applications with properly grounded, shielded field wiring, this is acceptable. However, if your field devices have separate ground references, significant common-mode voltage differences between instruments, or if the application requires channel-to-channel isolation for safety or signal integrity reasons, you will need to evaluate a module with isolated channels or use external signal isolators in the field wiring loop.

Is the 5069-IF8 compatible with my existing CompactLogix system, or do I need a specific controller generation?

The 5069-IF8 is designed for the Compact 5000 I/O platform, which is natively supported by CompactLogix 5380 and Compact GuardLogix 5380 controllers as local I/O. It can also be used as distributed I/O with other Logix 5000 controllers via a 5069 EtherNet/IP adapter. It is not compatible with earlier CompactLogix generations that use the 1769 Compact I/O platform. Always verify the controller generation, firmware revision, and Studio 5000 version before ordering.

What Studio 5000 version do I need to support the 5069-IF8, and how do I align firmware?

Rockwell Automation publishes firmware compatibility tables for each 5069 module revision in the product release notes and on the Rockwell compatibility and download site. The Studio 5000 version required depends on the specific firmware revision installed on your physical 5069-IF8 module. Before ordering from distributor stock, confirm the firmware revision of the available unit and cross-reference it against your project's Studio 5000 version. A mismatch will result in module faults that prevent the system from going online until resolved.

How do I reduce analog noise on a 5069-IF8 installation?

The most effective steps are consistent across Compact 5000 analog installations: use shielded twisted-pair cable for every analog circuit, route analog cabling in separate conduit or cable trays away from power wiring and variable frequency drive cables, terminate shields at one end only at the panel ground reference, and verify that all channel commons are correctly landed per the Rockwell installation instructions. If noise persists after correct wiring, review Studio 5000 filter settings for the affected channels and consider external signal isolation or conditioning at the field device level.

What happens if a 5069-IF8 channel goes over range or an open wire is detected on a current loop?

The 5069-IF8 provides per-channel diagnostics including underrange and overrange detection for voltage inputs, and open-loop detection for current inputs when configured for 4–20 mA. These conditions are reported as status bits and fault indicators in Studio 5000, which can be used in ladder logic to trigger alarms or safe-state actions. LED indicators on the module also reflect fault conditions to assist with panel-side troubleshooting without requiring a laptop connection.

Why Order the Allen-Bradley 5069-IF8 From LeadTime.ca

  • LeadTime.ca ships the Allen-Bradley 5069-IF8 worldwide — not limited to any single country or region.
  • Specialist distributor familiarity with the Rockwell Compact 5000 I/O product family helps verify platform fit and firmware compatibility before an order ships.
  • Volume pricing and project-quantity inquiries are handled directly — contact the team for current pricing on larger orders.
  • Hard-to-locate revisions and allocation-constrained Rockwell hardware are sourced through established supply channels.
  • View current pricing and availability for the 5069-IF8 at LeadTime.ca.

Allen-Bradley 5069-IF8 — At-a-Glance Summary

  • 8 differential analog input channels in a single 22 mm-wide Compact 5000 I/O module.
  • Supports voltage ranges of ±10 V, 0–10 V, and 0–5 V, plus current ranges of 0–20 mA and 4–20 mA — configurable per channel in Studio 5000.
  • 16-bit signed resolution on all channels.
  • Operating temperature range: 0 to 60 °C; humidity: up to 95% non-condensing.
  • Compatible controllers: CompactLogix 5380, Compact GuardLogix 5380, and Logix 5000 via 5069 EtherNet/IP adapter for distributed I/O.
  • Channels share a common reference — not isolated channel-to-channel; external shielding and grounding practice is critical.
  • Terminal base or field wiring accessory must be ordered separately — not included with the module.
  • Firmware revision on the physical unit must align with the Studio 5000 version in use on the project.
  • Not compatible with 1756 ControlLogix or 1769 Compact I/O platforms.
  • Pricing available on the product page; lead times vary — confirm availability before finalizing project schedules.
