Allen-Bradley 5069-IB8S — Compact 5000 Safety Input Review

By Abdullah Zahid
13 min read

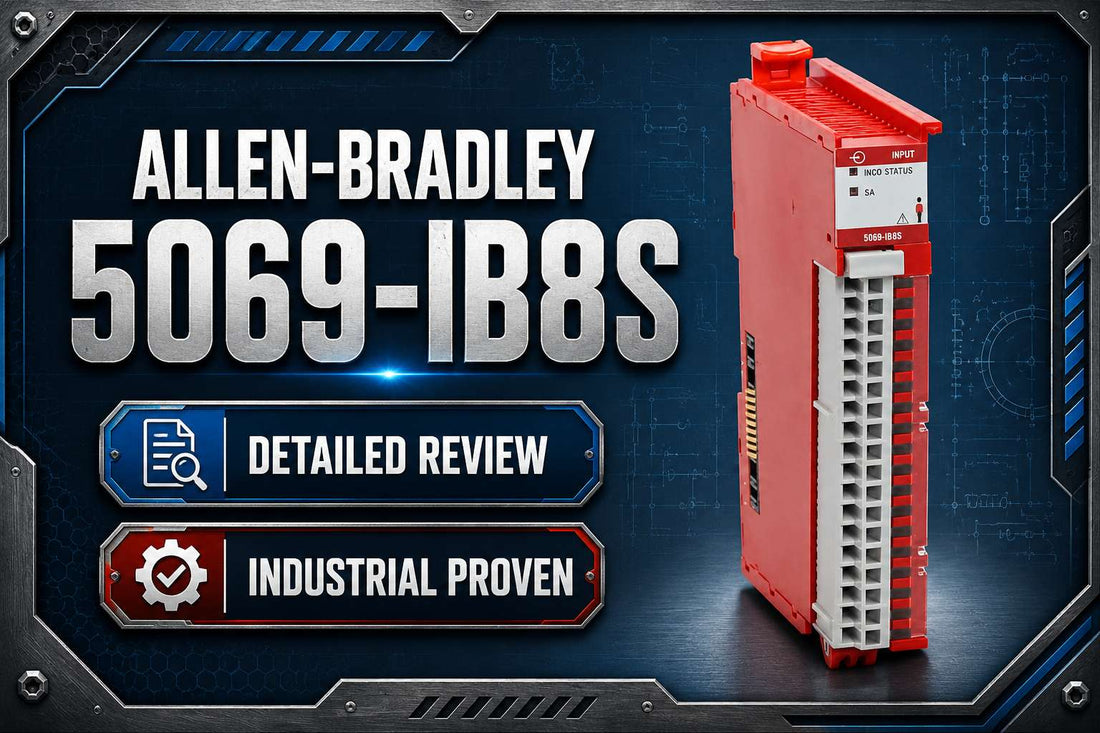

Allen-Bradley 5069-IB8S Compact 5000 8-point DC safety sinking input module for GuardLogix applications

Allen-Bradley 5069-IB8S Compact 5000 DC Safety Input Module: Expert Review, Specs, and Buying Guide

Controls engineers specifying safety I/O for a Compact GuardLogix 5380 system need more than a datasheet — they need confidence that the module they are about to lock into a BOM is the right variant, correctly rated, and actually available. The Allen-Bradley 5069-IB8S is an 8-point, 24 VDC sinking safety input module in the Compact 5000 I/O family, rated up to SIL CL 3 and PLe, Cat. 4 in accordance with IEC 61508, IEC 62061, and ISO 13849-1. If your application involves monitoring emergency stops, safety gates, or light curtains inside a GuardLogix architecture, this is the module most Rockwell-centric OEMs reach for — but the selection requires care.

If you have already confirmed this is the right part, check current pricing and availability of the 5069-IB8S at LeadTime.ca — ships worldwide.

Who Should Buy the 5069-IB8S — and Who Shouldn't

The 5069-IB8S is the right choice when all of the following are true for your project:

  • Your controller platform is a Compact GuardLogix 5380 or a supported Compact 5000 configuration, and your firmware revision is validated for this module.
  • Your safety design requires SIL CL 3 and PLe, Cat. 4 performance with integrated diagnostics and test outputs — not a relay-based or non-safety solution.
  • Your field devices are 24 VDC and configured as sinking inputs; PNP field devices are wired into this module.
  • The installation environment is standard — no risk of condensation, corrosive atmosphere, or chemical exposure that would require a conformal-coated variant.
  • You are working within a Compact 5000 I/O chassis with confirmed slot count and backplane power budget available.

If your environment involves humidity or corrosive conditions, the 5069-IB8SK (conformal-coated) is the correct choice. If your application has no safety requirements, the standard 5069-IB8 avoids the safety module cost premium entirely.

On this page:

What the 5069-IB8S Does in a Real Safety System

The Allen-Bradley 5069-IB8S is an 8-point Compact 5000 digital safety sinking input module that gives a Compact GuardLogix controller its safety-rated window into the physical world. Rather than relying on external safety relays to monitor emergency stop buttons, safety gate switches, or light curtain outputs, the 5069-IB8S brings those signals directly into the safety task running on the GuardLogix controller — with diagnostics, test pulse outputs, and certified safety ratings built in at the module level.

Each of the eight input channels accepts a 24 VDC sinking signal and is capable of dual-channel wiring when the safety design demands it, such as for Cat. 4 E-stop circuits requiring cross-fault detection. The dedicated test outputs serve a specific function: they pulse field circuits periodically to verify that wiring is intact and that open-circuit or short-circuit faults are caught before they go undetected. This diagnostic architecture is what separates the 5069-IB8S from the standard 5069-IB8 — it is not a configuration difference but a fundamental hardware and certification difference.

Inside Studio 5000 Logix Designer, the 5069-IB8S is added to the I/O tree with its full catalog number, and its channels map directly to safety tags consumed by safety routines in the safety task. The combination of hardware diagnostics, safety tag integration, and the SIL CL 3 / PLe Cat. 4 rating makes this the default safety input choice for OEMs building machines on the Compact GuardLogix 5380 platform. Rockwell's own architecture documentation confirms the module supports both local Compact 5000 I/O chassis installations and certain distributed I/O configurations, provided the network and safety topology follow Rockwell guidelines.

Where the 5069-IB8S Sits in Your System Architecture

The 5069-IB8S occupies a slot in the Compact 5000 I/O chassis and serves as the interface layer between field-level safety devices and the Compact GuardLogix safety controller's safety task. A typical signal chain from safety device to safety logic looks like this:

  • Field safety device (E-stop button, safety gate switch, light curtain, safety scanner) wired to input channels and test output terminals on the 5069-IB8S.
  • 5069-IB8S installed in a Compact 5000 I/O chassis, drawing power from the chassis power supply module within the 18–32 VDC operating range.
  • Safety input data and diagnostic status bits passed over the backplane to the Compact GuardLogix 5380 controller via the Compact 5000 I/O architecture.
  • Compact GuardLogix 5380 evaluates safety input tags within the safety task and executes safety logic — zone control, STO commands, safety output actuation — based on input states and diagnostics.
  • Safety outputs (via companion safety output modules) drive safety relays, drives, or other actuators in response to the safety logic evaluation.

Typical Applications and Deployment Scenarios

Packaging and material handling machinery account for a large share of 5069-IB8S deployments. A packaging line might have a dozen E-stop stations, multiple safety gate interlocks on hazardous zones, and one or more light curtains protecting loading points — all of which feed into the 5069-IB8S input channels and are evaluated by the GuardLogix safety task.

Automotive and tier-1 assembly applications frequently standardize on Compact 5000 safety I/O because of Rockwell's footprint in those facilities and the need to achieve SIL CL 3 / PLe Cat. 4 compliance on robotic cell guarding. Safety gate inputs and safety scanner feedback from perimeter guarding systems are routed through the 5069-IB8S as dual-channel sinking inputs.

Food and beverage processing environments that remain in standard (non-corrosive) conditions use the 5069-IB8S for E-stop chains on conveyors, safety light curtain inputs at infeed and outfeed points, and safety feedback from power removal circuits on high-power drives. Where wash-down or chemical exposure is present, the 5069-IB8SK is the correct selection.

OEM machine builders who standardize on Compact GuardLogix 5380 across their product lines value the 5069-IB8S because once a validated Studio 5000 safety template is built, reproducing the safety I/O configuration across repeat machines requires no new safety hardware qualification — just consistent part selection.

Application Typical Deployment
Packaging machinery E-stop inputs, safety gate interlocks, and light curtain inputs on compact GuardLogix-controlled lines
Automotive assembly cells Dual-channel safety gate and safety scanner feedback for robotic cell perimeter guarding
Conveyor and material handling Light curtain inputs and E-stop chain monitoring on GuardLogix zone-controlled conveyor segments
Food and beverage (dry/standard environments) Drive STO feedback inputs and safety gate monitoring on processing and filling equipment
General OEM machine building Standardized safety I/O template in Studio 5000 across multiple machine variants

5069-IB8S Specifications, Safety Ratings, and Variant Comparison

Key Purchase-Decision Specifications

Parameter Value Notes
Module type Compact 5000 safety digital sinking input module 8 safety-rated DC input channels with test outputs
Input channels 8 points, 24 VDC sinking Supports dual-channel wiring for Cat. 4 safety functions
Input voltage range 18–32 VDC Verify against supply voltage tolerance in panel design
Safety rating Up to SIL CL 3, PLe, Cat. 4 IEC 61508, IEC 61511, IEC 62061, ISO 13849-1
Test outputs Dedicated and shared test/muting outputs Required for open-circuit and short-circuit diagnostics
Compatible controllers Compact GuardLogix 5380 and supported Compact 5000 configurations Confirm firmware revision compatibility before ordering
Programming environment Studio 5000 Logix Designer with safety task and safety project lock Safety configuration requires safety-licensed controller
Mounting Compact 5000 I/O chassis slot Correct end caps and power supply module required
Operating temperature 0…60 °C (typical) Confirm final rating in Rockwell official datasheet
Environmental rating Standard, non-conformal Use 5069-IB8SK for harsh or high-humidity environments

Full technical specifications are available on the product page at LeadTime.ca.

5069-IB8S vs 5069-IB8SK vs 5069-IB8: Which Variant Is Right?

Model Safety Rated Conformal Coating Input Type Typical Use Case
5069-IB8S Yes — SIL CL 3 / PLe Cat. 4 No 8-point 24 VDC sinking Standard indoor GuardLogix safety applications
5069-IB8SK Yes — SIL CL 3 / PLe Cat. 4 Yes 8-point 24 VDC sinking Harsh environments with humidity, condensation, or chemical exposure
5069-IB8 No — standard DI only No 8-point 24 VDC sinking Non-safety CompactLogix applications; lower cost

If your installation environment involves any risk of condensation, wash-down proximity, or corrosive atmosphere, the 5069-IB8SK is the correct module — contact or check availability at LeadTime.ca to confirm which variant is in stock for your timeline.

Expert Verdict: Is the 5069-IB8S the Right Choice for Your Project?

For OEMs and end users committed to the Compact GuardLogix 5380 platform, the Allen-Bradley 5069-IB8S is the natural, well-supported default for safety input monitoring. It delivers certified SIL CL 3 / PLe Cat. 4 performance, integrates directly into Studio 5000 safety tasks, and eliminates the complexity of external safety relay panels on machines with multiple guarding zones. Safety engineers who have built validated templates on this platform find it straightforward to reproduce across machine variants — the diagnostic transparency through safety tags also reduces commissioning time on complex E-stop and gate monitoring circuits compared to traditional relay architectures.

Where the 5069-IB8S is the wrong answer is equally clear. If your project has no functional safety requirement and a standard 24 VDC input will do, the 5069-IB8 avoids the safety module cost entirely. If your installation sees condensation, wash-down spray, or corrosive process gases, the 5069-IB8SK is the correct selection — the standard module's non-conformal construction is not appropriate for those conditions. And if the machine is not built on a Rockwell platform, the Compact 5000 I/O architecture simply does not apply; the module is not a cross-platform solution. Cost-sensitive projects where relay-based safety is sufficient should also evaluate whether the Compact 5000 safety I/O investment is justified by the application's safety requirements.

From a procurement perspective, Rockwell safety I/O modules are subject to varying lead times that can extend to multiple weeks when factory orders are required. Buying through a specialist automation distributor gives you real visibility into stock levels, the ability to reserve modules for critical project timelines, and access to configuration guidance when something unexpected comes up during commissioning — advantages that a generic channel cannot offer. Check current pricing and availability of the 5069-IB8S at LeadTime.ca, and have your firmware revision and chassis configuration confirmed before you order.

For volume pricing, lead time confirmation, or to discuss safety I/O configuration before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 5069-IB8S

Direct model-level forum threads for the 5069-IB8S are limited, but the picture at the Compact 5000 safety I/O and GuardLogix family level is consistent: engineers who work regularly with this platform genuinely value the tight integration between the safety I/O hardware and Studio 5000. The ability to see diagnostic status bits in real time — identifying open-circuit faults, channel discrepancies, or test output failures without leaving the programming environment — is frequently cited as a meaningful improvement over older safety relay architectures. OEM builders report that once a validated safety task template is established in Studio 5000, deploying additional machines with modules like the 5069-IB8S becomes a more predictable process.

The consistent counterpoint from the community is cost. Rockwell safety I/O modules carry a hardware premium compared to some competing safety platforms, and that cost becomes visible quickly when a machine requires multiple safety input modules across several guarding zones. A second recurring theme is configuration difficulty for technicians who encounter GuardLogix safety tasks for the first time — particularly when troubleshooting online. The interaction between safety mode, input filter times, test output configuration, and discrepancy timing is not intuitive without prior GuardLogix experience, and errors in this layer are a recognized source of nuisance faults and commissioning delays.

When community feedback is sparse and specialist guidance matters most, the wrong-part checklist below covers the ordering mistakes that appear most often in distributor Q&A and engineering forums at the family level. Confirming these points before the purchase order is placed is the single most effective way to avoid costly rework. When in doubt, the LeadTime.ca team can verify compatibility, confirm the correct variant, and advise on current lead time conditions before you finalize your BOM.

Wiring and Installation Overview for the 5069-IB8S

  • Install the 5069-IB8S into the Compact 5000 chassis with power isolated, ensuring correct end caps and compatible power supply module are in place and the backplane power budget has been verified for the module's MOD and SA current draw.
  • Connect 24 VDC supply within the 18–32 VDC range and wire commons according to Rockwell wiring diagrams; the module uses sinking inputs, meaning PNP-output field devices are the correct match — do not mix with sourcing-designed circuits.
  • Wire safety input devices — E-stop buttons, safety gate switches, light curtains — to input channels, using dual-channel wiring where the safety design and Cat. 4 requirements demand it; clearly label terminal blocks with sinking polarity to prevent rework.
  • Connect test outputs to the corresponding field circuits for each input channel requiring open-circuit and short-circuit diagnostics; leaving test outputs unconnected where the safety design requires them results in reduced diagnostic coverage and can trigger faults.
  • After restoring power, verify module and channel status LEDs show no fault indications before proceeding to Studio 5000 configuration; refer to Rockwell's official installation instructions for full wiring diagrams and protection device requirements.

Wrong-Part Prevention Checklist Before Ordering the 5069-IB8S

These checks should be completed against your drawings, safety assessment, and BOM before a purchase order is placed. Mistakes at this stage are the most expensive to correct.

  1. Confirm you need a safety-rated DI module (S suffix) and not a standard digital input (5069-IB8).
  2. Verify sinking input wiring is correct for your field devices (PNP field devices to sinking inputs; avoid mixing with sourcing-only designs).
  3. Confirm safety performance requirements (SIL / PL category) and ensure 5069-IB8S ratings meet or exceed project requirements.
  4. Check controller compatibility: Compact GuardLogix 5380/5580 and Compact 5000 I/O platform support, including firmware revision.
  5. Verify local vs distributed I/O topology and network adapter support for Compact 5000 safety I/O.
  6. Confirm environmental requirements: if condensation or corrosive atmosphere is expected, consider the conformal-coated 5069-IB8SK instead.
  7. Check physical slot count and backplane power budget for the chosen Compact 5000 chassis.
  8. Validate part number on drawings and purchase orders (5069-IB8S vs 5069-IB8SK vs 5069-IB8) to avoid ordering errors.

If any of these checks raise a question, contact the LeadTime.ca team to verify before you order — getting the variant right the first time is far less expensive than an expedited replacement on a live project.

Frequently Asked Questions

Can I install 5069-IB8S safety modules and standard 5069-IB8 modules on the same Compact 5000 chassis, and does that affect my safety configuration?

Yes, the Compact 5000 architecture allows safety and standard I/O modules to coexist on the same chassis. However, safety inputs from the 5069-IB8S must be mapped exclusively to safety tasks in Studio 5000, and standard I/O must not be used to satisfy safety function requirements. Confirm your chassis configuration and firmware support with Rockwell's compatibility documentation before finalizing the panel layout.

What is the functional difference between the 5069-IB8S and the 5069-IB8SK, and when is the conformal-coated version worth the additional cost?

The 5069-IB8SK is functionally and electrically identical to the 5069-IB8S — same 8-point sinking safety inputs, same SIL CL 3 / PLe Cat. 4 ratings, same Studio 5000 integration. The K suffix denotes a conformal coating applied to the PCB for protection against condensation, humidity, and corrosive atmospheres. If your panel or machine sees wash-down proximity, high-humidity cycles, or chemical vapors, the 5069-IB8SK is the correct choice; in standard dry indoor environments, the additional cost of the coated variant is not necessary.

Why is the 5069-IB8S showing a discrepancy or test fault even though both input channels appear to be in the correct state?

Discrepancy faults on dual-channel inputs occur when the two channels do not transition within the configured discrepancy time window — even if both ultimately reach the same state. The most common causes are incorrect discrepancy time settings in Studio 5000, mismatched contact timing between dual-channel devices, and test output wiring errors that affect the diagnostic pulse cycle. Check the module's safety tags for specific fault codes, verify test output connections at the terminal block, and confirm discrepancy time parameters against the safety device manufacturer's specifications.

Do all 8 input channels on the 5069-IB8S require test output connections, or can test outputs be left unused on some channels?

Whether test outputs are required depends on the diagnostic coverage demanded by your safety design and the SIL / PLe targets for each safety function. For Cat. 4 / PLe applications requiring high diagnostic coverage, test outputs must be wired and enabled. If a specific safety function operates at a lower SIL or PL target and the diagnostic architecture supports it, test outputs may not be mandated for every channel — but this must be validated by your safety assessment, not assumed. Refer to Rockwell's installation instructions and consult your functional safety documentation before leaving any test output connections unused.

Is the 5069-IB8S a direct replacement for an older safety input module if I am upgrading from an earlier GuardLogix platform?

The 5069-IB8S is a Compact 5000 I/O module and is not physically or backplane-compatible with earlier Allen-Bradley safety I/O platforms such as those used with the original GuardLogix 5570 or older ControlLogix safety systems. A platform upgrade requires a full I/O chassis and wiring migration. Confirm controller and chassis compatibility, firmware revision support, and any impact on your existing safety validation documentation before treating this as a direct swap.

Why Order the 5069-IB8S from LeadTime.ca

  • Global shipping on Compact 5000 safety I/O — LeadTime.ca ships worldwide, not limited to any single region.
  • Real-time visibility on Rockwell lead times and stock, including safety modules with variable factory availability.
  • Specialist support for variant confirmation — 5069-IB8S vs 5069-IB8SK vs 5069-IB8 questions answered before the order is placed.
  • Volume pricing available for OEM and project builds — contact for current pricing on multi-unit requirements.
  • Hard-to-source safety I/O sourcing support when standard channels show extended lead times.

5069-IB8S At-a-Glance Summary

  • 8-point, 24 VDC sinking safety digital input module in the Compact 5000 I/O family.
  • Input voltage range: 18–32 VDC; dedicated and shared test outputs included for open-circuit and short-circuit diagnostics.
  • Certified up to SIL CL 3, PLe, Cat. 4 per IEC 61508, IEC 61511, IEC 62061, and ISO 13849-1.
  • Compatible with Compact GuardLogix 5380 controllers; integrated via Studio 5000 Logix Designer safety task configuration.
  • Supports both local Compact 5000 chassis and certain distributed I/O architectures per Rockwell guidelines.
  • Standard (non-conformal) construction; use 5069-IB8SK for harsh or high-humidity environments.
  • Operating temperature: 0…60 °C typical — confirm in Rockwell official datasheet for final design.
  • Common ordering mistakes: selecting 5069-IB8 (no safety rating), confusing sinking for sourcing, omitting the K suffix for harsh environments.
  • Lead times can extend to multiple weeks on factory orders; confirm availability early for critical project timelines.
