Allen-Bradley 5069-IB16 — Compact 5000 DC Input Module Review

By Abdullah Zahid
12 min read

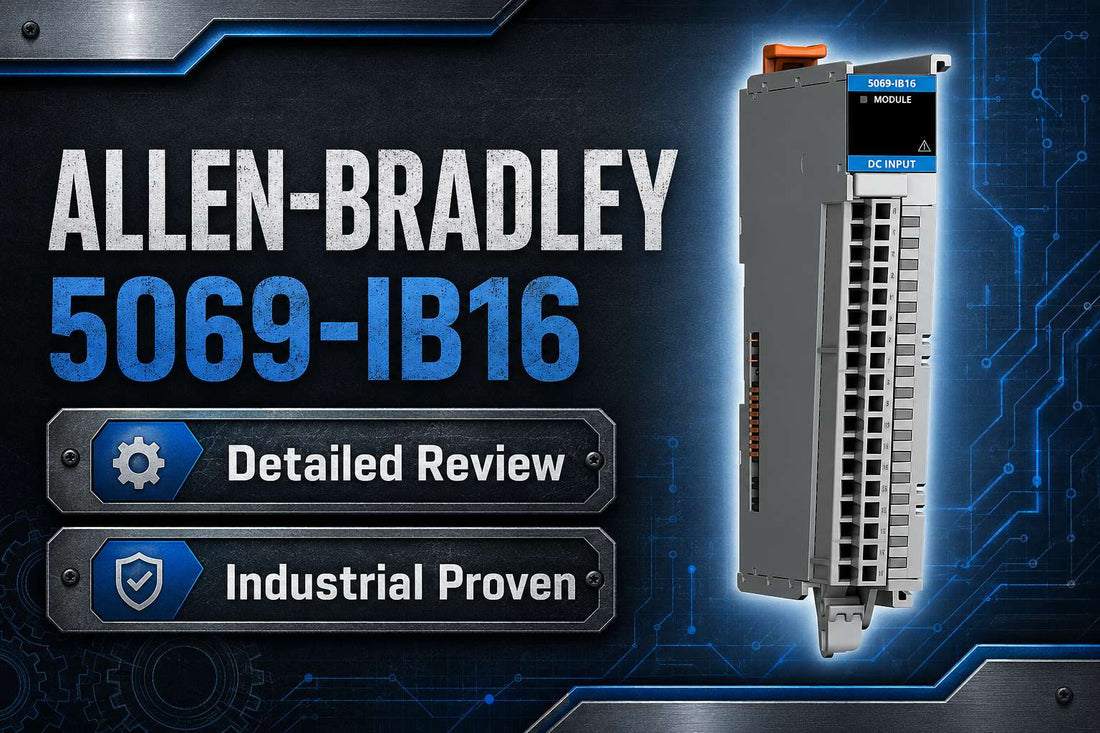

Allen-Bradley 5069-IB16 Compact 5000 I/O 16-point 12/24V DC sinking input module for CompactLogix 5380

Allen-Bradley 5069-IB16 Compact 5000 I/O 16-Point 12/24V DC Sinking Input Module: Specs, Pricing, and Best Alternatives

Controls engineers specifying digital I/O for a CompactLogix 5380 or ControlLogix 5580 system eventually land on the same question: which Compact 5000 input module is the right fit for standard 24V DC discrete field devices? The Allen-Bradley 5069-IB16 answers that question directly — it is a 16-point 12/24V DC sinking digital input module in the 5069 Compact 5000 I/O family, housed in a narrow 22 mm wide form factor, accepting field signals across a 10…32V DC range. If your sensors, switches, and contacts are sourcing 24V DC and your controller is a modern Rockwell CompactLogix or ControlLogix platform, this module is the standard-path answer.

If you have already confirmed this is the right part, check current pricing and availability for the 5069-IB16 at LeadTime.ca — ships worldwide.

Who Should Buy the 5069-IB16 — and Who Should Not

The Allen-Bradley 5069-IB16 is the right choice for engineers already committed to the Compact 5000 I/O platform who need reliable, high-density DC discrete inputs. It fits your project if:

  • Your field devices produce sourcing 24V DC outputs and your design requires sinking inputs — the 5069-IB16 accepts 10…32V DC, nominal 12/24V DC
  • You need exactly 16 digital input points in a single module with a shared common (SA(-) return), in a 22 mm wide footprint
  • Your controller is a CompactLogix 5380, ControlLogix 5580, or a system using 5069 EtherNet/IP adapters
  • Your panel environment operates within 0…60°C and up to 95% non-condensing humidity
  • Your project requires CE, UL/cUL, KC, RCM, or marine certifications — all carried by the Compact 5000 I/O platform

If your design needs sourcing inputs, individually filtered or diagnostic inputs, AC voltage signals, or your system is not built on Compact 5000 I/O, this is not the right part. Consider the 5069-IB16F for filtered or enhanced-diagnostic variants, or the 5069-IB8 if you need fewer points. If you are not on a Rockwell platform at all, a system-level alternative from another I/O family is the correct path.

On this page:

Where the 5069-IB16 Sits in Your Control Architecture

The 5069-IB16 sits at the field signal termination layer of a Compact 5000 I/O system, bridging discrete DC field devices and the 5069 backplane that feeds data upstream to the controller. It does not process logic or manage output states — its job is to condition and present 16 sinking input signals to the adapter or controller reliably.

  • CompactLogix 5380 or ControlLogix 5580 controller manages the I/O tree over the 5069 backplane or EtherNet/IP
  • 5069 EtherNet/IP adapter (in remote I/O configurations) sits between the controller network and the I/O bank
  • 5069-IB16 module mounts directly on the Compact 5000 I/O base or adapter, consuming a single 22 mm slot
  • Field devices — proximity sensors, photoelectric sensors, pushbuttons, limit switches, and relay contacts — wire into the 5069-RTB18 terminal block attached to the module
  • All 16 input channels share a common SA(-) return, with field device sourcing voltages ranging from 10…32V DC presented to the module

Typical Applications and Deployment Scenarios for the 5069-IB16

The most common deployment of the 5069-IB16 is on machine cells in discrete manufacturing and packaging, where CompactLogix 5380 controllers handle sequencing and the I/O bank terminates proximity sensors, photoeyes, and pushbuttons. The 16-point density in 22 mm of panel width makes it a natural choice when the sensor count per machine zone is high and enclosure space is limited.

In conveyor, sorter, and material handling systems, the 5069-IB16 is frequently deployed in distributed Compact 5000 I/O islands connected over EtherNet/IP using 5069 adapters. This architecture allows field I/O to be placed close to the machine section, reducing cable runs and improving diagnostics. The module's per-channel status LEDs support fast fault localization during commissioning and troubleshooting without returning to the control cabinet.

Engineers upgrading legacy 1769 Compact I/O installations to Compact 5000 I/O often select the 5069-IB16 specifically for its higher density and improved integration with Studio 5000. Panel consolidation projects — replacing multiple small junction boxes with a compact high-density remote I/O rack — benefit from the 22 mm footprint and the ability to pair the module symmetrically with output modules such as the 5069-OB16.

In marine and regulated sectors, the Compact 5000 I/O platform's CE, UL/cUL, KC, RCM, and marine certifications simplify acceptance. The 5069-IB16 inherits these approvals where applicable, making it a lower-friction choice for applications that require documented certification evidence for third-party review.

Application Typical Deployment
Discrete manufacturing machine cell CompactLogix 5380 with local 5069 I/O bank, proximity and photoeye inputs
Conveyor and material handling system Distributed 5069 remote I/O islands over EtherNet/IP, sensor inputs at each zone
Packaging line with dense sensor count Multiple 5069-IB16 modules per rack, paired with 5069-OB16 output modules
Legacy 1769 I/O migration Compact 5000 I/O replacement rack, higher density per slot, Studio 5000 reconfiguration
Marine or regulated installation Compact 5000 I/O with certified modules in enclosed panel, documentation for class approval
Panel consolidation project Remote I/O rack replacing multiple junction boxes, field wiring home-ran to 5069-RTB18

Purchase-Decision Specifications for the Allen-Bradley 5069-IB16

Attribute Value Notes
Module type 16-point 12/24V DC sinking digital input One group of 16 channels, Compact 5000 I/O
Input voltage range 10…32V DC, nominal 12/24V DC Ensure all field devices operate within this range
Channels / groups 16 inputs, 1 group with shared common All inputs share SA(-) return terminal
Input current per channel Approx. 4…7.4 mA across valid voltage range; nominal ~6 mA at 24V DC Verify sensor load-driving capability
Power dissipation Approx. 3.9 W (module) Include in panel thermal budget calculations
Module width Approx. 22 mm High-density Compact 5000 I/O form factor
Operating temperature 0…60°C Verify derating for enclosure conditions
Relative humidity Up to 95% non-condensing As per technical data
Compatible terminal blocks 5069-RTB18-SPRING or 5069-RTB18-SCREW Must be ordered separately — not included
Certifications CE, UL/cUL, KC, RCM, marine (platform-level) Confirm exact marks from current datasheet before specifying

Full technical specifications are available on the product page at LeadTime.ca.

5069-IB16 vs. 5069-IB16F vs. 5069-IB8: Which Variant Do You Actually Need?

The Compact 5000 I/O family offers several DC sinking input variants. The differences are meaningful at the design stage — choosing the wrong variant at the quoting phase means a reorder and a delay.

Catalog Number Points Key Differentiator Best Fit
5069-IB16 16 Standard 12/24V DC sinking input, 1 group, shared common Standard discrete sensor inputs — most common selection
5069-IB16F 16 Filtered or diagnostic variant with enhanced per-channel features Applications needing individual filtering or richer diagnostics per channel
5069-IB16K 16 Specialized variant — confirm exact feature set from Rockwell documentation Specific applications where the K variant's features are required
5069-IB8 8 Half the channel count in a smaller module Lower-density I/O nodes where 16 channels exceed the point count needed

If your application requires per-channel diagnostic feedback or individually controlled input filtering, the 5069-IB16F is the correct selection rather than the standard 5069-IB16. If you have eight or fewer field devices to terminate at a node, the 5069-IB8 avoids unnecessary cost and unused channels. Check current availability for the 5069-IB16 and its variants at LeadTime.ca.

Expert Verdict: Is the 5069-IB16 the Right Card for Your System?

The 5069-IB16 earns its place as the default 16-point DC sinking input selection for engineers building on Compact 5000 I/O. It delivers 16 sinking input channels in a 22 mm wide module, accepts the standard 10…32V DC industrial signal range, and integrates cleanly into Studio 5000 project configurations with CompactLogix 5380 and ControlLogix 5580 platforms. The approx. 3.9W power dissipation is predictable for panel thermal planning, and the per-channel LED status indicators provide the kind of rapid fault localization that maintenance teams depend on during commissioning and unplanned downtime events. For controls engineers standardizing on Rockwell architecture, this module does exactly what it says — without friction or surprises — and its certification coverage including CE, UL/cUL, KC, RCM, and marine approvals reduces approval documentation burden on regulated projects.

The honest limits are equally clear. The 5069-IB16 is not the right choice if your field devices are not sourcing 24V DC — a sourcing input module is needed in that scenario, and ordering this one is a wiring-day discovery that costs time and money. It is also not the right choice if you need per-channel diagnostics or individually adjustable filtering; the 5069-IB16F addresses those requirements. The Compact 5000 platform carries Rockwell's typical price premium relative to competitive remote I/O families, so budget-constrained projects or those not standardized on Rockwell controllers should evaluate system-level alternatives from other I/O families at the architecture stage, not after the BOM is locked. If your corporate standard is a non-Rockwell controller, the 5069-IB16 is simply not compatible — no workaround exists.

For procurement, the 5069-IB16 is broadly stocked among North American distributors, and many show it as available with short lead times for standard quantities. Larger orders or specialized project volumes can move to factory lead times, which vary with market conditions. The RTB — either the 5069-RTB18-SPRING or 5069-RTB18-SCREW — is a separate line item that is consistently missed on first-draft BOMs. Ordering through a specialist distributor who understands the Compact 5000 I/O family catches these gaps before they become expedite calls. Review current pricing and stock status for the 5069-IB16 at LeadTime.ca — we source and ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 5069-IB16

Community forum searches across Reddit r/PLC, PLCTalk, PLCS.net, MrPLC, and Rockwell Automation user forums did not surface significant model-specific discussion about the 5069-IB16. The absence of recurring complaints or failure narratives is itself informative — it suggests the module behaves as a predictable, standard component in the field rather than one with systemic issues that drive engineers to post about it. What forum discussions do surface for the Compact 5000 I/O family more broadly are platform migration topics and general configuration questions, none of which point to hardware weaknesses in this specific catalog number.

When community data is sparse, the most useful pre-order intelligence comes from understanding where engineers in similar roles have made ordering mistakes on comparable DC sinking input modules. The recurring issues are not complex: they centre on sink versus source confusion, missing the RTB on the BOM, and assuming platform compatibility that does not exist. These are specification-stage errors, not field failures. A controls engineer who has reviewed the wrong-part checklist below and confirmed each item against their design will not encounter these problems.

For buyers working from a procurement role without deep controls engineering background, the safest path is to have the specifying engineer sign off on all five checklist items before the purchase order is issued. The cost difference between getting this right at the quoting stage versus discovering a wrong-part selection during panel build is significant — not just the module cost, but the schedule impact. The LeadTime.ca team regularly assists buyers with compatibility verification for Compact 5000 I/O configurations, and that conversation is worth having before committing to a quantity order.

Wiring and Installation Overview for the 5069-IB16

  • Mount the 5069-IB16 on the Compact 5000 I/O base or adapter according to Rockwell's installation instructions; verify the module is fully seated on the backplane before applying power
  • Install either the 5069-RTB18-SPRING or 5069-RTB18-SCREW terminal block and confirm it is fully latched — the RTB must be matched to the module and ordered separately
  • Connect the shared common and SA(-) return terminals for all 16 channels as shown in the module's wiring diagram; all inputs share one group return
  • Wire each field input to its assigned channel observing conductor size limits and polarity; typical 3-wire 24V DC sensor connections run field supply positive, sensor output to channel input, and return to SA(-)
  • Install external overcurrent protection devices and verify grounding per Rockwell wiring and grounding guidelines — the 5069-IB16 does not include an integrated circuit breaker

Engineers requiring full step-by-step wiring procedures and detailed diagrams should refer to the Rockwell Automation installation instructions for the 5069-IB16 and the Compact 5000 I/O wiring and grounding guidelines.

Wrong-Part Prevention Checklist Before Ordering the 5069-IB16

Review each item against your design before placing the order. A single missed check at this stage is worth more than any expedite fee later.

  1. Confirm field devices are compatible with a sinking input module (field devices must supply sourcing 24V DC; not the other way around).
  2. Verify field signal voltage is within 10…32V DC and nominal 12/24V DC; do not use this module for 120V AC or relay-only inputs.
  3. Check that the controller and adapter support 5069 Compact 5000 I/O (for example, CompactLogix 5380/ControlLogix 5580 or 5069 EtherNet/IP adapters).
  4. Order the correct removable terminal block (RTB): 5069-RTB18-SPRING or 5069-RTB18-SCREW, and ensure the RTB type matches plant standards.
  5. Verify channel count (16 inputs) and that all required points are DC discrete, not analog or high-speed counter.
  6. Confirm environmental ratings (0…60°C operating, appropriate certifications) match the panel location and any marine/hazardous requirements.

If any item on this list raises a question, contact the LeadTime.ca team before ordering — confirming compatibility takes minutes and prevents expensive reorders.

Frequently Asked Questions

Is the 5069-IB16 compatible with my CompactLogix controller, or only the newer 5380 series?

The 5069-IB16 is a Compact 5000 I/O module designed for CompactLogix 5380 and ControlLogix 5580 platforms, as well as systems using 5069 EtherNet/IP adapters. It is not compatible with older CompactLogix controllers that use 1769 Compact I/O. Use Rockwell's Product Compatibility and Download Center (PCDC) to confirm your specific controller firmware version supports the 5069 catalog.

Can I use the 5069-IB16 with 120V AC field signals?

No. The 5069-IB16 is a DC-only module with an input voltage range of 10…32V DC, nominal 12/24V DC. Applying 120V AC signals to this module will damage it and creates a safety hazard. If your application has AC field signals, a dedicated AC digital input module is required.

Which terminal block do I need, and does it ship with the module?

The 5069-IB16 requires either the 5069-RTB18-SPRING (spring-clamp wiring) or the 5069-RTB18-SCREW (screw-clamp wiring), depending on your plant wiring standard. Neither terminal block is included with the module — both must be ordered as separate line items. This is one of the most consistently missed items on first-draft BOMs for Compact 5000 I/O projects.

How do I know whether my 24V DC sensors will reliably drive a 5069-IB16 input?

The 5069-IB16 draws approximately 4…7.4 mA per channel across the valid voltage range, with a nominal draw of approximately 6 mA at 24V DC. Most standard industrial proximity sensors and photoelectric sensors with PNP (sourcing) outputs can comfortably drive this load. Verify your sensor's minimum load current specification against the module's on-state current requirement, and confirm the sensor's output voltage under load remains within the 10…32V DC input window.

What are my best alternatives if the 5069-IB16 is out of stock or on a long lead time?

Within the Compact 5000 I/O family, the 5069-IB16F is the closest intra-family alternative, offering similar 16-point DC sinking input capability with added diagnostic or filtering features — confirm it meets your design requirements before substituting. If the entire 5069 platform is on extended lead time and your project cannot wait, consult with a specialist distributor about stocked alternatives. A distributor familiar with Rockwell Automation sourcing can provide realistic lead time expectations and flag any lifecycle considerations before you commit to a substitution.

Do I need to load an EDS or AOP file to add the 5069-IB16 to my Studio 5000 project?

For most current Studio 5000 versions, the 5069-IB16 catalog number is available natively in the software library. If your software version does not include it, the appropriate Add-On Profile (AOP) or EDS file can be downloaded from Rockwell's Product Compatibility and Download Center. Always verify that the AOP version matches your controller firmware to avoid configuration mismatch faults at commissioning.

Why Order the 5069-IB16 From LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships Compact 5000 I/O modules worldwide, not limited to any single region
  • Compatibility verification support — the team can confirm controller, adapter, and RTB selection before the order is placed, catching wrong-part issues at the quoting stage
  • Hard-to-find and short-lead-time sourcing — specialist distributor channels allow faster access to stocked inventory when standard channels show extended lead times
  • Volume pricing available — contact for project quantities and BOM-level pricing on Compact 5000 I/O builds

At-a-Glance Summary: Allen-Bradley 5069-IB16

  • 16-point 12/24V DC sinking digital input module in the 5069 Compact 5000 I/O family
  • Input voltage range: 10…32V DC, nominal 12/24V DC; nominal input current approximately 6 mA at 24V DC
  • 22 mm wide module — one of the narrowest footprints available for 16-point DC input density
  • All 16 inputs in a single group sharing SA(-) return terminal
  • Power dissipation approximately 3.9W — include in panel thermal and power budget calculations
  • Operating temperature 0…60°C, relative humidity up to 95% non-condensing
  • Certifications: CE, UL/cUL, KC, RCM, marine (confirm current marks from datasheet)
  • Compatible controllers: CompactLogix 5380, ControlLogix 5580, and 5069 EtherNet/IP adapters
  • RTB required separately: 5069-RTB18-SPRING or 5069-RTB18-SCREW — always add to BOM
  • No integrated overcurrent protection — external fusing or breaker protection required
  • Primary intra-family alternatives: 5069-IB16F (filtered/diagnostic), 5069-IB8 (8-point), 5069-IB16K (specialized variant)
