5069-IB16
5069-IB16
Manufacturer: ALLEN BRADLEY
Condition: New and Unused, Surplus.
Overview

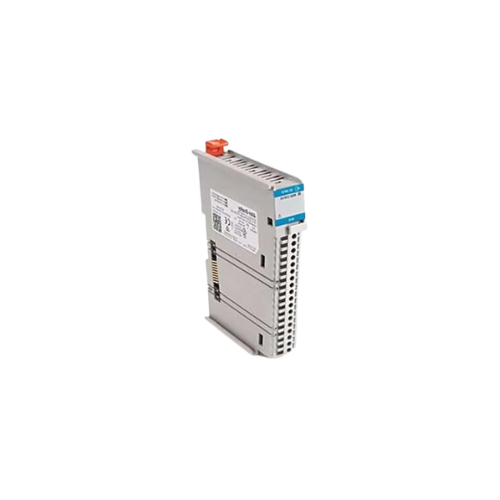

The Allen-Bradley 5069-IB16 is a 16-channel sinking input module designed for the Compact 5000 I/O system. Operating on a 10-32V DC input voltage range, it supports discrete input signals for machine automation and control applications. This module enables integration of multiple input devices to a CompactLogix controller or distributed I/O systems over EtherNet/IP.
Key Features
- 16 Sinking Inputs: Handles discrete input signals with efficient wiring.
- Wide Voltage Range: Supports 10-32V DC for compatibility with various field devices.
- Compact Design: 22mm wide module optimized for high-density I/O installations.
- Electronic Keying: Prevents incorrect module installation via programming software control.
- Fast Input Response: Supports rapid signal detection with input delay time of 50 µs plus filter.
- Multiple Status Indicators: Includes module and channel-specific LED indicators for diagnostics.
- Removable Terminal Blocks: Compatible with spring or screw RTB options for flexible wiring.
- Industrial Environment Ready: Designed for use in Zone 2 and pollution degree 2 environments.
Technical Specs
| Model Number | 5069-IB16 |
|---|---|
| Input Type | Sinking Discrete Inputs |
| Number of Inputs | 16 (Single Group) |
| Input Voltage Range | 10-32V DC (Nominal 24V DC) |
| Input Current | 4-7.4 mA per channel |
| Power Dissipation | 3.9 W max |
| Thermal Dissipation | 13.3 BTU/hr max |
| Connectivity | Removable Terminal Block (5069-RTB18-Spring or Screw) |
| Dimensions (HxWxD) | 138 x 22 x 105 mm (5.43 x 0.87 x 4.15 in.) |
| Environmental Rating | Pollution Degree 2, Zone 2 |
| Installation | DIN rail mounted |
Applications / Use Case
The 5069-IB16 module is used for integrating discrete input devices such as sensors and switches into CompactLogix automation systems. It supports flexible deployment in manufacturing, process control, and industrial automation installations, enabling efficient and reliable signal acquisition.
Allen-Bradley Compact 5000 I/O modules provide scalable, high-performance I/O solutions certified for industrial reliability.
Price Matching / Price on Inquiry
Price Matching / Price on Inquiry
If this item is readily available at a lower price through any valid distributor, please contact us for price matching. Leadtime is committed to providing you with the best value for your purchase.
Warranty
Warranty
Leadtime offers a 1-year warranty for all products sold and repaired, providing a dependable and reliable investment in your company's future.
