Allen-Bradley 5069-FPD — Compact 5000 Field Power Selection Guide

By Abdullah Zahid
15 min read

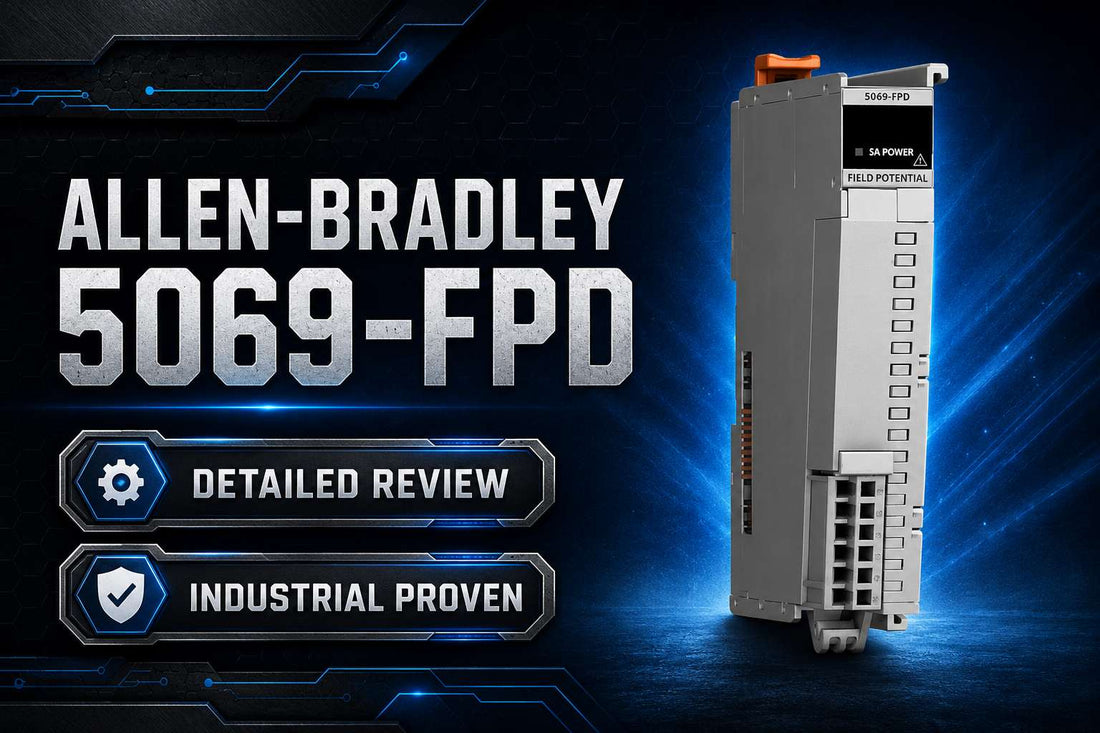

Allen-Bradley 5069-FPD Compact 5000 Field Potential Distributor module for CompactLogix 5380 backplane field power segmentation

Allen-Bradley 5069-FPD Compact 5000 Field Potential Distributor: Specs, Uses, and Selection Guide

Controls engineers specifying a Compact 5000 I/O rack for a CompactLogix 5380, CompactLogix 5480, or Compact GuardLogix 5380 system often reach a point where a single 24 V DC field supply is not the right answer — loads are too varied, segments need independent protection, or safety I/O must be isolated from high-current digital outputs. The Allen-Bradley 5069-FPD Compact 5000 Field Potential Distributor solves that problem directly on the backplane: it breaks the existing SA field power bus and creates a fresh distribution point for downstream 5069 I/O modules, all within the same rack, without adding a second remote I/O island. It is a platform-native accessory that slots into any valid position in a 5069 I/O assembly, drawing 24 V DC from an external supply and redistributing it cleanly to everything downstream.

If you have already confirmed this is the right part for your Compact 5000 build, check current pricing and availability for the 5069-FPD at LeadTime.ca — we ship worldwide.

Who Should Buy the 5069-FPD — and Who Should Not

The 5069-FPD is the right choice for engineers and OEM designers who are already committed to the Compact 5000 I/O platform and need a clean, documented method for segmenting 24 V DC field power within a single 5069 rack. Specifically, this module fits your project if:

  • Your controller is a CompactLogix 5380, CompactLogix 5480, Compact GuardLogix 5380, or a stand-alone Compact 5000 I/O system using 5069-series modules.
  • Your field power design uses 24 V DC and you need to create independent supply segments for different I/O groups — such as separating high-current solenoid banks from sensitive analog I/O, or isolating safety I/O from standard I/O on distinct power feeds.
  • You have calculated downstream field current loads per segment and need a backplane-native solution rather than external terminal block distribution.
  • Your installation requires Zone 2 / ATEX / IECEx suitability, and the enclosure can meet at least IP54 ingress protection.
  • You need independent power shutdown per machine zone for lockout and troubleshooting without physically separating the rack into multiple remote nodes.

If your controller is a ControlLogix, Micro800, or any older CompactLogix platform using 1769-series modules, the 5069-FPD will not fit mechanically or electrically — those systems require different power distribution approaches. Similarly, very small 5069 systems with modest, uniform field loads may find that a single external supply with properly rated fusing is sufficient without any mid-backplane distributor.

On this page:

What the 5069-FPD Actually Does in a Compact 5000 Rack

Rockwell Automation describes the 5069-FPD precisely: it "breaks the field-side power distribution and creates a new SA power bus from which additional Compact 5000 I/O modules draw current." That single sentence captures the entire function. The module does not generate voltage, does not step down or regulate anything, and does not contain an integrated circuit breaker or fuse. It is a mid-backplane break point — a deliberate interruption in the SA field power chain that lets you feed a separate 24 V DC supply to everything that follows it in the module stack.

This matters because the SA bus on a 5069 backplane carries the field-side power that digital outputs, analog modules, and specialty I/O use to drive field devices. In a system with many output modules driving solenoid valves, motor starters, or indicator lamps, that field current adds up quickly. If your supply sizing, fusing strategy, or functional zone layout requires different current sources or independent fault isolation for different groups of I/O, you cannot do that with a single continuous SA bus. The 5069-FPD creates the separation point so each segment has its own supply connection, its own protection circuit, and its own switchable power path.

The 5069-FPD is supported across all current Compact 5000 I/O deployments: CompactLogix 5380, CompactLogix 5480, Compact GuardLogix 5380, and stand-alone Compact 5000 I/O configurations. It occupies a slot in the 5069 I/O assembly and uses the same DIN-rail-based snap-in mechanical format as every other module in the family, connecting to adjacent modules through the integrated backplane connector.

Typical System Architecture: Where the 5069-FPD Sits

In a Compact 5000 system, the 5069-FPD sits between two groups of I/O modules on the backplane — functioning as the boundary between one field power segment and the next. Here is a typical component chain:

  • CompactLogix 5380 or Compact GuardLogix 5380 controller at the left end of the 5069 assembly, providing system backplane power and running the control program.
  • First group of 5069 I/O modules (digital inputs, analog I/O, or safety I/O) drawing field power from the first SA bus segment, fed by an external 24 V DC supply with appropriate external fusing or circuit protection.
  • 5069-FPD in a dedicated slot — the break point where the first SA bus ends and a new SA bus begins; a second external 24 V DC supply connects to the 5069-FPD's field power terminals.
  • Second group of 5069 I/O modules downstream of the 5069-FPD, drawing field power entirely from the new SA bus segment — electrically independent from the upstream group.
  • End cap at the far right of the assembly, completing the mechanical and backplane structure of the 5069 I/O system.

Typical Applications and Deployment Scenarios

OEM machine builders working with CompactLogix 5380-based packaging lines, material handling conveyors, or automated assembly cells routinely need to separate high-current digital output modules — driving pneumatic valve banks or solenoids — from analog input modules that are sensitive to noise and voltage fluctuations. Installing a 5069-FPD between these two groups keeps each segment on its own supply and fusing circuit, simplifying troubleshooting and reducing the risk that a solenoid bank fault takes down analog measurement.

Food and beverage and automotive assembly facilities using Compact GuardLogix 5380 systems often need to maintain distinct power segments for safety-rated I/O and standard I/O within the same rack. The 5069-FPD provides the backplane-level boundary that makes this segmentation explicit and documentable, supporting both safety design reviews and maintenance isolation procedures.

Compact skid-mounted systems in water treatment, process utilities, and mining support applications frequently cannot accommodate a second remote I/O rack due to panel space and cost constraints. The 5069-FPD allows power segmentation within a single 5069 assembly, keeping the overall panel footprint compact while still meeting the electrical design requirement for independent field power zones.

In installations where long field cable runs create meaningful voltage drop on the SA bus, the 5069-FPD enables a fresh feed from a local 24 V DC source mounted closer to the field devices, compensating for that drop without redesigning the entire rack or moving to distributed I/O nodes.

Application Typical Deployment
OEM packaging machinery Separate solenoid valve bank outputs from precision analog sensors on the same CompactLogix 5380 rack
Compact GuardLogix 5380 safety system Independent SA bus segments for safety I/O and standard I/O within one 5069 assembly
Skid-based process control Power segmentation within a single compact rack where a second remote node is impractical
Material handling conveyors Zone-by-zone field power isolation to support independent lockout and maintenance switching
Zone 2 hazardous area panel IP54-minimum enclosure with mid-backplane power break to limit fault propagation across I/O groups
Automotive assembly cells Functionally separated motion I/O and utility I/O on distinct 24 V DC feeds with independent protection

Key Specifications and Compact 5000 Power Accessory Comparison

Parameter Value / Requirement
Product type Compact 5000 I/O field potential distributor module
Supported systems CompactLogix 5380, CompactLogix 5480, Compact GuardLogix 5380, stand-alone Compact 5000 I/O
Field (SA) voltage 24 V DC nominal (confirm exact range from official 5069-td001 datasheet)
Mounting DIN-rail, 5069-series mechanical keying with integrated backplane connector
Enclosure requirement (hazardous areas) Zone 2 certified enclosure, minimum IP54 ingress protection rating
External protection required Yes — external fusing or circuit breaker required; module does not include integrated protection
Certifications UL, CE, ATEX, IECEx (confirm exact markings from current official documentation)
Operating temperature Confirm exact range from 5069-td001 datasheet; typical Compact 5000 I/O operating range is 0 °C minimum
Pollution degree Pollution Degree 2 (confirm from current datasheet)
Function Breaks and recreates SA field power bus — does not generate or regulate voltage

Full technical specifications are available on the product page at LeadTime.ca.

Approach Platform Integration Level Best For Limitation
5069-FPD (this module) Compact 5000 I/O / CompactLogix 5380 / 5480 / Compact GuardLogix 5380 Native backplane, appears in Studio 5000 hardware config Mid-backplane 24 V DC segmentation in one rack 5069 platform only; no integrated fusing
Second remote 5069 I/O bank Compact 5000 I/O Native but physically separate assembly Large systems where physical separation is acceptable Greater panel space and cabling cost
External 24 V DC terminal blocks with fusing Platform-agnostic External to backplane Simple systems or mixed platforms; lowest cost No backplane integration; manual documentation of segmentation
Isolated I/O modules with per-channel protection Varies by manufacturer Per-channel isolation AC field circuits or relay isolation requirements Higher cost per point; different module type required

If your application needs AC field power distribution, relay isolation, or integrated diagnostics in the power distribution itself rather than simple 24 V DC field power segmentation, the 5069-FPD is not the correct selection — review the full Compact 5000 accessory lineup at LeadTime.ca or contact our team to identify the right module for your load type.

Expert Verdict: Is the 5069-FPD Worth Specifying?

The 5069-FPD earns its place on the BOM in any Compact 5000 project where field power segmentation is a genuine design requirement — not a nice-to-have afterthought. Controls engineers and OEM designers standardizing on CompactLogix 5380, CompactLogix 5480, or Compact GuardLogix 5380 who need clean separation between high-current digital output groups, analog I/O, and safety I/O will find this module to be the most direct and documentable solution available within the Allen-Bradley ecosystem. It slots into the 5069 assembly, creates a named boundary in the hardware configuration, and keeps every power segment tied to a defined supply and protection circuit — exactly the kind of structured architecture that survives commissioning, maintenance, and future modifications.

There are real limits to acknowledge honestly. The 5069-FPD is not a power supply and does not contain any protective device of its own. Every external 24 V DC supply feeding it must be correctly sized, and every circuit feeding the module must have external fusing or a circuit breaker. Engineers who treat this module as a shortcut around proper supply sizing and protection engineering will encounter problems — overloaded segments, nuisance trips, or unprotected faults that cascade through the rack. Equally important: this module is strictly for 5069-series Compact 5000 systems. Buyers on ControlLogix, Micro800, or 1769 CompactLogix platforms will find it physically and electrically incompatible. For very small 5069 systems where total field current is low and uniform, a well-fused external terminal block distribution scheme may be simpler and less costly than adding a backplane module.

From a procurement standpoint, the 5069-FPD is a standard Rockwell Automation catalog item with multiple authorized distributors carrying it as a regular stock part, with typical lead times on the order of days based on current distributor listings — though supply conditions can shift, and verifying availability before committing to a project schedule is always the right move. Buying through a specialist distributor gives you access to application support for confirming slot layout, SA current calculations, and compatibility with your specific controller firmware revision before a purchase order is placed. Check current pricing and lead time for the 5069-FPD at LeadTime.ca — we ship worldwide and can support your project from initial BOM through delivery.

For volume pricing, multi-line BOM support, or to confirm lead time before locking in a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 5069-FPD

Direct model-specific forum discussion for the 5069-FPD is limited across communities including PLCTalk, PLCS.net, MrPLC, and Reddit's automation and PLC forums. The catalog number rarely appears by itself in public threads. However, broader Compact 5000 I/O and field power segmentation discussions consistently surface three themes that apply directly to this module.

First, the most persistent source of confusion is whether the 5069-FPD is a power supply or a distributor. Engineers who are new to the Compact 5000 platform sometimes expect this module to generate its own 24 V DC output, or at minimum to include some form of integrated protection. It does neither. Community discussions about Compact 5000 field power design repeatedly emphasize this point: the module breaks the SA bus and creates a new connection point for an external supply, but you are still responsible for the supply, the fusing, and every protection device feeding into it. Sizing each segment correctly against the SA current capacity stated in the official datasheet is the foundational design task before ordering this part.

The second recurring theme is ordering mistakes caused by confusing the 5069-FPD with other 5069 accessories. The Compact 5000 accessory family includes address reserve modules, end caps, and various expansion components that share the same physical form factor and similar catalog number structures. Buyers who are not working from an exact BOM generated by a qualified controls engineer have ordered the wrong accessory — particularly confusing the 5069-FPD with modules that reserve addresses or terminate the backplane rather than distributing field power. A third ordering mistake that appears consistently is assuming that platform compatibility extends across all Allen-Bradley families: the 5069-FPD is strictly for 5069-series systems and will not work in 1769 CompactLogix or 1756 ControlLogix chassis. When community-level guidance is sparse, the most reliable path is to verify your selection with a specialist distributor before placing an order — that conversation takes minutes and prevents the kind of schedule slip that comes from receiving the wrong part.

Wiring and Installation Overview

The following is an installation overview only. Full wiring diagrams, torque specifications, and terminal designations are in the Rockwell Automation installation instructions for the 5069-FPD. Always follow the official manufacturer documentation for any physical installation.

  • De-energize the panel and implement lockout/tagout before installing or wiring any 5069 module; snap the 5069-FPD into its planned slot on the DIN rail and confirm the backplane connector fully mates with adjacent modules on both sides.
  • Connect the external 24 V DC field supply and common to the 5069-FPD's SA power terminals using the terminal designations in the installation instructions; this supply must be sized for the total worst-case field current of all downstream I/O modules drawing from this segment.
  • Ensure all external circuit protection — fuses or circuit breakers — is correctly rated and installed upstream of the 5069-FPD's field power input; the module itself contains no integrated protective device.
  • Verify grounding and shielding practices match plant and IEC standards; confirm the enclosure meets at minimum IP54 ingress protection and, for hazardous area installations, carries the required Zone 2 / ATEX / IECEx certification.
  • After re-energizing, verify 24 V DC is present at the module's field terminals, confirm that downstream I/O modules power correctly, and check that removing field power from one segment does not affect the upstream segment — that independence is the core function of the module.

Wrong-Part Prevention Checklist — Verify These Before Ordering

Before submitting a purchase order for the Allen-Bradley 5069-FPD, work through each of the following checks. These are drawn directly from the most common ordering and installation errors for this part:

  1. Confirm the controller platform is CompactLogix 5380/5480 or Compact GuardLogix 5380, or a stand-alone Compact 5000 I/O system; do not order for 1769 or 1756 platforms.
  2. Verify panel power design uses 24 V DC field power compatible with 5069 SA power specs; this module does not convert voltage.
  3. Check how many I/O modules must be powered downstream of the 5069-FPD and confirm SA current capacity meets worst-case load from the datasheet.
  4. Ensure the enclosure can meet the required IP54 minimum ingress protection and Zone 2/ATEX/IECEx requirements when used in hazardous areas.
  5. Verify you have adequate external circuit protection and disconnects; the module requires external protection and does not integrate a circuit breaker.
  6. Confirm the mechanical slot position in the 5069 I/O assembly and that you have a free slot between module groups where power must be split.

If any of these checks raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca team before ordering — we can help confirm compatibility and current availability worldwide.

Frequently Asked Questions

Does the 5069-FPD supply its own 24 V DC power, or does it just distribute an external supply?

The 5069-FPD does not generate or regulate any voltage. It breaks the existing SA field power bus on the 5069 backplane and creates a new connection point to which you wire an external 24 V DC supply. All power for the downstream I/O segment comes from that external supply, which must be independently sized and protected. This is one of the most important points to understand before specifying this module.

Do I need a 5069-FPD for every Compact 5000 rack, or only in specific situations?

The 5069-FPD is required only when your design calls for more than one independent field power segment within a single 5069 I/O assembly — for example, to separate high-current outputs from analog I/O, isolate safety I/O from standard I/O, or create independent lockout zones. Small systems with modest, uniform field current loads on a single supply may not need it at all. The decision should be driven by your current calculations, functional zone requirements, and fault isolation strategy.

Can I use the 5069-FPD to create separate power segments for safety I/O and standard I/O in the same Compact GuardLogix 5380 rack?

Yes. The 5069-FPD is explicitly listed for use in Compact GuardLogix 5380 systems. Placing it between safety-rated 5069 I/O modules and standard I/O modules gives each group its own SA field power feed with independent external protection. Always verify the exact slot layout and current requirements for each segment against the official Rockwell documentation for your system revision.

What happens to the upstream I/O segment if the field supply connected to the 5069-FPD fails?

The SA bus segments are electrically independent at the 5069-FPD boundary. A failure in the field supply connected to the 5069-FPD, or a blown fuse on the downstream segment, will de-energize the modules drawing from that downstream SA bus only — the upstream segment remains powered from its own supply. This independence is the primary functional benefit of the module and should be verified during commissioning.

Is the 5069-FPD suitable for Zone 2 hazardous area installations?

The 5069-FPD carries ATEX and IECEx certifications for use in Zone 2 environments, but the responsibility for achieving a compliant Zone 2 installation rests with the panel builder. Rockwell Automation's documentation states the module must be installed in a Zone 2 certified enclosure with a minimum IP54 ingress protection rating. Always verify the current certification markings from the official datasheet against your installation's specific classification and regulatory requirements.

Will the 5069-FPD work in a 1769 CompactLogix or 1756 ControlLogix chassis?

No. The 5069-FPD is mechanically and electrically designed for the 5069-series Compact 5000 I/O backplane only. It is physically incompatible with 1769-series and 1756-series chassis and will not function in those systems. Confirm your platform is CompactLogix 5380/5480, Compact GuardLogix 5380, or a stand-alone Compact 5000 I/O system before ordering.

Why Order from LeadTime.ca

  • Global shipping on Allen-Bradley Compact 5000 I/O accessories including the 5069-FPD — no single-region restriction.
  • Real-time stock visibility and lead time confirmation before your PO is placed, reducing schedule risk on time-sensitive builds.
  • Application support for compatibility questions, SA current calculations, and BOM validation — talk to someone who knows the 5069 platform.
  • Volume pricing available for OEM and integrator builds with multiple 5069-FPD units on the BOM.
  • Hard-to-find Compact 5000 accessories sourced efficiently — useful when standard distributor channels show extended lead times.

At-a-Glance Summary

  • The Allen-Bradley 5069-FPD Compact 5000 Field Potential Distributor breaks the SA field power bus mid-backplane and creates a new 24 V DC distribution point for downstream 5069 I/O modules.
  • Compatible platforms: CompactLogix 5380, CompactLogix 5480, Compact GuardLogix 5380, and stand-alone Compact 5000 I/O — not compatible with 1769 or 1756 platforms.
  • Field power is 24 V DC nominal; confirm exact voltage range and SA current capacity from the current 5069-td001 datasheet before finalizing load calculations.
  • The module does not generate power and contains no integrated fuse or circuit breaker — external 24 V DC supply and external circuit protection are required.
  • Zone 2 / ATEX / IECEx certified with the constraint that the installer provides a Zone 2 certified enclosure with minimum IP54 ingress protection.
  • DIN-rail mounted with 5069-series mechanical keying; occupies one slot in the 5069 I/O assembly at the chosen segmentation point.
  • Pollution Degree 2 environmental rating (confirm from current datasheet).
  • Listed as a standard catalog item with typical lead times on the order of days at authorized distributors — verify current availability before committing to a project schedule.
  • Key certifications include UL, CE, ATEX, and IECEx — confirm exact markings from current official documentation for your installation's compliance requirements.
