Allen-Bradley 5069-AENTR — Compact 5000 Adapter Buying Guide

By Abdullah Zahid
14 min read

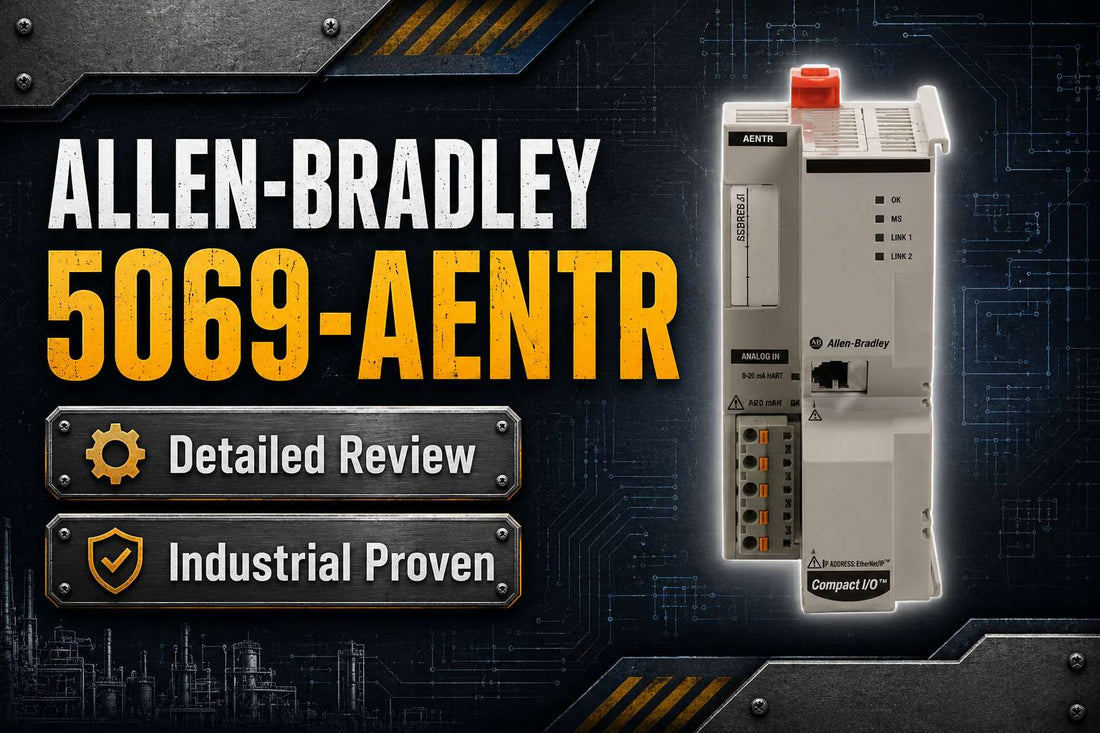

Allen-Bradley 5069-AENTR Compact 5000 EtherNet/IP slimline dual-port adapter module for remote I/O DIN rail panel

Allen-Bradley 5069-AENTR Compact 5000 EtherNet/IP Adapter (Slimline, Dual-Port): Specs, Selection Guide & Where to Buy

Controls engineers specifying distributed I/O for a Logix 5000 system frequently arrive at the same question: which adapter connects my 5069 Compact 5000 I/O rack to the EtherNet/IP network, and how do I confirm it is the right one before it goes on the BOM? The Allen-Bradley 5069-AENTR is that adapter — a slimline, dual-port EtherNet/IP head module that supports up to 31 local Bulletin 5069 I/O modules, distributes MOD and SA power to the rack, and supports Device Level Ring, linear, and star topologies over 10/100 Mb and 1 Gb Ethernet. Getting the selection right the first time means verifying I/O family, controller type, power budget, and network topology before the order goes in.

If you have already confirmed this is the right part, check current pricing and availability for the 5069-AENTR at LeadTime.ca — ships worldwide.

Who Should Buy the 5069-AENTR — and Who Shouldn't

The 5069-AENTR is the correct choice when all of the following apply to your project:

  • Your I/O is Compact 5000 (5069-series) — not 1769 Compact I/O or any other family
  • Your controller is a CompactLogix or ControlLogix communicating over EtherNet/IP
  • The node requires no more than 31 local Bulletin 5069 modules behind a single adapter
  • Your DC supply can deliver 18…32 V DC and cover the adapter's MOD power draw plus full rack passthrough current
  • Your network topology is star, linear, or Device Level Ring and your cabling supports 10/100 Mb or 1 Gb Ethernet
  • Standard industrial panel environment is acceptable — no special conformal coating or alternative environmental rating is required

If your application demands a conformal-coated variant for harsh environments, consider the 5069-AENTRK. If you need a different power terminal arrangement or additional power capabilities, evaluate the 5069-AEN2TR. If your project is greenfield and open to non-Rockwell platforms, the adapter economics look different entirely — see the comparison section below.

On this page:

What the 5069-AENTR Actually Does in a Running System

The 5069-AENTR is not a controller. It is an EtherNet/IP remote I/O adapter — the head module that gives a Compact 5000 I/O rack its network identity and connects it to a Logix 5000 controller upstream. Every 5069 I/O module in that rack communicates with the controller through this adapter over the high-speed backplane, with the adapter handling all EtherNet/IP data exchange, CIP communication, and timing. Without the adapter, the I/O modules are electrically present but invisible to the control system.

What separates the 5069-AENTR from a simple network bridge is its embedded power distribution role. The adapter supplies MOD power — the logic and backplane power the I/O modules need to operate — and passes SA (system and field) power through to the local rack, all sourced from an external 18…32 V DC supply connected at the adapter's removable terminal block. This consolidates power entry to a single point per node, which simplifies panel layout and fusing strategy. The dual-port design means the adapter can participate in Device Level Ring topologies for network-level redundancy, or connect to simple linear or star networks depending on what the application demands.

Typical System Architecture for a Compact 5000 Remote I/O Node

The 5069-AENTR sits at the left end of a Compact 5000 I/O assembly, acting as the network and power gateway for everything to its right on the DIN rail.

  • CompactLogix or ControlLogix controller — hosts the Studio 5000 project and owns the EtherNet/IP I/O connection to the adapter
  • Managed Ethernet switch or DLR-capable network — carries EtherNet/IP traffic between controller and adapter; for DLR, both adapter ports participate in the ring
  • 5069-AENTR — dual-port head adapter; terminates network, distributes MOD and SA power, communicates with up to 31 downstream I/O modules over the high-speed backplane
  • Up to 31 Bulletin 5069 I/O modules — digital, analog, or specialty I/O assembled to the right of the adapter on the same DIN rail segment
  • External 18…32 V DC power supply — connects to the adapter RTB; external fuses or circuit breakers are required and are not integrated into the adapter

Where the 5069-AENTR Fits: Industries and Use Cases

The most common deployment is a distributed I/O node mounted in a remote panel or machine enclosure where running individual I/O wiring back to a central cabinet would be impractical. A CompactLogix controller in the main cabinet communicates with one or more 5069-AENTR-based nodes over EtherNet/IP, each node handling the I/O for its local zone. This architecture is standard in packaging lines with multiple conveyor zones, automotive assembly cells where each station has its own I/O rack, and material handling systems where sorter zones are physically spread across a facility.

Food and beverage applications frequently use this approach to keep I/O wiring short near processing or filling equipment, while the adapter and I/O modules stay inside a sealed or purged panel. The DLR capability is particularly relevant here — if a single cable fault disrupts the ring, the network reconfigures without losing I/O data, which protects continuous-process applications from nuisance stops.

OEM machine builders standardizing on Compact 5000 I/O for North American customers benefit from the 5069-AENTR's native Studio 5000 integration. The adapter appears in the I/O configuration tree with its catalog number and revision, the I/O modules populate under it, and the engineering workflow is consistent across every machine variant in the product line.

Migration scenarios are also common. Plants that have operated older Compact I/O nodes for years and are now expanding or replacing hardware often move to Compact 5000 I/O while retaining their ControlLogix or CompactLogix controllers. The 5069-AENTR makes that migration possible without changing the EtherNet/IP controller infrastructure.

Application Typical Deployment
Packaging and filling lines Remote I/O node per conveyor zone; CompactLogix controller in main cabinet over EtherNet/IP
Automotive assembly cells One 5069-AENTR node per station; multiple nodes on a DLR ring connected to ControlLogix
Food and beverage processing Panel-mounted I/O near process equipment; DLR topology for network fault tolerance
Material handling and intralogistics Distributed nodes at sorter zones; star or linear topology depending on layout
OEM modular machines Each machine module has its own 5069-AENTR node; standard Studio 5000 I/O tree structure
Compact 5000 migration from older Compact I/O Replace 1769-based remote I/O racks with 5069-AENTR nodes; retain existing Logix controllers

Purchase-Decision Specs and Variant Comparison

Specification Value
Catalog Number 5069-AENTR
Product Type EtherNet/IP remote I/O adapter — not a controller
Max Local I/O Modules Up to 31 Bulletin 5069 modules per adapter
Ethernet Ports 2 (dual-port)
Supported Ethernet Speeds 10/100 Mb and 1 Gb (auto-negotiation)
Supported Topologies Star, linear, Device Level Ring (DLR)
MOD Power Input Voltage 18…32 V DC (external supply required)
Power Distribution MOD and SA power embedded — distributed to local I/O via power terminal block
Controller Compatibility CompactLogix / ControlLogix via EtherNet/IP and Studio 5000
I/O Family Compatibility 5069 Compact 5000 I/O only — not compatible with 1769 Compact I/O

Full technical specifications are available on the product page at LeadTime.ca.

Model Max Local Modules Environmental / Coating Power Terminal Arrangement Typical Use Case
5069-AENTR Up to 31 Standard industrial panel 5-terminal MOD/SA RTB Standard Compact 5000 remote I/O node
5069-AENTRK Up to 31 Conformal-coated variant for harsh environments Similar to AENTR Applications requiring coating for humidity, contaminants
5069-AEN2TR Up to 31 Standard industrial panel Different power terminal arrangement Where alternate power feed configuration is required

If your environment requires protection against humidity or airborne contaminants, the 5069-AENTRK is the variant to evaluate. If your power feed topology doesn't match the standard 5069-AENTR terminal block, confirm whether 5069-AEN2TR fits your panel design before ordering — check current availability and pricing at LeadTime.ca.

Expert Verdict: When the 5069-AENTR Is the Right Call

The 5069-AENTR earns its place as the standard head adapter for Compact 5000 remote I/O nodes because it solves a real engineering problem without creating new ones. It supports up to 31 local 5069 I/O modules over a high-speed backplane, provides dual-port EtherNet/IP with Device Level Ring capability, and consolidates MOD and SA power distribution into the adapter itself — all within a slimline DIN-rail form factor that fits cleanly in a machine panel. The buyer profile it suits squarely is a plant or OEM already invested in Logix 5000 who needs distributed I/O that configures identically every time in Studio 5000, with no surprises at commissioning. Canadian and North American operations where Rockwell spares and support are strategic requirements will find this adapter slots naturally into their preferred vendor framework.

Where the 5069-AENTR shows its limits is outside the Rockwell ecosystem. Greenfield projects that are genuinely open to alternative platforms will find that system-level alternatives — Siemens ET 200SP on PROFINET, for example — offer competitive remote I/O performance at a different price point, but those are not drop-in replacements. They require a different controller, different programming tools, and a different support and spares infrastructure. Within the Rockwell ecosystem, if your panels see condensing humidity, wash-down chemical exposure, or high particulate contamination, the 5069-AENTRK conformal-coated variant should be evaluated before defaulting to the standard 5069-AENTR. Applications with safety I/O requirements should also verify which 5069 adapter variant best supports their safety and standard I/O segregation approach.

From a procurement standpoint, the single most important step before ordering is confirming your I/O family and power budget in writing. The majority of costly reorders on Compact 5000 adapter projects trace back to either mixing 5069 and 1769 I/O families or underestimating the total passthrough current across a fully populated rack. Lead times on Allen-Bradley network modules can extend during periods of high demand — ordering through a specialist distributor who can confirm live Rockwell stock levels, suggest stocked alternatives if the 5069-AENTR is constrained, and help you size associated power supplies correctly is a practical way to avoid build delays. View current pricing and stock status for the 5069-AENTR at LeadTime.ca.

For volume pricing, lead time confirmation, or help validating compatibility before committing to a BOM, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 5069-AENTR

Model-specific community feedback for the 5069-AENTR is sparse across the major PLC forums — PLCTalk, PLCS.net, MrPLC, Reddit's r/PLC and r/automation, and the Rockwell Automation support forum. Most discussion about this product happens at the Compact 5000 family level rather than at the specific adapter catalog number. That absence of loud community commentary is not a red flag on the product — it reflects the fact that engineers who get the selection right tend not to post about it. What the community does consistently surface are the failure modes that apply to any dual-port EtherNet/IP adapter in the Compact 5000 family, and those are directly relevant here.

The two themes that appear repeatedly in Rockwell-related forum threads are hardware pricing and lead time management. Engineers frequently note that Allen-Bradley network and I/O modules command a premium, and that lead times across various product lines can extend without much warning during periods of high industrial demand. The practical advice that surfaces in these discussions is consistent: check live stock and lead time at the time of design, not only at the time of purchase — and have a distributor confirm current availability rather than relying on a catalog listing that may not reflect real warehouse stock. Building a single critical adapter into a machine design without verifying lead time is one of the more avoidable project delay scenarios in industrial automation procurement.

The other recurring caution is EtherNet/IP addressing and DLR topology management. Engineers working with dual-port adapters in ring topologies report that IP address conflicts and incorrect DLR wiring (for example, treating a ring port as a standard linear port) produce intermittent communication faults that are difficult to diagnose without systematic pre-commissioning verification. The guidance that emerges from these discussions: plan your EtherNet/IP addressing scheme before the first module goes on the DIN rail, document it, and validate DLR continuity before downloading your Studio 5000 project. These are not 5069-AENTR-specific problems, but the 5069-AENTR's dual-port design means they are directly applicable to anyone specifying this adapter for a ring topology.

Wiring and Installation Overview

  • Mount the 5069-AENTR on the leftmost position of the DIN rail segment, then assemble Bulletin 5069 I/O modules to its right — module count must not exceed 31 for a single adapter node
  • Connect the external 18…32 V DC power supply to the removable terminal block (RTB); MOD and SA power feeds must be protected by external fuses or circuit breakers, as the adapter does not include integrated overcurrent protection
  • Connect the two Ethernet ports to the plant network in the intended topology — both ports active for DLR ring participation, one port used for linear or star connections; use industrial-rated Ethernet cable with appropriate bend radius and shielding for the panel environment
  • Verify total current drawn by all attached 5069 I/O modules does not exceed the adapter's SA power passthrough rating as defined in the Rockwell user manual — underestimating this is the leading cause of power-related faults at first power-up
  • Before applying power, confirm all terminal connections are secure, verify that external protection devices are installed and correctly rated, and check that the Ethernet cables are routed clear of high-voltage conductors in the panel

Commissioning in Studio 5000: What to Expect

  • Assign an IP address to the 5069-AENTR using BOOTP/DHCP utility or another documented method before attempting to add it to the Studio 5000 I/O configuration tree
  • In Studio 5000, add the 5069-AENTR to the controller's I/O configuration, selecting the exact catalog number and matching the installed firmware revision — revision mismatches will prevent the connection from going online
  • Configure Requested Packet Intervals (RPIs) for the adapter and its child I/O modules based on your application's scan rate requirements
  • Download the project to the controller and verify that the 5069-AENTR and all associated 5069 modules report healthy status in the I/O configuration diagnostics — power and network LEDs on the adapter face should confirm correct states before proceeding
  • Test a representative subset of I/O points by forcing outputs and monitoring inputs in Studio 5000 before releasing the node for full production use

Wrong-Part Prevention: Eight Checks Before You Order

Run through this checklist before the 5069-AENTR goes on your purchase order. These checks are drawn directly from documented compatibility requirements and common ordering errors in the Compact 5000 ecosystem:

  1. Confirm you specifically need Compact 5000 (5069) I/O; this adapter does not support older Compact I/O families (e.g., 1769).
  2. Verify the controller supports EtherNet/IP and is intended to control remote 5069 I/O (e.g., CompactLogix/ControlLogix with EtherNet/IP).
  3. Check that one adapter node with up to 31 local 5069 modules is sufficient for your I/O count and architecture.
  4. Confirm your power budget: available 18…32 V DC supply must cover adapter MOD power plus the passthrough current required by all attached I/O modules.
  5. Validate environmental needs (temperature, vibration, coatings); choose a coated or alternate 5069 adapter variant if required.
  6. Confirm network topology and redundancy expectations (DLR vs star vs linear) and that your switches/cabling support these modes.
  7. Ensure panel depth and DIN rail space fit the slimline adapter plus planned I/O modules.
  8. Check lifecycle status and lead time with your distributor to avoid mixing active and near-obsolete components in new designs.

If any item on this list raises a question, contact the LeadTime.ca team before ordering — confirming compatibility now costs nothing; a wrong-part return or project delay costs significantly more.

Frequently Asked Questions

Can I use the 5069-AENTR with older 1769 Compact I/O modules on the same rail?

No. The 5069-AENTR is exclusively compatible with Bulletin 5069 Compact 5000 I/O modules. The 1769 Compact I/O family uses a different backplane and mechanical interface and is not supported by this adapter. If your existing system uses 1769 I/O, you need a different adapter from the 1769 family or you need to migrate the I/O to 5069 modules before using the 5069-AENTR.

How many 5069 I/O modules can I connect to one 5069-AENTR?

The 5069-AENTR supports up to 31 local Bulletin 5069 I/O modules on its high-speed backplane. If your application requires more I/O points than 31 modules can provide, you need additional adapter nodes, each with its own 5069-AENTR and EtherNet/IP connection to the controller.

Does the 5069-AENTR support Device Level Ring redundancy, and what do I need to enable it?

Yes. The 5069-AENTR's two Ethernet ports support Device Level Ring topology, which provides automatic network reconfiguration if a single cable or port fails in the ring. To use DLR, both Ethernet ports must be connected into the ring, and all devices on the ring — including the managed switch or controller port acting as the ring supervisor — must support the DLR protocol. Linear and star topologies use only one or both ports in non-ring configurations.

What power supply capacity do I need for a fully populated 5069-AENTR node?

The external 18…32 V DC supply must cover the adapter's own MOD power draw plus the total SA passthrough current required by all attached 5069 I/O modules. The exact current figures depend on which I/O modules are installed and whether SA power is used for field devices. Use the current consumption data from each module's datasheet and the 5069-AENTR user manual to calculate worst-case load, then size the supply with appropriate headroom and install external overcurrent protection on each feed. The adapter does not include integrated circuit breakers.

How do I replace a failed 5069-AENTR in a running system?

Replacement procedures should follow the Rockwell Automation user manual for the 5069-AENTR, which covers module removal, installation, and IP address reassignment. Key steps involve powering down the node safely, removing and replacing the adapter, verifying the IP address and firmware revision on the replacement unit, and confirming that all 5069 I/O modules re-establish healthy connections in Studio 5000 before returning the node to production. Keeping a configured spare adapter with the correct firmware revision on hand significantly reduces downtime during an unplanned replacement.

Can the 5069-AENTR be used with safety I/O modules in a Compact 5000 architecture?

The brief provided for this article does not contain specific confirmed data on safety I/O compatibility with the standard 5069-AENTR. Applications with safety I/O requirements should consult Rockwell's Compact 5000 safety documentation and verify with a specialist distributor which 5069 adapter variant is appropriate for the intended safety architecture before specifying hardware.

Why Order From LeadTime.ca

  • Ships worldwide — not limited to any single region or country
  • Live stock checks on Allen-Bradley SKUs including the 5069-AENTR and related Compact 5000 I/O modules
  • Specialist team able to confirm compatibility, cross-reference variants, and flag lifecycle or lead time concerns before you commit to a BOM
  • Volume pricing available — contact for current quotes on project quantities
  • Hard-to-find and long-lead Allen-Bradley parts sourced through established distribution channels

At-a-Glance Summary

  • Catalog number: 5069-AENTR — Compact 5000 EtherNet/IP Adapter (Slimline, dual-port)
  • Supports up to 31 local Bulletin 5069 I/O modules per adapter node on the high-speed backplane
  • Dual Ethernet ports supporting 10/100 Mb and 1 Gb speeds; star, linear, and Device Level Ring topologies supported
  • MOD power input: 18…32 V DC from external supply; embedded MOD and SA power distribution to local I/O modules
  • External overcurrent protection (fuses or breakers) is required — not integrated in the adapter
  • Compatible exclusively with 5069 Compact 5000 I/O — not backward-compatible with 1769 Compact I/O
  • Integrates with CompactLogix and ControlLogix controllers via Studio 5000 I/O configuration
  • Variant 5069-AENTRK available for conformal-coated/harsh-environment applications; 5069-AEN2TR offers different power terminal arrangement
  • Lifecycle status: Active — verify at time of order; lead times can extend during periods of high Rockwell demand
  • Pricing available on the product page; contact LeadTime.ca for volume or project pricing
