Allen-Bradley 5069-IB16 — Compact 5000 DC Input Module Guide

By Abdullah Zahid
15 min read

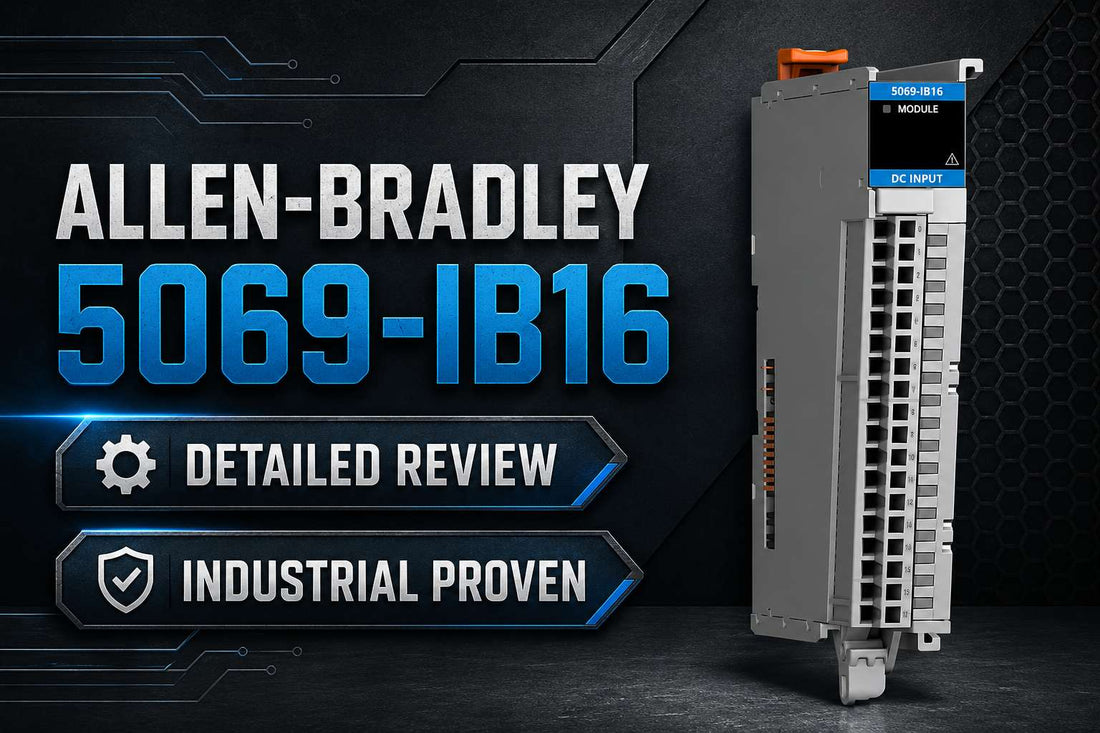

Allen-Bradley 5069-IB16 Compact 5000 16-channel 24V DC sinking digital input module for CompactLogix 5380

Allen-Bradley 5069-IB16 Compact 5000 DC Input Module, 16 Channel, 24V DC Sink — Specs, Compatibility & Buying Guide

Controls engineers specifying discrete I/O for a CompactLogix 5380, 5480, or Compact GuardLogix system arrive at the Allen-Bradley 5069-IB16 with one core question: is this the right 16-point sinking input module for my build, and can I get it on time? The 5069-IB16 is a 16-channel, 12/24V DC sinking digital input module in the Compact 5000 I/O platform — approximately 22 mm wide, designed for both local and EtherNet/IP remote I/O architectures, and fully supported in Studio 5000 Logix Designer. If you know the platform fits and sinking inputs match your field devices, the selection case is straightforward.

If you have already confirmed this is the right part, check current pricing and availability for the Allen-Bradley 5069-IB16 at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 5069-IB16 — and Who Shouldn't

The 5069-IB16 is the standard choice for controls engineers and OEM machine builders standardizing on the Compact 5000 I/O platform who need reliable, high-density discrete DC input sensing. It is the right module when all of the following apply:

  • Your controller is a CompactLogix 5380, CompactLogix 5480, or Compact GuardLogix — not an older 1769-series CompactLogix system
  • Your field devices operate on 12/24V DC and require a sinking (NPN-compatible) input configuration
  • You need exactly 16 discrete input points per module and the compact 22 mm panel footprint is an advantage
  • You are using or planning to use Studio 5000 Logix Designer and can confirm firmware and module revision alignment
  • The 5069-RTB18-SCREW or 5069-RTB18-SPRING removable terminal block is included separately in your BOM

If your project requires sourcing (PNP-side switching) inputs, mixed-voltage I/O on a single module, enhanced per-channel diagnostics, or safety-rated discrete inputs, a different 5069-family module — such as the 5069-IB16F or a safety-rated variant — is the correct selection. Buyers on legacy 1769 CompactLogix platforms should look at 1769-series digital input modules instead; the 5069-IB16 is not mechanically or electrically compatible with those systems.

On this page:

What the Allen-Bradley 5069-IB16 Actually Does in a Running System

The 5069-IB16 reads the on/off state of up to 16 field devices — sensors, pushbuttons, limit switches, proximity switches — and passes that digital status to the CompactLogix or Compact GuardLogix controller through the Compact 5000 I/O backplane. Each channel monitors a 12/24V DC sinking signal, meaning the return current path runs through the module's internal SA– terminal rather than through the field device to a positive supply. The module occupies approximately 22 mm of panel rail width, which allows significantly more input points per row than many legacy modules of similar channel count.

Field power is supplied through the SA+ and SA– terminals on the 5069-RTB18 removable terminal block — a separate accessory that must be ordered explicitly. Module health and per-channel input status are reported through onboard LEDs and through Studio 5000 Logix Designer tags, giving commissioning engineers immediate visual and software-level feedback without additional hardware. The module communicates over the Compact 5000 backplane directly when installed as local I/O on a CompactLogix 5380 or 5480 controller, or over EtherNet/IP when connected through a 5069-AENTR adapter in a distributed I/O topology.

Where the 5069-IB16 Sits in a Typical Compact 5000 Architecture

The 5069-IB16 sits at the field interface layer of the control system — between the controller backplane and the discrete sensing devices in the machine or process. Understanding the component chain helps visualize where potential compatibility and wiring issues arise.

  • CompactLogix 5380 or 5480 CPU (or Compact GuardLogix controller) manages the program and I/O scan
  • Compact 5000 I/O backplane or 5069-AENTR EtherNet/IP adapter hosts the I/O module slots
  • 5069-IB16 occupies one slot, presenting 16 sinking input channels to the controller I/O tree
  • 5069-RTB18 removable terminal block (screw or spring) connects field wiring to module input terminals and SA+/SA– field power rails
  • Field devices (NPN proximity sensors, limit switches, pushbuttons) connect to individual input terminals and share a common return path through SA–

Typical Applications and Industries for the 5069-IB16

The 5069-IB16 appears most consistently in discrete manufacturing environments where CompactLogix is the controller standard and the I/O mix is dominated by 24V DC sensors and switches. Packaging lines use it to monitor product presence, reject gate positions, and guard switch states. Automotive assembly and material handling systems use it for conveyor tracking, part detection, and interlock sensing. OEM machine builders who have standardized on CompactLogix 5380 favor the 5069-IB16 for repeatable, well-documented input wiring across machine variants.

In distributed I/O topologies — palletizers, sorters, and long conveyor systems — the module is mounted in remote enclosures alongside a 5069-AENTR adapter, reducing home-run cable runs while keeping all I/O in a single Studio 5000 project. Food and beverage facilities and logistics automation operations also use it where CompactLogix is the installed platform and standard industrial DC sensors are prevalent. For applications that involve both standard and safety sensing in the same panel, the 5069-IB16 handles the non-safety discrete channels while safety-rated 5069 I/O modules cover the SIL-rated loops.

Application Typical Deployment
Packaging line machine control Local I/O on CompactLogix 5380 CPU, sensing product presence and guard interlocks
Conveyor and sortation system Remote I/O via 5069-AENTR adapter, distributed along conveyor frame
Automotive assembly cell Local I/O in machine panel, monitoring part detection and fixture confirms
OEM standard machine platform Standardized BOM with repeatable 5069-IB16 input wiring across machine variants
Legacy 1769 panel retrofit Replacement I/O upgrade to 5069 platform on CompactLogix 5380 migration project
Logistics and warehouse automation Distributed nodes on EtherNet/IP across warehouse conveyor network

Purchase-Decision Specs: What Engineers Need to Know

Parameter Value Notes
I/O type 16-point digital input, sinking 12/24V DC nominal; NPN-compatible field devices
Nominal input voltage 12/24V DC Confirm operating range from current datasheet
Module width Approximately 22 mm High I/O density for panel space planning
Operating temperature 0…60 °C Install in ventilated enclosure; verify with site conditions
Storage temperature –40…85 °C Safe for cold storage and shipping environments
Relative humidity Up to 95% non-condensing Requires installation in appropriate enclosure
Terminal block (required, sold separately) 5069-RTB18-SCREW or 5069-RTB18-SPRING One RTB required per module — must be ordered separately
Controller compatibility CompactLogix 5380/5480, Compact GuardLogix (5069 I/O platform) Not compatible with 1769 Compact I/O systems
Field power terminals SA+ and SA– on RTB Internal return path through SA–; verify polarity and grounding
Certifications UL, CE (and other marks per Rockwell documentation) Confirm current certification list on product datasheet

Full technical specifications are available on the product page at LeadTime.ca.

5069-IB16 vs. Related Compact 5000 Input Modules — Which One Do You Actually Need?

Model Input Type Key Differentiator Choose When
5069-IB16 16-point, 12/24V DC, sinking Standard density, sinking input, narrow 22 mm width Sinking inputs fit plant standard; standard diagnostics sufficient
5069-IB16F 16-point, 12/24V DC, sinking Enhanced diagnostics and filtering features Project requires per-channel diagnostics or advanced input filtering
1769-IB16 16-point, 24V DC, sinking Legacy 1769 Compact I/O family Existing CompactLogix system uses 1769 I/O exclusively — not a 5069 system
Other 5069 DC input variants Various point counts and voltage options Different channel counts or voltage ranges within Compact 5000 family Point count or voltage level does not match 16-point 12/24V DC requirement
5069 safety-rated I/O modules Safety-rated discrete inputs SIL-rated, for use with Compact GuardLogix safety functions Safety loop certification is required for specific input channels

If your field devices output a sourcing (PNP) signal or your project calls for enhanced per-channel diagnostics, the 5069-IB16F is the closer match — confirm availability and lead time for your required variant at LeadTime.ca.

Expert Verdict: Is the 5069-IB16 the Right Long-Term Choice?

For controls engineers and OEM machine builders who have committed to the CompactLogix 5380 or Compact GuardLogix platform, the Allen-Bradley 5069-IB16 is the straightforward, low-risk choice for standard 12/24V DC sinking discrete inputs. It delivers 16 input channels in approximately 22 mm of panel width, integrates directly into Studio 5000 with no adapter tricks, and performs reliably across the 0…60 °C operating range that covers the vast majority of industrial panel environments. Engineers who have standardized on this module report that it does exactly what it promises — it reads discrete field signals cleanly, its LEDs make commissioning and fault identification fast, and it fits neatly into Compact 5000 I/O assemblies both locally and in distributed EtherNet/IP nodes.

The limits are real and worth stating plainly. The 5069-IB16 is a sinking-only module — if plant standards require sourcing inputs or the field device mix includes PNP sensors wired to a positive switching leg, this module will cause commissioning headaches and potentially require physical replacement. It is not a drop-in replacement for any 1769 Compact I/O module; attempting to seat it in a 1769 system is a mechanical impossibility, not a configuration problem. Buyers who need enhanced per-channel diagnostics, input filtering, or SIL-rated safety inputs should look at the 5069-IB16F or appropriate safety I/O variants before committing to a BOM. And the 5069-RTB18 terminal block does not come in the box — this is a documented but repeatedly overlooked separate line item that has delayed more than a few panel builds.

From a procurement standpoint, the 5069-IB16 is a well-established Compact 5000 catalog number with broad distributor coverage globally. Lead times vary with market demand and regional inventory, and periods of high automation spending can create meaningful delays on Rockwell I/O modules. Ordering through a specialist industrial automation distributor matters here — not just for access to stock, but to catch the RTB omission, verify platform compatibility before the PO is placed, and get realistic lead time expectations before your project schedule is committed. Check current pricing and availability for the Allen-Bradley 5069-IB16 at LeadTime.ca, with worldwide shipping available.

For volume pricing, project BOM review, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Allen-Bradley 5069-IB16

Model-specific community discussion on the 5069-IB16 as an individual SKU is limited — most forum threads on platforms like PLCTalk, PLCS.net, MrPLC, Reddit r/PLC, and Rockwell user communities address the Compact 5000 I/O family broadly rather than this single module. What those discussions do surface, consistently and across multiple threads, is a set of recurring selection and wiring mistakes that show up at commissioning or on the receiving dock. The pattern is clear enough to be treated as engineering knowledge, not anecdote.

The sink-versus-source confusion is the most frequently cited pain point. The 5069-IB16 is a sinking input module — current flows from the field device through the input terminal and returns via the SA– rail. Engineers accustomed to sourcing input modules, or working with PNP sensors wired to switch a positive leg, have reported non-functional inputs that require physical rewiring or module substitution to resolve. The fix is design-stage discipline: document the I/O type in the BOM and cross-check every sensor datasheet for NPN or PNP output before finalizing the order. The community also flags this as a common source of commissioning delay on retrofit projects where the existing field wiring was built around a sourcing convention.

The second most consistent thread topic is the missing terminal block. The 5069-RTB18 removable terminal block is not included with the 5069-IB16 — it is a separate catalog number in two styles (5069-RTB18-SCREW and 5069-RTB18-SPRING) and must appear as its own line item in the BOM. Engineers who have encountered this report discovering the gap after the module arrives, delaying panel build by days or longer when the RTB is on backorder. Specialist distributors who work regularly with Compact 5000 I/O will flag this automatically during order review — a practical reason to source through a knowledgeable channel rather than a catalog-only platform. The third recurring theme is platform compatibility: ordering 5069 modules for a system that is actually running 1769 Compact I/O is a returns and redesign event, not a configuration adjustment. Verify the controller series — CompactLogix 5380 or 5480 for 5069 I/O — before any purchase is placed.

Wiring and Installation Overview

  • Mount the Compact 5000 I/O assembly on DIN rail with adequate clearance for ventilation, following Rockwell's spacing guidelines for the 5069 platform
  • Insert the 5069-IB16 into the designated backplane slot and confirm the locking mechanism is fully engaged before applying power
  • Install the 5069-RTB18 terminal block (specify screw or spring style at ordering) and verify it is fully seated on the module connector
  • Connect SA+ and SA– field power terminals according to the polarity and grounding practices in Rockwell's installation instructions; the internal return path runs through SA–, and incorrect grounding is a common source of intermittent input behavior
  • Connect field device wires to individual input terminals and commons per your documented channel assignment, observing recommended wire size, termination torque, and shielding practices from the manufacturer's wiring guide

Full wiring diagrams and mechanical installation procedures are provided in the Rockwell Automation installation instructions for the 5069-IB16. Always refer to the current revision of the manufacturer documentation for your specific module series and Studio 5000 version.

Compatible Accessories and Required Hardware

The 5069-IB16 requires the following accessories and infrastructure components — confirm each is included in the BOM before purchasing:

  • 5069-RTB18-SCREW — 18-position removable terminal block with screw-style termination; one required per 5069-IB16 module
  • 5069-RTB18-SPRING — 18-position removable terminal block with spring-style termination; alternative to screw version for faster field wiring
  • 5069-AENTR — Compact 5000 EtherNet/IP adapter; required when mounting the 5069-IB16 as remote I/O rather than as local I/O on the controller
  • CompactLogix 5380 / CompactLogix 5480 controller — provides the integrated 5069 I/O backplane slots for local I/O; confirm firmware revision is compatible with module series
  • Compact GuardLogix controller — alternative host controller for applications requiring safety functionality alongside standard I/O
  • 24V DC field power supply — external supply for SA+ field power rail; size per total field device current draw on the module

Wrong-Part Prevention Checklist

Review every item below before releasing the 5069-IB16 for purchase — these are the exact verification points that prevent returns, rewiring, and commissioning delays:

  1. Confirm the controller platform is CompactLogix 5380/5480 or Compact GuardLogix and supports 5069 Compact 5000 I/O, not older 1769 CompactLogix or ControlLogix chassis.
  2. Verify that the field devices require a 12/24V DC sinking input module (load side to negative/common) and not sourcing or AC inputs.
  3. Check required point count and I/O distribution; ensure 16 inputs per module matches the design and I/O count assumptions.
  4. Confirm that the correct removable terminal block (RTB) is ordered (5069-RTB18-SCREW or 5069-RTB18-SPRING) and that the RTB is not mistakenly assumed to be included.
  5. Check environmental ratings (operating temperature range, humidity, pollution degree) against the panel and site conditions.
  6. Verify Studio 5000 Logix Designer revision and firmware compatibility with the planned module series/revision.
  7. Ensure you have the proper adapter or backplane hardware (e.g., 5069-AENTR or integrated 5069 I/O slot on the controller) for remote/local mounting.
  8. Confirm the wiring scheme (shared common, SA+/SA– field power, grounding) matches plant standards and documentation.

If any item on this checklist cannot be confirmed from your current documentation, contact the LeadTime.ca team before ordering — our specialists work through these checks daily and can help prevent a costly mistake.

Frequently Asked Questions

What is the actual difference between the 5069-IB16 and the 5069-IB16F — and when does it matter?

The 5069-IB16 is the standard 16-point 12/24V DC sinking input module with onboard status LEDs and module-level diagnostics. The 5069-IB16F offers enhanced features such as additional filtering or per-channel diagnostic capabilities. For most standard discrete sensing applications — sensors, switches, pushbuttons — the 5069-IB16 is sufficient. If your application involves high-frequency inputs, requires detailed per-channel fault reporting, or the project specification calls out the F variant explicitly, select the 5069-IB16F instead.

Can the 5069-IB16 be used in a legacy CompactLogix system currently running 1769 Compact I/O?

No. The 5069-IB16 is a Compact 5000 I/O module and is not mechanically or electrically compatible with 1769 Compact I/O systems. Attempting to install it in a 1769 chassis will not work physically. If your existing controller is a legacy CompactLogix that accepts 1769 modules, you need a 1769-series digital input module. Upgrading to 5069 I/O requires a controller capable of hosting the 5069 backplane — specifically a CompactLogix 5380, 5480, or Compact GuardLogix.

How do I know if my field sensors are compatible with the 5069-IB16 sinking input configuration?

The 5069-IB16 requires NPN-output (sinking) field devices that switch the input signal to the negative/common side. If your sensors are PNP-output devices that switch a positive voltage to the input terminal, they are designed for sourcing input modules and will not operate correctly with the 5069-IB16. Check the sensor output specification — NPN/sinking for this module, PNP/sourcing for a sourcing variant. When in doubt, review the sensor wiring diagram against Rockwell's input wiring examples in the installation instructions.

Which terminal block do I need for the 5069-IB16, and is it included in the box?

The 5069-IB16 requires either the 5069-RTB18-SCREW (screw-style termination) or the 5069-RTB18-SPRING (spring-cage termination) removable terminal block — one per module. The terminal block is not included with the module and must be ordered as a separate line item. This is one of the most commonly missed items in BOMs and has caused panel build delays on multiple documented projects. Add the RTB to your order at the same time as the module.

Why are my 5069-IB16 input channels not changing state in Studio 5000 even though the field device is active?

The most common causes are: field power is not present or incorrectly wired at SA+ and SA– on the RTB; the field device is a PNP sourcing device connected to a sinking module; the input terminal wiring is connected to the wrong channel or common; or there is a Studio 5000 module configuration mismatch causing a connection fault. Check the module status LEDs and individual channel LEDs first, verify DC voltage at SA+ and at the input terminal with a meter, then review the module properties in Studio 5000 for any active fault codes. Correct sink/source wiring is the single most frequent resolution for this symptom.

Does the 5069-IB16 require a specific Studio 5000 version or controller firmware revision?

Yes — compatibility between the 5069-IB16 module series/revision and the Studio 5000 Logix Designer version and controller firmware must be verified before commissioning. Rockwell publishes compatibility matrices for the Compact 5000 I/O family. If the module revision in the I/O configuration does not match the physical module, a connection fault will result. Always confirm that the Studio 5000 revision and controller firmware in use support the exact module series you have ordered, particularly on retrofit projects where the existing project file may have been created on an older software version.

Why Order the Allen-Bradley 5069-IB16 from LeadTime.ca

  • Global shipping — LeadTime.ca ships industrial automation hardware worldwide, not limited to any single region
  • Specialist knowledge — our team works with Compact 5000 I/O daily and will catch missing RTBs, wrong I/O type selections, and platform mismatches before the order ships
  • Transparent lead time guidance — we provide current stock status and realistic factory lead time estimates so project schedules are not built on assumptions
  • Volume and project pricing — contact us for BOM-level pricing on multi-module orders or project-based procurement
  • Hard-to-find parts — when standard channels show extended lead times, our sourcing network can locate stock faster

At-a-Glance Summary

  • 16 channels of 12/24V DC sinking digital inputs in a single Compact 5000 I/O module
  • Approximately 22 mm module width for high I/O density in space-constrained panels
  • Compatible with CompactLogix 5380, CompactLogix 5480, and Compact GuardLogix — not compatible with 1769 Compact I/O systems
  • Operating temperature range 0…60 °C; storage temperature –40…85 °C; up to 95% non-condensing relative humidity
  • Field power connected via SA+ and SA– on the 5069-RTB18 removable terminal block — RTB sold separately, available in screw (5069-RTB18-SCREW) and spring (5069-RTB18-SPRING) styles
  • Supports local I/O on controller backplane and remote I/O via 5069-AENTR adapter on EtherNet/IP
  • Studio 5000 Logix Designer firmware and module revision compatibility must be verified before commissioning
  • Sinking inputs only — NPN field devices required; PNP/sourcing devices require a different module variant
  • UL and CE certified; confirm current certification marks on the Rockwell product datasheet for your revision
  • Pricing is available on the product page; contact LeadTime.ca for current lead time and volume pricing
