Allen-Bradley 5069-OB16 — Compact 5000 Output Module Buying Guide

By Abdullah Zahid
14 min read

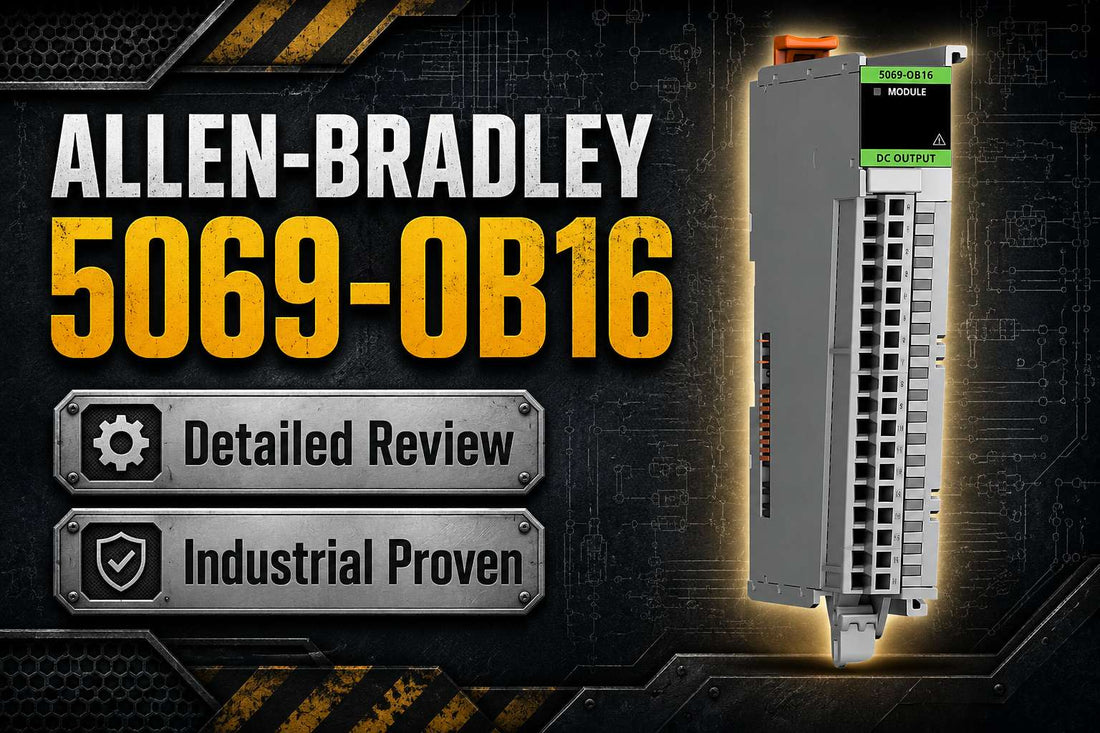

Allen-Bradley 5069-OB16 Compact 5000 16-point 24V DC sourcing digital output module for CompactLogix systems

Allen-Bradley 5069-OB16 Compact 5000 DC Output Module: Specs, Pricing Context and Selection Guide

Controls engineers specifying a new CompactLogix 5380 or 5480 system — or expanding an existing Compact 5000 I/O bank — typically arrive at the Allen-Bradley 5069-OB16 after confirming they need a standard 16-point 24 V DC sourcing digital output module that lives natively in the Logix 5000 ecosystem. The 5069-OB16 is a Compact 5000 I/O digital output module that drives field devices such as solenoid valves, interposing relays, contactors, and 24 V DC signal lamps directly from a CompactLogix or distributed I/O architecture over EtherNet/IP. The central purchasing question is almost always the same: is this the right output type, right channel count, and right family for the project at hand — and is it available in time?

If you have already confirmed this is the right part, check current pricing and availability for the Allen-Bradley 5069-OB16 at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 5069-OB16 — and Who Shouldn't

The Allen-Bradley 5069-OB16 is the right choice for controls engineers and OEM machine designers who are already committed to the Rockwell Compact 5000 I/O platform and need standard discrete 24 V DC sourcing outputs. You are in the right place if all of the following are true:

  • Your controller is a CompactLogix 5380 or 5480, or you are deploying distributed I/O via a Compact 5000 EtherNet/IP adapter — and you have confirmed the 5069 module family is correct for that system.
  • Your field devices are powered at 24 V DC and require sourcing (positive switching) outputs — not sinking outputs, AC outputs, or relay contacts.
  • Sixteen output points per module meets or matches the channel count needed for this I/O bank without leaving excessive unused channels.
  • Your environmental conditions, ambient temperature limits, and certifications align with those listed in the Rockwell 5069-OB16 datasheet and installation instructions.
  • Your BOM accounts for required accessories — end caps, bus adapters, field power supplies, and wiring connectors — as a complete Compact 5000 I/O assembly.

If you need individually fused outputs with built-in channel protection, the 5069-OB16F is the correct variant. If your application requires safety-rated or high-diagnostic I/O, the standard 5069-OB16 is not the right family — consult Rockwell's safety I/O documentation for the appropriate catalog number.

On this page:

Where the Allen-Bradley 5069-OB16 Fits in a Logix 5000 System

The 5069-OB16 sits at the field interface layer of a Compact 5000 I/O assembly — it is the module that translates controller output tags into physical 24 V DC switching events at the terminal level. Understanding where it sits in the signal chain is important before purchasing, because the module cannot simply be dropped into an older 1769 CompactLogix rack or a POINT I/O network.

  • The CompactLogix 5380 or 5480 controller serves as the Logix 5000 execution engine and manages the I/O bank directly over the local Compact 5000 backplane.
  • For distributed installations, a Compact 5000 EtherNet/IP adapter sits at the head of a remote I/O bank and connects back to the ControlLogix or CompactLogix controller over standard EtherNet/IP infrastructure.
  • The 5069-OB16 occupies one slot in the Compact 5000 I/O bank, mounted on EN 50022 DIN rail alongside other 5069-series input, output, and specialty modules.
  • Field devices — solenoid valves, interposing relays, contactors, stack lights — connect to the module's output terminals and receive their 24 V DC switching signal from the module's sourcing transistor outputs.
  • Studio 5000 Logix Designer provides the software environment where the module is defined, configured, and assigned to Logix tags that the controller program references directly.

The 5069-OB16 is not a drop-in replacement for 1769 Compact I/O modules. The Compact 5000 family uses a different backplane, different physical connectors, and requires controllers or adapters that specifically support the 5069 module family. Engineers migrating from 1769-OB16 hardware must account for controller hardware changes, rack reconfiguration, and Studio 5000 project updates.

Typical Applications and Deployment Scenarios for the Allen-Bradley 5069-OB16

The 5069-OB16 is a workhorse module for any discrete machine application where 24 V DC sourcing outputs drive field devices from a Logix 5000 controller. OEM machine builders working on packaging lines frequently use it to control pneumatic cylinders, diverters, sealers, and reject gates — all of which require clean 24 V DC switching from a reliable, consistent output source.

Material handling and conveyor system integrators deploy the 5069-OB16 as distributed I/O across remote junction boxes and field panels, using it to operate gate solenoids, stopper actuators, conveyor zone enables, and drive enable relays through interposing contactors. The 16-channel density per module fits many zone-based control strategies without requiring oversized I/O banks.

General manufacturing plants standardized on Rockwell Architecture use the 5069-OB16 for machine control panel outputs that drive MCC interfaces, pilot lamps, beacons, audible alarms, and signaling to downstream equipment. Process skids in food and beverage, water treatment, and life sciences applications also deploy this module where the Compact 5000 platform has been adopted for its compact DIN-rail format and tight Logix integration.

Application Typical Deployment
Packaging machinery CompactLogix 5380 local I/O bank controlling pneumatic cylinders, sealers, and diverter valves
Conveyor and material handling Distributed Compact 5000 I/O via EtherNet/IP adapter controlling gates, stoppers, and zone enables
General plant discrete outputs Machine panel I/O driving stack lights, beacons, pilot lamps, and MCC interface signals
OEM machine building Standard 5069 I/O bank with mixed input and output modules for turnkey machine delivery
Process skids and skid-mounted automation Compact DIN-rail Compact 5000 assembly for 24 V DC solenoid and actuator control
Automotive and tier supplier lines High-uptime discrete output control integrated into Rockwell-standardized plant architecture

Purchase-Decision Specs and Variant Comparison for the Allen-Bradley 5069-OB16

The table below covers the specifications most relevant to the purchase and integration decision. Electrical ratings such as per-channel output current, module power dissipation, isolation voltage, and detailed environmental limits are not reproduced here because they must be verified from the latest Rockwell Automation 5069-OB16 datasheet and installation instructions — those numbers govern your design and should come directly from the manufacturer document in force at your project date.

Specification Value / Detail
Brand / Catalog Number Allen-Bradley 5069-OB16
Product Family Compact 5000 I/O
I/O Type Digital output, sourcing (positive switching)
Number of Output Channels 16
Output Voltage Class 24 V DC nominal — confirm operating range in datasheet
Compatible Controllers CompactLogix 5380, CompactLogix 5480, and Logix 5000 via Compact 5000 EtherNet/IP adapters
Mounting DIN rail (EN 50022) in Compact 5000 I/O assembly
Software Environment Studio 5000 Logix Designer with Logix 5000 tag-based programming
Output Protection No integrated fusing — external protection required as per installation instructions
Related Variants 5069-OB16F (fused outputs), 5069-OB16K (see installation instructions grouping), 5069-IB16 (input — do not confuse)

Full technical specifications are available on the product page at LeadTime.ca.

Module Output Type Channels Key Differentiator Choose When
5069-OB16 Sourcing DC, 24 V 16 Standard unfused output module Standard discrete loads, external protection provided upstream
5069-OB16F Sourcing DC, 24 V 16 Individually fused outputs at module level Applications requiring per-channel fuse protection or higher fault isolation
5069-OB16K Sourcing DC, 24 V 16 Grouped with OB16 and OB16F in Rockwell installation instructions Verify exact differences from datasheet before selecting
Other 5069 digital output modules Varies by catalog Varies Different point counts, relay contacts, or output characteristics Channel density, contact type, or voltage class does not match OB16
Rockwell safety I/O family Safety-rated Varies SIL/PLe rated for functional safety applications Safety functions required — standard 5069-OB16 is not safety-rated

If your application requires individually fused outputs for enhanced channel-level protection, the 5069-OB16F is the correct selection — check current availability and compare options at LeadTime.ca.

Expert Verdict: Is the Allen-Bradley 5069-OB16 the Right Choice for Your System?

The Allen-Bradley 5069-OB16 earns its place as the baseline digital output module in the Compact 5000 I/O platform for one straightforward reason: it delivers the standard 16-point 24 V DC sourcing output capability that most discrete machine applications need, and it integrates into Studio 5000 with the consistency and predictability that Rockwell-standardized engineering teams rely on. The buyer profile it genuinely suits is specific — controls engineers and OEM machine designers who are already building on CompactLogix 5380 or 5480 hardware, or deploying distributed I/O over EtherNet/IP with Compact 5000 adapters, and who need a reliable, supportable, standard-output module that aligns with existing plant spares and support infrastructure. Rockwell's own documentation groups the 5069-OB16 together with the 5069-OB16F and 5069-OB16K as the 16-point sourcing output family, which tells you this module sits at the entry point of that group — capable, consistent, and well-supported within the Logix ecosystem.

Where the 5069-OB16 has real limits: it is not the right choice if your application demands individually fused channel protection, in which case the 5069-OB16F addresses that requirement directly with built-in fusing at the module level. Projects on tight hardware budgets that are not already standardized on Rockwell Logix will find the cost-per-point higher than comparable 16-point DC output modules from other platforms — and for those projects, a cross-platform evaluation is honest engineering practice. Applications requiring safety-rated I/O at SIL or PLe levels cannot use the standard 5069-OB16; Rockwell's safety I/O families exist precisely for that requirement. And engineers migrating from 1769 Compact I/O must understand that the 5069-OB16 is not a slot-for-slot swap — the backplane, controller compatibility, and accessory requirements differ meaningfully.

From a procurement standpoint, the 5069-OB16 carries a list price in the mid-to-high hundreds range typical of Compact 5000 I/O modules — accurate current pricing is displayed live on the product page. Lead times in normal supply conditions run on the order of several business days based on Rockwell's published figures, but real-world availability fluctuates with market demand, and during allocation periods the community has documented meaningful project delays when stock is not confirmed early. Buying through a specialist industrial automation distributor rather than a generic channel gives you compatibility validation, realistic stock status, and access to alternate SKUs when the exact catalog is constrained. View current pricing and stock status for the Allen-Bradley 5069-OB16 at LeadTime.ca — we ship worldwide.

For volume pricing on multiple modules or to confirm lead time before locking in a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can advise on alternates when primary stock is constrained.

What Engineers Need to Know Before Ordering the Allen-Bradley 5069-OB16

Model-specific forum discussion on the 5069-OB16 is limited — most community feedback exists at the Compact 5000 family level rather than for this exact catalog number. That makes specialist sourcing advice especially important, because the ordering mistakes that show up in community threads tend to be silent errors that surface only during panel build or commissioning. The patterns that recur most consistently are worth surfacing here.

The most frequently cited issue is confusing the 5069-OB16 with similarly numbered modules in the same family. The 5069-IB16 is an input module — the same 16-point, 24 V DC format, but it reads field signals rather than switching loads. Multiple forum threads on PLCTalk, PLCS.net, and r/PLC describe panels built with the wrong module type because the catalog number was copied without confirming the I/O direction. A related and equally common error is mixing up sourcing and sinking output types — the 5069-OB16 is a sourcing (positive switching) output, and wiring it to a field device that expects a sinking signal creates a fault that requires both rewiring and potentially a module exchange. These mistakes cost time and money at the worst possible project moment.

A second category of error involves platform compatibility. Engineers who specify a 5069-OB16 for a panel that already contains an older CompactLogix controller supporting only 1769 Compact I/O discover the incompatibility during commissioning — after procurement is complete. The Compact 5000 I/O family requires CompactLogix 5380, 5480, or a dedicated Compact 5000 EtherNet/IP adapter; it does not retrofit into older 1769-based systems. The third recurring mistake is an incomplete BOM: end caps, bus adapters, field power supplies, and wiring connectors are not included with the module and must be specified separately. Specialist distributors who know the Compact 5000 platform can flag these gaps before an order ships rather than after a panel build stalls. When community feedback is sparse and the datasheet leaves accessory questions open, this is exactly where a distributor relationship adds tangible value.

Wiring and Installation Overview for the Allen-Bradley 5069-OB16

The following points summarize the key requirements for mechanical mounting and field wiring. Full wiring diagrams, terminal assignments, and step-by-step installation procedures are contained in the Rockwell Automation 5069-OB16 installation instructions — consult that document as the authoritative reference before wiring any panel.

  • Mount the Compact 5000 assembly on EN 50022 DIN rail, following the installation manual for rail type, grounding requirements, and module orientation within the I/O bank — correct positioning of end caps and adapters is required for proper backplane communication.
  • The 5069-OB16 provides sourcing outputs, meaning the module supplies the positive 24 V DC switching signal to each load; field device wiring must be configured for this polarity, and surge suppression devices should be installed at inductive loads such as solenoid valves and relay coils.
  • Field power — 24 V DC supply and common return — must be connected to the designated field power terminals on the module; this supply is separate from backplane logic power and must be sized and protected externally, as the 5069-OB16 has no integrated fusing or circuit breakers.
  • Per-channel and per-module current limits from the datasheet must be respected; if load calculations show that the aggregate current draw across output groups approaches the rated limits, spread loads across multiple modules or verify derating at the installed ambient temperature.
  • Before energizing the system, verify all terminal connections against panel drawings, confirm correct 24 V DC polarity at field power terminals, apply appropriate labeling, and ensure end caps are installed at both ends of the I/O bank as required by the installation instructions.

Wrong-Part Prevention Checklist Before Ordering the Allen-Bradley 5069-OB16

Use this checklist verbatim during your design review and BOM finalization — every item corresponds to a real category of ordering mistake documented in the community or manufacturer guidance.

  1. Confirm your controller/adapter supports Compact 5000 I/O and that 5069 modules are the correct family (not older 1769/POINT/ET 200 alternatives).
  2. Verify you need sourcing (positive switching) outputs at 24 V DC, not sinking outputs or AC/relay outputs.
  3. Check that 16 output points are sufficient for the panel; if not, evaluate channel count and possible multiple modules.
  4. Ensure field devices' current and inrush draw are within the per-point and per-module current limits specified in the datasheet.
  5. Confirm panel supply provides the required 24 V DC field power range and that you will provide external protection as recommended.
  6. Check all required accessories are included in the BOM (end caps, bus adapters, power supplies, terminal blocks or connectors if cataloged separately).
  7. Verify environmental conditions (temperature, enclosure class, shock/vibration) match specs for the 5069-OB16.
  8. Verify part number formatting (5069-OB16) and do not confuse with 5069-IB16 (input) or 5069-OB16F (fused).

If any item on this checklist raises a question your team cannot resolve from the datasheet alone, contact LeadTime.ca before placing the order — confirming the right part number takes minutes; correcting a wrong one after panel build takes days.

Frequently Asked Questions

Is the Allen-Bradley 5069-OB16 a sourcing or sinking output module, and does my field device wiring need to change if I'm migrating from a sinking output module?

The 5069-OB16 is a sourcing (positive switching) output module — it supplies the 24 V DC positive rail to each load when the output is active. If your existing field devices are wired for a sinking output, you will need to reverse the wiring configuration at each terminal before the module will operate correctly. Confirm the output polarity required by every field device on the circuit before specifying the module.

Can I use a 5069-OB16 with my existing CompactLogix controller, or do I need a specific controller revision or adapter?

The 5069-OB16 is part of the Compact 5000 I/O family, which is supported by CompactLogix 5380 and 5480 controllers and by Compact 5000 EtherNet/IP adapters for distributed I/O. It is not compatible with older CompactLogix controllers that use 1769 Compact I/O. Verify your controller catalog number against Rockwell's compatibility documentation before ordering.

Does the 5069-OB16 include integrated fusing or overcurrent protection, or do I need to install external protection for each output?

The 5069-OB16 does not include integrated fusing or circuit breakers at the channel level. External protection — fuses, breakers, or electronic current limiters — must be provided upstream of the module's field power terminals as specified in the Rockwell installation instructions. If per-channel fuse protection within the module is a hard requirement, the 5069-OB16F is the correct variant.

What should I check first if a 5069-OB16 output channel reads true in the controller but the field device does not energize?

Begin with field power — confirm 24 V DC is present at the module's field power terminals and that the external fusing or breaker protecting that supply has not tripped. Next, verify the output terminal wiring polarity and that the load is connected correctly for a sourcing output. Check the module and channel status LEDs for any fault indication, and review the module's status and fault bits in Studio 5000 for diagnostic information before suspecting the module itself.

How many 5069-OB16 modules can I use in a single Compact 5000 I/O bank, and are there thermal or power limits I need to plan for?

The maximum number of 5069 modules per I/O bank depends on the controller or adapter specifications and the total power budget of the assembly. Thermal derating based on ambient temperature and total module current draw must be calculated using the datasheet values for each module in the bank. Consult the Compact 5000 I/O system documentation and your specific controller or adapter specifications for the supported module count and power supply sizing guidance.

Is the 5069-OB16 a direct catalog swap for a 1769-OB16 module already installed in an existing panel?

No. The 5069-OB16 and 1769-OB16 belong to different I/O families with different backplanes, physical connectors, and controller compatibility requirements. Replacing a 1769-series module with a 5069-series module requires a controller platform change, a full I/O bank reconfiguration, and a Studio 5000 project update — it is a migration project, not a slot-for-slot replacement.

Why Order the Allen-Bradley 5069-OB16 From LeadTime.ca

  • LeadTime.ca ships the Allen-Bradley 5069-OB16 and the broader Compact 5000 I/O family worldwide — no regional restrictions on sourcing or shipping.
  • Specialist industrial automation focus means the team can confirm platform compatibility, flag BOM gaps, and suggest in-stock alternates such as the 5069-OB16F when primary stock is constrained.
  • Volume pricing and blanket order discussions are available directly — contact the team before committing to a large build to confirm pricing and lead time simultaneously.
  • Hard-to-find and allocated parts are a sourcing specialty — LeadTime.ca maintains access to inventory channels beyond standard distribution that matters when Rockwell modules are on extended lead time.

At-a-Glance Summary: Allen-Bradley 5069-OB16

  • Catalog number: Allen-Bradley 5069-OB16 — Compact 5000 I/O digital output module, 16-point sourcing, 24 V DC.
  • Compatible with CompactLogix 5380 and 5480 controllers and Compact 5000 EtherNet/IP adapters — not compatible with 1769-based CompactLogix systems.
  • Output type: sourcing (positive switching) at 24 V DC nominal — field device wiring must be configured for sourcing polarity.
  • No integrated fusing — external protection is required upstream of the field power terminals per Rockwell installation instructions.
  • Grouped by Rockwell alongside 5069-OB16F (individually fused) and 5069-OB16K as the 16-point sourcing output module family in the Compact 5000 I/O range.
  • Configured in Studio 5000 Logix Designer using standard Logix 5000 tag-based programming — minimal additional engineering effort for teams already working in Logix.
  • Typical lead time cited by Rockwell as on the order of several business days in normal conditions — verify stock with LeadTime.ca before committing to project schedules.
  • Do not confuse with 5069-IB16 (input module) or 5069-OB16F (fused variant) — the catalog suffix determines function and protection level.
  • BOM must include end caps, bus adapters, field power supplies, and wiring connectors — these are not included with the module.
