Allen-Bradley 5069-OBV8S — SIL CL3 Safety Output Buyer Guide

By Abdullah Zahid
16 min read

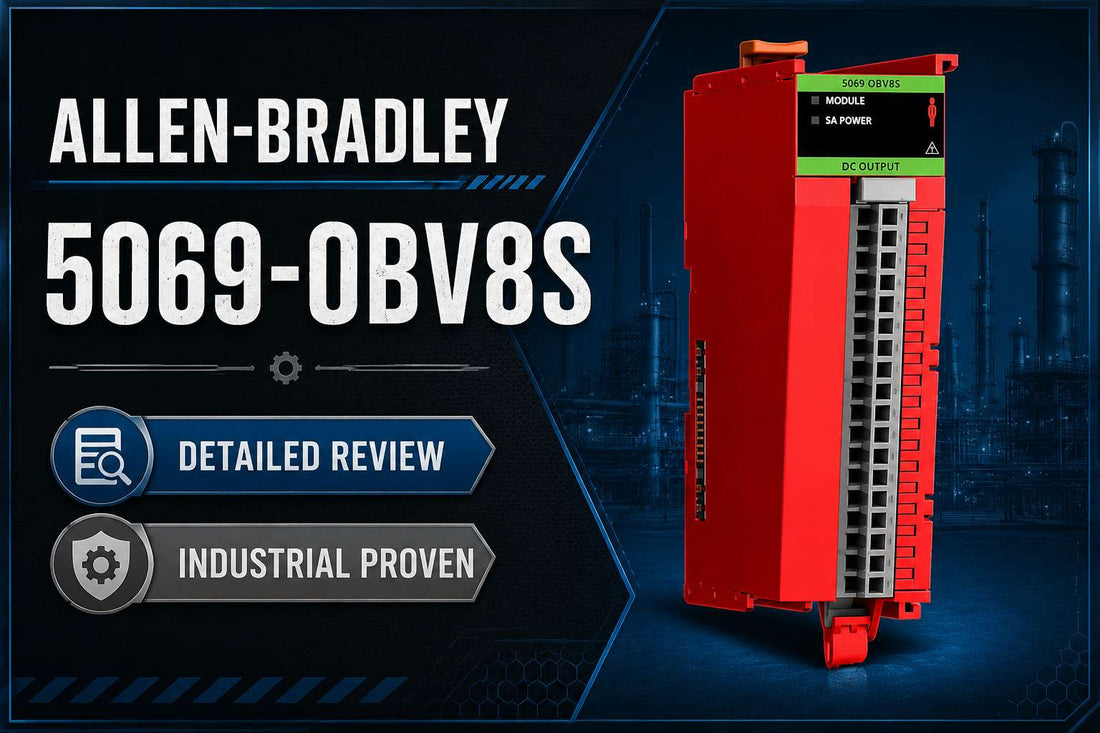

Allen-Bradley 5069-OBV8S Compact 5000 8-point safety sourcing output module for GuardLogix systems

Allen-Bradley 5069-OBV8S Compact 5000 Digital 8-point Safety Sourcing Output Module: Specs, Pricing, and Best Alternatives

Controls engineers specifying safety I/O for a Compact GuardLogix or CompactLogix 5380 system face a critical decision: selecting the correct 5069-series safety output variant without confusing it with the similarly named standard output modules. The Allen-Bradley 5069-OBV8S is a Compact 5000 Digital 8-point Safety Sourcing Output Module providing 8 channels of 24V DC safety-rated outputs, certified to SIL CL3 and PLe, Category 4, and designed to connect directly to the Compact 5000 backplane over CIP Safety. If you are at the point of confirming this is the right catalog number for your safety architecture, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 5069-OBV8S — and Who Shouldn't

The 5069-OBV8S is the correct choice for engineers and OEMs deploying Compact GuardLogix 5380 or CompactLogix 5380/5480 systems who need certified safety-rated DC outputs in a high-density form factor. Confirm all of the following before ordering:

  • Your application requires safety-rated outputs certified to SIL CL3, PLe, and Category 4 per IEC 61508, IEC 62061, or ISO 13849-1 — not a standard DC output module.
  • Your controller is a Compact GuardLogix 5380 or CompactLogix 5480 (or equivalent platform with safety task capability) and supports Compact 5000 I/O.
  • Your field devices — contactors, safety relays, VFD Safe Torque Off inputs, or safety valves — accept 24V DC sourcing/bipolar signals within the 1 A per-channel current rating.
  • Eight output channels arranged in 2 groups is sufficient for your safety function count and zoning requirements.
  • Your installation environment is within the operating temperature range (0–60 °C horizontal, up to 50 °C vertical), pollution degree 2, in an IP54 or better Zone 2-certified enclosure with copper wiring only.

If your environment involves corrosion, condensation, or chemical exposure, the conformal-coated 5069-OBV8SK is the correct variant. If your application does not require safety-rated I/O at all, the standard 5069-OBV8 serves the same output function at lower cost. If your controller is not Rockwell-based, this is a platform-level decision that no SKU selection can resolve.

On this page:

What the 5069-OBV8S Actually Does in a Safety System

The Allen-Bradley 5069-OBV8S sits on the Compact 5000 I/O backplane and gives a Compact GuardLogix safety controller direct, certified control over 24V DC field devices that must be switched off to achieve a safe state. Its role is not general-purpose output switching — it is the enforcement layer between the safety logic executing in the controller and the physical actuators that protect personnel and equipment.

Each of its 8 channels operates as a sourcing or bipolar 24V DC output rated up to 1 A, organized into 2 output groups. Communication between the module and the controller happens over CIP Safety via the Compact 5000 backplane — the same safety communication protocol that carries the safety integrity guarantees through the entire system. The module's built-in diagnostics continuously monitor for field power loss, no-load conditions, short circuits, overload, and overtemperature on each channel, reporting status back to the safety controller as discrete tag data in Studio 5000. This per-point diagnostic coverage is one of the key reasons the 5069-OBV8S achieves SIL CL3 and PLe, Category 4 certification.

From a standards perspective, the module meets IEC 61508, IEC 61511, IEC 62061, and ISO 13849-1 requirements at the highest achievable performance levels for this class of safety I/O. For machine builders, that means the 5069-OBV8S can be directly cited in a SISTEMA or functional safety assessment as the output device in a certified safety function — provided the rest of the safety architecture (controller, wiring, and field device) also meets the required parameters.

Typical System Architecture for the 5069-OBV8S

The 5069-OBV8S occupies the output layer of a Compact 5000 safety I/O bank, sitting between the safety controller and the 24V DC field devices that must be safety-controlled. Here is where it fits in a typical deployment:

  • Compact GuardLogix 5380 or CompactLogix 5480 safety controller — executes the safety task and issues safety output commands over the Compact 5000 backplane.
  • Compact 5000 I/O bank — the physical rail and backplane into which the 5069-OBV8S slots alongside input modules such as the 5069-IB8S safety input module.
  • 5069-OBV8S module (22 mm wide) — receives safety output commands via CIP Safety, drives up to 8 x 1 A sourcing outputs, monitors each channel for faults, and reports status back to the controller.
  • 24V DC field power supply — feeds the output groups on the module via the removable terminal block (RTB), with external protection (fuses or circuit breakers) required per manufacturer guidance.
  • Field devices — motor contactors, safety relays, VFD Safe Torque Off inputs, safety valves, or other 24V DC loads that perform the physical safety function when switched.

Typical Applications and Deployment Scenarios

The 5069-OBV8S appears most frequently in machine safety architectures where E-stop and guard-door safety functions must cut power or motion to specific zones. A packaging line with multiple guarded access doors, for example, uses individual safety output channels to de-energize zone contactors independently, allowing safe access to one area while the rest of the machine continues running. The per-channel diagnostics make it straightforward to identify exactly which zone has a wiring or load fault without shutting down the entire machine.

In drive and motion applications, the module is widely used to switch VFD Safe Torque Off inputs. A multi-axis system where several drives share a common safety output channel benefits from the 1 A per-channel rating, which is sufficient for most STO input current draw. Engineers integrating the 5069-OBV8S into a motion safety architecture use Studio 5000 safety tags to manage the commanded-versus-actual state comparison that detects wiring faults between the module and the drive.

OEM machine builders standardized on Compact GuardLogix 5380 choose the 5069-OBV8S as their default safety output module across multiple machine families. The 22 mm-wide footprint allows high-density I/O packing in compact control panels, and the single catalog number covers most 8-point safety output requirements. Retrofit projects replacing legacy hardwired safety relay panels with integrated GuardLogix safety I/O use the 5069-OBV8S to consolidate multiple discrete relay outputs into a single, diagnostics-rich module that is fully visible in Studio 5000.

Application Typical Deployment
E-stop and guard door safety functions Safety outputs switching motor contactors or safety relays per zone in Compact GuardLogix system
VFD Safe Torque Off control Direct 24V DC sourcing output to STO input on variable frequency drives in multi-axis cells
Safety light curtain and area scanner muting/zoning Output channels controlling zone enable signals in material handling and robotic cells
Safety valve and actuator control in process skids Compact GuardLogix controlling safety-rated pneumatic or hydraulic valve solenoids via 5069-OBV8S
Legacy safety relay panel replacement Retrofit of existing Compact 5000 I/O racks, consolidating hardwired relays into a single diagnostics-integrated module
OEM packaging and food and beverage machinery Standard 8-point safety output module across machine families on Compact GuardLogix 5380 platform

Key Specifications and Safety Ratings

Parameter Value Notes
Official product name Compact 5000 Digital 8-point Safety Sourcing Output Module Catalog number 5069-OBV8S
Number of outputs 8 safety output channels in 2 groups Sourcing / bipolar outputs
Output voltage range 17.5–32V DC (24V DC nominal) Requires external protection; use appropriate DC power supply
Output current rating Up to 1 A per channel Ensure load and wiring are within rating
Safety rating SIL CL3, PLe, Category 4 Per IEC 61508, IEC 61511, IEC 62061, ISO 13849-1
Diagnostics Field power loss, no load, short circuit, overload, overtemperature detection Per-point diagnostics plus module status bits
Module width Approx. 22 mm High-density Compact 5000 I/O footprint
Operating temperature 0–60 °C (horizontal mounting), up to 50 °C (vertical mounting) Allow for enclosure heating effects
Enclosure requirement IP54 or better, Zone 2-certified enclosure, pollution degree 2 Restricted access; copper conductors only
Isolation voltage Up to 250V Observe creepage, clearance, and installation category requirements

Full technical specifications are available on the product page at LeadTime.ca.

5069-OBV8S vs 5069-OBV8 vs 5069-OBV8SK: Which One Do You Actually Need?

The three catalog numbers in this group differ in two dimensions: safety rating and environmental protection. Getting this wrong is the most common ordering mistake in the 5069 output family.

Catalog Number Safety Rated Conformal Coated Best For
5069-OBV8 No (standard output) No Standard DC output applications where SIL/PL certification is not required; lower cost
5069-OBV8S Yes — SIL CL3, PLe, Cat. 4 No Safety-rated DC output in controlled environments with pollution degree 2 and IP54 or better enclosure
5069-OBV8SK Yes — SIL CL3, PLe, Cat. 4 Yes Safety-rated DC output in harsh, humid, or corrosive environments where conformal coating is required

If your safety function is confirmed but your environment involves condensation, chemical exposure, or elevated humidity that a standard IP54 enclosure does not fully address, the 5069-OBV8SK is the correct choice — not the 5069-OBV8S. If safety certification is not a project requirement, the 5069-OBV8 provides the same output point count and current rating at a reduced cost. For applications requiring safety inputs to complete the safety function, the 5069-IB8S safety input module is the natural companion in a Compact 5000 I/O bank. Check current availability and pricing for all variants at LeadTime.ca — we ship worldwide.

Expert Verdict: Is the 5069-OBV8S the Right Safety Output Module for Your Project?

The 5069-OBV8S earns its place as the default safety output module for engineers and OEMs committed to the Compact GuardLogix 5380 or CompactLogix 5480 platform. It delivers the highest achievable safety performance for this class of I/O — SIL CL3, PLe, Category 4 — in an approximately 22 mm-wide module that fits tightly into Compact 5000 racks. The eight 24V DC sourcing outputs at 1 A per channel cover the vast majority of machine safety output scenarios, from contactor coils to VFD STO inputs, and the per-point diagnostics for field power loss, short circuit, overload, and overtemperature translate directly into faster fault isolation and less unplanned downtime. For OEM machine builders and system integrators standardized on Rockwell, these characteristics make the 5069-OBV8S a straightforward specification decision rather than a complex evaluation.

The limits are predictable and honest. The 5069-OBV8S carries a cost premium over the non-safety 5069-OBV8 — a real consideration for price-sensitive OEM programs where the safety rating is not mandated. It is not the right choice for installations in harsh or corrosive environments; the conformal-coated 5069-OBV8SK exists specifically for those conditions. And if your controller is not a Compact GuardLogix 5380 or CompactLogix 5480 with safety capability, this module simply will not function as a safety output — that is a platform-level constraint no distributor or workaround can resolve. Engineers on non-Rockwell platforms need to evaluate safety I/O within their own ecosystem rather than treating the 5069-OBV8S as a cross-platform option.

From a procurement standpoint, the 5069-OBV8S is an actively stocked product at major North American distribution hubs, with manufacturer lead-time estimates typically around 30 days for OEM orders and short or in-stock lead times available through distributors. Pricing sits in the low four-figure USD range — verify current figures before committing to a build because market conditions affect availability. Ordering through a specialist distributor matters more than it might appear: the SKU differences between 5069-OBV8, 5069-OBV8S, and 5069-OBV8SK are easy to miss under time pressure, and a specialist can confirm compatibility with your specific Compact 5000 I/O architecture before the PO is issued rather than after. View current pricing and confirm availability at LeadTime.ca — ships worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 5069-OBV8S

Model-specific community discussion on the 5069-OBV8S is relatively limited across forums like PLCTalk, MrPLC, PLCS.net, and the Rockwell Automation support knowledgebase. Most feedback exists at the Compact 5000 safety I/O family level rather than being tied to this specific catalog number. Where engineers do share experience, three consistent themes emerge: the per-channel diagnostics are genuinely useful and meaningfully better than older safety I/O approaches; the Studio 5000 tag-based status and fault reporting makes it straightforward to build custom alarm logic; and the 22 mm footprint is appreciated when panel space is tight. These are not marketing points — they show up consistently in application-level discussions from controls engineers who have commissioned real machines with this hardware.

The recurring friction points are equally consistent. The cost differential between the safety and non-safety variants is a real objection on OEM programs where every line item is scrutinized. Understanding the safety fault and uncertain-state bits — particularly what triggers an overtemperature or high-temperature uncertain status and how it differs from a hard fault — generates the most troubleshooting questions. Engineers who have not implemented a proper safety reset sequence in their Studio 5000 safety task describe faults that appear latched indefinitely, leading some maintenance technicians to replace modules that are actually in good working condition. The fault is in the logic, not the hardware. A correctly implemented reset procedure, following manufacturer documentation, clears these conditions reliably.

The most consequential ordering mistake reported across community sources — and the one that creates the most project disruption — is receiving a 5069-OBV8 (standard, non-safety) when a 5069-OBV8S (safety) was required, or vice versa. The catalog numbers differ by a single letter suffix, and under time pressure that distinction is easy to miss. A second common mistake is specifying the 5069-OBV8S for an installation that subsequently turns out to require conformal coating, requiring a reorder of the 5069-OBV8SK. Both mistakes are avoidable by working through the Wrong-Part Prevention Checklist below before issuing the purchase order — and by using a specialist distributor who can flag these distinctions before the order ships rather than after.

Wiring and Installation Overview

The following points summarize the key installation requirements for the 5069-OBV8S. For full wiring diagrams, terminal assignments, torque values, and commissioning procedures, refer to the manufacturer's installation instructions from rockwellautomation.com.

  • Mount on a properly grounded DIN rail inside an IP54 or better, Zone 2-certified enclosure; ensure the enclosure thermal design keeps the module within its operating temperature range (0–60 °C horizontal, up to 50 °C vertical).
  • Insert the 5069-OBV8S into its designated Compact 5000 I/O bank slot and secure the removable terminal block (RTB); copper conductors only, following specified wire sizes and torque limits.
  • Connect 24V DC field power (17.5–32V DC) to each output group via the RTB; external protection devices (fuses or circuit breakers) are required per manufacturer guidance — the module does not provide internal fusing.
  • Wire each safety output channel to its load (contactor coil, safety relay coil, VFD STO input, or similar 24V DC device) observing correct polarity for sourcing outputs and segregating safety wiring from non-safety wiring in the enclosure.
  • After physical installation, add the 5069-OBV8S to the Studio 5000 I/O tree using the correct catalog number and revision, configure safety parameters within the safety task, download the project, and verify module and channel status LEDs before enabling safety functions.

Wrong-Part Prevention Checklist Before You Issue the PO

Before placing an order for the 5069-OBV8S, work through every item on this checklist. Each point represents a documented source of ordering errors and project delays:

  1. Confirm you require a safety-rated DC output module, not a standard DC output (5069-OBV8 is non-safety; 5069-OBV8S is safety).
  2. Verify your controller supports safety (Compact GuardLogix 5380/5480 or equivalent) and Compact 5000 I/O.
  3. Check your field devices are suited to 24V DC sourcing outputs and the 1 A per-channel rating (contactors, STO inputs, etc.).
  4. Confirm required safety performance level (SIL/PL/category) matches the module's SIL CL3, PLe, Cat. 4 capability.
  5. Check environmental requirements: ambient temperature, altitude, Zone 2/IP54 enclosure, pollution degree 2, copper wiring only.
  6. Decide if you need the conformal-coated version (5069-OBV8SK) for corrosion/humidity, instead of the standard 5069-OBV8S.

If any item on this list is unresolved, contact the LeadTime.ca team before ordering — confirming compatibility now is faster than processing a return or reorder under project deadline pressure.

Frequently Asked Questions

What safety standards does the 5069-OBV8S meet, and is SIL CL3 the same as SIL 3?

The 5069-OBV8S is certified to Safety Integrity Level SIL CL3, Performance Level PLe, and Category 4 per IEC 61508, IEC 61511, IEC 62061, and ISO 13849-1. SIL CL3 (Claim Limit 3) is the Rockwell notation for the highest SIL claim the module supports — it corresponds to SIL 3 in IEC terminology. This rating applies to the module itself; the overall safety function rating depends on the complete subsystem including controller, wiring, and field device.

Can I use the 5069-OBV8S with a standard CompactLogix controller that does not have a safety task?

No. The 5069-OBV8S is a safety module that communicates over CIP Safety and requires a safety-capable controller — specifically Compact GuardLogix 5380, CompactLogix 5480, or equivalent — with a configured safety task in Studio 5000. A standard CompactLogix controller without safety capability cannot establish the CIP Safety connection required to operate this module as a safety output. If your controller does not support safety, the 5069-OBV8 (non-safety variant) is the correct choice for standard output functions.

How do I reset a safety fault on the 5069-OBV8S after correcting the wiring or load issue?

First identify the faulted channel using Studio 5000 diagnostics tags and the module's front-panel LEDs, which indicate conditions such as field power loss, short circuit, overload, or overtemperature. After correcting the root cause — restoring field power, clearing a short, or reducing load — command the affected output to a safe (off) state in the safety program, then execute the manufacturer-recommended reset sequence in the safety logic. Faults that appear latched indefinitely are almost always the result of an incomplete or missing reset implementation in the safety task, not a hardware failure. Refer to the manufacturer's installation instructions for the exact reset procedure and always re-test the safety function before returning the machine to service.

What is the practical difference between the 5069-OBV8S and the 5069-OBV8SK, and when should I specify the coated version?

Both modules share the same safety rating (SIL CL3, PLe, Category 4), the same 8-channel 24V DC sourcing output configuration, and the same current rating of up to 1 A per channel. The 5069-OBV8SK adds conformal coating to the PCB assembly, providing protection against moisture, condensation, and airborne corrosive contaminants. Specify the 5069-OBV8SK when the installation environment includes elevated humidity, chemical vapors, or conditions where condensation is possible inside the enclosure — even if the enclosure is rated IP54. In clean, climate-controlled panels where pollution degree 2 conditions are reliably maintained, the standard 5069-OBV8S is sufficient.

How should I wire a VFD Safe Torque Off input to the 5069-OBV8S to maintain the safety integrity of the function?

Connect the 24V DC sourcing output from the assigned channel to the STO enable input of the drive, with the 0V return connected at the appropriate terminal — observe the drive manufacturer's wiring requirements for STO input polarity and current draw, confirming it is within the 1 A per-channel rating. Safety wiring to the STO input must be segregated from non-safety conductors in the panel and routed to minimize common-cause failure risk. The safety function integrity is only maintained if the entire subsystem — controller, 5069-OBV8S module, wiring, and drive STO circuit — is validated as a whole during functional safety assessment. Review both the 5069-OBV8S installation instructions and the drive's STO documentation before finalizing the wiring design.

What does an "uncertain" module or channel status mean on the 5069-OBV8S, and does it shut down the output?

An uncertain status is a diagnostic indicator — separate from a hard fault — that signals the module or a specific channel cannot confirm the output state with the confidence required for the safety function. A high-temperature uncertain condition, for example, indicates the module is approaching or has exceeded its thermal operating limit. In a safety context, an uncertain state will cause the safety controller to treat the output as unreliable and transition affected channels to a safe (off) state. Investigate and resolve the underlying condition — verify enclosure ventilation, check ambient temperature against the 0–60 °C (horizontal) or up to 50 °C (vertical) limits, and review diagnostic tags in Studio 5000 — before attempting to reset and re-enable the output.

Why Order the 5069-OBV8S Through LeadTime.ca

  • Ships worldwide — LeadTime.ca sources and ships Allen-Bradley Compact 5000 I/O globally, not just within North America.
  • SKU expertise — specialist knowledge of the 5069-OBV8S versus 5069-OBV8 versus 5069-OBV8SK distinction means you get the correct catalog number confirmed before the order ships.
  • Transparent lead times — real stock visibility and honest lead time communication before you commit to a build schedule.
  • Volume and project pricing — contact for quantity pricing on multi-module safety I/O builds or blanket order arrangements.
  • Hard-to-source parts — when standard channels show extended lead times, LeadTime.ca actively sources across distribution networks to find available stock.

At-a-Glance Summary

  • Catalog number: 5069-OBV8S — Compact 5000 Digital 8-point Safety Sourcing Output Module.
  • 8 safety output channels in 2 groups; sourcing/bipolar 24V DC outputs, up to 1 A per channel.
  • Output voltage range: 17.5–32V DC (24V DC nominal); external protection required.
  • Safety certifications: SIL CL3, PLe, Category 4 per IEC 61508, IEC 61511, IEC 62061, ISO 13849-1.
  • Built-in per-point diagnostics: field power loss, no load, short circuit, overload, and overtemperature detection.
  • Module width: approximately 22 mm — high-density Compact 5000 I/O footprint.
  • Operating temperature: 0–60 °C horizontal mounting, up to 50 °C vertical mounting.
  • Requires IP54 or better Zone 2-certified enclosure, pollution degree 2, copper wiring only.
  • Controller requirement: Compact GuardLogix 5380, CompactLogix 5480, or equivalent safety-capable controller with Compact 5000 I/O support and Studio 5000 safety task.
  • Conformal-coated variant: 5069-OBV8SK; standard (non-safety) variant: 5069-OBV8.
  • Typical manufacturer lead time: approximately 30 days for OEM orders; distributor stock often available with shorter lead times — verify current availability before committing.
