Allen-Bradley 1756-L81E ControlLogix 5580 — Specs, Price & Buying Guide

By Abdullah Zahid
15 min read

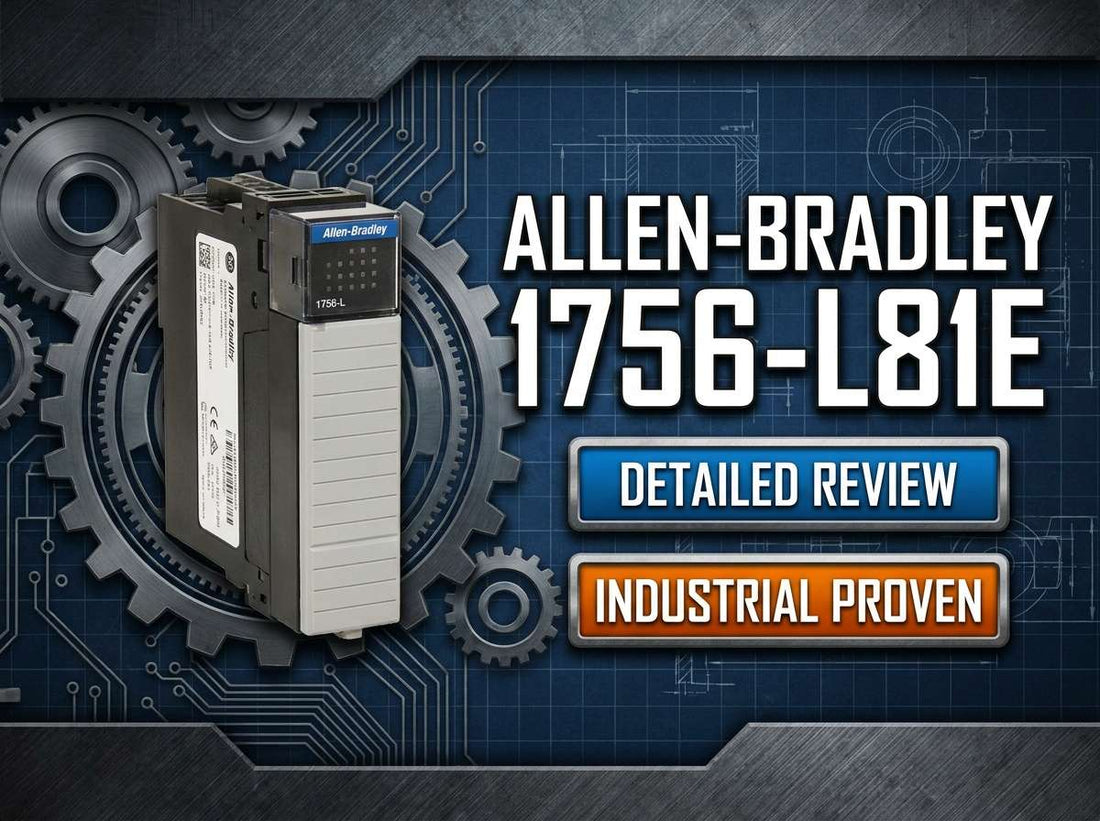

Allen-Bradley 1756-L81E ControlLogix 5580 controller module with embedded 1 Gb EtherNet/IP port for industrial automation applications

Allen-Bradley 1756-L81E ControlLogix 5580 Controller, 3 MB User Memory, USB Port, 1 Gb Embedded EtherNet/IP Port — Specs, Price, Review and Selection Guide

Controls engineers evaluating a new ControlLogix CPU for a mid-to-large automation project are often weighing the same question: does the 1756-L81E give enough memory and network performance for my system without over-specifying into the higher-cost 5580 models? The Allen-Bradley 1756-L81E is a standard ControlLogix 5580 controller with 3 MB of user memory and an embedded 1 Gb EtherNet/IP port, making it one of the most widely specified CPUs in the Rockwell PAC lineup for plants already committed to the Logix architecture. It fits into the standard 1756 chassis, runs under Studio 5000 Logix Designer, and handles discrete, hybrid, and process applications where modern network performance matters.

If you have already confirmed this is the right part for your system, check current pricing and availability for the 1756-L81E at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 1756-L81E — and Who Shouldn't

The 1756-L81E is the right controller for controls teams running mid-to-large discrete or hybrid systems that are already invested in the Rockwell ecosystem and need a modern, high-performance ControlLogix CPU without stepping to the largest 5580 models. It is a strong fit when all of the following are true:

  • Your application fits within 3 MB of user memory and you have confirmed this against program size estimates and future expansion plans.
  • Your architecture relies on embedded 1 Gb EtherNet/IP for connecting I/O, drives, HMIs, and SCADA without requiring additional communication modules.
  • You are specifying or already own a compatible 1756 ControlLogix chassis and power supply — the controller cannot operate without them.
  • Your plant's Studio 5000 Logix Designer version and firmware revision standards are aligned with the 1756-L81E's supported firmware range.
  • This is a standard (non-safety) application; SIL-rated or certified safety functions are not required from the main CPU.

If your program size clearly exceeds 3 MB, consider the 1756-L82E or 1756-L83E. If integrated safety is required at the controller level, the correct part is the GuardLogix 1756-L81ES — not this model. For smaller, cost-sensitive machines, a CompactLogix controller may be a more economical fit.

On this page:

What the Allen-Bradley 1756-L81E Actually Does in a ControlLogix System

The 1756-L81E functions as the central processor of a ControlLogix chassis, executing the control program, managing task scheduling, and coordinating communication with every device in the system. It belongs to the ControlLogix 5580 product family, which Rockwell positions as a performance step above the earlier 5570 generation, offering higher processing capability and the embedded 1 Gb EtherNet/IP port as a standard feature rather than an add-on module.

The 3 MB of user memory is the figure that defines this controller's position in the 5580 lineup. It supports up to 32 tasks per controller and the manufacturer's defined number of programs per task, which is sufficient for many real-world discrete and hybrid applications. Where the 1756-L81E distinguishes itself from lower-cost alternatives is in its execution performance — Rockwell literature states that the ControlLogix 5580 series offers significantly higher performance and capacity compared to earlier controller generations, providing headroom for larger tag counts, more complex motion programs, and denser I/O trees.

The embedded 1 Gb EtherNet/IP port handles I/O scanning, drive communication, HMI traffic, and SCADA integration simultaneously. The USB 2.0 port serves programming and maintenance tasks from a laptop at the panel — it is not intended for control networking. This combination means most standard architectures do not require a separate communication module in the chassis for Ethernet-based networks, which simplifies slot planning and reduces hardware cost.

Where the 1756-L81E Sits in a Typical System Architecture

The 1756-L81E occupies the CPU slot in a 1756 ControlLogix chassis, connecting to all other modules over the chassis backplane and to the plant network through its embedded Ethernet port. A typical deployment looks like this:

  • Plant-level EtherNet/IP network or managed industrial switch connects to the 1756-L81E's embedded 1 Gb port.
  • Distributed 1756 or POINT I/O modules, variable frequency drives, and servo drives communicate as EtherNet/IP adapter nodes to the controller over that same network.
  • HMIs, SCADA servers, and historian clients access the controller's tag database over EtherNet/IP from the same or a segmented network.
  • Local 1756 I/O modules in the same chassis communicate over the ControlLogix backplane at full backplane speed without consuming Ethernet bandwidth.
  • A programming workstation running Studio 5000 Logix Designer connects via USB for commissioning and field maintenance, or remotely via Ethernet during production.

Typical Applications and Where the 1756-L81E Gets Deployed

In automotive and tier supplier environments, the 1756-L81E is commonly specified for high-speed assembly and transfer lines where a single controller manages large numbers of drives, vision systems, and distributed I/O nodes over EtherNet/IP. The 3 MB memory and embedded Ethernet make it practical to consolidate what older architectures needed multiple controllers or communication modules to handle.

Food and beverage and packaging operations rely on this controller for high-throughput filling, labeling, and palletizing lines where coordinated motion and fast scan times are critical. The Logix platform's support for integrated motion over EtherNet/IP suits multi-axis servo applications found throughout these industries.

In mining, metals, and material handling, the 1756-L81E is used as the main CPU on conveyor systems, crusher controls, and plant-wide material flow management systems, often as part of a multi-chassis architecture communicating across a plant network.

Life sciences and pharmaceutical applications use the controller where a validated Rockwell platform is already site-standard and where the embedded Ethernet reduces the number of hardware components requiring IQ/OQ documentation.

Migration projects from legacy PLC-5 and SLC platforms represent a significant portion of 1756-L81E deployments. The common Logix programming environment reduces retraining time, and Rockwell's migration tooling means that converting legacy programs to a 1756-L81E project is more predictable than cross-platform migrations.

Application Typical Deployment
Automotive assembly line Single CPU coordinating drives, robots, and distributed I/O over EtherNet/IP in a 1756 chassis
Packaging and palletizing Multi-axis servo motion and high-speed discrete control in a high-throughput line
Process skid control Mid-size batching or utility skid with analog I/O and SCADA integration
Mining conveyor system Main CPU in a multi-chassis plant network managing conveyors and material flow
PLC-5 / SLC migration Drop-in chassis upgrade using existing 1756 I/O infrastructure with updated CPU and Studio 5000 project
Oil and gas skid builder Rockwell-standard PAC for wellhead or separation skid requiring EtherNet/IP drives and process I/O

1756-L81E Key Specifications and ControlLogix 5580 Variant Comparison

Specification Value Notes
Brand Allen-Bradley (Rockwell Automation) Official manufacturer designation
Catalog number 1756-L81E Standard ControlLogix 5580, non-safety
Product family ControlLogix 5580 Part of the 1756 ControlLogix platform
User memory 3 MB As specified in Rockwell official documentation
Tasks supported 32 tasks Confirm programs per task from current datasheet
Embedded communications 1 Gb EtherNet/IP port, USB 2.0 port USB for programming/maintenance only; Ethernet for control networking
Compatible chassis 1756 ControlLogix chassis Chassis and power supply ordered separately
Operating temperature 0…60 °C Verify exact range from current Rockwell datasheet for your site conditions
Nonvolatile memory External SD card (1784-SD series), optional SD card ordered separately; not included
Certifications UL, CE, and other listed industrial control approvals Confirm full certification list from Rockwell product documentation

Full technical specifications are available on the product page at LeadTime.ca.

Model User Memory Safety Best Fit
1756-L81E 3 MB Standard (no safety) Mid-to-large discrete and hybrid, general-purpose ControlLogix
1756-L81ES 3 MB GuardLogix (integrated safety) Applications requiring SIL-rated safety functions from the main CPU
1756-L82E 4 MB Standard (no safety) Larger programs or future expansion beyond 3 MB
1756-L83E 8 MB Standard (no safety) High-complexity applications with large tag databases or motion programs
1756-L84E 16 MB Standard (no safety) Very large systems with extensive I/O, motion, and data logging
1756-L85E 32 MB Standard (no safety) Maximum-scale ControlLogix 5580 applications

If your program size estimates or expansion plans push close to or beyond 3 MB, moving to the 1756-L82E or 1756-L83E now is more cost-effective than a mid-project controller swap — check current availability and pricing at LeadTime.ca and confirm the right model before you commit.

Expert Verdict: Is the Allen-Bradley 1756-L81E the Right Controller for Your Project?

The 1756-L81E occupies a genuinely useful position in the ControlLogix 5580 lineup. With 3 MB of user memory, 32 tasks, embedded 1 Gb EtherNet/IP, and the full performance advantage of the 5580 generation over earlier 5570 hardware, it covers the majority of mid-to-large discrete, hybrid, and process applications that controls teams encounter in automotive, food and beverage, mining, and life sciences environments. For plants already standardized on Rockwell and running Studio 5000, this controller integrates into an existing architecture with minimal friction — the Logix programming environment is consistent across the 5580 range, and the embedded Ethernet port reduces the hardware count in most standard designs. It is a credible choice when the sizing is done correctly upfront.

The real risk with the 1756-L81E is not the hardware itself — it is specification error. The three failure modes that show up consistently in project post-mortems are: ordering the standard L81E when a SIL-rated safety function required the GuardLogix 1756-L81ES; underestimating memory needs and discovering partway through commissioning that 3 MB is insufficient and the L82E or L83E was the right call from the start; and missing the firmware and Studio 5000 version alignment that a plant-wide rollout requires. None of these are subtle problems — they are all preventable with a thorough pre-order review. For cost-sensitive smaller machines where a CompactLogix controller would meet the requirements, the 1756-L81E may also represent over-specification, and that is worth an honest conversation before the purchase order is placed.

From a procurement standpoint, the 1756-L81E is an authorized-channel product with pricing in the higher range of industrial controllers — treat any figure you see online as a market-typical reference and confirm current pricing directly. Lead times vary by region, stock levels, and Rockwell allocation; authorized distributors who specialize in industrial automation can advise on real availability, help you identify compatible chassis, power supply, and SD card requirements, and flag firmware or variant issues before they become delivery problems. View current pricing and availability for the 1756-L81E at LeadTime.ca — we ship worldwide and can support both single-unit and volume requirements.

For volume pricing, urgent lead time confirmation, or to review your full ControlLogix BOM before ordering, contact the LeadTime.ca team directly — we serve controls engineers and procurement specialists globally.

What Engineers Report About the 1756-L81E in the Field

Across forum discussions on PLCTalk, PLCS.net, MrPLC, Reddit's r/PLC and r/automation communities, and Rockwell's own user forums, the overall picture of the 1756-L81E is consistently positive among engineers who have deployed it in production environments. The performance gap between the 5580 generation and the older 5570 and legacy platforms comes up frequently — users describe noticeably faster scan times and better responsiveness after upgrades, which matters in high-throughput packaging and automotive lines where cycle time margins are tight. The embedded 1 Gb EtherNet/IP port draws specific praise for simplifying system architecture; engineers report being able to eliminate dedicated communication modules from their chassis designs, which reduces both hardware cost and chassis slot consumption. The familiarity of the Logix programming environment is also a recurring theme — teams moving a project from an earlier ControlLogix CPU to the 1756-L81E describe the transition as straightforward compared to cross-platform migrations from non-Rockwell hardware.

The most consistent criticism across community discussions is cost. Engineers working in cost-sensitive OEM and machine-builder environments regularly flag that the 1756-L81E's price point is difficult to justify for smaller machines where a CompactLogix or a competing PAC platform would meet the functional requirements. A second recurring frustration is firmware and Studio 5000 version management in mixed fleets — plants running multiple generations of ControlLogix hardware report that keeping firmware revisions aligned across controllers and engineering workstations requires disciplined change management, and the consequences of a mismatch during a maintenance event or unplanned swap are not trivial. Configuration-related faults — over-subscribed EtherNet/IP networks, misconfigured module keying, and incorrect slot assignments — also appear in troubleshooting threads as common commissioning problems that are preventable with thorough pre-commissioning review.

Ordering mistakes reported in community threads follow a predictable pattern. The most serious is ordering the standard 1756-L81E when the application required a GuardLogix safety CPU — specifically the 1756-L81ES — for SIL-rated safety functions, resulting in a return and delay. The second most common mistake is selecting the L81E and later finding that the application size or planned expansion required the larger memory of the L82E or L83E; this forces a mid-project controller swap that is avoidable with conservative memory sizing upfront. The third repeated mistake is assuming that the chassis, power supply, and SD card come bundled with the controller — they do not, and incomplete BOMs create delays that could have been caught before the order was placed.

Installation and Commissioning Overview for the 1756-L81E

The following is a high-level overview of installation and commissioning steps for the 1756-L81E. Engineers requiring full procedures should refer to Rockwell Automation's official installation instructions and controller user manual for the 1756-L81E.

  • De-energize the ControlLogix chassis, insert the 1756-L81E into the designated slot following alignment guides, seat and latch firmly, then re-energize and confirm normal power-up behavior on the controller's status indicators (OK, RUN, etc.).
  • Connect the embedded 1 Gb EtherNet/IP port to a managed industrial switch using appropriate cabling; assign an IP address using BootP/DHCP or Rockwell configuration tools, confirming no duplicates exist on the plant network.
  • Connect a programming workstation via USB or Ethernet, launch Studio 5000 Logix Designer, and verify or update the controller firmware to the site-standard revision supported by your Studio 5000 version before creating or downloading any project.
  • If nonvolatile storage is required, insert a compatible 1784-SD series SD card and configure load/save options in Studio 5000; perform a manual save to the SD card and confirm successful completion before documenting the card details in maintenance records.
  • Verify slot assignments, chassis configuration, and module keying in the project before placing the controller in Run or Remote Run mode; mismatched keying or incorrect slot assignments are a common source of commissioning faults.

Compatible Accessories and System Expansion

The 1756-L81E does not include all required system components — the following accessories and infrastructure elements are ordered separately and are commonly required or recommended for a complete deployment:

  • 1756 ControlLogix chassis — required; select the appropriate slot count for your I/O and module requirements.
  • 1756 ControlLogix power supply — required; size correctly against the backplane power draw of all installed modules.
  • 1784-SD series SD memory card — recommended for nonvolatile storage of project, firmware, and logs; select capacity per Rockwell catalog guidance.
  • 1756 digital, analog, and specialty I/O modules — compatible with standard 1756 modules; confirm specific module compatibility against current Rockwell documentation.
  • Industrial managed Ethernet switch — required for EtherNet/IP network infrastructure; not included with the controller.

Wrong-Part Prevention Checklist Before You Order the 1756-L81E

Before placing your order, work through this checklist verbatim. Each item corresponds to a real ordering mistake that has caused returns, delays, or mid-project redesigns on actual ControlLogix deployments.

  1. Confirm standard controller vs safety: 1756-L81E is standard; do not substitute for a GuardLogix safety CPU.
  2. Verify 3 MB user memory and controller capacity are sufficient for program size, motion axes, and future expansion.
  3. Check that a compatible 1756 chassis and power supply are already specified or included; controller cannot operate without them.
  4. Align firmware revision and required Studio 5000 Logix Designer version with plant standards and other controllers.
  5. Confirm EtherNet/IP architecture: number of devices, network topology, and bandwidth within the controller's supported limits.
  6. Determine if nonvolatile storage is required and order the correct SD memory card separately (1784-SD series).
  7. Verify environmental ratings (temperature range, shock/vibration, conformal coating if needed) against site conditions.
  8. Make sure part number suffixes (e.g., conformal coating or non-store options) match project specs, not just "1756-L81E" generically.

If any item on this checklist raises a question your team cannot immediately answer, contact LeadTime.ca before ordering — our team can review your application against these criteria and confirm the correct part number, accessories, and firmware strategy.

Frequently Asked Questions About the Allen-Bradley 1756-L81E

What Studio 5000 Logix Designer version and firmware revision do I need for the 1756-L81E?

The required Studio 5000 version depends on the firmware revision loaded on the controller. Rockwell publishes a compatibility matrix that maps controller firmware revisions to Studio 5000 versions — you must confirm that your site-standard Studio 5000 version supports the firmware revision on the 1756-L81E you are installing. Running mismatched versions across a plant with multiple Logix controllers is one of the most frequently reported sources of programming and commissioning complications, so aligning firmware and software versions plant-wide before deployment is strongly recommended.

What is the practical difference between the 1756-L81E and the 1756-L81ES?

The 1756-L81E is a standard ControlLogix 5580 controller with no integrated safety functionality. The 1756-L81ES is the GuardLogix version — it provides the same 3 MB of user memory but adds certified integrated safety controller capability for SIL-rated applications. These are not interchangeable: if your application requires safety functions to be executed by the main CPU, the 1756-L81ES is the required part. Ordering the standard L81E for a safety application will require a return and reorder.

Can I reuse my existing 1756 chassis, power supply, and I/O modules when upgrading to a 1756-L81E?

In most cases, yes — the 1756-L81E fits into standard 1756 ControlLogix chassis and is compatible with 1756 digital, analog, and specialty I/O modules. However, you must verify that the existing chassis and power supply are compatible with the 5580 controller and that the power supply can handle the backplane current draw of all installed modules. Module electronic keying and firmware revision alignment also need to be confirmed in your Studio 5000 project before going online.

How many EtherNet/IP devices can the 1756-L81E support, and how should I design the network?

The 1756-L81E has a manufacturer-defined maximum number of supported EtherNet/IP devices that must be respected during network design. Exceeding this limit or overloading the embedded Ethernet port with excessive traffic is a documented cause of network-related faults. For larger architectures, a segmented or hierarchical network design using managed industrial switches is recommended. Confirm the exact device limit from the current Rockwell datasheet before finalizing your network topology.

Does the 1756-L81E include an SD card, or do I need to order one separately?

The SD card is not included with the 1756-L81E and must be ordered separately. Rockwell's 1784-SD series cards are the compatible option for nonvolatile storage of the controller project, firmware, and logs. If your application requires automatic project load on power-up or a field-replacement backup strategy, confirm the correct SD card part number and capacity from the Rockwell catalog before finalizing your BOM.

What are realistic lead times for the 1756-L81E, and are remanufactured units a viable option?

Lead times vary depending on distributor stock levels, Rockwell's production allocation, and regional demand patterns — they can range from same-week availability through an authorized distributor with stock on hand to several weeks for factory-order situations. Remanufactured units from third-party sources are available and are used in some retrofit and budget-constrained projects, but warranty terms, firmware revision, and unit history differ from new authorized-channel hardware. For time-critical projects, confirming real-time stock and lead time with a specialist distributor before committing to a build schedule is the most reliable approach.

Why Order the Allen-Bradley 1756-L81E From LeadTime.ca

  • LeadTime.ca ships worldwide — not limited to any single country or region.
  • Specialist automation distributor with the ability to review your full ControlLogix BOM, flag missing accessories like chassis, power supplies, and SD cards, and confirm firmware alignment before your order ships.
  • Access to real-time stock and factory lead time visibility for the 1756-L81E and related 5580 family controllers.
  • Volume pricing available for multi-unit orders, plant-wide standardization projects, and OEM builds.
  • Fast response for urgent retrofit and expansion projects where lead time risk is a primary concern.

At-a-Glance Summary: Allen-Bradley 1756-L81E

  • Product family: ControlLogix 5580, standard (non-safety) controller, catalog number 1756-L81E.
  • User memory: 3 MB — sufficient for mid-to-large discrete and hybrid applications; verify against program size estimates before ordering.
  • Tasks: 32 tasks per controller as specified by Rockwell.
  • Communications: Embedded 1 Gb EtherNet/IP port for control networking plus USB 2.0 port for programming and maintenance.
  • Compatible chassis: Standard 1756 ControlLogix chassis — chassis and power supply must be ordered separately.
  • Operating temperature: 0…60 °C — verify exact rating and environmental requirements from current Rockwell datasheet.
  • Nonvolatile memory: Requires 1784-SD series SD card, ordered separately.
  • Safety: Standard controller only — GuardLogix safety applications require 1756-L81ES.
  • Typical industries: Automotive, food and beverage, mining, oil and gas, life sciences, material handling.
  • Key upgrade path: 1756-L82E (4 MB), 1756-L83E (8 MB), 1756-L84E (16 MB), 1756-L85E (32 MB) for larger memory requirements.
  • Pricing: Available on the product page — contact LeadTime.ca for current pricing and volume quotes.
