Allen-Bradley 1756-L83E — ControlLogix 5580 Buyer's Guide

By Abdullah Zahid
15 min read

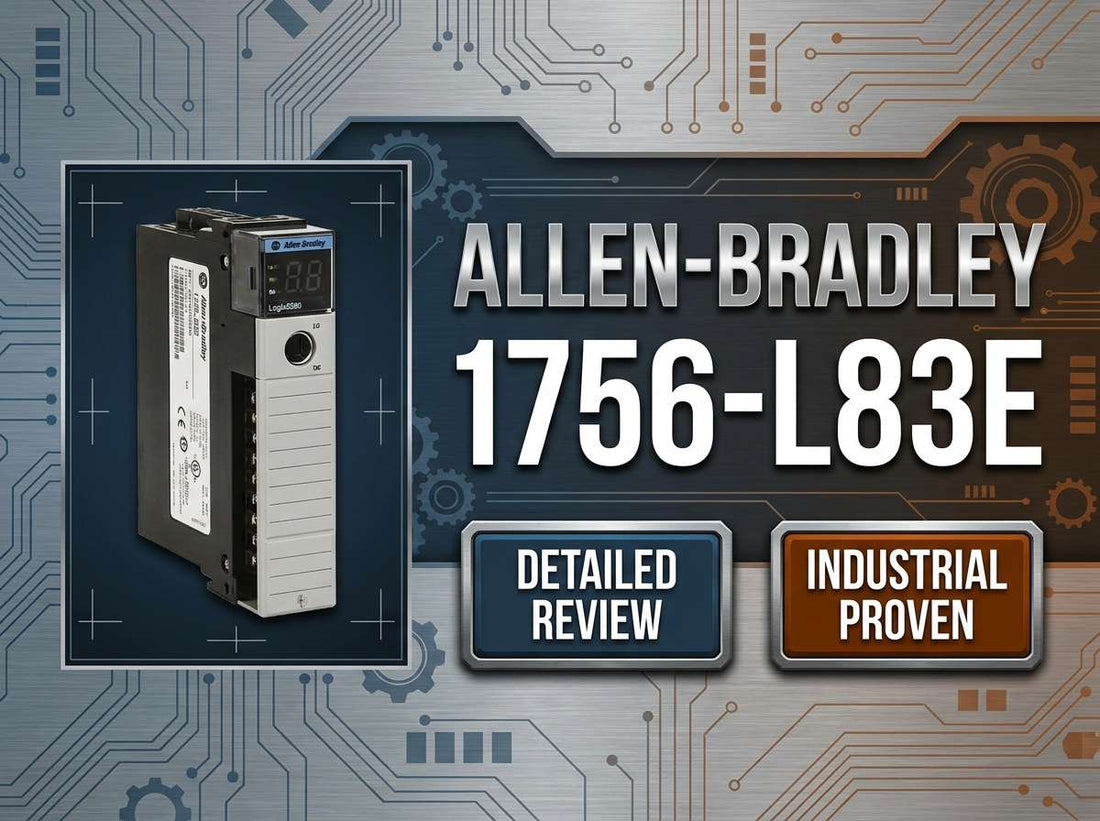

Allen-Bradley 1756-L83E ControlLogix 5580 controller module with 10 MB user memory and gigabit EtherNet/IP port for industrial automation systems

Allen-Bradley 1756-L83E ControlLogix 5580 Controller, 10 MB User Memory, USB and Gigabit EtherNet/IP Port — Specs, Review & Selection Guide

Controls engineers specifying a mid-to-upper-tier processor for a demanding ControlLogix system consistently land on the Allen-Bradley 1756-L83E as the catalog number to evaluate before issuing a purchase order. This ControlLogix 5580 controller delivers 10 MB of user memory, a front-facing 1 Gb EtherNet/IP port, and the processing capacity needed for complex multi-task programs — all within the familiar 1756 chassis ecosystem that Rockwell-standardized plants already depend on. The critical decision is whether 10 MB and 250 EtherNet/IP devices match your current project scope and your planned expansion headroom.

If you have already confirmed this is the right part, check current pricing and availability for the 1756-L83E at LeadTime.ca — we ship worldwide.

Who Should Buy the Allen-Bradley 1756-L83E — and Who Shouldn't

The 1756-L83E is the right controller for controls engineers and systems integrators building or maintaining medium to large automation systems on a Rockwell ControlLogix platform. It belongs in your BOM if all of the following are true:

  • Your application program fits within 10 MB of user memory, including planned future logic growth and motion axis configuration.
  • Your EtherNet/IP node count — covering I/O, drives, and other networked devices — stays at or below 250 devices per controller when using Studio 5000 Logix Designer v30 or higher.
  • Your panel uses a 1756-series ControlLogix chassis and a power supply capable of supporting the backplane draw of 5 mA at 1.2 V DC and 1.20 A at 5.1 V DC.
  • Your facility runs Studio 5000 Logix Designer version 30 or higher — this is a hard minimum requirement for this controller.
  • You need a standard ControlLogix processor only — not a GuardLogix safety controller, not a CompactLogix, and not a 5570-series predecessor.

If your program is modest and budget is the primary constraint, the 1756-L81E or 1756-L82E may serve your needs at lower cost. If your application clearly exceeds 10 MB or requires integrated safety, the 1756-L84E, 1756-L85E, or a GuardLogix 5580 variant is the correct specification — and this article will tell you exactly where those lines are.

On this page:

What the Allen-Bradley 1756-L83E Actually Does in a Running System

The 1756-L83E is the main CPU in a 1756 ControlLogix chassis. It executes the control program — ladder, structured text, function block, or sequential function chart — manages motion coordination, handles communication with EtherNet/IP-connected I/O and drives, and serves as the integration point for any distributed architecture the system designer has laid out. It is not a safety controller, it does not integrate motion hardware directly, and it does not replace a communication bridge or safety relay — it is the brain that orchestrates those components.

Within the ControlLogix 5580 family, the 1756-L83E sits in the middle of the lineup. The 5580 generation provides up to 45% more capacity than previous ControlLogix controller generations, according to Rockwell Automation product literature — a meaningful upgrade for plants migrating from 5570-series processors. The 1756-L83E captures that performance gain at 10 MB of user memory, giving it enough program space to handle multi-zone material handling logic, multi-axis servo coordination, and complex state-machine programs without requiring the larger and more expensive L84E or L85E.

The embedded 1 Gb EtherNet/IP port — operating at 10/100/1000 Mbps — means this controller connects directly to an industrial Ethernet switch as the primary programming and control network interface. There is no need for a separate Ethernet bridge module for EtherNet/IP connectivity. The front-panel USB Type-B port provides a direct programming connection for commissioning or on-site maintenance when network access is not available or not preferred.

The four-character alpha/numeric display on the front of the module gives technicians an immediate read on controller status and fault codes without requiring a laptop or HMI — a practical diagnostic tool on the plant floor.

Typical ControlLogix System Architecture With the 1756-L83E

The 1756-L83E sits at the top of the control hierarchy, communicating across a gigabit EtherNet/IP backbone to every networked device in the system. Understanding where it fits helps clarify both the network design requirements and the power supply sizing discussion.

  • Studio 5000 Logix Designer (v30 or higher) on an engineering workstation connects to the 1756-L83E via its embedded 1 Gb EtherNet/IP port or the front USB Type-B port for programming, download, and diagnostics.
  • The 1756-L83E installs in a slot within a 1756 ControlLogix chassis, drawing backplane power — 5 mA at 1.2 V DC and 1.20 A at 5.1 V DC — from the 1756-series power supply in the same chassis.
  • Local 1756 I/O modules occupy additional slots in the same chassis, communicating over the backplane directly to the controller.
  • An industrial Ethernet switch connects the 1756-L83E to distributed EtherNet/IP I/O adapters, servo drives, variable frequency drives, HMI panels, and other EtherNet/IP nodes — up to 250 devices per controller with Studio 5000 v30 or higher.
  • For applications requiring safety functions, a separate GuardLogix 5580 safety controller occupies its own chassis slot and manages safety I/O independently — the 1756-L83E does not fulfill that role.

Industries and Applications Where the Allen-Bradley 1756-L83E Fits

Discrete manufacturing environments — particularly automotive assembly, high-speed packaging lines, and complex material handling systems — represent the core use case for the 1756-L83E. A packaging line with multiple servo axes, several EtherNet/IP I/O drops, and a large ladder program spread across multiple tasks is exactly the type of application the 10 MB memory and 250-device EtherNet/IP capacity are sized for.

Food and beverage plants that have standardized on ControlLogix frequently deploy the 1756-L83E as the line controller for filling, labeling, and palletizing cells where program complexity and node counts are moderate to high but do not justify the cost step up to the L84E or L85E.

Life sciences and pharmaceutical manufacturers running recipe-driven batch processes or serialization lines find the ControlLogix 5580 platform's performance and audit-trail capabilities aligned with their validation requirements. The 1756-L83E's memory headroom accommodates large state-machine programs and data logging arrays common in these environments.

Migration projects from older 1756-L6x or 1756-L7x (5570-series) controllers are a significant real-world driver of 1756-L83E orders. Plants that are already on ControlLogix hardware gain a direct path to 5580 performance without changing I/O wiring, chassis, or network topology — the chassis and I/O modules remain the same.

Oil and gas skid builders and water/wastewater integrators who standardize on Rockwell also specify the 1756-L83E for complex control skids where the program scope demands more than the lower-memory 5580 models but integrated safety is handled by a separate GuardLogix controller in the same or adjacent chassis.

Application Typical Deployment
High-speed packaging line Primary line controller managing servo motion, EtherNet/IP I/O, and HMI on a multi-format packaging cell
Automotive assembly Zone or station controller in a multi-cell assembly system with distributed EtherNet/IP I/O and vision systems
Material handling / conveyor Central controller for multi-zone conveyors, sorters, and divert systems with high node counts
5570 to 5580 migration Drop-in processor upgrade in an existing 1756 chassis, retaining I/O wiring and network infrastructure
OEM complex machine Main CPU for large OEM machines requiring multi-task execution and tight cycle time control
Batch process skid Recipe-driven batch controller integrated with EtherNet/IP instrumentation and drives on a process skid

Allen-Bradley 1756-L83E Specifications and ControlLogix 5580 Variant Comparison

Parameter 1756-L83E Value Notes
Product family ControlLogix 5580 controller Standard (non-safety) CPU
User memory 10 MB Verify current and future program size requirements
Max EtherNet/IP devices Up to 250 Requires Studio 5000 Logix Designer v30 or higher
EtherNet/IP port speed 10/100/1000 Mbps (1 Gb) Front-access integrated port
Integrated ports 1 x USB Type-B, 1 x 1 Gb EtherNet/IP Front-access; USB for local programming
Backplane power draw 5 mA @ 1.2 V DC; 1.20 A @ 5.1 V DC Confirm 1756 power supply sizing before ordering
Controller display 4-character alpha/numeric display Status and fault diagnostics on the front panel
Required software Studio 5000 Logix Designer v30 or higher Hard minimum — earlier versions are not compatible
Chassis compatibility 1756 ControlLogix chassis Free slot selection; follow Rockwell installation guidelines
Safety capability Standard only — no integrated safety GuardLogix 5580 required for safety functions

Full technical specifications are available on the product page at LeadTime.ca.

Model User Memory EtherNet/IP Port Best Fit
1756-L81E 3 MB 1 Gb Small programs, cost-sensitive applications
1756-L82E 5 MB 1 Gb Moderate programs, mid-size machines
1756-L83E 10 MB 1 Gb Mid-to-large machines and lines, upgrade path from 5570
1756-L84E 20 MB 1 Gb Large systems, high axis count, complex programs
1756-L85E 40 MB 1 Gb Very large enterprise or multi-line controllers
GuardLogix 5580 Varies by model 1 Gb Applications requiring integrated SIL 2/PLe safety control

If your program scope has already grown past 10 MB or is realistically projected to exceed that limit within the system's service life, the 1756-L84E is the correct next step — confirm current availability and pricing at LeadTime.ca and contact us to discuss which variant ships fastest.

Expert Verdict: Is the Allen-Bradley 1756-L83E Worth Specifying for Your Project?

The 1756-L83E earns its place as the most commonly specified mid-tier processor in the ControlLogix 5580 lineup for a straightforward reason: 10 MB of user memory and 250 EtherNet/IP device capacity covers the realistic scope of a large majority of demanding machine and line control applications without pushing engineers to the cost tier of the L84E or L85E. Controls engineers running multi-task packaging lines, complex assembly cells, or multi-zone material handling systems on a Rockwell-standardized plant will find this controller sized correctly for their needs. The ControlLogix 5580 platform's performance advantage — up to 45% more capacity than previous controller generations — means that engineers migrating from 5570-series processors get a meaningful headroom gain without touching their I/O wiring or chassis hardware.

That said, the 1756-L83E has clear limits that make it the wrong choice in specific scenarios. If your project requires integrated functional safety at SIL 2 or PLe, the GuardLogix 5580 family is the correct specification — the 1756-L83E provides no integrated safety capability whatsoever. If your program is genuinely modest and budget pressure is real, the 1756-L82E at 5 MB may serve you better. And if your application scope — measured honestly against current logic, motion data, and five-year expansion plans — clearly exceeds 10 MB, ordering the 1756-L83E to save cost today is a false economy that will force a controller swap before the system reaches maturity. Be equally disciplined about Studio 5000 version alignment: v30 or higher is a non-negotiable minimum, and projects running older software versions need a clear upgrade plan before commissioning begins.

From a procurement standpoint, the 1756-L83E occupies a high-demand position in the ControlLogix lineup, which means availability can tighten quickly during periods of supply chain pressure. Working with a specialist distributor who can provide realistic lead times across new stock, stocking partners, and quality-vetted remanufactured options gives procurement teams more flexibility than relying on a single channel. A specialist can also validate your catalog number against your project documentation — catching suffix mismatches, firmware revision misalignments, or extended-temperature variant requirements before a wrong-part order delays a build. View current stock status and pricing for the 1756-L83E at LeadTime.ca — we ship to facilities worldwide and can advise on lead time before you commit to a purchase order.

For volume pricing, multi-unit builds, or to confirm lead time against a project schedule, contact the LeadTime.ca team directly — we ship worldwide and can respond quickly to urgent sourcing needs.

What Engineers Need to Know Before Ordering the Allen-Bradley 1756-L83E

Because model-specific forum discussions for the 1756-L83E are sparse — community threads that do touch on ControlLogix 5580 controllers tend to address the platform at a family level rather than singling out this catalog number — the most reliable guidance comes from verified Rockwell documentation and the hard-won experience of specialists who configure and source these controllers regularly. This is precisely the scenario where ordering through a knowledgeable distributor pays dividends: the questions that community forums would normally answer get answered by the distributor before the purchase order goes out.

The most consequential pre-order decisions for the 1756-L83E come down to four areas that consistently trip up buyers across the ControlLogix platform. First, memory sizing: 10 MB sounds like significant headroom, but programs that include large produced/consumed tag arrays, extensive motion axis data, and multi-task configurations can consume memory faster than initial estimates suggest. Engineers should run a realistic program-size projection against the 10 MB limit before committing to this model rather than the L84E. Second, Studio 5000 version compliance: v30 is the hard floor, and plants running older versions must have a software upgrade path confirmed before the controller arrives on site. Third, backplane power budgeting: the 1756-L83E draws 1.20 A at 5.1 V DC from the backplane, and that figure needs to be summed against every other module in the chassis to confirm the 1756 power supply is not undersized. Fourth, the safety controller distinction: the 1756-L83E is a standard ControlLogix processor and has no integrated safety functionality — specifying it for a machine that requires SIL-rated safety control requires a separate GuardLogix controller in the architecture.

The extended-temperature variant question is also worth raising explicitly. The standard 1756-L83E is rated for standard ControlLogix 5580 environmental conditions. Installations in enclosures subject to high ambient temperatures or harsh industrial environments should verify whether the "-NSEXT" extended-temperature variant is required — that designation changes the catalog number and must match the environmental specification in the project documentation. LeadTime.ca's team can help engineers confirm which variant is correct for their installation conditions before the order is placed.

Installation and Wiring Overview for the 1756-L83E

  • De-energize the 1756 chassis before inserting the 1756-L83E; verify the backplane power budget — 5 mA at 1.2 V DC and 1.20 A at 5.1 V DC — against the installed 1756 power supply capacity before powering up.
  • Insert the module into any available slot in the 1756 ControlLogix chassis, ensuring full engagement with the backplane connector and secure locking — follow Rockwell's ESD precautions and mechanical installation guidelines from the official user manual.
  • Connect the embedded 1 Gb EtherNet/IP port to an industrial-grade Ethernet switch using appropriate cable; assign an IP address via BOOTP/DHCP or manual configuration to match the plant network scheme.
  • Use the front-panel USB Type-B port to connect a programming laptop running Studio 5000 Logix Designer v30 or higher for initial configuration, project download, or on-site maintenance when network access is not available.
  • After powering up, verify the four-character alpha/numeric display for normal operating status and check all I/O module status indicators before switching the controller to RUN mode — consult the Rockwell user manual for display code definitions and fault response procedures.

Wrong-Part Prevention Checklist for the Allen-Bradley 1756-L83E

Before issuing a purchase order for the 1756-L83E, run through every item on this checklist. Skipping any one of these verifications is the most common source of costly mis-orders and commissioning delays on ControlLogix 5580 projects.

  1. Confirm you need a standard ControlLogix 5580 controller (not GuardLogix safety, not CompactLogix, not 5570 series).
  2. Verify 10 MB user memory is sufficient for program size, motion axes, and tasks; check against current and future expansion.
  3. Ensure your chassis and power supply are 1756-series and can provide the required backplane power draw for 1756-L83E.
  4. Check Studio 5000 Logix Designer version; 1756-L83E requires version 30 or higher for configuration and support.
  5. Confirm system network design: up to 250 EtherNet/IP devices per controller and 1 Gb Ethernet backbone fit your architecture.
  6. Check environmental ratings: standard temperature range only; for extended temperature, confirm if an "-NSEXT" variant is required.
  7. Verify you are not expecting integrated safety or redundancy features that this exact catalog number does not provide.
  8. Confirm catalog number suffixes (firmware, options, extended temp) against your plant standard and spares strategy.

If any item on this checklist raises a question you cannot confidently answer from your project documentation, contact the LeadTime.ca team before ordering — we can validate the catalog number against your system requirements and help you avoid a wrong-part shipment.

Frequently Asked Questions

Is the 1756-L83E compatible with my existing 1756 chassis and I/O modules?

Yes — the 1756-L83E installs in any slot in a standard 1756 ControlLogix chassis and is compatible with existing 1756-series I/O modules. The chassis, I/O wiring, and network infrastructure can remain unchanged when migrating from an older ControlLogix processor such as a 5570-series controller. Confirm the 1756 power supply is sized to support the 1756-L83E backplane draw of 1.20 A at 5.1 V DC alongside all other installed modules.

How many EtherNet/IP devices can I connect to a single 1756-L83E?

The 1756-L83E supports up to 250 EtherNet/IP devices per controller when configured using Studio 5000 Logix Designer version 30 or higher. This count includes I/O adapters, servo drives, variable frequency drives, and any other EtherNet/IP nodes on the controller's managed connections. If your architecture requires more than 250 nodes per controller, you will need to restructure the network or consider a multi-controller architecture.

Which version of Studio 5000 Logix Designer is required to configure the 1756-L83E?

Version 30 or higher is the hard minimum requirement for the 1756-L83E. Attempting to configure or open a project targeting this controller in an earlier version of Studio 5000 will result in incompatibility. Plants running older software versions must plan and execute a software upgrade before commissioning this controller.

Can the 1756-L83E replace my older ControlLogix CPU without rewiring the enclosure?

In most cases, yes. The 1756-L83E fits the same 1756 chassis slot as previous ControlLogix processors, and existing I/O wiring and network cabling can remain in place. However, you must convert and validate the existing project in Studio 5000 v30 or higher, confirm firmware compatibility, and verify that the existing power supply meets the 1756-L83E backplane current requirement. Always test in a non-production environment before releasing to live control.

What is the difference between the 1756-L83E and the 1756-L82E or 1756-L84E?

The primary differentiator across the ControlLogix 5580 lineup is user memory: the 1756-L82E provides 5 MB, the 1756-L83E provides 10 MB, and the 1756-L84E provides 20 MB. All three share the same 1 Gb EtherNet/IP port and 250-device capacity with Studio 5000 v30 or higher. The correct model depends on your program size, task complexity, and expansion headroom — not on any difference in I/O compatibility or chassis requirements.

How do I interpret the status display and fault indicators on the 1756-L83E?

The 1756-L83E features a four-character alpha/numeric display on the front panel that shows controller status, IP address segments during startup, and fault codes when a major or minor fault occurs. LED indicators alongside the display reflect controller mode, I/O status, and network activity. Specific display codes and their meanings are documented in the Rockwell Automation 1756-L8x user manual — refer to that document for a complete fault code reference and recommended response procedures.

Why Order the Allen-Bradley 1756-L83E From LeadTime.ca

  • LeadTime.ca ships the 1756-L83E and the full ControlLogix 5580 family to facilities worldwide — no geographic restriction on sourcing.
  • Our team can validate catalog numbers, confirm firmware revision alignment, and flag extended-temperature or suffix variants before an order is placed — reducing the risk of a mis-order on a high-value controller.
  • We source across new stock and quality-vetted remanufactured options, giving procurement teams flexibility when lead times on new product extend during supply constraint periods.
  • Volume pricing and expedited sourcing support are available for multi-unit builds, MRO replenishment programs, and time-sensitive replacement orders.

Allen-Bradley 1756-L83E — At-a-Glance Summary

  • Product family: ControlLogix 5580 — standard (non-safety) programmable automation controller in a 1756 chassis.
  • User memory: 10 MB — suitable for mid-to-large machine and line programs with multi-task and motion data requirements.
  • EtherNet/IP capacity: up to 250 devices per controller with Studio 5000 Logix Designer v30 or higher.
  • Embedded ports: 1 x 1 Gb EtherNet/IP (10/100/1000 Mbps) and 1 x USB Type-B, both front-access.
  • Backplane draw: 5 mA at 1.2 V DC and 1.20 A at 5.1 V DC — verify against installed 1756 power supply capacity.
  • Software requirement: Studio 5000 Logix Designer version 30 or higher — a hard minimum, not a recommendation.
  • No integrated safety: GuardLogix 5580 controllers are required for SIL-rated safety functions in the same architecture.
  • ControlLogix 5580 platform delivers up to 45% more capacity than previous ControlLogix controller generations per Rockwell Automation literature.
  • Primary fit: discrete manufacturing, packaging, automotive, food and beverage, life sciences, material handling, and 5570-to-5580 migration projects.
  • Available for worldwide shipment through LeadTime.ca — check current stock and pricing or contact us for a quote.
