How to Size a ControlLogix Chassis for Future Expansion

By Abdullah Zahid
23 min read

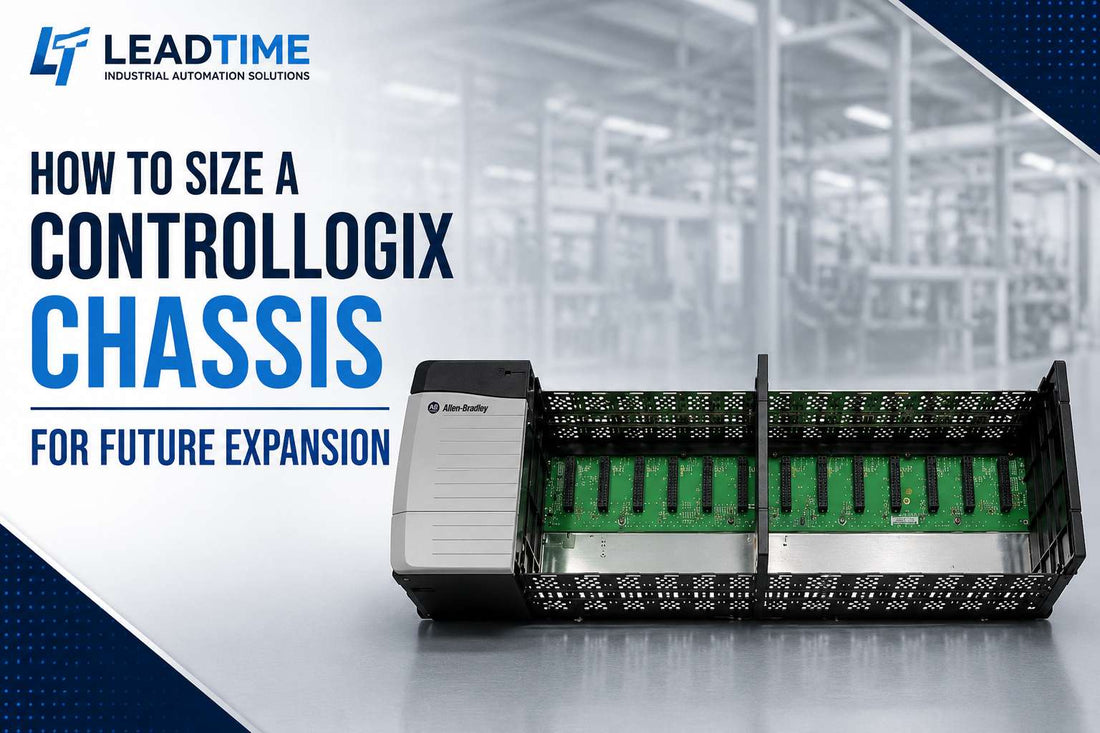

Allen-Bradley ControlLogix 1756-Ax chassis family showing 4-slot to 17-slot options for industrial PLC system expansion

ControlLogix Chassis Sizing Guide for Future Expansion — Choosing the Right 1756-Ax for Your System

Controls engineers specifying a new ControlLogix 1756 system face a decision that is easy to get wrong and expensive to undo: how many slots do you actually need? Choose too few and a panel rework is in your future. Choose without verifying cabinet dimensions or backplane power and you may find the chassis physically or electrically incompatible with your installation. This guide walks through a practical, repeatable method for sizing a ControlLogix chassis across the full 1756-Ax and XT family — from the compact 1756-A4 at 4 slots to the 1756-A17 at 17 — accounting for the modules you need today, the growth you can realistically forecast, and the cabinet and power constraints that determine what will actually fit.

If you have already confirmed your chassis size and are ready to check stock and pricing, view the ControlLogix chassis catalog at LeadTime.ca — we source and ship worldwide.

Is This the Right Chassis Size for Your Project?

This guide is written for engineers and panel designers who are actively specifying a ControlLogix system and need to lock in a chassis size before ordering. It is the right resource if any of the following apply to your project:

  • You are counting modules for a new ControlLogix design and need a disciplined slot-count method, not a rule of thumb.
  • You are choosing between the 1756-A7, 1756-A10, and 1756-A13 and are unsure which provides the right expansion margin.
  • Your installation environment may require an XT variant — 1756-A4LXT, 1756-A5XT, or 1756-A7LXT — rather than a standard chassis.
  • You are weighing a single large chassis against a main-chassis-plus-remote-I/O architecture and need help framing that decision.
  • You are retrofitting or expanding an existing system where the current chassis is nearly full.

If your current 7-slot chassis is already full and you are evaluating remote I/O expansion rather than a chassis swap, the scenario-based section later in this guide addresses that directly. For standard-environment small systems with minimal growth, the 1756-A4 or 1756-A7 may be the correct and cost-appropriate choice — but only after you have completed a full module inventory, not before.

On this page:

What a ControlLogix Chassis Actually Controls in Your System

The ControlLogix chassis is the physical and electrical backbone of every 1756-based control system. It is not a passive enclosure — it provides the backplane over which the controller, communication modules, I/O modules, and specialty modules share power and communicate. Every module in the system occupies one or more of the chassis slots, draws current from the backplane power supply through that chassis, and participates in the scan cycle coordinated by the controller seated in the same rack or connected via a communication network to a remote rack.

Chassis selection directly determines three things that cannot easily be changed after the panel is built: the number of modules that can be installed, the physical footprint and minimum cabinet size, and the range of compatible power supplies. Getting the slot count wrong is not an inconvenience — it typically means a full panel redesign, a new chassis, and re-documentation of the Logix Designer project, all of which take time and budget that were not planned. The 1756 platform is available in five standard chassis sizes — 4, 7, 10, 13, and 17 slots — plus three XT variants for extended-temperature or harsh environments, giving engineers genuine flexibility to match the chassis to the system rather than forcing a compromise.

Where the Chassis Sits in a Typical ControlLogix Architecture

The ControlLogix chassis occupies the central position in the 1756 system — it connects the controller to every local module and provides the backplane pathway for high-speed communication between them. Understanding this position helps clarify what the chassis selection decision affects at the system level.

  • The 1756 power supply mounts directly in the chassis and supplies backplane current to every installed module — sizing the chassis without sizing the power supply simultaneously is an incomplete decision.
  • The ControlLogix controller (1756-L6x, 1756-L7x, or 1756-L8x series) occupies one slot and manages all program execution, I/O scan, and communication tasks for the local rack.
  • Communication modules such as the 1756-EN2T occupy additional slots and bridge the chassis backplane to EtherNet/IP, ControlNet, DeviceNet, or other networks — each one consuming a slot.
  • Local I/O modules (for example, 1756-IB16 for digital input or 1756-OF8 for analog output) fill the remaining slots with field device connections; specialty, safety, and motion modules are additional slot consumers.
  • Remote I/O chassis — additional 1756-Ax racks connected via Ethernet or another network — extend the system without adding slots to the main rack, and are a key tool when the main chassis runs out of space or when equipment is physically distributed.

ControlLogix Chassis Options: All Sizes and XT Variants Compared

Rockwell Automation produces the ControlLogix chassis in five standard slot counts for general industrial environments and three XT variants for installations where temperature or environmental conditions exceed standard chassis ratings. All chassis in the 1756 platform mount horizontally — this is not optional, and it directly affects minimum cabinet height and layout. UL and CSA compliance requires adherence to published minimum enclosure dimensions for each chassis size; these are specified in the manufacturer installation instructions and must be verified from that source before completing any cabinet layout.

Chassis Catalog Family Slot Count Typical System Size / Use Case Minimum Cabinet Size (Qualitative) Environment Rating Expansion Potential
1756-A4 4 slots Very small systems, test rigs, simple machines Small cabinet; must still meet UL/CSA minimums — verify from Rockwell installation instructions Standard Limited; suitable when future growth is minimal
1756-A7 7 slots Small to mid-size machines or cells Moderate cabinet width — verify exact dimensions from Rockwell documentation Standard Room for controller, 2–3 networks, and some I/O
1756-A10 10 slots Mid-size systems with several networks and I/O groups Wider cabinet required; check layout against installation instructions Standard Good for one controller, multiple networks, and local I/O
1756-A13 13 slots Large machines, process cells, multiple communication networks Larger cabinet height and width — verify from Rockwell documentation Standard Significant local I/O capacity and strong future growth headroom
1756-A17 17 slots Large systems, high I/O count, multi-network controllers Largest cabinet requirement of the standard range — verify from Rockwell documentation Standard Maximum slot count; highest expansion potential in a single chassis
1756-A4LXT 4 slots Small systems in extended temperature or harsh environments Similar footprint to 1756-A4; XT environmental conditions apply — verify from Rockwell documentation XT Limited; use when harsh environment is the driver
1756-A5XT 5 slots Small to mid-size XT systems with moderate growth requirement Moderate cabinet width; XT conditions — verify from Rockwell documentation XT One extra slot vs 1756-A4LXT; suitable for modest expansion in XT installations
1756-A7LXT 7 slots Mid-size XT systems with growth requirement Moderate cabinet; XT conditions — verify from Rockwell documentation XT Balances capacity and harsh environment suitability

Full technical specifications and current availability are listed on the product page at LeadTime.ca.

What You Must Know Before You Size a ControlLogix Chassis

Chassis sizing done without a complete set of project inputs is guesswork. The following table identifies the information you need to gather before selecting a chassis size, why each item matters, and where to find it.

Required Input Why It Matters How to Obtain It
Number of controllers Defines slots reserved for CPUs or redundancy modules From system architecture design
Number of communication interfaces Sets slots for EtherNet/IP, ControlNet, DeviceNet, and other networks — each occupies at least one slot From network topology drawing
Local I/O channel count Determines number of I/O modules required in the local rack From I/O list and field device inventory
Specialty or safety modules Can consume multiple slots; safety modules in particular are often added later if not planned upfront From functional and safety design requirements
Future expansion modules Protects against growth underestimation — the most common source of chassis regret From project roadmap and stakeholder input
Ambient temperature and environment Determines whether a standard chassis is sufficient or an XT variant is required From site conditions survey and project specification
Available cabinet space Confirms whether the candidate chassis size physically fits and meets UL/CSA minimum enclosure requirements From mechanical layout drawings

A practical rule that experienced controls engineers follow: count the modules needed for the first five years of operation — including controller, every communication module, every I/O module, and any specialty or safety modules — and then add a 30 to 50 percent margin for unforeseen growth. Select the next larger standard chassis size that provides that margin while fitting the cabinet. This approach prevents the most common and costly chassis sizing mistake without overspecifying hardware unnecessarily.

Backplane Power and Power Supply Selection — What to Verify

The ControlLogix chassis and its power supply are a paired decision. Every module installed in the chassis draws current from the backplane through the power supply, and that total current demand must not exceed what the selected 1756 power supply can deliver. Chassis size affects which power supply families are compatible; a larger chassis with more populated slots may require a higher-capacity power supply even if many of the additional slots are reserved as spares.

  • The 1756 power supply mounts directly in the chassis and is not a generic item — it must be specified by catalog number and verified for compatibility with the chosen chassis size.
  • Standard 1756 chassis use the 1756-PAxx and 1756-PBxx power supply families; XT chassis require XT-rated power supplies where the environmental specification demands it. Exact catalog pairing must be verified against Rockwell documentation.
  • Each module installed in the chassis has a defined backplane current draw; the total of all present and future planned modules must be calculated and confirmed against the power supply rating using Rockwell's published design tools or installation manuals — not estimated.
  • Future expansion modules must be included in the power budget at design time, not added later as an afterthought. A power supply that is correctly sized for day-one loading may be undersized once spare slots are populated during expansion.
  • For installations using XT chassis variants such as the 1756-A4LXT, 1756-A5XT, or 1756-A7LXT, ensure that all modules and the power supply carry the appropriate environmental rating for the installation conditions.

Exact backplane power limits and current ratings per module are not reproduced here — those figures must be taken directly from Rockwell Automation's published installation instructions and power supply documentation to ensure accuracy. Using unverified values in a power budget is a commissioning risk.

Single Chassis vs Multiple Chassis: Which Expansion Strategy Fits Your Project

One of the most consequential architecture decisions in a ControlLogix system is whether to concentrate all modules in a single large chassis or to use a smaller main chassis supported by one or more remote I/O chassis. Neither approach is universally correct — the right answer depends on how the equipment is physically distributed, how much panel space is available, and how much complexity the team can manage in the communication configuration.

Strategy Main Chassis Size Expansion Approach Advantages Limitations
Single mid-size chassis 7–10 slots (1756-A7 or 1756-A10) Use spare slots for future modules Simpler architecture; lower initial cost; straightforward project organization May exhaust slots if expansion is higher than forecast
Single large chassis 13–17 slots (1756-A13 or 1756-A17) Many spare slots reserved from day one Strong expansion capability; fewer extra racks; simpler long-term architecture Larger cabinet requirement; higher upfront panel space and cost
Main chassis plus one remote I/O chassis 7–10 slot main; 4–7 slot remote Additional I/O modules in remote panel or skid Good for distributed equipment; reduces long wiring runs; keeps main panel compact Requires communication module in remote rack; additional configuration in Logix Designer
Multiple remote I/O chassis 10–17 slot main; several smaller remote racks Modular growth by area or process zone Flexible growth; enables segmenting by area; reduces main panel congestion More complex architecture and documentation; more communication modules required

The remote I/O chassis approach becomes particularly attractive when field equipment is physically separated from the main panel — as in a large process cell with remote skids — or when the main panel simply does not have space for a 1756-A17. A remote 1756-A7 or 1756-A10 equipped with an Ethernet communication module such as the 1756-EN2T can be configured in Logix Designer as a remote rack under the same controller, keeping programming familiar while distributing hardware where it is needed. This strategy also allows the existing main chassis to remain in service when expanding an active line, which reduces disruption significantly compared to swapping the main chassis for a larger one.

Ready to evaluate specific chassis and remote I/O hardware for your project? Check current pricing and availability at LeadTime.ca — stock spans the full 1756-Ax range with worldwide shipping.

Step-by-Step ControlLogix Chassis Sizing Workflow

Use this nine-step process to move from a blank project to a confirmed chassis selection with documented assumptions. Each step is a checkpoint, not a suggestion.

  • Define system scope and planning horizon: clarify machine or process boundaries and set a realistic growth horizon, typically 5 to 10 years, before counting a single module.
  • Build the complete day-one module list: count every controller, communication module, local I/O module, and specialty or safety module. Include redundant controllers if the architecture requires them. Do not skip communication modules — a system with three Ethernet segments needs three communication slots.
  • Estimate future expansion: consult operations teams and project stakeholders to convert growth expectations into a specific module count. Add extra I/O modules for planned line extensions, new network cards for future segments, and any safety modules that are likely to be added later. Apply a 30 to 50 percent spare slot margin over day-one needs as a starting target.
  • Decide single-chassis or multi-chassis architecture: if equipment is geographically distributed or the main panel has physical constraints, plan remote I/O chassis from the start rather than discovering the need after installation.
  • Select a candidate chassis size and environmental type: use the slot count from the previous steps to identify the smallest chassis in the 1756-Ax family that provides the required margin, then confirm standard versus XT based on site conditions.
  • Check enclosure dimensions and required clearances: verify that the selected chassis fits within the cabinet while meeting minimum enclosure size requirements and required spacing from wireways and heat sources. These dimensions are specified in Rockwell's installation instructions and must be checked against the actual panel layout — not estimated.
  • Verify backplane power and power supply compatibility: calculate total backplane current for all present and future planned modules using manufacturer manuals or Rockwell's published tools. Confirm that a compatible 1756 power supply from the 1756-PAxx or 1756-PBxx family (or XT equivalent for XT chassis) supports the total load with margin.
  • Validate maintenance access and cable routing: confirm that all slots remain accessible after wiring is installed, that wireways do not block module removal, and that working clearances for qualified maintenance personnel are achievable.
  • Document and review: record the slot count rationale, power budget assumptions, cabinet layout decisions, and expansion forecast. Review with project stakeholders and, where required by the project scope, with a qualified engineer before finalizing the order.

Scenario-Based Chassis Selection Examples

Abstract sizing rules become concrete when applied to realistic project scenarios. The five examples below cover the most common situations engineers face when specifying a ControlLogix chassis for a new or expanding system.

A small OEM machine with one controller, one Ethernet communication module, and three or four I/O modules with minimal planned additions is a natural candidate for the 1756-A7. Seven slots accommodate the day-one module count and leave a few spare slots for modest growth without requiring a larger cabinet than the OEM's enclosure budget allows. Choosing the 1756-A4 in this scenario leaves almost no expansion headroom and is the correct choice only when future growth is genuinely near zero.

A medium production line running one controller, two Ethernet modules, one legacy network module, and six to eight I/O modules — with safety modules planned in a later phase — fits the 1756-A10 or 1756-A13 depending on the final growth forecast. The 1756-A10 works if the safety phase adds only two or three modules; the 1756-A13 provides more headroom if the safety and I/O expansion could consume four or more additional slots.

A large process cell with one or two controllers, multiple Ethernet modules, and a high local I/O count plus remote skids calls for a 1756-A13 or 1756-A17 main rack paired with smaller remote I/O chassis — for example, 1756-A7 or 1756-A10 racks mounted at each skid. The main chassis carries the controller and all network communication; the remote racks carry the distributed I/O. This architecture simplifies both wiring and expansion without forcing all modules into one panel.

A harsh or extended-temperature environment where a standard chassis would not be acceptable points immediately to the XT variants. The 1756-A4LXT, 1756-A5XT, or 1756-A7LXT should be selected based on slot count using the same expansion margin logic applied to standard chassis. All modules, the power supply, and any communication hardware must also be verified for compatibility with XT environmental requirements.

An existing plant where the current 1756-A7 is nearly full and additional I/O or a new network is needed is best served by adding a remote I/O chassis — such as a 1756-A7 or 1756-A10 equipped with a 1756-EN2T — rather than immediately swapping the main chassis. This reduces panel disruption, preserves the existing main rack configuration, and provides expansion capacity in the area where it is actually needed.

Four Chassis Sizing Mistakes That Cause Panel Rework

Community discussion in PLC forums and real-world distributor conversations consistently surfaces the same four mistakes. Each one is preventable at the design stage and costly if discovered after the panel is built.

The most common mistake is counting only I/O modules and forgetting communication and specialty modules. An engineer who sees six I/O modules and selects a 1756-A7 without adding the controller, two Ethernet modules, and a pending safety module has already over-subscribed the rack before it leaves the box. Prevention is straightforward: always build a complete module list that includes the controller, every communication card, and every specialty module before touching a chassis catalog page.

The second mistake is planning for only one or two spare slots. Pressure to minimize panel size and upfront cost is real, but one spare slot disappears with the first unplanned addition — and unplanned additions are how most systems grow. A 30 to 50 percent spare slot margin over day-one usage gives real protection; a single spare slot does not.

The third mistake is selecting a chassis by slot count alone without checking enclosure dimensions and spacing requirements. The 1756-A17 requires the largest cabinet of the standard range; placing it in an enclosure that meets the slot count but violates minimum UL/CSA cabinet dimensions or clearance requirements is a compliance and thermal problem. Minimum cabinet sizes and required clearances are specified in Rockwell's installation instructions and must be checked against the actual layout before finalizing the selection.

The fourth mistake is ignoring the remote I/O architecture option when main panel space is tight. Engineers who assume all modules must live in the main chassis sometimes select a chassis that is too large for the enclosure or defer expansion entirely. A remote 1756-Ax rack connected via Ethernet is a first-class expansion option in Logix Designer and is often the correct answer when the main panel has geometric or thermal constraints that a larger chassis would violate.

Expert Sizing Verdict — When to Upsize and When to Add a Remote Rack

The 1756-A7 and 1756-A10 are the workhorses of the ControlLogix line for a reason — they balance slot count, cabinet footprint, and cost for the majority of machine-level and cell-level applications. The 1756-A7 is the right starting point for small to mid-size OEM machines where growth is real but bounded. The 1756-A10 earns its place in mid-size systems running multiple networks with planned expansion into safety or additional I/O groups. The 1756-A13 and 1756-A17 are appropriate when slot count genuinely demands them — large process cells, high-I/O main racks, or systems where you want maximum single-chassis expansion without revisiting architecture. Selecting these larger chassis when a 1756-A10 with a remote rack would serve better adds cabinet cost and physical complexity without a compensating benefit.

There are also clear limits to the single-chassis approach. When field equipment is spread across a large plant floor or multiple skids, the wiring savings from remote I/O chassis dwarf any architecture simplicity gained by centralizing everything. When an existing main chassis is at or near capacity, swapping it for a 1756-A17 means a full panel rebuild and Logix project rework; adding a 1756-A7 remote I/O rack via a 1756-EN2T communication module is a far lower-risk path that preserves the existing installation. For harsh or variable-temperature installations, the XT variants — 1756-A4LXT, 1756-A5XT, and 1756-A7LXT — are not optional alternatives; they are the specified hardware when site conditions exceed standard chassis ratings, and all accompanying modules and power supplies must be verified for XT compatibility.

On the procurement side, standard chassis in the 1756-A4, 1756-A7, and 1756-A10 families are widely used and generally available through specialist distributors, though stock levels and lead times should always be confirmed before committing to a project schedule. The 1756-A17 and XT variants are more specialized and may have longer lead times — confirming availability early prevents schedule risk on projects with fixed commissioning dates. Check current stock and pricing for the full ControlLogix chassis range at LeadTime.ca, where the team can also help verify compatibility between chassis, power supply, and module selections before the order is placed.

For volume orders, project-specific sourcing, or lead time confirmation before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and support engineers and procurement teams at every stage of a project.

What Engineers Ask When Sizing ControlLogix Racks

Discussion in PLC forums — including communities like Reddit r/PLC and r/industrialautomation, as well as PLCTalk and similar platforms — consistently surfaces a handful of recurring questions and frustrations that represent the real-world friction points in ControlLogix chassis sizing. Understanding what experienced engineers have gotten wrong is often more useful than any abstract sizing principle.

The question asked most frequently is whether you can change from a smaller chassis to a larger one without rewriting the entire Logix Designer project. The answer engineers report: the project file itself does not have to be rewritten from scratch, but modules that move to different slot positions do require updates to the slot assignments in the I/O tree, and any produced or consumed tags tied to specific slot numbers need attention. The practical implication is that changing chassis sizes mid-project is workable but not trivial — and it reinforces why starting with a chassis that has genuine spare capacity is a sounder strategy than planning to upsize later. Community sentiment consistently leans toward selecting slightly larger than you think you need, specifically to avoid this situation.

A second recurring theme is confusion about power supply pairing and backplane power limits. Engineers report discovering — sometimes after installation — that the power supply selected for the chassis is undersized for the actual module load, particularly after expansion modules are added. The lesson the community has learned: calculate the backplane power budget using the actual current draw figures from Rockwell's module documentation, not estimates, and include future modules in that calculation from the beginning. The 1756-PAxx and 1756-PBxx families are the correct starting point for standard chassis; XT chassis require XT-rated power supplies where environmental conditions demand them. But the specific catalog pairing must be verified against the manufacturer's documentation — generic assumptions do not substitute for that verification step.

A third area of community discussion is how to configure a second chassis as a remote I/O rack in Logix Designer, and specifically whether every remote chassis needs its own Ethernet communication module. The short answer that engineers confirm: yes, a remote I/O chassis requires its own communication module — such as a 1756-EN2T — to appear on the network and be recognized by the controller in the main rack. This is a slot that must be counted in the remote chassis slot budget, not an invisible overhead item. Understanding this early prevents under-sizing the remote chassis by forgetting to account for its own communication hardware.

Installation, Wiring, and Mounting Considerations

Installation work on ControlLogix hardware must be performed by qualified personnel following applicable electrical codes and lockout/tagout procedures. The following points summarize key requirements to verify before physical installation — full procedures are specified in Rockwell Automation's installation instructions for each chassis model.

  • All ControlLogix chassis in the 1756 platform must be mounted horizontally — vertical or inverted mounting is not supported and will affect thermal performance and compliance.
  • Minimum cabinet dimensions and required clearances from wireways, heat sources, and enclosure edges are defined in the Rockwell installation instructions for each chassis catalog number; these must be verified from that source before finalizing the panel layout.
  • The chassis must be properly grounded per the installation instructions; the chassis ground connection is a system safety requirement and should be verified during installation inspection.
  • Cable routing should keep I/O wiring and power wiring separated from each other and from the chassis face to maintain access for module insertion and removal during maintenance.
  • Spare slots must remain physically accessible after wiring is complete — a slot that is nominally spare but blocked by wireway or conduit provides no practical expansion value.

Compatible Power Supplies, Controllers, and Communication Modules

The ControlLogix chassis does not operate in isolation — it requires a matched set of hardware that must be verified for compatibility before ordering. The table below identifies the compatible hardware families for standard and XT chassis variants.

Chassis Type Compatible Power Supply Families (verify exact catalog pairing) Controller Families Typical Communication Modules Notes
Standard 1756-Ax (1756-A4, A7, A10, A13, A17) 1756-PAxx and 1756-PBxx families — exact catalog number must be verified against chassis size and total backplane current 1756-L6x, 1756-L7x, 1756-L8x series ControlLogix controllers 1756-EN2T (EtherNet/IP) and other 1756 communication modules for ControlNet, DeviceNet, and similar networks Verify backplane power budget using actual module current draw figures from Rockwell documentation
XT chassis (1756-A4LXT, 1756-A5XT, 1756-A7LXT) XT-rated 1756 power supplies where required by environmental specification — verify from Rockwell XT documentation Controllers suitable for XT installations — verify environmental compatibility for each module EtherNet/IP and other communication modules rated for XT environmental conditions All modules, power supply, and communication hardware must be individually verified for XT environmental requirements — do not assume standard-rated modules are acceptable

Wrong-Part and Wrong-Size Prevention Checklist

Before finalizing any ControlLogix chassis selection, work through this checklist completely. Skipping items is how undersized or incompatible chassis reach the panel build stage.

  1. Have you counted all modules, including controller, communication, specialty, and future I/O?
  2. Does the chosen chassis meet minimum cabinet size and spacing requirements for heat dissipation?
  3. Is the power supply rated and sized for the total backplane current of all present and planned modules?
  4. Have you allowed unused slots for future expansion, not just one spare slot?
  5. Is the environment compatible with a standard chassis, or is an XT chassis needed?
  6. Have you considered remote I/O chassis for large expansion instead of overfilling the main rack?
  7. Will the selected layout allow safe cable routing and maintenance access?

If any item on this checklist cannot be confirmed with documentation in hand, do not finalize the chassis selection. The LeadTime.ca team can help verify chassis, power supply, and module compatibility before the order is placed — view the full ControlLogix chassis range or contact us directly to discuss your project requirements.

Frequently Asked Questions

How many spare slots should I actually plan for in a ControlLogix chassis?

The widely applied guidance from both Rockwell documentation and experienced engineers in the field is to aim for a 30 to 50 percent spare slot margin over your confirmed day-one module count. One or two spare slots sounds reasonable until the first project change order arrives. A genuine expansion margin means selecting a chassis size that leaves multiple spare slots after all planned modules are installed — not slots that are technically empty but already claimed by the expansion forecast.

Can I move to a larger chassis later without rewriting the entire Logix Designer project?

You do not need to start a new project from scratch, but it is not a trivial change. Modules that move to different slot positions in the new chassis require updates to slot assignments in the I/O configuration tree in Logix Designer, and any tags or routines that reference specific slot numbers must be reviewed and updated. The practical implication is that a chassis swap mid-project or mid-production is workable but involves a meaningful engineering effort and a full recommissioning test — which is exactly the outcome that proper initial sizing avoids.

When should I choose an XT chassis such as the 1756-A4LXT, 1756-A5XT, or 1756-A7LXT instead of a standard chassis?

Choose an XT chassis when the installation environment exceeds the environmental ratings of the standard 1756-Ax chassis — for example, in locations with elevated or highly variable temperatures, or with exposure to contaminants that require XT-rated hardware. The XT variants support extended environmental conditions that the standard chassis does not. Exact environmental ratings and temperature ranges for each XT model must be verified from the Rockwell datasheet for the specific catalog number. All modules and the power supply installed in an XT chassis must also be verified for XT compatibility — the chassis rating alone is not sufficient.

Does every remote I/O chassis need its own communication module, and does that count as a slot?

Yes on both counts. A remote I/O chassis requires its own communication module — such as a 1756-EN2T for EtherNet/IP — to connect to the network and be recognized by the controller in the main rack. That communication module occupies a slot in the remote chassis and must be included in the slot count when sizing the remote rack. Forgetting the communication module slot is a common cause of under-sizing remote I/O chassis.

Can I mix different ControlLogix chassis sizes in the same system?

Yes. The ControlLogix 1756 platform is designed to support multi-chassis architectures — a 1756-A13 or 1756-A17 main chassis can coexist with smaller remote I/O chassis such as 1756-A7 or 1756-A10 racks on the same EtherNet/IP network. Each remote chassis requires its own communication module and power supply. The controller in the main chassis manages all remote racks through the network, and all remote racks appear in the same Logix Designer project under the controlling processor.

How does chassis size affect which power supply I need?

Chassis size affects power supply selection in two ways: the physical form factor of the power supply must match the chassis, and the total backplane current demand of all installed modules must be within the supply's rated output. A larger chassis with more populated slots will typically require a higher-capacity power supply. The correct approach is to calculate total backplane current for all present and future planned modules using the current draw figures in Rockwell's module documentation, then select a 1756-PAxx or 1756-PBxx power supply (or XT equivalent) that covers that total with margin. Exact catalog pairing must be verified from Rockwell's published documentation, not assumed.

Why Source ControlLogix Hardware Through LeadTime.ca

  • LeadTime.ca carries the full Allen-Bradley ControlLogix 1756-Ax chassis range, including standard and XT variants, with worldwide shipping from distributor stock.
  • The team can help verify chassis, power supply, and module compatibility before an order is placed — preventing the wrong-part scenarios this guide describes.
  • Hard-to-find or longer-lead items such as the 1756-A17 and XT chassis variants are actively sourced; contact the team early on time-sensitive projects.
  • Volume pricing and project-specific sourcing support are available for OEM builders, panel shops, and plant procurement teams.
  • Current pricing and availability are live on the product page — no need to wait for a quote to confirm stock status.

At-a-Glance ControlLogix Chassis Sizing Summary

  • Standard chassis available in 4, 7, 10, 13, and 17 slots — catalog families 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17.
  • XT variants available in 4, 5, and 7 slots — catalog families 1756-A4LXT, 1756-A5XT, and 1756-A7LXT — for extended-temperature and harsh environments.
  • All ControlLogix chassis mount horizontally; vertical mounting is not supported.
  • Minimum cabinet dimensions required for UL/CSA compliance are specified in Rockwell installation instructions for each chassis model and must be verified before panel layout is finalized.
  • Target a 30 to 50 percent spare slot margin over day-one module count to protect against growth underestimation.
  • Every slot count must include controller, communication modules, I/O modules, specialty modules, and planned future additions — not I/O alone.
  • Power supply selection requires a backplane current calculation using actual module draw figures from Rockwell documentation, including future planned modules.
  • Remote I/O chassis using 1756-EN2T or equivalent communication modules is a legitimate and often superior expansion strategy when main panel space is constrained or equipment is geographically distributed.
  • XT chassis require XT-rated power supplies and XT-compatible modules where environmental conditions demand it — verify each component individually.
  • Current pricing and availability for all 1756-Ax chassis are on the product page at LeadTime.ca; the team supports worldwide sourcing and project-level procurement.
