Standard Motor Starter Circuit with+ L GV2 C1D + LRD: Wiring Guide

By Abdullah Zahid
19 min read

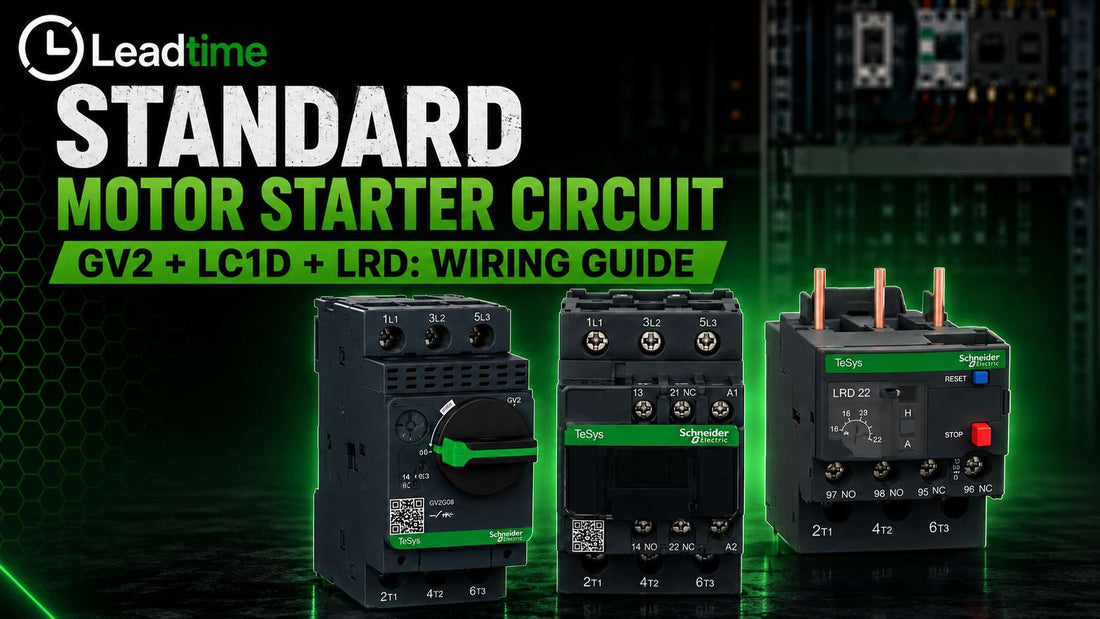

Schneider Electric TeSys GV2 manual motor starter LC1D contactor and LRD thermal overload relay wiring assembly

GV2 LC1D LRD Motor Starter Wiring Selection Guide: Choosing and Wiring TeSys GV2 Manual Motor Starters, LC1D Contactors, and LRD Thermal Overload Relays

Controls engineers and panel builders searching for a reliable standard motor starter circuit using Schneider Electric TeSys components face one consistent challenge: confirming that the GV2 manual motor starter, LC1D contactor, and LRD thermal overload relay are correctly matched to each other and to the motor before wiring begins. Get any one of those three selections wrong — current range, coil voltage, or mechanical compatibility — and the result is nuisance tripping, failed protection, or a contactor that never pulls in. This guide walks through the selection logic, power and control circuit wiring architecture, and common mistakes for a standard three-component TeSys motor starter circuit using the GV2, LC1D, and LRD families from Schneider Electric.

For pricing and availability on GV2, LC1D, and LRD components, contact the LeadTime.ca team directly — we source TeSys motor starter components and ship worldwide.

Does This Three-Component Architecture Fit Your Motor Starter Application?

This GV2 plus LC1D plus LRD configuration is the right architecture when you need combined manual control, short-circuit protection, contactor-based switching, and adjustable thermal overload protection in a single coordinated assembly. It is appropriate when:

  • Your motor full-load current falls inside the adjustable range of the LRD thermal overload relay you are specifying
  • Your application requires both local manual ON/OFF control (via the GV2) and remote or pushbutton-controlled starting (via the LC1D coil circuit)
  • You have a defined control power voltage — such as 120 V AC from a control transformer — that can be matched to the LC1D coil code
  • The LC1D contactor you select is mechanically compatible with the chosen LRD overload relay (same mounting frame group)
  • The GV2 breaking capacity is appropriate for the available short-circuit current level at the installation point
  • Your application involves across-the-line starting for small to medium three-phase motors such as pumps, fans, conveyors, or machine drives

If your motor current exceeds the GV2 or LC1D frame sizes covered by this family, or if you require soft-start or variable-frequency drive control, a different product tier is the correct choice. Contact LeadTime.ca to confirm the right TeSys range for your motor size before specifying catalog numbers.

On this page:

What Each Component Does in the Standard Motor Starter Circuit

The TeSys GV2 manual motor starter is the upstream protective device in this circuit. It provides both short-circuit protection and thermal-magnetic overload protection in a single enclosure, with a physical handle that gives operators manual ON/OFF control at the panel. GV2 devices are UL Listed as manual motor controllers and are suitable for use in motor branch circuits when installed per manufacturer instructions. Because GV2 devices combine overload and short-circuit functions with manual switching, they reduce the component count compared to a fuse-plus-disconnect arrangement.

The TeSys D (LC1D) contactor sits downstream of the GV2 in the power circuit. Its role is electrically controlled switching: a control coil, available in AC or DC voltage versions, opens and closes the three main poles in response to start and stop commands. The LC1D does not provide overload protection on its own — that function belongs to the LRD. Coil voltage options for the LC1D series include common control voltages used in North American panels, making coil selection a deliberate step tied directly to your control power source.

The TeSys LRD thermal overload relay mounts directly onto the LC1D contactor, forming a coordinated starter assembly without additional wiring between the contactor load terminals and the relay input. Its bimetallic elements trip on sustained overcurrent, and the adjustable current dial allows the relay to be set precisely to the motor full-load current from the nameplate. Critically, the LRD includes a normally closed auxiliary contact — typically identified as terminals 95 and 96 — intended to be wired in series with the LC1D coil circuit. When the LRD trips, this NC contact opens, de-energizing the coil and dropping out the contactor to protect the motor.

Typical System Architecture: How GV2, LC1D, and LRD Connect

In a standard motor starter circuit, the GV2 sits at the supply end of the power path, and the motor connects at the output of the LRD. Understanding this chain prevents the most common wiring mistake — reversing line and load terminals between components.

  • Three-phase supply (L1, L2, L3) connects to the line terminals of the GV2 manual motor starter
  • GV2 load terminals feed the line-side terminals of the LC1D contactor
  • LC1D load terminals feed the input terminals of the LRD thermal overload relay (the LRD mounts directly onto the LC1D)
  • LRD output terminals (T1, T2, T3) connect to the three motor leads
  • The control circuit runs from a control power source through the STOP pushbutton (normally closed), the LRD NC overload contact (95/96), the START pushbutton (normally open), and into the LC1D coil terminals (A1/A2); a contactor auxiliary contact wired in parallel with the START button provides the seal-in (hold-in) function once the motor starts

Typical Applications and Deployment Scenarios

The GV2, LC1D, and LRD combination covers the most common across-the-line motor starting requirements in industrial facilities. Pump applications are among the most frequent: a small to medium three-phase process pump needs local manual isolation, overload protection, and the ability to be started from a pushbutton station or a control panel. The GV2 provides the local isolation and short-circuit protection; the LC1D switches the motor; the LRD protects against sustained overload that would otherwise overheat the pump motor windings.

Fan and blower motors on HVAC and process ventilation systems follow the same architecture, with an added requirement for remote start capability. In these installations, the GV2 remains in the motor control cabinet as a local protective device while the LC1D coil is wired back to a remote pushbutton station or a building automation output. The LRD still mounts to the LC1D and its NC contact remains in the coil circuit regardless of whether start commands are local or remote.

Conveyor and material handling drives introduce a higher risk of mechanical overloads from jams or loaded starts. Here, proper setting of the LRD current dial is especially important, and the trip class of the overload relay should be selected to match the motor's starting characteristics. The LC1D utilization category must also match the duty cycle of the conveyor application.

OEM machine builders and panel builders frequently standardize on a limited set of GV2, LC1D, and LRD frame sizes across all motors in a machine. Using the same component families across circuits simplifies spare parts inventories and makes troubleshooting faster for maintenance technicians who can carry a single set of replacement components for all drives on the machine.

Application Typical Deployment
Process pump (water treatment, chemical, food and beverage) GV2 as local manual disconnect and short-circuit protector; LC1D for pushbutton start/stop; LRD set to motor FLA mounted on LC1D
Roof fan or process blower with remote control GV2 local protection in MCC; LC1D coil wired to remote pushbutton station or BAS output; LRD NC contact in coil circuit
Conveyor drive with overload risk GV2 and LC1D at appropriate utilization category for conveyor duty; LRD trip class matched to motor starting profile; NC contact providing clear trip indication
Multi-motor OEM machine Standardized GV2, LC1D, and LRD family across all identical motors; same component sizes simplify maintenance and spare parts
Legacy starter retrofit New GV2, LC1D, and LRD selected from motor nameplate data; existing control functions (interlocks, remote stations) recreated in LC1D coil circuit using auxiliary contacts
MCC panel standardization across a plant Single GV2/LC1D/LRD family selection covering the majority of motor current tiers in the facility; documented settings and wiring template per circuit

How to Select GV2, LC1D, and LRD from Motor Nameplate Data

The most reliable selection workflow starts with two values from the motor nameplate: full-load current (FLA) and supply voltage. Every other selection decision flows from those two data points.

Begin with the LRD thermal overload relay. Identify the motor FLA and choose an LRD whose adjustable current range includes that value. The LRD adjustable range must not just be close — the FLA must fall within the range so the dial can be set accurately. Representative LRD references such as LRD12, LRD16, and LRD32 each cover a specific current band; confirm the exact band from the current Schneider datasheet.

Next, select the LC1D contactor. The contactor must be rated for the motor operational current and the appropriate utilization category for motor duty (typically AC-3 for squirrel cage induction motors). Equally important: the LRD you have already chosen must be mechanically compatible with the LC1D frame size. Schneider documentation lists which LRD references mount onto which LC1D sizes. Representative LC1D references such as LC1D09, LC1D12, and LC1D18 correspond to different motor current tiers. Confirm the exact pairing before finalizing the selection.

The coil voltage of the LC1D is a separate decision from the power circuit sizing. Identify the control power available in your panel — commonly 120 V AC from a control transformer in North American installations — and select the LC1D coil code that matches. Choosing the wrong coil code is one of the most common ordering mistakes and results in a contactor that either fails to pull in or overheats.

Select the GV2 manual motor starter based on the motor FLA and the available short-circuit current at the installation point. The GV2 thermal-magnetic version provides both overload and short-circuit protection and suits most standard motor branch circuit applications. The GV2 breaking capacity must be sufficient for the available fault current from the supply. GV2 series references such as GV2ME10 and GV2ME16 each cover specific overload setting ranges; confirm the appropriate reference from Schneider documentation.

The six ranked selection criteria, in priority order, are: motor full-load current and voltage; short-circuit protection and coordination requirements; contactor utilization category and current rating; overload relay current range and trip class; coil control voltage matched to available control power; and mechanical compatibility between GV2 line/load terminals, LC1D mounting, and LRD mounting.

Component Family Overview and Variant Comparison

Component Representative Series Function Motor Current Tier Setting or Coil Options Mechanical Compatibility Group
TeSys GV2 manual motor starter GV2ME, GV2P series (e.g., GV2ME10, GV2ME16) Manual ON/OFF control plus short-circuit and overload protection Small to medium motors; specific current range depends on reference Adjustable thermal-magnetic overload range; magnetic-only versions also available DIN rail or panel mounting; upstream of LC1D in power circuit
TeSys D contactor (LC1D series) LC1D09, LC1D12, LC1D18 Electrically operated three-phase switching via control coil Matches motor current tier; confirm AC-3 rating from datasheet AC and DC coil voltage codes; auxiliary contact options available LRD mounts directly onto LC1D; confirm compatible LRD frame group
TeSys LRD thermal overload relay LRD12, LRD16, LRD32 Adjustable bimetallic overload protection with NC trip contact for control circuit Adjustable current range must include motor FLA; confirm from datasheet Adjustable current dial; trip class; NC auxiliary contact (95/96) Mounts directly onto compatible LC1D contactor; frame group must match

Once you have confirmed which GV2, LC1D, and LRD references match your motor and control power, check current pricing and availability at LeadTime.ca — all three component families are stocked for worldwide shipment.

Power and Control Terminal Reference

Terminal Group Component Role Typical Marking Application Notes
Power input GV2 Three-phase supply connection L1, L2, L3 Always connect supply to designated line terminals; never reverse line and load
Power output to contactor GV2 Switched and protected output from GV2 to LC1D T1, T2, T3 (GV2 load side) Connect directly to LC1D line-side terminals
Power input LC1D Receives power from GV2 output L1, L2, L3 (contactor line side) Follow Schneider wiring diagrams; verify terminal markings on specific reference
Power output to LRD LC1D Switched output from contactor to LRD input T1, T2, T3 (contactor load side) LRD mounts directly; no separate wiring needed between LC1D load and LRD input in direct-mount assembly
Motor connection LRD Output to motor leads T1, T2, T3 (LRD output) Connect to motor leads; verify phase sequence if motor rotation must be confirmed
Coil supply LC1D Control voltage input to contactor coil A1, A2 Coil voltage must match selected coil code; confirm control power voltage before wiring
Overload NC contact LRD Control circuit overload trip output 95, 96 Wire in series with contactor coil circuit; opens on overload trip to de-energize coil

Full technical specifications for all component families are available on the product pages at LeadTime.ca.

Expert Verdict: When This Circuit Works and When to Choose Differently

The GV2, LC1D, and LRD combination is the right specification for controls engineers and panel builders designing standard across-the-line motor starter circuits for small to medium three-phase loads. The architecture earns its place in panel designs because it delivers short-circuit protection, thermal overload protection, manual switching, and electrically controlled starting in a physically compact and mechanically integrated assembly. The direct mounting of the LRD onto the LC1D eliminates a wiring run between contactor load terminals and overload relay input, reducing both assembly time and potential wiring errors. Schneider TeSys components also carry UL Listing as manual motor controllers, which matters for project documentation and authority having jurisdiction review in North American panels.

This architecture has real limits that engineers should acknowledge. The GV2 frame sizes and LC1D contactor ratings cover a defined range of motor currents — motors that exceed the upper end of the LC1D or GV2 current families require stepping up to higher TeSys ranges. If your motor needs soft-start capability, variable speed, or advanced communication integration, the basic contactor-and-overload architecture is not the right starting point regardless of the component brand. For applications where the GV2 thermal-magnetic overload setting range does not cover the motor FLA, a magnetic-only GV2 variant paired with a correctly sized LRD must be used — both devices cannot be independently set without first confirming which one provides the primary overload protection function. Be explicit in your schematic about which device is performing each protective role.

From a procurement standpoint, GV2, LC1D, and LRD components are among the most widely stocked TeSys items in industrial distribution channels, which generally supports reasonable lead times for standard references. Less common coil voltage codes or current range combinations may require special-order lead times, so confirming availability before finalizing the BOM is a practical step for any time-sensitive build. The LeadTime.ca team sources TeSys motor starter components worldwide and can help verify that the GV2, LC1D, and LRD references on your BOM are compatible before you commit to a panel build — check current pricing and availability at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide. Contact LeadTime.ca here.

What Engineers Get Wrong When Specifying This Circuit

Forum discussions on platforms including Reddit r/PLC, Reddit r/industrialautomation, and the Schneider Electric Exchange community consistently surface the same cluster of selection and wiring mistakes. The most discussed issue is mismatching the LRD overload relay current range with the motor full-load current. Engineers sometimes select an LRD based on approximate size or what is in stock rather than confirming the motor FLA falls inside the relay's adjustable range. When the motor current sits outside the dial range — even slightly — the result is either inadequate protection or persistent nuisance tripping that gets blamed on the component rather than the selection error.

A second recurring complaint involves coil voltage mismatches on the LC1D. North American panels commonly operate with 120 V AC control power from a control transformer, but engineers occasionally order an LC1D with the wrong coil code — either because the voltage was assumed rather than verified, or because a standard coil reference was copied from a previous project that used different control power. The outcome is a contactor that does not pull in, or one that overheats and fails. Community members who have encountered this mistake report that it is entirely preventable by reading the available control voltage from the panel drawing before placing the order.

The third category of recurring mistakes involves the LRD overload NC contact. Community posts show that some wiring errors stem from treating the LRD as a power-path-only device and omitting its NC auxiliary contact (terminals 95 and 96) from the control circuit entirely. Without the overload NC contact in series with the contactor coil, the contactor remains energized when the overload trips — the motor is not de-energized by the relay, and there is no trip indication in the control logic. This mistake is particularly common when technicians are modifying or retrofitting existing circuits and do not consult the original Schneider wiring diagrams. The LRD NC contact must always be included in series with the LC1D coil, and its role must be documented in every schematic that uses this architecture.

Wiring and Installation Overview

  • Power circuit wiring runs in sequence: three-phase supply to GV2 line terminals (L1, L2, L3), GV2 load terminals to LC1D line terminals, LC1D load terminals to LRD input (direct mount eliminates intermediate wiring), LRD output terminals to motor leads (T1, T2, T3) — never reverse line and load at any component
  • Control circuit wiring connects control power through the NC STOP pushbutton, then through the LRD overload NC contact (95/96), then through the NO START pushbutton, into the LC1D coil terminals (A1/A2); a normally open auxiliary contact on the LC1D wired in parallel with the START button provides the seal-in function
  • Coil voltage must be confirmed against available control power before installation — verify the LC1D coil code matches the control transformer or control power source voltage
  • Power conductors and control conductors must be segregated; do not run motor leads and coil or pushbutton wires in the same conduit or wire duct without following applicable panel wiring standards
  • Before energizing, confirm de-energization of all circuits per lockout/tagout procedures, verify all terminal connections against Schneider wiring diagrams, and confirm the LRD current dial is set to the motor nameplate FLA

Scenario-Based Selection Recommendations

For a small process pump in a water treatment or food and beverage facility running on standard three-phase supply with 120 V AC control power, the selection workflow is straightforward: identify the motor FLA from the nameplate, choose an LRD whose adjustable range covers that value, select an LC1D contactor rated for the motor current at AC-3 utilization with a 120 V AC coil, and choose a GV2 thermal-magnetic manual motor starter with a setting range and breaking capacity appropriate for the supply. Wire the GV2 upstream in the power circuit, mount the LRD on the LC1D, and include the LRD NC contact in the coil circuit with STOP and START pushbuttons.

For a conveyor motor with potential mechanical overloads, the LRD trip class selection becomes important. A conveyor that can jam or stall needs an overload relay set precisely to the motor FLA, with a trip class that allows normal starting current without nuisance tripping but responds quickly to sustained overload conditions. The LC1D utilization category must match the conveyor duty cycle, and the overload NC contact wiring must provide clear indication at the control panel when a trip occurs so operators can identify and clear the jam before resetting.

For a fan or blower motor with remote start capability, the GV2 stays in the MCC as the local protective device and manual disconnect, while the LC1D coil is wired to a remote pushbutton station or a building automation system output. Control cable runs from the remote station back to the coil terminals (A1/A2) of the LC1D; the LRD NC contact and local STOP pushbutton remain in series with that coil circuit so that an overload condition or local emergency stop can interrupt the motor regardless of the remote command state.

When standardizing across multiple identical motors on a machine or across a plant, the most practical approach is to select a single GV2, LC1D, and LRD frame size combination that covers the full-load current of all the motors in question, even if some motors run below that current tier. Slight oversizing of the contactor is acceptable; the LRD must still be set to each individual motor's FLA. Document the settings and wiring in a standard template for each circuit so that replacement components can be installed correctly by any technician without re-engineering.

For a retrofit of an older motor starter to TeSys components, begin from the motor nameplate and the existing protection level documentation rather than from the old component catalog numbers. Confirm enclosure space constraints, verify that the new GV2 breaking capacity matches or exceeds the available fault current, and recreate all existing control functions — interlocks, remote stations, auxiliary contact logic — in the LC1D coil circuit using the correct auxiliary contact blocks. Verify all wiring against current Schneider diagrams before energizing.

Wrong-Part Prevention Checklist Before Finalizing Your GV2, LC1D, and LRD Order

Before submitting your bill of materials, verify each of these points against your motor nameplate data, control power details, and Schneider documentation:

  1. Motor full-load current lies inside the LRD adjustable range.
  2. Selected LC1D contactor is mechanically compatible with the chosen LRD.
  3. GV2 rating and breaking capacity are suitable for the supply short-circuit level and motor current.
  4. Contactor coil voltage matches the available control-power voltage.
  5. Overload relay NC auxiliary contact is included in the control circuit for trip indication and protection.
  6. Line and load terminals are not mixed between GV2, LC1D and LRD.
  7. Control wiring (start/stop buttons, auxiliary contacts) is separated from power wiring and follows the manufacturer schematics.

If you need help confirming any of these points before ordering, contact the LeadTime.ca team — we help engineers and panel builders verify GV2, LC1D, and LRD combinations for compatibility and availability before committing to a build. Reach us here.

Frequently Asked Questions

Do I need both a GV2 manual motor starter and an LRD overload relay, or does one device provide complete protection?

These two devices perform overlapping but distinct protection functions. The GV2 provides short-circuit protection and, in its thermal-magnetic version, overload protection combined with manual switching. The LRD provides adjustable thermal overload protection and contributes the NC contact needed in the control circuit. In the standard three-component architecture described here, the GV2 is the upstream short-circuit protective device and the LRD is the primary adjustable overload device mounted on the contactor. Consult Schneider documentation and your applicable electrical standard to confirm which device serves as the primary overload protection element for your specific component selection — this must be explicit in your panel schematic.

How do I coordinate the GV2 overload setting with the LRD current dial when both are in the same circuit?

Start from the motor nameplate FLA and set the LRD dial to that value. The GV2 thermal-magnetic setting range should be chosen so that the GV2 reference covers the motor current, but in a circuit that also includes an LRD, clarify in your documentation which device is providing the primary adjustable overload function. Schneider application guidance covers coordination between these devices; refer to current Schneider documentation for the specific GV2 and LRD references you are using to confirm there is no conflict between their protective characteristics.

Which LC1D coil voltage should I specify for a standard North American control panel?

The most common control power voltage in North American industrial panels is 120 V AC, typically derived from a control transformer. Select the LC1D coil code corresponding to 120 V AC for most standard North American installations. If your panel uses 24 V DC or another control voltage — common in PLC-controlled systems with DC outputs — select the coil code that matches that voltage. Never assume the coil voltage from a previous project applies to the current one; confirm the available control power on each panel drawing before ordering.

How do I wire a remote start/stop pushbutton station into the LC1D coil circuit?

Remote start/stop stations are integrated into the LC1D coil circuit by running control cable from the pushbutton station back to the contactor's coil terminal area. The NC STOP button, the LRD overload NC contact (95/96), the NO START button, and the LC1D seal-in auxiliary contact all remain in series or parallel as required by the standard control circuit arrangement. Remote pushbuttons replace or supplement the local pushbuttons in the same series control circuit path. The LRD NC contact must remain in the circuit regardless of whether start commands originate locally or remotely, so the overload trip function is never bypassed.

How do I safely test the overload trip function after wiring is complete?

Testing overload relay trip function should follow Schneider's documented test procedure for the specific LRD reference and must be performed only after all lockout/tagout requirements are addressed and the panel is documented as ready for commissioning. Most LRD overload relays include a test button that mechanically simulates an overload trip without requiring the motor to be run to a fault condition. Verify that activating the test function opens the NC contact (95/96), that the contactor drops out, and that the motor de-energizes. Reset the relay and confirm it returns to normal before beginning live motor operation. Refer to the Schneider instruction sheet for your specific LRD reference for the correct test procedure.

Why Order Through LeadTime.ca

  • LeadTime.ca sources TeSys GV2, LC1D, and LRD motor starter components and ships to customers worldwide
  • Our team helps engineers and panel builders confirm component compatibility — GV2 frame size, LC1D coil code, LRD current range — before an order is placed, reducing rework and return risk
  • We assist with identifying suitable references when exact catalog numbers need verification against motor nameplate data or enclosure constraints
  • Volume pricing is available for panel builders and OEMs who standardize on TeSys component families across multiple machines or facilities
  • Hard-to-source coil voltage variants and specialty LRD current range references can be located through our distributor network

At-a-Glance Summary

  • Standard motor starter circuit uses three Schneider Electric TeSys components: GV2 manual motor starter (short-circuit and overload protection plus manual switching), LC1D TeSys D contactor (electrically controlled motor switching via coil), and LRD thermal overload relay (adjustable bimetallic overload protection with NC trip contact)
  • Power circuit flows in sequence: supply to GV2 line terminals → GV2 load to LC1D line terminals → LC1D load to LRD input (direct mount) → LRD output terminals T1/T2/T3 to motor leads
  • Control circuit requires: NC STOP pushbutton in series with LRD overload NC contact (terminals 95/96), in series with NO START pushbutton, into LC1D coil terminals A1/A2; seal-in auxiliary contact in parallel with START button
  • LRD must be selected so motor FLA falls within the adjustable current range; LRD references include LRD12, LRD16, LRD32 — confirm exact range from current Schneider datasheet
  • LC1D coil voltage must match available control power — 120 V AC is the most common North American panel control voltage; confirm before ordering
  • GV2 UL Listed as manual motor controller suitable for motor branch circuit use when installed per manufacturer instructions
  • LRD NC auxiliary contact (95/96) must be wired into the control circuit — omitting it is the single most consequential wiring error in this architecture
  • Seven-point wrong-part checklist covers: LRD range covers motor FLA; LC1D/LRD mechanical compatibility; GV2 breaking capacity; coil voltage match; NC contact in control circuit; line/load terminal correctness; power and control wiring segregation
  • LeadTime.ca sources TeSys GV2, LC1D, and LRD components and ships worldwide; contact for component compatibility verification and volume pricing
