Schneider Electric GV2ME10 — Manual Motor Starter Buying Guide

By Abdullah Zahid
14 min read

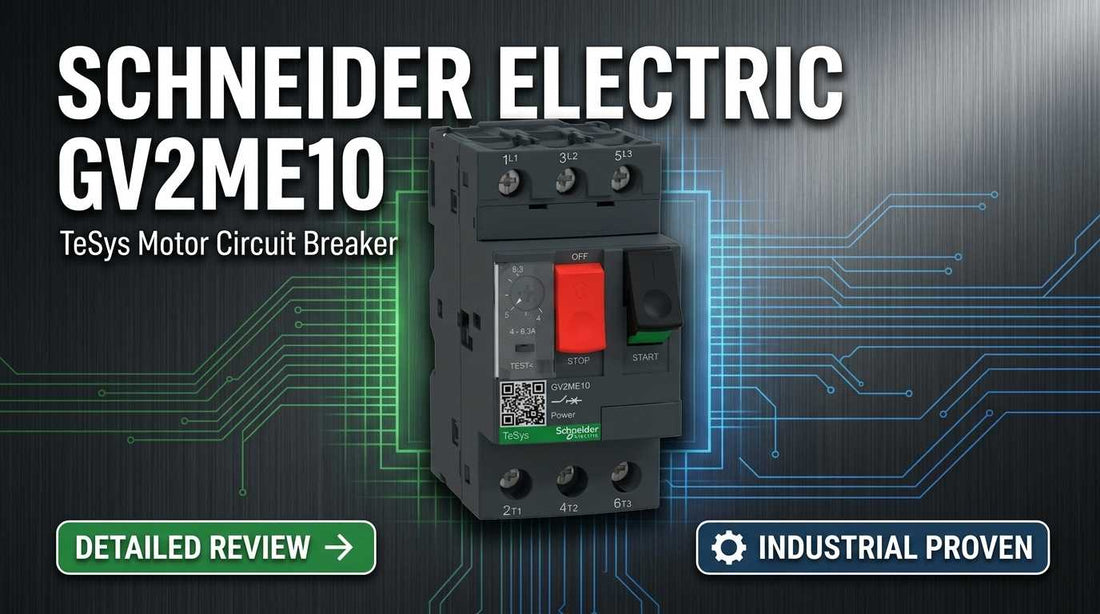

Schneider Electric GV2ME10 TeSys Deca manual motor starter and protector mounted on 35mm DIN rail in industrial control panel

Schneider Electric GV2ME10 TeSys Deca Manual Starter and Protector — Specs, Installation, and Buying Guide

When a controls engineer or plant maintenance supervisor is sizing motor protection for a pump, fan, or compressor drawing between 4 and 6.3 amps, the Schneider Electric GV2ME10 is a well-known candidate. It combines motor isolation, pushbutton on-off control, and thermal-magnetic overcurrent protection into a single DIN rail unit — eliminating the three-piece contactor, thermal relay, and circuit breaker combination that consumes additional panel space and increases wiring complexity. The GV2ME10 is rated for 690VAC, 3-pole, and carries a 50 kA breaking capacity at 500VAC under IEC 60947-2, making it a capable match for standard industrial motor circuits up to 5 hp.

If you have already confirmed this is the correct part for your application, check current pricing and availability on the GV2ME10 product page at LeadTime.ca — ships worldwide.

Who Should Buy the GV2ME10 — and Who Shouldn't

The Schneider Electric GV2ME10 is the right choice for engineers and procurement specialists who need a compact, manually operated motor starter with integrated thermal-magnetic protection for small three-phase motors. It is particularly well suited to the following applications:

  • Motor full-load current (FLC) confirmed on nameplate between 4 and 6.3 amps — this is the thermal trip adjustment range for this model
  • Supply voltage is 690VAC or lower — 480VAC three-phase North American standard falls comfortably within rating
  • Three-phase motor confirmed — the GV2ME10 is a 3-pole device and is not suitable for single-phase applications
  • 35mm DIN rail mounting is available in the control panel with sufficient clearance for pushbutton access
  • Screw clamp terminal connections are compatible with existing wiring gauge — verify against the technical datasheet before ordering
  • Manual on-off control is sufficient — no remote electrical trip or variable speed required

If your motor draws 7 amps or more, the GV2ME10 will not provide adequate protection — specify the GV2M22 (10–20A) or GV2M32 (20–32A) instead. If the application requires remote electrical tripping without manual intervention, a contactor and relay combination is the correct solution.

On this page:

What the GV2ME10 Actually Does in a Motor Control Circuit

The Schneider Electric GV2ME10 is classified as a motor circuit breaker and manual motor starter. Its practical function is to replace three discrete components — a contactor for isolation, a thermal overload relay for motor protection, and a circuit breaker for fault interruption — with a single enclosure that is 1.77 inches wide and snaps onto a standard 35mm DIN rail. This consolidation saves approximately 3 to 4 inches of rail space in compact control panels, a measurable advantage in packaged equipment builds where panel real estate is constrained.

The thermal-magnetic trip mechanism is what distinguishes this device from a simple disconnect. The thermal element uses a bi-metallic strip that heats and deflects under sustained overcurrent, introducing a deliberate time delay that prevents false trips during the brief inrush current spike that occurs every time a motor starts. If current remains elevated past that window — indicating a genuine overload — the thermal element trips the breaker. The magnetic element operates independently and instantaneously, triggering within milliseconds when a hard fault such as a short circuit or phase loss drives current to the fixed magnetic trip threshold of 78 amps. Together, these two mechanisms provide dual-stage protection that handles both soft overloads and hard faults without requiring the engineer to set separate relay parameters.

The pushbutton interface — green for ON, red for OFF — requires no electrical knowledge to operate and is immediately familiar to maintenance teams in facilities with legacy equipment. The thermal trip adjustment dial on the front face allows the installer to set the trip point between 4 and 6.3 amps, matching the device to the motor's nameplate full-load current. The GV2ME10 is rated for 25 manual cycles per hour and carries a service life of 100,000 operating cycles at rated load — equating to approximately 9 years of typical daily use before replacement is necessary.

Where the GV2ME10 Sits in Your System Architecture

The GV2ME10 is installed downstream of the main panel disconnect and upstream of the motor terminals, acting as the final protection and control point before the load. A typical component chain in a small motor control installation looks like this:

  • Main panel disconnect or branch circuit breaker — provides upstream fault protection and system isolation
  • GV2ME10 — provides motor-level overcurrent protection, manual on-off control, and isolation in a single 35mm DIN rail device
  • Motor terminals (T1, T2, T3) — three-phase wiring connects directly from GV2ME10 output to motor junction box
  • Motor (pump, fan, compressor, conveyor) — load device rated 4 to 6.3A FLC at 690VAC or below
  • Optional shunt trip coil attachment — available as a separate accessory if remote electrical trip capability is required alongside pushbutton operation

Typical Applications and Deployment Scenarios

The GV2ME10 is most commonly found in small packaged equipment where a single motor operates at a fixed speed and the only required control is start and stop. Water treatment pump skids, HVAC fan coil units, compressed air systems, and food and beverage conveyor drives all represent natural fits for this device, provided the motor draw is confirmed between 4 and 6.3 amps.

In retrofit applications, the GV2ME10 is frequently used to replace aging manual starters in legacy equipment where the original three-piece combination has failed or where panel space has been reclaimed. Because it mounts on standard 35mm DIN rail in either horizontal or vertical orientation, it integrates into most existing enclosure layouts without panel modification.

Plant engineers also specify the GV2ME10 as a manual backup control point on motors that are normally driven by variable frequency drives. In this role, the GV2ME10 sits in a bypass circuit and provides a manual run path if the VFD is removed for service — a practical safety consideration in facilities where motor downtime directly impacts production.

For new equipment builds in OEM environments, the combination of CE, CSA, ATEX, DNV, and GL approvals allows the GV2ME10 to be specified across a wide range of end-market certifications without sourcing alternative components for different regional compliance requirements.

Application Typical Deployment
Water treatment pump station Manual starter on small circulator pump, 480VAC 3-phase, DIN rail panel
HVAC fan coil unit Fixed-speed fan motor control, standalone enclosure, 690VAC rated supply
Food and beverage conveyor Auxiliary conveyor drive, manual override with upstream VFD bypass
Compressed air system Small compressor motor protection, packaged equipment cabinet, screw clamp wiring
Legacy equipment retrofit Replacement for failed three-piece starter combination, existing 35mm DIN rail
OEM packaged equipment build New build with 5 hp or smaller motor, multi-certification requirement (CE, CSA, ATEX)

Key Electrical and Physical Specifications for the GV2ME10

Specification GV2ME10 Value
Rated Current (Adjustable) 4 to 6.3 A
Rated Voltage AC 690 V
Pole Configuration 3-Pole
Motor Power Rating 5 hp (at 690VAC)
Breaking Capacity (Icu) 50 kA at 500 VAC
Magnetic Trip Current (Fixed) 78 A
Operating Rate 25 cycles/hour
Mounting Style DIN Rail (35 mm), horizontal or vertical
Dimensions (W x D x H) 1.77 x 3.08 x 3.5 inches (45 x 78.5 x 89 mm)
Ambient Operating Temperature -20 to +60°C

Full technical specifications are available on the product page at LeadTime.ca.

GV2ME10 vs. GV2M22 and Competitor Equivalents — Which One Do You Actually Need?

The most common ordering mistake engineers make with the TeSys Deca family is selecting the wrong amperage tier. The table below compares the GV2ME10 to the next model up in the Schneider Electric GV2 line and to the closest competitive equivalents at the same current range, so you can confirm the right selection before raising a purchase order.

Product Amperage Range Voltage Rating Mounting Trip Type Terminal Type
Schneider Electric GV2ME10 4–6.3 A 690 VAC DIN Rail (35 mm) Thermal-Magnetic Screw Clamp
Schneider Electric GV2M22 10–20 A 690 VAC DIN Rail (35 mm) Thermal-Magnetic Screw Clamp
ABB MS116 (4–6.3 A equiv.) 4–6.3 A 500 VAC DIN Rail Thermal-Magnetic Spring Terminal
Siemens 3RV1011 (6.3 A) 4.5–6.3 A 690 VAC DIN Rail Electronic/Mechanical Screw Clamp
GE CR153A (4–6.3 A) 4–6.3 A 600 VAC Panel-Mount Thermal-Magnetic Pressure Terminal

Note: The ABB MS116 is rated to 500VAC rather than 690VAC, which matters if your supply exceeds that threshold. The GE CR153A is a panel-mount device, not DIN rail, and will not drop in as a direct physical replacement. If your motor draws more than 6.3A, the GV2M22 is the correct next step — check current availability and confirm the right model at LeadTime.ca.

Expert Verdict: Is the Schneider Electric GV2ME10 Worth Buying?

The GV2ME10 is the right product for a clearly defined buyer: plant maintenance teams, OEM equipment builders, and controls engineers who need reliable on-off motor protection for 3-phase motors drawing 4 to 6.3 amps, without the cost or complexity of a VFD or a multi-component starter assembly. The 50 kA breaking capacity at 500VAC exceeds the fault current levels typical in North American industrial motor circuits, and the 100,000-cycle service life means a correctly applied GV2ME10 will outlast the motor it protects in most low-cycle applications. The thermal-magnetic trip mechanism handles motor inrush current without the nuisance trips that over-sensitive electronic relays can produce, and the CE, CSA, ATEX, DNV, and GL approval portfolio makes it one of the more specification-friendly manual starters available for international OEM builds.

Where the GV2ME10 falls short is equally important to state. It provides no speed control, no soft-start capability, and no remote electrical trip without adding an optional shunt trip coil accessory. If any of those functions are required, the GV2ME10 is not the right device — a VFD handles variable speed and soft-start, and a contactor-plus-relay combination handles remote electrical trip with more flexibility. The IP20/IK04 protection rating also limits this device to clean, dry, indoor panel environments; outdoor or washdown applications require an appropriate sealed enclosure around it. Engineers who need a current range above 6.3 amps should move directly to the GV2M22 or GV2M32 — there is no thermal adjustment that extends the GV2ME10 beyond its rated range safely.

From a procurement standpoint, the GV2ME10 is an active catalog product with no announced discontinuation, which matters for spare parts planning and long-term equipment support. Ordering through a specialist industrial distributor rather than a generic marketplace significantly reduces the risk of receiving the legacy GV2M10 in place of the current TeSys Deca version — a mix-up that has caught buyers before and results in returned hardware, delayed builds, and unnecessary freight costs. Specialist distributors with verified Schneider Electric stock typically ship in 2 to 5 business days, compared to 4 to 8 weeks for direct manufacturer orders on non-stocked builds. View current stock status and pricing for the GV2ME10 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we source and ship globally and can advise on accessories including shunt trip coil attachments and terminal covers.

What Engineers Need to Know Before Ordering the GV2ME10

Because specific model-level community discussion on the GV2ME10 is limited in public forums, the most useful pre-order intelligence comes directly from documented ordering patterns, distributor field experience, and the technical constraints built into the product itself. Three issues account for the majority of ordering errors and post-installation frustrations with this device.

The first is current range mismatches. The thermal adjustment range on the GV2ME10 runs from 4 to 6.3 amps — that is the full extent of its protective range. Engineers who select this unit for a motor that nameplate-lists 7A or 8A FLC, assuming the dial can be set higher or that the breaker provides headroom, will experience either persistent nuisance trips or, more dangerously, a failure to trip under genuine overload conditions. Neither outcome is acceptable in an operating plant. The correct fix is always to verify motor FLC before ordering, not after installation.

The second recurring issue is the GV2ME10 versus GV2M10 confusion. The GV2M10 is the legacy model that preceded the current TeSys Deca GV2ME10. Both share a similar part number root, and some distributor inventory systems, automated procurement tools, and older engineering drawings still reference the GV2M10. Receiving the wrong version can mean a different pushbutton style, different terminal layout, or different panel hole pattern — all of which require field rework. Always specify the full part number GV2ME10 explicitly, confirm with the distributor that the unit in stock is the current TeSys Deca version, and request a dimensional drawing if there is any doubt before the order ships.

The third issue is screw clamp terminal compatibility. The GV2ME10 uses screw clamp terminals exclusively — there is no spring-terminal or push-in variant for this model. Technicians performing retrofits in panels previously wired with spring-terminal devices sometimes assume cross-compatibility that does not exist. Additionally, wire gauge must fall within the terminal cavity's allowable range; if existing motor leads are outside that range, field wiring modification is required before installation can proceed. Consult the GV2ME10 technical datasheet for exact wire gauge limits and terminal torque specifications before committing to a retrofit.

Wiring and Installation Overview for the GV2ME10

The following points summarize the key requirements for mounting and wiring the GV2ME10. For full step-by-step procedures, refer to the Schneider Electric GV2ME10 installation instruction sheet and technical datasheet available from the manufacturer.

  • Mount on a 35mm DIN rail in either horizontal or vertical orientation — confirm rail is level, securely fastened, and free from burrs before snapping the unit into position
  • Confirm upstream power is isolated and verified absent with a multimeter before connecting any terminals — apply lockout-tagout procedure as required by local electrical code
  • Connect three-phase supply to input terminals (L1, L2, L3) and motor leads to output terminals (T1, T2, T3) using the wire gauge specified in the technical datasheet for screw clamp compatibility
  • Tighten screw clamp terminals to the torque value specified in the datasheet — consult the manufacturer document directly for the exact newton-meter figure; do not rely on feel alone, and verify by tugging each conductor after tightening
  • Set the thermal trip adjustment dial to match motor nameplate full-load current before applying power, and verify pushbutton ON and OFF operation engages positively before connecting the motor load

Wrong-Part Prevention Checklist Before Ordering the GV2ME10

Run through the following checks against your motor nameplate and panel drawings before raising a purchase order. Each item represents a confirmed failure mode when overlooked.

  1. Motor full-load current falls within 4-6.3A range (not higher)
  2. Rated voltage is 690VAC or less (not higher)
  3. Three-pole requirement confirmed (not single or two-pole)
  4. DIN rail mounting desired (not panel-mount or plug-in busway)
  5. Thermal-magnetic protection sufficient (not requiring electronic or digital trip)
  6. Pushbutton operation acceptable (not requiring remote electrical control)
  7. Screw clamp terminals compatible with available wire gauge
  8. Supply frequency is 50/60 Hz (standard industrial)

If your application passes all eight checks, the GV2ME10 is a confirmed fit. Check current stock and pricing at LeadTime.ca, or contact the team directly if you need to verify a specific accessory or confirm lead time for your build schedule.

Frequently Asked Questions

Is the GV2ME10 a contactor, a circuit breaker, or something else entirely?

It is classified as a manual motor starter and motor circuit protector — a single enclosure that performs the functions of a contactor (isolation), a thermal overload relay (motor protection), and a circuit breaker (fault interruption). This consolidation is why it replaces a three-piece combination in low-horsepower applications and saves 3 to 4 inches of DIN rail space in compact panels.

How do I stop the GV2ME10 from nuisance-tripping during motor startup?

The thermal trip element is intentionally time-delayed to tolerate motor inrush current during startup. If nuisance tripping occurs, the most likely cause is that the adjustment dial is set below the motor's actual full-load current. Locate the motor nameplate FLC, confirm the dial is set to that value, and if tripping continues, increase the setting by 0.5A and retest. Do not attempt to adjust the magnetic trip element — it is factory-fixed at 78A and is not user-serviceable.

Can I retrofit a GV2ME10 directly into a panel that currently has a legacy GV2M10?

The GV2ME10 is the current TeSys Deca successor to the GV2M10, but physical dimensions, pushbutton style, and terminal layout may differ between generations. Before committing to a direct swap, request dimensional drawings for both units and compare panel hole patterns and DIN rail footprint. Do not assume dimensional interchangeability based on the similar part number root.

Can remote electrical trip capability be added to the GV2ME10 after installation?

Yes. A shunt trip coil attachment is available as a separate accessory and can be added to the GV2ME10 to enable remote electrical trip. This requires 24VDC auxiliary power. Contact LeadTime.ca or consult the Schneider Electric accessories catalog for the correct shunt trip accessory part number and wiring requirements for this model.

Is the GV2ME10 suitable for outdoor installation or washdown environments?

No, not without additional protection. The GV2ME10 carries an IP20/IK04 rating, which provides basic mechanical impact resistance and protection against finger contact with live parts, but does not protect against moisture, dust ingress, or direct exposure to weather. Outdoor or washdown installations require the GV2ME10 to be housed in an appropriately rated sealed enclosure. Ambient temperature must remain within the -20 to +60°C operating range.

What certifications does the GV2ME10 carry, and is it RoHS compliant?

The GV2ME10 carries CE, CSA, ATEX, DNV, and GL approvals and complies with EN/IEC 60947-2, EN/IEC 60947-4-1, and IEC 60529. It is confirmed RoHS compliant with no SVHC substances as of 15 January 2018. This certification portfolio supports use in a wide range of international OEM equipment builds without requiring alternate sourcing for different regional compliance requirements.

Why Order the GV2ME10 From LeadTime.ca

  • Verified Schneider Electric stock — reduces risk of receiving legacy GV2M10 in place of current TeSys Deca GV2ME10
  • Ships worldwide — no geographic restriction on sourcing, with global freight options for urgent replacement needs
  • Technical support available for sizing, accessory selection, and lead time confirmation before purchase commitment
  • Volume pricing available for OEM and repeat procurement — contact for current pricing on larger quantities
  • Access to related accessories including shunt trip coil attachments, terminal covers, and mounting hardware from the same order

GV2ME10 At-a-Glance Summary

  • Rated current: 4 to 6.3 A adjustable thermal trip — order this model only if motor FLC falls within this range
  • Rated voltage: 690VAC maximum — compatible with 480VAC and 575VAC North American three-phase supplies
  • 3-pole configuration for three-phase motors only — not suitable for single-phase applications
  • Breaking capacity: 50 kA at 500VAC under IEC 60947-2 — exceeds typical North American industrial fault current levels
  • Magnetic trip current: 78A fixed — provides instantaneous fault interruption without user adjustment
  • DIN rail mounting on 35mm rail, horizontal or vertical, in enclosure 1.77 x 3.08 x 3.5 inches
  • Operating temperature: -20 to +60°C — indoor panel installation required; IP20/IK04 rating
  • Service life: 100,000 manual cycles at rated load — approximately 9 years of typical daily operation
  • Approvals: CE, CSA, ATEX, DNV, GL, EAC — supports international OEM equipment certification
  • RoHS compliant, no SVHC substances — confirmed as of 15 January 2018; manufactured in France
  • Active catalog product — no discontinuation announced; specialist distributor stock available within 2 to 5 business days
