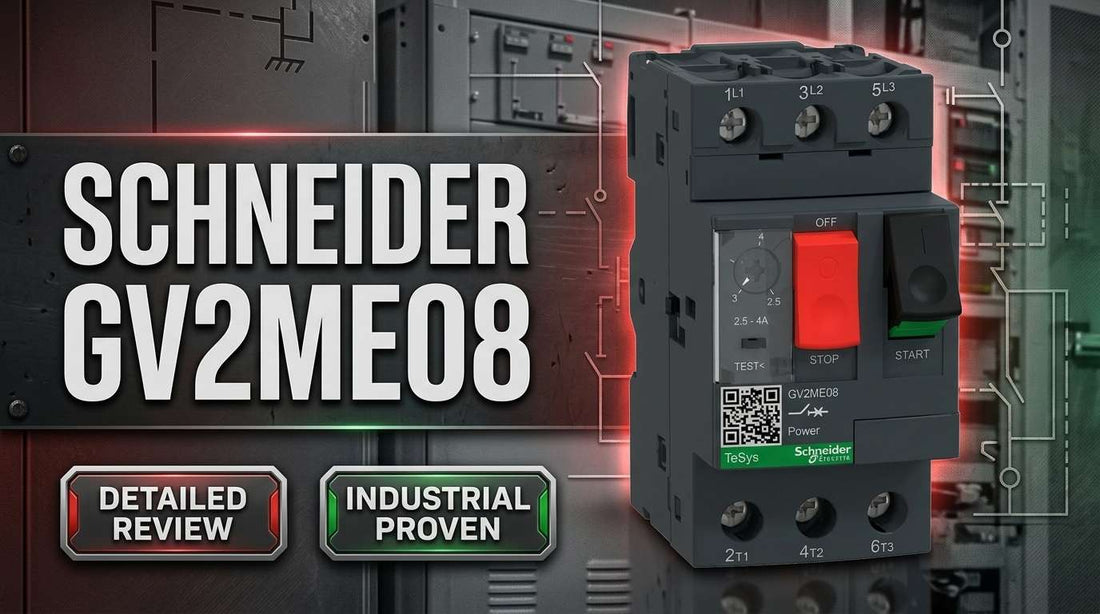

Schneider Electric GV2ME08 TeSys 3-pole thermal-magnetic motor circuit breaker mounted on DIN rail in industrial control panel

Schneider Electric GV2ME08 Motor Circuit Breaker: Specs, Pricing, and Selection Guide

When a schematic lands on your desk with GV2ME08 on the motor protection line, or you are retrofitting an aging starter panel and need a compact single-device solution, the question is not whether this breaker works — it is whether it matches your motor's full-load current and your circuit's control architecture. The Schneider Electric GV2ME08 is a 3-pole thermal-magnetic motor circuit breaker in the TeSys series, rated up to 690V AC with an adjustable thermal trip range of 2.5 to 4A, covering motors up to 3 hp. It replaces a separate overload relay and upstream breaker in one DIN rail-mounted unit.

If you have already confirmed this is the right part, check current pricing and availability for the GV2ME08 at LeadTime.ca — we ship worldwide.

Who Should Buy the GV2ME08 — and Who Should Not

The Schneider Electric GV2ME08 is the right choice for engineers and panel builders who need dual overload and short-circuit protection in a single compact device for 3-phase motor applications. This part is correct for your project if:

  • Your motor's full-load amperage falls within the 2.5 to 4A adjustable thermal trip range
  • Your circuit voltage does not exceed 690V AC (confirm compatibility if your system runs at 600V or 575V)
  • You require a 3-pole device for a 3-phase motor application
  • DIN rail mounting with approximately 45mm (1.77 inches) of panel width is available
  • Your installation uses screw clamp terminals compatible with 14 to 6 AWG wire
  • You need manual pushbutton control only — no undervoltage trip coil or remote shunt trip capability is required

If your application requires remote trip, undervoltage protection, or coil-operated control, the GV2ME08 is not the correct variant — you will need a coil-equipped model from the GV2 family. For motors exceeding 3 hp at 690V, the GV3 or GV4 series frame is the appropriate step up.

On this page:

What the GV2ME08 Actually Does in a Motor Control Circuit

The GV2ME08 performs two protection functions that motor circuits legally and practically require: sustained overload protection via a bimetal thermal strip, and instantaneous short-circuit protection via a solenoid electromagnet. The thermal element responds to current that exceeds the nameplate full-load amperage over time — the kind of gradual heating that happens when a pump runs against a closed valve or a conveyor jams slowly. The magnetic element responds to the sudden high-current surge of a bolted fault or severe short circuit, tripping at a fixed 51A regardless of the thermal adjustment setting.

What makes the GV2ME08 attractive in retrofit and new-build panels alike is that it consolidates these two protection layers into a single 45mm-wide DIN rail device with a manual pushbutton operator on the front face. There is no separate overload relay to mount, wire, and stock as a spare. The adjustable thermal trip knob on the front panel lets the installer set the trip threshold directly to the motor's full-load amperage — anywhere in the 2.5 to 4A range — without external test equipment. The device is rated for 3 hp motor loads at 690V AC with a 3 kA short-circuit breaking capacity per IEC 60947-2, which satisfies the protection requirements for the vast majority of small industrial motor applications without requiring additional upstream coordination hardware.

One constraint that buyers consistently miss: the GV2ME08 is a manual starter base model only. There is no coil socket and no provision for remote trip or undervoltage release. The pushbutton is the only operator. If the application demands that the panel be de-energized automatically on voltage loss, or that the motor be stopped remotely by a PLC output, this device is the wrong variant regardless of current rating.

Where the GV2ME08 Sits in a Typical Motor Control System

The GV2ME08 sits between the branch circuit power supply and the motor load, acting as the primary protection and manual control point for the branch. In most installations it functions either as a standalone starter for simple on-off motor control or as a protection device upstream of a contactor in more complex switching applications.

  • Upstream main breaker or panel disconnect supplies branch circuit power to the panel
  • GV2ME08 mounts on DIN rail and receives branch power at its line-side terminals (L1, L2, L3)
  • In direct-start applications, motor load connects directly to the load-side terminals (T1, T2, T3) — no contactor required
  • In contactor-based applications, load-side feeds the contactor coil circuit; the GV2ME08 provides protection upstream while the contactor handles switching duty
  • Motor connects downstream, with the GV2ME08 thermal trip set to motor nameplate full-load amperage

Typical Applications and Deployment Scenarios for the GV2ME08

The GV2ME08 is most at home protecting small to medium AC induction motors in stable, well-understood load environments where manual operation is acceptable. Pump stations are the most common deployment — a 1 to 3 hp centrifugal pump feeding a process or HVAC loop, controlled and protected by a single compact starter mounted inside a NEMA 12 enclosure.

Conveyor drive protection is another frequent use case, particularly in food and beverage plants where panel space is constrained and the Schneider TeSys family is already the standardized platform. A single GV2ME08 protecting a belt drive motor keeps spare parts inventory minimal and simplifies technician training.

HVAC fan motor applications — rooftop units, air handling units, exhaust fans — fit the GV2ME08 current range well, as many fractional to 3 hp fan motors fall within the 2.5 to 4A operating band. Water treatment facilities running small dosing pumps or agitator motors also benefit from the IP20/IK04 rated enclosure, which provides adequate protection for indoor dry control room environments.

Retrofit scenarios are where this device adds the most value per panel square inch: replacing an aging separate overload relay and breaker combination with a single GV2ME08 saves space, reduces wiring complexity, and standardizes the panel on a current TeSys family component with broad distributor availability.

Application Typical Deployment
Centrifugal pump (1-3 hp) Single GV2ME08 as standalone starter in NEMA 12 or equivalent enclosure
Conveyor belt drive GV2ME08 upstream of contactor in motor control center; thermal trip set to motor FLA
HVAC fan motor Direct-start application; GV2ME08 mounted on DIN rail inside rooftop unit control panel
Process agitator or mixer GV2ME08 protecting small agitator motor in food and beverage or water treatment panel
Retrofit motor starter upgrade Replaces separate overload relay and upstream breaker; consolidates into single 45mm device
Compressor motor protection GV2ME08 as primary protection with motor FLA verified against 2.5-4A range before installation

Key Specifications for Purchase Decision

Specification Value
Current Rating (Nominal) 4A (adjustable range 2.5–4A)
Voltage Rating 690V AC maximum
Number of Poles 3-pole (3-phase applications)
Motor Power Rating 3 hp at 690V rated voltage
Magnetic Trip (Short Circuit) 51A fixed (not adjustable)
Short-Circuit Breaking Capacity 3 kA at 690V AC, 50/60 Hz (IEC 60947-2)
DIN Rail Width 45mm (1.77 inches) — standard EN 60715
Operating Temperature -20°C to +60°C
IP / IK Protection Rating IP20 / IK04
Terminal Type / Wire Range Screw clamp / 14–6 AWG

Full technical specifications are available on the product page at LeadTime.ca.

GV2ME08 vs Other GV2 Variants: Which Current Range Do You Need?

The GV2ME family is a range of manual motor circuit breakers in the same TeSys platform, differentiated primarily by their adjustable thermal trip current range. The GV2ME08 covers the 2.5 to 4A band. If your motor's full-load amperage falls outside that range, you need a different suffix in the GV2ME line — not a different series.

Model Thermal Trip Range Typical Motor Size Coil / Remote Trip
GV2ME08 2.5–4A Up to 3 hp at 690V Manual only — no coil
GV2ME16 9–14A Larger 3-phase motors Manual only — no coil
GV2ME32 24–32A Higher-power 3-phase motors Manual only — no coil
GV2ME40 30–40A High-current 3-phase motors Manual only — no coil
GV3 / GV4 Series Beyond GV2ME range Motors exceeding 3 hp Larger frame; different series

If your motor's full-load current exceeds 4A, the GV2ME08 cannot be adjusted to protect it correctly — select the GV2ME16 or the appropriate higher-range variant before ordering. Check current availability of the GV2ME08 and related variants at LeadTime.ca.

Expert Verdict: When This Part Earns Its Place and When It Does Not

The Schneider Electric GV2ME08 delivers genuine value in the specific scenario it was built for: a small 3-phase motor — pump, fan, conveyor, compressor — running in a stable load environment where a technician operates it manually and thermal-magnetic protection is all the application demands. The combination of a 3 kA breaking capacity, a fully adjustable 2.5 to 4A thermal trip range, and a 45mm DIN rail footprint means it fits real panels, protects real motors, and replaces two-component combinations without adding wiring complexity. For panel builders standardizing on the Schneider TeSys ecosystem, it is an efficient inventory choice: one spare covers multiple motor protection points within the current range.

The honest limits matter, though. The GV2ME08 has no coil socket and no provision for remote trip — if your control system needs to de-energize the motor via a PLC discrete output or a safety relay, this base model will not support that function and a coil-equipped GV2 variant is the correct selection. Similarly, any motor whose nameplate full-load amperage sits outside the 2.5 to 4A window makes this device the wrong tool regardless of other merits: the GV2ME16 covers the 9 to 14A band, and motors above 3 hp at 690V belong in the GV3 or GV4 frame. The IP20 rating also means this device requires a properly sealed enclosure — it is not suitable for open or wet environments on its own.

From a procurement standpoint, the GV2ME08 is broadly available through major industrial distributors with typical lead times of one to five business days from stock for standard quantities. Buying through a specialist distributor rather than a generic electronics channel matters most when you are not completely certain of variant selection — the difference between GV2ME08 and a coil-equipped model is not obvious from a part number alone, and a wrong-part return adds days to an installation schedule. View current pricing and confirm stock status for the GV2ME08 at LeadTime.ca, where technical staff can verify the correct variant for your motor before the order ships.

For volume pricing, project-quantity quotes, or to confirm lead time before committing to a panel build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the GV2ME08

Because community forum data for the GV2ME08 specifically is sparse, the most useful guidance comes from the patterns that technical specialists and distributor support teams see repeatedly when this part is ordered incorrectly. These are not theoretical risks — they are the ordering mistakes that result in return logistics, installation delays, and re-procurement cycles that no project schedule absorbs gracefully.

The single most consequential mistake engineers make when specifying the GV2ME08 is confusing the manual starter base model with a coil-operated variant. The distinction is not always obvious from a schematic callout or an equipment list. If the original design specifies GV2ME08 but the actual installation requires an undervoltage release or remote trip capability — common in safety-critical or PLC-controlled motor circuits — the device arrives with no coil socket and the installation stops. Verifying the control architecture requirement before ordering is the check that prevents this. If there is any uncertainty about whether the application needs remote control capability, the correct action is to contact a specialist distributor and confirm before purchasing, not after.

The second recurring issue involves thermal trip setting after installation. The GV2ME08's front-panel adjustment knob covers the 2.5 to 4A range continuously, and the correct reference is always the motor nameplate full-load amperage — not the wire size, not the upstream breaker rating, not a rule-of-thumb estimate. Setting the knob too low produces nuisance tripping during normal motor starts; setting it too high leaves the motor unprotected during a genuine sustained overload. Both errors look like device problems but are installation procedure errors. The fixed 51A magnetic trip threshold provides short-circuit protection independent of the thermal setting, but thermal protection requires the knob to be aligned precisely with the motor's nameplate FLA. Documenting the setting in the panel logbook after commissioning is standard practice and prevents re-adjustment confusion during future maintenance. When community feedback is limited for a specific model, the experience of a specialist distributor's application team becomes the practical substitute — LeadTime.ca's team is available to walk through the correct variant selection and setting procedure before your order ships.

Wiring and Installation Overview for the GV2ME08

  • Mount on standard EN 60715 DIN rail with a minimum 45mm clear width; vertical and horizontal orientations are both supported — confirm panel layout allows this before ordering
  • Line-side terminals (L1, L2, L3) accept incoming 3-phase branch circuit power; load-side terminals (T1, T2, T3) connect to motor or downstream contactor — screw clamp terminals accept 14 to 6 AWG conductors
  • Before energizing, set the thermal trip adjustment knob to the motor nameplate full-load amperage within the 2.5 to 4A range; turn slowly and verify visual alignment with the scale markings
  • Confirm the circuit voltage is compatible with the 690V AC maximum rating; operation on lower-voltage circuits (600V, 575V) requires explicit verification against the manufacturer's voltage deration guidance
  • Test the pushbutton operator manually with no load before final energization to confirm the mechanism actuates and returns correctly; document the thermal trip setting in the panel record before closing the enclosure

Full wiring diagrams, terminal torque specifications, and step-by-step installation procedures are available in the official Schneider Electric GV2ME08 installation manual. Engineers requiring detailed wiring guidance should reference manufacturer documentation directly.

Wrong-Part Prevention Checklist Before Ordering the GV2ME08

Before placing your order, work through each item on this checklist. Every point corresponds to a documented ordering mistake that results in returns, delays, or misapplied protection:

  1. Verify motor full-load current against 2.5-4A range; if outside, select different model
  2. Confirm circuit voltage matches 690V AC rating; do not force into 480V or 575V applications without explicit voltage compatibility verification
  3. Check DIN rail space: device requires approximately 1.77 inches (45mm) width
  4. Confirm screw terminal wire gauge compatibility (typical for this frame: 14-6 AWG)
  5. Verify you do NOT need coil-operated trip (undervoltage or remote trip)—this is a manual starter only; no coil socket
  6. Check that your application does not require integrated disconnect isolation (GV2ME08 is protection device only; does not include isolation switch)

If any item on this checklist raises a question, resolve it before committing to the order. Contact the LeadTime.ca team to confirm the correct variant for your application — or view the product page for full technical documentation and current stock status.

Frequently Asked Questions

Do I need a separate overload relay if I install the GV2ME08?

No. The GV2ME08 integrates both thermal overload protection (bimetal strip, adjustable 2.5 to 4A) and short-circuit protection (solenoid magnetic trip, fixed 51A) in a single device. Adding a separate overload relay downstream would be redundant and is not required for standard motor protection in this current range.

Can the GV2ME08 be used on a 600V or 575V circuit?

The GV2ME08 is rated for 690V AC maximum. Operating it on a 600V or 575V circuit is not automatically guaranteed — trip times, breaking capacity, and performance characteristics are specified at the rated voltage. Consult the official Schneider Electric documentation or contact a technical specialist to verify voltage compatibility for your specific circuit before installation.

What is the difference between the GV2ME08 and a standard circuit breaker used for motor protection?

A standard circuit breaker provides short-circuit protection but is not calibrated for the thermal characteristics of motor loads — it will not protect a motor correctly against sustained overloads that fall below short-circuit thresholds. The GV2ME08 combines a thermal trip calibrated to motor full-load current (adjustable to motor nameplate FLA) with magnetic short-circuit protection in one device, making it a motor-specific protection solution rather than a generic branch circuit breaker.

How do I confirm my motor current is within the GV2ME08's 2.5 to 4A range before ordering?

Read the motor nameplate full-load amperage (FLA) directly — this is the rated current the motor draws at full mechanical load under normal operating conditions. If the nameplate FLA falls between 2.5A and 4A, the GV2ME08 is within range. If the FLA is below 2.5A or above 4A, select the appropriate GV2ME variant for that current band.

Is the GV2ME08 rated for both UL and IEC applications?

Yes. The GV2ME08 carries UL recognition under File No. E164864 NLRV (UL 60947-4-1) for US and Canadian applications, and is compliant with IEC 60947-4-1, IEC 60947-2, and IEC 60947-1 for international installations. It also carries VDE 0660 compliance and CB Scheme listing for broader international application.

What does the GV2ME08 do when it trips — does it require manual reset?

Yes. The GV2ME08 requires manual pushbutton reset after a trip event. This is intentional — it prevents automatic motor restart after a fault, which is a safety requirement in most motor protection standards. After a trip, the operator must investigate the cause, address the fault condition, and manually actuate the pushbutton to reset the device before the motor can be restarted.

Why Order the GV2ME08 From LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the GV2ME08 and related TeSys family variants to customers worldwide, not limited to any single region
  • Variant confirmation before shipment — technical staff can verify that GV2ME08 is the correct current-range variant for your motor before the order is placed, preventing wrong-part returns
  • Volume and project pricing — contact directly for quotes on panel build quantities or multi-unit orders
  • Hard-to-find and short lead time parts — access to inventory channels that reduce waiting when stock at standard distributors is constrained

GV2ME08 At-a-Glance Summary

  • 3-pole thermal-magnetic motor circuit breaker in the Schneider Electric TeSys series
  • Adjustable thermal trip range: 2.5 to 4A — must match motor nameplate full-load amperage
  • Fixed magnetic (short-circuit) trip: 51A
  • Short-circuit breaking capacity: 3 kA at 690V AC, 50/60 Hz per IEC 60947-2
  • Maximum voltage rating: 690V AC — verify compatibility at 600V or 575V circuits before installation
  • Motor power rating: up to 3 hp at 690V rated voltage
  • DIN rail width: 45mm (1.77 inches) on standard EN 60715 rail
  • Terminal type: screw clamp, 14 to 6 AWG wire range
  • Protection ratings: IP20 frontal, IK04 mechanical impact
  • Operating temperature: -20°C to +60°C
  • Manual pushbutton operator only — no coil socket, no remote trip, no undervoltage release
  • Certifications: UL 60947-4-1 (File E164864), IEC 60947-1/2/4-1, VDE 0660, CB Scheme, RoHS compliant
  • Typical distributor lead time: 1 to 5 business days from stock for standard quantities
