Buy Schneider Electric GV2ME16 – Product Overview

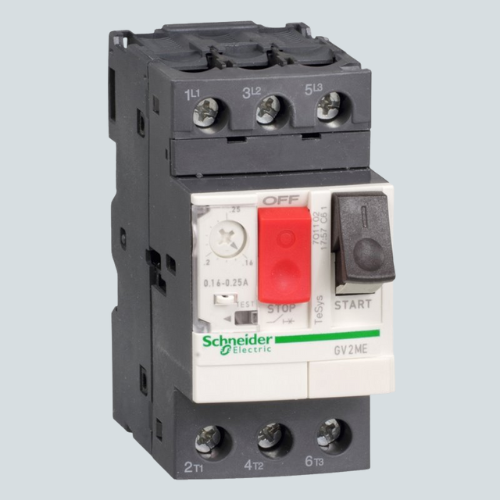

The Schneider Electric GV2ME16 is an enclosed motor circuit breaker designed for reliable motor protection in industrial automation applications. This thermal-magnetic trip unit features DIN rail mounting with flexible vertical and horizontal positioning, making it ideal for control panels and motor starter installations worldwide. With a rated current of 9–14 A and voltage rating up to 690 V AC, the GV2ME16 delivers robust protection for three-phase motors up to 10 horsepower. The device includes pushbutton control, screw clamp terminals, and an operating rate of 25 cycles per hour, ensuring consistent performance in demanding industrial environments across North America, Europe, Asia, and beyond.
Schneider Electric GV2ME16 Features & Benefits
This motor circuit breaker combines thermal-magnetic trip technology with a breaking capacity of 100 kA at 230/240 V AC, providing superior short-circuit protection. The adjustable thermal protection range of 9–14 A allows precise motor current tuning, while the 170 A magnetic tripping current ensures rapid fault response. Additional highlights include IK04 and IP20 protection rating per IEC 60529, low power dissipation of 2.5 W per pole, and mechanical durability rated at 100,000 cycles. The compact footprint (45 mm × 89 mm × 78.2 mm) and lightweight design (0.26 kg) simplify installation in space-constrained panels. Optional under-voltage and shunt trip modules enable remote control and enhanced safety features for factory automation systems.
Schneider Electric GV2ME16 Specifications & Datasheet
| Specification | Value |
|---|---|
| Product Range | TeSys GV2 |
| Current Rating | 14 A |
| Voltage Rating | 690 V AC |
| Power Rating | 10 hp / 11 kW at 690 V |
| Poles | 3 Pole |
| Breaking Capacity | 100 kA at 230/240 V AC |
| Mounting | DIN Rail |
| Operating Temperature | −20 to 60°C |
Access the official Schneider Electric GV2ME16 technical datasheet to ensure full compatibility before installation and configuration of your industrial motor control system.
Schneider Electric GV2ME16 Applications in Industrial Automation
The GV2ME16 is widely deployed in industrial automation, process control, and machine automation environments worldwide. Common applications include production line systems, factory control panels, motor drive protection, and motion control installations. Its reliable thermal-magnetic protection makes it suitable for continuous-duty motors in manufacturing, packaging, pumping, and conveyor systems. The device conforms to international standards including EN 60204, IEC 60947-1, IEC 60947-2, and IEC 60947-4-1, ensuring compliance with global automation requirements and safety regulations across North American, European, and Asian industrial markets.
Schneider Electric GV2ME16 Price & Worldwide Availability
View Schneider Electric GV2ME16 pricing and availability online with global dispatch. LeadTime.ca provides real-time stock status and bulk order options for customers throughout Canada, the United States, and international markets. Request a quote today for volume pricing and fast worldwide shipping of this genuine OEM motor circuit breaker.
Why Buy Schneider Electric Products from LeadTime.ca
Every product on LeadTime.ca is genuine, authentic original OEM equipment, factory-tested and sourced from verified suppliers. As a worldwide industrial parts distributor, we specialize in export-ready automation components with fast worldwide shipping across North America, Europe, Asia, and international industrial markets. Our commitment to quality and reliability ensures your motor protection systems operate safely and efficiently in any industrial setting.
