SINAMICS G120 vs G120C vs G120P: Which Siemens VFD Is Right?

By Abdullah Zahid
21 min read

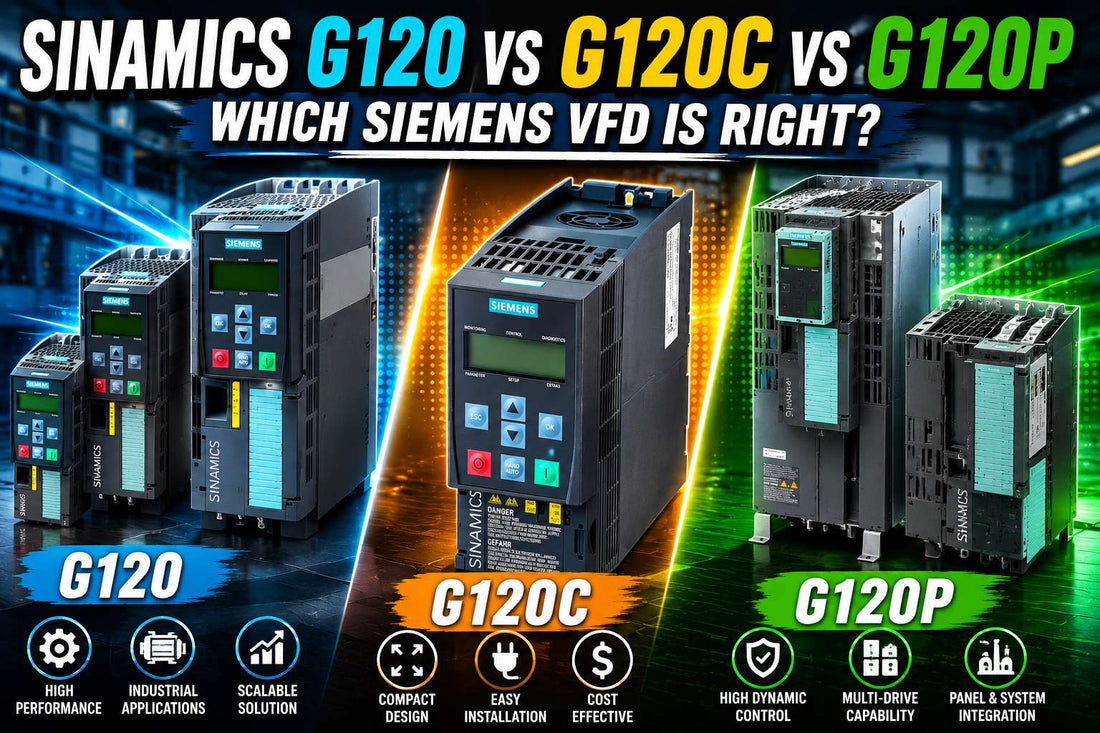

Siemens SINAMICS G120 G120C G120P variable frequency drives side-by-side comparison for industrial pump fan and machine control applications

SINAMICS G120 vs G120C vs G120P VFD Comparison Guide: How to Choose the Right Siemens Drive for Your Application

Controls engineers and procurement specialists specifying a Siemens variable frequency drive often land on the same shortlist: the SINAMICS G120 modular inverter drive system, the SINAMICS G120C compact inverters, or the SINAMICS G120P drives optimized for pumps and fans. All three belong to the same SINAMICS G-series family, all three can act as fieldbus slaves to SIMATIC S7-series PLCs, and all three are sold through the same distribution channels — which is exactly why choosing the wrong one is so easy to do. The decision hinges not on brand or generation but on application type, required communications depth, safety integration, cabinet footprint, and whether your load profile is general-purpose or pump/fan-centric.

If you have already confirmed which series fits your project and need current pricing or stock status, check availability at LeadTime.ca — we source SINAMICS G-series drives and ship worldwide.

Which SINAMICS VFD Belongs in Your System?

This comparison is most useful to engineers who are already committed to the SINAMICS G-family and need to lock in the right series before specifying catalog numbers or issuing an RFQ. Use the criteria below to qualify your selection before reading further.

The SINAMICS G120 modular inverter drive system is the right starting point if your project checks these boxes:

  • Your application involves multiple drive axes, diverse load types, or future expansion that requires mix-and-match control unit and power module combinations.
  • Advanced fieldbus integration — PROFINET, PROFIBUS, or similar — is central to your PLC architecture, and you need a wider range of communications options via control unit variants.
  • Integrated safety functions such as Safe Torque Off are a hard requirement and must be selected at the control unit level.
  • Your voltage supply falls outside standard low-voltage ranges, or you need coverage across 200 V, 400 V, and 690 V networks within a common platform.
  • You are standardizing spare parts across multiple machines and want the ability to swap control units and power modules independently.

The SINAMICS G120C compact inverters are the right choice when:

  • You are specifying a single drive or a small number of drives in a tight IP20 control cabinet where footprint matters.
  • Control requirements are straightforward — basic start/stop, analog speed reference, and limited fieldbus — and do not justify the complexity of a modular two-box system.
  • Motor power sits comfortably within the compact frame size range that G120C covers.
  • Installation simplicity and lower per-drive cost are primary drivers on the project.

The SINAMICS G120P drives are worth specifying when:

  • Your project is dominated by centrifugal pump or fan loads in a process plant, water/wastewater facility, or commercial HVAC system.
  • Energy efficiency optimization and pump/fan-specific application functions reduce engineering effort on common load types.
  • Medium to large pump or fan duties justify a drive series aligned specifically with building or process automation standards.

If none of these scenarios match clearly, do not default to the series with the lowest unit cost. Selecting a drive purely on initial hardware cost or a single nameplate rating — without confirming safety, communications, environment, application functions, and long-term support — is the most common and most costly mistake in SINAMICS G-family specification.

On this page:

Where G120, G120C and G120P Sit in the SINAMICS Portfolio

All three series are part of Siemens' SINAMICS G-series low-voltage inverter family, positioned for AC motor control in industrial and commercial applications. They share a common engineering ecosystem — commissioning through STARTER software or SINAMICS Startdrive within TIA Portal, integration with SIMATIC S7-series PLCs, and a common parameter structure — which is why engineers frequently compare them at the specification stage.

Within that family, the positioning is distinct. The SINAMICS G120 modular inverter drive system is the general-purpose, high-flexibility platform. Its modular architecture means a control unit and power module are selected and combined separately, giving engineers precise control over functionality, communications, and safety at each drive point. This is the platform Siemens documentation references when discussing multi-axis machines, advanced fieldbus configurations, and integrated safety across a machine network.

The SINAMICS G120C compact inverters occupy the simpler, more economical end of the family. By combining the control unit and power module functions into a single IP20 device, the G120C trades the configuration flexibility of G120 for a smaller footprint, simpler wiring, and a lower per-unit cost. It is documented by Siemens as a control cabinet-mounted compact inverter for controlling asynchronous motors over a defined power range, with exact limits depending on the specific variant ordered.

The SINAMICS G120P drives are the application-optimized member of this comparison. Siemens positions the G120P for pump and fan duty in process plants, water and wastewater facilities, and building HVAC systems. Its application-focused functions are designed to reduce engineering time on common pump/fan load types. The G120P sits between the general-purpose G-series drives and more HVAC-specific product lines, covering medium to larger pump and fan duties where application-specific features deliver measurable value.

Modular vs Compact vs Application-Optimized: Architecture Differences Explained

The single most important structural difference in this comparison is architecture, because it determines every downstream decision: cabinet layout, wiring complexity, spares strategy, commissioning approach, and long-term flexibility.

The SINAMICS G120 modular inverter drive system uses a two-box design. A control unit — selected from multiple variants that differ in communications interfaces, I/O count, and safety functions — is paired with a power module appropriate for the motor's frame size and power rating. This separation is the source of G120's flexibility. Engineers specifying a multi-axis packaging machine can assign different control unit types to axes with different requirements, stock control units and power modules independently as spares, and upgrade one component without replacing the other. The tradeoff is larger panel footprint, more wiring between components, and greater commissioning complexity compared with a single integrated unit.

The SINAMICS G120C compact inverters eliminate this two-box separation. Control unit and power module functions are combined in one IP20 control cabinet device. Onboard I/O and basic fieldbus options — including integrated USS, Modbus RTU, and selected PROFINET variants — are built in, reducing the number of components a technician needs to mount, wire, and configure. For a single pump, fan, conveyor, or mixer in a tight panel, this simplicity is a genuine advantage. The constraint is that the G120C's options are more fixed: where G120 allows selecting different control unit types for different capability levels, G120C offers what the integrated unit provides.

The SINAMICS G120P drives take a different approach to architecture: rather than optimizing for modularity or compactness, the design emphasis is on application alignment. The G120P includes functions tailored to pump and fan loads — the kind of parameter sets and control logic that reduce engineering time when the load type is known in advance. Mounting and enclosure arrangements depend on the specific G120P variant selected, and for larger process duties the G120P can be panel-mounted within appropriate enclosures. Engineers who have previously specified a G120 for a pump-heavy plant and then moved to G120P often report that the application-specific starting points reduce setup time meaningfully.

Power Range and Voltage Coverage Across the Three Series

Power range and voltage coverage are the first hard filters in any drive selection, and all three series handle these differently. Exact ratings always depend on the specific ordering code and variant — the guidance here is structural, and engineers must validate against the current Siemens catalog for their specific application.

The SINAMICS G120 modular inverter drive system covers the broadest range. Siemens documents it as available in variants for 200 V, 400 V, and 690 V supply networks, which supports applications from small machine axes up to higher-power industrial drives. The power module selected determines the motor power ceiling for a given installation, and because power modules are separable from control units, the system can be scaled by changing one component rather than replacing the entire drive.

The SINAMICS G120C compact inverters are constrained by their integrated design. The combination of CU and PM functions in one compact body limits the frame sizes available, which translates to a smaller to mid-range motor power coverage. For the majority of single-drive control cabinet applications — fans, small pumps, conveyors — this range is adequate. Engineers specifying larger motors or unusual supply voltages need to verify that their specific requirement falls within G120C's compact frame range before committing.

The SINAMICS G120P drives cover medium to larger pump and fan motors. As an application-optimized series, the G120P's power coverage is aligned with the sizes of centrifugal pumps and process fans commonly found in water treatment plants, process industries, and large HVAC systems. Exact ratings and voltage variants must be confirmed from the current Siemens G120P catalog, particularly for installations at higher supply voltages or with specific overload requirements.

Fieldbus, Networking and PLC Integration Compared

Siemens manuals confirm that the SINAMICS G120, G120C, and G120P can all operate as fieldbus slaves — including PROFIBUS — controlled by SIMATIC S7-300/400 PLCs, with dedicated application examples and parameter sets documented for each series. The key difference is the depth of fieldbus options and whether they are onboard or require specific control unit selection.

For the SINAMICS G120 modular inverter drive system, fieldbus capability is a function of which control unit is selected. Different control unit variants support different fieldbus protocols and onboard I/O configurations, which is a primary reason engineers standardize on G120 for complex multi-axis machines: each drive point can be configured with exactly the communications interface the PLC architecture requires. The result is richer diagnostic data, tighter PLC program integration, and more flexible network topology.

The SINAMICS G120C compact inverters offer integrated basic fieldbus — USS, Modbus RTU, and selected PROFINET variants are built into the compact unit without requiring a separate module. For applications where the PLC integration requirement is modest — speed reference over fieldbus, basic status feedback, fault acknowledgment — this is sufficient. Engineers who need richer diagnostics, multiple parallel fieldbus protocols, or extended I/O beyond what the onboard G120C provides should evaluate whether G120 better fits the network architecture before committing.

The SINAMICS G120P drives provide fieldbus support aligned with process and building automation requirements. Specific module availability and protocol support depend on the G120P variant ordered, and engineers integrating G120P units into plant-level PROFINET or building automation networks should confirm module availability for their chosen catalog number before finalizing the design.

Typical Applications and Deployment Scenarios

Water and wastewater facilities represent one of the clearest use cases for the SINAMICS G120P drives. Variable-speed centrifugal pump control, energy optimization across multiple duty points, and integration into plant-level SCADA systems are all scenarios where the G120P's application-focused functions reduce setup time and deliver measurable energy savings compared with a general-purpose drive configured for the same load.

General manufacturing and material handling applications — conveyors, mixers, winders, and multi-axis machine tools — are where the SINAMICS G120 modular inverter drive system earns its position as the default choice for integrators working with SIMATIC S7 PLCs. The ability to select different control units for axes with different safety or fieldbus requirements, combined with independent spare management, makes G120 the practical standard for complex machines where downtime costs are high.

Food and beverage facilities frequently combine both patterns: G120 for production line drives requiring safety integration and precise PLC control, and G120C for ancillary duties such as exhaust fans, cooling pumps, and utility conveyors where a compact, economical integrated unit is appropriate and advanced features are not required.

Commercial and industrial HVAC applications — air-handling units, chilled water pumps, cooling tower fans — are natural territory for the SINAMICS G120P drives where pump/fan loads dominate and energy efficiency is a primary operating metric. Where power is modest and cost or cabinet space is a major constraint, G120C is a secondary option worth evaluating for smaller AHU fan duties.

OEM machine builders shipping equipment globally benefit from the SINAMICS G120 modular inverter drive system's multi-voltage coverage across 200 V, 400 V, and 690 V networks. A common control unit architecture and consistent TIA Portal commissioning approach means the same engineering practices transfer across regional installations without redesigning the drive system.

Application Typical Deployment
Centrifugal pump, water/wastewater SINAMICS G120P — pump-optimized functions, energy savings, process integration
Multi-axis packaging or material handling machine SINAMICS G120 — modular CU/PM, advanced PROFINET, integrated safety
Single pump or fan in compact control cabinet SINAMICS G120C — integrated CU/PM, small footprint, basic fieldbus
Commercial HVAC air-handling unit SINAMICS G120P (primary) or G120C (smaller duties, cost-constrained)
OEM conveyor or mixer, global shipping SINAMICS G120 — multi-voltage, modular spares, consistent engineering toolchain
Simple fan or blower variable-speed upgrade SINAMICS G120C — compact, straightforward commissioning, minimal integration

Head-to-Head Specification Tables

Attribute SINAMICS G120 SINAMICS G120C SINAMICS G120P
Architecture Modular two-box: separate Control Unit (CU) and Power Module (PM) Compact integrated CU+PM in one device Application-focused unit for pump/fan duty
Mounting / enclosure Control cabinet, modular layout Control cabinet, IP20 compact footprint Control cabinet or panel; depends on variant
Voltage variants 200 V, 400 V, 690 V networks (per Siemens documentation) Low-voltage 3-phase; exact variants must be confirmed per catalog Process-oriented voltage ranges; confirm per catalog
Motor power range (qualitative) Broad range from small to higher powers, depending on PM selected Small to mid-range motors; limited by compact frame sizes Medium to larger pump/fan motors; exact ratings variant-dependent
Fieldbus options Wider range via selectable CU variants; PROFIBUS, PROFINET, others Integrated USS, Modbus RTU, selected PROFINET variants Aligned with process/building automation; confirm modules per variant
Local I/O Flexible digital and analog I/O depending on CU selected Fixed onboard I/O plus fieldbus I/O tailored for pump/fan applications; details variant-dependent
Safety functions Integrated safety including Safe Torque Off on selected CU/PM combinations Safety options more constrained than modular G120 Confirm safety function availability per variant
Spares strategy CUs and PMs stocked and exchanged separately Single spare unit per rating Spares focused on critical pump/fan duty points
Engineering tools STARTER and/or SINAMICS Startdrive in TIA Portal STARTER and/or SINAMICS Startdrive in TIA Portal STARTER and/or SINAMICS Startdrive in TIA Portal
Typical application focus General-purpose industrial drives, multi-motor systems, OEM machines Small to mid-range single drives in control cabinets Pump/fan duty in process plants and HVAC systems

Full technical specifications and ordering codes are available on the product pages at LeadTime.ca — exact power, voltage, and fieldbus data must be confirmed per the specific variant catalog number.

Decision Scenario Recommended Series Primary Rationale
Small pump, basic control, no advanced fieldbus SINAMICS G120C Compact, economical integrated unit; no need for modular architecture
Multi-motor machine with PROFINET and safety interlocks SINAMICS G120 Modular CU/PM supports richer communications and integrated safety
Large centrifugal pump or process fan, energy focus SINAMICS G120P Application-optimized functions for pump/fan loads; process integration
Retrofit into plant standardized on G120; small auxiliary pump G120 or G120C (scenario-dependent) Match existing toolchain (G120) or reduce cost for standalone auxiliary (G120C)
Building HVAC AHU, multiple fans SINAMICS G120P (primary) or G120C G120P fits pump/fan HVAC focus; G120C where power and cost constrain
OEM machine shipped globally, standardized parts SINAMICS G120 Multi-voltage coverage (200 V, 400 V, 690 V) and modular spares
Simple fan upgrade, minimal integration SINAMICS G120C Compact, straightforward wiring and parameterization

For help translating your scenario into a specific SINAMICS catalog number, check current availability at LeadTime.ca or contact the team directly — we ship worldwide.

Expert Verdict: Which Drive Wins in Which Scenario

The practical starting point for any SINAMICS G-family selection is to classify the drive requirement by application complexity and load type — not by initial unit cost or a single nameplate rating. The SINAMICS G120 modular inverter drive system is the right platform for engineers building or upgrading machines with multiple drive axes, tight PLC integration via PROFINET or PROFIBUS, safety interlock requirements, and the need for independent spares management across a common engineering toolchain. Its documented availability in 200 V, 400 V, and 690 V variants makes it the natural choice for OEM equipment shipped globally, where regional supply differences would otherwise force a redesign. The modular CU and PM architecture means that a controls engineer can assign exactly the right control unit — with the right fieldbus interface and safety level — to each axis on the machine, without carrying capability overhead they do not need.

The SINAMICS G120C compact inverters serve a genuinely different buyer profile: the engineer or technician who needs one or a few drives in a tight control cabinet, with basic fieldbus, built-in I/O, and a simpler commissioning experience. Where G120C falls short is real and worth stating clearly. If your application requires advanced safety functions beyond what the integrated unit provides, extended fieldbus options, or motor power outside the compact frame range, G120C is not the right part — and choosing it to save cost at point of purchase will cost more in redesign later. In those cases, the SINAMICS G120 is the correct answer. For pump and fan-dominated process or HVAC applications where energy optimization and application-specific parameter sets reduce engineering time, the SINAMICS G120P drives are worth specifying as the primary standard rather than adapting a general-purpose drive to the same duty.

From a procurement standpoint, all three series involve lead time and variant confirmation that rewards early engagement with a knowledgeable distributor. Exact power, voltage, safety, and fieldbus capabilities vary by ordering code, and the current Siemens catalog is the definitive reference — not general-purpose comparison articles. LeadTime.ca works with controls engineers and industrial buyers to cross-reference SINAMICS G120, G120C, and G120P catalog numbers against existing PLC and network architectures, confirm current stock, and coordinate sourcing for project quantities. Check current pricing and availability at LeadTime.ca — we source SINAMICS G-series drives and ship worldwide.

For volume requirements or project-level sourcing support, contact the LeadTime.ca team directly — we work with buyers worldwide and can help confirm lead time before you commit to a build schedule.

What Engineers in the Field Are Saying About the SINAMICS G120 Family

Among systems integrators who regularly work with SIMATIC S7 PLCs and PROFINET networks, the SINAMICS G120 modular inverter drive system carries a strong reputation as the reliable default for complex machine applications. The modular CU and PM architecture is consistently cited as an advantage for spare parts management — stocking one set of control units and a range of power modules across a machine fleet is a practical strategy that experienced Siemens integrators adopt early. The complaints that surface in technical communities are equally consistent: the two-box design demands more panel space and more wiring than an integrated unit, and the selection and commissioning process is more involved than engineers expect when coming from simpler drive families.

The SINAMICS G120C compact inverters attract a different kind of feedback. Engineers and technicians who have used them for single-drive cabinet applications — small pumps, utility fans, standalone conveyors — commonly describe the installation experience as straightforward, with the integrated I/O and basic fieldbus meeting requirements without the overhead of a modular system. The recurring concern in community discussions is capability boundary: some users assume that because G120C belongs to the same family as G120, it offers similar depth of fieldbus and safety options. It does not, and engineers who discover this after panel build are consistently the ones flagging it as a selection mistake to avoid. The sentiment is not that G120C is a lesser product — it is that it is the right product for a specific range of applications and the wrong product when those boundaries are exceeded.

The SINAMICS G120P drives appear less frequently in general machine-builder communities and more often in process plant, water/wastewater, and HVAC discussions. Where it does appear, the feedback from users working in those environments is positive: the application-specific parameter sets and pump/fan functions reduce the setup effort that would otherwise be spent adapting a general-purpose drive to a well-understood load type. The criticism most often voiced is familiarity — engineers primarily working on discrete machinery may not encounter G120P in their day-to-day projects, and the catalog structure for pump/fan variants can be less intuitive to navigate without experience in process automation. This is a sourcing and specification challenge as much as a technical one: working with a distributor that understands the G120P variant structure reduces the risk of ordering an incorrect or incompatible catalog number. Comparing notes across communities, the overall picture is that all three series are reliable platforms, and the most common regrets come from mismatching the series to the application rather than from product quality.

Installation, Wiring and Cabinet Considerations

  • The SINAMICS G120 modular inverter drive system requires panel space for both the control unit and the power module as separate components, plus interconnecting cables between them — plan cabinet layout with this footprint in mind before finalizing the enclosure design.
  • The SINAMICS G120C compact inverters are IP20 devices designed for control cabinet mounting; their integrated design minimizes the wiring between CU and PM but does not eliminate the need for line reactors, EMC filters, and braking resistors where Siemens documentation requires them for the specific variant and motor cable length.
  • Motor cable length limits, EMC requirements, and line reactor specifications vary by series and frame size — always review the relevant Siemens technical documentation for the specific ordering code before finalizing cable routing and filter selection.
  • Safe Torque Off terminals and safety wiring on selected SINAMICS G120 CU/PM combinations are documented in the official Siemens safety and commissioning manuals; do not rely on general-purpose drive wiring practices for safety circuit terminations.
  • For all three series, confirm cooling requirements — including minimum clearances, airflow direction, and ambient temperature limits — per the variant-specific Siemens installation guide before committing to a panel layout.

Safety Functions and Diagnostics

Siemens product documentation confirms that integrated safety functions including Safe Torque Off are available on selected SINAMICS G120 control unit and power module combinations, with activation through specific terminals and configuration documented in the official safety and commissioning manuals. STO behavior, safety terminal wiring, and enable/disable logic are variant-specific — engineers designing safety circuits must consult the documentation for the exact CU/PM combination specified, not a general family overview.

For the SINAMICS G120C compact inverters, safety options are more constrained than in the modular G120 architecture. Applications requiring extended safety functions beyond what the integrated G120C unit provides should be evaluated against G120 modular combinations before finalizing the design. For the SINAMICS G120P drives, safety function availability depends on the specific variant ordered, and process plant applications where pump/fan duty interacts with process safety requirements should confirm safety coverage against the G120P documentation for the chosen catalog number.

Diagnostic LED indicators and fault codes are present across all three series, with similar conventions but some differences in how faults are displayed and cleared between modular and compact architectures. Engineers transitioning from G120 to G120C or G120P in a retrofit should not assume identical fault code behavior and should verify diagnostic procedures against the series-specific manuals.

Total Installed Cost and Lifecycle Considerations

The SINAMICS G120 modular inverter drive system carries a higher initial hardware cost than G120C for a given motor power rating, because separate control unit and power module purchases are required. The lifecycle advantage is in spares flexibility: stocking control units and power modules independently means that a failed control unit does not require replacing a serviceable power module, and vice versa. For plants with multiple drives of varied power ratings, this separation can reduce long-term spares cost meaningfully.

The SINAMICS G120C compact inverters typically represent a more economical per-drive cost for simpler applications, and the reduced wiring complexity lowers installation labor. The spares trade-off is straightforward: a single spare unit per rating is required, with no ability to exchange components independently. For facilities with large numbers of identical small drives, stocking one or two complete spare G120C units per frame size is a practical and cost-effective strategy.

The SINAMICS G120P drives carry a cost aligned with their specialized pump/fan features and the power ratings they cover. The lifecycle argument for G120P in pump/fan-heavy plants is energy efficiency: a drive optimized for centrifugal pump and fan load profiles, with application-specific control functions, can deliver operating cost reductions over a general-purpose drive running the same load. All three series share the STARTER and SINAMICS Startdrive toolchain in TIA Portal, which means engineers trained on one series can work across the family without retraining — an important consideration for facilities planning to standardize on a common engineering environment. Current pricing and availability for specific catalog numbers must be confirmed with a distributor; market conditions affect lead times and stock levels across all SINAMICS G-series variants.

Wrong-Drive Prevention Checklist

Before finalizing any SINAMICS G-family ordering number, verify each of the following against the current Siemens catalog and your project documentation:

  1. Confirm the motor power and supply voltage are within the selected series and variant's rating.
  2. Verify that the chosen drive supports the required fieldbus (e.g., PROFINET, PROFIBUS) and PLC integration level.
  3. Check whether integrated safety functions are needed and available in the chosen CU/PM or drive variant.
  4. Confirm control cabinet space, cooling and IP rating for the planned mounting arrangement.
  5. Ensure that application-specific functions (pump/fan control, HVAC features) are supported where required.
  6. Check lifecycle, firmware and tool compatibility (STARTER vs SINAMICS Startdrive in TIA Portal) for future expansion.
  7. Validate that accessory choices (IOP operator panel, reactors, filters, braking options) match the chosen series.

If any item on this checklist cannot be confirmed from documentation alone, contact the LeadTime.ca team before ordering — we help engineers resolve SINAMICS G-family specification questions and confirm compatibility with existing architectures worldwide.

Frequently Asked Questions

Can I replace a SINAMICS G120 with a G120C directly, without redesigning the panel?

No — treat a cross-series replacement as a design change, not a drop-in swap. Differences in terminal layout, parameter structure, wiring between control unit and power module, fieldbus configuration, and safety circuit behavior mean that a G120C replacing a G120 (or vice versa) requires a full review of wiring, network configuration, safety logic, and recommissioning steps before the drive goes back into service.

When is SINAMICS G120P the better choice over G120 for pump applications?

The SINAMICS G120P drives add specific value when the project is dominated by centrifugal pump or fan loads in a process plant, water/wastewater facility, or HVAC system, and where application-specific parameter sets, energy optimization functions, and integration with building or process automation standards reduce engineering effort. If the pump is one drive point among many on a general-purpose machine with mixed load types and complex safety integration, the SINAMICS G120 modular architecture may be a better fit.

Which SINAMICS series integrates most directly with SIMATIC S7 PLCs over PROFINET?

Siemens documents all three series as capable of operating as PROFIBUS slaves under SIMATIC S7-300/400 PLCs, with dedicated application examples. For PROFINET and advanced PLC integration, the SINAMICS G120 modular inverter drive system offers the widest range of communications options through selectable control unit variants. G120C provides integrated basic fieldbus including selected PROFINET variants; G120P fieldbus module availability depends on the specific variant ordered and should be confirmed before design commitment.

Do all SINAMICS G120 variants support Safe Torque Off?

Safe Torque Off is available on selected SINAMICS G120 control unit and power module combinations — it is not universal across all G120 CU/PM pairings. Siemens product documentation confirms that STO is activated via specific terminals and configuration, with behavior detailed in the official safety and commissioning manuals. Always confirm STO availability against the exact CU/PM combination specified for your application, not against the family name alone.

Can G120 and G120C units coexist on the same PROFINET network?

Yes, drives from different SINAMICS G-family series can share a PROFINET network when each is correctly configured as a fieldbus slave with its own device name and GSD file. Each series uses its own GSD file and parameter structure, so the PLC program must account for the specific I/O and control word mapping of each drive type present on the network.

What commissioning tools apply across all three series?

Siemens documents commissioning for all three series via STARTER software and/or SINAMICS Startdrive within TIA Portal, depending on firmware version and the engineering environment in use. G120C is generally considered simpler to commission due to its integrated architecture and fixed parameter set, while the modular SINAMICS G120 requires additional steps to configure the control unit and power module combination. G120P includes application-specific parameter sets for pump/fan loads that reduce configuration time in those environments.

Why Order From LeadTime.ca

  • LeadTime.ca sources SINAMICS G120, G120C, and G120P catalog numbers and ships to buyers worldwide — no geographic restriction on orders.
  • Our team assists with cross-referencing Siemens catalog numbers, confirming compatibility with existing PLC and network architectures, and navigating G120P variant structures that can be difficult to interpret without process automation experience.
  • Volume pricing and project-level sourcing coordination available — contact us before issuing your RFQ to confirm current lead times.
  • Hard-to-find or less commonly stocked SINAMICS G-series variants are part of our sourcing capability — contact the team if a standard distributor cannot confirm stock.

SINAMICS G120 vs G120C vs G120P — At-a-Glance Summary

  • SINAMICS G120 modular inverter drive system: two-box modular CU+PM architecture; voltage variants for 200 V, 400 V, and 690 V networks; widest fieldbus and safety options via selectable control units; best for multi-axis machines, complex PLC integration, and OEM platforms requiring global voltage flexibility.
  • SINAMICS G120C compact inverters: single integrated IP20 control cabinet unit; built-in USS, Modbus RTU, and selected PROFINET variants; smallest footprint and lowest per-drive cost for small to mid-range motors; best for single drives in tight panels with basic integration requirements.
  • SINAMICS G120P drives: application-optimized for pump and fan duty in process plants, water/wastewater, and HVAC systems; application-specific parameter sets reduce engineering time on common load types; covers medium to larger pump/fan motors with exact ratings confirmed per catalog variant.
  • All three series: commissioned via STARTER and/or SINAMICS Startdrive in TIA Portal; operate as fieldbus slaves to SIMATIC S7-series PLCs; belong to the SINAMICS G-series low-voltage inverter family with shared engineering ecosystem.
  • Wrong-series selection risk is highest when safety function depth, fieldbus protocol, or motor power boundaries are not verified against the specific catalog number before ordering.
  • Current pricing, stock levels, and lead times for all SINAMICS G120, G120C, and G120P catalog numbers must be confirmed with a distributor — contact LeadTime.ca for sourcing support worldwide.
