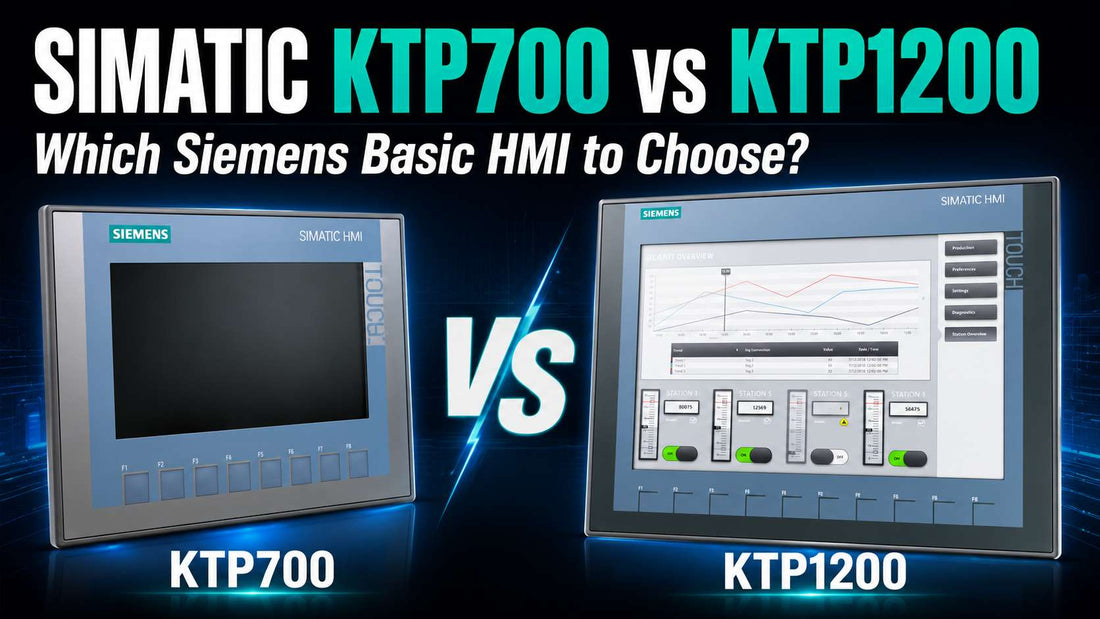

Siemens SIMATIC HMI KTP700 Basic and KTP1200 Basic widescreen TFT operator panels side by side for machine-level HMI comparison

SIMATIC KTP700 vs KTP1200: How to Choose the Right Siemens Basic HMI for Your Machine

Controls engineers specifying a machine-level HMI within the Siemens SIMATIC Basic Panels 2nd Generation family arrive at one recurring crossroads: does the application justify a 12" panel, or will a 7" display handle the job cleanly? Both the SIMATIC HMI KTP700 Basic and the SIMATIC HMI KTP1200 Basic belong to the same product family, share TIA Portal / WinCC Basic as their engineering tool, and are available in Ethernet-only and PROFIBUS DP-capable Basic DP variants — but the physical size difference, cutout requirements, and relative hardware cost make this a decision that deserves more than a quick gut check.

If you have already confirmed your panel size and variant, check current pricing and availability for both the SIMATIC HMI KTP700 Basic and SIMATIC HMI KTP1200 Basic at LeadTime.ca — we ship worldwide.

KTP700 or KTP1200 — Which Siemens Basic HMI Fits Your Project?

This comparison applies to engineers who have already decided on Siemens SIMATIC Basic Panels 2nd Generation and need to settle on the correct display size and interface variant. The SIMATIC HMI KTP700 Basic is the right choice if all of the following apply:

  • Your enclosure door or front panel has limited space and cannot accommodate a 12" cutout
  • The HMI will handle simple controls, basic alarm acknowledgment, and a small number of screens
  • Operators stand close to the panel and do not require large fonts or long-distance readability
  • Project budget requires hardware cost to be minimized without sacrificing Siemens platform compatibility
  • You are connecting to an S7-1200 or S7-1500 via PROFINET (Basic variant) or to a PROFIBUS-based PLC (Basic DP variant)

If your machine involves complex visualization, multiple detailed screens, operator viewing from a distance, or a line-level station with many alarms visible simultaneously, the SIMATIC HMI KTP1200 Basic is the correct selection. Both panels are available in Basic DP variants for legacy PROFIBUS DP environments. If your requirements exceed what either Basic Panel can deliver, the SIMATIC Comfort Panel family is the appropriate next tier — not covered in this comparison.

On this page:

What the KTP700 and KTP1200 Actually Do in a SIMATIC System

Both the SIMATIC HMI KTP700 Basic and SIMATIC HMI KTP1200 Basic are operator panels in the SIMATIC HMI Basic Panels 2nd Generation family — widescreen TFT color displays with key/touch operation depending on catalog variant, configured exclusively through TIA Portal using WinCC Basic. They sit at the machine-level operator interface layer: the point where a production operator interacts with the PLC logic running on an S7-1200, S7-1500, or in PROFIBUS-connected plants, an S7-300 or equivalent. Neither panel is a Comfort Panel or a PC-based SCADA station — the Basic designation means a focused feature set appropriate for machine-level visualization, alarm display, recipe handling, and basic trend viewing.

The 7" widescreen TFT display of the KTP700 Basic renders up to 64,000 colors at 800 x 480 resolution. The KTP1200 Basic uses a 12" widescreen TFT display also capable of up to 64,000 colors — making it the larger member of the same family. Both share a common engineering environment in TIA Portal, which allows screen and object templates to transfer between projects, though cutout dimensions and project files are not interchangeable without modification when swapping sizes.

Typical System Architecture for Basic Panel Deployments

In a standard SIMATIC PROFINET deployment, the Basic Panel connects via its RJ45 10/100 Mbps Ethernet port to the same network as the PLC. In a Basic DP installation, the PROFIBUS DP interface handles communication to legacy PLCs directly. Here is where each panel sits in a typical control system chain:

  • Engineering workstation running TIA Portal / WinCC Basic — project source for both KTP700 and KTP1200
  • SIMATIC S7-1200 or S7-1500 PLC — communicates with the Basic Panel via PROFINET (Basic) or PROFIBUS DP (Basic DP)
  • SIMATIC HMI KTP700 Basic or KTP1200 Basic — machine-level operator interface mounted on enclosure door or stand
  • USB 2.0 host port on the panel — used for project transfer, data export, and service operations
  • Downstream field devices (drives, I/O modules, sensors) — controlled through the PLC, monitored on the HMI screen

Where Engineers Deploy the KTP700 and KTP1200

The SIMATIC HMI KTP700 Basic appears most frequently on stand-alone machines with compact enclosures: packaging machines with a single operator station, conveyor sections, small process skids, and OEM equipment where the HMI handles start/stop control, basic setpoints, and a limited alarm list. The 7" form factor fits naturally on narrow enclosure doors and keeps the overall panel footprint small.

The SIMATIC HMI KTP1200 Basic is chosen for line-level operator stations, more complex machine HMIs with multiple overview and detail screens, and applications where operators must read alarm text or navigate process graphics from a distance. Food and beverage production lines, material handling systems, and multi-zone packaging lines frequently use the 12" panel at primary operator positions.

In facilities with legacy PROFIBUS DP infrastructure, the Basic DP variants of both panels connect directly to existing PLC networks without requiring an immediate migration to PROFINET — a common reason for specifying Basic DP in retrofit and upgrade projects.

Application Typical Deployment
Stand-alone packaging machine KTP700 Basic on narrow enclosure door, PROFINET to S7-1200
Production line central operator station KTP1200 Basic on large panel or pedestal, multiple detailed screens
Legacy PROFIBUS DP retrofit KTP700 Basic DP or KTP1200 Basic DP replacing older text display
OEM machine product line standardization KTP700 for small machines, KTP1200 for flagship models — same TIA Portal framework
Food and beverage skid KTP700 Basic for compact skids; KTP1200 Basic for multi-zone lines with recipe and trend screens
Long viewing distance wall-mount station KTP1200 Basic with large fonts and simplified overview graphics

Side-by-Side Specifications: KTP700 vs KTP1200

Attribute SIMATIC HMI KTP700 Basic / Basic DP SIMATIC HMI KTP1200 Basic / Basic DP
Display size 7" widescreen TFT 12" widescreen TFT
Resolution (KTP700 Basic verified) 800 x 480 Widescreen TFT; confirm per catalog
Color depth Up to 64,000 colors Up to 64,000 colors
Operation type Key/touch (varies by catalog variant) Key/touch (varies by catalog variant)
Product family SIMATIC HMI Basic Panels, 2nd Generation SIMATIC HMI Basic Panels, 2nd Generation
Ethernet / PROFINET RJ45 10/100 Mbps (Basic variants) RJ45 10/100 Mbps (Basic variants)
PROFIBUS DP Basic DP variant only Basic DP variant only
RS422/RS485 Available; confirm per variant Available; confirm per variant
Engineering tool TIA Portal / WinCC Basic (V13 and newer) TIA Portal / WinCC Basic (V13 and newer)
USB USB 2.0 host port USB 2.0 host port

Full technical specifications are available on the product page at LeadTime.ca.

The communication interface comparison between all four catalog variants is shown below:

Interface KTP700 Basic KTP700 Basic DP KTP1200 Basic KTP1200 Basic DP
Ethernet / PROFINET (RJ45 10/100) Yes Confirm per catalog number Yes Confirm per catalog number
PROFIBUS DP No Yes No Yes
RS422/RS485 Available; confirm per variant Available; supports PROFIBUS DP Available; confirm per variant Available; supports PROFIBUS DP
S7-1200/S7-1500 integration PROFINET native PROFIBUS through routing or mixed network PROFINET native PROFIBUS for legacy PLCs

Confirm your required catalog number before ordering — the difference between a Basic and Basic DP variant determines whether PROFIBUS DP connectivity is available. Check current stock and availability for both panel families at LeadTime.ca.

PROFINET vs PROFIBUS DP: Choosing Basic or Basic DP

The most consequential variant decision within each size tier is whether to select the standard Basic or the Basic DP catalog number. The SIMATIC HMI KTP700 Basic and KTP1200 Basic panels connect to PROFINET-based PLCs — the S7-1200 and S7-1500 — via their RJ45 10/100 Mbps Ethernet ports. This is the correct choice for any new machine build using current Siemens PROFINET architecture.

The KTP700 Basic DP and KTP1200 Basic DP variants add a PROFIBUS DP interface, enabling direct connection to PROFIBUS-based PLCs without requiring an intermediate gateway or full network redesign. This matters in facilities where S7-300-era PLCs remain in service and PROFINET migration is planned but not yet complete. The Basic DP variants are the practical answer for upgrade and retrofit projects where the PLC network is PROFIBUS and the timeline does not allow a full cutover.

One important confirmation before ordering: verify per specific catalog number that the Ethernet and PROFIBUS interfaces behave as expected, since interface combinations can vary. Contact the LeadTime.ca team if you need variant clarification before committing to a catalog number.

Screen Size, Layout Density, and Operator Usability

The 7" 800 x 480 display of the KTP700 Basic provides adequate screen area for machines with a modest number of controls, a concise alarm list, and straightforward navigation. Where engineers run into difficulty is when the screen content grows: attempting to display a detailed P&ID, a long alarm table, and several navigation buttons simultaneously on a 7" screen produces a cramped layout that operators struggle to read quickly and accurately. If your visualization includes multiple overview screens with high information density, the 7" display will require deep menu navigation to expose content that a 12" panel could show simultaneously.

The 12" widescreen TFT of the KTP1200 Basic provides substantially more screen real estate per page, which translates directly into larger fonts, more objects visible at once, and easier multi-language layout — all of which reduce operator errors and speed up response to alarms. For machines with long operator viewing distances, the larger display is not an aesthetic choice but a practical ergonomic requirement. At the same time, placing a KTP1200 on a simple machine with three or four screens and basic setpoint entry is a legitimate cost and space overspend.

Scenario-by-Scenario Recommendations

Scenario Recommended Panel Reason
Small stand-alone machine, limited enclosure door space, simple alarm list KTP700 Basic 7" fits tighter spaces, lowers hardware and cutout cost, sufficient for simple visualization
Production line HMI with many screens, detailed graphics, and multiple alarms KTP1200 Basic 12" screen supports more content per page, larger fonts, clearer overview graphics
Legacy PROFIBUS DP plant, S7-300 or equivalent PLC KTP700 Basic DP (compact) or KTP1200 Basic DP (larger station) Basic DP variants provide PROFIBUS DP interface for direct connection without network redesign
OEM building multiple machine sizes, wants to standardize engineering templates Mixed: KTP700 for small machines, KTP1200 for complex models Same Basic Panels family and TIA Portal toolchain; two size tiers optimize cost and usability
Operator viewing HMI from a distance or through a window on a large machine KTP1200 Basic Larger screen and larger font capability reduce misreads and improve alarm visibility at distance
Budget-critical project, simple start/stop, basic setpoints, alarm acknowledgment only KTP700 Basic Smaller panel meets requirements while reducing hardware and enclosure cost

Expert Verdict: Which Siemens Basic HMI Is Right for Your Application?

For the majority of compact machine builds — stand-alone equipment, small skids, and straightforward operator stations with a limited number of screens — the SIMATIC HMI KTP700 Basic is the more practical and cost-effective choice. Its 7" widescreen TFT at 800 x 480 resolution with up to 64,000 colors covers the typical machine-level HMI requirement well: basic controls, alarm acknowledgment, recipe entry, and simple navigation. The smaller cutout simplifies enclosure design, and the lower hardware cost is meaningful on cost-sensitive projects or product lines where the HMI is replicated across many machines. For any new PROFINET-based system with an S7-1200 or S7-1500, the standard KTP700 Basic variant is the clean, straightforward choice.

The SIMATIC HMI KTP1200 Basic earns its place where visualization complexity genuinely demands more screen area: line-level operator stations, machines with many concurrent alarms, multi-language deployments requiring readable font sizes, and positions where operators stand at a distance from the panel. It is not the right answer for simple machines just because a larger screen feels safer — oversizing an HMI adds hardware cost, requires a physically larger enclosure cutout, and does not improve operator experience when the screen content is inherently simple. In legacy PROFIBUS DP environments, the KTP1200 Basic DP is the correct variant for larger stations, just as the KTP700 Basic DP handles compact PROFIBUS-connected positions. The deciding question worth asking before finalizing either selection is: can operators safely and comfortably monitor and control all required functions on a 7" screen, given the machine layout, viewing distance, and visualization complexity? If the honest answer is yes, the KTP700 Basic is the right panel. If the answer is no, or even uncertain, specify the KTP1200 Basic and lock in the correct enclosure cutout from the outset.

From a procurement standpoint, both panels are part of the same SIMATIC HMI Basic Panels 2nd Generation family, which means sourcing through a distributor with direct access to Siemens inventory matters when lead times on specific variants become a factor — particularly for Basic DP catalog numbers, which may carry longer lead times than the standard Ethernet-only variants depending on current stock levels. Confirm the exact catalog number, verify enclosure fit, and check current availability before committing your build schedule. Check current pricing and availability for the SIMATIC HMI KTP700 Basic and SIMATIC HMI KTP1200 Basic at LeadTime.ca — we source and ship worldwide.

For volume pricing, lead time confirmation, or help verifying the correct Basic vs Basic DP catalog number for your application, contact the LeadTime.ca team directly — we ship to engineering teams and procurement departments worldwide.

What Engineers Report About KTP700 and KTP1200 in Practice

Community feedback from automation forums including Reddit r/PLC and PLCTalk reflects broadly positive sentiment toward the Siemens SIMATIC Basic Panels 2nd Generation family. Engineers consistently praise the tight integration with TIA Portal, the straightforward WinCC Basic configuration workflow, and the reliability of the hardware in standard industrial environments. The 7" KTP700 Basic is regularly cited as a cost-effective default for simple machine HMIs paired with S7-1200 PLCs — engineers describe it as covering the vast majority of standard machine-level requirements without over-specifying hardware.

The recurring criticism of the KTP700 is consistent: screen space runs out faster than expected when applications grow. Users report that attempts to crowd alarm tables, navigation elements, and process graphics onto the 7" display produce layouts that feel cramped and force operators into deeper menu structures than intended. Several engineers mention making the switch to a 12" panel after operators reported struggling with screen density or after the application scope expanded during commissioning. The lesson echoed across forum threads is to be realistic about screen content at the design stage rather than hoping a compact layout will be sufficient.

For the KTP1200 Basic, the community view is that the larger display solves the visualization density problem effectively — but the most common complaint is specifying it on machines where the KTP700 would have been adequate, resulting in unnecessary cost and a larger enclosure cutout that complicated panel fabrication. A smaller number of engineers report switching the other direction: initially specifying a 12" panel for a simple machine, then standardizing back to 7" for that class of equipment once it became clear the extra screen area added no operational value. Both panels are viewed favorably as a platform choice; the debate is almost entirely about right-sizing the display for the specific application rather than any concern about Siemens platform quality.

Mounting and Installation Overview

  • Verify the enclosure door or front panel cutout dimensions against the specific panel catalog number before machining — the KTP700 and KTP1200 have different cutout requirements and are not interchangeable on the same door
  • Both panels require 24 V DC supply; confirm power supply capacity and available current for the selected panel before installation
  • PROFINET (Basic) variants connect via RJ45 10/100 Mbps Ethernet to the same network segment as the PLC; PROFIBUS DP (Basic DP) variants connect via the PROFIBUS interface to the PLC's DP port
  • USB 2.0 host port is available on both panels for project download, data export, and service use — follow Siemens recommendations for secure USB use in production environments
  • Sealing and mounting hardware requirements differ by panel size; consult the Siemens mechanical installation documentation for torque specifications and IP protection compliance before closing the enclosure

Wrong-Part Prevention Checklist Before You Order

Before placing an order for either panel, work through this checklist in sequence — each item corresponds to a real selection mistake documented in the field:

  1. Confirm the enclosure door can physically accept a 12" cutout before selecting KTP1200.
  2. Verify PLC interface requirements (PROFINET only vs PROFIBUS DP legacy) before picking Basic vs Basic DP.
  3. Check that the smaller 7" resolution can display all critical alarms and controls without overload.
  4. Validate that operator viewing distance and ambient lighting support the chosen display size.
  5. Ensure TIA Portal/WinCC Basic version used supports the selected panel type and generation.
  6. Confirm 24 V DC power supply capacity and spare current for each panel.
  7. Avoid mixing many different panel sizes without a clear standard; confirm spares and templates.

If any item on this checklist raises a question you cannot answer with confidence, contact the LeadTime.ca team before ordering — specifying the wrong variant or size is a sourcing mistake that costs time and rework, not just the price difference between the two panels.

Frequently Asked Questions

Is the KTP700 Basic sufficient for a machine with many screens and alarms, or will I run out of screen space?

The 7" 800 x 480 display of the SIMATIC HMI KTP700 Basic handles straightforward machine-level applications well — limited screens, basic alarm lists, and simple setpoint entry. If your application requires multiple detailed overview screens, long alarm lists visible simultaneously, or complex graphics, the screen area on the KTP700 will force cramped layouts and deep navigation that operators find slow and error-prone. In that case, the SIMATIC HMI KTP1200 Basic is the correct selection. The honest design-stage question is whether all critical functions can be accessed comfortably on a 7" display given your actual screen count and object density.

Does the KTP1200 Basic DP support PROFIBUS DP directly without a gateway?

Yes. The KTP1200 Basic DP variant includes a PROFIBUS DP interface that connects directly to PROFIBUS-based PLCs such as the S7-300 without requiring an external gateway or protocol converter. The same applies to the KTP700 Basic DP for compact positions. The standard KTP700 Basic and KTP1200 Basic variants do not include PROFIBUS DP and are intended for PROFINET-based systems. Confirm the exact catalog number before ordering to ensure the correct interface is present.

Can I reuse my KTP700 Basic project on a KTP1200 Basic without rebuilding from scratch?

Both panels use TIA Portal / WinCC Basic, so the same engineering environment applies and screen objects, tag connections, and alarm configurations can be carried across. However, the two panels have different display sizes, meaning screen layouts designed for 7" will not simply scale up to fill a 12" display correctly — layout adjustments are required. Object templates and tag structures transfer, but plan for a screen redesign effort when migrating between sizes rather than expecting a direct one-to-one port.

What TIA Portal version is required for SIMATIC Basic Panels 2nd Generation?

Siemens SIMATIC Basic Panels 2nd Generation, including the KTP700 Basic and KTP1200 Basic, are supported by TIA Portal with WinCC Basic from V13 and newer. Confirm the specific minimum version for your selected catalog number in the Siemens documentation or with your distributor, as version support details can vary by panel generation and TIA Portal release.

How does the choice between 7" and 12" affect operator training and error rates?

Screen size has a measurable practical impact on operator usability. On a larger 12" display, fonts can be set larger without sacrificing visible content, alarm text is easier to read at a glance, and navigation between screens requires fewer button presses because more information fits on each page. For operators working close to the panel on a simple machine, the 7" KTP700 Basic is entirely adequate. For operators monitoring complex lines, viewing from a distance, or working in environments with high ambient light, the KTP1200 Basic reduces misreads and response time to alarms — which is the primary ergonomic argument for specifying the larger panel when the application warrants it.

Why Source the KTP700 or KTP1200 Through LeadTime.ca

  • LeadTime.ca ships Siemens SIMATIC HMI panels worldwide — including Basic and Basic DP variants of both KTP700 and KTP1200
  • Specialist sourcing support helps confirm the correct catalog number between Basic and Basic DP before the order is placed
  • Volume pricing available for OEMs standardizing on one or both panel sizes across a product line — contact for current pricing
  • Current lead time visibility for each panel variant before you commit to a build or delivery schedule
  • Hard-to-source catalog numbers, including Basic DP variants with longer typical lead times, sourced through established Siemens distribution channels

At-a-Glance Summary: KTP700 vs KTP1200

  • Both panels are SIMATIC HMI Basic Panels 2nd Generation with up to 64,000 colors and widescreen TFT displays
  • KTP700 Basic: 7" widescreen TFT, 800 x 480 resolution, RJ45 10/100 Mbps Ethernet, USB 2.0 host port
  • KTP1200 Basic: 12" widescreen TFT, RJ45 10/100 Mbps Ethernet, USB 2.0 host port — larger cutout required
  • Basic DP variants of both panels add a PROFIBUS DP interface for legacy PLC connectivity
  • Both panels are configured using TIA Portal / WinCC Basic from V13 and newer
  • KTP700 Basic is the correct choice for compact machines with simple visualization and limited panel space
  • KTP1200 Basic is the correct choice for complex visualization, long viewing distances, and line-level operator stations
  • Selecting the wrong variant (Basic vs Basic DP) based on PROFINET vs PROFIBUS requirements is the most consequential ordering mistake — confirm before placing an order
  • Available in various catalog configurations — confirm exact part number and current availability at LeadTime.ca before committing to a build schedule
