Replacing SLC 500 / PLC-5: ControlLogix vs S7-1500 vs Modicon M580

By Abdullah Zahid
23 min read

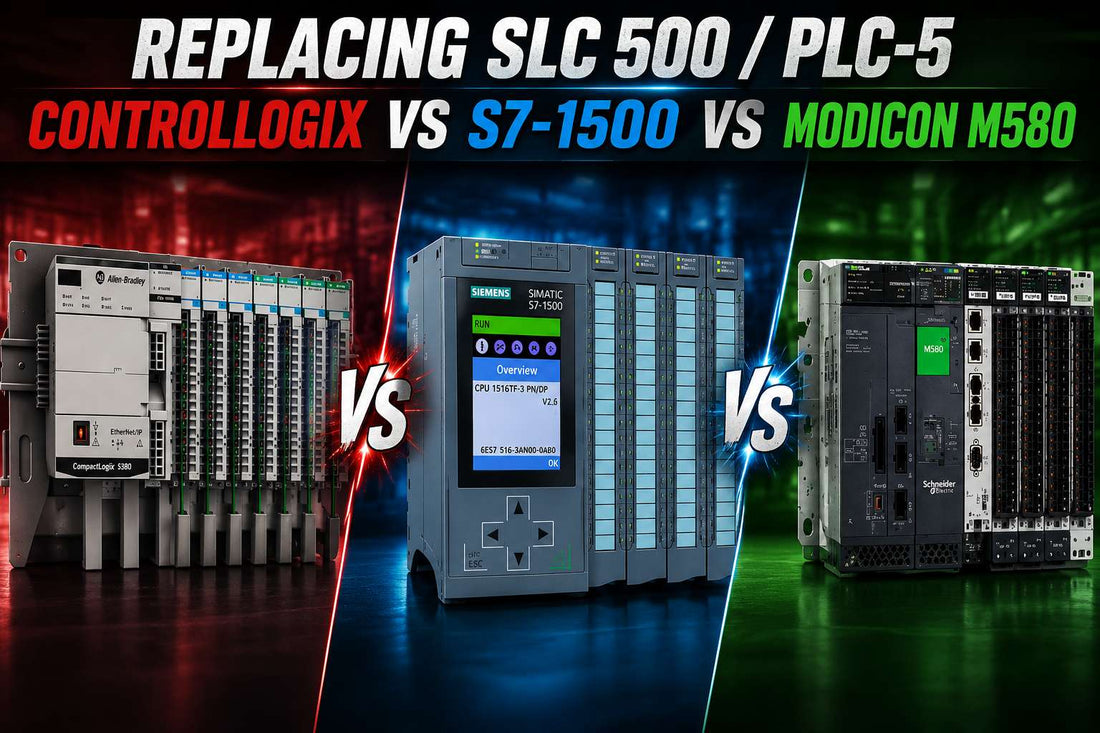

SLC 500 and PLC-5 legacy controllers side by side with ControlLogix, S7-1500 and Modicon M580 PAC platforms for migration comparison

Migrating SLC 500 / PLC-5 to ControlLogix, S7-1500 or M580: The Complete Migration Guide for Controls Engineers

If you are responsible for a plant running SLC™ 500 Modular Controllers or PLC-5® Programmable Controllers, the decision is no longer whether to migrate — it is which platform to migrate to, and how to execute without destroying a production schedule. With PLC-5 hardware already formally discontinued, remaining SLC 500 controllers carrying a confirmed discontinuation date of March 31, 2024, and RSLogix 5 design software end-of-sale for new activations set at December 31, 2025, the window for a planned, controlled migration is closing. This guide walks controls engineers and plant engineering leaders through the architecture decisions, hardware mapping, software conversion realities, and migration risks across the three most relevant modern PAC platforms: ControlLogix® Programmable Automation Controllers, SIMATIC S7-1500 Advanced Controllers, and Modicon M580 ePAC.

For teams that have already confirmed their target platform and need to begin sourcing hardware, contact the LeadTime.ca team directly — we ship worldwide and can help you compare availability and lead times across all three platforms before you commit to a build.

Who Should Be Reading This Guide — and What Decision It Will Help You Make

This guide is written for controls engineers, electrical engineers, maintenance managers, and OEM system integrators who are carrying responsibility for SLC 500 or PLC-5 systems that are now at or past their supported lifecycle. You are likely in one of these situations: a critical controller has failed or is at risk, RSLogix 5 license renewal or support is being questioned, spares are drying up, or a corporate digitalization initiative has put legacy PLCs on the project scope. The core decision this guide addresses is which target platform — ControlLogix, S7-1500, or Modicon M580 — best fits your plant's ecosystem, engineering team, and long-term support strategy.

  • Your SLC 500 or PLC-5 controllers are confirmed discontinued and spares are increasingly scarce or sourced only through refurbished channels.
  • Your facility relies on DH+, Remote I/O, or serial networks that are incompatible with modern SCADA and MES architectures.
  • You are planning process expansion, safety upgrades, or digitalization that legacy platforms cannot support.
  • Your RSLogix 5 design software licenses are at risk as new activations became unavailable after December 31, 2025.
  • You need a structured comparison of ControlLogix, SIMATIC S7-1500, and Modicon M580 before committing to hardware procurement.

If your systems are non-critical, spares are still secured, and a corporate platform decision between Rockwell, Siemens, and Schneider is still pending, a phased migration with careful documentation may be a reasonable near-term position — but unplanned failure remains the worst outcome, and the audit work should begin regardless.

On this page:

Lifecycle and End-of-Life Reality: SLC 500, PLC-5, and RSLogix 5

The SLC™ 500 Modular Controllers family, first released in the early 1990s, defined a generation of discrete and process control implementations across North American manufacturing. The PLC-5® Programmable Controllers served larger, more complex applications across the same era. Both platforms have now crossed the line from active maturity into confirmed discontinuation. PLC-5 hardware has been formally discontinued by Rockwell Automation, with the platform now in legacy support stages where only limited assistance and refurbished parts remain available. The remaining SLC 500 controllers carry a confirmed hardware discontinuation date of March 31, 2024, marking the end of manufacturing for the family.

On the software side, RSLogix 5 design software — the programming environment for PLC-5 projects — has entered End of Life status. New activations were removed from sale effective December 31, 2025. This has immediate implications beyond the controllers themselves: teams that lose a workstation running RSLogix 5, need to add a new engineering seat, or face license server changes may find themselves unable to make program changes without workarounds or legacy service arrangements. Rockwell's own End of Life communications for RSLogix 5 explicitly recommend migration to Studio 5000 Logix Designer on the ControlLogix platform as the primary modernization path for PLC-5 projects.

What these lifecycle dates mean practically is that the risk calculus has shifted. A facility running SLC 500 or PLC-5 systems today is not merely running aging hardware — it is running hardware for which new spare modules are no longer manufactured, on software that can no longer be licensed for new engineering seats, on networks that are incompatible with modern SCADA, MES, and cybersecurity architectures. Unplanned failure at this stage is not a hypothetical: it is a production stoppage with no clear path to same-day recovery through normal distribution channels.

Before You Choose a Platform: Auditing Your Existing SLC 500 / PLC-5 System

No target platform decision will be sound without a clear picture of what you are migrating from. The audit phase is not preliminary paperwork — it is the foundation of every subsequent decision about hardware mapping, network redesign, software conversion scope, and cutover planning. A thorough audit should produce verified answers to the following:

  • A complete inventory of all SLC 500 and PLC-5 controllers, chassis, power supplies, I/O cards, and communication modules, with confirmed lifecycle and spare availability status for each.
  • Verified backups of all RSLogix 5 and RSLogix 500 project files, including revision history and any in-line comments — particularly capturing undocumented logic that exists only as tribal knowledge among experienced staff.
  • A map of all legacy networks in use: DH+, Remote I/O, ControlNet, serial links, and any proprietary communication paths connecting PLCs, HMIs, SCADA systems, historians, and drives.
  • Identification of all safety functions, hardwired interlocks, and regulatory requirements currently implemented in or around the SLC 500 and PLC-5 systems, with clarity on which will require formal safety validation after migration.
  • A realistic assessment of downtime windows available for migration activities, including whether phased migration is operationally feasible or whether the plant must plan for a single cutover window.

The quality of this audit directly determines the risk level of the migration. Projects that skip or compress this phase consistently encounter the most serious problems during cutover: mis-mapped I/O, missing interlocks, undocumented communication paths, and safety functions that were assumed to be simple but are embedded in complex legacy ladder structures.

ControlLogix vs S7-1500 vs Modicon M580: Choosing the Right Target Platform

The three platforms most commonly considered for SLC 500 and PLC-5 replacement represent meaningfully different ecosystem choices, not just different hardware specifications. Understanding the context in which each platform excels is the most important strategic decision of the migration project.

ControlLogix® Programmable Automation Controllers represent Rockwell Automation's current flagship PAC platform and the direct evolutionary successor to the PLC-5 and SLC 500 families. For plants with an existing Rockwell footprint — Rockwell drives, PowerFlex MCCs, PanelView HMIs, FactoryTalk SCADA — ControlLogix provides the highest degree of ecosystem continuity. Rockwell provides documented conversion tools for moving RSLogix 5 and RSLogix 500 projects toward Studio 5000 Logix Designer format, making the transition of at least the structural logic less of a ground-up re-engineering exercise. EtherNet/IP is the native communication backbone, and bridging options exist for maintaining DH+ and Remote I/O connectivity during phased migration. For most Rockwell-centric plants, ControlLogix is the least disruptive choice.

SIMATIC S7-1500 Advanced Controllers represent Siemens' current high-end controller family, programmed in TIA Portal and natively built around PROFINET for distributed I/O and peer communication. There is no automatic conversion path from RSLogix 5 or RSLogix 500 to TIA Portal — logic must be re-engineered from documented functionality, which is a significantly larger engineering investment. Where S7-1500 becomes the natural choice is when a corporate standardization mandate has moved the organization toward Siemens, when the plant already uses Siemens drives and MCCs extensively, or when a global project is aligning all sites on Siemens infrastructure. The engineering effort is higher for a cross-vendor move, but the long-term ecosystem benefits can justify it in the right context.

Modicon M580 ePAC is Schneider Electric's Ethernet-centric PAC platform, built with embedded Ethernet ports and native support for Modbus TCP as well as broader IEC 61131-3 programming through EcoStruxure Control Expert. Like S7-1500, there is no direct automatic conversion from RSLogix projects to EcoStruxure Control Expert — re-engineering is required. M580 tends to be most compelling where a plant has an existing Schneider Electric infrastructure, where Modbus TCP integration with other systems is a priority, or where a utility or infrastructure context favors M580's redundancy and diagnostics architecture. Its embedded Ethernet backbone makes it particularly well-suited for environments where simplified network topology is a priority.

Decision Factor ControlLogix S7-1500 Modicon M580
Logic conversion tools from RSLogix 5/500 Rockwell tools support structural migration with manual review required No automatic conversion; full re-engineering in TIA Portal No automatic conversion; re-engineering in EcoStruxure Control Expert
Native communication protocol EtherNet/IP PROFINET / PROFIBUS Ethernet / Modbus TCP
Rockwell drives and MCC integration Excellent Limited without additional modules Limited without additional modules
DH+ bridging during phased migration Available via specific bridge modules Not natively supported Not natively supported
Safety integration GuardLogix and dedicated safety modules S7-1500F safety CPU variants M580 safety options (architecture-specific)
Best fit for Rockwell-centric plants, direct Rockwell replacements Siemens-standard plants, global corporate Siemens mandates Schneider-ecosystem plants, Modbus TCP-heavy environments, utility/infrastructure

If your platform decision is still open, or you are preparing a business case that compares sourcing timelines and commercial terms for all three platforms, the LeadTime.ca team can assist with multi-vendor comparison and sourcing — contact us for current availability and lead time information before you finalize specifications.

Legacy-to-Modern Hardware Mapping: Racks, I/O, and Network Components

Hardware mapping is the mechanical translation work of migration: understanding what each SLC 500 or PLC-5 component becomes in the new system, what physical changes are required, and what redesign impact to plan for in terms of cabinet space, wiring labor, and commissioning time.

Legacy Component ControlLogix Equivalent S7-1500 Equivalent Modicon M580 Equivalent Redesign Impact
PLC-5 CPU ControlLogix CPU (1756 family, CPU chosen by load) S7-1500 CPU (by performance and I/O requirements) M580 CPU (Ethernet PAC variant matched to application) Medium to high: full logic conversion and network re-architecture required
SLC 500 CPU ControlLogix or CompactLogix CPU (by system size) S7-1500 CPU for mid-range applications M580 CPU for mid-range to large systems Medium: logic conversion and I/O recalculation; more straightforward within Rockwell
PLC-5 rack and backplane 1756 ControlLogix chassis S7-1500 rack/rail plus distributed I/O M580 rack plus remote I/O High: physical cabinet redesign and wiring changes
SLC 500 rack CompactLogix or ControlLogix chassis S7-1500 rack/rail M580 rack Medium: form factor changes and new wiring terminations
Remote I/O (RIO) modules EtherNet/IP remote I/O adapters PROFINET remote I/O modules Modbus TCP remote I/O modules High: fieldbus replacement; possible temporary gateways during transition
DH+ communication modules ControlLogix DH+ bridge during transition, then EtherNet/IP Ethernet and PROFINET; DH+ replaced Ethernet and Modbus TCP; DH+ replaced High: migration of PLC-to-PLC, HMI, and SCADA communication paths
Discrete I/O cards Equivalent 1756 digital I/O modules S7-1500 digital I/O modules M580 digital I/O modules Medium: channel-by-channel mapping and field wiring validation required
Analog I/O cards 1756 analog input/output modules S7-1500 analog modules M580 analog modules Medium: signal scaling, ranges, and calibration must be verified for each loop

One area that repeatedly catches migration teams off guard is specialty I/O: high-speed counter modules, communication cards for third-party devices, and encoder interfaces. These require individual assessment against equivalents in the target platform family, and in some cases will require updated field wiring or intermediate signal conditioning. Budget for this work explicitly — it rarely surfaces during early project estimates.

Architecture Changes: Moving from DH+ and Remote I/O to Ethernet-Based Networks

Replacing the controller hardware is only part of the migration. The network layer — DH+, Remote I/O, ControlNet, and serial links — is where many SLC 500 and PLC-5 installations carry significant hidden complexity. These networks touch every HMI, SCADA connection, historian tag, and PLC-to-PLC communication path in the plant. Replacing them without a clear design is the single most common source of post-cutover failures.

For ControlLogix migrations, Rockwell provides bridging options that allow DH+ and Remote I/O segments to remain operational during a phased cutover. This is a meaningful advantage: it means you can migrate the controller and core logic first while maintaining legacy network connectivity temporarily, then cut over remote I/O and HMI communications in subsequent phases. This phased network approach is not available in the same way for S7-1500 or Modicon M580 migrations, where DH+ and Rockwell Remote I/O must be replaced in full as part of the migration.

For all three target platforms, the destination network is Ethernet-based: EtherNet/IP for ControlLogix, PROFINET for S7-1500, and Modbus TCP for Modicon M580. Each of these requires a designed, managed Ethernet infrastructure — not a flat unmanaged switch network. VLANs, network segmentation, and appropriate cybersecurity controls are not optional additions; they are foundational to a supportable modern control system. Involving IT infrastructure teams early in the network design phase is essential, and this is a step that many engineering-led migration projects defer too long.

Software and Logic Conversion: What the Tools Actually Do — and What They Don't

One of the most consequential misunderstandings in SLC 500 and PLC-5 migration projects is the assumption that conversion tools will produce production-ready code. They will not. Understanding what the tools actually deliver — and where they stop — determines how accurately you can scope the engineering effort.

For ControlLogix migrations, Rockwell provides documented features for converting RSLogix 5 and RSLogix 500 project files toward Studio 5000 Logix Designer format. These tools can translate a significant portion of ladder logic structure, providing a meaningful starting point. However, they do not handle all instruction types, I/O configurations, or addressing structures without manual intervention. Unsupported instructions, communication block configurations, and data file structures require manual review, correction, and re-implementation. The converted project is a draft — not a finished deliverable. Every converted routine must be reviewed by an engineer who understands both the original logic intent and the target platform behavior.

For S7-1500 and Modicon M580 migrations, no cross-vendor automatic conversion tools exist that can reliably translate RSLogix ladder logic into TIA Portal or EcoStruxure Control Expert. The migration is fundamentally a re-engineering exercise. Teams should begin from documented logic functionality — what each routine is supposed to do — and re-implement it in the target programming environment. This approach, while slower than a tool-based conversion, produces better-quality code and forces the documentation of legacy logic that was previously undocumented. Teams that skip this step and attempt ad-hoc translation typically encounter more problems during commissioning, not fewer.

Across all three platforms, the addressing architecture changes from file-based (N7, F8, O0, I1 in RSLogix) to tag-based structures. Timers, counters, and data types all behave differently across platforms. Special instructions — PID blocks, communication function blocks, and motion instructions — require individual re-implementation and testing regardless of the target platform chosen.

Safety Systems and Compliance: What Changes When You Change the Controller

Any SLC 500 or PLC-5 system performing a safety function — whether through dedicated safety I/O, hardwired interlocks, or safety-related logic implemented in the standard controller — requires a formal safety lifecycle review when the controller is replaced. This is not a procedural formality; it is a fundamental requirement of recognized safety standards and, in many jurisdictions, a regulatory obligation.

The first step is identifying which functions currently implemented in the SLC 500 or PLC-5 are safety-relevant. This requires reviewing interlocks, emergency stop circuits, guarding logic, and any functions that protect personnel or prevent equipment damage. Many legacy systems have safety-relevant functions embedded in standard ladder rungs with no clear separation from production logic — a pattern that must be addressed, not replicated, in the migration.

Each target platform offers safety-capable options: ControlLogix migrations can incorporate GuardLogix controllers and dedicated safety I/O modules. S7-1500 migrations can use S7-1500F safety CPU variants. Modicon M580 provides safety options subject to specific architectural requirements. In each case, the safety-capable variant is not the same hardware as the standard controller — it requires specific ordering, specific programming tools, and a documented validation process. Migrating safety functions requires involvement of qualified safety specialists and formal validation documentation, including proof tests and safety function records. This scope should be planned and budgeted separately from the standard logic migration.

Phased Migration vs Big-Bang Replacement: How to Choose Your Cutover Strategy

The choice between a phased migration — migrating one cell, line, or system at a time — and a single big-bang replacement has a larger impact on project risk than almost any other decision in the migration plan.

Phased migration is the lower-risk approach for most plants. It allows the team to work through one system, learn the target platform in a production context, identify unforeseen issues, and build confidence before applying the same approach to critical systems. For ControlLogix migrations specifically, DH+ bridging options allow the legacy network to remain partially operational during transition, making true cell-by-cell migration more feasible. The limitation of phased migration is timeline: it requires more total engineering time and can extend the period during which the plant maintains parallel legacy and new systems.

Big-bang replacement — replacing the entire system in a single planned outage — is appropriate when the legacy system has deteriorated to the point where it cannot safely support phased operation, when a single extended shutdown window is available and maintenance can be staged, or when the process itself cannot be partially migrated due to tight interdependencies. Projects that choose big-bang replacement purely for cost or schedule reasons — without completing a pilot and without thorough testing — carry the highest failure risk. The community record of projects that required partial rollback is disproportionately concentrated in rushed big-bang approaches that bypassed pilot testing.

A practical phased migration sequence for any of the three target platforms follows eight stages: audit and documentation; architecture design and platform selection; procurement of hardware and software licenses; pilot migration of a representative lower-risk system; production installation with lockout/tagout and proper safety procedures; software conversion and loading; validation including I/O checkout, sequence testing, and safety functional tests; and controlled handover with training and documentation finalization. The pilot phase is the step most frequently skipped under schedule pressure — and the most valuable for reducing risk in subsequent phases.

What Engineers Get Wrong When Migrating SLC 500 and PLC-5 Systems

Six migration mistakes appear consistently across SLC 500 and PLC-5 projects. Understanding them before the project starts is more valuable than diagnosing them after cutover.

  1. Treating conversion tools as a complete solution: Assuming RSLogix 5/500 to Logix conversions or similar scripts will produce production-ready code. Use tools as a starting point only; plan manual review of all logic, I/O mapping, diagnostics, and safety.
  2. Ignoring network and cybersecurity design: Replacing controllers but leaving networks ad-hoc or flat. Involve IT early; design segmented, managed Ethernet networks with appropriate security for EtherNet/IP, PROFINET, or Modbus TCP.
  3. Underestimating documentation needs: Migrating from poorly documented systems and relying on memory. Slow down to document existing logic, I/O, and wiring before making changes; capture tribal knowledge via interviews and workshops before experienced staff retire or leave.
  4. Mixing safety and standard logic without proper validation: Migrating safety-related functions into new controllers without a structured safety lifecycle. Follow recognized safety standards; separate safety logic where appropriate; perform and document safety validation before returning systems to production.
  5. Over-centralizing control: Moving many small SLC 500 systems into one large PAC without considering load and resiliency. Balance consolidation with redundancy and fault isolation; consider multiple controllers or segmented architectures where process criticality demands it.
  6. Neglecting training: Assuming engineers and technicians will figure out new platforms on the fly. Plan formal training on the selected PAC platform and programming tools; allocate time for learning before and during commissioning, not only after go-live.

If you are at the procurement stage for any of the three target platforms and want to confirm part numbers, lead times, or sourcing availability before finalizing your project schedule, the LeadTime.ca team is available worldwide — contact us directly for a sourcing consultation.

What the PLC Community Has Learned From Real SLC 500 / PLC-5 Migrations

Across communities including Reddit r/PLC, PLCTalk, and related industrial automation forums, the migration experience of engineers who have completed SLC 500 and PLC-5 replacements tells a consistent story. The clearest theme is that the projects with the best outcomes shared one characteristic: they treated the migration as an engineering project with full audit, design, and test phases rather than a hardware swap with code pasting. Users who followed this approach — particularly those who ran pilot migrations on non-critical systems before tackling production-critical areas — report significantly fewer problems during final cutover.

The community consensus on platform choice has also been fairly clear: for facilities with a primarily Rockwell footprint, migrating to ControlLogix is widely considered the smoother path. Rockwell's conversion tools, while not producing finished code, provide enough structural scaffolding to reduce the overall logic re-engineering burden compared to a cross-vendor migration. However, engineers who have undertaken cross-vendor moves to S7-1500 describe the investment as worthwhile when the corporate ecosystem justification was solid — particularly when the site was already carrying significant Siemens drive and HMI infrastructure that made the PLC the only remaining Rockwell island.

The most frequently cited pain points across both within-Rockwell and cross-vendor migrations are I/O mis-mapping, timer and counter behavior differences that caused unexpected sequence faults, and network issues caused by flat or unmanaged Ethernet switch infrastructure. Multiple users describe spending more commissioning time on network configuration than on PLC logic debugging. A recurring warning in community discussions is specific and practical: double-check every analog I/O point for scaling differences between the old and new module types before going live. The difference between a 4–20 mA channel scaled correctly and one that is off by even a small margin can cause process upsets that are difficult to diagnose under cutover pressure.

Expert Migration Verdict: Which Platform Wins in Which Scenario

For the majority of facilities with an established Rockwell Automation installed base — PowerFlex drives, PanelView HMIs, FactoryTalk software infrastructure — migrating SLC™ 500 and PLC-5® systems to ControlLogix® Programmable Automation Controllers is the most defensible choice on both technical and commercial grounds. The ecosystem continuity is real: Rockwell's documented conversion tools reduce the logic re-engineering baseline compared to a cross-vendor move, DH+ bridging modules provide a practical path for phased network cutover, and the same engineers who maintained RSLogix 5 or RSLogix 500 systems can develop competence in Studio 5000 Logix Designer more quickly than they could in TIA Portal or EcoStruxure Control Expert. For plants where the primary driver is replacing obsolete hardware as efficiently as possible, ControlLogix is the answer most projects should reach.

That framing changes under specific conditions. If a corporate mandate has already standardized on Siemens, or if the plant is carrying extensive Siemens drive and MCC infrastructure, treating the SLC 500 or PLC-5 migration as an opportunity to align the controller with the rest of the site on SIMATIC S7-1500 Advanced Controllers is a legitimate strategic decision — but the re-engineering budget must reflect the absence of any automatic conversion path. TIA Portal is a capable and modern environment, but arriving at a functional, tested application from an RSLogix project requires disciplined re-engineering, not translation. Similarly, Modicon M580 ePAC is compelling for sites with existing Schneider Electric infrastructure, strong Modbus TCP integration requirements, or utility and infrastructure contexts where M580's embedded Ethernet architecture and redundancy options align with long-term operational requirements. No single platform is universally best; the right answer is always context-dependent, and facilities that reach the right answer through a structured evaluation — not through vendor pressure or convenience — execute better migrations.

On the procurement side, lead times for ControlLogix, S7-1500, and Modicon M580 hardware vary by CPU family, chassis size, and I/O configuration, and current availability should be confirmed before finalizing project timelines. Waiting until after logic conversion is complete to begin procurement discussions is a scope and schedule risk — hardware deliveries can extend migration timelines in ways that are entirely avoidable with early engagement. LeadTime.ca ships worldwide and works with engineering and procurement teams at all stages of migration planning, from initial hardware scoping through final system build-out. Contact the LeadTime.ca team to get current pricing and lead time information for the specific platform and I/O configuration your project requires.

For volume procurement or multi-phase projects where procurement needs to be staged across an extended migration schedule, contact the LeadTime.ca team directly — we ship worldwide and can structure sourcing timelines to match your cutover plan.

Five Real Migration Scenarios and the Platform Decision Each Points To

Scenario Key Constraints Preferred Platform Migration Strategy
Single critical PLC-5 controlling a production line High criticality, limited downtime, strong existing Rockwell footprint ControlLogix Use Rockwell migration tools for core logic; bridge DH+/Remote I/O during phased cutover; staged I/O rewiring with weekend commissioning windows
Plant with multiple SLC 500 panels and mixed vendors Many small systems, various drive and HMI brands, moderate downtime flexibility ControlLogix or Modicon M580 depending on corporate standards Standardize on one PAC family; consolidate smaller systems into fewer controllers; redesign networks to Ethernet; replace panels gradually
Corporate move to Siemens standards Corporate mandate for Siemens, upcoming global projects S7-1500 Re-engineer logic in TIA Portal; adopt PROFINET and Siemens HMIs; start with pilot area; plan full network and wiring redesign
Utility or infrastructure system with long maintenance horizon Conservative changes, long asset life expectations, strong Modbus presence Modicon M580 Migrate to M580 with Modbus TCP and distributed I/O; preserve existing Modbus integrations via gateways where applicable; emphasize redundancy and diagnostics
Brownfield site with aging PLC-5 and major process upgrade planned Larger process redesign, engineering team engaged, legacy systems clearly insufficient Scenario-dependent: ControlLogix if Rockwell preferred; S7-1500 or M580 if new standards adopted Integrate migration with process modernization; design new control architecture from scratch; minimize temporary bridging; comprehensive testing before go-live

Wiring, Network, and Cabinet Changes: What to Expect on the Installation Side

Physical installation changes are consistently underestimated in SLC 500 and PLC-5 migration projects. The following overview covers the key dimensions of what changes in the field and what must be planned before the first panel is opened.

  • Re-termination of I/O field wiring to new module terminal bases is required for every migrated I/O card; maintain consistent loop IDs and labeling throughout to avoid commissioning confusion.
  • Analog loops require individual verification of signal scaling and ranges against the new module specifications — default scaling behavior differs between legacy and modern modules and must not be assumed equivalent.
  • Replacing DH+, Remote I/O, and serial links with Ethernet infrastructure requires installation of managed switches, structured cabling, and appropriate shield grounding practices; unmanaged switches are not appropriate for industrial Ethernet control networks.
  • Network segmentation, VLAN design, and cybersecurity controls for EtherNet/IP, PROFINET, or Modbus TCP must be designed before installation begins — not resolved during commissioning.
  • All work in live panels must follow plant lockout/tagout procedures and applicable safety regulations; consult manufacturer documentation for specific wiring requirements for each new module type before beginning installation work.

Frequently Asked Migration Questions

Do I have to migrate immediately now that RSLogix 5 is End of Life?

The end-of-sale for new RSLogix 5 activations became effective December 31, 2025, which means new engineering seats can no longer be purchased through normal channels. Existing activations may continue to function, but support is limited and tied to specific legacy service arrangements. Combined with the confirmed hardware discontinuation of PLC-5 and SLC 500 controllers, the practical answer for most production-critical systems is that migration planning should begin now, even if cutover is scheduled in a future maintenance window. Waiting for a hardware failure to force the decision is the highest-risk approach.

Is it easier to migrate to ControlLogix than to S7-1500 or Modicon M580?

For most Rockwell-centric plants, yes — and the reason is specific: Rockwell provides documented tools that can convert RSLogix 5 and RSLogix 500 project files into a Studio 5000 Logix Designer format as a starting point. These tools do not produce finished code and require significant manual review, but they reduce the baseline re-engineering effort compared to a cross-vendor migration to TIA Portal or EcoStruxure Control Expert, where logic must be re-engineered entirely from documented functionality. The familiarity of the Studio 5000 environment for engineers who have worked with RSLogix is an additional practical advantage.

Can I reuse my existing SLC 500 I/O field wiring when migrating to a new controller?

In many cases, existing field wiring to terminal blocks can be reused, particularly for standard discrete I/O where wire gauges and signal types are compatible with new module specifications. Analog loop wiring requires individual verification of signal ranges and shield grounding. Communication cables for DH+ and Remote I/O cannot be reused for Ethernet — those segments require new structured cabling. Every wiring reuse decision must be verified against the new module's specifications before installation.

How do I handle DH+ networks during migration to ControlLogix?

Rockwell provides DH+ bridge modules that can be used with ControlLogix during a phased migration, allowing DH+ segments connecting HMIs, SCADA systems, and other PLCs to remain operational while the core controller and I/O are migrated first. This is a temporary bridging solution, not a permanent architecture — the eventual goal is full migration to EtherNet/IP. For S7-1500 and Modicon M580 migrations, DH+ is not natively supported and must be replaced as part of the migration scope.

How much downtime should I plan for a PLC-5 replacement?

Downtime requirements depend heavily on the scale of the system, the quality of pre-migration documentation and preparation, and whether the project uses a phased or big-bang approach. A well-prepared phased migration of a single process cell may require a single planned maintenance window. A full-plant big-bang replacement of a complex PLC-5 system with extensive I/O and legacy networks may require multiple days. Running realistic dry-run scenarios and completing a pilot migration before tackling critical production areas is the most reliable way to develop an accurate downtime estimate for your specific system.

What is the minimum documentation I need before starting a migration?

The minimum viable starting point is: verified backups of all RSLogix 5 and RSLogix 500 project files including revision history; a complete I/O list with channel-level field device identification; a network map showing all DH+, Remote I/O, and communication connections; and identification of all safety functions and interlocks. If any of these items are missing or uncertain, resolving the documentation gap is the first migration task — proceeding without them significantly increases the risk of mis-mapped I/O, missing interlocks, and post-cutover failures.

Why Engineering Teams Use LeadTime.ca for PAC Migration Sourcing

  • LeadTime.ca ships worldwide — migration projects at any site globally can request sourcing assistance regardless of location.
  • Multi-vendor capability: we can source ControlLogix, S7-1500, and Modicon M580 hardware, allowing procurement teams to compare availability and lead times across all three platforms from a single point of contact.
  • Volume and multi-phase procurement: for migration projects staged across extended schedules, we can structure sourcing timelines to match your cutover plan and avoid hardware delivery gaps.
  • Hard-to-find components: legacy SLC 500 and PLC-5 spares for parallel operation during transition, as well as current-generation PAC hardware for the replacement system.
  • Fast response for project timelines: when a hardware failure or schedule constraint accelerates a migration, responsiveness from the distributor directly affects project outcomes.

Migration At-a-Glance Summary

  • PLC-5® Programmable Controllers: hardware formally discontinued by Rockwell Automation; now in legacy support only.
  • SLC™ 500 Modular Controllers: confirmed hardware discontinuation date of March 31, 2024.
  • RSLogix 5 design software: End of Life, with new activations removed from sale effective December 31, 2025.
  • Three primary target platforms: ControlLogix® Programmable Automation Controllers (Rockwell, EtherNet/IP), SIMATIC S7-1500 Advanced Controllers (Siemens, PROFINET), and Modicon M580 ePAC (Schneider Electric, Modbus TCP).
  • ControlLogix: lowest re-engineering baseline for Rockwell-centric plants; Rockwell tools support structural logic conversion with mandatory manual review; DH+ bridging available for phased migration.
  • S7-1500 and Modicon M580: no automatic cross-vendor conversion tools; full logic re-engineering required; appropriate when corporate standardization or ecosystem fit justifies the additional engineering investment.
  • Six common mistakes: treating conversion tools as complete, ignoring network/cybersecurity design, underestimating documentation, mixing safety and standard logic without validation, over-centralizing control, and neglecting training.
  • Eight migration phases: audit, design, procurement, pilot, installation, software conversion, validation, and handover — the pilot phase is the most frequently skipped and most valuable risk-reduction step.
  • All safety migration activities require formal safety lifecycle review, documented validation, and involvement of qualified safety specialists regardless of target platform chosen.
