Schneider BMENOC0301 — Modicon M580 3-Port Ethernet Module Review

By Abdullah Zahid
15 min read

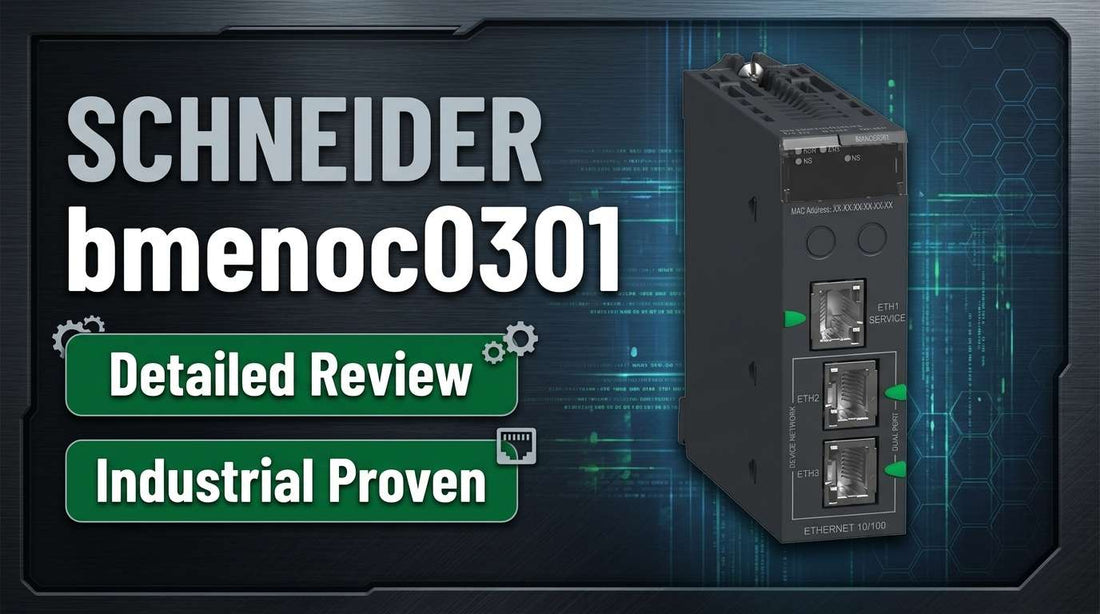

Schneider Electric BMENOC0301 3-port Ethernet communication module for Modicon M580 industrial automation rack

Schneider BMENOC0301 Network Module, Modicon M580, Ethernet IP/Modbus TCP (3-Port Standard Ethernet Communication Module) — Specifications, Compatibility, and Procurement Guide

Controls engineers specifying Ethernet connectivity for a Modicon M580 system face a precise decision: how many independent network connections does this architecture actually need, and does the module handle both EtherNet/IP and Modbus TCP without external protocol conversion hardware? The Schneider BMENOC0301 answers that question directly — it is a plug-in communication module that installs into a BMEXBPxxx Ethernet + X-bus rack and delivers three independent 10/100 Mbps Ethernet ports, an embedded 4-port switch, and native support for both EtherNet/IP and Modbus TCP I/O scanning within a single module drawn from 3.3V DC at 555mA from the rack itself. If you are at the point of confirming the part number and need pricing, stock status, and lead time, skip ahead now.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the BMENOC0301 — and Who Should Look at Alternatives

The BMENOC0301 is the correct module for Modicon M580 engineers who need to bridge multiple industrial Ethernet networks from a single rack slot. It is the right choice when all of the following apply:

  • Your base unit is a Modicon M580 and your communication rack is a BMEXBPxxx (Ethernet + X-bus) model — this module physically and functionally cannot operate on M340, M241, or non-Modicon platforms
  • Your application requires three independent Ethernet ports to connect to separate networks simultaneously, such as a process control subnet, a safety interlock network, and an MES or corporate integration link
  • Your system uses EtherNet/IP, Modbus TCP, or both protocols — the BMENOC0301 supports I/O scanning and messaging on both natively
  • Your operating environment stays within 0°C to 60°C ambient with IP20 panel-mount protection acceptable
  • Your network infrastructure runs at 10/100 Mbps — this module does not provide Gigabit Ethernet

If only one Ethernet connection is required, the single-port BMENOC0200 series is the lower-cost, lower-complexity choice. If your system is not Modicon M580, this module has no role in your architecture regardless of how attractive the network feature set appears.

On this page:

What the BMENOC0301 Actually Does in an M580 System

The BMENOC0301 is not a passive switch or a simple gateway add-on. It is a native communication module that snaps directly into a BMEXBPxxx Ethernet + X-bus rack slot and becomes an active participant in the M580 controller's network architecture. The module draws its operating power internally from the rack at 3.3V DC and 555mA maximum — no external power supply connection is required, which simplifies enclosure wiring and eliminates one PSU load calculation from your panel design. The weight of 0.2kg keeps the rack balance well within normal limits for standard DIN panel installations.

The three independent RJ45 ports each operate as separate 10BASE-T or 100BASE-TX interfaces with auto-negotiation, meaning each port can live on a physically and logically distinct subnet. This is the feature that distinguishes the BMENOC0301 from single-port modules: a packaging line running process control traffic on one subnet, safety interlock communications on a second, and MES or cloud analytics on a third can connect all three without an intermediate gateway or a separate managed switch in the signal path. The embedded 4-port switch with RSTP (Ring Spanning Tree Protocol) support goes further, enabling redundant ring topologies directly from the module — if one cable segment fails, traffic reroutes automatically without requiring an external managed switch.

Protocol support covers both EtherNet/IP and Modbus TCP simultaneously, including I/O scanning, messaging, and tag-based data exchange. SNMP network management allows the module to be monitored and managed from a standard network management system. FDR (Fast Device Replacement) enables automatic configuration recovery on boot, reducing commissioning time after a module swap. A basic embedded web server provides application monitoring and diagnostic access without requiring additional software licensing.

Typical System Architecture for the BMENOC0301

The BMENOC0301 sits between the Modicon M580 CPU in the Ethernet + X-bus rack and the downstream industrial Ethernet network segments, acting as the controlled bridge that determines how controller data is distributed across multiple subnets.

  • Modicon M580 CPU (BMEP or similar) installed in BMEXBPxxx rack — communicates with BMENOC0301 over the internal X-bus backplane
  • BMENOC0301 module in rack slot — three independent RJ45 ports face outward; embedded 4-port switch handles internal traffic segmentation
  • Port 1 — process control network: EtherNet/IP remote I/O nodes, drives, and instrumentation on the plant floor subnet
  • Port 2 — safety or secondary network: safety interlock devices, redundant ring topology partner connection using RSTP, or a second I/O scanning subnet for load balancing
  • Port 3 — management or integration network: MES system, corporate infrastructure, SNMP monitoring station, or cloud analytics gateway

Industries and Applications Where This Module Fits

Food and beverage manufacturers running multi-line bottling or pasteurization control systems commonly specify the BMENOC0301 where separate subnets are required for production monitoring, drive control, and quality management integration. The module's simultaneous EtherNet/IP and Modbus TCP support means legacy Modbus TCP sensors and newer EtherNet/IP drives can coexist on the same M580 system without protocol conversion hardware.

Water and wastewater treatment facilities benefit directly from the embedded RSTP ring topology capability. Dual pump stations connected in a ring topology via Port 1 and Port 2 achieve automatic failover if a cable segment is cut or a switch fails, without any external managed switch in the ring path. This is a meaningful architecture simplification for remote installations where adding network infrastructure is costly.

Pharmaceutical manufacturers operating under GxP compliance requirements often run separate audit and control subnets. The BMENOC0301's three independent ports allow the M580 controller to maintain physical and logical network separation between the control network and the audit trail or data historian network, which simplifies network segmentation validation during regulatory inspections.

Chemical processing and batch manufacturing plants using high-density remote I/O — for example, 500 or more remote I/O nodes across two EtherNet/IP networks — can use Port 1 and Port 2 for I/O network load balancing while Port 3 serves management or supervisory traffic. Automotive assembly and mining operations with long-distance industrial Ethernet runs and multi-zone control architectures also represent strong fits for the three-port, ring-capable design.

Application Typical Deployment
Multi-subnet packaging line Port 1: process control, Port 2: safety interlocks, Port 3: MES integration — all from one module slot
Water treatment ring topology Ports 1 and 2 in RSTP ring between dual pump stations; automatic failover on cable break without external switch
High-density I/O scanning Two EtherNet/IP networks load-balanced across Port 1 and Port 2; Port 3 reserved for management access
Pharmaceutical GxP network separation Control network on Port 1, audit trail or data historian on Port 2, SNMP monitoring on Port 3
Retrofit expansion of single-port M580 BMENOC0301 replaces original single-port module; spare ports used for cloud analytics or remote monitoring addition
Mixed-protocol process facility Legacy Modbus TCP sensors and newer EtherNet/IP drives handled simultaneously without protocol converter

Purchase-Decision Specifications for the BMENOC0301

Specification Value
Supply Voltage 3.3V DC (internal from rack — no external PSU required)
Current Consumption 555mA maximum
Ethernet Ports 3 independent RJ45 ports (10BASE-T / 100BASE-TX, auto-negotiation)
Transmission Rate 10/100 Mbps (not Gigabit)
Supported Protocols EtherNet/IP (I/O scanning, messaging, tag-based data), Modbus TCP (master and slave)
Embedded Switch 4-port switch integrated; RSTP ring topology support on 2 ports
Network Management SNMP, embedded web server (basic), FDR (Fast Device Replacement)
Operating Temperature 0°C to 60°C ambient
IP Rating IP20 (panel-mount; not outdoor-rated)
Compatible Rack BMEXBPxxx (Ethernet + X-bus) — M580 only; not compatible with M340, M241, or other families

Full technical specifications are available on the product page at LeadTime.ca.

BMENOC0301 vs. BMENOC0200: Which Module Does Your Project Actually Need?

Feature BMENOC0301 BMENOC0200 (Single-Port Alternative)
Ethernet Ports 3 independent 1 port
Transmission Speed 10/100 Mbps 10/100 Mbps
EtherNet/IP Support Yes Yes
Modbus TCP Support Yes Yes
Embedded 4-Port Switch Yes No
RSTP Ring Topology Yes (2 ports) No
Typical Use Case Multi-network architectures, ring redundancy, load balancing across I/O subnets Single gateway or simple backbone connection
Pricing Available on product page Single-port modules typically lower — contact for current pricing

If your architecture requires only one Ethernet connection to the M580 system, the BMENOC0200 series is the cost-appropriate choice. If you need three independent network connections, embedded ring redundancy, or load balancing across large I/O node counts, the BMENOC0301 is the correct specification — check current availability at LeadTime.ca.

Expert Verdict: Is the BMENOC0301 Worth Specifying?

The BMENOC0301 earns its place in M580 architectures that genuinely require multi-network connectivity. For a food processing plant running three separate Ethernet subnets — process control, safety interlocks, and MES integration — this module removes the need for external managed switches and protocol converters in the network path. The embedded 4-port switch with RSTP support is not a marketing feature; it is a real architecture simplification that matters in water treatment and chemical processing facilities where network redundancy is a project requirement, not an option. The certification stack — CE, UL, EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 — satisfies compliance requirements across North American and EU regulated environments including pharmaceutical manufacturing. The 555mA current draw at 3.3V DC is the one constraint that deserves attention before the purchase order is raised, because undersized rack power supplies are the most common cause of intermittent module behavior after installation.

The BMENOC0301 has clear limits that honest specification requires acknowledging. If the system only needs one Ethernet connection, the additional cost of the three-port module is not justified — the BMENOC0200 series is the right answer and is typically available at lower cost. If the project mandates Gigabit Ethernet for bulk data transfers, video streaming, or high-bandwidth SCADA integration, 10/100 Mbps will create a bottleneck and this module should not be selected regardless of its other merits. And if the base PLC is anything other than a Modicon M580 installed in a BMEXBPxxx rack — including an M340, M241, Siemens S7-1200, Allen-Bradley CompactLogix, or ABB AC500 — this module has no role in that system. Buying it for the wrong platform results in a non-functional module and a return shipping timeline that will push a project schedule.

From a procurement standpoint, the BMENOC0301 is a real-world stocking item for authorized Schneider Electric distributors, but availability varies and lead times can extend depending on region and order timing. The single most important step before placing a purchase order is confirming in writing that the base unit is M580 and the rack is BMEXBPxxx — a specialist distributor can make that verification from a photo of your rack label and prevent a costly mis-ship. View current pricing and stock status for the BMENOC0301 at LeadTime.ca — we supply industrial automation hardware worldwide and can confirm compatibility before the order is placed.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the BMENOC0301

Because community forum data specific to the BMENOC0301 is limited in publicly indexed sources, the practical intelligence for this module comes primarily from the Wrong-Part Prevention patterns that specialist distributors and Schneider Electric support teams encounter repeatedly. The ordering mistakes engineers make on this part follow a consistent pattern, and understanding them before the PO is raised is worth more than any forum thread.

The most frequent issue is platform confusion. The BMENOC0301 is mechanically and electrically specific to the Modicon M580 product family. Engineers migrating from M340 or M241 projects sometimes carry over a catalog number from a previous project without checking the base unit designation. The M340 uses a different communication rack architecture entirely, and the module will not initialize in that environment — it does not generate a clear error message indicating a wrong-platform condition, which means the module appears dead on arrival and a return shipping cycle begins. The verification step is straightforward: confirm the base unit model code includes M580 and the rack model starts with BMEXBP.

The second pattern involves rack power supply capacity. A 555mA draw at 3.3V DC is not trivial when added to a fully loaded rack with multiple I/O modules and a CPU already consuming available PSU headroom. Engineers who do not add the BMENOC0301 current draw to the rack PSU budget during system design sometimes encounter intermittent module resets or network connectivity losses after installation — symptoms that are difficult to trace without a power audit. The practical rule is to verify PSU available capacity exceeds the module's 555mA requirement with margin before ordering the module, not after it arrives on site.

The third pattern is ordering the BMENOC0301 when the BMENOC0200 series would have been sufficient. Count the distinct Ethernet network segments the M580 system must physically connect to. If the answer is one, the single-port module is the correct and lower-cost specification. The embedded 4-port switch in the BMENOC0301 does not replace the need for multiple ports when true network isolation between subnets is required — but if a single backbone connection to a factory network is all the system needs, paying for three-port capability adds cost without adding value.

Wiring and Installation Overview

  • The BMENOC0301 installs into a BMEXBPxxx Ethernet + X-bus rack slot using a keyed snap-on connector — no external wiring for module power is required; the rack supplies 3.3V DC at up to 555mA internally
  • All three Ethernet connections use standard RJ45 connectors with double shielded twisted pair cabling; unshielded CAT5 is not recommended in industrial environments due to EMC immunity requirements under EN 61000-6-2
  • For RSTP ring topology, connect Port 1 and Port 2 into the ring segment; ring configuration must be enabled in module settings and RSTP priority and port costs set per network design documentation
  • Before powering on after installation, verify rack PSU output voltage at the 3.3V rail is within specification under full system load — a voltage drop below the minimum operating threshold will cause module boot failures that appear as hardware faults
  • After power-on, allow 10 to 15 seconds for module boot; green LED indicators confirm healthy module status; red or unlit LEDs indicate a fault condition requiring power cycle and reference to the official BMENOC0301 installation manual available from se.com

Wrong-Part Prevention: Verify Before You Order

Before placing a purchase order for the BMENOC0301, confirm every item on this checklist. Skipping any single item is the source of the most common and most costly ordering mistakes for this module:

  1. Verify PLC base unit is Modicon M580 (confirm model starts with BM or PM and includes "M580" in spec sheet) — BMENOC0301 will not function on M340, M241, or non-Modicon platforms
  2. Confirm rack type is BMEXBPxxx (Ethernet + X-bus) — BMENOC0301 requires this exact rack; standard Ethernet racks without X-bus will reject module
  3. Check that three separate Ethernet ports are needed; single-port modules (BMENOC0200 series) are cheaper if only one connection required
  4. Verify current draw (555mA) is within rack power supply budget; undersized power supplies cause module reset or lockouts during heavy I/O scanning
  5. Ensure network uses 10/100 Mbps switches (do NOT use Gigabit-only infrastructure without POE injector for backwards compatibility)
  6. Confirm EtherNet/IP or Modbus TCP is used in the system; if only proprietary Modbus RTU or CANopen required, this module is oversized
  7. Verify operating temperature range 0-60°C matches plant floor — if outdoor or high-temp enclosures, add thermostat-controlled ventilation

If any item on this checklist raises a question, the fastest resolution is a direct conversation with a specialist distributor who can cross-reference your existing system configuration. Contact LeadTime.ca before ordering — confirming compatibility takes minutes and prevents multi-week return delays.

Frequently Asked Questions

Can the BMENOC0301 connect to three completely separate and isolated subnets simultaneously, or are the ports bridged internally?

Each of the three RJ45 ports on the BMENOC0301 is an independent 10/100 Mbps Ethernet interface, which allows connection to three logically and physically separate network segments. The embedded 4-port switch handles internal traffic management between ports, but the module's three-port architecture supports distinct IP addressing per port to maintain subnet separation — for example, a process control subnet on Port 1, a safety network on Port 2, and a corporate or MES network on Port 3. Consult the official Schneider Electric BMENOC0301 documentation for IP configuration details specific to your firmware version.

Will the BMENOC0301 work in an existing M580 rack if the firmware on the CPU has not been updated recently?

The BMENOC0301 requires compatibility with the Modicon M580 ecosystem, and firmware alignment between the CPU and communication module is an important pre-installation verification step. The current documented firmware for the BMENOC0301 is SV02.22; significantly older CPU firmware versions may not fully support all module features. Before installing, verify the current firmware version on both the module and the M580 CPU, and check se.com for the latest firmware release and compatibility matrix for your specific M580 CPU model.

What happens to network traffic if the BMENOC0301 loses power or the module fails — does the M580 continue operating?

The BMENOC0301 is a communication module, not the M580 CPU itself. If the module loses power or fails, the M580 CPU continues to execute its program, but all Ethernet-based I/O scanning, EtherNet/IP messaging, and Modbus TCP communication routed through this module will be interrupted. The FDR (Fast Device Replacement) feature supports automatic configuration recovery after a module replacement, which reduces recommissioning time in the event of a module swap. For mission-critical applications, evaluate whether RSTP ring topology across two ports provides adequate network-level redundancy for your system requirements.

Is the BMENOC0301 a direct hardware replacement for an older single-port module in an existing M580 installation, or is rewiring required?

The BMENOC0301 installs into the same BMEXBPxxx rack slot type used by single-port M580 communication modules, so physical slot compatibility is consistent within the M580 rack family. However, replacing a single-port module with the BMENOC0301 introduces two additional Ethernet ports and a different IP configuration profile, which means network configuration in the M580 project software will need to be updated to reflect the new module. No enclosure rewiring is required for the existing Ethernet cable, but the additional ports require their own cabling if you intend to use them.

Does the embedded 4-port switch in the BMENOC0301 eliminate the need for any external managed switch in a ring topology?

For standard two-segment RSTP ring topologies where the ring is formed using Port 1 and Port 2 of the BMENOC0301, the embedded switch with RSTP support can eliminate the need for a dedicated external managed switch within that ring segment. This is one of the key architecture benefits documented for the module. For larger or more complex ring topologies involving multiple rack nodes, additional external switches may still be required — consult Schneider Electric's M580 network topology documentation for the specific node count and ring configuration limits supported by the embedded switch.

Why Order the BMENOC0301 Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills industrial automation hardware orders worldwide, not limited to any single region or country
  • Compatibility verification before the order ships — a specialist team can cross-reference your M580 base unit model and rack type against the BMENOC0301 requirements before the purchase order is confirmed, preventing costly mis-ships
  • Hard-to-find and short lead time parts — when distributor availability varies, a specialist distributor with active sourcing channels reduces exposure to project schedule risk
  • Volume pricing available — contact for current pricing on multi-unit or project-quantity orders
  • Access to current documentation and firmware references — specialist distributors provide the correct manual and firmware references for the exact module version shipped

At-a-Glance Summary

  • Model: BMENOC0301 — 3-Port Standard Ethernet Communication Module for Modicon M580
  • Three independent RJ45 ports, each operating at 10/100 Mbps with auto-negotiation
  • Rack-powered at 3.3V DC, 555mA maximum — no external PSU wiring required
  • Supports EtherNet/IP and Modbus TCP simultaneously, including I/O scanning and messaging
  • Embedded 4-port switch with RSTP ring topology support — reduces or eliminates external managed switch requirement in standard ring deployments
  • SNMP network management, FDR automatic recovery, and basic embedded web server included
  • Compatible racks: BMEXBPxxx (Ethernet + X-bus) only — not compatible with M340, M241, or non-Modicon platforms
  • Operating temperature: 0°C to 60°C; IP20 rating; storage temperature -40°C to 85°C
  • Certifications: CE, UL, EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
  • Current firmware: SV02.22 — verify latest version at se.com before installation
  • GTIN / EAN: 03606480713903
  • Primary use cases: multi-subnet industrial plants, RSTP ring redundancy, high-density I/O load balancing, mixed EtherNet/IP and Modbus TCP environments, M580 retrofit expansion
