Schneider Electric BMECRA31210 — Modicon X80 EIO Adapter Buying Guide

By Abdullah Zahid
14 min read

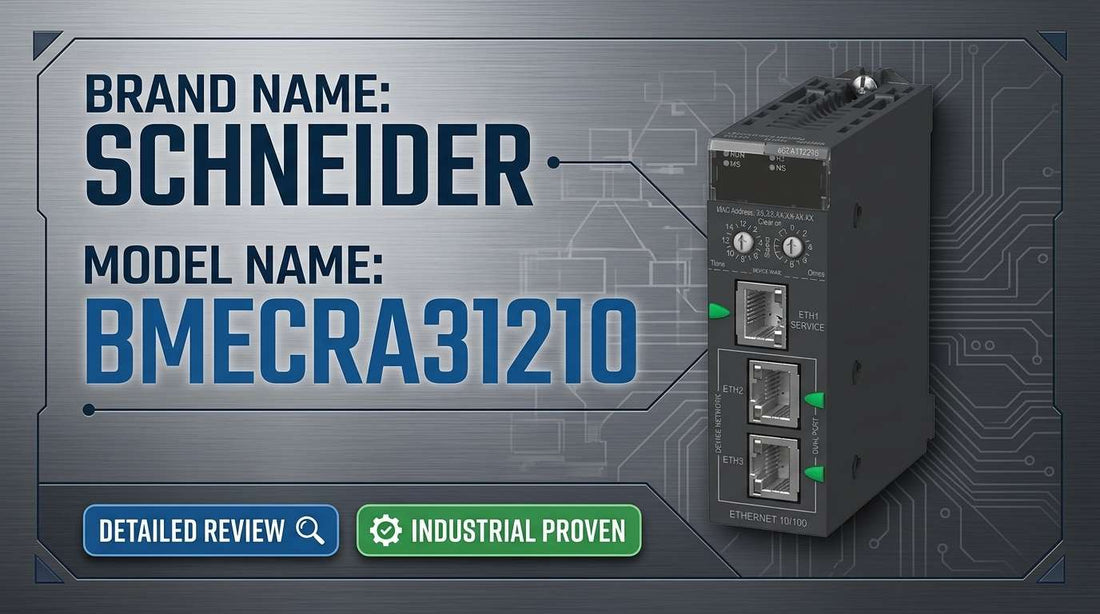

Schneider Electric BMECRA31210 Modicon X80 EIO drop adapter with Ethernet backplane for M580 and M340 distributed I/O systems

Schneider Electric BMECRA31210 EIO Drop Adapter, Modicon X80, with Ethernet Backplane — Specs, Compatibility, and Procurement Guide

Controls engineers specifying distributed I/O for a Modicon M580 or M340 system eventually land on one question: which EIO drop adapter gives the right capacity and native integration without adding network complexity. The Schneider Electric BMECRA31210 is the standard answer for that application — an EtherNet/IP-based remote I/O node supporting up to 1024 digital I/O and 256 analog I/O per drop, with three RJ45 ports, a 32 mm rack-mount footprint, and an IP20 protection rating for cabinet-enclosed installations. If you are at the point of confirming specs before raising a purchase order, the next step is straightforward.

If you have already confirmed this is the right part, check current pricing and availability for the BMECRA31210 at LeadTime.ca — ships worldwide.

Who Should Buy the BMECRA31210 — and Who Shouldn't

The BMECRA31210 is the correct choice for engineers building or expanding a Modicon X80-platform system who need high-capacity Ethernet-based remote I/O within a controlled cabinet environment. Confirm all of the following before ordering:

  • Your central controller is a Modicon M580 or M340 PAC — this adapter is Modicon X80 platform specific and cannot be retrofitted to other PLC families
  • Your network architecture runs EtherNet/IP — PROFINET, Modbus TCP, and other protocol environments require a different adapter family entirely
  • Your total I/O count per drop falls within 1024 digital and 256 analog — across two racks maximum per BMECRA31210 unit
  • Installation is inside a sealed, climate-controlled cabinet maintaining 0 to 60°C — IP20 rating makes this adapter unsuitable for field mounting, outdoor enclosures, or washdown zones
  • Your network infrastructure supports 10/100 Mbps Ethernet and can accommodate three RJ45 connections with appropriate switch port availability

If your installation is outdoor, high-humidity, or requires an IP rating above IP20, or if your operating temperature falls outside 0 to 60°C, a higher-rated variant is the correct specification. If your PLC platform is not Modicon, this adapter will not function in your system regardless of network protocol.

On this page:

What the BMECRA31210 Actually Does in a Modicon System

The BMECRA31210 is an EIO (Ethernet I/O) drop adapter — the node that connects a rack of field I/O modules to the Modicon M580 or M340 controller over an EtherNet/IP network. Rather than running individual field wiring back to the main control cabinet over long distances, the adapter sits locally near the field devices, collects digital and analog data from attached I/O modules, and transmits that data over standard Ethernet to the central PAC. This is the fundamental value of the distributed I/O architecture: fewer long cable runs, more flexible plant layouts, and a network-managed connection that can be diagnosed remotely.

Within the Modicon X80 platform — which is the shared I/O hardware family used across both M580 and M340 controllers — the BMECRA31210 is the primary Ethernet-based drop adapter. It supports two I/O racks per drop, allowing up to 1024 digital I/O and 256 analog I/O from a single network node. The three-port Ethernet design includes two data ports and one dedicated service port for commissioning and diagnostics, giving network engineers flexibility in topology and giving commissioning engineers a discrete access point that does not disrupt live traffic. The adapter also supports HART modules, weighing modules, and CCTOF (counter/timer) modules, and provides 10 ms timestamping for synchronized control applications where event ordering matters.

The BMECRA31210 holds UL, CSA, RCM, and EAC certifications and complies with EN 61131-2, EN 61000-6-2, EN 61000-6-4, and EN 61010-2-201. It is RoHS and REACH compliant, and the manufacturer publishes a life-cycle carbon footprint of 283 kg CO2 eq — a relevant data point for procurement teams managing ESG reporting requirements.

Typical System Architecture for BMECRA31210 Deployments

The BMECRA31210 sits between the Ethernet network infrastructure and the field-side I/O rack — translating EtherNet/IP network traffic from the controller into backplane-level I/O module communication. A typical deployment chain looks like this:

  • Modicon M580 or M340 PAC (head-end controller) — configured with EtherNet/IP scanner running the system application
  • Industrial Ethernet switch — distributes network traffic to one or more BMECRA31210 drop adapters at distributed locations
  • BMECRA31210 adapter — rack-mounted in a local control cabinet, connected to the switch via Cat5e or better cabling on its data ports
  • Modicon X80 I/O racks (up to two per adapter) — attached to the BMECRA31210 backplane, populated with digital input, digital output, analog input, analog output, or specialty modules
  • Field devices (sensors, solenoids, actuators, transmitters) — wired directly to the I/O modules in the local rack

Where Engineers Deploy the BMECRA31210: Applications and Industries

Automotive manufacturing plants use the BMECRA31210 to build distributed I/O networks across multi-zone assembly lines, placing a drop adapter at each work station so a central M580 controller can monitor and command every sensor and actuator without home-running wire across the facility floor.

Food and beverage and pharmaceutical manufacturers benefit from the high I/O density — 1024 digital and 256 analog per drop — which allows a single adapter to serve a complex filling, capping, or mixing station without requiring a second drop adapter or additional network nodes.

OEM machine builders embed the BMECRA31210 into packaged systems built around Modicon M580 or M340 controllers, so that end customers in Schneider-based facilities can integrate the delivered machine directly into their existing EtherNet/IP network without protocol conversion or custom engineering.

Material handling and conveyor system integrators use distributed BMECRA31210 nodes along conveyor lines where sensor and actuator points are spread over hundreds of meters, coordinating each node through the M580's EtherNet/IP scanner for synchronized sorting and routing operations.

Satellite monitoring applications — where the M340 controller is in a main control room and I/O points are in a remote production area — use the BMECRA31210 to eliminate long-distance field wiring, replacing home-run cables with a single Ethernet run back to the main network switch.

Application Typical Deployment
Multi-zone production line Central M580 with one BMECRA31210 drop per work station, each gathering local sensor and actuator data over EtherNet/IP
OEM packaged machine BMECRA31210 embedded in machine cabinet, allowing end-user integration to existing Modicon M580/M340 network
Remote satellite production area M340 in main office, BMECRA31210 in satellite cabinet, single Ethernet run replacing long-distance field wiring
Material handling and conveyor Multiple BMECRA31210 drops along conveyor line, coordinated via M580 EtherNet/IP scanner for synchronized sorting
Modular production system Each production module contains its own BMECRA31210, networked to central M580 for fleet-level coordination

BMECRA31210 Key Specifications at a Glance

Specification Value
Model Number BMECRA31210
Product Type EIO Drop Adapter — Remote I/O Node
Compatible Platform Modicon X80 (M580, M340, Quantum)
Network Protocol EtherNet/IP, 10/100 Mbps
Ethernet Ports 3 × RJ45 (2 data ports + 1 service port)
Digital I/O Capacity 1024 (maximum per drop, two racks)
Analog I/O Capacity 256 (maximum per drop, two racks)
Timestamping 10 ms
Protection Rating IP20 (cabinet installation required)
Operating Temperature 0 to 60°C

Full technical specifications are available on the product page at LeadTime.ca.

BMECRA31210 vs. BMECRA31310 and Other Alternatives

Criteria BMECRA31210 BMECRA31310 Non-Modicon EtherNet/IP Adapter
PLC Platform M580, M340, Quantum M580, M340 Non-Modicon (ControlLogix, etc.)
Protocol EtherNet/IP EtherNet/IP EtherNet/IP (different ecosystem)
Digital I/O Capacity 1024 per drop Higher density (confirm with datasheet) 128–512 typical (varies by model)
Analog I/O Capacity 256 per drop Higher (confirm with datasheet) 32–128 typical (varies by model)
Ethernet Ports 3 RJ45 2 RJ45 Varies
Operating Temperature 0 to 60°C 0 to 60°C 0 to 60°C typical
IP Rating IP20 IP20 IP20 typical; IP65 variants available
Integration Effort Native for M580/M340 Native for M580/M340 Requires different programming environment

If your application requires I/O density above 1024 digital or 256 analog per drop, the BMECRA31310 is the logical next step within the same Modicon X80 family — check current availability and compare options at LeadTime.ca.

Expert Verdict: Is the BMECRA31210 the Right Adapter for Your Project?

The BMECRA31210 earns its position as the standard EIO drop adapter for Modicon X80 systems precisely because it does not ask engineers to compromise. For controls engineers designing new M580 or M340 installations, system integrators expanding existing Modicon M340 architectures to Ethernet-based I/O, and OEM machine builders packaging Schneider control into delivered systems, this adapter provides 1024 digital and 256 analog I/O capacity per drop, native EtherNet/IP integration, a dedicated service port for commissioning without disrupting live network traffic, and a full stack of industrial certifications — UL, CSA, RCM, EAC — confirming suitability for North American, European, and Asia-Pacific deployments. The 10 ms timestamping capability extends the adapter's usefulness beyond simple data gathering into applications where synchronized event sequencing matters, such as motion coordination and high-speed sorting. The manufacturer's published carbon footprint of 283 kg CO2 eq also satisfies the increasing number of procurement teams that must document ESG compliance data at the component level.

Where the BMECRA31210 has real limits: engineers should not specify it for environments that push outside the 0 to 60°C operating range, for field-mounted or washdown applications where IP20 is insufficient, or for any installation where the central controller is not a Modicon M580, M340, or Quantum PAC. If your protocol is PROFINET or Modbus TCP, a different adapter family is required — not a configuration change. If your I/O count per node exceeds 1024 digital or 256 analog, the BMECRA31310 is the appropriate upgrade path within the same X80 ecosystem, avoiding the need to introduce additional drops or redesign the network topology.

From a procurement standpoint, the BMECRA31210 sits in a market-consistent price range for a component of its specification and has maintained reliable availability through authorized Schneider and Square D distribution channels. For a component at this price point in a critical automation application, ordering through a specialist industrial distributor — rather than a generic online channel — provides pre-sale technical verification, warranty backing, and the ability to confirm compatibility before the purchase order is raised. If you are ready to confirm specs and move to order, view current pricing and lead time for the BMECRA31210 at LeadTime.ca — we ship worldwide.

For volume pricing, project allocation quantities, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we serve procurement teams and controls engineers worldwide.

What Engineers Need to Know Before Ordering the BMECRA31210

Because the BMECRA31210 generates limited public forum discussion — consistent with how mature industrial automation components are typically adopted, through datasheet validation and distributor technical review rather than community troubleshooting — the most useful pre-purchase intelligence comes from documented ordering patterns and the specifications themselves. The following points address the situations where engineers have landed on the wrong part or run into avoidable project delays.

The most consequential error is specifying this adapter without confirming the PLC family. The BMECRA31210 is Modicon X80 platform specific. Engineers who have come from a project using ControlLogix, a Siemens S7 family, or even an older Modicon generation such as M90 or M92 cannot use this adapter — not as a workaround, not with a protocol converter, not with a firmware update. The platform boundary is hardware-level. Before the purchase order is issued, the controller nameplate or the project's PLC specification should be confirmed in writing.

The second pattern worth understanding is I/O count underestimation. The 1024 digital and 256 analog per drop capacity is genuinely high for a single remote I/O node, but multi-zone applications with dense sensor populations can exceed it during detailed design after the adapters have already been ordered. Engineers who document every field device — every proximity switch, every solenoid, every 4-20 mA transmitter — in an I/O count spreadsheet before ordering, and who include a 15 to 20 percent expansion margin, avoid the mid-commissioning discovery that a second drop is needed and the schedule impact that follows. If that exercise reveals the count is close to the boundary, a conversation with a specialist distributor before ordering — rather than after — keeps the project on track. LeadTime.ca's technical team fields exactly these pre-sale compatibility and capacity questions for engineers who want a second set of eyes before committing.

Installation and Wiring Overview

The following points summarize the key requirements for installing the BMECRA31210. For full wiring diagrams, step-by-step procedures, and software configuration details, refer to the Schneider Electric M580/M340 hardware installation manual and the BMECRA31210 product documentation.

  • Mount the BMECRA31210 on DIN rail within a sealed control cabinet; the IP20 protection rating requires internal cabinet installation with the operating environment maintained between 0 and 60°C
  • Connect Cat5e or better Ethernet cabling from the industrial network switch to Port 1 (primary data port); use the dedicated service port for commissioning and diagnostics without interrupting live network traffic
  • The adapter derives power from the backplane at 3.3 VDC with a current consumption of 1800 mA — verify backplane power budget before adding modules to the rack
  • Install required Modicon X80 I/O modules into up to two I/O racks connected to the adapter; confirm each module is fully seated and that the rack slot configuration matches the controller software configuration
  • Verify all three RJ45 port link LEDs illuminate on power-up; absence of link light on any active port indicates a wiring fault, switch port issue, or cable failure requiring resolution before commissioning proceeds

Compatible Modicon X80 I/O Module Types

The BMECRA31210 supports the full range of Modicon X80 I/O module types across both attached racks. Module selection depends on application requirements; the adapter handles the backplane communication for all supported types without requiring adapter-level reconfiguration.

  • Analog Input modules (4/8 channel variants) — sensor monitoring, measurement, and process variable acquisition
  • Analog Output modules (4 channel variants) — valve control, proportional output, and process control loops
  • Digital Input modules (16/32 channel variants) — switch, proximity sensor, and discrete signal inputs
  • Digital Output modules (16/32 channel variants) — relay, solenoid, and indicator driver outputs
  • HART modules — communication interface for legacy 4-20 mA HART-enabled field instruments
  • Weighing modules — load cell signal processing for scale and weigh applications
  • CCTOF modules (Counter/Timer/Counter-Timer-Oscillator-Frequency) — high-speed counting and frequency measurement applications

Two I/O racks maximum per BMECRA31210 drop. Exact module quantity per rack depends on the backplane slot count and I/O rack configuration selected. Refer to the M580 or M340 configuration manual for module slot layout and maximum module count per rack.

What Engineers Get Wrong When Ordering This Part — and How to Prevent It

Before submitting a purchase order for the BMECRA31210, verify each of the following points. These checks address the most common specification errors for this adapter:

  1. Confirm your PLC is Modicon M580 or M340 — this is Modicon X80 platform specific; cannot be retrofitted to other families
  2. Verify your network protocol is EtherNet/IP — if you have PROFINET or other protocol, wrong adapter family
  3. Check I/O count: 1024 digital + 256 analog per drop — confirm this capacity is sufficient and not excessive for your configuration
  4. Confirm rack-mounted installation: this adapter mounts in DIN rail within a control cabinet, not field-mounted
  5. Verify temperature range 0-60°C covers your installation location (not for sub-zero or high-temperature processes)
  6. Ensure network infrastructure supports 10/100 Mbps Ethernet and three RJ45 connections; confirm cable routing and switch availability

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team for pre-sale technical verification — we help engineers confirm compatibility before the purchase order is raised, not after the module arrives on site.

Frequently Asked Questions

Can the BMECRA31210 work with a PLC from a different manufacturer, or only Modicon?

The BMECRA31210 is Modicon X80 platform specific and is only compatible with Modicon M580, M340, and Quantum PAC controllers. It cannot be used with ControlLogix, CompactLogix, Siemens S7 series, or any other non-Modicon PLC family, regardless of network protocol. If your controller is not Modicon, a different adapter family is required.

How many BMECRA31210 units can a single M580 or M340 controller support on one EtherNet/IP network?

The brief does not specify a maximum drop count per controller — refer to the Modicon M580 or M340 configuration manual for the network scanner's maximum node count. The practical limit depends on controller model, scanner capacity, network switch bandwidth, and the update cycle requirements of your application. Confirm the specific ceiling with Schneider Electric documentation or a pre-sales technical contact before finalizing a large multi-drop design.

What happens if my application requires operating temperatures below 0°C or above 60°C?

The BMECRA31210 is rated for 0 to 60°C operating conditions. Installations in sub-zero environments, high-temperature process areas, or outdoor locations that breach this range require a higher-rated variant. Installing this adapter outside its rated temperature range voids the warranty and risks premature hardware failure. Identify the correct Modicon X80 variant for extended temperature operation before ordering.

Does the BMECRA31210 support network redundancy, and what do the three Ethernet ports enable?

The BMECRA31210 provides three RJ45 Ethernet ports — two data ports and one dedicated service port. The two data ports support redundancy or daisy-chain topology configurations depending on network design. The service port is used exclusively for commissioning and diagnostics, providing an isolated access point that does not interrupt live network traffic. All three ports operate at 10/100 Mbps with auto-negotiation.

Is the BMECRA31210 a direct replacement for older Modicon remote I/O adapters, such as those used on M90 or M92 systems?

No. The BMECRA31210 is part of the Modicon X80 platform, which is not backward compatible with older Modicon generations including M90 and M92. Those families use a different I/O architecture. If you are migrating from an older Modicon platform to M580 or M340, the BMECRA31210 is the correct adapter for the new system, but it cannot be dropped into an existing M90 or M92 installation without a full controller upgrade.

Are HART-enabled field instruments supported, and does HART support require any additional hardware?

Yes, HART communication is supported through dedicated HART modules installed in the Modicon X80 I/O racks attached to the BMECRA31210. HART support is not built into the adapter itself — it requires the appropriate HART module type installed in a rack slot. Confirm module availability and slot capacity when designing a HART-enabled I/O configuration.

Why Order Through LeadTime.ca

  • Ships worldwide — LeadTime.ca fulfills orders to customers globally, not limited to any single country or region
  • Pre-sale technical verification — the team confirms PLC compatibility and I/O capacity requirements before the purchase order is raised, preventing the wrong-part scenarios described in this article
  • Access to authorized Schneider Electric and Square D channel pricing, with volume discount availability at higher quantities
  • Direct contact for lead time confirmation before project timeline commitment — no surprises at budget lock-in
  • Sourcing support for hard-to-locate variants and accessories within the Modicon X80 ecosystem

At-a-Glance Summary

  • Model: BMECRA31210 — EIO Drop Adapter, Modicon X80, with Ethernet Backplane, manufactured by Schneider Electric
  • Compatible controllers: Modicon M580, M340, and Quantum PACs only — Modicon X80 platform specific
  • Network protocol: EtherNet/IP at 10/100 Mbps; 3 × RJ45 ports (2 data, 1 service)
  • I/O capacity: 1024 digital I/O and 256 analog I/O per drop; supports two I/O racks per adapter
  • Timestamping: 10 ms for synchronized control and motion applications
  • Power: 3.3 VDC backplane input; 1800 mA current consumption
  • Dimensions: 32 mm wide × 100 mm high × 87.5 mm deep; DIN rail rack-mount installation
  • Protection rating: IP20 — sealed cabinet installation required; not rated for field mounting or washdown
  • Operating temperature: 0 to 60°C
  • Certifications: UL, CSA, RCM, EAC, Merchant Navy; EN 61131-2, EN 61000-6-2, EN 61000-6-4, EN 61010-2-201; RoHS and REACH compliant
  • Carbon footprint: 283 kg CO2 eq (manufacturer life-cycle assessment)
  • Country of origin: France
  • Pricing: available on the product page — contact for volume and project pricing
