Schneider Electric ATV630D75N4 — 75kW VFD Selection Guide

By Abdullah Zahid
15 min read

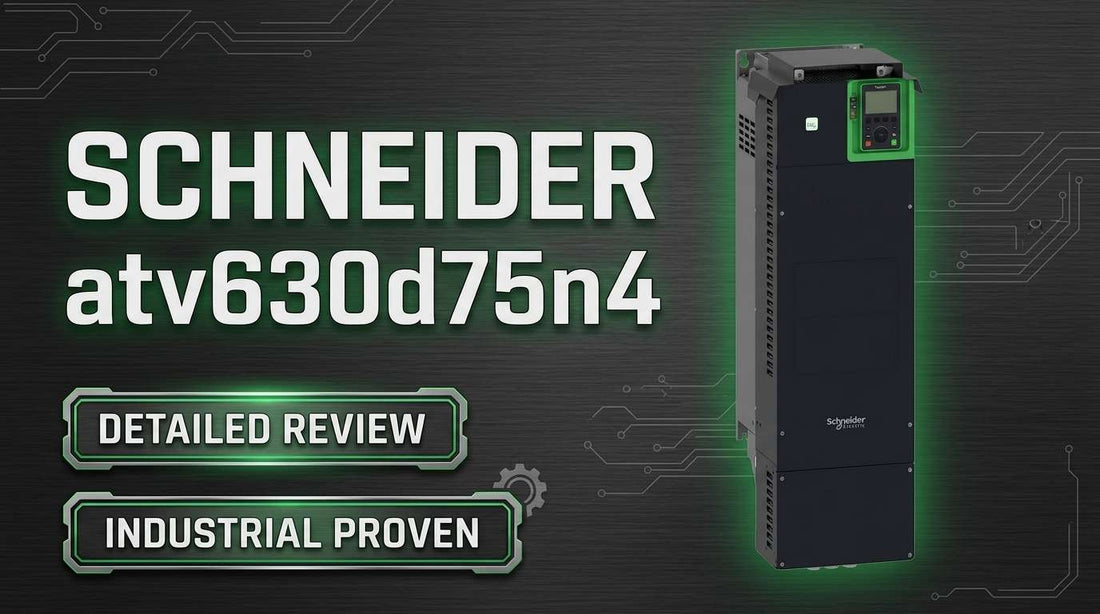

Schneider Electric ATV630D75N4 Altivar Process 75kW variable speed drive front panel view for industrial pump and fan applications

Schneider Electric ATV630D75N4 Variable Speed Drive, Altivar Process ATV600, ATV630, 75kW, 100hp, 380-480V, IP21, UL Type 1 — Specifications, Selection Guide, and Where to Buy

When a controls engineer or procurement specialist searches for the Schneider Electric ATV630D75N4 by catalog number, the decision is almost always already in motion. The question is no longer whether to use a VFD — it is whether this specific 75 kW, 380-480V, IP21-rated drive from the Altivar Process ATV630 line is the right fit for the motor, the facility power, and the control architecture on the table. This article gives you the technical clarity and honest selection guidance to answer that question with confidence.

If you have already confirmed this is the correct part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the ATV630D75N4 — and Who Shouldn't

This drive is the right choice for facilities and OEMs running three-phase asynchronous or synchronous motors in the 55-75 kW range on 380-480V supply, where integrated energy monitoring, embedded Ethernet communication, and Stop and Go standby savings justify the specification over a basic soft starter. It is specifically suited to pump, fan, compressor, and conveyor applications where variable demand cycles make standby energy waste a real operating cost.

  • Your facility supply is 3-phase, 380-480V AC at 50 or 60 Hz — not single-phase, not 208V.
  • Your motor nameplate is at or below 75 kW (normal duty, 120% overload) or 55 kW (heavy duty, 150% overload).
  • Your motor is asynchronous (induction) or synchronous — not DC or universal motor.
  • Your installation space accommodates 922 mm height, 290 mm width, and 323 mm depth with forced-air cooling clearance.
  • Your control system communicates via Ethernet, Modbus RTU, CANopen, or hardwired analog and digital I/O.
  • You require IP21 / UL Type 1 compliance for a North American wall-mount or panel-mount installation.

If your motor exceeds 75 kW, requires a 200V-class supply, or if your application demands SIL 2 or higher safety certification, this drive is not the correct choice — the ATV630D55N4 (55 kW normal duty), a larger ATV630 frame, or a safety-module-equipped variant should be specified instead.

On this page:

What the ATV630D75N4 Actually Does in a Running System

The ATV630D75N4 is a variable frequency drive — it takes fixed-frequency three-phase AC power from your facility supply (anywhere from 380V to 480V) and converts it into a variable-frequency, variable-voltage output to control the speed and torque of a three-phase motor rated up to 75 kW or 100 hp. That is the core function. But what separates the Altivar Process ATV630 line from a basic VFD is what is built in around that function.

The drive includes embedded power metering that measures real-time kW, kVAr, power factor, and cumulative energy consumption — accessible directly through the Ethernet port without retrofitting a separate power analyzer. The Stop and Go function, verified by Schneider Electric's official documentation as delivering up to 30% energy savings during standby, pauses motor operation when no flow or torque is demanded, eliminating idle-running consumption on pump and fan systems with variable demand cycles. Line current at 480V normal duty reaches 112.7 A, so facility supply capacity must be confirmed before installation. For heavy duty operation — sustained overload above 120% — the drive supports 150% overload but caps motor power at 55 kW, a distinction that causes the most common ordering error for this model.

Where This Drive Sits in Your System Architecture

The ATV630D75N4 sits between your facility main power panel and your motor terminals, replacing a direct-on-line contactor or soft starter with variable speed control and integrated monitoring. Its three RJ45 ports and one Ethernet port allow it to connect upstream to a PLC or SCADA system while simultaneously receiving analog and digital control signals from field instruments.

  • Facility 3-phase power supply (380-480V, 50-60 Hz) feeds into the drive's L1, L2, L3 input terminals via an upstream contactor and motor circuit breaker.
  • The drive's U, V, W output terminals connect to the motor via shielded cable — up to 150 m without an additional EMC filter.
  • Analog inputs (3 inputs total) receive setpoint signals from process transmitters, pressure sensors, or flow meters.
  • Digital I/O carries run, stop, and fault signals between the drive and the plant's control panel or PLC.
  • The Ethernet port connects to the facility network, enabling parameter access, real-time power monitoring, and remote diagnostics through the integrated energy dashboard.

Typical Applications and Deployment Scenarios

Water utilities replacing aging contactor-based motor starters with a VFD to reduce energy cost and enable remote speed control represent the most common use case for the ATV630D75N4. The Stop and Go function directly addresses the standby waste problem that plagues pump stations running fixed-speed motors against varying demand.

Manufacturing plants with centrifugal fan, blower, or dust collection systems running at full speed continuously — regardless of actual airflow demand — are a second high-fit application. Variable speed control on a 75 kW fan motor can flatten the load profile substantially, and the embedded power metering makes that saving visible and reportable.

OEM designers integrating this drive into packaged compressor units, ventilation systems, or industrial process machines benefit from the built-in communication ports, which eliminate the need for external protocol converters when connecting to a Schneider Electric PLC or Modbus RTU network. The IP21 and UL Type 1 ratings satisfy typical North American installation requirements without requiring an upgraded NEMA 4X enclosure for indoor plant floor use.

Retrofit installations — where an existing 75 kW motor must be upgraded from direct-on-line starting to soft-start with speed control while retaining its existing physical enclosure — are a strong fit, provided the motor cable run stays within 150 m and the facility supply is confirmed at 380V, 415V, or 480V three-phase.

Application Typical Deployment
Water and wastewater pump station Replaces DOL starter; Stop and Go reduces standby energy; remote speed via Ethernet to SCADA
Industrial centrifugal fan / HVAC Variable speed modulates airflow to pressure or temperature setpoint; energy metering tracks savings
Rotary compressor drive Soft-start reduces inrush; speed control matches demand; Modbus RTU connects to compressor PLC
Conveyor and material handling Controlled acceleration and deceleration ramps reduce mechanical stress; analog setpoint from line controller
Packaged OEM equipment Integrated power measurement and Ethernet diagnostics built into packaged ventilation or process unit
Retrofit DOL-to-VFD upgrade Drop-in replacement for contactor starter in existing panel; UL Type 1 satisfies existing enclosure compliance

Key Electrical and Physical Specifications for the ATV630D75N4

Specification Value
Motor Power — Normal Duty 75 kW / 100 hp
Motor Power — Heavy Duty 55 kW / 75 hp
Rated Supply Voltage 380-480V AC, -15% to +10%
Supply Frequency 50-60 Hz, -5% to +5%
Network 3-phase
Line Current (Normal Duty @ 480V) 112.7 A
Line Current (Heavy Duty @ 380V) 98.9 A
Overload Capability 120% (normal duty) / 150% (heavy duty)
IP Rating / UL Type IP21 (IEC 60529, IEC 61800-5-1) / UL Type 1 (UL 508C)
Dimensions (H × W × D) / Weight 922 mm × 290 mm × 323 mm / 58 kg

Full technical specifications are available on the product page at LeadTime.ca.

ATV630D75N4 vs. Competing 75 kW Drives: Side-by-Side

Model Power Rating Voltage IP / UL Embedded Communication
ATV630D75N4 (Schneider Electric) 75 kW / 100 hp 380-480V IP21 / UL Type 1 Ethernet + 3× RJ45 standard
ACQ580 (ABB) 75 kW variant 380-480V IP21 / UL Type 1 Ethernet + EtherCAT (optional)
G120C (Siemens) 75 kW variant 380-480V IP20 / UL Type 1 Ethernet via optional module
V1000 (Yaskawa) 75 kW variant 380-480V IP20 / UL Type 1 Ethernet via optional module

The ATV630D75N4 is the only model in this comparison with three RJ45 ports and one Ethernet port as standard equipment — no additional communication modules required for basic Modbus RTU, CANopen, or Ethernet connectivity. If your project requires IP21 protection and standard Ethernet out of the box, the ATV630D75N4 eliminates the module procurement step that other 75 kW drives require. If your application is already standardized on the Altivar Process ATV630 family, check current availability and pricing at LeadTime.ca before finalizing your BOM.

Expert Verdict: Right Drive, Wrong Drive, and Procurement Reality

The ATV630D75N4 earns its place on the BOM for controls engineers who need more than a motor starter. The two features that separate this drive from simpler alternatives are genuinely useful: Stop and Go standby energy management — which Schneider Electric's documentation states delivers up to 30% energy savings during standby without additional retrofit cost — and built-in power metering that removes the need for a separate power analyzer. These are not marketing features on this drive; they are directly applicable to pump stations, fan systems, and compressor applications running variable-load cycles. The three-RJ45, one-Ethernet communication stack is standard equipment, not an add-on, which matters when you are integrating into an existing Modbus RTU or Ethernet-connected PLC network and do not want to manage additional adapter lead times. For North American facilities on 480V three-phase supply requiring UL Type 1 compliance, the certification is already in place at IP21 — most standard indoor plant floor installations will not need an enclosure upgrade.

Where this drive has real limits: it is not the right choice above 75 kW normal duty or above 55 kW heavy duty — a larger ATV630 frame or a different drive series is required. Single-phase and 208V supply situations are a hard no; the ATV630D75N4 requires 380-480V three-phase. Budget-sensitive projects where basic on-off motor control is sufficient will find the embedded Ethernet and Stop and Go functionality adds cost relative to a simpler drive. Motor cable runs beyond 150 m require an external dV/dt filter or output reactor — if that is not in your project budget, plan accordingly before specifying. Finally, if your safety architecture requires SIL 2 or higher, this drive supports SIL 1 only; a certified safety module configuration is required for higher safety integrity applications.

On the procurement side, the ATV630D75N4 is listed as normally stocked in distribution, with typical North American lead times in the 2-4 week range for stocked units — though make-to-order scenarios can push that to 8-12 weeks depending on region and distributor depth. Confirming duty cycle before order submission is the single most important step: ordering normal duty when heavy duty is required leads to thermal nuisance alarms, commissioning delays, and warranty disputes that are entirely avoidable. A specialist distributor who pre-verifies your motor nameplate data, facility voltage, and duty cycle requirement against the catalog before submitting the order eliminates that risk. Review current pricing and lead time at LeadTime.ca — the team ships worldwide and can confirm availability before you commit to a purchase order.

For volume pricing, project RFQ, or lead time confirmation before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ATV630D75N4

Because the ATV630D75N4 is primarily specified by industrial integrators, OEM designers, and plant engineering teams rather than through mass-market channels, there is limited public forum discussion of this specific model. That absence is not a reliability signal — it reflects where large-frame industrial VFDs are actually purchased and configured: through specialist distributors and system integrators who handle commissioning directly rather than posting troubleshooting threads on public forums.

What that means practically is that the specification mistakes that surface in forum discussions for smaller, commodity-tier drives are still very real risks here — they simply show up at the commissioning stage or in warranty claims rather than in online threads. The most consequential error is the duty cycle mismatch: specifying normal duty (75 kW maximum, 120% overload) for an application that actually requires heavy duty operation (55 kW maximum, 150% overload). This produces thermal nuisance alarms under peak load, can trigger warranty denial, and requires a replacement order — all of which are avoidable with a load profile calculation before ordering. The 98.9 A line current at 380V heavy duty versus 112.7 A at 480V normal duty are not interchangeable; confirm your facility supply capacity against the correct duty cycle figure before purchase.

The motor cable length constraint — 150 m maximum before an external EMC filter is required — is a second pre-order check that is frequently overlooked in retrofit projects. The drive's integrated EMC filter is compliant with EN/IEC 61800-3 category C3 for cables within that limit. Beyond 150 m, radiated emissions may exceed compliance limits and cause interference with wireless sensors, SCADA communications, or other networked equipment in the facility. Measure the physical cable run from the drive output terminals to the motor input terminals and document it in your commissioning plan. When in doubt about any of these constraints, a specialist distributor familiar with Altivar Process installations can pre-verify your application against the catalog before the order is placed — which is precisely the value that distinguishes a specialist sourcing channel from a generic catalog supplier.

Wiring and Installation Overview

The following is a high-level installation summary. Engineers requiring full wiring diagrams, parameter configuration procedures, and grounding details should refer to the official Schneider Electric ATV630 installation manual and commissioning guide.

  • Isolate facility power via main disconnect and verify dead with a voltmeter before connecting input terminals L1, L2, L3; connect motor to output terminals U, V, W using shielded cable not exceeding 150 m without an additional EMC filter.
  • Install an external three-phase contactor upstream of the drive and a motor circuit breaker downstream of the drive output — these are required by most jurisdictions for motors over 50 kW and are separate from the drive's internal protection functions.
  • Connect control signals to the three analog inputs (0-10V or 4-20 mA setpoint source) and digital run/stop terminals; verify signal levels match your PLC output card specifications.
  • Connect Ethernet or serial cable to the appropriate port; confirm link status using the LED indicators (1 red voltage presence LED, 3 dual-color communication LEDs, 4 dual-color module LEDs, 3 diagnostic LEDs).
  • Ground the drive frame and motor frame to facility ground bus and verify continuity; forced convection cooling requires unobstructed air intake and exhaust clearance around the 922 mm × 290 mm × 323 mm enclosure.

Communication Ports and Expansion Capability

The ATV630D75N4 ships with all primary communication interfaces as standard equipment. No additional communication adapters are required for basic connectivity in most industrial control architectures.

  • 3× RJ45 ports — standard; support hardwired communication connections for serial and field device networks.
  • 1× Ethernet port — standard; enables Ethernet/IP connectivity, parameter access via web interface, and real-time energy dashboard monitoring without additional modules.
  • 2× serial ports — standard; support Modbus RTU and CANopen protocol connections to PLCs, operator panels, or field devices.
  • 3× analog inputs — standard; accept 0-10V or 4-20 mA signals from process transmitters, pressure sensors, or external speed setpoint sources.
  • Optional modules — additional protocol modules for extended fieldbus support are available; consult the Altivar Process ATV630 accessory catalog or contact LeadTime.ca for specific option module availability and lead time.

Wrong-Part Prevention: Verify Before You Order the ATV630D75N4

Run through this checklist before submitting a purchase order. Each item corresponds to a real ordering or commissioning error documented in the specification and application data for this drive.

  1. Confirm your facility power is 3-phase, 380-480V AC (not single-phase or 208V).
  2. Verify motor power rating: 75 kW maximum (normal duty) or 55 kW maximum (heavy duty / overload up to 150%).
  3. Check that your motor is asynchronous (induction) or synchronous (not DC or universal motor).
  4. Ensure physical space allows 922 mm height installation (or specify wall-mount cabinet alternative).
  5. Confirm your control protocol matches: Ethernet, Modbus RTU, CANopen, or hardwired analog/digital I/O.
  6. Verify UL Type 1 rating satisfies your enclosure requirement (wall-mount or panel-mount installation).
  7. Check whether you need heavy duty or normal duty: heavy duty = 55 kW max with 150% overload; normal duty = 75 kW max with 120% overload.

If any item on this checklist raises a question about your application, contact the LeadTime.ca team before ordering — pre-order application verification is the fastest way to avoid a costly return or replacement cycle.

Frequently Asked Questions

What is the practical difference between normal duty and heavy duty on the ATV630D75N4, and how do I know which one my application requires?

Normal duty supports a maximum motor power of 75 kW with a 120% overload capability — meaning the drive can sustain 120% of rated current for short periods. Heavy duty reduces maximum motor power to 55 kW but raises overload capability to 150%, allowing sustained high-torque peaks typical of compressors, loaded conveyors, or crushers. Calculate your peak load as a percentage of the motor's nameplate full-load rating: if it regularly exceeds 120%, heavy duty is the correct specification. Ordering normal duty for a heavy duty application is the most common cause of thermal nuisance alarms on this drive.

Can the ATV630D75N4 be used with a 208V or single-phase supply?

No. The ATV630D75N4 requires 3-phase AC supply in the range of 380-480V, -15% to +10%. It is not compatible with single-phase supply or with 200V-class three-phase systems. If your facility supply is 208V three-phase or single-phase, a different drive series or voltage class is required — contact LeadTime.ca to identify the correct Altivar variant for your supply.

Does the Stop and Go function work with all motor types, or only specific applications?

The Stop and Go function is most applicable to pump and fan systems with naturally variable demand cycles — applications where the motor can be paused during low-demand periods without affecting process continuity. Schneider Electric's documentation confirms up to 30% energy savings during standby through this function. It is less applicable to continuously running conveyors or process machinery where stopping the motor between cycles is not operationally acceptable. Verify your process requirements before relying on Stop and Go as part of your energy savings justification.

What external protection devices are required in addition to the ATV630D75N4 itself?

The drive's internal thermal and current protection does not replace external motor circuit protection. Most jurisdictions require an external three-phase contactor upstream of the drive and a motor circuit breaker downstream of the drive output for motors over 50 kW. These devices are separate from the soft-starting function. Confirm requirements with your local electrical code; costs for a contactor and overload relay assembly are additional to the drive unit price.

My motor cable run is close to 150 m — do I need an external filter?

The ATV630D75N4's integrated EMC filter is rated for compliance with EN/IEC 61800-3 category C3 for motor cable lengths up to 150 m. If your cable run from the drive output terminals to the motor input terminals exceeds 150 m, radiated emissions may exceed compliance limits and can cause interference with other networked equipment in the facility. An external dV/dt filter or output reactor must be specified and budgeted. Measure the physical cable path — not the straight-line distance — and document it before finalizing your installation design.

What does the LED indicator pattern mean on the ATV630D75N4, and how do I read a fault condition at startup?

The drive includes one red LED for voltage presence, three dual-color LEDs for communication status, four dual-color LEDs for module status, and three diagnostic LEDs. At normal startup, the red voltage LED illuminates once supply is applied. Communication LEDs indicate link activity on each port. Fault conditions are indicated by specific diagnostic LED combinations that correspond to error codes in the drive's parameter table — accessible via the front keypad or through the Ethernet web interface. Full LED diagnostic key and error code tables are documented in the official Schneider Electric ATV630 user manual, which should be downloaded and kept accessible at the installation site.

Why Order the ATV630D75N4 Through LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships industrial automation parts worldwide, with no regional restriction on order origin or delivery destination.
  • Pre-order application verification — the team can cross-check your motor nameplate data, facility voltage, duty cycle requirement, and cable run against the ATV630D75N4 specification before the order is submitted, preventing costly SKU mistakes.
  • Stocked and make-to-order fulfillment — typical North American lead times for stocked units run 2-4 weeks; the team will confirm actual availability and lead time before you commit to a purchase order.
  • Volume and project pricing — for multi-unit orders, OEM packages, or project-based procurement, contact LeadTime.ca directly for volume pricing and delivery scheduling.
  • Technical support access during commissioning — specialist distributors with product family knowledge respond significantly faster to parameter setup and error code questions than general OEM phone support lines.

ATV630D75N4 At-a-Glance Summary

  • Motor power: 75 kW / 100 hp (normal duty, 120% overload) or 55 kW / 75 hp (heavy duty, 150% overload).
  • Supply: 3-phase, 380-480V AC, -15% to +10%; 50-60 Hz, -5% to +5%.
  • Line current: 112.7 A at 480V normal duty; 98.9 A at 380V heavy duty.
  • Enclosure: IP21 (IEC 60529, IEC 61800-5-1) and UL Type 1 (UL 508C) — certified for North American indoor industrial installation.
  • Dimensions: 922 mm × 290 mm × 323 mm; 58 kg; forced convection cooling; vertical mounting.
  • Communication: 3× RJ45 ports, 1× Ethernet port, 2× serial ports — all standard, no adapter modules required for Modbus RTU or CANopen.
  • Stop and Go function delivers up to 30% energy savings during standby per Schneider Electric official documentation.
  • Built-in power metering (kW, kVAr, power factor, cumulative energy) eliminates need for separate power analyzer.
  • Motor cable maximum without external EMC filter: 150 m.
  • Maximum safety integrity level: SIL 1 — SIL 2 or higher requires certified safety module configuration.
