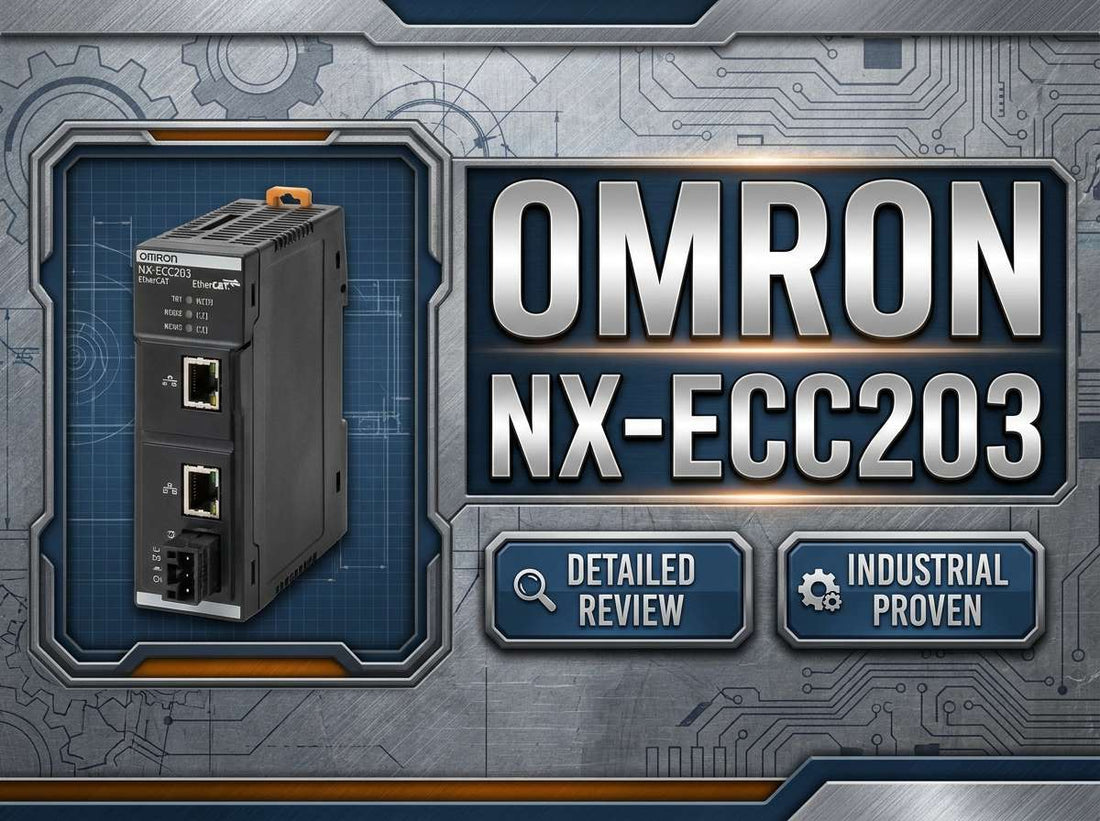

Omron NX-ECC203 NX-series EtherCAT coupler unit mounted on DIN rail in industrial control panel

Omron NX-ECC203 EtherCAT Coupler Unit – Specs, Pricing Context, and Selection Guide

If you are specifying a remote I/O node for an EtherCAT-based Sysmac project and the Omron NX-ECC203 is on your BOM, the most important thing you need to confirm right now is that this is the correct NX-ECC variant — not NX-ECC201 or NX-ECC202 — and that your 24 VDC supply and I/O load are within the coupler's rated capacity. The NX-ECC203 is a compact EtherCAT coupler that sits between your EtherCAT master controller (such as an Omron NJ or NX-series CPU) and a bank of NX-series slice I/O units, handling both the EtherCAT communication interface and the 24 VDC power distribution to attached I/O slices on the DIN-rail stack.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the NX-ECC203 — and Who Shouldn't

The NX-ECC203 is the right choice for controls engineers and OEM machine designers who are deploying Omron NX-series slice I/O on an EtherCAT network and need a compact, high-speed coupler that integrates directly into the Sysmac Studio environment. Confirm all of the following before ordering:

  • Your control network is EtherCAT — not EtherNet/IP, PROFINET, or any other fieldbus
  • Your design specifically calls for NX-series slice I/O units (not an older Omron I/O family)
  • The design document or BOM specifies NX-ECC203 by exact model, not simply NX-ECC
  • Your 24 VDC supply can provide sufficient current for the coupler electronics plus all attached NX I/O slices
  • The total number of NX I/O units and aggregate current draw falls within NX-ECC203 rated limits
  • Your enclosure environment meets Omron's rated operating temperature, vibration, and altitude specifications

If your design calls for a different network topology or you need a feature set served by the NX-ECC201 or NX-ECC202, those are the correct variants to specify — the three models are not interchangeable. Review the variant comparison table in this article before finalizing your order.

On this page:

What the NX-ECC203 Actually Does in an EtherCAT System

The NX-ECC203 is classified by Omron as an NX-series EtherCAT Coupler Unit — it is not a PLC CPU, not a standalone I/O module, and not a managed Ethernet switch. Its sole function is to serve as the EtherCAT network interface and internal power rail head for a bank of NX-series slice I/O units assembled on DIN rail to its right. The master controller sees the NX-ECC203 as a single EtherCAT node; the NX I/O units attached to it are mapped as subordinate I/O under that node in Sysmac Studio.

This architecture means the coupler absorbs all EtherCAT protocol handling — cycle synchronization, process data exchange with the master, and I/O bus communication with attached slices — so the individual NX I/O units themselves remain simple, single-function modules. Omron's documentation confirms that both standard and high-performance NX I/O units can be mixed on a single NX-ECC coupler, within the defined capacity limits, which is a meaningful advantage when a machine section has a mix of fast analog and standard digital I/O requirements.

The NX-ECC203 also distributes 24 VDC power to the internal I/O bus. This power feed is separate from the coupler's own electronics supply, and Omron requires that appropriate external protection devices — fuses or circuit breakers — be provided by the panel designer for both the coupler electronics and the I/O power feed circuits. Understanding this power architecture before wiring is critical to avoiding field faults.

Typical System Architecture for NX Remote I/O

The NX-ECC203 sits as an inline EtherCAT node between the master controller and the field device wiring, acting as the translation point from high-speed EtherCAT frames to the NX internal I/O bus. A typical deployment chain looks like this:

  • Omron NJ or NX-series EtherCAT master controller running Sysmac Studio configuration
  • Industrial Ethernet cable (EtherCAT) running from master EtherCAT port to NX-ECC203 EtherCAT IN port
  • NX-ECC203 coupler mounted on DIN rail, receiving 24 VDC from the panel power supply
  • NX-series slice I/O units assembled to the right of the NX-ECC203 on the same DIN rail, sharing the internal I/O bus and power rail
  • EtherCAT OUT port on the NX-ECC203 connecting to the next EtherCAT node downstream, or left capped at the end of the segment

Typical Applications and Deployment Scenarios

OEM machinery builders use the NX-ECC203 most frequently to create modular machine segments — each segment carries its own NX-ECC203 plus a local stack of NX I/O slices, and the segments link back to a central NJ or NX controller over a single EtherCAT cable run. This reduces homerun wiring significantly on packaging machines, assembly cells, and robotic work stations.

In conveyance and material handling, plant engineers deploy NX-ECC203 nodes at regular intervals along conveyor lines to pick up sensors, solenoids, and drive signals locally rather than running individual wire pairs back to a central panel. The compact DIN-rail form factor is particularly valued in junction box installations where panel space is limited.

Retrofit projects represent a growing application for this coupler. Facilities replacing hardwired terminal strip panels with EtherCAT-based remote I/O use the NX-ECC203 to preserve existing field wiring while migrating the control backbone to EtherCAT. This approach reduces homerun cable cost and brings the I/O response time in line with what EtherCAT-based motion and control systems expect.

In pharmaceutical and food and beverage environments, the NX-ECC203 is used in conjunction with NX safety I/O modules where the application demands safety-rated field I/O. It is important to note that safety logic execution resides in a dedicated safety controller in these architectures — the NX-ECC203 itself is not a safety device.

Application Typical Deployment
OEM packaging machine One NX-ECC203 per machine section, connecting local NX digital and analog I/O back to central NJ controller over EtherCAT
Automotive assembly line Multiple NX-ECC203 nodes distributed along the line, feeding sensor and actuator data to Sysmac-based line controller
Conveyor and material handling NX-ECC203 in junction boxes at station intervals, minimizing homerun wiring to central panel
Hardwired panel retrofit NX-ECC203 installed in existing enclosure to replace terminal strip I/O with EtherCAT remote I/O node
Pharmaceutical / life sciences NX-ECC203 hosting mixed standard and safety NX I/O modules, integrated with Omron safety controller architecture
Logistics and warehousing Distributed NX-ECC203 nodes on EtherCAT ring or line topology for high-density sensor networks in sortation systems

NX-ECC203 Key Specifications and Variant Comparison

Parameter Value / Specification Notes
Manufacturer / Model Omron NX-ECC203 NX-series EtherCAT Coupler Unit
Network Interface EtherCAT Industrial Ethernet, high-speed remote I/O communication
Compatible I/O Family Omron NX-series slice I/O units Standard and high-performance NX I/O can be mixed on one coupler
Power Supply Input 24 VDC External protection (fuse or circuit breaker) required per Omron guidance
I/O Power Feed 24 VDC distributed to NX I/O bus Separate from coupler electronics supply; total current must be verified against all attached modules
Mounting DIN rail Compact form factor; reduces panel footprint on OEM machines
Protection Class IP20 Requires installation inside rated enclosure
Compatible Masters Omron NJ/NX/NX1 and other EtherCAT masters supporting NX I/O ESI file and Sysmac Studio configuration required for Omron masters
Certifications UL/cUL, CE (per Omron documentation) Verify current certification markings for your regional requirements
Ecosystem Omron Sysmac platform Configured via Sysmac Studio; firmware compatibility must be verified

Full technical specifications are available on the product page at LeadTime.ca.

Model Network / Function Key Feature Differences Typical Use Case
NX-ECC201 EtherCAT Different feature set and topology capabilities vs NX-ECC203; confirm against Omron NX-ECC family documentation for exact capability differences Applications where NX-ECC201-specific topology or feature set is specified by design
NX-ECC202 EtherCAT Intermediate variant in the NX-ECC family; verify feature and capacity differences against official Omron NX-ECC family comparison table Applications where NX-ECC202 is specified; not a drop-in substitute for NX-ECC203
NX-ECC203 EtherCAT Current-generation NX-ECC variant for EtherCAT-based NX remote I/O; integrates with Sysmac Studio; supports mixed standard and high-performance NX I/O New OEM machine builds and plant projects standardizing on Omron NX remote I/O over EtherCAT

The NX-ECC201, NX-ECC202, and NX-ECC203 are distinct products within the same coupler family and are not interchangeable without verifying that the specified variant matches your design requirements. If you are unsure which variant your project calls for, review the full product details at LeadTime.ca or contact the team for part verification support.

Expert Verdict: Is the NX-ECC203 Right for Your Project?

The NX-ECC203 is a well-suited choice for controls engineers and OEM machine designers who are already committed to Omron's Sysmac platform and need a compact, high-speed EtherCAT coupler for distributed NX-series I/O. Its strengths are straightforward: it brings NX slice I/O onto an EtherCAT segment cleanly, it supports both standard and high-performance NX I/O on the same stack, and it configures within the same Sysmac Studio environment used for the rest of the Omron system. For teams building or expanding EtherCAT-based lines with Omron NJ or NX controllers, this coupler removes the need for a separate remote I/O gateway and keeps the hardware platform consolidated.

Where the NX-ECC203 is not the right answer is equally clear. If your network is EtherNet/IP, PROFINET, or any fieldbus other than EtherCAT, this coupler does not apply at all — the network type mismatch is absolute. If your design calls specifically for NX-ECC201 or NX-ECC202 based on topology or feature requirements documented by the original engineer of record, substituting NX-ECC203 without re-verifying the design is a risk not worth taking. And if your facility is already standardized on a different remote I/O ecosystem — such as a competing slice I/O platform — migrating to NX-series purely for one section of a line will create a mixed platform that adds maintenance and spare parts overhead long-term.

From a procurement standpoint, the NX-ECC203 is an established product in the Omron NX lineup with distributor support across North America and globally. Lead times can vary depending on demand cycles, and specific NX modules have seen periodic availability tightening during high-demand periods — which makes confirming stock before project lock-in a worthwhile step. Buying through a distributor that understands the NX-ECC family and can verify your complete part number against your BOM reduces the risk of receiving the wrong variant or discovering a compatibility gap after the panel ships. Check current availability and pricing for the NX-ECC203 at LeadTime.ca — the team ships worldwide and can support part verification before you commit.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the NX-ECC203

Community feedback for the NX-ECC series, gathered from forums including PLCTalk, MrPLC, PLCS.net, and the Reddit automation communities, is broadly positive on hardware reliability. Engineers who have deployed NX-ECC couplers in 24/7 production environments consistently report stable operation and low physical failure rates. The compact DIN-rail footprint of NX I/O stacks is frequently cited as a genuine advantage on dense OEM machine panels where every millimeter of rail matters. Those who have worked through the initial Sysmac Studio EtherCAT configuration describe the ongoing operation as reliable and the I/O performance as consistent with what EtherCAT-based control demands.

However, the same communities surface a recurring pattern of pre-order and commissioning mistakes that are avoidable with the right checks. The most common reported error is ordering the wrong NX-ECC variant — NX-ECC201, NX-ECC202, and NX-ECC203 appear similar in distributor catalogs, and buyers who do not cross-check the exact model against their design documents have ended up with the wrong part. A second recurring issue is confusing NX-series I/O with older Omron remote I/O families, resulting in a coupler that does not match the I/O modules already on order. A third is underestimating total I/O current draw and discovering partway through commissioning that additional power segmentation or a second coupler node is needed. None of these are hardware defects — they are selection and sizing errors that a quick pre-order checklist prevents.

Because model-specific community data for the NX-ECC203 specifically is limited compared to the broader NX-ECC family, engineers who are specifying this coupler for the first time or for an unfamiliar application architecture benefit from consulting a distributor with Omron NX expertise before placing the order. LeadTime.ca supports exactly this kind of pre-purchase verification — confirming the part number, flagging capacity questions, and checking firmware and controller compatibility — so that the coupler that arrives is the one your system is designed for.

Wiring and Installation Overview

  • Mount the NX-ECC203 on appropriate DIN rail in the correct orientation as specified in the Omron user's manual; confirm required clearances above and below the module stack for wiring access and thermal management
  • Connect 24 VDC and 0 V to the coupler power terminals with appropriately rated external protection devices (fuse or circuit breaker) on both the coupler electronics supply and the I/O power feed circuit, as required by Omron documentation and applicable panel standards
  • Attach NX-series slice I/O units to the right side of the NX-ECC203 in the designed configuration; install the end cover at the far end of the I/O stack to complete the internal bus and provide mechanical protection
  • Connect industrial Ethernet cable to the EtherCAT IN port for the upstream network connection; connect EtherCAT OUT port if additional downstream nodes are present in the topology, or leave capped if this is the final node
  • Before powering on, verify LED indicators for power status and EtherCAT link state match the expected initial conditions described in the Omron NX-ECC user's manual; consult the manual for exact LED code definitions

Adding the NX-ECC203 to a Sysmac Studio EtherCAT Network

  • Open the relevant Sysmac Studio project for your EtherCAT master (NJ or NX-series CPU) and navigate to the EtherCAT network configuration view
  • Scan or manually add the NX-ECC203 node to the network configuration; under that node, insert and configure each attached NX I/O module in the order they appear physically on the DIN rail
  • Map I/O channels to the controller memory as required by your program; verify node addresses, cycle times, and any configuration parameters align with your network design
  • Resolve any configuration warnings before downloading; after download, confirm that the NX-ECC203 node transitions to operational state in the EtherCAT master diagnostics
  • After any hardware change — replacement coupler, added I/O modules, or firmware update — rescan and update the EtherCAT configuration before returning to production; consult Omron's firmware compatibility documentation to ensure Sysmac Studio version and coupler firmware are aligned

Wrong-Part Prevention Checklist

Before placing your order for the NX-ECC203, work through each item on this checklist. These are the verified pre-order checks that prevent the most common and costly ordering mistakes on this product family:

  1. Confirm the control system uses EtherCAT (not Ethernet/IP, PROFINET, or another fieldbus).
  2. Verify that NX-series slice I/O is required, and NX-ECC is the correct coupler family.
  3. Check that NX-ECC203 (not NX-ECC201 or NX-ECC202) is specified on the design or BOM.
  4. Confirm 24 VDC supply availability with enough current to support coupler plus all attached I/O, and that external protection can be provided.
  5. Verify maximum NX I/O unit count and current draw do not exceed NX-ECC203 ratings.
  6. Confirm DIN-rail space and enclosure environmental limits meet Omron specifications (temperature, altitude, vibration).
  7. Ensure firmware and Sysmac Studio versions support the NX-ECC203 model.
  8. Check regional part number and certification requirements for Canada / North America (e.g., UL/cUL).

If any item on this list raises a question, contact LeadTime.ca before ordering — the team can verify part numbers, check family-level compatibility, and confirm current stock status for the NX-ECC203.

Frequently Asked Questions

Can I mix standard and high-performance NX I/O modules on the same NX-ECC203?

Yes. Omron's official documentation states that standard and high-performance NX I/O units can be mixed on a single NX-ECC coupler, within the defined capacity limits for that coupler. Before finalizing your I/O configuration, verify that the total number of modules and aggregate current draw for all attached slices falls within the NX-ECC203's rated maximums, which are published in the Omron datasheet.

Is the NX-ECC203 compatible with all Omron NJ and NX controllers, or only specific firmware versions?

The NX-ECC203 is designed for use with Omron Sysmac NJ and NX-series EtherCAT master controllers, and with other EtherCAT masters that support NX I/O via ESI file. Compatibility is also a function of Sysmac Studio version and coupler firmware revision — Omron's release notes and firmware compatibility tables document which combinations are supported. Always verify firmware compatibility before deploying a new coupler on an existing network, particularly if the master controller has been updated recently.

What is the correct procedure when replacing an NX-ECC203 node on an existing production EtherCAT network?

After physically replacing the coupler and reassembling the NX I/O stack, the replacement unit must be recognized by the EtherCAT master and the configuration re-downloaded. In Sysmac Studio, this typically means rescanning the network, verifying that the node matches the configured topology and I/O module order, and downloading the updated project before returning the segment to production. Maintenance technicians should retain a current backup of the Sysmac Studio project and a record of node addresses and firmware versions to minimize recovery time. Full procedures are documented in the Omron NX-ECC user's manual.

How do I interpret the LED indicators on the NX-ECC203 and locate fault codes?

The NX-ECC203 has status LEDs that indicate power state, EtherCAT communication status, and error conditions. The exact LED patterns and their meanings — including distinction between a normal run state, an initialization state, and specific fault codes — are documented in detail in the official Omron NX-ECC user's manual. For field troubleshooting, the EtherCAT master diagnostics in Sysmac Studio can provide additional node-level status information that cross-references with the LED states.

What should I check if the NX-ECC203 fails to come up on the EtherCAT network after installation?

Start with the basics: confirm 24 VDC is present at the coupler terminals and that the power LED is in normal state. Inspect the EtherCAT cable connections at both the IN port and the upstream master port for damage or incorrect port assignment. Verify in Sysmac Studio that the NX-ECC203 node and its attached I/O modules are configured in the project in the same model and order as physically installed. If configuration appears correct, check firmware compatibility between the coupler and the Sysmac Studio version in use. The Omron NX-ECC user's manual provides a systematic diagnostic workflow and error code reference for persistent issues.

What are typical lead times for the NX-ECC203 in North America?

Availability for the NX-ECC203 is generally supported through authorized Omron distributors across North America, with in-stock availability common during normal demand periods. Lead times can extend during periods of high demand or supply constraints, as has been noted in the broader NX-series community for specific modules. Because lead times vary and can change quickly, the only reliable way to confirm current availability and estimated ship date is to contact your distributor directly before committing the part to a project schedule.

Why Order From LeadTime.ca

  • LeadTime.ca ships the NX-ECC203 and Omron NX-series products worldwide — not limited to Canada or North America
  • The team can verify exact part numbers and flag NX-ECC family variant differences before your order is placed, reducing wrong-part risk
  • Volume pricing and project-level sourcing support are available for OEM machine builds and multi-node EtherCAT deployments
  • Hard-to-find or allocation-constrained Omron NX modules can be sourced through specialist distributor channels that generic catalog sites do not access
  • Response time is fast — suitable for time-critical retrofit and new build projects where a wrong-part delay is not acceptable

At-a-Glance Summary

  • The Omron NX-ECC203 is an NX-series EtherCAT Coupler Unit that connects NX-series slice I/O banks to an EtherCAT master controller over industrial Ethernet
  • It distributes 24 VDC to attached NX I/O slices and handles all EtherCAT protocol processing for the node — it is not a CPU or standalone I/O module
  • Both standard and high-performance NX I/O units can be mixed on a single NX-ECC203 stack, within rated capacity limits
  • External protection devices (fuse or circuit breaker) are required for both the coupler electronics supply and the I/O power feed per Omron installation requirements
  • The NX-ECC203 is one of three variants in the NX-ECC family (NX-ECC201, NX-ECC202, NX-ECC203) — confirm the exact variant from your design or BOM before ordering
  • IP20 protection class requires installation inside a rated enclosure; operating environment must meet Omron's temperature, altitude, and vibration specifications
  • UL/cUL and CE certifications are listed in Omron documentation — verify current markings for your regional compliance requirements
  • Configuration is performed in Sysmac Studio for Omron NJ/NX master controllers; ESI file-based configuration is used with third-party EtherCAT masters
  • Firmware and Sysmac Studio version compatibility must be confirmed before deployment, especially on existing networks with recent controller updates
  • LeadTime.ca ships worldwide and offers part verification support, volume pricing, and specialist sourcing for the NX-ECC203 and Omron NX-series I/O
