Omron NB7W-TW01B — 7-inch HMI Review & Buying Guide

By Abdullah Zahid
14 min read

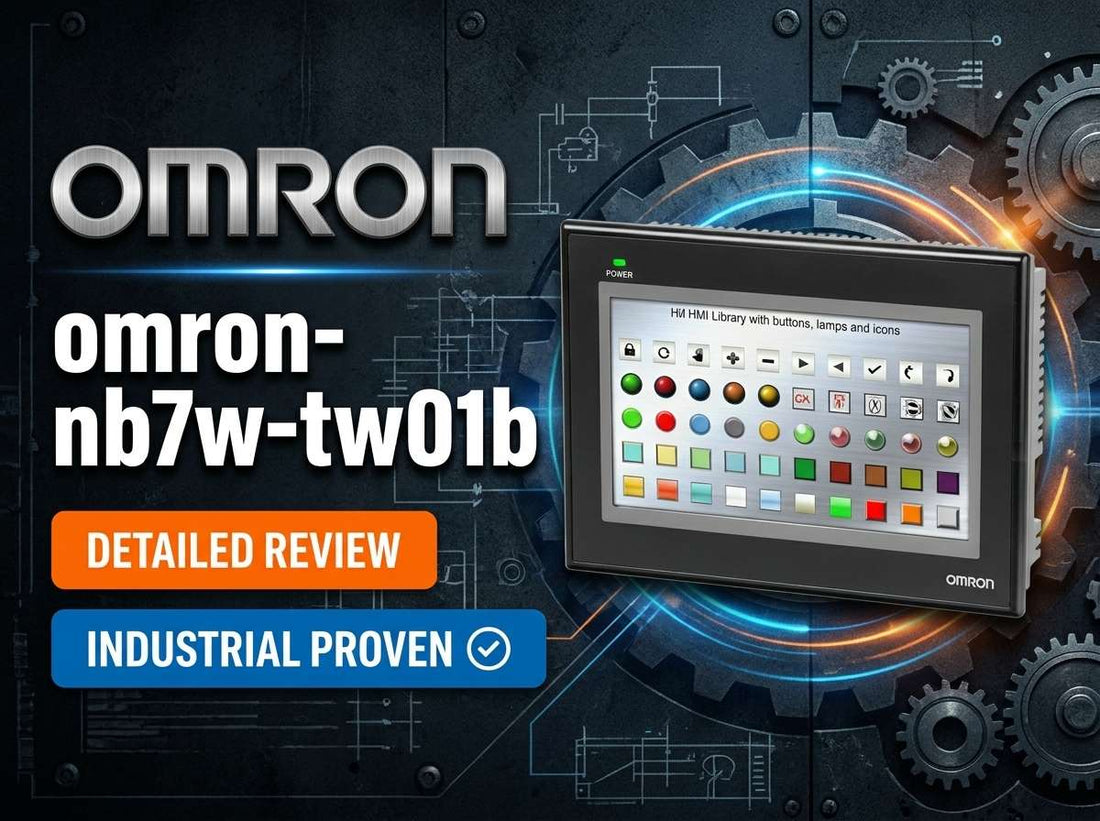

Omron NB7W-TW01B 7-inch TFT LCD HMI programmable terminal for industrial PLC operator panels

Omron NB7W-TW01B NB-series Programmable Terminal, 7-inch TFT LCD HMI — Complete Buyer Review and Specs

If you have a part number on a BOM, a failed unit on a machine floor, or an OEM project that needs a cost-effective 7-inch operator interface, the Omron NB7W-TW01B is likely already on your shortlist. This NB-series Programmable Terminal delivers an 800 × 480 pixel color TFT touchscreen on a 24 VDC supply, and it sits squarely in the budget-to-mid-range tier of Omron's HMI lineup — making it a go-to for controls engineers who need reliable operator visualization without the cost or complexity of the NA or NS series. The decision this review settles is not whether the NB7W-TW01B works — it does — but whether it is the right version, the right size, and the right long-term choice for your specific application.

If you have already confirmed this is the correct part, check current pricing and availability for the Omron NB7W-TW01B at LeadTime.ca — ships worldwide.

Who Should Buy the Omron NB7W-TW01B — and Who Shouldn't

This HMI is the right fit for engineers and buyers who can confirm all of the following:

  • You specifically need a 7-inch wide-screen display with 800 × 480 pixel resolution and 65,536 colors — not a 5.7-inch NB5Q or 10.1-inch NB10W.
  • Your panel supply is 24 VDC and your enclosure cutout matches the NB7W mechanical footprint.
  • Your communication requirements align with the serial and Ethernet interfaces present on this specific model — confirmed against the datasheet, not assumed.
  • Your programming environment is NB-Designer, and your PC OS is compatible with the current NB-Designer release.
  • You are replacing an existing NB7W-TW01B in-service unit, or you have confirmed with a distributor that the original non-V1 model is still actively stocked and appropriate for your project lifecycle.

If your project is a new design where long lifecycle, advanced visualization, or higher connectivity are priorities, read the variant comparison and expert verdict sections below before ordering — the NB7W-TW01B-V1 or Omron's NA series may be the more appropriate choice.

On this page:

What the Omron NB7W-TW01B Actually Does in a Control System

The Omron NB7W-TW01B is a panel-mount operator terminal from Omron's NB-series Programmable Terminal family. Its primary role is to serve as the human-facing front end for a PLC-based machine — giving operators a touchscreen interface to monitor process values, enter setpoints, acknowledge alarms, and interact with machine logic. It does not execute control logic itself; it reads and writes to PLC memory over a configured communication link.

The 7-inch TFT LCD with 800 × 480 pixel resolution and 65,536 colors positions this unit above simple text displays and basic monochrome panels, while remaining well below the graphics complexity and processing power of Omron's NA series. The analog resistive touchscreen is a familiar, durable technology for gloved or industrial-environment use. The 24 VDC supply is standard for control panel environments, and the LED backlight is a meaningful reliability advantage over older CCFL-backlit alternatives in this product category.

In Omron's broader HMI lineup, the NB series occupies the cost-conscious, fundamental-functionality tier. It is not the newest platform — the NB7W-TW01B-V1 is the current hardware revision — but the original NB7W-TW01B remains a valid choice for direct replacement scenarios where preserving panel cutout and program compatibility matters more than platform freshness.

Typical System Architecture for the NB7W-TW01B

The NB7W-TW01B sits between the operator and the PLC, translating machine data into a visual interface and operator inputs into PLC writes. A typical deployment looks like this:

  • 24 VDC control power rail feeds both the PLC and the NB7W-TW01B through separate external overcurrent protection devices.
  • The NB7W-TW01B connects to the PLC via a serial port (RS-232, RS-422, or RS-485) or Ethernet, depending on port availability on both devices and the protocol in use.
  • NB-Designer project screens, downloaded via USB or Ethernet from the programming PC, define every operator view, alarm, and setpoint entry field.
  • The PLC handles all control execution — I/O scanning, safety interlocks, sequence logic — and exposes memory addresses that the HMI reads and writes.
  • Downstream field devices (sensors, drives, valves) are wired to the PLC, not to the HMI; the HMI's role is visualization and operator input only.

Industries and Applications Where the NB7W-TW01B Is Deployed

The NB7W-TW01B is most at home on small to mid-size machines where the operator interface requirement is clear and bounded — status monitoring, setpoint entry, alarm acknowledgment, and basic data review. OEMs building packaging equipment, conveyors, or assembly stations on Omron compact PLCs frequently standardize on NB7W units because the cost-to-function ratio is favorable and the integration path with Omron hardware is well-documented.

Maintenance engineers replacing a failed HMI in existing equipment represent a large segment of NB7W-TW01B buyers. When a machine was built around this model, replacing it in kind avoids panel rework, cutout modification, and NB-Designer project re-engineering — all of which add cost and downtime to what should be a fast repair.

In food and beverage packaging, material handling, and general manufacturing, the NB7W-TW01B delivers the operator visibility and basic data logging that production staff need without overspecifying the HMI budget. For HVAC control panels, water treatment sub-stations, and light process skids, it also appears where a color touchscreen is required but advanced trending or motion integration is not.

Application Typical Deployment
OEM packaging machinery Operator interface for Omron CP or CJ PLC, setpoint entry and alarm display
Conveyor and material handling systems Line status visualization, speed setpoints, fault acknowledgment
Food and beverage packaging lines Recipe selection, count display, alarm management on panel door
Failed HMI replacement in existing machines Like-for-like swap preserving panel cutout and NB-Designer project
Light process control skids Process value monitoring, manual override entries, basic event logging
HVAC and building sub-systems Operator touch interface for small control panels with 24 VDC infrastructure

Purchase-Decision Specifications

Parameter NB7W-TW01B Specification
Display size 7-inch wide-screen TFT LCD
Resolution 800 × 480 pixels
Number of colors 65,536
Touch panel type Analog resistive
Backlight type LED
Supply voltage 24 VDC
Communication interfaces Serial (RS-232 / RS-422 / RS-485), Ethernet, USB host and device — confirm exact port complement on datasheet for this SKU
External protection requirement External overcurrent protection required per Omron documentation
Product family Omron NB-series Programmable Terminal
Programming software NB-Designer (free, PC-based)

Full technical specifications are available on the product page at LeadTime.ca.

NB7W-TW01B vs NB7W-TW01B-V1 and Key Alternatives

The most common decision point for buyers is not whether to use the NB7W form factor — it is which version to order. The NB7W-TW01B is the original hardware revision. The NB7W-TW01B-V1 is the updated generation, carrying hardware platform improvements and a more favorable long-term lifecycle position. Both use the same 7-inch 800 × 480 TFT display and operate on 24 VDC, and both are programmed in NB-Designer. For direct replacements in existing machines, the original NB7W-TW01B may be required to match the existing installation exactly — but for new designs, the -V1 is the recommended path.

Parameter NB7W-TW01B NB7W-TW01B-V1 NB5Q (5.7-inch NB variant) Omron NA Series
Display size 7-inch wide-screen 7-inch wide-screen 5.7-inch 7-inch and larger options
Resolution 800 × 480 800 × 480 Lower than NB7W Higher than NB series
Colors 65,536 65,536 65,536 Higher color depth
Supply voltage 24 VDC 24 VDC 24 VDC 24 VDC
Programming software NB-Designer NB-Designer NB-Designer Sysmac Studio
Hardware generation Original revision Updated revision Original NB family Current-generation platform
Lifecycle position Verify stock status with distributor Current recommended revision Verify with distributor Active, current platform
Typical use case Like-for-like replacement New designs and preferred replacement Smaller panel cutout required Advanced graphics, motion, scripting

If your project requires advanced visualization, complex trending, or Sysmac Studio integration, the NA series is the correct next step — check current availability and compare models at LeadTime.ca.

Expert Verdict: Is the Omron NB7W-TW01B Still Worth Buying?

The Omron NB7W-TW01B earns its place on the shelf for a specific and clearly defined buyer: the controls engineer or maintenance team replacing a failed unit in an existing machine, or the cost-conscious OEM building straightforward operator interfaces for Omron compact PLC-based equipment. The 7-inch 800 × 480 color TFT, analog resistive touch, 24 VDC supply, and NB-Designer compatibility deliver exactly what basic-to-intermediate HMI applications need — and nothing more than that. For these buyers, the NB7W-TW01B avoids panel rework, program re-engineering, and the learning curve of a new software environment. That is genuine value in a replacement scenario.

Where this model shows its age is in new designs where lifecycle longevity and connectivity flexibility matter. The NB7W-TW01B-V1 carries hardware platform improvements and is the current Omron recommendation for fresh installations — buyers who are not constrained by a specific existing installation should evaluate the -V1 first. Projects that require rich graphical environments, advanced data handling, or tight Sysmac Studio integration will outgrow the NB series entirely and should be scoped against the NA series from the start. Engineers comparing across brands who need their HMI to operate independently of the Omron PLC ecosystem should also weigh that ecosystem dependency honestly before committing.

On the procurement side, the NB7W-TW01B is a part where lifecycle status matters at the point of order. Buying through a specialist distributor rather than a generic online channel means someone can confirm whether the original non-V1 revision is still actively stocked, whether the -V1 is a drop-in replacement for your specific application, and what realistic lead times look like before you commit a project timeline to availability assumptions. Check current stock status and pricing for the Omron NB7W-TW01B at LeadTime.ca — the team ships worldwide and can advise on variant selection before you place the order.

For volume pricing, project-specific lead time confirmation, or migration guidance between NB7W-TW01B and NB7W-TW01B-V1, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Omron NB7W-TW01B

Community sentiment across forums including PLCTalk, PLCS.net, MrPLC, and Reddit's automation communities is generally positive toward the NB7W and NB series for straightforward applications. Engineers working on Omron PLC-based machines consistently describe the NB series as a cost-effective, reliable operator interface that does not overcomplicate basic visualization projects. NB-Designer earns particular praise from integrators already in the Omron ecosystem — the communication drivers for Omron compact PLCs are well-documented and the setup process is familiar enough that experienced users report short commissioning times once parameters are matched.

That said, the community is clear-eyed about the platform's ceiling. Users regularly flag that NB series graphics and interface capabilities feel limited when project complexity increases — complex trending, rich animated graphics, and advanced scripting that newer HMI platforms handle as standard features push the NB series to its boundaries. Blank-screen and backlight failure discussions appear with some regularity for older NB7W units, and these threads typically end with a recommendation toward repair or outright replacement rather than field-level remediation. NB-Designer's interface also draws recurring criticism for lagging behind more modern HMI development environments in workflow efficiency.

The ordering mistakes that appear most frequently in community threads deserve direct attention. Confusing NB7W-TW01B with NB7W-TW01B-V1 is the most common error — the part numbers look nearly identical and the distinction matters both for panel programs and lifecycle expectations. Ordering the wrong NB screen size because of similar catalog numbering (NB5Q versus NB7W) is a documented problem on rushed procurement orders. And assuming that all NB7W variants include Ethernet without checking the specific order code has caught engineers at commissioning time. These are not obscure traps — they come up repeatedly because the NB series part numbering requires deliberate verification at the ordering stage, not just a copy-paste from a BOM.

Wiring and Installation Overview

  • Verify that the panel cutout and mounting surface meet Omron's NB7W dimensional and flatness requirements before installation — the gasket seal integrity depends on surface quality.
  • Wire 24 VDC to the power terminals with protective earth connected, and install external overcurrent protection as required by Omron documentation — this is not optional.
  • Route communication cables (serial or Ethernet) physically separated from high-voltage conductors and noise sources; use shielded cable where Omron's wiring guidelines recommend it.
  • On initial power-up, confirm the backlight illuminates and the system menu or project screen appears without error codes before proceeding to PLC communication setup.
  • For project download, connect a programming PC via USB or Ethernet (per the NB-Designer procedure), load the project, and verify PLC data reads and writes are functioning correctly before commissioning the machine to operators.

NB-Designer Software and Compatible Omron PLC Families

The NB7W-TW01B is programmed exclusively using NB-Designer, Omron's free PC-based HMI development environment. All screen design, PLC communication configuration, tag mapping, alarm setup, and project transfer to the terminal are performed within NB-Designer. Engineers already working in the Omron ecosystem should confirm PC operating system compatibility with the current NB-Designer release before starting a new project.

  • Omron CP-series compact PLCs — primary target for NB series serial and Ethernet communication drivers
  • Omron CJ-series PLCs — supported via Omron host link and other documented protocols in NB-Designer
  • Omron NX compact PLC lines — verify driver support in NB-Designer for the specific NX model in use
  • Third-party PLCs — Modbus RTU and Modbus TCP are among the documented protocol options for non-Omron PLC integration; confirm the specific driver is available in NB-Designer before design freeze
  • USB host port — supports USB memory devices for project transfer and data logging functions at the NB series family level

Wrong-Part Prevention Checklist

Before placing your order for the Omron NB7W-TW01B, work through each item on this checklist. These checks address the most common and most costly ordering mistakes documented for this model family:

  1. Confirm you specifically need NB7W-TW01B and not the newer NB7W-TW01B-V1 (check OEM documentation and current Omron recommendations).
  2. Verify the 7-inch wide-screen size and 800 × 480 resolution matches the operator's readability and panel door space.
  3. Check supply voltage is 24 VDC and that the panel has adequate 24 VDC capacity and external protection.
  4. Confirm required communication interfaces (e.g., RS-232/422/485, Ethernet) are present on this model and compatible with the PLC.
  5. Verify environmental ratings (operating temperature, IP rating for the front, panel depth) against the enclosure and site conditions.
  6. Make sure your programming environment is NB-Designer, not CX-Designer/NS-Designer, and that you have PC compatibility.
  7. Confirm language/character set requirements (e.g., Asian or Latin fonts) are supported by NB series.
  8. Check with a distributor whether this exact non-V1 model is still actively stocked or if a migration to -V1 is advised.

If any item on this checklist raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca team before ordering — confirming these details upfront avoids costly re-ordering and project delays.

Frequently Asked Questions

Can I replace an NB7W-TW01B with an NB7W-TW01B-V1 without changing my NB-Designer project?

In many replacement scenarios, the NB7W-TW01B-V1 is compatible with projects developed for the original NB7W-TW01B in NB-Designer, since both share the same 7-inch 800 × 480 display and use the same software environment. However, hardware platform differences between the original and V1 revisions mean you should verify compatibility with Omron's migration documentation or a distributor before assuming a direct swap — particularly if the OEM specification calls out the original model explicitly.

What PLCs can the Omron NB7W-TW01B communicate with?

The NB7W-TW01B supports communication with Omron compact PLC families including the CP and CJ series via documented Omron host link and Ethernet protocols configured in NB-Designer. Third-party PLCs can be connected using protocols such as Modbus RTU or Modbus TCP where the NB-Designer driver library supports the target device. Always verify the specific driver is available in NB-Designer for your PLC model before finalizing the design — do not assume universal third-party compatibility.

What power supply and external protection does the NB7W-TW01B require?

The NB7W-TW01B operates on a 24 VDC supply. Omron's documentation requires external overcurrent protection to be installed — this is a mandatory installation requirement, not an optional best practice. Size the 24 VDC supply to meet the HMI's current draw as listed in the datasheet, and follow Omron's grounding and wiring separation guidelines to avoid noise-related instability.

Is the NB7W-TW01B still in active production, or is it being phased out?

The NB7W-TW01B-V1 is the current hardware revision and Omron's recommended choice for new designs. The original NB7W-TW01B's active stocking status varies by distributor and region. Before building a project BOM around the original non-V1 model, check with a specialist distributor to confirm current availability and whether the -V1 is a suitable alternative — this step is especially important for projects with long production runs or service part requirements.

How do I troubleshoot a blank screen on the NB7W-TW01B at power-up?

Start by confirming 24 VDC is present at the HMI power terminals with correct polarity, and check that the external overcurrent protection device has not tripped. If voltage is correct but the screen remains blank, attempt to access the system menu as described in Omron's NB-series manual to check for error codes or status indicators. Persistent blank screen after these checks often indicates backlight or hardware failure, at which point repair or unit replacement is the standard resolution documented in community discussions and Omron support channels.

Is the NB series still recommended for new machine designs?

The NB series, including the NB7W-TW01B-V1, remains a valid choice for new designs where fundamental HMI functionality, budget efficiency, and Omron PLC integration are the primary requirements. For projects that demand advanced graphics, complex data handling, motion integration, or Sysmac Studio connectivity, Omron's NA series is the more appropriate platform. Community feedback consistently reflects that the NB series is a strong performer within its intended scope but reaches its limits quickly when visualization complexity increases.

Why Order From LeadTime.ca

  • Global shipping — LeadTime.ca ships the Omron NB7W-TW01B and NB-series products worldwide, not just within a single region.
  • Lifecycle and variant confirmation — the team can verify whether the original NB7W-TW01B is actively stocked or whether the NB7W-TW01B-V1 is the recommended current alternative before you commit to an order.
  • Sourcing hard-to-find revisions — for MRO and replacement buyers who need a specific hardware revision to match an existing machine, specialist sourcing avoids the risk of receiving the wrong variant from a generic channel.
  • Volume pricing and project support — for OEMs standardizing on NB series across multiple machines, volume pricing and pre-order lead time confirmation are available through direct contact.
  • Responsive technical support — questions about PLC compatibility, communication setup, and migration from original NB7W-TW01B to -V1 can be addressed before and after the sale.

At-a-Glance Summary

  • Display: 7-inch wide-screen TFT LCD, 800 × 480 pixels, 65,536 colors
  • Touch technology: Analog resistive touchscreen
  • Backlight: LED — a reliability advantage over CCFL predecessors
  • Supply voltage: 24 VDC with mandatory external overcurrent protection
  • Communication: Serial (RS-232/RS-422/RS-485), Ethernet, USB host and device — verify exact port complement on datasheet for this SKU
  • Programming: NB-Designer software, free from Omron — not compatible with CX-Designer or NS-Designer
  • Product family: Omron NB-series Programmable Terminal
  • Primary use case: Operator interface for Omron compact PLCs on small to mid-size machines; direct replacement for existing NB7W-TW01B installations
  • Key ordering check: Confirm NB7W-TW01B vs NB7W-TW01B-V1 requirement and verify active stock status with distributor before ordering
  • Alternative for new designs: NB7W-TW01B-V1 (current hardware revision); NA series for advanced visualization and Sysmac Studio integration
