NX-ECC203

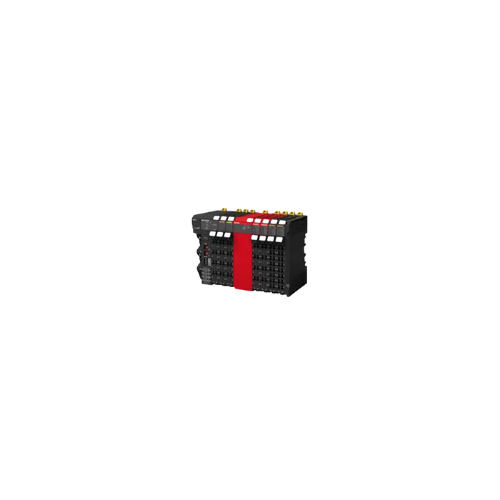

Overview of "Omron NX-ECC203"

The Omron NX-ECC203 is a high-speed EtherCAT Coupler unit designed for the NX-series I/O system. It supports fast communication with a cycle time as low as 125 µs and can connect up to 63 NX-IO units, offering a versatile and efficient solution for industrial automation networks.

Key Features of "Omron - NX-ECC203"

• High-Speed Communication: EtherCAT slave communication with a fast cycle time of 125 µs for real-time data transfer.
• Large I/O Capacity: Supports connection of up to 63 NX-IO units, including standard and high-performance modules.
• Integrated Safety Control: Capable of incorporating safety functions for a unified control system.
• Flexible Node Addressing: Advanced node address customization ensures easy network configuration.
• Easy Configuration: Simple setup via Sysmac Studio software and built-in USB port.
• Compact and Robust Design: Dimensions of 46 mm (W) x 100 mm (H) x 80 mm (D) with IP20 protection and durable screwless push-in connectors.

Technical Specs of "NX-ECC203"

Applications / Use Case

The Omron NX-ECC203 enables high-speed, reliable EtherCAT network communication for industrial automation systems, ideal for connecting multiple NX I/O units in manufacturing and process control environments. It supports seamless integration with Omron’s NX-series automation solutions, backed by solid engineering and global support.
