Omron NX-ID5442 — 32-Point NPN Input Module Review

By Abdullah Zahid
15 min read

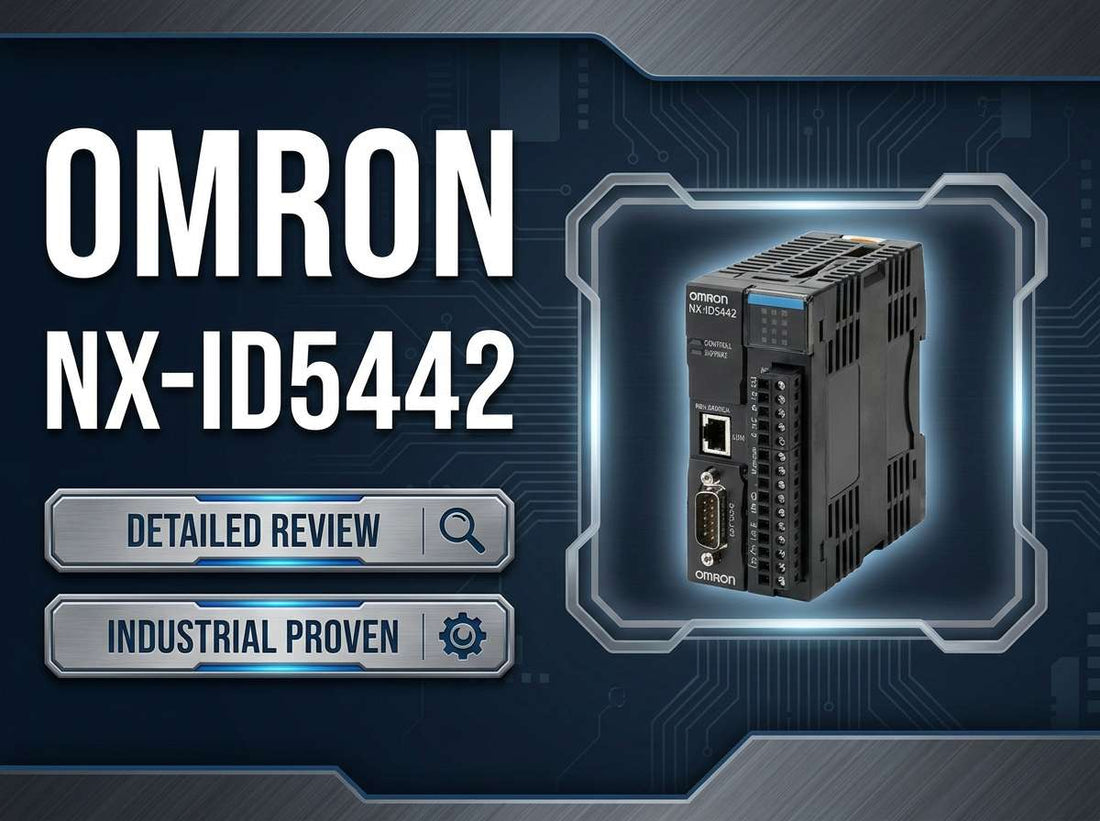

Omron NX-ID5442 32-point 24 V DC NPN digital input module for NX-series Sysmac machine control systems

Omron NX-ID5442 NX-series DC Input Unit, 24 V DC, NPN, 32 Points – Specs, Review and Alternatives

Controls engineers specifying digital I/O for an Omron Sysmac machine are typically at a clear decision point when they reach the NX-ID5442: they need 32 high-density NPN sinking digital inputs on a single NX slice, wired for standard 24 V DC industrial sensors. The Omron NX-ID5442 is a 32-point, 24 V DC, NPN digital input module in the Omron NX-series I/O family, configured through Sysmac Studio and compatible with NX/NJ/NX1P controllers via EtherCAT or EtherNet/IP couplers. If your field devices are NPN-wired and your panel uses an NX backbone, this module delivers the input density and platform integration that keeps your design clean and your commissioning predictable.

If you have already confirmed this is the right part, check current pricing and availability for the NX-ID5442 at LeadTime.ca — we ship worldwide.

Who Should Buy the NX-ID5442 — and Who Shouldn't

The NX-ID5442 is the right choice for engineers building or expanding machines on the Omron Sysmac platform who need a high-channel-count NPN input slice. It is the right fit if all of the following are true for your project:

  • Your controller is an Omron NX/NJ or NX1P CPU, or you are using an NX-series EtherCAT or EtherNet/IP coupler that explicitly lists NX-ID5442 compatibility.
  • Your field devices — proximity switches, photoelectric sensors, limit switches, pushbuttons — are wired for NPN (sinking) inputs and operate at 24 V DC.
  • You need exactly 32 digital input points on a single slice, balancing high density against available rail space.
  • M3 screw terminals are acceptable for your wiring practice and conductor sizes.
  • You are using standard (non-safety) digital inputs; this module is not safety-rated.

If your plant standard is PNP (sourcing) sensors, select a PNP variant from the NX-ID6x4x family instead. If you need safety-rated inputs, high-speed counting, or analog capability, those requirements point to dedicated specialty NX modules outside this family.

On this page:

What the NX-ID5442 Does in an Omron Sysmac System

The NX-ID5442 is officially categorized by Omron as a DC Input Unit within the NX-series Digital I/O Unit family — specifically the NX-ID/IA/OD/OC/MD series. Its function is straightforward: it reads 32 discrete 24 V DC NPN signals from field devices and passes that state data to the NX I/O internal bus, making the inputs available to the connected Omron Sysmac controller. This is standard, non-safety digital input acquisition — no counting, no analog conversion, no safety certification — which is exactly what the vast majority of machine I/O points require.

What makes the NX-ID5442 relevant beyond its basic function is the density it achieves. Thirty-two input points on a single NX slice reduces the total number of modules needed on the rail, lowers the cost-per-point compared to lower-density alternatives, and keeps the panel footprint compact. For OEMs building multiple machines to the same design, standardizing on one 32-point NPN input module across the fleet simplifies spares management and documentation significantly.

The module connects via M3 screw terminals, which are appropriate for standard industrial wiring practice. Omron lists it as compatible with NX/NJ/NX1P controllers and NX-series EtherCAT and EtherNet/IP couplers. Configuration and diagnostics are handled entirely within Sysmac Studio, the unified software environment for the Sysmac platform. According to Omron's NX-series I/O System documentation, NX I/O integrates sequence and motion control under a single Sysmac configuration environment — meaning the NX-ID5442's channels map directly to program variables without requiring separate I/O configuration tools.

Where the NX-ID5442 Sits in a Typical System Architecture

The NX-ID5442 occupies the field-side input layer of the NX I/O slice system, sitting between the physical sensors and the Sysmac controller that executes the machine program. Understanding its position helps during both panel design and troubleshooting.

  • Omron NX/NJ/NX1P CPU or NX-series EtherCAT/EtherNet/IP coupler — the host that owns the NX I/O bus and communicates scan data to the controller.
  • NX I/O rail — the mechanical and electrical backbone that carries bus power and data between slices.
  • NX-ID5442 module — mounted on the rail, reading 32 NPN 24 V DC inputs from the field and delivering state data to the bus.
  • 24 V DC I/O power supply — provides the voltage reference for the input circuits and powers connected sensors.
  • Field devices — NPN proximity switches, photoelectric sensors, limit switches, and pushbuttons wired to the module's M3 screw terminals.

Typical Applications for the NX-ID5442

Packaging machinery is one of the most common deployment environments for the NX-ID5442. A single 32-point module can absorb the input signals from an entire machine section — product presence sensors, reject gates, registration marks, and end-of-travel switches — without consuming multiple slices on the NX rail.

Material handling and conveyor systems similarly benefit from the high channel count. A conveyor line equipped with NPN proximity sensors at transfer points, accumulation zones, and divert gates can connect all signals from one physical area to a single NX-ID5442, making wiring routing and panel organization cleaner.

Automotive assembly and electronics inspection equipment commonly require large numbers of discrete inputs to confirm part presence, fixture seating, and process completion. The NX-ID5442 supports this type of application where input density per module directly affects panel size and build cost.

OEM machine builders standardizing their control architecture across product lines find value in specifying a single 32-point NPN input module across all machines. This reduces the number of spare module types kept on the shelf and simplifies technician training, since every machine uses the same module in the same way.

Retrofit and migration projects moving from older Omron I/O rack systems to NX-series slice I/O also frequently include the NX-ID5442, provided the installed sensor field wiring is NPN. Migrating to NX I/O while preserving the existing sensor wiring standard avoids the cost and downtime of rewiring an entire machine.

Application Typical Deployment
Packaging machinery 32 NPN inputs covering product presence, reject, and registration sensors on one module
Conveyor and material handling Proximity switches and end-of-travel sensors from one conveyor zone wired to a single NX slice
Automotive assembly equipment Part presence and fixture confirmation inputs consolidated onto high-density NX input modules
Electronics inspection systems Multiple discrete sensor signals from one inspection station handled on a single 32-point module
OEM multi-machine standardization Common NPN input module across all machine variants to simplify spares and documentation
NX-series retrofit / migration Replacing older Omron I/O racks with NX slice I/O while retaining NPN field wiring standard

Key Specifications and Variant Comparison for the NX-ID5442

Specification Value
Product family Omron NX-series Digital I/O Unit (NX-ID/IA/OD/OC/MD series)
Catalog number NX-ID5442
Function DC digital input unit — standard (non-safety)
Number of input points 32
Input type NPN (sinking), 24 V DC
Connector / terminals M3 screw terminals
Mounting NX I/O rail with compatible NX coupler or NX/NJ/NX1P CPU
Configuration software Sysmac Studio
Compatible platforms Omron NX/NJ/NX1P (Sysmac) with NX-series EtherCAT and EtherNet/IP couplers
Safety rating Standard (not safety-rated); external protection required per Omron documentation

Full technical specifications are available on the product page at LeadTime.ca.

The NX-ID5442 sits within a broader family of NX digital input modules. Choosing the correct variant before ordering is one of the most important steps in the procurement process.

Module Input Type Points Terminal Style Best For
NX-ID5442 NPN (sinking), 24 V DC 32 M3 screw High-density NPN input applications on NX backbone
NX-ID6x4x variants (PNP) PNP (sourcing), 24 V DC 32 Varies by variant Plants standardized on PNP (sourcing) sensor wiring
Lower-density NX-ID variants NPN or PNP, 24 V DC 16 Varies by variant Smaller machine sections needing fewer inputs per slice
NX safety input modules Safety-rated Varies Varies Safety function inputs (E-stops, light curtains, safety gates)
NX high-speed / counter input modules High-speed DC Varies Varies Encoder feedback, high-frequency pulse counting

If your sensor field uses PNP sourcing wiring or your channel count requirement differs, confirm the correct NX-ID variant before submitting your order — check current availability and pricing at LeadTime.ca and contact the team if you need help cross-referencing part numbers.

Expert Verdict: Is the NX-ID5442 the Right Module for Your Project?

The NX-ID5442 is a dependable, workhorse digital input module for Omron Sysmac projects that standardize on NPN wiring. It delivers 32 input channels on a single NX slice, which translates directly to a lower module count on the rail, reduced panel footprint, and a lower cost-per-point compared to using multiple 16-point modules. For controls engineers and OEM machine designers who are already committed to the Omron NX/NJ platform, the tight integration with Sysmac Studio — where hardware configuration, channel mapping, and live diagnostics all live in one environment — is a genuine day-to-day advantage during commissioning and maintenance. According to Omron's NX-series I/O System documentation, this unified Sysmac platform approach brings sequence and motion I/O together under a single configuration tool, which is exactly the productivity benefit that Omron-centric teams depend on.

The NX-ID5442 has real limits that are worth stating plainly. It is not the right module for plants that standardize on PNP (sourcing) sensors — that is not a minor wiring adjustment, it is a module substitution. Engineers who realize this at the panel build stage face module replacement, rewiring delays, and potential supply issues for a last-minute substitute. The NX-ID5442 is also not a safety I/O module, which means E-stop circuits, light curtains, and safety gate monitors must be handled by dedicated safety-rated NX units. If your application requires high-speed pulse counting or analog inputs, those also fall outside what this standard digital input unit provides. For PNP applications, look to the NX-ID6x4x PNP variants. For safety, specify the appropriate NX safety I/O modules from the Omron lineup.

From a procurement standpoint, the NX-ID5442 is generally available through major industrial distributors, but NX-series module availability can tighten during supply constraints — engineers who finalize their BOM early and check live stock status avoid the project risk of discovering a multi-week lead time after panel fabrication has started. Buying through a specialist distributor that understands the Omron NX ecosystem means you can get polarity and compatibility questions answered before the order is placed, not after the modules arrive on site. Check current stock and pricing for the NX-ID5442 at LeadTime.ca — we ship worldwide and can help confirm the right part for your application before you commit.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the NX-ID5442

Community discussions across automation forums including Reddit r/PLC, PLCTalk, PLCS.net, and MrPLC contain limited NX-ID5442-specific threads, but the broader Omron NX-series conversation is consistent and instructive. Engineers who work with NX I/O regularly describe the hardware as compact, reliable, and well-integrated with the Sysmac platform. The recurring praise centers on how cleanly NX modules configure inside Sysmac Studio — hardware setup, channel-to-variable mapping, and module diagnostics all handled in one tool without jumping between configuration environments. Few forum participants report hardware reliability issues with NX digital I/O when modules are correctly installed and powered.

Where the community consistently flags problems is at the ordering and selection stage, not the hardware stage. NPN versus PNP confusion is by far the most frequently mentioned ordering mistake in the NX-ID family. Several forum threads describe situations where an NPN input module was ordered for a plant that standardizes on PNP sensors, resulting in either a module swap or the addition of interface relays to bridge the polarity mismatch. A second common issue is assuming that NX-series I/O modules work universally across all Omron controllers — engineers new to the platform sometimes discover at commissioning that their chosen module is not listed in the compatibility table for their specific CPU or coupler. A third pattern involves point count planning: panels built around 16-point modules run short of inputs partway through, while engineers who choose the 32-point NX-ID5442 without verifying rail space sometimes find a layout conflict during physical build.

Because model-specific community data for the NX-ID5442 is sparse, the practical implication for buyers is clear: the risk points are known, and they are all preventable with upfront verification. When community guidance is limited and the cost of a mis-order is real — both in lead time and in rewiring labor — working with a specialist distributor who can confirm polarity, compatibility, and stock status before the order is placed is the lowest-risk procurement path. The wrong-part checklist below captures every verification step worth completing before submitting your order.

Wiring and Installation Overview for the NX-ID5442

The following is a high-level installation overview. Engineers requiring full wiring diagrams, torque specifications, wire size tables, and step-by-step commissioning procedures should refer to the official Omron NX-series I/O System Manual and the NX-ID/IA/OD/OC/MD datasheet.

  • Mount the NX-ID5442 on the NX I/O rail in the correct physical position, confirming that the side connector fully engages the adjacent unit and the module locks mechanically before applying power.
  • Connect the 24 V DC I/O power supply and the 0 V common reference to the designated terminals, observing polarity; the input circuits rely on the NPN sinking principle where the field device pulls the input terminal toward 0 V to assert an ON state.
  • Terminate NPN sensor outputs and switch contacts to the appropriate input terminals using conductor sizes and torque values specified in the Omron datasheet for M3 screw terminals; verify wire preparation meets Omron's stripping and ferrule guidance.
  • Segregate I/O wiring from high-voltage power cabling and inductive load wiring in accordance with Omron's panel wiring guidelines to prevent noise-induced false inputs.
  • Before powering up, verify that all connections match the NPN wiring standard; PNP sensors connected to an NPN input module will not produce reliable results and may cause diagnostic faults.

Commissioning the NX-ID5442 in Sysmac Studio

  • Add the NX-ID5442 to the hardware configuration in Sysmac Studio under the correct NX coupler or NX CPU, confirming the module appears in the supported unit list for your firmware version.
  • Map all 32 input channels to meaningful program variables or tags; document unused spare channels for future maintenance reference.
  • Download the updated configuration to the controller, then actuate each connected sensor or switch individually and verify both the module's input LED indicators and the corresponding live tag state in Sysmac Studio agree.
  • Investigate any channel that does not respond by checking supply voltage at the terminal, device output wiring, and NPN polarity before concluding hardware fault.
  • Record final channel assignments, I/O variable names, and power domain groupings in the project documentation before handover to production.

Wrong-Part Prevention Checklist Before Ordering the NX-ID5442

Before placing your order, run through every item on this checklist. Skipping steps is the most common source of costly ordering mistakes in the NX digital I/O family.

  1. Confirm your field devices are wired for NPN (sinking) inputs; if your plant standard is PNP (sourcing), select the PNP variant instead.
  2. Verify the required number of input points and spares; ensure 32 channels on one module is appropriate for your I/O layout.
  3. Check that your chosen NX bus coupler or NX/NJ CPU explicitly supports the NX-ID5442 in its unit compatibility list.
  4. Confirm rated voltage and sensor type (24 V DC proximity, photoelectric, mechanical contacts) match this module's input specs.
  5. Check terminal style (M3 screw terminals) is acceptable for your wiring practice and conductor sizes.
  6. Verify stock and lead time from your distributor for delivery; avoid mixing multiple similar NX-ID part numbers in the same BOM.
  7. Ensure safety I/O requirements are handled by separate safety I/O modules; this unit is standard, not safety-rated.
  8. Cross-check the catalog number including all characters (NX-ID5442) on both the module label and supplier quote before ordering.

If any item on this checklist raises a question you cannot answer from the datasheet alone, contact LeadTime.ca before ordering — confirming compatibility costs nothing; a mis-order costs real project time.

Frequently Asked Questions

Can I use PNP sensors with the NX-ID5442, or do I need a different module?

The NX-ID5442 is designed exclusively for NPN (sinking) inputs, where the field device pulls the input terminal toward 0 V to signal an ON state. PNP sensors source current and pull the input high, which is the opposite logic. Connecting PNP sensors to an NPN module will not produce reliable input readings. If your sensor field uses PNP sourcing devices, you must select a PNP variant from the NX-ID6x4x family rather than the NX-ID5442.

How do I add and address the NX-ID5442 in Sysmac Studio?

The NX-ID5442 is added to the hardware configuration tree in Sysmac Studio under the appropriate NX EtherCAT coupler or NX CPU. The module's 32 input channels appear as addressable I/O points that you map to program variables directly in the configuration editor. Omron's NX-series I/O System manual covers the complete addressing and mapping procedure; refer to that document for firmware-specific guidance and version compatibility notes.

Are NX-series I/O modules hot-swappable, or must the system be powered down to replace the NX-ID5442?

Hot-swap capability for NX-series I/O depends on the specific controller, coupler, and firmware version in use. Some NX configurations support online replacement without a full system shutdown, but this must be verified against the Omron documentation for your exact controller and coupler combination. Do not assume hot-swap capability without confirming it in the official system manual for your platform.

What do the LED indicators on the NX-ID5442 mean during normal operation and fault conditions?

The NX-ID5442 includes per-channel input LED indicators that illuminate when an individual input is in the ON state, providing a first-level visual diagnostic at the module. Module-level status LEDs indicate bus communication and power status. If a channel LED shows ON but the corresponding program variable does not reflect the state, the issue is typically in the Sysmac Studio configuration mapping or a firmware mismatch — use the Sysmac Studio diagnostics view to investigate. Refer to the Omron NX-series I/O manual for the full LED status table and fault code meanings.

Can I mix NPN and PNP digital input modules in the same NX I/O rack or coupler?

Yes — the NX-series architecture allows NPN and PNP input modules to coexist on the same NX I/O rail alongside the same coupler, since each module handles its own input polarity independently. The critical requirement is that each module is correctly matched to the polarity of the field devices connected to its terminals. Mixing module types on the rail is supported by the NX system; mixing NPN and PNP sensors on the same module is not.

Is the NX-ID5442 a direct replacement for older Omron I/O rack modules in a retrofit project?

The NX-ID5442 is not a direct plug-in replacement for older Omron CJ-series or CS-series I/O modules. The NX-series uses its own I/O rail, coupler, and bus architecture that is separate from earlier Omron rack-based I/O systems. A migration to NX I/O involves replacing the coupler or updating the CPU, reconfiguring the hardware in Sysmac Studio, and remapping I/O variables. However, if the existing field wiring is NPN 24 V DC, the sensor-side wiring can often be retained, which is a significant cost saving in retrofit projects.

Why Order the NX-ID5442 From LeadTime.ca

  • LeadTime.ca ships Omron NX-series I/O modules worldwide — no geographic restrictions on order placement or delivery.
  • Our team understands the Omron NX I/O family and can help verify NPN/PNP polarity, controller compatibility, and correct part number before your order is placed.
  • We source hard-to-find and allocation-constrained NX-series modules and can provide realistic lead time guidance rather than generic catalog estimates.
  • Volume pricing is available for project and BOM quantities — contact us with your full I/O list for a project-level quote.

NX-ID5442 At-a-Glance Summary

  • 32-point, 24 V DC, NPN (sinking) digital input module in the Omron NX-series Digital I/O Unit family.
  • Officially categorized as a DC Input Unit in the NX-ID/IA/OD/OC/MD series for Sysmac / NX/NJ controllers.
  • M3 screw terminal connection — verify conductor size and torque against the Omron datasheet before wiring.
  • Compatible with Omron NX/NJ/NX1P controllers via NX-series EtherCAT and EtherNet/IP couplers — confirm your specific coupler and CPU appear in Omron's compatibility list.
  • Configured and diagnosed entirely within Sysmac Studio — no separate I/O configuration tool required.
  • Standard (non-safety) input module — safety I/O functions require separate dedicated safety-rated NX modules.
  • NPN polarity is fixed — PNP sensor installations must use the appropriate NX-ID6x4x PNP variant.
  • High 32-point channel density reduces module count on the rail and lowers cost-per-input-point.
  • Pricing is available on the product page; contact LeadTime.ca for volume or project pricing before finalizing your BOM.
