Omron NX102-9000 — Sysmac NX1 Controller Buying Guide

By Abdullah Zahid
14 min read

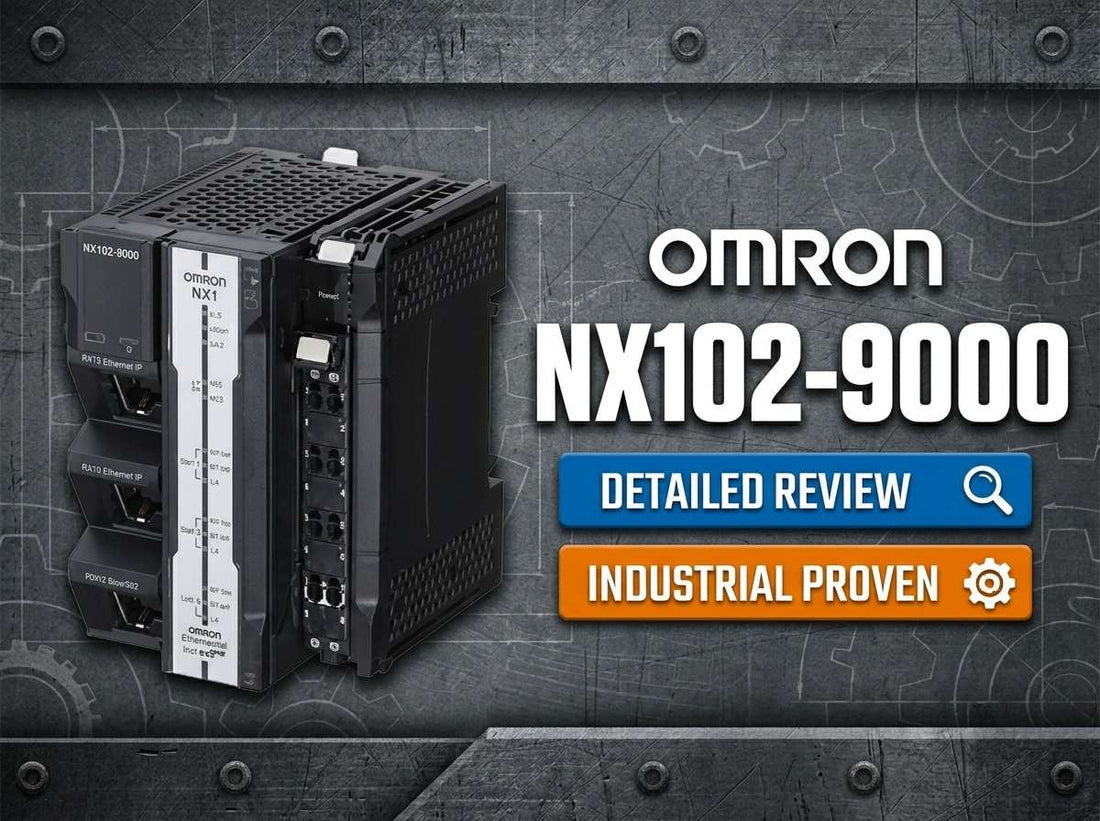

Omron NX102-9000 Sysmac NX1 modular CPU unit with EtherCAT master and dual Ethernet ports for machine automation

Omron NX102-9000 Sysmac NX1 Modular CPU Unit: Specs, Selection Guide & Procurement Review

Controls engineers and OEM machine designers searching for the Omron NX102-9000 are typically at a decisive point: they need a compact machine automation controller with built-in EtherCAT, OPC UA, and EtherNet/IP connectivity, and they want to confirm this specific model fits their application before committing the project. The Omron NX102-9000 is a Sysmac NX1-series modular CPU unit that delivers 5 MB of program memory, a 1 ms primary task cycle time, and an integrated EtherCAT master alongside dual Ethernet ports — all in a DIN rail-mounted package running on 24 VDC. The central question is whether its limits on motion axes and network scale match your machine design, and this review addresses that directly.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Omron NX102-9000 — and Who Shouldn't

The NX102-9000 is the right controller for engineers building small to mid-size machines that require modern industrial Ethernet connectivity and modular NX I/O expansion without a large-scale motion system.

  • Your machine requires EtherCAT master control over drives, I/O, or safety devices with no more than 64 slave nodes total.
  • Motion demands are limited to point-to-point positioning — up to 4 axes — with no requirement for synchronous multi-axis coordinated motion.
  • You need OPC UA and EtherNet/IP connectivity in the same CPU without purchasing separate communication modules.
  • NX I/O expansion requirements stay within 32 units on the NX I/O bus.
  • Your panel space and power budget align with a 24 VDC DIN rail-mounted unit approximately 100 x 66 x 100 mm in size.
  • Your engineering team is using or ready to adopt Sysmac Studio as the programming and commissioning environment.

If your application requires synchronous multi-axis motion, expects to exceed 64 EtherCAT nodes or 32 NX expansion units, or is standardized on a non-Omron platform, the NX102-1100, NX102-1200, or a higher-class Sysmac controller is the more appropriate choice.

On this page:

What the Omron NX102-9000 Actually Does in a Machine System

The Omron NX102-9000 is the CPU at the center of a Sysmac NX1-series machine control architecture. It executes sequence logic for discrete automation, handles point-to-point positioning for up to 4 axes via EtherCAT-connected drives, manages the NX I/O bus with up to 32 expansion units, and simultaneously operates as the EtherCAT master for up to 64 slave nodes across the machine network. What makes this controller stand apart from simpler micro PLCs is the combination of those roles in a single CPU — no separate motion controller, no external EtherCAT master card, no add-on OPC UA gateway required.

The dual Ethernet ports serve clearly differentiated roles in practice. One typically handles OPC UA and EtherNet/IP communication to HMIs, SCADA systems, MES platforms, or edge gateways. The other manages EtherNet/IP device-level traffic or plant network connectivity. This architecture is particularly valuable for machine builders whose customers increasingly demand live OPC UA data feeds from production equipment, since the NX102-9000 delivers that capability without architectural complexity. With 5 MB of program memory and approximately 33.5 MB of variables memory, the controller handles real-world machine programs with headroom for recipe management, diagnostics, and data buffering.

The Sysmac platform context matters here. The NX102-9000 is programmed exclusively with Sysmac Studio, the same engineering environment used across Omron's NX and NJ controller families. For OEMs standardizing across multiple machine variants, that means one toolchain, one I/O system, and consistent maintenance skills across the installed base — a genuine operational advantage that compounds over time.

Typical System Architecture for the NX102-9000

The NX102-9000 sits at the top of the machine control chain, connecting the Sysmac NX I/O bus on one side and the machine's EtherCAT and Ethernet networks on the other.

  • Engineering PC running Sysmac Studio connects via Ethernet to the CPU for programming, configuration, and diagnostics.
  • NX102-9000 CPU mounts on DIN rail, with NX series slice I/O expansion units attached directly on the NX I/O bus to the right — up to 32 units.
  • EtherCAT port connects in a line or ring topology to EtherCAT servo drives, remote I/O islands, and safety devices — up to 64 slave nodes total.
  • Dual Ethernet ports connect to plant LAN, HMI panels, SCADA or MES systems, and OPC UA clients or edge gateways.
  • Optional serial communication accessories extend connectivity to legacy devices using RS-232C, RS-422, or RS-485 protocols where needed.

Where the NX102-9000 Fits: Industries and Deployment Scenarios

The NX102-9000 is a natural fit for compact packaging machines — horizontal flow wrappers, case erectors, labellers, and form-fill-seal systems — where EtherCAT servo drives handle film tracking and sealing motion, NX I/O handles sensors and actuators, and OPC UA links the machine to a line management system. The 4-axis PTP limit and 64-node EtherCAT capacity are comfortably within the scope of most single-station packaging equipment.

Assembly and inspection cells represent another strong application class. A cell controller coordinating one or two pick-and-place mechanisms, a vision system, conveyor indexing, and safety light curtains sits well within the NX102-9000's architecture. The EtherNet/IP ports handle robot or vision communications while EtherCAT manages I/O and motion, and OPC UA exposes production metrics to the plant network.

Material handling conveyors and transfer systems where multiple EtherCAT drive nodes distribute along a line are well served by the 64-node capacity, provided axis coordination stays in the point-to-point domain. For OEMs building a standardized platform across machine variants, the NX102-9000 offers a consistent CPU that scales via NX I/O additions rather than controller changes.

Data-connected machines for Industry 4.0 deployments are a growing use case. Plants requiring live OPC UA data feeds from individual machines to MES, SCADA, or cloud gateways can use the NX102-9000 without an intermediate translation gateway, reducing both hardware cost and network complexity.

Application Typical Deployment
Compact packaging machine NX102-9000 as main CPU, EtherCAT servo drives for motion, NX I/O for sensors and actuators, OPC UA to line management system
Assembly and inspection cell Cell controller coordinating vision, robots, and safety via EtherCAT and EtherNet/IP, OPC UA reporting to MES
Material handling conveyor system Distributed EtherCAT drive nodes along conveyor line, NX I/O for zone sensors, Ethernet to plant SCADA
OEM standardized machine platform Same NX102-9000 CPU across machine family variants, NX I/O scaled per variant, common Sysmac Studio codebase
Legacy Omron PLC retrofit NX102-9000 replacing end-of-life Omron CPU, re-using panel space, migrating to Sysmac architecture
Data-connected machine for IIoT NX102-9000 with OPC UA feeding edge gateway or cloud platform without additional translation hardware

Key Specifications for Purchase Decisions

Parameter Value Notes
Controller type Sysmac NX1-series machine automation controller CPU Main PLC CPU for machine or cell control
Program memory 5 MB User program storage
Data / variables memory Approx. 33.5 MB For variables and runtime data
Primary task cycle time 1 ms Application-dependent scan performance
Motion axes 0 synchronous axes, up to 4 point-to-point axes (4 total) PTP positioning only; no coordinated synchronous motion
Max EtherCAT slave nodes 64 Drives, remote I/O, safety devices, and other EtherCAT slaves combined
Max NX I/O expansion units 32 On the NX I/O bus
Ethernet ports / protocols 2 Ethernet ports — OPC UA, EtherNet/IP, Ethernet TCP/IP No external communication module required for these protocols
Power supply 24 VDC External protection required; verify power budget
Dimensions (H x W x D) / Weight Approx. 100 x 66 x 100 mm / Approx. 470 g DIN rail mount; confirm exact figures against current datasheet

Full technical specifications are available on the product page at LeadTime.ca.

NX102-9000 vs Other NX102 Variants: Which Model Do You Actually Need?

The NX102 family spans several models differentiated primarily by built-in capabilities, feature sets, and performance levels. The NX102-9000 sits at the entry point of the NX102 range, making it the most cost-accessible option and the correct choice when its capability envelope covers the application. Moving up the family — to the NX102-1000, NX102-1100, or NX102-1200 — generally adds axis capability, expanded features, or specific data handling functions that the NX102-9000 does not include.

Model Motion Capability Key Differentiator vs NX102-9000 Typical Use Case
NX102-9000 0 synchronous, 4 PTP axes max Entry-level NX102; integrated EtherCAT, OPC UA, EtherNet/IP Small-to-mid machines with simple positioning
NX102-1000 Higher axis capability Increased motion and I/O capacity vs NX102-9000 Machines needing more axes or expanded performance
NX102-1100 Higher axis capability Additional built-in features relative to NX102-9000 and NX102-1000 Applications requiring expanded capabilities within NX102 family
NX102-1200 Higher axis capability Top of the NX102 range; most capable NX102 variant Demanding NX102-class applications; maximum NX102 performance

If your machine design requires synchronous motion axes or will push past the NX102 family limits, the NJ-series or NX7-class Sysmac controllers are the next tier to evaluate — check current NX102-9000 availability at LeadTime.ca and contact the team if you need sizing guidance before committing to a variant.

Expert Verdict: Is the Omron NX102-9000 Worth Specifying?

The NX102-9000 earns its place in the NX1 lineup by delivering what a large segment of the OEM machine building market actually needs: a compact Sysmac CPU with genuine EtherCAT mastering, OPC UA, and EtherNet/IP built in, sized and priced for single-machine control. The 5 MB program memory and approximately 33.5 MB variables memory are sufficient for real-world machine programs, the 1 ms primary task cycle time supports responsive discrete control, and the 64-node EtherCAT capacity covers a wide range of drive and I/O configurations. For OEMs standardizing their engineering on Sysmac Studio and NX I/O, it represents a practical and cost-justified anchor for a machine product line.

The honest limits are equally clear. The NX102-9000 supports zero synchronous axes and a maximum of 4 point-to-point axes — if your application involves coordinated multi-axis motion, cam profiles, or flying shear synchronization, this is the wrong controller and the NX102-1100, NX102-1200, or an NJ-class controller needs to be on the drawing instead. Applications expected to scale past 64 EtherCAT nodes or 32 NX expansion units will also hit a ceiling that forces a platform change mid-project, which is expensive. Plants standardized on non-Omron ecosystems without existing Sysmac Studio skills should weigh the platform adoption cost honestly before committing.

From a procurement standpoint, the NX102-9000 is a recognized SKU in the industrial automation distribution channel and is commonly stocked by major distributors, though availability can fluctuate with demand cycles. Lead times when not in stock are measured in weeks rather than days, so confirming live availability before finalizing a project schedule is worth doing early. Buying through a specialist distributor that knows the Omron Sysmac lineup — rather than a generic catalog channel — makes a meaningful difference at the specification stage: part sizing validation, compatibility checks for NX I/O and EtherCAT accessories, and real-time stock intelligence are services a specialist provides that prevent the costly mid-project controller substitutions that generic channels cannot catch. View current pricing and stock status for the NX102-9000 at LeadTime.ca.

For volume pricing, project-quantity reservations, or lead time confirmation before locking in a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the NX102-9000

Public forum discussion specific to the Omron NX102-9000 is limited. Searches across Reddit communities including r/PLC and r/industrialautomation, PLCTalk, PLCS.net, MrPLC, and Omron's own support forums returned no consistent model-specific praise patterns, complaint threads, or documented ordering mistakes naming this part number. That absence is not a red flag — it more likely reflects that NX102-9000 users are OEM engineers and machine builders working within established Sysmac environments, whose project discussions stay internal rather than appearing in open forums. It does mean, however, that crowdsourced guidance is not available for this model, and buyers need to rely on manufacturer documentation and specialist distributor knowledge rather than community consensus.

In the absence of public community signal, the practical intelligence for ordering this part correctly lives in the Wrong-Part Prevention Checklist below and in the application knowledge of distributors who work with the Sysmac product family regularly. The most common sources of ordering errors in compact PLC families like NX102 are axis count mismatches, network scale assumptions that exceed controller limits, and software readiness gaps — none of which surface in a catalog listing but all of which a qualified distributor review catches before hardware ships. When public feedback is thin, that specialist conversation becomes the most valuable pre-purchase step available.

Engineers who are new to the Sysmac platform should also note that Sysmac Studio availability and licensing needs to be confirmed before hardware is ordered. The engineering environment is consistent across NX and NJ family controllers, which is an advantage if your organization is already using it — but it is a non-trivial platform adoption if you are not. Confirming software access, training plans, and internal expertise alongside the hardware order prevents the scenario where a controller arrives ready to install but commissioning is delayed by a software or skills gap.

Wiring and Installation Overview

  • Mount the NX102-9000 on a DIN rail with spacing as specified in the Omron hardware manual to ensure adequate airflow, cooling, and service access around the CPU and NX I/O units.
  • Connect a properly sized 24 VDC power supply to the CPU power terminals, include protective earth grounding, and install external protection devices — fusing or circuit protection — per panel engineering standards and Omron requirements.
  • Attach NX series I/O expansion units to the NX I/O bus in the correct sequence, verifying mechanical latching and proper bus connector engagement for each unit up to the 32-unit maximum.
  • Wire EtherCAT ports to drives, remote I/O islands, and safety devices using industrial Ethernet cabling, respecting cable length limits and the chosen topology — line or ring — as defined in Omron EtherCAT documentation.
  • Connect the dual Ethernet ports to HMIs, engineering PCs, and plant network infrastructure, following the organization's network segmentation policy and ensuring IP addressing is consistent with the Sysmac Studio project configuration.

For complete wiring diagrams, terminal assignments, and detailed installation procedures, refer to the Omron NX-series NX1 CPU hardware user manual available from Omron's documentation portal.

Compatible NX I/O and System Expansion

The NX102-9000 supports the full NX-series slice I/O ecosystem on its NX I/O bus, enabling a wide range of module types to be combined within the 32-unit expansion limit. Typical compatible module categories include:

  • NX-series digital input and output units for standard discrete I/O connections
  • NX-series analog input and output units for process signal measurement and control
  • NX-series safety I/O units for integrating safety devices and safety logic within the EtherCAT architecture
  • NX-series communication option units providing RS-232C, RS-422, or RS-485 serial connectivity for legacy device integration
  • EtherCAT slave devices including Omron servo drives, variable frequency drives, remote I/O couplers, and compatible third-party EtherCAT nodes within the 64-node limit

Confirm specific module compatibility with Omron's NX-series compatibility documentation and validate the complete bill of materials against the 64 EtherCAT node and 32 NX expansion unit limits before finalizing the design.

Wrong-Part Prevention Checklist

Before placing an order for the NX102-9000, verify each of the following points against your machine specification:

  1. Confirm the required number of motion axes: NX102-9000 supports 0 synchronous axes and up to 4 point-to-point axes only.
  2. Check total EtherCAT network size: ensure 64 EtherCAT slave nodes and 32 NX expansion units are sufficient for the machine design.
  3. Verify 24 VDC power supply and panel space match the CPU's size, mounting, and power consumption.
  4. Confirm that NX-series I/O and any safety/drive components planned are compatible with an NX102 CPU and EtherCAT topology.
  5. Check that required protocols (OPC UA, EtherNet/IP, TCP/IP) and any serial communications can be supported by this CPU plus any needed communication options.
  6. Make sure the engineering team has access to Sysmac Studio and is prepared to develop, commission, and maintain on the Sysmac platform.

If any of these points raise a question before you order, contact the LeadTime.ca team — we can help validate the part choice against your application before anything ships.

Frequently Asked Questions

Does the NX102-9000 support synchronous multi-axis motion, or is it limited to point-to-point positioning?

The NX102-9000 supports zero synchronous axes and a maximum of 4 point-to-point axes. If your application requires coordinated synchronous motion — cam profiles, electronic gearing, or multi-axis interpolation — you will need to move up to a higher-capability model within the NX102 family or to an NJ-class Sysmac controller. This is the single most important axis count check before specifying this part.

How many EtherCAT devices can the NX102-9000 handle, and what counts toward the node limit?

The NX102-9000 supports up to 64 EtherCAT slave nodes. Every device on the EtherCAT network counts toward this limit — servo drives, variable frequency drives, remote I/O couplers, safety devices, and any other EtherCAT slave. Build a complete device list during design and include a growth margin before concluding that 64 nodes is sufficient for your machine.

Does the NX102-9000 support OPC UA out of the box, or does it require an additional module?

OPC UA is supported natively through the NX102-9000's dual Ethernet ports — no separate communication module or gateway is required. The same Ethernet ports also support EtherNet/IP and Ethernet TCP/IP, making the NX102-9000 a genuinely multi-protocol controller without additional hardware cost.

What software is required to program and commission the NX102-9000?

The NX102-9000 is programmed using Sysmac Studio, Omron's unified engineering environment for the NX and NJ controller families. Sysmac Studio handles program development, EtherCAT network configuration, I/O mapping, motion setup, and diagnostics. Licensing and version compatibility should be confirmed with Omron or your distributor before the project starts, particularly if multiple engineers will be working on the system.

What are typical lead times for the NX102-9000 and how can I protect my project schedule?

The NX102-9000 is commonly stocked by major industrial automation distributors, but availability fluctuates with demand. When not in stock, lead times are typically measured in weeks. The most effective way to protect a project schedule is to confirm live availability early — ideally at the design freeze stage — and place orders or reservations before the build timeline commits. A specialist distributor with real-time inventory visibility can provide this confirmation faster than a generic catalog channel.

Is the NX102-9000 a straightforward replacement for an older Omron PLC, or does migration require significant rework?

Migrating from older Omron PLC platforms to the NX102-9000 is a genuine architectural change — the Sysmac NX1 platform uses IEC 61131-3 programming in Sysmac Studio, not the CX-Programmer environment used by CS/CJ-series controllers. I/O modules, network configurations, and programs will require migration effort. Omron provides migration guides, and a distributor familiar with both platforms can help scope the conversion work accurately before the project starts.

Why Order the NX102-9000 from LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the NX102-9000 to customers worldwide, not limited to any single country or region.
  • Specialist knowledge — the team is familiar with the Omron Sysmac NX1 family and can validate part selection, confirm accessory compatibility, and help prevent wrong-part orders before hardware ships.
  • Real-time availability — live stock and lead time status is available on the product page, with direct contact access for project-critical availability questions.
  • Volume and project pricing — contact for current pricing on larger quantities or ongoing OEM program requirements.
  • View the NX102-9000 product page at LeadTime.ca
  • Contact the LeadTime.ca team for a quote or application question

At-a-Glance Summary

  • Controller: Omron NX102-9000 — Sysmac NX1 modular CPU unit, DIN rail mounted, 24 VDC supply
  • Program memory: 5 MB user program; approx. 33.5 MB variables and data memory
  • Primary task cycle time: 1 ms
  • Motion: 0 synchronous axes, up to 4 point-to-point axes (4 axes total maximum)
  • EtherCAT master: built-in, supports up to 64 slave nodes including drives, I/O, and safety devices
  • NX I/O expansion: up to 32 NX series expansion units on the NX I/O bus
  • Connectivity: 2 Ethernet ports supporting OPC UA, EtherNet/IP, and Ethernet TCP/IP natively
  • Serial communication: RS-232C, RS-422, RS-485 available via optional communication accessories
  • Dimensions: approx. 100 x 66 x 100 mm; weight approx. 470 g
  • Engineering software: Sysmac Studio required for programming, configuration, and commissioning
  • Best fit: small to mid-size machines in packaging, assembly, inspection, and material handling requiring EtherCAT and modern Ethernet connectivity with modest motion requirements
  • Key limit: not suitable for synchronous multi-axis motion or systems exceeding 64 EtherCAT nodes or 32 NX expansion units
