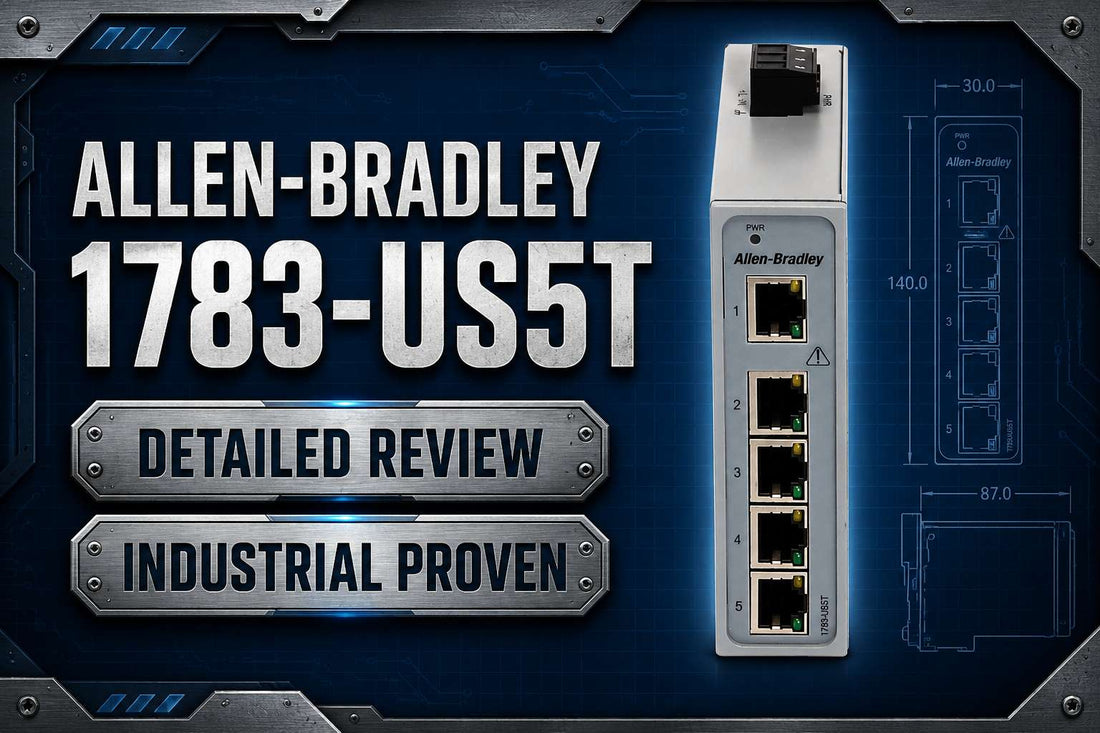

Allen-Bradley 1783-US5T Stratix 2000 5-port unmanaged industrial Ethernet switch for DIN-rail control panel mounting

Allen-Bradley 1783-US5T Stratix 2000 5T Port Unmanaged Switch — Specs, Lifecycle Status, and How to Order

Controls engineers and MRO buyers searching for the Allen-Bradley 1783-US5T Stratix 2000 unmanaged switch typically face one of two situations: they need a like-for-like replacement in an existing Rockwell-based control panel, or they are evaluating whether this discontinued catalog still makes sense against its active replacement. The 1783-US5T is a 5-port, 10/100 Mbps copper industrial Ethernet switch in the Stratix 2000 family — IP20-rated, DIN-rail mounted, and powered from a low-voltage AC or DC supply typical of 24 V DC control panels. Understanding its lifecycle status before you commit to a quantity is the single most important step in the ordering decision.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the 1783-US5T — and Who Shouldn't

The 1783-US5T fits a specific, well-defined need. This switch is the right choice if all of the following apply to your project:

  • You need exactly 5 copper RJ45 ports at 10/100 Mbps — no fiber, no SFP uplink, no gigabit required
  • Unmanaged, plug-and-play layer-2 behavior is acceptable — no VLANs, IGMP snooping, QoS, or SNMP diagnostics needed
  • Your panel runs a low-voltage DC supply (typically 24 V DC) within the specified input range
  • The installation is inside an industrial control panel where IP20 is the appropriate enclosure rating
  • You are maintaining or replacing hardware in an existing Stratix 2000 installed base where standardizing on the same family simplifies spares and documentation
  • You have confirmed with your team that this discontinued catalog number is acceptable for your lifecycle and maintenance strategy

If your application requires managed features, more than 5 ports, fiber uplinks, or gigabit speeds, or if you are starting a new design that needs long-term vendor support, skip to the 1783-USP5T — that is the recommended functional replacement from Rockwell Automation.

On this page:

What the 1783-US5T Actually Does in a Rockwell Panel

The Allen-Bradley 1783-US5T is a Stratix 2000 family industrial Ethernet switch delivering five 10/100 Mbps copper RJ45 ports in a compact DIN-rail form factor. There is no configuration interface, no management plane, and no web UI — traffic flows using standard store-and-forward layer-2 switching with auto-negotiation handling speed and duplex on each port. That simplicity is its primary value proposition in machine-level and cell-level networks where the engineer needs connectivity, not network engineering overhead.

The switch carries an IP20 enclosure rating, which means it belongs inside a closed industrial control panel rather than in exposed field locations. Its low-voltage AC/DC input — commonly fed from the 24 V DC rail already present in most Allen-Bradley control panels — eliminates the need for a separate power supply or conversion. For OEM machine builders standardizing on Rockwell hardware, this integration into the existing panel power architecture is a practical advantage. Rockwell Automation officially lists this catalog number as part of the Stratix 2000 unmanaged Ethernet switch family alongside variants with different port counts and media types, and the enclosure is confirmed as IP20, suitable for control-panel mounting.

Where the 1783-US5T Sits in Your Control System Architecture

The 1783-US5T operates at the machine or panel level — the lowest tier of an industrial Ethernet hierarchy — connecting local controllers and devices directly rather than serving as any kind of backbone or distribution switch.

  • Plant network backbone or cell controller (managed switch tier) feeds into the control panel
  • 1783-US5T receives an uplink from the backbone on one of its five ports
  • CompactLogix or ControlLogix PLC connects to a second port for controller-to-device communication
  • Panel View or third-party HMI connects to a third port for operator interface traffic
  • Variable frequency drives, remote I/O adapters, or servo drives connect to remaining ports over EtherNet/IP

Typical Applications and Deployment Scenarios

The 1783-US5T is most at home in single-machine control panels where a CompactLogix PLC, a panel-mounted HMI, and two or three drives or I/O adapters form the complete node list. In these installations, managed switch features add complexity without adding value — every device is visible, the topology is flat, and traffic volumes are predictable.

Packaging line segments where only a handful of EtherNet/IP nodes operate within a single enclosure represent another common fit. The 5-port count matches the typical node density of a compact packaging cell without leaving empty managed switch ports unused and unjustified in the bill of materials.

MRO and retrofit scenarios are where the 1783-US5T most frequently appears in purchase orders today. Maintenance engineers replacing a failed unmanaged switch in an older Allen-Bradley panel often specify the 1783-US5T to maintain continuity with the Stratix 2000 hardware already in use across the plant, even when the switch itself is discontinued.

Training rigs and test stands using CompactLogix controllers also benefit from the plug-and-play behavior — there is no switch configuration to lose, restore, or document when the stand is reconfigured between sessions.

Application Typical Deployment
OEM machine control panel PLC, HMI, and 2–3 drives connected inside a single enclosure via EtherNet/IP
Packaging line cell Small segment switch linking a compact cell controller and local I/O nodes
MRO drop-in replacement Like-for-like swap for a failed unmanaged switch in an existing Stratix 2000 installation
Retrofit network expansion Adding Ethernet connectivity to legacy panels being updated without full redesign
Training and test stand Plug-and-play switch connecting CompactLogix controller to HMI and I/O for lab use

Key Specifications for Purchase Decisions

Parameter Value Notes
Product family Stratix 2000 unmanaged Ethernet switch Allen-Bradley / Rockwell Automation
Catalog number 1783-US5T Exact catalog ID — verify full number on PO
Total ports 5 copper RJ45 All ports are copper; no fiber or SFP
Port speed 10/100 Mbps per port Full/half duplex, auto-negotiation
Switch type Unmanaged, layer-2 No VLANs, SNMP, or web management
Typical control power 24 V DC Low-voltage AC/DC input; confirm exact range in datasheet
Max power consumption Approx. 4 W Verify in current datasheet for power budgeting
Operating temperature -20 to +70 °C Per Stratix 2000 specification — confirm per series
Enclosure rating IP20 For industrial control-panel mounting only
Lifecycle status Discontinued Functional replacement: 1783-USP5T

Full technical specifications are available on the product page at LeadTime.ca.

1783-US5T vs Other Stratix 2000 Variants — Which One Do You Need?

The Stratix 2000 family spans several catalog numbers differentiated by port count, media type, and speed. Selecting the wrong variant is one of the most common ordering errors in this family — the part numbers look similar but deliver very different capabilities.

Model Ports Media Speed Lifecycle Best For
1783-US5T 5 Copper only 10/100 Mbps Discontinued Legacy MRO replacement in existing Stratix 2000 installations
1783-USP5T 5 Copper only 10/100 Mbps Active (recommended replacement) New designs requiring same functionality with long-term availability
1783-US5TG 5 Copper Gigabit capable Verify current status Applications requiring gigabit throughput at the machine level
1783-US8T 8 Copper only 10/100 Mbps Verify current status Higher node-count panels needing more than 5 connections
1783-US4T1F 4 copper + 1 fiber Copper + fiber 10/100 Mbps Verify current status Installations requiring a fiber uplink alongside copper device ports
1783-US4T1H 4 copper + 1 fiber (hardened) Copper + fiber 10/100 Mbps Verify current status Hardened fiber uplink variant for more demanding environments

If your node count has grown beyond 5 devices, or if any connection requires fiber or gigabit speeds, the 1783-US5T is not the right part regardless of availability — check the full Stratix 2000 range and current stock at LeadTime.ca before finalizing your BOM.

Expert Verdict: Is the 1783-US5T Still Worth Buying?

The 1783-US5T earns its place in a very specific context: you are maintaining or repairing an existing Allen-Bradley control panel where Stratix 2000 hardware is already the standard, redesign is not on the table, and a plug-and-play 5-port 10/100 unmanaged switch is exactly what the panel needs. Plants with large installed bases of Stratix 2000 equipment, MRO teams managing Allen-Bradley legacy systems, and OEM service engineers doing like-for-like replacements — these are the buyers this catalog still serves well. The switch performs the basic layer-2 connectivity role reliably, and its 24 V DC compatibility means it drops into existing panel power architectures without additional conversion hardware.

Where the 1783-US5T has real limits, they are hard limits. Rockwell Automation has officially discontinued this catalog number and identified the 1783-USP5T as its functional replacement. That single fact disqualifies it from new designs where lifecycle continuity and long-term spare parts availability matter. It equally disqualifies it for any application requiring managed features — VLANs, IGMP snooping, QoS, SNMP diagnostics — or for installations that need PoE, fiber uplinks, or gigabit port speeds. If any of those requirements appear in your specification, the correct answer is either the 1783-USP5T, a higher-tier Stratix 2000 variant with the right media and port configuration, or a current-generation managed Stratix switch. Do not compromise on lifecycle status in a new design to save time on a familiar part number.

On the procurement side, sourcing a discontinued catalog requires more care than a standard in-production part. Remaining new stock is finite, surplus-market pricing and availability can swing significantly, and lead times for legacy hardware are harder to predict than for active catalogs. A specialist distributor can verify what genuine stock exists, advise on the 1783-USP5T transition, help you avoid the part-number mix-ups that are common across similar Stratix 2000 variants, and give you an honest lead-time estimate before you commit. Check current availability and pricing for the 1783-US5T at LeadTime.ca — stock status for discontinued hardware changes quickly, so confirming early saves time on urgent maintenance jobs.

For volume pricing, lifecycle migration planning, or to confirm realistic lead times before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Price, Availability, and Lifecycle Reality

Rockwell Automation has officially discontinued the 1783-US5T and named the 1783-USP5T as its functional replacement. This means new units are no longer produced — availability depends entirely on remaining authorized distributor stock and the secondary surplus market. For buyers in Canada and across North America, that translates to a narrower sourcing window than an active-catalog part, with pricing that reflects scarcity rather than standard distributor tiers.

Market-typical pricing for new units has historically fallen in the low to mid US$200 range before any volume discounts, but that figure should be treated as a rough reference only — verify current pricing directly with your distributor, as surplus and remaining stock pricing can vary widely. For new projects or major panel upgrades, the 1783-USP5T is the correct starting point: it preserves the same 5-port, 10/100 Mbps, unmanaged, copper-only feature set while carrying an active lifecycle that supports long-term spare parts planning.

What Engineers Need to Know Before Ordering the 1783-US5T

Because public forum discussion specific to the 1783-US5T is sparse — searches across Reddit automation communities, PLCTalk, PLCS.net, MrPLC, and Rockwell's own user forums returned little beyond general Stratix 2000 commentary — the most reliable pre-order guidance comes not from peer anecdotes but from structured part verification. The absence of complaint threads is actually consistent with the product's role: a basic, functional switch tends not to generate forum drama when it is specified correctly. The risk is not in the switch's performance; it is in the ordering step.

Engineers in Stratix 2000 discussions consistently raise two categories of confusion that apply directly here. The first is media type: copper-only variants like the 1783-US5T look nearly identical in part-number structure to fiber-equipped variants such as the 1783-US4T1F, and misorders happen when the full catalog number is not cross-checked against the drawing before the PO goes out. The second is speed tier: Fast Ethernet and gigabit variants coexist in the Stratix 2000 family, and a buyer relying on memory rather than the datasheet can easily specify 10/100 ports where gigabit was intended, or vice versa. These are not theoretical risks — they are the documented patterns in Stratix family ordering discussions.

The lifecycle angle is the third and most consequential consideration. An engineer who specifies the 1783-US5T in a new design today is creating a future sourcing problem for the plant's MRO team. The 1783-USP5T delivers equivalent function with active production support. LeadTime.ca's role as a specialist distributor is exactly here: verifying lifecycle status on your behalf, cross-referencing the correct variant for your requirements, and flagging when the replacement is the smarter commercial decision — before the PO is placed, not after the switch arrives.

Wiring and Installation Overview

The following points summarize the key mechanical and electrical requirements for installing the 1783-US5T. Engineers performing the full installation should consult the official Allen-Bradley installation instructions and user manual for complete procedures, torque values, and wire specifications.

  • Mount the switch on a DIN-rail inside an enclosed industrial control panel; ensure adequate clearance around ventilation openings and confirm the panel environment is consistent with IP20 (indoor, no direct moisture or contamination exposure)
  • Connect the low-voltage AC or DC power supply — typically 24 V DC from the panel control power rail — to the power terminal block; wire sizing and insulation type must meet the requirements specified in the manufacturer's installation instructions
  • Install external overcurrent protection upstream of the switch as required by Rockwell Automation documentation; do not rely on the switch itself for circuit protection
  • Use industrial-grade Ethernet patch cords or permanent cabling of appropriate category, and observe maximum segment length requirements for 10/100 Mbps copper Ethernet connections
  • After energizing, verify the power/status LED for normal indication, confirm link LEDs on each active port, and perform basic ping tests between connected devices to validate layer-2 connectivity before completing the installation

Wrong-Part Prevention Checklist

Before placing your order for the Allen-Bradley 1783-US5T, work through every item on this checklist. Each point reflects a real category of ordering error or application mismatch for this catalog number.

  1. Confirm that an unmanaged switch is acceptable; if you need VLANs, IGMP snooping, or remote diagnostics, this model is not suitable.
  2. Verify that 5 copper ports at 10/100 Mbps are enough for current and near-future nodes; otherwise consider 8-port or gigabit alternatives.
  3. Ensure no requirement for PoE; 1783-US5T does not supply Power over Ethernet.
  4. Check that no fiber or SFP uplink is required; this model has copper ports only.
  5. Confirm control power supply meets the specified low-voltage AC/DC input range and that external protection is provided as per manufacturer instructions.
  6. Validate lifecycle status with the customer: this catalog is discontinued; confirm acceptance of legacy hardware or consider the recommended replacement (1783-USP5T or equivalent).

If any item on this list raises a flag, contact the LeadTime.ca team to confirm the correct catalog before ordering — part-number mistakes in this family are common and avoidable with one verification step.

Frequently Asked Questions

Is the 1783-US5T still in production, and can I rely on it for a new panel design?

No — Rockwell Automation has officially discontinued the 1783-US5T. New stock availability depends on remaining authorized distributor inventory and the surplus market. For new panel designs, the recommended functional replacement is the 1783-USP5T, which delivers the same 5-port, 10/100 Mbps, unmanaged copper-only functionality with an active lifecycle and long-term parts availability.

What is the practical difference between the 1783-US5T and the 1783-USP5T?

Both are 5-port, 10/100 Mbps, unmanaged copper Ethernet switches in the Stratix 2000 family with comparable functionality for machine-level panel networks. The primary difference is lifecycle status: the 1783-USP5T is the active, in-production replacement that Rockwell supports for new designs, while the 1783-US5T is discontinued. Confirm any mechanical or wiring differences between the two directly with Rockwell documentation before treating them as interchangeable drop-ins.

Can I use the 1783-US5T on the same network as managed Stratix switches?

Yes — unmanaged switches like the 1783-US5T pass standard Ethernet traffic and are electrically compatible with managed switches on the same network. The practical limitation is that unmanaged segments cannot participate in VLAN configurations, IGMP snooping, or traffic prioritization managed from the upstream managed switch. For simple machine-level segments where those features are not required, mixing managed and unmanaged is common and functional.

What power supply does the 1783-US5T require, and does it need external protection?

The 1783-US5T accepts a low-voltage AC or DC input, with 24 V DC being the typical control panel supply. The switch consumes approximately 4 W. Rockwell Automation documentation specifies that external overcurrent protection must be provided upstream — do not rely on the switch itself for circuit protection. Confirm the exact input voltage range and protection requirements in the current official datasheet before finalizing panel design.

What are the best alternatives if I cannot source the 1783-US5T in Canada or elsewhere?

The first and preferred alternative is the 1783-USP5T — the official Rockwell Automation functional replacement with an active catalog and consistent availability. If the 1783-USP5T does not meet your requirements for other reasons, other Stratix 2000 variants with different port counts or media types are available for the right applications. A specialist distributor like LeadTime.ca can verify current stock across channels, advise on the correct replacement catalog, and source globally to support buyers worldwide.

Why Order from LeadTime.ca

  • Ships worldwide — not limited to any single region or country
  • Specialist in industrial automation and controls hardware, including discontinued and hard-to-source Allen-Bradley catalog numbers
  • Can verify current lifecycle status, cross-reference the 1783-USP5T replacement, and confirm real available stock before you commit
  • Volume pricing available — contact for current quotes on larger quantities or blanket orders
  • Responsive technical support to help avoid part-number errors between similar Stratix 2000 variants

At-a-Glance Summary

  • 5 copper RJ45 ports at 10/100 Mbps, full/half duplex with auto-negotiation — no fiber, no PoE, no SFP
  • Unmanaged layer-2 switching only — no VLANs, no SNMP, no configuration interface
  • IP20-rated enclosure for industrial control-panel mounting — not suitable for exposed field locations
  • Powered from low-voltage AC or DC supply; typical control panel deployment uses 24 V DC; approximately 4 W consumption
  • Operating temperature range: -20 to +70 °C per Stratix 2000 specification
  • DIN-rail mounting; requires external overcurrent protection per manufacturer instructions
  • Officially discontinued by Rockwell Automation — functional replacement is the 1783-USP5T
  • Best suited for MRO replacement in existing Stratix 2000 installations, not for new designs
  • Part of the Stratix 2000 unmanaged family alongside 1783-US5TG, 1783-US8T, 1783-US4T1F, and 1783-US4T1H variants
