Allen-Bradley 1783-US8T — Discontinued Switch or Right Spare?

By Abdullah Zahid
13 min read

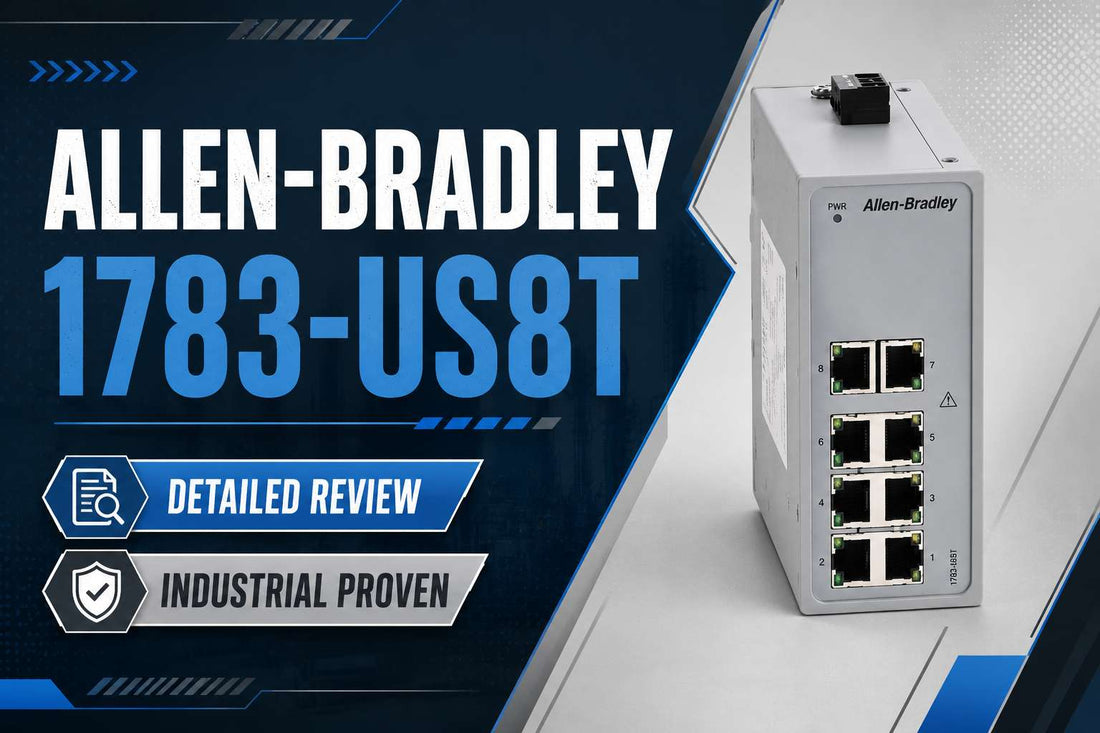

Allen-Bradley 1783-US8T Stratix 2000 8T Port Unmanaged Switch DIN-rail mounted in industrial control panel

Allen-Bradley 1783-US8T Stratix 2000 8T Port Unmanaged Switch: Specs, Pricing and Best Alternatives

Controls engineers searching for the Allen-Bradley 1783-US8T are typically at one of two decision points: sourcing a drop-in spare for an existing Rockwell-based panel, or evaluating whether this discontinued 8-port unmanaged switch belongs in a new design. The 1783-US8T is the Stratix 2000 8T Port Unmanaged Switch — 8 copper 10/100 Mbps RJ45 ports, DIN-rail mounting, 24 V AC/DC control power input, and an IP20 rating for enclosure-only use. Rockwell Automation formally discontinued this catalog as of June 23, 2025, naming the 1783-USP8T as the functional replacement, which means your sourcing strategy for this part matters more than ever.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the 1783-US8T at LeadTime.ca — we ship worldwide.

Who Should Buy the 1783-US8T — and Who Shouldn't

The 1783-US8T is the right choice in a narrow but real set of circumstances: you are supporting an installed base of Stratix 2000 unmanaged switches and need a like-for-like replacement, or your design specification and panel approvals already lock in this catalog number. It is not the right choice for a fresh design.

This switch is right for your application if all of the following apply:

  • You need exactly 8 copper 10/100 Mbps RJ45 ports and plug-and-play operation with no configuration interface.
  • Control panel power is 24 V AC/DC and your design already accounts for an external power supply and overcurrent protection.
  • The installation is inside a protective enclosure where IP20 and an operating range of 0…60 °C are sufficient.
  • DIN-rail mounting in a compact panel footprint is a hard requirement.
  • You are replacing or extending an existing Stratix 2000 unmanaged network and a direct swap is the cleanest solution.
  • Your plant standards or spares program explicitly allow or require this discontinued catalog.

If you need VLANs, diagnostics, remote management, fiber uplinks, or PoE, or if you are starting a new design that must have long-term lifecycle support, the 1783-US8T is not the correct part. The 1783-USP8T is Rockwell's current functional replacement, and managed Stratix switches are the path forward for applications with OT/IT integration requirements.

On this page:

What the 1783-US8T Actually Does in an Industrial Network

The Allen-Bradley 1783-US8T Stratix 2000 8T Port Unmanaged Switch provides plug-and-play Ethernet connectivity at the machine or panel level. It has no configuration interface — no web GUI, no CLI, no SNMP. You wire up power, plug in devices, and the switch forwards traffic automatically. That simplicity is the entire value proposition for small, contained EtherNet/IP star topologies where every connected device already knows its IP address and there is no requirement for traffic segmentation or monitoring at the switch level.

All 8 ports operate at 10/100 Mbps with auto-negotiation and auto MDI/MDI-X, meaning there is no need to manage cable crossover or force duplex settings. The switch uses store-and-forward switching and complies with IEEE 802.3 Ethernet standards, making it fully compatible with EtherNet/IP traffic between Rockwell PLCs, HMIs, and drives. The absence of managed features is not a weakness for the applications it targets — it is simply the correct tool for a small, stable device cluster that does not change.

What the 1783-US8T does not do is equally important. It cannot segment traffic with VLANs, mirror ports for packet capture, enforce port security, or report switch health to a network management system. If any of those capabilities matter to your application, this part is not in the running regardless of availability or price.

Typical System Architecture for the Stratix 2000 8T Port Unmanaged Switch

The 1783-US8T sits at the edge of an industrial Ethernet network — at the machine or cell level, downstream of any plant-level managed infrastructure and upstream of individual automation devices. It is the last switching point before the PLC, HMI, and drives connect to each other and to the plant network.

  • Plant-level managed switch or router provides upstream connectivity and any required network segmentation.
  • The 1783-US8T connects to the plant network via one of its 8 RJ45 ports, acting as a machine-level aggregation point in a star topology.
  • CompactLogix or MicroLogix PLC connects to one port as the primary controller on the local segment.
  • PanelView HMI, variable frequency drives, and other EtherNet/IP-capable devices each connect to dedicated ports.
  • A 24 V AC/DC control panel power supply (with external overcurrent protection) feeds the switch terminal block, keeping it on the same low-voltage rail as other panel devices.

Where the 1783-US8T Gets Deployed

Discrete manufacturing environments — automotive assembly, packaging lines, and material handling conveyors — represent the most common home for this switch. A machine builder wires a CompactLogix controller, a PanelView HMI, and two or three drives into the switch, and the cell is running EtherNet/IP without any network configuration work.

OEM machinery builders have historically standardized on Stratix 2000 unmanaged switches for panel networks on machines shipped to end users. When those machines return for service or expansion, specifying 1783-US8T as the panel network switch is a like-for-like decision that avoids requalification. This is precisely the scenario where sourcing a discontinued part still makes engineering sense.

Food and beverage and material handling plants with brownfield Stratix 2000 installations represent another real use case. When one switch fails or a panel is extended with additional devices, adding a matching 1783-US8T maintains network uniformity without introducing a different switch family into an area that maintenance already knows how to support.

Temporary test stands and fixture networks are another fit — applications where low cost per port and simple plug-and-play behavior matter more than diagnostics or lifecycle longevity.

Application Typical Deployment
OEM machine panel network CompactLogix PLC, PanelView HMI, and drives in a star topology inside a control cabinet
Brownfield Stratix 2000 expansion Adding ports to an existing Stratix 2000-based cell without changing switch family
MCC or control cabinet segment Simple EtherNet/IP star inside a motor control centre connecting drives and a local controller
Test stand or lab fixture Temporary industrial-grade Ethernet hub for device bring-up and validation
Food and beverage line segment Plug-and-play panel switch in an enclosure-protected area where managed features are not required

Purchase-Decision Specifications and Variant Comparison

Parameter Value Notes
Catalog Number 1783-US8T Verify exact suffix on nameplate and purchase order
Product Family Stratix 2000 8T Port Unmanaged Switch Rockwell Automation / Allen-Bradley
Ethernet Ports 8 × RJ45 copper All ports 10/100 Mbps, no fiber, no PoE
Port Speed 10/100 Mbps auto-negotiating Full/half duplex, auto MDI/MDI-X
Switch Type Unmanaged, store-and-forward No web/CLI/SNMP configuration interface
Power Input 24 V AC/DC (low-voltage nominal) External overcurrent protection required per Rockwell installation instructions
Mounting DIN rail Control panel and enclosure use
Enclosure Rating IP20 Must be installed inside a protective enclosure
Operating Temperature 0…60 °C Confirm exact derating from Rockwell technical data sheet
Network Standard IEEE 802.3 Ethernet Compatible with EtherNet/IP traffic

Full technical specifications are available on the product page at LeadTime.ca.

1783-US8T vs. 1783-USP8T vs. Other Stratix 2000 Variants

Model Ports Type Lifecycle Status Best For
1783-US8T 8 × copper RJ45 Unmanaged Discontinued (as of June 23, 2025) Legacy spares, existing Stratix 2000 panels
1783-USP8T 8 × copper RJ45 Unmanaged Current — functional replacement New designs requiring Rockwell unmanaged switch
1783-US5T 5 × copper RJ45 Unmanaged Check current lifecycle status Smaller panels needing fewer ports
1783-US8T1F 8 × copper + 1 fiber Unmanaged Check current lifecycle status Panels requiring a fiber uplink
Stratix 2500 / 5700 Various Managed Current Applications needing VLANs, diagnostics, QoS, or OT/IT integration

If your design requires fiber uplinks, a different port count, or the confidence of an active lifecycle, the 1783-USP8T is the direct path forward — check current availability and alternatives at LeadTime.ca.

Expert Verdict: Is the 1783-US8T Still a Smart Buy?

For a maintenance team managing an existing fleet of Rockwell-based panels that already use Stratix 2000 unmanaged switches, the 1783-US8T is still a defensible purchase. It delivers exactly what a small, stable EtherNet/IP star topology needs: plug-and-play connectivity with zero configuration overhead, brand consistency across the panel, and a familiar DIN-rail form factor your technicians already know. Rockwell's own published data confirms 8 copper 10/100 Mbps ports, 24 V AC/DC input, IP20 rating, and 0…60 °C operation — the same attributes the installed base was designed around. For OEMs closing out a legacy machine design or a plant engineer sourcing a direct swap for a failed unit, this part solves the problem cleanly.

The limits are equally clear. Rockwell formally discontinued the 1783-US8T as of June 23, 2025, which means new factory supply is gone and availability depends entirely on residual and surplus stock. For any new panel design, specifying this catalog number introduces lifecycle risk from day one. If your application requires VLANs, port mirroring, remote health monitoring, or any other managed feature, neither this switch nor its replacement belongs in that design — the Stratix 2500 or 5700 families are the correct answer. Similarly, if you need fiber connectivity or PoE, the 1783-US8T physically cannot meet the requirement. The 1783-US8T1F or a current managed switch with fiber ports would be the right call there. Be honest about whether you are supporting an installed base or creating a new standard; those are different decisions with different right answers.

On the procurement side, discontinued industrial hardware is exactly where working with a specialist distributor earns its value. A generalist channel may show stock that does not exist or deliver a mismatch in catalog suffix. A specialist can verify whether the specific 1783-US8T variant is still the correct mechanical and electrical fit for your panel, confirm actual lead time against your build schedule, and surface vetted alternatives like the 1783-USP8T if the original is unavailable. LeadTime.ca ships worldwide and sources hard-to-find parts across the Stratix 2000 family — view current stock and pricing for the 1783-US8T on the product page before committing to a build schedule.

For volume pricing, lead time confirmation, or help evaluating the 1783-USP8T as a drop-in, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1783-US8T

Community discussion specific to the 1783-US8T is sparse — most forum activity covers the Stratix 2000 unmanaged family in general rather than this exact catalog number. That absence of detailed community feedback is itself a signal: this is a specialty part where the important knowledge lives in the spec sheets, the Rockwell discontinuation notice, and the experience of practitioners who have worked with Stratix 2000 hardware. The most common mistakes engineers and buyers make when ordering this part are well-documented in Rockwell's own literature and echoed across automation forums, and they are worth naming directly.

The most frequently reported ordering mistake in the broader Stratix 2000 community is specifying an unmanaged switch for an application that actually needs managed features. Engineers under schedule pressure sometimes reach for the simplest, most familiar part — the unmanaged switch they have used before — without fully checking whether the new network design requires VLANs, port diagnostics, or traffic prioritization. The 1783-US8T has no configuration interface of any kind. If a requirement surfaces for VLAN segmentation or remote fault visibility after the switch is installed, the only fix is a hardware replacement. Check those requirements before the purchase order is issued, not after.

Catalog number confusion is the second major pitfall. The Stratix 2000 family includes models with fiber uplinks (1783-US8T1F), fewer ports (1783-US5T), and the current functional replacement (1783-USP8T), all of which share a similar naming pattern. Ordering the wrong suffix means receiving a unit that does not match the panel drawing, the power wiring, or the port count in the BOM. The current discontinuation status of the 1783-US8T adds a layer of urgency to this: if you are comparing surplus listings from multiple sources, verify the full catalog number on the physical nameplate and the seller's documentation, not just the listing title. LeadTime.ca's team can validate catalog numbers against your application before the order ships — an important backstop when community forums and documentation cannot fully substitute for direct specialist advice on a discontinued part.

Installation and Power Wiring Overview

  • Mount the 1783-US8T on a grounded DIN rail inside a properly rated control enclosure, allowing clearance above and below the unit for airflow and cable routing within the 0…60 °C operating range.
  • Wire 24 V AC/DC control power to the removable terminal block following Rockwell's published polarity, conductor sizing, and torque specifications; never omit external overcurrent protection as required by the installation instructions.
  • Use industrial-rated Ethernet patch cables to connect each device (PLC, HMI, drive) to the RJ45 ports; segregate Ethernet cables from high-voltage conductors and apply strain relief at the panel entry points.
  • At power-up, verify the power LED illuminates before connecting any network devices; a missing power LED indicates a wiring or supply issue to resolve before proceeding.
  • After connecting each device, check the per-port link/activity LEDs to confirm physical layer connectivity; a port LED that does not illuminate indicates a cable, device port, or speed mismatch issue to isolate before assuming the switch is at fault.

Wrong-Part Prevention Checklist

Before placing an order for the 1783-US8T, work through each item on this checklist. It is the single most reliable way to avoid a mis-shipment or a panel rework on a tight build schedule.

  1. Confirm you truly need an unmanaged switch; if you need VLANs, diagnostics, or remote management, this is not the right model.
  2. Verify 8 copper 10/100 Mbps ports are sufficient; no fiber or PoE is available on 1783-US8T.
  3. Check control power availability (24 V AC/DC low-voltage range) and that the panel design accommodates an external power supply and protection.
  4. Ensure IP20 / 0…60 °C ratings fit the installation environment (inside an enclosure, not exposed on a machine).
  5. Confirm acceptance of a discontinued product and check migration guidance to 1783-USP8T if long-term support is required.
  6. Double-check catalog number (1783-US8T vs 1783-US5T, 1783-US8T1F, 1783-USP8T, etc.) before ordering.

If any item on this checklist raises a question, contact LeadTime.ca before ordering — our team can verify lifecycle status, confirm catalog accuracy, and source the correct part or a vetted alternative.

Frequently Asked Questions

Is the 1783-US8T still available to order, and what is Rockwell's official replacement?

Rockwell Automation formally discontinued the 1783-US8T as of June 23, 2025. New factory supply is no longer available; sourcing depends on residual distributor stock and surplus channels. The 1783-USP8T is Rockwell's designated functional replacement for new designs. If you need a current, actively supported 8-port unmanaged switch in the Allen-Bradley ecosystem, the 1783-USP8T is the correct catalog to specify.

Can I safely mix the 1783-US8T unmanaged switch with managed Stratix switches in the same EtherNet/IP network?

Yes — the 1783-US8T passes standard IEEE 802.3 Ethernet traffic and is transparent to EtherNet/IP. Managed switches upstream will operate normally with an unmanaged switch hanging off one of their ports. The limitation is that the unmanaged segment provides no visibility or control at the switch level; any diagnostics or traffic management available from the managed switch will not extend to devices connected through the 1783-US8T.

What input voltage and power planning does the 1783-US8T require in a control panel?

The 1783-US8T operates on a 24 V AC/DC low-voltage input, consistent with typical control panel power rails. It requires an external power supply and dedicated overcurrent protection as specified in Rockwell's installation instructions — the switch does not include an internal supply or built-in protection device. Confirm exact current draw and conductor sizing from the Rockwell technical data sheet for your specific revision.

Can the 1783-US8T be mounted outside a control enclosure?

No. The IP20 enclosure rating means the 1783-US8T is not protected against contact with objects greater than 12 mm in diameter and has no protection against liquid ingress. It must be installed inside a properly rated protective enclosure. Do not install it in open machine environments, wash-down zones, or anywhere the ambient temperature exceeds 60 °C or falls below 0 °C.

How does the 1783-US8T compare to a managed Stratix switch when troubleshooting network issues?

The 1783-US8T provides only basic power and per-port link/activity LEDs. When troubleshooting an intermittent network issue, this means your diagnostic visibility is limited to whether a port has physical link — you cannot inspect traffic, check port error counters, identify excessive collisions, or isolate a misbehaving device from the switch itself. Managed Stratix switches provide port statistics, SNMP traps, and remote visibility that significantly reduce mean time to diagnose. If network uptime is critical and the support team needs remote visibility, a managed switch is the correct choice.

What is the difference between 1783-US8T and 1783-US8T1F, and how do I avoid ordering the wrong one?

The 1783-US8T is an all-copper 8-port switch; the 1783-US8T1F adds a fiber uplink port. If your panel drawing or network design calls for a fiber connection — for example, to span a long distance or isolate the machine network electrically — the 1783-US8T cannot fulfill that requirement. Always match the full catalog suffix to the design specification and verify the description on the distributor's listing before finalizing a purchase order.

Why Order From LeadTime.ca

  • LeadTime.ca ships worldwide — whether you are sourcing in Canada, the US, or internationally, we can fulfill and ship to your location.
  • We specialize in industrial automation hardware, including discontinued and hard-to-source Allen-Bradley catalog numbers like the 1783-US8T.
  • Our team can verify lifecycle status, confirm catalog number accuracy against your application, and identify vetted replacements such as the 1783-USP8T when original stock is unavailable.
  • Volume pricing and lead time confirmation are available before you commit to a build — contact us to avoid schedule surprises on discontinued parts.
  • View the 1783-US8T product page at LeadTime.ca or contact our team directly for a quote and availability check.

At-a-Glance Summary

  • The Allen-Bradley 1783-US8T is the Stratix 2000 8T Port Unmanaged Switch with 8 copper 10/100 Mbps RJ45 ports and DIN-rail mounting.
  • Rockwell Automation formally discontinued the 1783-US8T as of June 23, 2025; the 1783-USP8T is the designated functional replacement.
  • Power input is 24 V AC/DC with external overcurrent protection required; the switch has no internal power supply.
  • IP20 rating and 0…60 °C operating range require installation inside a protective control enclosure.
  • No configuration interface of any kind — no web GUI, CLI, VLANs, diagnostics, or port management.
  • Correct use case: drop-in spare or like-for-like replacement in existing Stratix 2000 panels.
  • Wrong use case: new designs, applications needing diagnostics or VLANs, or installations requiring fiber or PoE.
  • Ordering risk: catalog number confusion between 1783-US8T, 1783-US5T, 1783-US8T1F, and 1783-USP8T is the most frequently reported mistake.
  • LeadTime.ca ships worldwide and can verify availability and sourcing options for both the 1783-US8T and its replacement.
