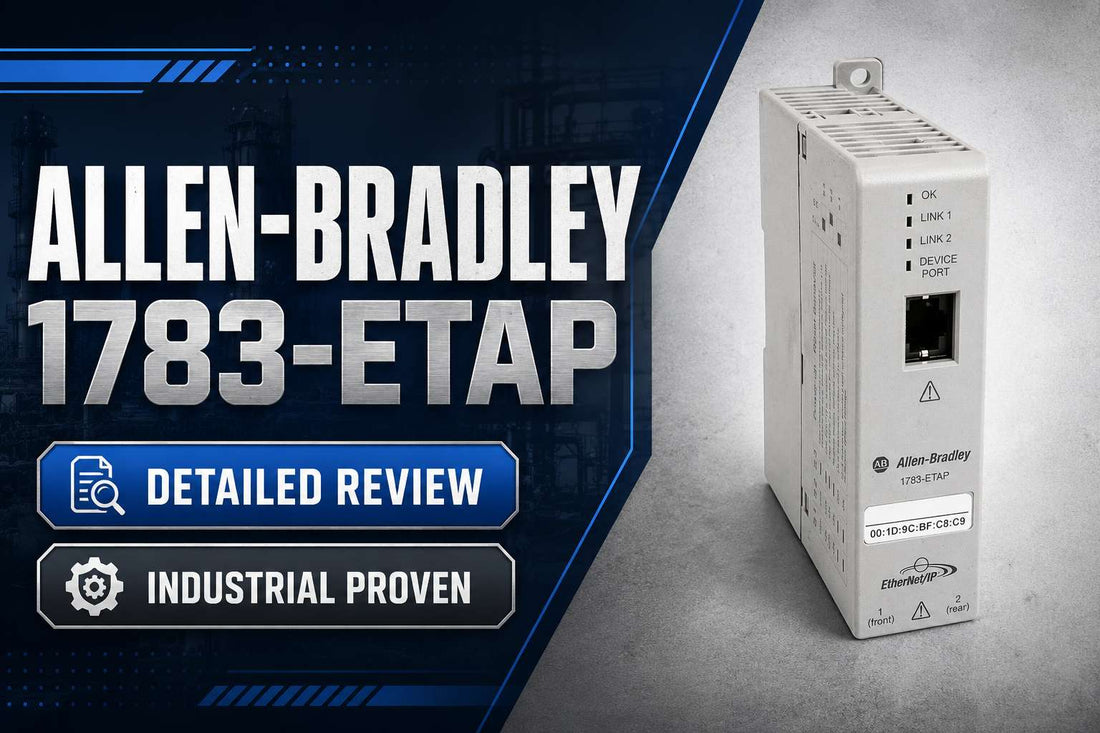

Allen-Bradley 1783-ETAP 3 Port EtherNet/IP Tap mounted on DIN rail in industrial control panel for DLR network

Allen-Bradley 1783-ETAP 3 Port EtherNet/IP Tap: Specs, Price, and Selection Guide

Controls engineers specifying a Device Level Ring network face a recurring challenge: most field devices ship with only one Ethernet port, yet DLR topologies require two ring connections at every node. The Allen-Bradley 1783-ETAP solves that problem with a compact, DIN-rail mountable 3 Port EtherNet/IP Tap that bridges a single-port device into a DLR or linear EtherNet/IP network using three copper RJ45 ports and a 24 V DC supply. If you are evaluating this part for a new machine build, a brownfield upgrade, or a like-for-like replacement, this review gives you the specifications, the honest tradeoffs, and the ordering intelligence you need to decide confidently.

If you have already confirmed this is the right part, check current pricing and availability for the Allen-Bradley 1783-ETAP at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 1783-ETAP — and Who Shouldn't

This tap is the right call when all of the following are true for your application:

  • You are connecting a single-port EtherNet/IP device into an existing or new Device Level Ring or linear EtherNet/IP network topology.
  • Your network architecture is Allen-Bradley or Rockwell Automation based and your site standard calls for EtherNet/IP at the device level.
  • Control panel 24 V DC power and DIN rail mounting space are available at the installation point.
  • All three ports required are copper RJ45 — no fiber segments are involved at this node.
  • You have reviewed the product lifecycle status and your standardization or spares strategy accommodates a discontinued SKU.

If your topology requires fiber connectivity, look at the 1783-ETAP1F instead. If you need managed switch features such as VLANs, port mirroring, or advanced diagnostics, a Stratix switch is the appropriate choice, not this tap.

On this page:

What the Allen-Bradley 1783-ETAP Actually Does in a DLR Network

The 1783-ETAP is not a switch, and that distinction matters more than almost anything else on its spec sheet. A managed switch learns MAC addresses, creates virtual paths, and can segment traffic across VLANs. The 1783-ETAP does none of that. Its job is narrower and more specific: it provides the two ring-facing ports that a DLR node requires, plus a third port that connects directly to a single-port field device. Without the tap, that field device cannot physically participate in a ring topology — it would require a switch, a dual-port module, or a complete device replacement.

Rockwell Automation officially describes the 1783-ETAP as a 3 Port EtherNet/IP Tap with three copper RJ45 interfaces and a 24 V DC power supply requirement. In practice, this translates to a passive-style bridging function at the device node: the ring traffic passes through the tap's two bottom ports, and the device connects to the front port. From the DLR supervisor's perspective, the tap and its attached device appear as a single node on the ring. The 1783-ETAP belongs to the Allen-Bradley 1783 EtherNet/IP Taps product family, which also includes copper-fiber variant models such as the 1783-ETAP1F.

One fact buyers must confront early: Rockwell Automation has announced that the 1783-ETAP will be discontinued and no longer available for sale after a specific date. That lifecycle status does not make the part wrong for retrofit or replacement projects, but it does change how you should approach new-design standardization and long-term spares planning.

Where the 1783-ETAP Sits in a Typical EtherNet/IP System Architecture

The 1783-ETAP lives at the lowest level of the EtherNet/IP hierarchy — between the ring cabling and the individual field device. It is not a cabinet-level switch and is not intended to aggregate multiple devices.

  • Programmable logic controller or DLR-capable managed switch acts as the ring supervisor at the top of the segment.
  • Industrial Ethernet cabling forms the physical ring, connecting each node in sequence around the loop.
  • The 1783-ETAP mounts on DIN rail in the machine panel or field enclosure and inserts into the ring at that node position.
  • A single-port EtherNet/IP device — drive, valve manifold, I/O block, vision system, or similar — connects to the front-facing device port of the tap.
  • Downstream, the ring continues from the second bottom port of the tap to the next node or back to the supervisor, completing the loop.

Typical Applications and Deployment Scenarios for the 1783-ETAP

The most common application is adding a variable frequency drive or servo drive that has only one RJ45 port to a DLR network on a conveyor, packaging machine, or assembly cell. Rather than replacing the drive with a dual-port model or introducing a small switch, the installer mounts a 1783-ETAP adjacent to the drive on DIN rail, runs 24 V DC to it, and makes the ring connections. The drive becomes a full DLR node at minimal panel space cost.

OEM machine builders use the 1783-ETAP frequently when building standardized machine networks that ship globally. The tap allows them to incorporate any single-port EtherNet/IP device from their approved vendor list into a ring architecture without constraining device selection to dual-port hardware only. This matters especially on compact skids and pick-and-place systems where panel real estate is limited and the tap's small DIN rail footprint is a practical advantage.

Brownfield modernization is another strong use case. Plants upgrading legacy EtherNet/IP devices to a DLR architecture often have existing hardware with one Ethernet port that is otherwise performing well. The 1783-ETAP allows that hardware to remain in service without replacement while the network topology evolves. This approach reduces capital expenditure and simplifies the upgrade scope on live production lines.

Application Typical Deployment
Single-port drive integration Tap mounts adjacent to VFD or servo on DIN rail; ring cables enter from panel backbone
OEM machine standardization One tap per single-port node on a compact DLR ring built into machine panel
Brownfield DLR upgrade Existing single-port devices retained; taps inserted at each node to form ring without hardware replacement
I/O block or valve manifold addition Tap provides ring pass-through and device port for EtherNet/IP I/O module with one port
Compact conveyor or material handling cell Multiple taps distributed along conveyor frame or control panel for each node device

Allen-Bradley 1783-ETAP Specifications and Variant Comparison

Specification Value
Brand Allen-Bradley (Rockwell Automation)
Catalog Number 1783-ETAP
Official Product Name 3 Port EtherNet/IP Tap
Network Protocol EtherNet/IP
Port Count 3 x RJ45 copper Ethernet
Supported Topologies Device Level Ring (DLR), linear EtherNet/IP
Power Supply 24 V DC
Mounting DIN rail
Product Family Allen-Bradley 1783 EtherNet/IP Taps
Lifecycle Status Discontinued (Rockwell Automation has announced an end-of-sale date — confirm current date with distributor)

Full technical specifications are available on the product page at LeadTime.ca.

The variant comparison below addresses the most common selection question: copper-only versus fiber-capable.

Model Port Configuration Topology Support Best For Lifecycle
1783-ETAP 3 x copper RJ45 DLR, linear All-copper ring segments, compact panels, short cable runs Discontinued — end-of-sale date announced
1783-ETAP1F Mixed copper and fiber ports DLR, linear Segments requiring fiber for distance or electrical noise immunity Verify current status with distributor
Stratix managed switch Multiple copper or fiber ports Star, ring, linear, redundant Applications needing VLANs, diagnostics, port mirroring, or device aggregation Active — current Rockwell product line

If your network segment requires fiber — due to cable run length, electrical noise, or plant layout — the 1783-ETAP1F is the correct choice, not the 1783-ETAP. Check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the Allen-Bradley 1783-ETAP Still Worth Specifying?

The 1783-ETAP earns its place in Rockwell-centric facilities where adding single-port EtherNet/IP devices to a Device Level Ring is a recurring task and where simplicity, compact footprint, and tight ecosystem alignment outweigh the need for advanced network features. Controls engineers and OEM machine builders who have already standardized on EtherNet/IP and DLR will recognize immediately how the tap solves the two-port problem without requiring a switch, a new device, or a topology redesign. The three copper RJ45 ports, 24 V DC supply, and DIN rail form factor fit naturally into existing machine panel designs. This is a part that does one job well and does not demand attention once it is correctly wired and commissioned.

The honest limits are equally clear. The 1783-ETAP is not a managed switch — buyers expecting VLANs, port diagnostics, or traffic management will be disappointed, and that mismatch is one of the most common ordering errors documented in the engineering community. For applications with fiber segments, the copper-only port configuration disqualifies the 1783-ETAP immediately in favor of the 1783-ETAP1F. Most importantly, the announced discontinuation status changes the risk calculus for new standardization: engineers designing a new machine line or multi-site standard should confirm the end-of-sale timeline with their distributor and establish a migration path before committing to a large quantity order. For retrofit and like-for-like replacement work, however, the tap remains a practical and low-risk choice as long as units are available.

From a procurement standpoint, the discontinuation announcement makes specialist distributor support more valuable than usual, not less. A distributor with real stock visibility can tell you how many units are available in the channel, what the realistic lead time is before production ends, and whether a supported successor product fits your architecture. For volume pricing, stocking agreements, or migration path guidance on the 1783-ETAP, review current availability on the LeadTime.ca product page — the team ships worldwide and can advise on both in-stock units and alternative sourcing strategies.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Allen-Bradley 1783-ETAP

Community feedback on the 1783-ETAP across forums including Reddit r/PLC, PLCTalk, PLCS.net, and MrPLC converges on a consistent theme: this is a reliable, set-and-forget component when correctly applied, and almost every problem reported traces back to a mismatch between what buyers expected the tap to do and what it actually does. Engineers who understood from the start that they were buying a DLR node interface — not a switch — report stable, trouble-free operation. The compact form factor draws consistent praise from panel builders working on crowded machine enclosures where fitting a small switch would require a larger cabinet or creative cable management. For brownfield projects in particular, the ability to bring an existing single-port device into a DLR ring without replacing hardware is frequently cited as the part's clearest practical value.

The recurring complaints center on three areas. First, cost: some engineers feel the 1783-ETAP is expensive relative to small unmanaged switches that could, in certain linear network designs, serve a similar connectivity function at a lower price point. Second, and more consequential, is the confusion between taps and switches. Engineers who ordered the 1783-ETAP expecting VLAN support, port statistics, or web-based diagnostics discovered those capabilities do not exist in this product class. That misunderstanding has caused returns, network redesigns, and integration delays that a clearer pre-order review would have prevented. Third, the lifecycle and discontinuation situation is generating real concern in the community: buyers who standardized on this model for multi-line or multi-site deployments are now working through stocking strategy reviews and migration assessments that they did not anticipate when the original BOM was approved.

The ordering mistakes most frequently reported are instructive for anyone approaching this purchase. Ordering the copper-only 1783-ETAP when the network design required a fiber-capable variant is the most common preventable error — often discovered only when cabling the panel. Assuming the tap provides switch-level features is the second. The third is overlooking lifecycle status entirely and placing a large standardization order only to discover that the part is near its last-order date. When community data is limited and manufacturer documentation alone cannot answer every integration question specific to your architecture, the practical answer is to speak with a specialist distributor before finalizing the BOM rather than after.

Wiring and Installation Overview for the Allen-Bradley 1783-ETAP

  • Verify that 24 V DC control power is available at the installation point with correct polarity, and confirm that panel ambient conditions and DIN rail space meet the manufacturer's stated requirements before mounting.
  • Mount the 1783-ETAP on DIN rail in the control panel, connect the 24 V DC supply to the power terminal block, and apply external overcurrent protection on the DC supply circuit per manufacturer recommendations and applicable panel wiring standards.
  • Connect the single-port field device to the front-facing device port using an industrial-rated Ethernet patch cable; connect the ring or linear network cables to the two bottom RJ45 ports, respecting the upstream and downstream port designations shown in the product documentation.
  • Apply cable strain relief, maintain segregation from power wiring, and use industrial-rated Ethernet cable throughout — standard unshielded patch cables are not appropriate for machine environments with vibration or electrical noise.
  • After energizing, confirm that link and activity LEDs illuminate on all active ports, verify from the DLR supervisor or controller that ring integrity is confirmed, and check that the newly added device is addressable and visible on the EtherNet/IP network before closing out the installation.

Wrong-Part Prevention Checklist Before Ordering the 1783-ETAP

Review every item below before placing an order. These checks address the most common and costly ordering errors for this part:

  1. Confirm you specifically need a 3-port copper EtherNet/IP tap, not a managed switch or router.
  2. Verify the device to be added has only one Ethernet port and requires DLR participation via an external tap.
  3. Check if fiber is required; if so, consider a variant like 1783-ETAP1F rather than 1783-ETAP.
  4. Confirm control power supply availability at 24 V DC and panel space for DIN-rail mounting.
  5. Check product lifecycle status (Rockwell has announced a discontinuation date) and any recommended migration.
  6. Validate environmental and enclosure ratings against your panel and plant conditions (temperature, shock, vibration).
  7. Ensure the number of taps and network architecture comply with your plant's Ethernet/IP and DLR design rules.
  8. Confirm regional availability and lead time for your Canadian or North American site before standardizing.

If any item on this list raises a question, contact the LeadTime.ca team before ordering — confirming compatibility now costs nothing; fixing a wrong-variant order after the panel is wired costs significantly more.

Frequently Asked Questions About the Allen-Bradley 1783-ETAP

Can the 1783-ETAP be used as a regular Ethernet switch for devices that are not part of a DLR network?

No. The 1783-ETAP is a tap, not a managed or unmanaged switch. It does not perform MAC address learning, traffic switching, or VLAN segmentation. Its function is to insert a single-port device into a Device Level Ring or linear EtherNet/IP topology. If you need switch-level features — including the ability to connect multiple devices or manage network traffic — a Stratix managed switch or similar device is the appropriate choice.

What is the recommended migration path now that the 1783-ETAP is being discontinued?

Rockwell Automation has announced an end-of-sale date for the 1783-ETAP, though the specific date and any officially designated replacement product should be confirmed directly through a distributor or the Rockwell product lifecycle page, as migration guidance can be updated. In general, buyers have migrated toward other 1783 family tap variants or toward EtherNet/IP network architectures that use Stratix managed switches where advanced diagnostics and long-term lifecycle support are priorities. A specialist distributor can confirm the current recommended path for your specific architecture.

How do I correctly identify which port on the 1783-ETAP connects to the field device versus the ring cabling?

The 1783-ETAP uses a front-facing port for the single end device and two bottom ports for the ring or linear network connections. The port labeling in the manufacturer's product documentation is the authoritative reference — always consult the installation manual before wiring. Connecting ring cables to the device port or vice versa is one of the most reported commissioning errors and can cause ring faults or loss of redundancy for the entire DLR segment.

Is any configuration required in Studio 5000 for the 1783-ETAP, or is it essentially plug-and-play once wired?

The 1783-ETAP itself does not require complex software configuration — it is largely transparent to the network once correctly wired and powered. Configuration effort is focused on the connected device and on the DLR supervisor, which must recognize and validate ring integrity after the new node is added. Verifying that the controller or supervisor confirms ring closure and that the newly added device is addressable are the key commissioning steps. Always refer to the Rockwell installation and commissioning documentation for your specific DLR design.

How many 1783-ETAP taps can be placed in a single DLR ring before performance or reliability is affected?

Rockwell Automation publishes design guidelines for DLR segment sizing, including recommended node counts and cabling constraints, in the EtherNet/IP network design documentation. The 1783-ETAP itself does not independently impose a fixed node limit, but total ring node count, cable length, and network loading are collectively governed by those design rules. Consult the applicable Rockwell EtherNet/IP design and installation manual for the specific limits that apply to your ring supervisor and network configuration.

Why Order the Allen-Bradley 1783-ETAP From LeadTime.ca

  • LeadTime.ca ships the 1783-ETAP and related 1783 family products worldwide — no regional restrictions on sourcing.
  • Specialist distributor expertise means lifecycle questions, variant comparisons, and migration path guidance are handled before you place the order, not after.
  • Real stock and lead time visibility — especially important for a discontinued SKU where channel inventory is finite.
  • Volume pricing and stocking agreements available for OEM machine builders and multi-site plant standardization programs.
  • Direct contact for urgent or complex requirements — not a generic online checkout experience.

Allen-Bradley 1783-ETAP At-a-Glance Summary

  • Official product name: 3 Port EtherNet/IP Tap, catalog number 1783-ETAP, from Allen-Bradley (Rockwell Automation).
  • Three copper RJ45 ports — one for the single-port field device, two for ring or linear EtherNet/IP network connections.
  • Powered by 24 V DC control supply; mounts on DIN rail in industrial control panels or machine enclosures.
  • Supports Device Level Ring (DLR) and linear EtherNet/IP topologies — not a managed switch, no VLAN or traffic management functions.
  • Part of the Allen-Bradley 1783 EtherNet/IP Taps product family; the 1783-ETAP1F variant adds fiber capability for applications requiring it.
  • Rockwell Automation has announced discontinuation of this product — confirm end-of-sale date and migration path before standardizing on new designs.
  • Best fit: Rockwell-centric plants and OEM machine builders integrating single-port EtherNet/IP devices into DLR networks where all connections are copper and panel space is limited.
  • Wrong fit: Applications requiring fiber ports, managed switch features, or a long-term standardized product with an active lifecycle roadmap.
