Allen-Bradley 1783-ETAP1F — EtherNet/IP Tap Review & Buying Guide

By Abdullah Zahid
16 min read

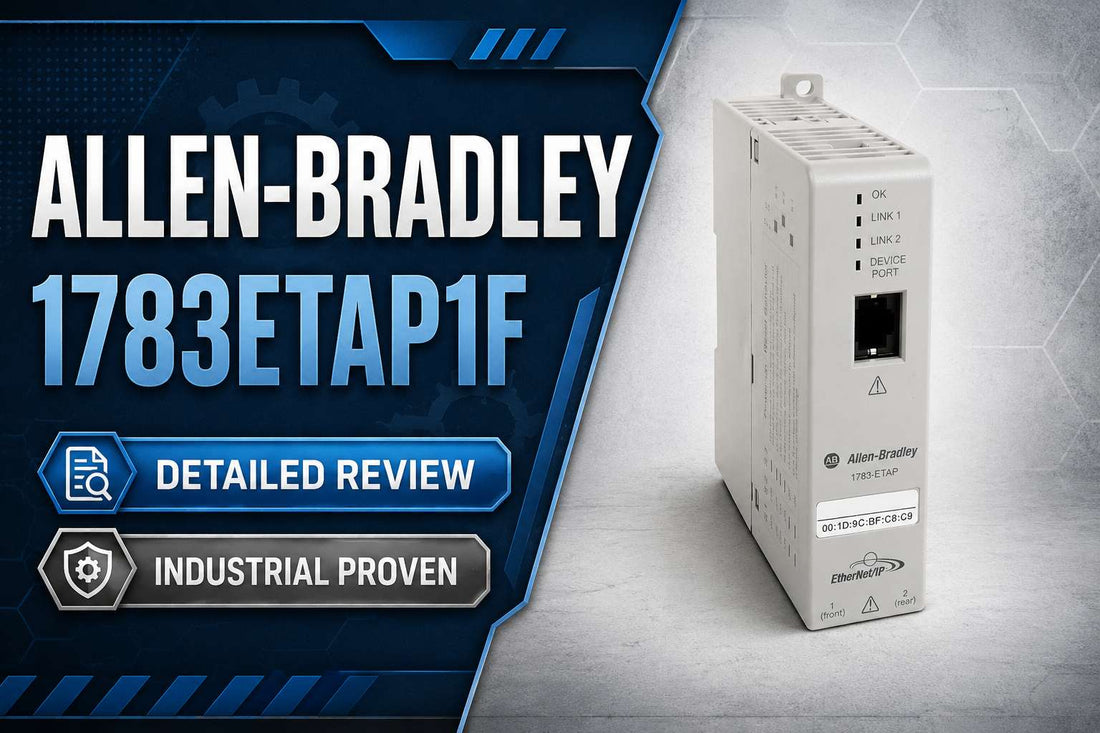

Allen-Bradley 1783-ETAP1F 3-port EtherNet/IP tap with 2 copper RJ45 and 1 multimode fiber LC port for industrial panel mounting

Allen-Bradley 1783-ETAP1F 3-Port EtherNet/IP Tap – 2 Twisted-Pair (Copper) / 1 Fiber Port: Specs, Selection Guide, and Expert Review

Controls engineers specifying EtherNet/IP network extensions face a recurring decision: when the run is too long or too noisy for copper alone, but a full managed switch is overkill, the Allen-Bradley 1783-ETAP1F fills exactly that gap. This 3-port EtherNet/IP tap delivers 2 copper RJ45 ports at 10/100 Mbps alongside 1 multimode fiber LC port at 100 Mbps full duplex — all powered from 24 VDC at up to 200 mA — in a DIN-rail footprint that fits where a managed switch simply cannot. If you are deciding between the 1783-ETAP1F, the all-copper 1783-ETAP, or a higher-fiber-count variant, this review gives you the technical clarity and honest assessment to make that call with confidence.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 1783-ETAP1F — and Who Shouldn't

The Allen-Bradley 1783-ETAP1F is the right choice when all of the following apply to your project:

  • You need exactly 2 copper 10/100 Mbps ports plus 1 multimode fiber LC port at 100 Mbps — not all-copper, not dual-fiber.
  • Your system runs EtherNet/IP and is based on Rockwell Automation controllers such as ControlLogix or CompactLogix, where tight integration matters.
  • The device will be installed inside a protected control panel where IP20 rating and a 0…60 °C operating temperature range are acceptable.
  • Your control power rail supplies 24 VDC and can spare up to 200 mA (approximately 4.8 W) for this device.
  • Your topology is a Device Level Ring, linear segment, or star-style spur — and you do not require Layer 3 routing, VLANs, or advanced cybersecurity features.
  • Panel space is at a premium and the approximate 5.16 in x 1.36 in x 4.13 in DIN-rail footprint fits your layout.

If you need all-copper connectivity with no fiber, the 1783-ETAP is the correct choice. If your application requires multiple fiber runs, look at the 1783-ETAP2F within the same family. If advanced switching features are required, Rockwell's Stratix managed switch line is the appropriate step up.

On this page:

What the 1783-ETAP1F Actually Does in a Real EtherNet/IP System

The Allen-Bradley 1783-ETAP1F is a 3-port embedded switch tap designed specifically for EtherNet/IP networks. It is not a managed switch, not a router, and not a media converter — it is a tap: a compact device that provides a physical connection point for up to three EtherNet/IP nodes or segments simultaneously. Two of those ports are copper RJ45 running 10/100 Mbps with auto-negotiation and full/half duplex support. The third is a multimode fiber LC port running 100 Mbps full duplex, enabling the tap to bridge local copper-wired devices to a fiber backbone or longer remote run.

Within the Allen-Bradley 1783 ETAP family, the 1783-ETAP1F sits between the all-copper 1783-ETAP and the higher-fiber-count 1783-ETAP2F. The defining use case is straightforward: local devices — drives, HMIs, I/O blocks — connect over short copper runs to the two RJ45 ports, while the fiber LC port carries the EtherNet/IP traffic back to a central Stratix switch or controller over a multimode fiber run that handles greater distance or electrical noise immunity. This behavior is transparent to the EtherNet/IP protocol; the tap passes traffic without requiring IP address configuration or software setup, which is one reason controls engineers at Rockwell-standardized plants prefer it over more complex switching hardware for this specific role.

The device is powered from 24 VDC and draws up to 200 mA at that voltage — approximately 4.8 W — making it straightforward to account for in a control panel power budget. Its IP20 enclosure rating and 0…60 °C operating temperature range confirm it belongs inside a protected cabinet, not mounted in an outdoor enclosure or washdown area.

Typical System Architecture for the 1783-ETAP1F

The 1783-ETAP1F sits at the edge of an EtherNet/IP network, connecting local field devices over copper while bridging to a fiber backbone or upstream switch. A representative component chain looks like this:

  • ControlLogix or CompactLogix controller → connects to a central Stratix managed switch or upstream EtherNet/IP hub via multimode fiber or copper backbone.
  • Central Stratix managed switch → runs multimode fiber LC cable to the 1783-ETAP1F fiber port in a remote or local panel.
  • 1783-ETAP1F (fiber LC port) → receives the fiber run and terminates it in the panel as an EtherNet/IP tap node.
  • 1783-ETAP1F (copper RJ45 port 1 and port 2) → connects local devices such as drives, HMIs, servo modules, or remote I/O directly over short Cat5e/6 copper runs.
  • If deployed in a Device Level Ring topology, the copper ports participate in the DLR ring segment, providing the ring's resiliency and loop-back capability in the event of a single cable failure.

Typical Applications and Deployment Scenarios

The 1783-ETAP1F is a natural fit for discrete manufacturing plants that run Rockwell EtherNet/IP across multiple machine cells. In automotive and packaging lines, it is commonly used to connect drives and servo controllers at a machine to the plant-wide fiber backbone, keeping the local copper wiring short and manageable while the fiber run handles the longer, noisier path back to the control room.

In food and beverage facilities, where control panels are often spaced across a production hall, the 1783-ETAP1F enables an engineer to extend a copper EtherNet/IP segment to a remote motor control center or filling station over multimode fiber without installing a full managed switch at each remote location. The result is a leaner BOM, less configuration work, and a smaller panel footprint at each satellite location.

OEM machine builders who standardize on Rockwell Automation platforms frequently specify the 1783-ETAP1F on machine skids where one fiber connection back to the customer's plant network is required alongside local copper ports for the machine's drives or HMI. This keeps the machine's network hardware within the Rockwell part number ecosystem, simplifying spares management and support for the end customer.

Retrofit and expansion projects also benefit from the 1783-ETAP1F when an existing EtherNet/IP network needs a new cell or device added. Rather than redesigning the core network infrastructure, an engineer can tap into the ring or linear segment at the new location using the 1783-ETAP1F, connecting new devices over copper while routing the fiber back to the existing network with minimal disruption.

Application Typical Deployment
Device Level Ring node insertion Copper ports to local drives/I/O; fiber port into DLR ring segment for resiliency
Remote panel copper-to-fiber bridge Fiber LC port to central Stratix switch; copper ports to remote HMI and I/O
OEM machine skid EtherNet/IP connection Fiber port to customer plant network; copper ports to machine-mounted drives and HMI
Retrofit expansion of existing EtherNet/IP network Tapped into existing linear or ring segment; copper ports connect new cell devices
High-vibration motor control center Fiber run back to quiet central location; copper ports serve local VFDs and starters

Purchase-Decision Specs: Ports, Power, and Environmental Ratings

Parameter Value Notes
Supply voltage 24 VDC nominal Verify control power system limits against datasheet tolerance range
Current consumption Up to 200 mA at 24 VDC (approx. 4.8 W) Use for panel power budget sizing; verify with distributor before quoting
Copper ports 2 x RJ45, 10/100 Mbps, auto-negotiating, full/half duplex Use industrial-rated Cat5e/6 cables
Fiber port 1 x LC multimode, 100 Mbps full duplex Multimode fiber only; confirm cable type and LC connector before ordering
Protocol support EtherNet/IP; suitable for Device Level Ring and linear topologies Acts as a tap — not a Layer 3 router or managed switch
Operating temperature 0…60 °C (32…140 °F) Control cabinet installation only; not rated for unprotected outdoor use
Enclosure rating IP20 Requires protective enclosure; not washdown-rated
Dimensions (H x W x D) Approx. 5.16 in x 1.36 in x 4.13 in Confirm against panel layout drawings before purchase
Mounting DIN rail, horizontal or vertical Follow manufacturer guidance for cooling clearance and access
Topologies supported Device Level Ring, linear, star-style segments Check Rockwell architecture guidelines for ring redundancy supervisor/participant roles

Full technical specifications are available on the product page at LeadTime.ca.

1783-ETAP vs 1783-ETAP1F vs 1783-ETAP2F: Which One Do You Actually Need?

Choosing the wrong variant within the Allen-Bradley 1783 ETAP family is one of the most common ordering mistakes for this product line. The three core models differ on one axis: how many ports are copper and how many are multimode fiber. Everything else — form factor, power requirements, EtherNet/IP compatibility, and DIN-rail installation — is consistent across the family.

Model Port Mix Best For
1783-ETAP 3 copper RJ45 ports Copper-only panels and short-run EtherNet/IP segments with no fiber requirement
1783-ETAP1F 2 copper RJ45 + 1 multimode fiber LC Panels needing local copper device connections with one fiber link back to the main network
1783-ETAP2F More fiber ports (family-level) Applications requiring multiple fiber paths or dual fiber redundancy runs
All prices and lead times are market-typical estimates — verify with distributor before quoting or specifying.

If your application requires a single fiber run back to a central switch with two local copper ports for field devices, the 1783-ETAP1F is the exact match. If your load requires more fiber connectivity or dual fiber paths, the 1783-ETAP2F is the correct step up — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the 1783-ETAP1F the Right Tap for Your Project?

The Allen-Bradley 1783-ETAP1F earns its place on the BOM in one specific scenario, and it executes that scenario reliably: a Rockwell EtherNet/IP environment where you need a compact tap that bridges two local copper devices to a multimode fiber run, with no software configuration, no IP address management, and predictable behavior within a Logix-based architecture. The 2 x 10/100 Mbps copper plus 1 x 100 Mbps multimode fiber port combination, 0…60 °C operating range, and approximately 4.8 W power draw make it straightforward to specify and install. Controls engineers in automotive, packaging, and food and beverage plants running Rockwell PLCs will find this device fits their standard panel builds without surprises. It is the right tool for its defined role, and Rockwell's ecosystem backing means documentation, spares, and support are consistent with everything else on the panel door.

The 1783-ETAP1F has real limits that are worth stating plainly. Its IP20 rating rules it out of any outdoor or washdown application. It provides no VLANs, no Layer 3 routing, no port mirroring, and no advanced cybersecurity features — if any of those are in your functional specification, the correct choice is a Stratix managed switch, not an ETAP tap. If your network actually requires more than one fiber connection from the same panel, the 1783-ETAP2F covers that need. And if the project is cost-sensitive and tight Rockwell ecosystem alignment is not a project requirement, a vendor-neutral unmanaged industrial switch with a comparable port mix will deliver the physical connectivity at a lower purchase price — the trade-off is lifecycle alignment, Rockwell documentation support, and the confidence of a matched BOM.

From a procurement standpoint, the 1783-ETAP1F carries typical lead times in the low single-digit days from manufacturer listings, which makes it a manageable item for planned project orders and MRO spares. That said, confirming real-time regional availability before committing a build schedule is always the right move with any Rockwell networking product. Buying through a specialist automation distributor rather than a broad-line catalog gives you the ability to verify topology compatibility, confirm the correct ETAP variant, and avoid the change-order cost of receiving the wrong part. Check current pricing and stock for the 1783-ETAP1F at LeadTime.ca — orders ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1783-ETAP1F

Community discussion around the Allen-Bradley 1783-ETAP1F and the broader ETAP family — sourced from forums including PLCTalk, PLCS.net, MrPLC, Reddit's r/PLC and r/automation communities, and Rockwell Automation's own user knowledge base — consistently highlights the same strengths and the same traps. Understanding both before you place an order saves time and avoids field rework.

On the positive side, controls engineers returning to the ETAP family repeatedly describe these devices as plug-and-play within Rockwell EtherNet/IP networks. There is no IP address to assign, no VLAN to configure, and no startup wizard to navigate — power it up, connect the cables, and traffic flows. That simplicity is genuinely valued in panel environments where commissioning time is compressed. The physical compactness of the 1783-ETAP1F — its approximately 1.36 in wide DIN-rail profile — also draws consistent praise from engineers working in dense enclosures where a managed switch's footprint would be prohibitive. Long-term reliability in properly installed cabinet environments is rarely questioned; most fault discussions in the community trace back to cabling and topology design, not to the tap itself.

The recurring complaints are equally consistent. Price is the most common friction point: the 1783-ETAP1F is viewed in the community as expensive relative to generic 3-port industrial switches with comparable port counts, and that perception is not unfounded — the premium reflects Rockwell ecosystem alignment, documentation, and lifecycle support rather than additional hardware capability. The second recurring issue is functional confusion: engineers or buyers occasionally specify an ETAP expecting it to behave like a Stratix managed switch, then find during commissioning that features like port diagnostics, VLANs, or traffic mirroring are absent. The third and most preventable problem is fiber mismatch — ordering the 1783-ETAP1F and then discovering the installed fiber is single-mode, or that the existing plant fiber uses SC rather than LC connectors, resulting in a no-link fault that is easily avoided by verifying the fiber specification against the datasheet before ordering. These three scenarios account for the majority of ordering and commissioning problems reported across forum threads, and all three are addressed directly in the wrong-part checklist below.

Wiring and Installation Overview

The following points summarize the key installation requirements for the Allen-Bradley 1783-ETAP1F. For full wiring diagrams and step-by-step commissioning procedures, refer to the official Rockwell Automation installation documentation for the 1783 ETAP family.

  • Mount the 1783-ETAP1F on a DIN rail inside a protected enclosure; confirm ambient temperature at the mounting location is within 0…60 °C and that panel layout allows the approximately 5.16 in x 1.36 in x 4.13 in footprint with adequate clearance for cabling and ventilation.
  • Connect 24 VDC power and common to the designated terminals, including any external overcurrent protection specified in Rockwell's installation documentation; confirm the power supply can deliver up to 200 mA continuously at 24 VDC.
  • Connect local devices to the two copper RJ45 ports using industrial-rated Cat5e or Cat6 patch cables; use shielded cable in high-noise environments near VFDs or motor starters.
  • Connect the multimode fiber LC cable to the fiber port; verify the cable is multimode (not single-mode), the connectors are LC type, polarity is correct, connectors are clean, and bend radius minimums are respected throughout the cable run.
  • After energizing the panel, verify power and status LEDs on the 1783-ETAP1F illuminate as expected, then confirm link and activity LEDs on both copper ports and the fiber port before performing an end-to-end communications test from the controller.

Compatible System Expansion and Ecosystem Context

The Allen-Bradley 1783-ETAP1F is part of Rockwell Automation's 1783 EtherNet/IP Tap family and is designed to operate within EtherNet/IP architectures anchored by Rockwell controllers and Stratix managed switches. Compatible and complementary components within the same ecosystem include:

  • Allen-Bradley 1783-ETAP — the all-copper 3-port variant for copper-only EtherNet/IP segments, used alongside the 1783-ETAP1F in mixed topology designs.
  • Allen-Bradley 1783-ETAP2F — the higher-fiber-count variant within the same family, appropriate where more than one fiber run is required from the same tap location.
  • Rockwell Automation Stratix managed switches — the upstream switching layer that typically provides the fiber backbone connection to which the 1783-ETAP1F's LC port connects; responsible for VLANs, routing, and advanced network diagnostics that the ETAP tap does not provide.
  • ControlLogix and CompactLogix controllers — the primary EtherNet/IP controllers in whose network architecture the 1783-ETAP1F is specified and supported, including Device Level Ring supervisor and participant configurations.

Wrong-Part Prevention Checklist

Before confirming your order for the Allen-Bradley 1783-ETAP1F, work through this checklist to avoid the most common and costly ordering errors for this part:

  1. Confirm you specifically need 1 multimode fiber LC port (100 Mbps) plus 2 copper 10/100 ports, not all-copper or different fiber count.
  2. Verify the installed fiber type is multimode and connector style is LC to match the 1783-ETAP1F port.
  3. Check that the temperature range (0…60 °C) and IP20 rating are suitable for a protected control panel, not field-mount conditions.
  4. Confirm 24 VDC control power is available and that 200 mA at 24 VDC (approx. 4.8 W max) fits within the power budget.
  5. Validate the EtherNet/IP topology requirement (e.g., DLR node or tap between field devices) matches what an ETAP provides versus a full managed switch.
  6. Check panel space against dimensions (approx. 5.16 in H x 1.36 in W x 4.13 in D) and DIN rail orientation requirements.
  7. Ensure part number formatting is exact: 1783-ETAP1F (no missing digits or suffixes).
  8. For Canadian projects, confirm regional availability and that any required certifications meet project specs.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — our team can verify compatibility with your Rockwell architecture, confirm real-time stock, and help you choose the correct ETAP variant to avoid project delays.

Frequently Asked Questions

Does the 1783-ETAP1F require an IP address or any software configuration to operate?

The 1783-ETAP1F is designed to operate transparently within an EtherNet/IP network without requiring IP address assignment or software configuration for basic tap operation. It passes EtherNet/IP traffic across its copper and fiber ports without acting as a managed node. For specific details on Device Level Ring supervisor and participant role behavior, consult the official Rockwell Automation installation documentation for the 1783 ETAP family, as the brief notes this as a confirmed data gap requiring verification against the official manual.

Can the 1783-ETAP1F be used in a simple linear EtherNet/IP topology, or is it only for Device Level Ring architectures?

The 1783-ETAP1F supports Device Level Ring, linear, and star-style EtherNet/IP segment topologies. It is not restricted to DLR-only deployments. Many installations use it simply as a copper-to-fiber media bridge in a linear network where ring resiliency is not required, making it equally applicable to straightforward point-to-point or daisy-chain EtherNet/IP layouts.

When should I choose the 1783-ETAP1F over a small Stratix managed switch or a third-party unmanaged switch?

Choose the 1783-ETAP1F when you need a compact, configuration-free EtherNet/IP tap with exactly 2 copper and 1 multimode fiber port inside a Rockwell-standardized panel, and when advanced features such as VLANs, port mirroring, or Layer 3 routing are not required. Choose a Stratix managed switch when those advanced features are needed, or when you need a larger port count. A third-party unmanaged switch is a legitimate alternative when Rockwell ecosystem alignment is not a project requirement and cost sensitivity is the primary driver — the trade-off is tighter Rockwell documentation and lifecycle support.

What happens if I connect single-mode fiber to the 1783-ETAP1F's LC port?

The 1783-ETAP1F's fiber port is specified for multimode fiber only. Connecting a single-mode fiber cable will result in a no-link condition on the fiber port. This is one of the most frequently reported commissioning errors in community forums and is entirely preventable by verifying the installed fiber type against the 1783-ETAP1F specification before ordering or running cable.

How do I confirm I have ordered the correct ETAP variant and not the all-copper 1783-ETAP or the higher-fiber 1783-ETAP2F?

Verify the catalog number reads exactly 1783-ETAP1F — the "1F" suffix designates one multimode fiber port. The 1783-ETAP has no fiber suffix and provides three copper ports. The 1783-ETAP2F carries the "2F" suffix indicating a higher fiber port count. Cross-check the physical port description on the product page against your network design before confirming the order, and use the wrong-part checklist above as a final gate.

What are the LED indicators on the 1783-ETAP1F and how do I read a fault condition during commissioning?

The 1783-ETAP1F provides power and status LEDs along with link and activity indicators on each port. A power LED that fails to illuminate points to a missing or incorrect 24 VDC supply or wiring fault. A port with no link LED active indicates a cable issue, incorrect fiber type, dirty LC connector, or a fault in the connected device rather than the tap itself in most cases. For a full LED state table and fault interpretation, refer to the official Rockwell Automation product documentation for the 1783 ETAP family.

Why Order From LeadTime.ca

  • LeadTime.ca ships the Allen-Bradley 1783-ETAP1F and the full 1783 ETAP family worldwide — no geographic restrictions on ordering.
  • Our team can verify real-time regional stock and lead times before you commit a build schedule, reducing the risk of delays from unexpected availability gaps.
  • Specialist automation distributor knowledge means we can help you confirm the correct ETAP variant — 1783-ETAP, 1783-ETAP1F, or 1783-ETAP2F — based on your topology and port requirements, not just a catalog number match.
  • Volume pricing and project-level sourcing support available — contact us directly for quantities or time-sensitive MRO requirements.

At-a-Glance Summary

  • The Allen-Bradley 1783-ETAP1F is a 3-port EtherNet/IP tap with 2 copper RJ45 ports at 10/100 Mbps and 1 multimode fiber LC port at 100 Mbps full duplex.
  • Operating supply: 24 VDC nominal, up to 200 mA current draw, approximately 4.8 W maximum power consumption.
  • Environmental rating: IP20 enclosure, 0…60 °C (32…140 °F) operating temperature — control cabinet installation only.
  • Physical footprint: approximately 5.16 in H x 1.36 in W x 4.13 in D on DIN rail, horizontal or vertical mounting.
  • Supports EtherNet/IP Device Level Ring, linear, and star-style segment topologies; acts as a tap, not a Layer 3 router or managed switch.
  • No IP address or software configuration required for basic tap operation within a Rockwell EtherNet/IP architecture.
  • Fiber port accepts multimode LC connectors only — single-mode fiber will produce a no-link fault.
  • Family alternatives: 1783-ETAP (all-copper, 3 ports) for copper-only networks; 1783-ETAP2F for applications requiring more fiber runs.
  • Typical lead times in the low single-digit days from manufacturer listing — verify current availability before committing build schedules.
  • Ships worldwide through LeadTime.ca with specialist sourcing and variant verification support.
