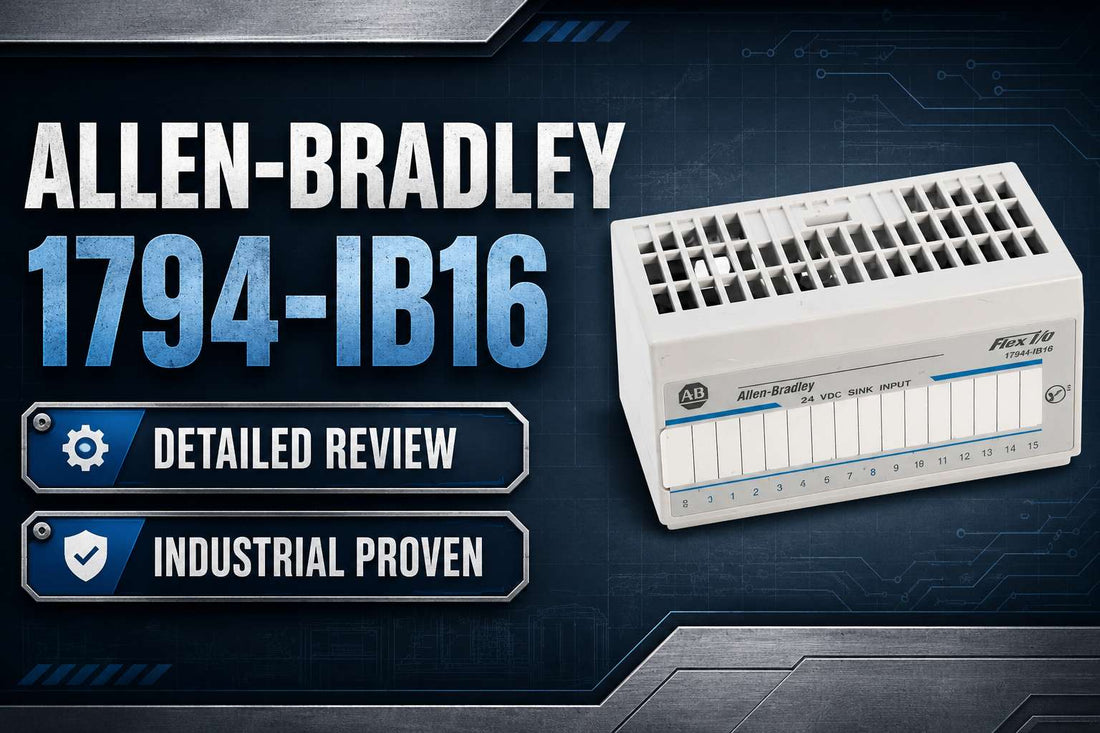

Allen-Bradley 1794-IB16 FLEX 16-point 24V DC sinking digital input module for distributed I/O on industrial automation machines

Allen-Bradley 1794-IB16 FLEX 16 Point Digital Input Module, 24V DC, sinking — Specs, Price, Review & Alternatives

Controls engineers specifying distributed I/O for a Rockwell-based machine typically arrive at the Allen-Bradley 1794-IB16 after confirming two things: their field devices are 24V DC sourcing, and they need 16 sinking input channels per node. This module — a FLEX 16 Point Digital Input Module, 24V DC, sinking in the 1794 FLEX I/O family — sits on a compatible terminal base, connects to a FLEX network adapter, and aggregates up to 16 discrete input signals into a single remote I/O node for ControlLogix, CompactLogix, or other supported Rockwell platforms. The on-state input voltage range runs from a minimum of 10V DC through a nominal 24V DC up to 31.2V DC, and the module is rated for ambient operation from -20 to +55 °C.

If you have already confirmed this is the right part, check current pricing and availability for the 1794-IB16 at LeadTime.ca — ships worldwide.

Who Should Buy the 1794-IB16 — and Who Shouldn't

The Allen-Bradley 1794-IB16 is the right choice for engineering teams and OEMs that are standardized on Rockwell Automation and need reliable, medium-density 24V DC sinking input nodes integrated into a FLEX I/O architecture. Specify this module when:

  • Your field devices are 24V DC sourcing type — proximity sensors, photoeyes, limit switches — compatible with this module's current-sinking inputs
  • You need exactly 16 digital input channels per FLEX node (not 8 or 32)
  • You are building on an existing FLEX I/O infrastructure with compatible terminal bases such as 1794-TB3 or 1794-TB3S and a FLEX network adapter such as 1794-AENT or 1794-AENTR
  • Your application environment falls within the -20 to +55 °C operating temperature rating
  • Your system requires North American Hazardous Location approvals when installed per manufacturer instructions

If your field devices are sinking type and require a sourcing input module, or if your point count is better served by the 1794-IB8 (8-point) or 1794-IB32 (32-point), those are the correct alternatives — not this module.

On this page:

What the 1794-IB16 Actually Does in a Control System

The Allen-Bradley 1794-IB16 is a current-sinking digital input module that collects status signals from up to 16 sourcing field devices — proximity sensors, limit switches, photoeyes, pushbuttons — and makes that data available to a PLC or PAC through a FLEX network adapter. It does not process logic, count pulses at high speed, or handle analog signals; its job is straightforward discrete signal aggregation at 24V DC.

What makes the FLEX I/O concept valuable here is the separation between the module and the terminal base. The 1794-IB16 snaps onto a 1794-series terminal base, which carries the wiring. If the module needs to be replaced, field wiring stays connected to the base — reducing maintenance time and minimizing rewiring risk on an active machine. The module communicates upstream through whichever FLEX network adapter is installed at the head of the node, making the 16 input bits available as controller tags in Studio 5000 or RSLogix.

Typical System Architecture with FLEX I/O

The 1794-IB16 sits at the field device end of the I/O chain, between the sensors and the network adapter that connects the FLEX node to the controller. Here is how a typical deployment looks:

  • ControlLogix or CompactLogix PLC in the main panel, running the machine program in Studio 5000
  • EtherNet/IP network connecting the controller to one or more FLEX network adapters — for example, a 1794-AENT or 1794-AENTR — mounted in remote enclosures or on the machine frame
  • FLEX terminal base (such as 1794-TB3 or 1794-TB3S) physically installed in the remote enclosure, with field wiring landed on its terminals
  • 1794-IB16 module plugged into the terminal base, providing the 16 sinking input channels
  • 24V DC sourcing field devices — proximity sensors, limit switches, gate switches — wired to the input terminals (row A, positions 0–15) with +24V DC supplied to row C terminals (34–51) and V common tied to the B-16 terminal

Where Engineers Deploy the 1794-IB16

Conveyors and packaging lines are the most common home for the 1794-IB16. A single module can collect the proximity sensor and limit switch status from one machine section — product-present sensors, jam detectors, door interlocks — and report all 16 bits to the PLC over EtherNet/IP without running individual wires back to a central panel. This is the classic distributed I/O use case: reduce home-run wiring, keep signal runs short, and locate the I/O node close to the devices.

OEM machine builders use FLEX I/O nodes — including 1794-IB16 modules — to create modular machine sections. Each section carries its own FLEX node, and the PLC simply adds adapter instances as sections are added to a line. For a builder shipping machines in modules, this approach reduces commissioning time at the customer site because each section arrives pre-wired and pre-configured.

Process skids, motor control centers, and utility panels represent another strong deployment scenario. Space is often limited, wiring runs to a central panel are long and expensive, and a compact FLEX node with a 1794-IB16 can bring 16 input channels onto the network from within the MCC enclosure or skid cabinet itself.

The 1794-IB16 is also used for aggregating safety interlock and gate switch status as standard monitoring inputs — not as a safety-rated input module, but as a conventional digital input for supervisory awareness in systems where the safety function is handled separately.

Application Typical Deployment
Conveyor and packaging line FLEX node at each machine section collecting proximity sensor and limit switch status over EtherNet/IP to ControlLogix
OEM modular machine design One 1794-IB16 per machine module, pre-wired on 1794-TB3 base, adapter added to PLC I/O tree at site commissioning
Motor control center (MCC) Remote FLEX node inside MCC enclosure aggregating aux contact and status inputs from motor starters
Process skid / utility panel Compact FLEX I/O rack on skid capturing valve position, flow switch, and level switch inputs
Assembly and automotive line Multiple 1794-IB16 nodes distributed along a transfer line, each reporting 16 part-present and tooling-confirm inputs

Key Specifications and Variant Comparison

Parameter Value
Catalog number 1794-IB16
Product type FLEX 16-point digital input module, DC input, sinking
Number of inputs 16 current-sinking channels
Nominal input voltage 24V DC
Input voltage range (on-state) 10V DC minimum / 24V DC nominal / 31.2V DC maximum
Input type Current sinking — requires sourcing field devices
Operating temperature -20 to +55 °C
Mounting 1794 FLEX I/O terminal base (e.g., 1794-TB3, 1794-TB3S)
Hazardous location North American Hazardous Location approved (per installation instructions)
Compatible network adapters 1794-AENT, 1794-AENTR, and other FLEX network adapters

Full technical specifications are available on the product page at LeadTime.ca.

1794-IB16 vs. 1794-IB8 vs. 1794-IB32 — Which Point Density Is Right?

Model Input Channels Input Type Nominal Voltage Best Fit
1794-IB8 8 Current sinking 24V DC Small I/O groups where fewer than 16 inputs are needed per node; minimizes unused channels
1794-IB16 16 Current sinking 24V DC Medium-density distributed nodes — the common choice for machine sections with 9–16 input points
1794-IB32 32 Current sinking 24V DC High-density applications where consolidating 32 inputs on one base reduces node count and adapter cost

If your input count per node is consistently below 9, the 1794-IB8 avoids paying for unused channels. If you regularly need 20 or more inputs at a single location, the 1794-IB32 reduces your base and adapter count — check current availability and compare options at LeadTime.ca.

Expert Verdict: Is the 1794-IB16 Worth Standardizing On?

The Allen-Bradley 1794-IB16 earns its place as a default 24V DC input module for any operation that is already invested in Rockwell Automation and FLEX I/O. Its 16-channel density hits a practical sweet spot — enough points to handle a full machine section or a dense sensor cluster without forcing you into a 32-point module when you only need 18 inputs. The on-state input voltage range of 10 to 31.2V DC provides tolerance for real-world 24V DC supply variation, and the -20 to +55 °C operating range covers the majority of industrial enclosure environments. For engineering teams that standardize on a common spare, one 1794-IB16 and a matching terminal base in the storeroom covers a wide range of failure scenarios on a mixed machine fleet.

Its limits are real and worth naming. The 1794-IB16 is a sinking input module — if your sensors are NPN (sinking) output type rather than PNP (sourcing), you are looking at the wrong module and need a sourcing input variant instead. Cost is also a genuine consideration: FLEX I/O hardware carries a price premium over some third-party distributed I/O platforms, and in high-point-count greenfield projects where Rockwell is not already mandated, the total installed cost of a FLEX I/O architecture deserves a frank comparison against alternatives. The module is also not the right choice for high-speed counting or encoder feedback — those applications need dedicated high-speed input modules within the FLEX family or a different I/O strategy entirely.

From a procurement standpoint, the 1794-IB16 is a widely used catalog number that is typically stocked by major industrial automation distributors, but lead times for Rockwell hardware can stretch during periods of supply constraint — and a line-down scenario is not the time to discover your nearest distributor is out of stock. Working with a specialist distributor that understands FLEX I/O system requirements, can confirm the correct base and adapter combination, and maintains proactive stock visibility is a real operational advantage. View current pricing and stock status for the 1794-IB16 at LeadTime.ca — available to buyers worldwide.

For volume pricing, blanket order discussions, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1794-IB16

Community feedback on the FLEX I/O digital input family is generally positive, with practitioners consistently noting the compact form factor and the clean integration path into ControlLogix and CompactLogix through FLEX adapters. The modular base-and-module concept draws specific praise: when a module fails, field wiring stays on the base and the swap takes minutes rather than hours. For OEM builders and maintenance teams that deal with repeat machine types, this characteristic alone drives standardization on FLEX I/O over heavier chassis-based alternatives.

The most consistent source of trouble reported by working engineers is the sinking versus sourcing question — and it comes up repeatedly for good reason. The 1794-IB16 is a sinking input module, which means it is designed to work with PNP (sourcing) output field devices. Engineers who grab the nearest available FLEX digital input module without checking sensor output type end up with a module that does not respond to their devices. This is not a flaw in the product; it is a specification that demands verification before the purchase order is raised. Related to this, a frequently cited ordering mistake is buying the module without accounting for the complete FLEX node — the terminal base and the FLEX network adapter are separate line items, and a module delivered without a compatible base creates an immediate installation delay.

Cost relative to third-party remote I/O comes up as a real concern in community discussions, particularly in high-point-count systems or projects where Rockwell is not the mandated platform. This is worth taking seriously at the design stage. If your system is already FLEX I/O and Rockwell-centric, the 1794-IB16 makes economic sense as a standard spare and consistent architecture choice. If you are starting from scratch on a non-Rockwell system or building a very large I/O count application without a Rockwell preference, the total system cost comparison against alternative distributed I/O platforms is a legitimate engineering exercise — not just a procurement preference.

Wiring and Installation Overview

The following points summarize the key wiring requirements for the 1794-IB16. Full installation procedures are detailed in the manufacturer's installation instructions and should be followed precisely during commissioning.

  • Mount the 1794-IB16 on a compatible FLEX terminal base (such as 1794-TB3 or 1794-TB3S) and confirm base keying is set correctly for this module before applying power
  • Connect 24V DC field power: tie +24V DC to the designated +V terminal on row C (C-34) and connect V common to terminal B-16 on the base; use daisy-chain terminals B-33 and C-51 to distribute common and +24V DC across additional terminals as needed
  • Wire each sourcing (PNP) field device output to the corresponding input terminal on row A (positions 0–15), with the associated +V connection to row C (positions 34–51)
  • Verify that field power wiring is protected with appropriate external fusing as specified in the manufacturer's installation instructions, and segregate I/O wiring from power cabling to minimize electrical noise
  • After power-up, confirm each input channel by actuating the corresponding field device and verifying that the status LED on the module changes state and the correct input bit changes in the PLC tag database

Compatible Terminal Bases, Adapters, and System Expansion

The 1794-IB16 requires a separate FLEX I/O terminal base and a FLEX network adapter to form a functional I/O node. The following components are confirmed compatible based on manufacturer documentation and the FLEX I/O selection guide:

  • 1794-TB3 — Standard FLEX terminal base, 3-wire connection style; the most common base used with 1794-IB16 in general industrial applications
  • 1794-TB3S — Spring-clamp terminal base variant of the TB3; same electrical compatibility, preferred in applications where vibration makes screw terminals less reliable
  • 1794-AENT — EtherNet/IP FLEX network adapter; connects the FLEX I/O node to a ControlLogix or CompactLogix system over EtherNet/IP
  • 1794-AENTR — EtherNet/IP FLEX adapter with integrated dual-port switch for Device Level Ring (DLR) topology; use when ring network redundancy is required
  • Additional FLEX I/O modules from the 1794 family — including output modules such as 1794-OB16, analog modules, and specialty I/O — can be combined on the same FLEX node alongside the 1794-IB16, up to the limits supported by the adapter's power budget and slot count

Ordering the 1794-IB16: Verify These Six Points Before You Buy

The wrong-part rate for FLEX I/O digital input modules is higher than it should be. Run through this checklist before submitting your purchase order:

  1. Confirm field devices are sourcing and 24V DC so they match this module's 24V DC sinking inputs (not AC, not relay output modules).
  2. Verify you truly need 16 inputs per module; otherwise consider 8- or 32-point FLEX input modules to optimize cost and base count.
  3. Check that the chosen FLEX terminal base (for example 1794-TB3 / 1794-TB3S) is compatible with 1794-IB16 and that base keying is set correctly.
  4. Ensure your FLEX network adapter (for example 1794-AENT/AENTR or other) and PLC platform support this module and required update rates.
  5. Confirm temperature and enclosure ratings (-20 to +55 °C for module, plus panel conditions) and any hazardous location approvals needed.
  6. Verify you are not mistakenly ordering a sourcing digital input or an output module with a similar part number (for example, 1794-OB16).

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming compatibility upfront is faster and less expensive than returning the wrong part after a delivery.

Frequently Asked Questions

Can the 1794-IB16 be used for high-speed counting or encoder feedback tasks?

No — the 1794-IB16 is a standard digital input module and is not specified for high-speed counting applications. Its input signal filtering and update rate are appropriate for conventional discrete device status, not pulse trains from encoders or high-frequency signals. If your application requires high-speed counting within the FLEX I/O platform, you need a dedicated high-speed input module from the 1794 family with the appropriate specifications confirmed from Rockwell documentation.

Which FLEX terminal bases are compatible with the 1794-IB16, and does base keying matter?

The 1794-TB3 (screw terminal) and 1794-TB3S (spring-clamp terminal) are the most commonly used bases with the 1794-IB16, and additional compatible bases are listed in the FLEX I/O selection guide. Base keying must be set correctly to match the module type — incorrect keying prevents the module from seating fully and can cause installation faults. Always verify the keying configuration against the manufacturer's installation instructions before inserting a module on an existing base.

Can I mix 2-wire and 3-wire 24V DC sensors on the same 1794-IB16 module?

The 1794-IB16 accepts sourcing (PNP) output devices on its 24V DC sinking inputs. Both 2-wire and 3-wire sourcing sensors can be used, provided their output voltage and current characteristics fall within the module's specified input voltage range (minimum 10V DC on-state, maximum 31.2V DC) and the commons are wired correctly to the designated terminal on the base. Confirm the wiring configuration for each sensor type against the manufacturer's installation instructions, paying particular attention to the common terminal connections to avoid intermittent input faults.

How many 1794-IB16 modules can I put on a single FLEX network adapter?

The number of modules per FLEX adapter is constrained by the adapter's power budget and the maximum number of I/O slots supported, both of which vary by adapter model. The FLEX I/O system supports multiple modules per adapter node, but the exact count for your configuration — particularly when mixing input and output modules — must be verified against the specific adapter's documentation and power consumption figures for each module in the stack.

Is the 1794-IB16 a direct swap for older FLEX I/O input modules on an existing terminal base?

The 1794-IB16 is designed to mount on standard 1794 FLEX I/O terminal bases, and in many cases it can be installed on an existing compatible base without rewiring. However, you must verify that the replacement module's base keying matches, that the PLC project catalog number and slot configuration are updated to reflect the current module revision, and that the field wiring and power connections on the base are correct for this module's input type. Do not assume drop-in compatibility without reviewing the manufacturer's compatibility documentation for your specific base and adapter combination.

Why Order the 1794-IB16 From LeadTime.ca

  • LeadTime.ca ships industrial automation hardware worldwide — no regional restrictions on ordering
  • Specialist knowledge of FLEX I/O system requirements: our team can confirm compatible bases, adapters, and module combinations before you order
  • Transparent stock status and lead time visibility — important when Rockwell supply lead times fluctuate and your production schedule cannot afford a surprise
  • Volume and blanket order pricing available for OEMs and MRO buyers standardizing on 1794-IB16 as a common spare
  • Responsive quoting for urgent requirements, including cross-border supply to buyers outside Canada

1794-IB16 At-a-Glance Summary

  • 16 current-sinking digital input channels for 24V DC sourcing field devices
  • On-state input voltage range: 10V DC minimum, 24V DC nominal, 31.2V DC maximum
  • Operating temperature: -20 to +55 °C
  • Mounts on 1794 FLEX I/O terminal bases including 1794-TB3 and 1794-TB3S
  • Connects to the PLC via FLEX network adapters including 1794-AENT and 1794-AENTR over EtherNet/IP
  • North American Hazardous Location approved when installed per manufacturer instructions
  • Correct fit: Rockwell-standardized plants needing medium-density 24V DC sinking input nodes
  • Not suitable for: sinking sensor outputs, AC input signals, high-speed counting, or non-Rockwell PLC platforms
  • Point-density alternatives: 1794-IB8 (8-point) for small groups; 1794-IB32 (32-point) for high-density nodes
  • Pricing is available on the product page; contact LeadTime.ca for volume or lead time inquiries
