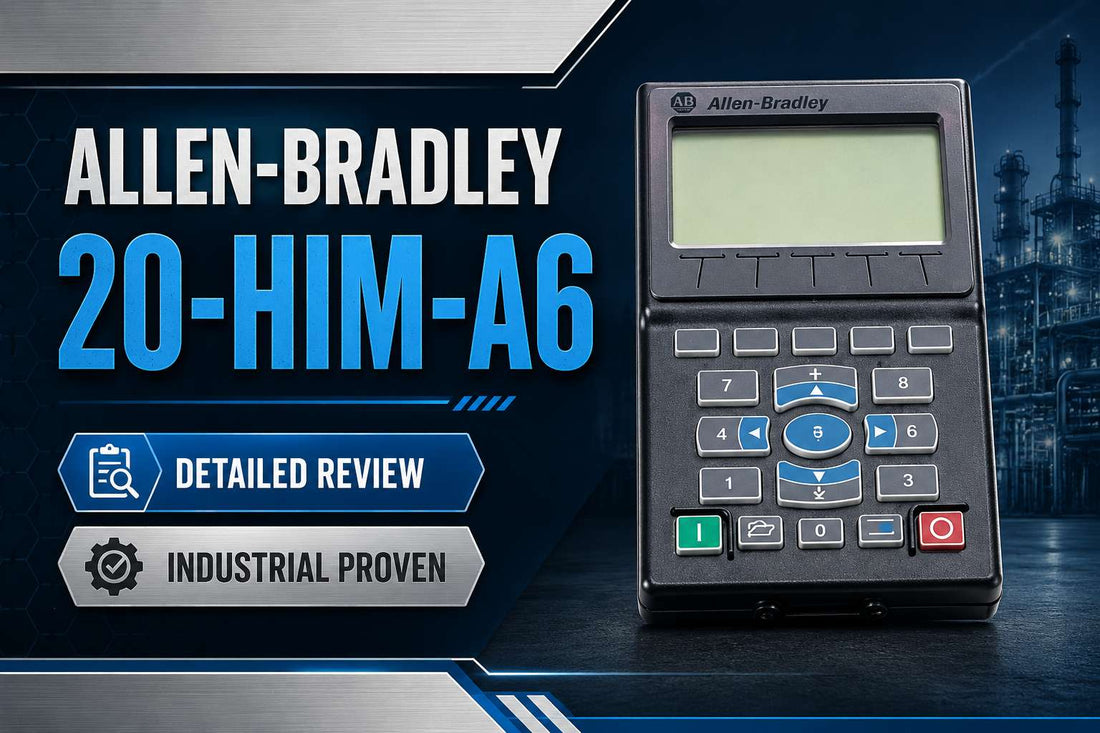

Allen-Bradley 20-HIM-A6 PowerFlex 7-Class Enhanced LCD Human Interface Module for drive commissioning and diagnostics

Allen-Bradley 20-HIM-A6 PowerFlex 7-Class Enhanced LCD Human Interface Module: Specs, Compatibility & Buying Guide

Controls engineers and maintenance teams searching for the Allen-Bradley 20-HIM-A6 are typically at one of two decision points: confirming this is the correct HIM variant for an existing PowerFlex 7-Class drive installation, or sourcing a replacement unit fast to minimize downtime. The 20-HIM-A6 is the PowerFlex 7-Class Enhanced LCD Human Interface Module — a full numeric keypad, backlit multi-line LCD interface that mounts directly on compatible drives or connects via cable for handheld use, rated NEMA Type 1, and supporting local parameter access, start/stop control, fault diagnostics, and commissioning across a broad range of PowerFlex drive families including the PowerFlex 70, 700, 700H, 700S, 700L, 753, 755, 755TR, 755TL, 755TM, AFE, DC, and 7000 series.

If you have already confirmed the 20-HIM-A6 is the correct part for your drive and application, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the 20-HIM-A6 — and Who Shouldn't

The 20-HIM-A6 is the right choice for engineers and maintenance teams who need fast, reliable local access to PowerFlex 7-Class drive parameters without a laptop or network connection. It is specifically right for you if:

  • Your site runs one or more PowerFlex 7-Class drives — including the 753, 755, 70, 700, 700S, 700H, 700L, AFE, DC, or 7000 series — and you need confirmed compatibility with your exact drive family.
  • You require a full numeric keypad and enhanced LCD display for faster parameter entry and menu navigation versus basic HIM options.
  • Your mounting requirement is drive-mounted or handheld use within a NEMA Type 1 environment — not a bezel-mounted or sealed panel-door application.
  • Your team needs a shared portable HIM that can move between multiple drives on the plant floor for commissioning, tuning, or diagnostics.
  • You need multi-language display support including English, Portuguese, French, Italian, German, and Spanish, and your site language is covered by that set.

If you need a bezel-mounted or door-mount interface with a different environmental rating, the 20-HIM-C6S is the correct part. If your application only requires basic monitoring with minimal control, a lower-cost basic HIM or PC-based tooling such as DriveExecutive or DriveExplorer may be sufficient and more economical.

On this page:

What the 20-HIM-A6 Actually Does in a PowerFlex System

The 20-HIM-A6 serves as the local operator and commissioning interface for PowerFlex 7-Class variable frequency drives. Without a HIM installed, accessing or modifying drive parameters requires a PC running DriveExplorer, DriveExecutive, or Studio 5000 — tools that are indispensable for deep configuration but impractical on a production floor when a technician needs to read a fault code or adjust a speed reference quickly. The 20-HIM-A6 solves that gap directly at the drive.

Through its full numeric keypad and backlit LCD, the module gives users direct access to parameter groups, fault and alarm history logs, and drive status information. When the drive configuration permits, the 20-HIM-A6 also provides local start/stop command, jog, and speed reference adjustment — functions that are particularly valuable during initial commissioning and periodic retuning. Parameter upload and download capability (subject to the specific drive and firmware) allows technicians to transfer parameter sets between drives, reducing setup time on replicated equipment.

Control source management is important to understand: the 20-HIM-A6 can command the drive only when the drive's control source parameters are configured to permit local HIM control. In networked or PLC-controlled installations, the HIM typically serves a read-and-diagnostics role unless the technician explicitly switches control authority. This is a safety-critical distinction that plant procedures must reflect before enabling local HIM control.

Where the 20-HIM-A6 Sits in Your Drive Architecture

The 20-HIM-A6 connects at the HIM port on the front of the PowerFlex drive, sitting between the drive controller and the local operator — it is the human-accessible layer of the drive's control architecture, not part of the power or motor circuit.

  • PLC or DCS (remote command source) communicates with the PowerFlex drive via network or hardwired I/O
  • The PowerFlex drive (753, 755, 700, or other 7-Class model) processes commands and controls the motor output
  • The 20-HIM-A6 plugs into the drive's HIM port, drawing power from the drive — no external supply needed
  • The HIM displays drive status, parameters, and fault information; when enabled, it can issue local start/stop and speed commands
  • Optional HIM cable allows the module to be used handheld or remotely from the drive while remaining electrically connected

Typical Applications and Deployment Scenarios

The 20-HIM-A6 is most commonly found in manufacturing and process environments where PowerFlex 7-Class drives control motors on conveyors, pumps, fans, compressors, and mixers. In food and beverage facilities, where recipe-based speed adjustments and rapid fault response are routine, the ability to read and modify parameters at the drive without a laptop is a significant operational advantage. Similarly, in metals, mining, and material handling, where drives are distributed across large plants and maintenance access can be physically challenging, a portable 20-HIM-A6 shared across multiple drives reduces both equipment cost and technician travel time.

OEM machine builders standardizing on PowerFlex 7-Class drives benefit from the 20-HIM-A6's broad compatibility across drive families — a single HIM part number covers the majority of the PowerFlex 7-Class lineup, which simplifies spares inventory and documentation. Water and wastewater facilities, HVAC systems, and oil and gas installations using PowerFlex 700 or 755 series drives follow the same pattern: the 20-HIM-A6 becomes a shared maintenance tool rather than a fixed per-drive purchase.

Pulp and paper operations and other continuous process industries use the 20-HIM-A6 for quick parameter verification during scheduled maintenance windows, where a technician needs to confirm motor data settings, check fault history, or verify acceleration and deceleration ramps before restarting production. The multi-language display — supporting English, Portuguese, French, Italian, German, and Spanish among others — makes the same hardware usable in multilingual facilities or across geographically distributed plants.

Application Typical Deployment
Conveyor and material handling systems Drive-mounted HIM for local speed adjustment and fault diagnostics at the panel
Pump and fan control (HVAC, water/wastewater) Shared portable HIM carried by maintenance for periodic commissioning and parameter checks
OEM machine with multiple PowerFlex 7-Class drives Single 20-HIM-A6 used during factory acceptance testing across all drive axes
Food and beverage production line Drive-mounted HIM allowing operators to adjust speed reference at the drive without SCADA access
Metals and mining motor control centers Handheld HIM with cable used by field electricians for troubleshooting across distributed drives
Pulp and paper process drives HIM used for scheduled maintenance parameter verification and fault log review

Key Specifications and Functional Features of the 20-HIM-A6

Parameter Value / Description
Catalog Number 20-HIM-A6
Official Product Name PowerFlex 7-Class Enhanced LCD Human Interface Module
Compatible Drive Families PowerFlex 70, 700, 700H, 700S, 700L, 753, 755, 755TR, 755TL, 755TM, AFE, DC, 7000
Display Type Backlit LCD, multi-line, text and numeric
Keypad Full numeric keypad with navigation arrows and soft keys
Languages Supported English, Portuguese, French, Italian, German, Spanish, and others per manual
Enclosure Rating NEMA Type 1 (drive-mounted or handheld)
Power Source Powered from PowerFlex drive HIM port — no external supply required
Mounting Options Drive-mounted or handheld with optional HIM cable; for bezel/door mount see 20-HIM-C6S
Firmware Update Methods ControlFLASH, DriveExplorer, DriveExecutive, HyperTerminal

Full technical specifications are available on the product page at LeadTime.ca.

20-HIM-A6 vs. 20-HIM-A3 vs. 20-HIM-C6S: Which PowerFlex HIM Do You Actually Need?

Model Display & Keypad Mounting Style Enclosure Rating Best For
20-HIM-A6 Enhanced backlit LCD, full numeric keypad Drive-mounted or handheld with cable NEMA Type 1 Field commissioning, troubleshooting, portable shared tool across PowerFlex 7-Class drives
20-HIM-A3 Basic HIM, fewer display and keypad features Drive-mounted NEMA Type 1 Basic monitoring and limited parameter access where enhanced features are not required
20-HIM-C6S Enhanced LCD, similar feature set to A6 Bezel/panel door mount Different IP/NEMA rating for door mounting Fixed panel-door installation where sealing or remote mounting is required

The 20-HIM-A3 is the right choice only when enhanced LCD navigation and a full keypad are not needed and cost is the primary constraint. If your application requires a fixed door-mounted interface with a higher environmental rating, the 20-HIM-C6S is the correct variant — check current availability of the 20-HIM-A6 at LeadTime.ca and contact us if you need help identifying the correct variant for your installation.

Expert Verdict: Is the 20-HIM-A6 Worth It for Your Plant?

From a controls engineering standpoint, the 20-HIM-A6 earns its place in any facility that runs a significant installed base of PowerFlex 7-Class drives and expects ongoing commissioning, retuning, or field diagnostics. The full numeric keypad and enhanced LCD make parameter navigation meaningfully faster than the basic HIM alternative — particularly when a technician is working through multiple parameter groups on a PowerFlex 755 or 700 series drive in a time-sensitive situation. The documented multi-language support across English, Portuguese, French, Italian, German, and Spanish further extends its usefulness in multilingual or multi-site operations. For OEM machine builders and end users who have standardized on the PowerFlex 7-Class family, one or two 20-HIM-A6 units as shared tools represent a practical and efficient investment.

The 20-HIM-A6 has real limits worth naming honestly. Its NEMA Type 1 rating makes it unsuitable as a fixed panel-door interface in higher-ingress environments — that is the 20-HIM-C6S's job. The cost is a recurring concern among practitioners, and it is a legitimate one: if your drives are rarely touched manually and all configuration and monitoring flows through Studio 5000, DriveExecutive, or a supervisory HMI, the 20-HIM-A6 adds limited day-to-day value. Similarly, sites that have standardized on network-based tools or integrated PanelView operator interfaces may find the local HIM redundant in normal operation. For those scenarios, the 20-HIM-A3 covers basic needs at lower cost, or no local HIM may be warranted at all.

On the procurement side, the 20-HIM-A6 is stocked by major Rockwell-authorized distributors and is generally available with short lead times for in-stock locations, though non-stock situations can extend to multiple weeks depending on supply conditions. The most common procurement mistake — ordering the 20-HIM-C6S when an A6 is needed, or vice versa — is entirely avoidable with a brief compatibility check before the purchase order is placed. That is exactly where a specialist distributor adds value: quick confirmation that the part number, mounting requirement, and firmware alignment are correct before the order ships. View current pricing and lead time for the 20-HIM-A6 at LeadTime.ca — we ship worldwide and can confirm compatibility details before you commit.

For volume pricing, replacement sourcing under time pressure, or to verify lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and respond quickly to time-sensitive requests.

What Engineers Are Saying About the 20-HIM-A6

Across forums including PLCTalk, PLCS.net, MrPLC, Reddit r/PLC, and the Rockwell Automation user community, the 20-HIM-A6 draws consistently positive feedback from practitioners who use it regularly in the field. The full numeric keypad and clearer LCD navigation are the most frequently praised attributes — controls technicians specifically note that the enhanced display makes parameter entry and commissioning noticeably faster compared to older or more basic HIM options. The ability to carry a single 20-HIM-A6 between multiple PowerFlex 7-Class drives is a recurring theme: maintenance teams treating it as a shared tool rather than a fixed per-drive accessory find it reduces both hardware cost and setup time. Several community members also highlight the HIM's value for troubleshooting — being able to pull fault codes and review parameter descriptions directly at the drive, without returning to a workstation, is cited as a meaningful time saver in production environments.

The recurring complaints are worth taking seriously. Cost is the most common objection: practitioners who rarely need local parameter access question whether the 20-HIM-A6 is justified when DriveExplorer or DriveExecutive via laptop can accomplish the same tasks. Physical durability in handheld use is a genuine concern — cracked screens and damaged connectors from dropped units appear in multiple threads, and several users recommend storing the HIM securely when not in use or using the cable attachment rather than relying on friction-fit mounting when moving between drives. The cost and fragility concerns together suggest the 20-HIM-A6 is best treated as a shared maintenance asset managed carefully, not an inexpensive consumable.

Ordering confusion is the most actionable community finding. Mixing up the 20-HIM-A6 with the 20-HIM-C6S is the most commonly reported mistake — buyers who need a fixed panel-door installation sometimes order the A6 based on familiarity, only to discover it does not fit their bezel-mount requirement. Purchasing a 20-HIM-A6 for drives outside the PowerFlex 7-Class family is another documented error, as is assuming all HIM variants share the same language set without checking the manual. These are not obscure edge cases — they appear with enough regularity that verifying mounting type, drive family, and language requirements before placing an order is worth the two minutes it takes.

Installation and Wiring Overview for the 20-HIM-A6

The 20-HIM-A6 installation is straightforward, but correct sequencing and safety practice matter. The following points cover the key requirements — engineers needing full step-by-step procedures should refer to the Rockwell Automation user manual for the 20-HIM-A6.

  • Always de-energize the drive and verify absence of voltage per plant lockout/tagout procedures before connecting or disconnecting the HIM from the drive's HIM port.
  • The HIM connects directly to the HIM port on the face of the PowerFlex drive, or via an approved HIM cable for handheld or remote positioning — no external power wiring is required since the HIM draws power entirely from the drive's HIM port.
  • On first power-up after connection, confirm the HIM displays the initial status or main menu screen and that no unexpected faults are present; set the display language via the menu if required.
  • Before enabling local start/stop or speed reference control from the HIM, verify that the drive's control source parameters are configured to permit HIM control and that plant safety procedures and interlocks have been updated to reflect local control capability.
  • For handheld use across multiple drives, verify that the HIM and each drive are running compatible firmware revisions — consult Rockwell release notes for the 20-HIM-A6 and the specific drive model before deploying across an installed base.

Firmware Updates and Keeping the 20-HIM-A6 Current

Rockwell Automation release notes document that the 20-HIM-A6 (part of the 20-HIM-x6 family) supports firmware updates via ControlFLASH, DriveExplorer, DriveExecutive, and HyperTerminal — giving maintenance teams multiple update paths depending on available tooling. Firmware alignment between the HIM and the installed drive is one of the most frequently overlooked steps when deploying a new or replacement HIM, and mismatches can result in communication errors, missing features, or reduced functionality. Before rolling out a 20-HIM-A6 plant-wide, test compatibility on a single drive first and confirm the firmware revision is current per Rockwell's published release notes for the specific drive family. Routine maintenance for the module is minimal: inspect the keypad and display for physical wear, keep connectors clean, and store the HIM securely when not mounted to a drive to prevent the connector and screen damage that community users report most often.

Wrong-Part Prevention Checklist Before Ordering the 20-HIM-A6

Before placing your order, work through this checklist verbatim. Each point corresponds to a real ordering mistake documented in the PowerFlex HIM community:

  1. Confirm the drive family and frame size (e.g., PowerFlex 753, 755, 700, 70, 700S, 700H, 700L, 7000, DC) is listed as compatible with 20-HIM-A6.
  2. Verify you do not actually need the bezel/remote-mount HIM (20-HIM-C6S) or a different IP/NEMA rating.
  3. Check if the OEM or plant standard specifies another HIM revision or language set; align firmware and language pack.
  4. Confirm mounting style and cable length needed (handheld vs. drive-door mounting and required HIM cable kit).
  5. Ensure the control scheme allows local HIM control (start/stop, speed) and that this does not conflict with safety or lockout procedures.
  6. Check firmware compatibility of the HIM with the installed drive firmware and plan for a flash update if required.

If any item on this list raises a question, contact the LeadTime.ca team before ordering — we can confirm compatibility and flag the correct variant for your specific drive and installation context.

Frequently Asked Questions About the 20-HIM-A6

Is the 20-HIM-A6 compatible with both PowerFlex 753 and 755 drives as well as older PowerFlex 70 and 700 series?

Yes — Rockwell Automation documents the 20-HIM-A6 as compatible with the PowerFlex 753, 755, 755TR, 755TL, 755TM, 70, 700, 700H, 700S, 700L, AFE, DC, and 7000 series drives. However, compatibility is subject to specific firmware revisions on both the drive and the HIM. Always confirm firmware alignment using Rockwell release notes for your specific drive model before deploying.

What is the practical difference between the 20-HIM-A3 and the 20-HIM-A6, and when does the A6 justify the cost?

The 20-HIM-A3 is a basic HIM with more limited display and keypad features, suited to applications requiring only basic monitoring and occasional parameter access. The 20-HIM-A6 provides an enhanced backlit LCD and a full numeric keypad, which speeds parameter entry, navigation, and fault diagnosis significantly. The A6 justifies its higher cost when technicians are commissioning drives regularly, moving the HIM between multiple drives, or need to navigate parameter groups efficiently without a PC on the floor.

Can I mount the 20-HIM-A6 on a panel door, or do I need a different part number?

The 20-HIM-A6 is rated NEMA Type 1 and is designed for drive-mounted or handheld use — it is not designed for bezel or panel-door mounting. For a fixed door-mount installation, the correct part is the 20-HIM-C6S, which is designed for bezel mounting with a different environmental rating. Ordering the wrong variant for your mounting requirement is one of the most common mistakes reported in the PowerFlex HIM community.

Does the 20-HIM-A6 firmware need to be updated before use with the latest PowerFlex 755 series drives?

It depends on the specific firmware revision of your drive and the HIM. Rockwell release notes document firmware update procedures for the 20-HIM-A6 via ControlFLASH, DriveExplorer, DriveExecutive, and HyperTerminal. Before deploying a new or replacement 20-HIM-A6 on a PowerFlex 755, check Rockwell's published compatibility notes for your drive firmware version and update the HIM if a newer revision is recommended.

Can one 20-HIM-A6 be used as a shared portable tool across multiple drives without reconfiguring the HIM each time?

Yes — this is one of the most commonly cited practical advantages of the 20-HIM-A6 in the PowerFlex 7-Class community. Because the HIM reads drive parameters directly when connected, technicians can move it between compatible drives and access each drive's parameters independently. The main requirement is verifying firmware compatibility across the drives in the shared-use group and ensuring each drive's control source settings are correctly configured before enabling any local HIM control functions.

What should I check first if the 20-HIM-A6 does not power up or cannot control the drive?

For a no-power condition, verify the HIM is fully seated at the drive's HIM port, confirm the drive itself is energized, and inspect the HIM port and connector for damage. If the HIM powers up but cannot issue start/stop commands, the most common cause is the drive's control source configuration — the drive must be set to accept local HIM control. Also verify that no safety interlocks or network commands are overriding local control authority, and check for firmware compatibility issues between the HIM and the drive.

Why Order the 20-HIM-A6 From LeadTime.ca

  • LeadTime.ca ships worldwide — the 20-HIM-A6 is available to buyers globally, not just within a single region.
  • Our team can quickly confirm whether the 20-HIM-A6 or the 20-HIM-C6S is the correct part for your specific mounting and drive configuration before you commit to an order.
  • We source hard-to-find and time-sensitive parts with realistic lead time guidance — critical when drive downtime is measured in production losses.
  • Volume pricing and blanket order options are available for facilities standardizing on 20-HIM-A6 as a plant-wide spare.
  • View the 20-HIM-A6 product page for current pricing and availability, or contact us directly for quote and lead time confirmation.

At-a-Glance Summary: Allen-Bradley 20-HIM-A6

  • Official product name: PowerFlex 7-Class Enhanced LCD Human Interface Module, catalog number 20-HIM-A6.
  • Compatible with PowerFlex 70, 700, 700H, 700S, 700L, 753, 755, 755TR, 755TL, 755TM, AFE, DC, and 7000 series drives — subject to firmware compatibility verification.
  • Enhanced backlit LCD with full numeric keypad and multi-line display; supports English, Portuguese, French, Italian, German, Spanish, and other languages per the Rockwell user manual.
  • NEMA Type 1 rated; designed for drive-mounted or handheld use — not for bezel/panel-door mounting (use 20-HIM-C6S for that application).
  • Powered entirely from the drive's HIM port — no external power supply or wiring required.
  • Firmware updatable via ControlFLASH, DriveExplorer, DriveExecutive, and HyperTerminal per Rockwell release notes.
  • Key functions: parameter view and edit, start/stop and speed reference control (when enabled), fault and alarm log access, parameter set upload/download (drive and firmware dependent).
  • Most common ordering mistake: confusing 20-HIM-A6 (drive-mounted/handheld) with 20-HIM-C6S (bezel/door mount) — verify mounting requirement before ordering.
  • Available through LeadTime.ca with worldwide shipping; contact for current pricing, lead time, and compatibility confirmation.
