Allen-Bradley 1783-US16T Stratix 2000 — Specs & Selection Guide

By Abdullah Zahid
14 min read

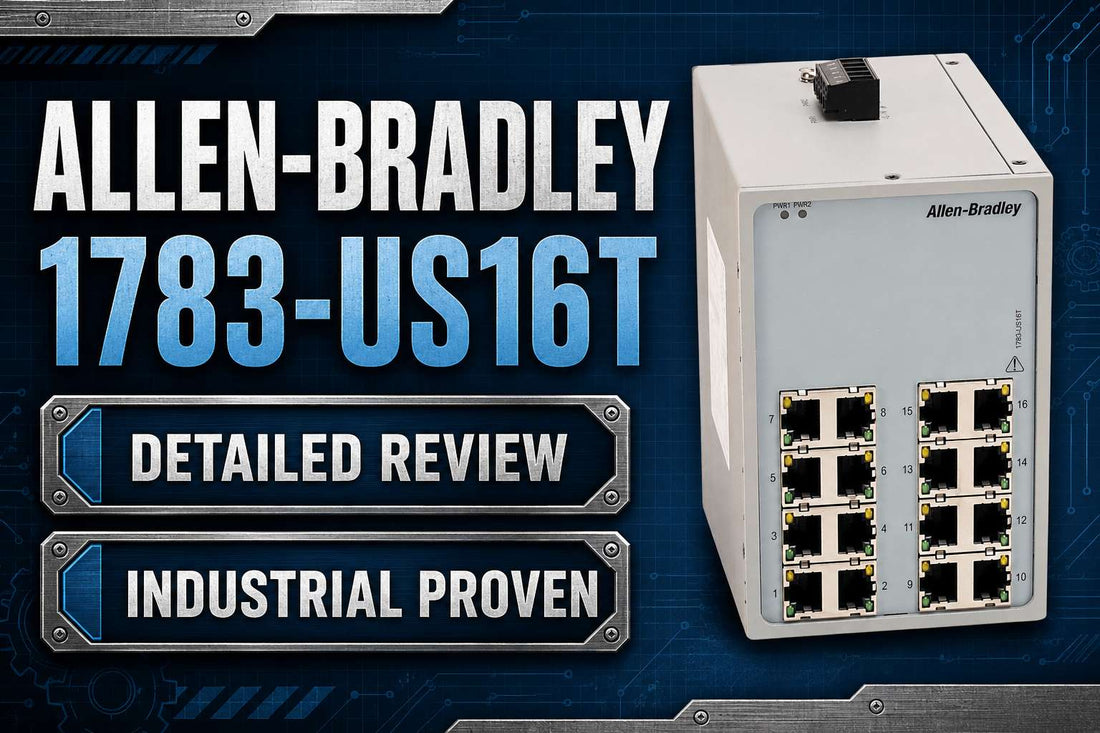

Allen-Bradley 1783-US16T Stratix 2000 16-port unmanaged Fast Ethernet DIN-rail switch for industrial control panels

Allen-Bradley 1783-US16T Stratix 2000 Unmanaged Ethernet Switch, 16 Copper Fast Ethernet Ports — Specs, Selection Guide & Where to Buy

Controls engineers specifying network hardware for a Rockwell-based machine or panel network often arrive at the same crossroads: do you need a managed switch with configuration overhead, or will a solid industrial unmanaged switch handle the job? The Allen-Bradley 1783-US16T answers that question for systems requiring 16 copper Fast Ethernet ports on DIN rail, powered from a 24 V class supply, with zero configuration complexity. It is part of the Stratix 2000 family, carries c-UL-us and CE certifications for use in North American and international industrial installations, and is rated IP20 for protected panel environments.

If you have already confirmed the 1783-US16T is the right part for your build, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the 1783-US16T — and Who Shouldn't

The Allen-Bradley 1783-US16T is the right choice for controls engineers and OEM machine designers who need an industrial-grade, plug-and-play Ethernet switch with 16 copper ports and no configuration requirement. You are a strong fit if all of the following apply:

  • Your application requires exactly 16 copper RJ45 Fast Ethernet ports and no fiber or SFP uplinks
  • Unmanaged behavior is explicitly acceptable — no VLANs, IGMP snooping, QoS, port mirroring, or remote diagnostics are needed now or in the near future
  • 10/100 Mbps Fast Ethernet is sufficient; Gigabit speeds are not required on any port
  • PoE is not needed on any connected device
  • Your panel provides a 24 V class AC or DC supply and has space for DIN-rail mounting with an external Class 2/SELV protective device
  • The environment is indoors and within the IP20 operating temperature range specified for this model

If your application requires VLANs, diagnostics, IGMP snooping, fiber uplinks, PoE, or Gigabit connectivity, the 1783-US16T is not the right fit — you should evaluate the Stratix 2500, Stratix 5700, or Stratix 2000 variants with SFP or Gigabit ports instead.

On this page:

What the Allen-Bradley 1783-US16T Actually Does in a Machine Network

The Allen-Bradley 1783-US16T is an unmanaged industrial Ethernet switch in the Stratix 2000 family. It provides 16 copper RJ45 ports operating at 10/100 Mbps Fast Ethernet with auto-negotiation and auto MDI/MDI-X, meaning it adjusts automatically to straight-through or crossover cabling without manual configuration. There is no web interface, no CLI, no Studio 5000 integration, and no configuration file — power it on, connect your devices, and the switch forwards traffic based on MAC addresses learned at runtime.

This is its defining characteristic and its primary selling point for applications where simplicity, repeatability, and low commissioning time matter more than traffic visibility. The switch uses store-and-forward switching, which means each frame is fully received and checked before forwarding — a behavior that improves reliability on industrial traffic and is appropriate for EtherNet/IP implicit and explicit messaging at the machine level.

The enclosure is rated IP20 and is designed for DIN-rail mounting inside a control panel or electrical enclosure. Power input is low-voltage AC or DC from a Class 2/SELV-rated external supply — the same 24 V class supply that powers PLCs, remote I/O, and drives in a typical Rockwell panel. No integrated overcurrent protection is included; an external fuse or breaker is required in the design.

Certifications include c-UL-us and CE, confirming the switch meets safety and electromagnetic compatibility requirements for industrial use in Canada, the United States, and European markets. These marks are relevant to panel builders and OEMs who need to comply with UL 508A or equivalent panel standards.

Where the 1783-US16T Sits in a Typical System Architecture

The 1783-US16T occupies the machine-level or panel-level aggregation layer — sitting below the plant network and connecting the local constellation of controllers, I/O, drives, and HMIs in a star topology. It is not a core or distribution switch; it is the edge device that terminates device cabling and passes traffic up to the infrastructure switch or directly to the controller.

  • Plant-level managed switch or router at the top of the hierarchy passes traffic to and from the machine cell
  • CompactLogix or ControlLogix controller connects directly to one port of the 1783-US16T
  • Remote I/O adapters, variable frequency drives, servo drives, and HMI panels each connect to individual RJ45 ports
  • The 1783-US16T forwards EtherNet/IP implicit (cyclic I/O) and explicit (messaging) traffic between all connected devices
  • No uplink port distinction exists — any port can connect to any device or upstream switch, simplifying cabling layout in the panel

Typical Applications and Deployment Scenarios for the 1783-US16T

The most common deployment for the Allen-Bradley 1783-US16T is a machine-level EtherNet/IP star network connecting a CompactLogix or ControlLogix PLC to remote I/O modules, variable frequency drives, servo amplifiers, and a PanelView HMI — all within a single machine cabinet or distributed across a machine frame. The 16-port count is well-suited for medium-complexity machines where a smaller 5 or 8-port switch leaves insufficient room for growth.

Panel-level aggregation is another strong use case. In a larger control panel with multiple subsystem zones, the 1783-US16T consolidates device connections into a single industrial-grade switch that shares the existing 24 V supply rail, simplifying panel layout and wiring documentation.

OEM machine builders who repeat the same machine design across multiple installations value the 1783-US16T for its consistency and the absence of a configuration step. There is no switch firmware to commission, no VLAN topology to document, and no risk of deploying a misconfigured switch to a customer site. The same BOM entry and wiring diagram work on every build.

Brownfield retrofits where daisy-chained office switches or aging unmanaged switches are being replaced with industrial-grade hardware represent a fourth scenario. The DIN-rail form factor and 24 V DC power compatibility allow direct replacement without restructuring the panel power distribution.

Application Typical Deployment
EtherNet/IP machine network CompactLogix or ControlLogix PLC plus drives, I/O, and HMI in a star topology from the 1783-US16T
Panel-level device aggregation Multiple subsystem devices consolidated to a single DIN-rail switch sharing the panel 24 V supply
OEM repeat-build machines Fixed BOM with no configuration step; same switch deployed across all machine copies
Brownfield unmanaged switch replacement Direct swap for aging or office-grade switches requiring DIN-rail mounting and 24 V DC power
Food and beverage or packaging lines Non-critical machine segment where traffic load is light to moderate and diagnostics are managed at the PLC level

Purchase-Decision Specs and Variant Comparison for the Stratix 2000 1783-US16T

Parameter Value
Catalog Number 1783-US16T
Product Family Allen-Bradley Stratix 2000
Switch Type Unmanaged industrial Ethernet switch
Ports 16 × RJ45 copper Fast Ethernet, 10/100 Mbps auto-negotiation
Auto MDI/MDI-X Yes — no manual crossover required
Switching Mode Store-and-forward; no user-configurable QoS or VLANs
Power Input Low-voltage AC or DC, 24 V class, Class 2/SELV external supply required
Enclosure Rating IP20 — for use inside protected control panels
Mounting DIN rail
Certifications c-UL-us, CE

Full technical specifications are available on the product page at LeadTime.ca.

The table below places the 1783-US16T in context with other Stratix 2000 and managed Stratix variants to help you confirm or challenge your selection:

Model Port Count Media Type Managed PoE Best For
1783-US16T 16 copper RJ45 Fast Ethernet only No No Medium machine networks, 10–16 devices, no configuration required
Stratix 2000 5/8-port variants 5 or 8 copper RJ45 Fast Ethernet only No No Small machines or panels with fewer than 10 nodes
Stratix 2000 copper/SFP variants Mixed copper + SFP Fast Ethernet + fiber uplink No No Applications needing one or more fiber uplinks alongside copper ports
Stratix 2500 Various Copper + optional fiber Yes No Networks requiring VLANs, IGMP snooping, or diagnostics
Stratix 5700 Various Copper + fiber options Yes Select models Complex topologies, DLR, CIP integration, high-availability networks

If your node count is growing beyond 16 ports or you anticipate needing VLAN segmentation in the next system revision, the Stratix 2500 or Stratix 5700 is the more defensible long-term choice — check the 1783-US16T product page at LeadTime.ca and contact us if you need help comparing variants.

Expert Verdict: Is the Allen-Bradley 1783-US16T the Right Switch for Your Project?

For controls engineers building straightforward EtherNet/IP machine networks — a CompactLogix with a handful of remote I/O nodes, one or two drives, and an HMI — the Allen-Bradley 1783-US16T is exactly what it needs to be: a reliable, industrial-grade, 16-port Fast Ethernet switch that installs in minutes and requires no further attention. It shares the 24 V class power rail already present in the panel, mounts on standard DIN rail, carries the c-UL-us and CE certifications panel builders and OEMs need, and eliminates all the configuration risk that comes with managed switches in applications that simply do not need them. For OEM machine designers who build the same machine 10 or 50 times, the absence of a configuration step is a genuine operational advantage, not a compromise.

Where the 1783-US16T earns an honest caution is in any application where the network is expected to grow in complexity rather than just in device count. If your system will eventually need VLANs to isolate safety or process traffic, IGMP snooping to manage EtherNet/IP multicast, Device Level Ring redundancy, or remote diagnostics visible in Studio 5000, this switch cannot provide those features — ever. Unmanaged is a fixed characteristic, not a setting. In those scenarios, start with the Stratix 2500 or Stratix 5700 from the beginning. Similarly, if any device on the network needs PoE, a fiber run, or Gigabit bandwidth, the 1783-US16T is the wrong tool regardless of port count. The 1783-US16T2S or a Gigabit-capable Stratix 2000 variant with SFP ports would be a better starting point for those requirements.

From a procurement perspective, the 1783-US16T is typically available through authorized Rockwell distributors, with stock levels and lead times varying by region and current demand. Buying through a specialist industrial automation distributor rather than a general electronics channel matters here: catalog number confusion in the Stratix 2000 family is real — the difference between 1783-US16T and 1783-US16T2S or similar suffixed part numbers can mean receiving a switch with a different port configuration or media type than designed. A knowledgeable distributor validates the catalog number against your application before the order ships, not after. View current pricing and availability for the 1783-US16T at LeadTime.ca — we ship worldwide and can confirm stock before you commit to a build schedule.

For volume pricing, lead time confirmation, or application questions before placing a purchase order, contact the LeadTime.ca team directly — we work with procurement and engineering teams worldwide.

What Engineers Are Saying About the Stratix 2000 1783-US16T

Across automation forums including r/PLC, r/industrialautomation, PLCTalk, PLCS.net, and MrPLC, the Stratix 2000 family — including the 16-port 1783-US16T — consistently earns descriptions that amount to reliable and unremarkable, which in industrial networking is high praise. Practitioners who have installed these switches in manufacturing, packaging, and food and beverage environments describe them as hardware that gets powered on and then disappears from the maintenance conversation. The shared 24 V supply compatibility and DIN-rail form factor come up repeatedly as concrete reasons for choosing the Stratix 2000 over third-party alternatives, particularly in plants where panel wiring standards are tightly controlled. OEM builders specifically value the consistency of specifying one part number across repeat machine builds without a configuration step that could vary between technicians.

The most consistent criticism in the community is cost. Engineers frequently note that the 1783-US16T carries a premium compared to office-grade unmanaged switches or some third-party industrial alternatives with similar port counts. The counter-argument that appears just as often is that the industrial certifications, DIN-rail mounting, 24 V DC power input, and the value of aligning with an existing Rockwell distributor relationship justify the price difference — particularly when a warranty claim or urgent replacement is needed. The second recurring complaint is buyer's remorse from engineers who discovered post-purchase that unmanaged Stratix 2000 models do not offer VLANs, diagnostics, or any form of network visibility. Community consensus on this point is consistent: confirm the managed or unmanaged requirement in writing before the PO is issued, not during commissioning.

Ordering mistakes reported in community discussions cluster around three patterns. The first is choosing the 1783-US16T when the application actually required managed features, forcing a later swap to a Stratix 2500 or 5700 at higher cost and with rework in the panel. The second is selecting a Stratix 2000 model without adequate port count or without the fiber uplink capability needed for a longer cable run, resulting in cascaded switches or returns. The third — and the one that generates the most frustration — is assuming PoE was available on the 1783-US16T and connecting IP cameras or wireless access points that needed power over Ethernet, only to discover the switch does not supply PoE on any port. All three mistakes are avoidable with a disciplined pre-order checklist, which is covered in the section below.

Wiring and Installation Overview for the 1783-US16T

  • De-energize the panel and follow site lockout/tagout procedures before mounting or wiring the switch; the 1783-US16T requires an external overcurrent protective device — confirm it is included in the panel design before powering on
  • Mount the switch on a properly secured DIN rail with adequate clearance above and below for cabling, ventilation, and access to power terminals; IP20 rating means the switch must be enclosed within a panel or cabinet that provides the environmental protection required for the installation site
  • Wire the 24 V class AC or DC supply to the designated power terminals, observing polarity for DC connections and using conductor sizing appropriate for the external protective device; a Class 2 or SELV-rated supply is required — standard line-voltage supplies do not meet this requirement without appropriate isolation
  • Connect Ethernet cables to the RJ45 ports using industrial-rated patch cords or field-terminated industrial Ethernet cable where possible; auto MDI/MDI-X means crossover cables are not required, but strain relief at the panel entry and at each connector is recommended for vibration-prone environments
  • After re-energizing, verify the power LED is illuminated and that link/activity LEDs on each occupied port indicate an active connection; a port with no link LED after connection should be investigated at the cable and end-device level before suspecting the switch port

Wrong-Part Prevention Checklist Before Ordering the Allen-Bradley 1783-US16T

Before finalizing the 1783-US16T on your BOM, work through each of the following items. This checklist is drawn directly from documented ordering mistakes and application mismatches in the Stratix 2000 family:

  1. Confirm that an unmanaged switch is acceptable (no need for VLANs, QoS, IGMP, port mirroring, or remote diagnostics).
  2. Verify that 16 copper RJ45 ports are required and that no fiber/SFP ports are needed.
  3. Verify network speed requirements (10/100 Mbps only; if Gigabit needed, select a Gigabit-capable variant).
  4. Check that PoE is NOT required on any port (1783-US16T does not supply PoE).
  5. Confirm panel space and DIN-rail mounting compatibility with the switch dimensions.
  6. Verify available power supply range in the panel matches the specified AC/DC input and that external protection (fuse/breaker) is planned.
  7. Check required operating temperature range and environmental rating against the panel environment.
  8. Confirm that the catalog number is 1783-US16T (not 1783-US16T2S or other similar Stratix 2000 part numbers).

If any item on this checklist raises a question, contact the LeadTime.ca team before placing the order — we can validate the catalog number and application fit against your specific requirements.

Frequently Asked Questions About the Allen-Bradley 1783-US16T

Can the 1783-US16T handle EtherNet/IP implicit I/O traffic reliably, or do I need a managed switch for a Rockwell system?

The 1783-US16T supports EtherNet/IP traffic — both implicit (cyclic I/O) and explicit messaging — at the machine level without issue for typical small-to-medium machine networks where traffic loads are moderate. A managed switch becomes necessary when you need IGMP snooping to control multicast traffic from multiple producers, when network segmentation is required for safety or performance, or when the volume of EtherNet/IP connections creates broadcast congestion that an unmanaged switch cannot mitigate.

Does the 1783-US16T support VLANs, IGMP snooping, or any configuration through Studio 5000 or a web interface?

No. The 1783-US16T is an unmanaged switch with no configuration interface of any kind — no web browser access, no CLI, no Studio 5000 Add-On Profile, and no SNMP management. VLANs, IGMP snooping, QoS, port mirroring, and diagnostics are not available on any unmanaged Stratix 2000 model. If these features are required, the correct product families are the Stratix 2500 or Stratix 5700.

What type of power supply and external protection does the 1783-US16T require?

The 1783-US16T requires a low-voltage AC or DC supply of the 24 V class that meets Class 2 or SELV rating requirements — a standard industrial 24 V DC power supply used for PLC and I/O power rails is the typical source. An external overcurrent protective device (fuse or circuit breaker) is required in the design; the switch does not have an integrated breaker. Consult the manufacturer's installation instructions for exact terminal labeling, conductor sizing, and grounding requirements.

Is the 1783-US16T PoE-capable on any port?

No. The 1783-US16T does not supply Power over Ethernet on any of its 16 ports. If any device in your network requires PoE — IP cameras, wireless access points, or PoE-powered sensors — you will need a different switch model that explicitly lists PoE support. This is one of the most frequently reported ordering mistakes in the Stratix 2000 family.

Can I mix the 1783-US16T with standard office switches on the same network segment?

Physically, yes — the 1783-US16T will pass Fast Ethernet traffic to and from office-grade switches on the same segment. However, office switches are not rated for industrial temperature ranges, vibration, or DIN-rail panel environments, and they typically lack the 24 V DC power input required in control panels. In a panel or machine cabinet, office switches introduce environmental risk and are not suitable for long-term industrial use. For the network infrastructure outside the panel, mixed environments are functionally possible but should be assessed for reliability and environmental compliance.

Is the 1783-US16T a direct replacement for an older Stratix 2000 16-port model, and are there series differences to check?

Catalog number substitutions within the Stratix 2000 family should always be verified against the current Rockwell Automation product page and installation documentation. Series revisions can affect electrical ratings or physical dimensions. Confirm the exact catalog number — 1783-US16T — and verify the current series designation against your application requirements before placing a replacement order. A specialist distributor can confirm current production status and advise on any series-related differences.

Why Order the Allen-Bradley 1783-US16T from LeadTime.ca

  • LeadTime.ca ships worldwide — controls engineers and procurement teams across North America, Europe, and beyond can source through a single specialist distributor
  • Catalog number validation before the order ships reduces the risk of receiving a wrong-port or wrong-media variant from the Stratix 2000 family
  • Application questions about managed vs unmanaged selection, power supply compatibility, and port count planning are answered by staff familiar with Rockwell Automation product families
  • Volume pricing and lead time confirmation are available for OEM builders who specify the same switch across multiple machine builds
  • Hard-to-locate parts and current stock visibility reduce project delays compared to general electronics distributors who may not carry industrial automation inventory

At-a-Glance Summary: Allen-Bradley 1783-US16T

  • 16 copper RJ45 Fast Ethernet ports at 10/100 Mbps with auto-negotiation and auto MDI/MDI-X — no fiber, no SFP, no Gigabit
  • Unmanaged switch — no VLANs, no IGMP, no QoS, no port mirroring, no Studio 5000 integration; plug-and-play only
  • PoE is not available on any port
  • Store-and-forward switching, appropriate for EtherNet/IP implicit and explicit messaging at machine level
  • Power input: 24 V class low-voltage AC or DC, Class 2/SELV-rated external supply required with external overcurrent protection
  • IP20 rated for protected panel and cabinet environments; DIN-rail mount
  • Certifications: c-UL-us, CE — suitable for industrial panel builds in North American and international markets
  • Part of the Stratix 2000 family; confirm catalog number is exactly 1783-US16T, not 1783-US16T2S or other suffixed variants
  • Best fit: medium machine networks, OEM repeat builds, panel aggregation, brownfield unmanaged switch replacement in Rockwell-based systems
  • Not a fit: applications requiring managed features, fiber uplinks, Gigabit speeds, PoE, or more than 16 ports
