Allen-Bradley 1783-NATR — NAT Router Review & Buying Guide

By Abdullah Zahid
16 min read

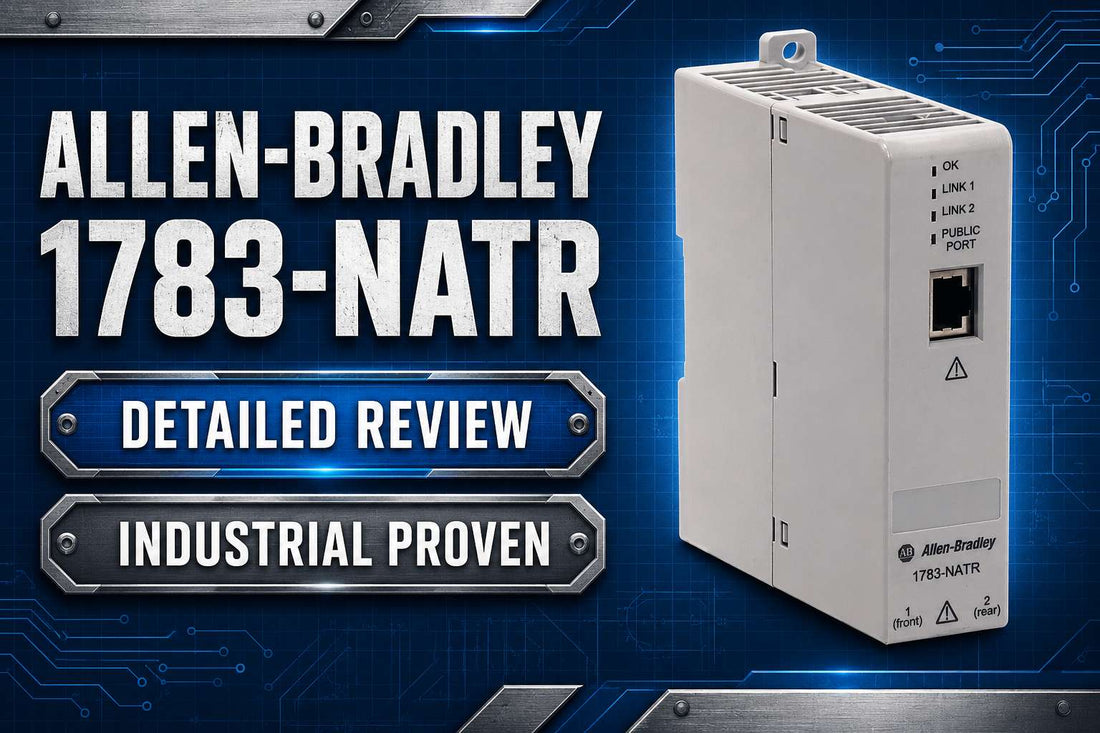

Allen-Bradley 1783-NATR configurable NAT router for EtherNet/IP machine network isolation and 1:1 address translation

Allen-Bradley 1783-NATR Configurable NAT Router: Specs, Setup, and Buying Guide

Controls engineers and OEM machine builders searching for the Allen-Bradley 1783-NATR are typically facing the same challenge: they need to connect a machine with a fixed internal IP scheme to a plant network that operates under a completely different addressing plan — without readdressing every PLC, HMI, and drive on the machine. The 1783-NATR is a configurable Network Address Translation router that solves exactly this problem, acting as the default gateway between a private machine subnet and the plant or control network through 1:1 NAT with up to 32 translation mappings. It operates on 24 VDC, supports Device Level Ring and linear topologies via Embedded Switch Technology, and is designed to fit natively into Allen-Bradley and Rockwell Automation EtherNet/IP architectures.

If you have already confirmed this is the right part for your application, check current pricing and availability for the 1783-NATR at LeadTime.ca — ships worldwide.

Who Should Buy the 1783-NATR — and Who Shouldn't

The 1783-NATR is the right choice for machine builders, system integrators, and plant engineers standardized on Allen-Bradley PLCs who need simple, repeatable 1:1 NAT between a fixed private machine subnet and a plant control network. Specify this part if all of the following apply to your project:

  • You need 1:1 Network Address Translation only — not a firewall, VPN, or deep packet inspection appliance.
  • The number of devices requiring translation does not exceed 32 NAT mappings.
  • Your system uses EtherNet/IP and benefits from Device Level Ring or linear topologies via Embedded Switch Technology.
  • Your control panel supplies 24 VDC in the range of approximately 20.4 to 27.6 VDC with at least 150 mA of spare current capacity.
  • Mounting will be DIN-rail or panel mount inside a protected enclosure rated IP20 or better.
  • Your PLCs, HMIs, and drives can be configured to use the 1783-NATR private-side IP as their default gateway.

If your project requires firewall rules, VPN remote access, port address translation, VLAN routing, more than 32 translated devices, or a vendor-agnostic network infrastructure, the 1783-NATR is not the right fit. Consider an industrial security router or a managed Layer 3 switch with NAT capabilities instead.

On this page:

What the 1783-NATR Actually Does on Your Network

The Allen-Bradley 1783-NATR is a configurable industrial Ethernet NAT router — not a managed switch, not a firewall, and not a VPN concentrator. Its job is precisely defined: it sits between two Ethernet networks and performs 1:1 Network Address Translation, mapping each private IP address on the machine side to a unique public IP address visible on the plant or control network. Rockwell Automation describes this device explicitly as serving as the default gateway for the private network, translating private IP addresses to unique public IP addresses so devices on the plant side can reach machine-side PLCs, HMIs, and drives without either network needing to change its addressing scheme.

This matters enormously for OEM machine builders. Instead of readdressing an entire machine at every new customer site — a process that introduces commissioning risk and consumes engineering hours — the OEM ships every machine with the same internal IP scheme. The 1783-NATR handles the translation at each installation, requiring only a new set of NAT mapping rules rather than changes to every device on the machine. Up to 32 individual 1:1 translation mappings are supported, which covers the majority of single-machine or skid-level applications in packaging, material handling, food and beverage, and automotive manufacturing. The device is configured through a web browser interface, where public and private IP addresses, subnet masks, and individual NAT rules are entered and applied.

One additional capability that matters for EtherNet/IP system architecture is the embedded switch functionality. The 1783-NATR supports both linear and Device Level Ring topologies on the private machine side, which means it can participate in a DLR ring without breaking redundancy or requiring an additional switch at the machine boundary. This is a meaningful advantage for machine builders who already use DLR for fault tolerance on the machine side and want to preserve that topology all the way to the network boundary device.

Typical System Architecture for the 1783-NATR

The 1783-NATR sits at the boundary between the machine subnet and the plant or control network, acting as the single point of address translation between the two. A typical deployment looks like this:

  • Plant control network or corporate LAN — carries the public IP addresses assigned by the plant IT or controls group.
  • 1783-NATR public port — connects to the plant network switch or directly to the plant infrastructure; holds the public-side IP address that the plant network sees as the gateway to the machine.
  • 1783-NATR private ports — connect to the machine-side Ethernet devices, forming either a linear chain or a DLR ring using Embedded Switch Technology.
  • Machine-side devices — PLCs, HMIs, variable frequency drives, and I/O modules configured with their fixed private IP addresses and the 1783-NATR private IP as their default gateway.
  • SCADA, historian, or engineering workstation on the plant side — accesses machine devices using the public IP addresses defined in the NAT translation table.

Typical Applications and Deployment Scenarios

The most common use case for the 1783-NATR is the OEM standard machine model. A machine builder designs a packaging line, conveyor system, or assembly station with a fixed internal IP scheme — every unit that ships uses the same PLC address, the same HMI address, and the same drive addresses. Without NAT, installing two of these machines at the same plant would cause an IP conflict. The 1783-NATR solves this by assigning each machine a unique block of public IPs visible to the plant network, while the machine internals remain unchanged. The result is faster commissioning, easier remote support, and a single documentation standard across all installed units.

Skid-mounted and modular process units follow the same logic. A process skid built at an integrator's facility and commissioned with a fixed IP range can be installed at any customer plant using a different network standard. The 1783-NATR provides the translation layer, and the skid's internal controls never change between sites. This reduces integration time and eliminates the risk of introducing addressing errors during field reconfigurations.

Plant network segmentation is another valid deployment. Where a machine subnet generates excessive broadcast traffic or where the plant network team wants isolation between machine control traffic and the broader IT network, the 1783-NATR creates a defined boundary. SCADA systems and historians can still access specific machine devices through the NAT translation table, while the machine subnet remains isolated for normal operation.

In Device Level Ring deployments, the 1783-NATR's Embedded Switch Technology allows it to participate in the DLR topology on the private side while presenting a single uplink to the plant network on the public side. This preserves the ring redundancy benefit on the machine network without requiring a separate switch or additional cabling at the boundary.

Application Typical Deployment
OEM standard machine line Single 1783-NATR per machine; NAT mapping assigns unique public IPs at each customer site while machine internals stay fixed
Skid and modular process units Integrated at the skid boundary; field teams configure NAT rules to match the plant subnet without touching skid devices
Plant network segmentation Isolates machine broadcast domain from control LAN; SCADA access via translated public IPs only
Device Level Ring topology Private ports form the DLR ring with machine devices; public port uplinks to plant switch or control network
Adding new lines to existing network New machine connected via 1783-NATR with a unique public IP block; no changes to existing plant IP design required

Specifications Engineers Need Before Ordering

Parameter Value Notes
Catalog Number 1783-NATR Allen-Bradley / Rockwell Automation
Product Type Configurable NAT Router / Network Address Translation Router Industrial Ethernet; EtherNet/IP focus
Supply Voltage Range 24 VDC nominal; approximately 20.4 to 27.6 VDC Confirm panel supply before ordering
Typical Current Draw Approximately 150 mA Verify spare panel power capacity
NAT Type 1:1 Network Address Translation Not PAT; no port-level translation
Maximum NAT Mappings Up to 32 Single IPs or ranges; plan device count carefully
Supported Topologies Linear and Device Level Ring (DLR) Via Embedded Switch Technology on private side
Configuration Interface Web browser (HTTP) Set public/private IPs, subnets, and NAT rules
Mounting DIN-rail or panel mount IP20-class; must be installed inside a protected enclosure
Intended Protocol EtherNet/IP / CIP Native integration with Allen-Bradley PLC architectures

Full technical specifications are available on the product page at LeadTime.ca.

1783-NATR Variant and Alternative Comparison

Device Type NAT Support Max Mappings Firewall / VPN VLAN / Layer 3 Best For
Allen-Bradley 1783-NATR 1:1 NAT Up to 32 No No OEM machine isolation on Rockwell EtherNet/IP networks
Industrial Security Router (Rockwell-recommended) NAT plus firewall Varies by model Yes Varies Applications requiring cybersecurity enforcement at network boundary
Managed Layer 3 Industrial Switch NAT varies by model Varies Limited Yes Complex routing, VLAN segmentation, or more than 32 devices needing access
Vendor-agnostic Industrial NAT Router 1:1 or PAT Varies by model Some models Some models Mixed-vendor plants or where vendor lock-in to Rockwell is not acceptable

If your machine has more than 32 devices that require individual access from the plant network, or if your plant's IT security team requires firewall policy enforcement at the machine boundary, the 1783-NATR is not the right selection — check the product page at LeadTime.ca or contact the team to discuss which industrial security router or managed switch fits your architecture.

Expert Verdict: Is the 1783-NATR Right for Your Project?

The Allen-Bradley 1783-NATR earns its place in Rockwell-centric machine architectures by doing one thing exceptionally well: providing clean, stable 1:1 NAT between a fixed private machine subnet and a plant control network, with native EtherNet/IP compatibility and DLR topology support built in. For OEM machine builders who ship identical units to multiple customer sites, and for system integrators who need to integrate skid systems into plants with tightly controlled IP addressing, this device eliminates the readdressing burden at commissioning without introducing complexity. The web-based configuration is accessible to controls engineers without deep networking backgrounds, and the 24 VDC industrial power supply and DIN-rail form factor fit directly into standard machine control panels. Engineers at plants already standardized on Allen-Bradley PLCs will find that diagnostics, documentation, and support all align with their existing Rockwell toolset.

The honest limits of the 1783-NATR are equally important to state. The 32-mapping ceiling is a real constraint — if your machine has a large I/O footprint with many independently addressed devices, and your plant team wants direct access to all of them, you may hit this limit during design. The device provides no firewall inspection, no VPN tunneling, no port address translation, and no VLAN routing. Projects where an IT or OT security team requires enforced perimeter security at the machine boundary need an industrial security router or firewall appliance, not a NAT device. Similarly, if your network infrastructure is mixed-vendor or if your organization has standardized on a different networking vendor, there are functionally comparable NAT routers available that do not lock you into the Rockwell ecosystem.

From a procurement standpoint, the 1783-NATR is a well-established catalog item distributed through the Rockwell Automation channel. Lead times and stock levels vary by region and market demand — during periods of high automation project activity, even standard catalog items can carry extended lead times. Buying through a specialist industrial distributor gives you real-time stock visibility, the ability to confirm whether the 1783-NATR or an alternative better fits your architecture, and support from staff familiar with Rockwell EtherNet/IP system design. View current availability for the Allen-Bradley 1783-NATR at LeadTime.ca — we ship worldwide and can support projects at any scale.

For volume pricing, build-of-materials review, or lead-time confirmation before committing to a project schedule, contact the LeadTime.ca team directly — we serve controls engineers and procurement teams worldwide.

What Engineers Need to Know Before Ordering the 1783-NATR

Community feedback from controls engineers on forums including PLCTalk, PLCS.net, MrPLC, and Reddit communities such as r/PLC and r/automation converges on a clear picture: the 1783-NATR is well-regarded among engineers who build Rockwell-based OEM machines, but it generates a consistent set of configuration and ordering mistakes that show up repeatedly in technical threads. Understanding these before you order will save commissioning time and prevent a return or rework.

The most common praise in community discussions centers on the practical value of shipping identical machines to different plants without touching internal IP addressing. Engineers consistently describe this as the device's defining value proposition — once the NAT concept clicks, the web-based configuration is described as straightforward and stable. The native compatibility with Allen-Bradley PLCs and Rockwell diagnostics tools is also frequently mentioned as a real advantage: troubleshooting through familiar interfaces and documentation reduces support calls. The DLR topology support is noted positively by users who already deploy ring redundancy on the machine side and want to preserve it through the network boundary device.

The recurring complaints and ordering mistakes are equally instructive. A significant number of forum threads involve engineers who purchased the 1783-NATR expecting firewall capabilities or VPN remote access — and discovered after installation that it provides neither. Others purchased it instead of a managed switch, then found they needed VLAN segmentation or advanced switching features that this device does not offer. The 32-mapping ceiling catches some users off guard when they attempt to expose a larger-than-expected device count to the plant network. Gateway misconfiguration is the most common commissioning issue: engineers report spending hours troubleshooting connectivity before realizing that PLCs and HMIs on the private side still had their default gateways set to a previous device or left at factory defaults instead of pointing to the 1783-NATR private IP. Finally, a small number of users have noted that changing IP settings without a documented rollback plan can result in losing web interface access, requiring a factory reset. These are not product flaws — they are planning and commissioning gaps that a clear IP addressing design eliminates before you power the device on for the first time.

Wiring and Installation Overview

  • Mount the 1783-NATR on a DIN-rail by opening the latch, hooking the unit over the rail, and snapping it closed — or panel-mount using the device as a drilling template with M4 or equivalent screws; confirm adequate cable clearance for Ethernet and power connections.
  • Wire the 24 VDC supply (within the approximately 20.4 to 27.6 VDC range) to the DC power connector, verify polarity before energizing, and confirm that the panel power supply has at least 150 mA of spare capacity for the 1783-NATR.
  • Connect the public Ethernet port to the plant or control network infrastructure; connect the private Ethernet ports to machine-side devices in either a linear chain or a DLR ring configuration using Embedded Switch Technology.
  • For first-time IP setup, use the default IP settings documented in the Rockwell user manual to set an engineering laptop on the same subnet, then access the web interface via browser to configure public and private IP addresses, subnet masks, and gateway settings before adding NAT rules.
  • After configuring and enabling NAT mappings, set the default gateway on every PLC, HMI, and drive on the private network to the private-side IP of the 1783-NATR; verify connectivity from the plant side using the assigned public IPs before completing commissioning.

Full wiring diagrams, port pin-out details, and step-by-step configuration procedures are provided in the Rockwell Automation user manual for the 1783-NATR. Engineers performing first-time installation should consult the current manual revision directly from the manufacturer.

Integrating the 1783-NATR with Allen-Bradley PLCs and EtherNet/IP Systems

Successful integration of the 1783-NATR into an Allen-Bradley control system depends on a consistent approach to IP addressing and gateway configuration across all devices on both sides of the NAT boundary. Every PLC, HMI, and drive on the private machine network must have its default gateway set to the 1783-NATR private-side IP address — this is the step most commonly missed during commissioning, and it is the most frequent cause of the reported "can't see my PLC from the plant network" issue. Engineering workstations and SCADA servers on the public plant side must use the translated public IP addresses defined in the NAT table to access machine devices, not the private IPs.

The 1783-NATR supports CIP communications through its 1:1 NAT function, preserving the EtherNet/IP messaging that Allen-Bradley PLCs rely on for I/O connections, produced and consumed tags, and explicit messaging. Because each private device maps to a unique public IP, CIP connections are maintained without ambiguity at the translation layer, provided that NAT rules are correctly configured and enabled. Rockwell Automation includes the 1783-NATR in its machine builder reference architectures, and it is documented as coexisting with Stratix managed switches and industrial security routers in layered network designs — the 1783-NATR handles address translation at the machine boundary, while upstream security devices handle firewall enforcement and remote access at the plant or enterprise boundary.

Wrong-Part Prevention Checklist

Before confirming your order for the Allen-Bradley 1783-NATR, work through each item on this checklist. These are the exact checks that prevent mis-specifications, return freight, and commissioning delays:

  1. Confirm you need 1:1 IP address translation (NAT) only, not a full firewall, VPN, or Layer 3 router.
  2. Verify that up to 32 NAT mappings is enough for the number of devices on the machine subnet.
  3. Check that your control system and plant network use EtherNet/IP and benefit from Device Level Ring or linear topologies.
  4. Confirm your panel provides 24 VDC (approx. 20.4…27.6 VDC) and enough spare current (≥150 mA) for the 1783-NATR.
  5. Ensure you have room and hardware for DIN-rail or panel mounting in a protected enclosure (IP20-class device).
  6. Check that your PLCs and HMIs can be reconfigured with the NAT router as their default gateway.
  7. Verify you do not require port address translation (PAT) or NAT of different TCP/UDP ports, which 1:1 NAT does not provide.
  8. Confirm you are not expecting built-in wireless, cellular, or remote VPN capabilities from this device.

If any item on this checklist does not apply cleanly to your project, contact the LeadTime.ca team before ordering — our team can help you confirm whether the 1783-NATR is the correct part or identify the right alternative for your architecture.

Frequently Asked Questions

How many devices can I expose through the 1783-NATR, and what happens when I hit the limit?

The 1783-NATR supports up to 32 individual 1:1 NAT mappings. Each mapping assigns one private IP address to one unique public IP address. If you reach the 32-mapping ceiling, additional private-side devices cannot be made accessible from the plant network through this device. The solution is to plan your device count during network design — if more than 32 devices need external access, a different network architecture or device is required before commissioning begins.

What is the default IP address and login for the 1783-NATR, and how do I recover access if I get locked out?

Default IP address and login credentials are documented in the current Rockwell Automation user manual for the 1783-NATR — consult the manual for the exact values before first access. If you lose access after changing IPs without documenting the change, the device supports a factory reset procedure using either the web interface or a DIP switch, as described in the Rockwell user manual. Always document your IP settings and test access before finalizing commissioning.

Does the 1783-NATR replace a firewall or provide any cybersecurity protection?

No. The 1783-NATR performs 1:1 Network Address Translation only — it does not inspect traffic, enforce security policies, provide VPN tunneling, or function as a firewall. If your plant IT or OT security team requires enforced perimeter security at the machine boundary, a separate industrial firewall or security router must be specified in addition to or instead of the 1783-NATR. NAT alone is not a cybersecurity control.

Can I use the 1783-NATR with non-Allen-Bradley PLCs or mixed-vendor machine networks?

The 1783-NATR is designed and documented for EtherNet/IP environments and is positioned within Rockwell Automation reference architectures. While it operates as a standard IP NAT device at the network layer and technically passes Ethernet traffic regardless of the device behind it, its configuration tools, documentation, and support ecosystem are aligned with Allen-Bradley and Rockwell Automation systems. Engineers working in mixed-vendor environments may find vendor-agnostic industrial NAT routers easier to support and document.

Does the 1783-NATR support Device Level Ring, and how should I cable it in a DLR topology?

Yes. The 1783-NATR uses Embedded Switch Technology that supports both linear and Device Level Ring topologies on the private machine side. In a DLR deployment, the private-side ports participate in the ring with machine devices while the public port connects to the plant network. Specific cabling guidance and port roles for DLR configurations are documented in the Rockwell Automation user manual — follow the current manual for port assignments and ring supervisor settings.

What are typical lead times and pricing for the 1783-NATR?

Pricing and lead times for the 1783-NATR vary by region, distributor stock levels, and current market demand. Pricing is available directly on the product page at LeadTime.ca, which reflects current distributor pricing. For lead-time confirmation, volume pricing, or project-specific availability, contact LeadTime.ca directly — we source and ship worldwide.

Why Order the 1783-NATR from LeadTime.ca

  • Global shipping: LeadTime.ca sources and ships industrial automation components to controls teams worldwide — not limited to any single region.
  • Real-time availability: current stock and lead-time visibility on the product page before you commit to a project schedule.
  • Specialist support: our team is familiar with Rockwell Automation network architectures and can help confirm whether the 1783-NATR or an alternative better fits your application before you order.
  • Volume and project pricing: contact for BOM-level pricing on multi-unit machine builds or plant-wide rollouts.
  • Hard-to-source parts: when standard distributor channels show extended lead times, LeadTime.ca works across multiple sourcing channels to support your timeline.

At-a-Glance Summary

  • The Allen-Bradley 1783-NATR is a configurable industrial Ethernet NAT router providing 1:1 Network Address Translation between a private machine subnet and a plant or control network.
  • Supports up to 32 individual 1:1 NAT mappings — plan device count before specifying.
  • Operates on 24 VDC nominal, approximately 20.4 to 27.6 VDC, with a typical current draw of approximately 150 mA.
  • Uses Embedded Switch Technology supporting both linear and Device Level Ring topologies on the private side.
  • Configured via web browser interface; configuration storage options include internal memory and SD card per Rockwell documentation.
  • DIN-rail or panel mount; IP20-class device requiring installation inside a protected enclosure.
  • Designed for EtherNet/IP and CIP communications; natively aligned with Allen-Bradley PLC and Rockwell Automation reference architectures.
  • Does not provide firewall, VPN, port address translation, VLAN routing, wireless, or cellular capabilities.
  • Ideal for OEM machine builders, system integrators, and plants standardized on Rockwell who need repeatable, low-friction machine network integration at multiple sites.
  • Current pricing and worldwide availability: LeadTime.ca product page.
