Overview of 1783-US5T by Allen-Bradley

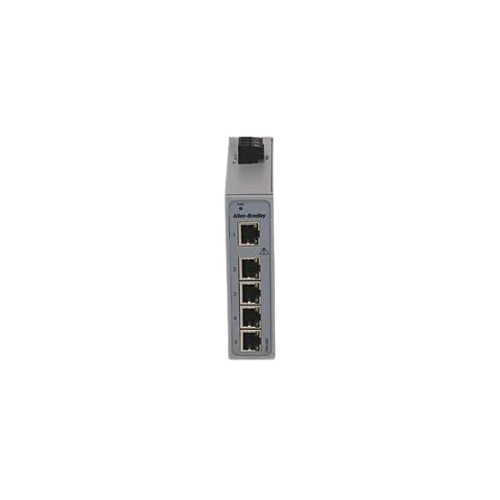

The Allen-Bradley 1783-US5T is a Stratix 2000 series unmanaged industrial Ethernet switch, featuring five fast Ethernet RJ45 copper ports that support 10/100 Mbps transmission speeds. This unmanaged switch is designed for reliable and efficient networking in industrial automation environments, providing seamless connectivity between automation devices such as PLCs, HMIs, and SCADA systems.

Key Features of Allen-Bradley - 1783-US5T

  • Five (5) Fast Ethernet copper ports with 10/100 Mbps data rate
  • Unmanaged Ethernet switch suitable for simple plug-and-play networking
  • Powered by an external power supply supporting 12-48V DC or 18-30V AC
  • Compact open-style design for DIN rail mounting in control panels
  • Low power consumption of 3.4 Watts with a nominal current of 180 mA DC / 360 mA AC
  • Can operate in ambient temperatures ranging from -10 °C to 60 °C
  • Rated for industrial vibration (2 g, 10-500 Hz) and shock (15 g) conditions
  • Provides robust communication with an IP30 environmental rating
  • Supports category 5 (Cat5) and category 5e (Cat5e) wiring standards

Technical Specs of 1783-US5T

Model 1783-US5T
Product Family Stratix 2000
Number of Ports 5 Fast Ethernet RJ45 ports
Transmission Speed 10/100 Mbps
Power Input 24 V (12–48 V DC, 18–30 V AC, 50/60 Hz)
Power Consumption 3.4 Watts max
Nominal Current 180 mA DC, 360 mA AC
Maximum Current 380 mA DC, 750 mA AC
Dimensions (HxWxD) 114.5 x 29.6 x 68 mm (4.51 x 1.17 x 2.68 in.)
Operating Temperature -10 °C to 60 °C (14 °F to 140 °F)
Vibration Rating 2 g at 10–500 Hz
Shock Rating 15 g
Mounting DIN rail
Enclosure Type Open Style (no enclosure)
Wire Size for Ground Connection 2.5 mm² (14 AWG) copper wire
Wire Size for DC Power Connection Four 0.25 mm² (12 or 24 AWG) twisted-pair copper wire

Applications / Use Case

The Allen-Bradley 1783-US5T unmanaged Ethernet switch is ideal for connecting automation devices in industrial control systems, ensuring fast and reliable data communication between PLCs, HMIs, SCADA, and other network components. Its rugged design and compact size make it suitable for installation in harsh industrial environments.
