Allen-Bradley 1769-IQ32 — CompactLogix Input Module Buyer Review

By Abdullah Zahid
15 min read

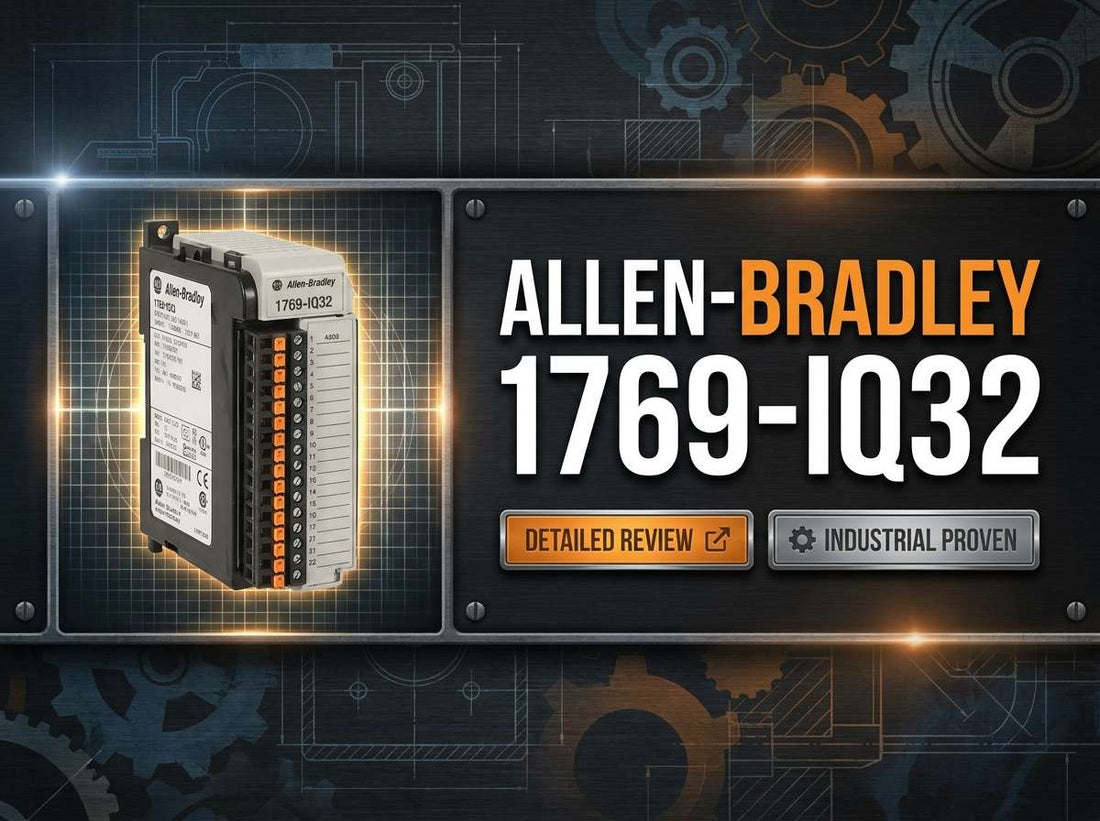

Allen-Bradley 1769-IQ32 Compact 32-point 24V DC sink source input module for CompactLogix and MicroLogix 1500

Allen-Bradley 1769-IQ32 Compact 32-point 24V dc Sink/Source Input Module — Review, Specs & Selection Guide

Controls engineers specifying digital input capacity for a CompactLogix or MicroLogix 1500 system often land on the Allen-Bradley 1769-IQ32 as the natural choice for high-density 24V DC discrete inputs — but confirming it is the right module before the purchase order goes out is what separates a smooth commissioning from an expensive return. The 1769-IQ32 is the Compact 32-point 24V dc Sink/Source Input Module in Allen-Bradley's 1769 Compact I/O family, delivering 32 digital input channels per slot with sink/source flexibility that covers both PNP and NPN field devices. If your system runs on 1769 Compact I/O and you need 24V DC discrete inputs at high density, this is almost certainly the part you are looking at.

If you have already confirmed this is the right part, check current pricing and availability for the 1769-IQ32 at LeadTime.ca — ships worldwide.

Who Should Buy the 1769-IQ32 — and Who Shouldn't

The Allen-Bradley 1769-IQ32 is the right module if all of the following apply to your project:

  • Your controller is a CompactLogix using a 1769 I/O bus, or you are expanding a MicroLogix 1500 with Compact I/O.
  • Your field devices operate at 24V DC and you need sink/source compatibility for PNP or NPN sensors, proximity switches, push-buttons, or relay contacts.
  • You genuinely need 32 discrete input points in a single module slot — not 8 or 16 — to conserve panel space or reduce slot count.
  • Your application is a mainstream discrete automation environment: conveyors, packaging lines, assembly systems, or process skids with standard 24V DC sensors.
  • Your organization values Rockwell ecosystem consistency, long-term software compatibility with Studio 5000 or RSLogix 5000, and access to authorized distributor support.

If you need 120V AC inputs, consider the 1769-IA16. If 16 input points are sufficient and you want simpler wiring density, the 1769-IQ16 is a better fit. If your project is not committed to the 1769 Compact I/O platform, weigh the full ecosystem cost before standardizing on this module.

On this page:

What the 1769-IQ32 Actually Does in a Live System

The Allen-Bradley 1769-IQ32 is the Compact 32-point 24V dc Sink/Source Input Module — a digital input module that reads the on/off state of 24V DC field devices and makes those states available as tags in Studio 5000 or RSLogix 5000 on the host CompactLogix controller, or through RSLogix 500 on a MicroLogix 1500. Its job is straightforward: it translates the electrical presence or absence of a 24V DC signal at each of its 32 input terminals into a logic 1 or 0 that the controller program can act on.

What makes the 1769-IQ32 a practical workhorse is that it does this for 32 channels simultaneously in a single 1769 module slot. For panel designers working within tight enclosure constraints, consolidating 32 inputs into one slot rather than two 16-point modules eliminates not just a slot but also the associated connectors, wiring runs, and configuration overhead. The sink/source input architecture means that the same module accepts both PNP (sourcing) and NPN (sinking) sensors without hardware changes — a significant advantage when machines use mixed sensor types across sections or when a site wants to standardize on one input module SKU for multiple machine variants.

The 1769-IQ32 is part of the 1769 Compact I/O family, which is the native local I/O bus for CompactLogix controllers and also functions as expansion I/O for MicroLogix 1500 systems. Rockwell documentation confirms both of these use cases. The module connects to the controller via the 1769 backplane — a tongue-and-groove interlocking bus that snaps modules together without a separate backplane chassis — keeping the assembly compact and eliminating the rack-based infrastructure required by larger PLC families.

Where the 1769-IQ32 Sits in a CompactLogix or MicroLogix 1500 Stack

The 1769-IQ32 connects directly to the 1769 backplane bus, sitting between the controller or power supply and any downstream I/O modules in the stack. Its position in the signal chain runs from field device to module terminal, across the backplane to the CompactLogix CPU, and into the controller's tag database where program logic reads it.

  • 24V DC field devices (proximity sensors, limit switches, push-buttons, relay contacts) wire directly to the 1769-IQ32 terminal block.
  • The 1769-IQ32 snaps onto the 1769 bus adjacent to other Compact I/O modules and the 1769 power supply module.
  • The CompactLogix controller (or MicroLogix 1500 base unit) communicates with all modules on the 1769 backplane and maps input states to controller tags automatically once the module is added to the I/O tree in Studio 5000 or RSLogix.
  • The 1769 power supply provides backplane power; the 1769-IQ32 draws its operating current from this supply, so total backplane current budget must account for all modules in the stack.
  • End caps are required at both ends of every 1769 assembly to terminate the bus — the 1769-IQ32 does not function without a properly assembled and terminated 1769 stack.

Typical Applications and Deployment Scenarios

The 1769-IQ32 is most commonly found in OEM machine builds where a CompactLogix controller is reading large numbers of 24V DC sensors. Packaging machines with arrays of product-detect sensors, conveyor systems with position and jam-detect proximity switches, and assembly stations with fixture-confirm inputs are all natural fits for a 32-point 24V DC input module.

In food and beverage plants, the 1769-IQ32 is frequently used to monitor conveyor zones, fill-level sensors, and cap-presence detectors — applications where a high channel count per module keeps the control panel compact enough for hygienic enclosure requirements. Automotive component assembly systems similarly use the module to read fixture clamp confirmation, part-present sensors, and safety gate interlock status signals (non-safety-rated).

MicroLogix 1500 installations use the 1769-IQ32 as expansion I/O when the base unit's onboard inputs are exhausted — a common scenario in retrofit projects where an existing MicroLogix 1500 is controlling a machine that has grown beyond its original I/O count. Water and wastewater skid builders also use it for reading valve position feedback, flow switch contacts, and level switch states in CompactLogix-based skid controllers.

Application Typical Deployment
Conveyor and sortation systems 32 proximity sensor inputs per module for zone detection and jam sensing in CompactLogix-based conveyor control panels
Packaging machine OEM builds Product-detect, cap-presence, and position sensors wired to 1769-IQ32 in a single-slot high-density configuration
Assembly and fixturing stations Clamp confirmation and part-present sensor inputs consolidated into one 32-point module to minimize panel footprint
MicroLogix 1500 expansion Additional discrete 24V DC inputs added to existing MicroLogix 1500 base units via 1769 expansion bus
Water and wastewater skids Valve position, flow switch, and level switch contacts read by 1769-IQ32 in a CompactLogix-based skid controller
Food and beverage processing Sensor arrays for fill level, cap detection, and conveyor tracking in hygienic enclosure-constrained panels

Key Specifications for Purchase Decisions

Parameter Value Notes
Catalog Number 1769-IQ32 Allen-Bradley / Rockwell Automation
Product Family 1769 Compact I/O For CompactLogix and MicroLogix 1500 expansion
Number of Inputs 32 digital input channels Grouped by commons; see Rockwell wiring documentation
Nominal Input Voltage 24V DC Sink/source (PNP/NPN compatible)
Operating Voltage Range 10…30V DC From Rockwell specifications; confirm against latest datasheet
Input Type Sink/Source (DC) Supports both PNP and NPN wiring configurations
Isolation 1200V AC (or equivalent DC) for 1 second From Rockwell specifications; confirm against latest datasheet
Form Factor 1769 single-wide I/O module Mounts on 35mm DIN rail or panel with 1769 end caps
Supported Controllers CompactLogix (1769-based), MicroLogix 1500 expansion Verify against Rockwell compatibility documentation for your CPU
Lifecycle Status Active or active-mature — verify current status Check Rockwell lifecycle page before large deployments or new machine standards

Full technical specifications are available on the product page at LeadTime.ca.

1769-IQ32 vs 1769-IQ16 vs 1769-IA16: Which Module Do You Actually Need?

Module Channels Voltage Input Type Best Fit Relative Cost
1769-IQ32 32 DI 24V DC Sink/Source (PNP/NPN) High-density 24V DC applications; space-constrained panels Mid-range
1769-IQ16 16 DI 24V DC Sink/Source (PNP/NPN) Lower I/O count; simpler wiring; where 32 points is more than needed Lower than IQ32
1769-IA16 16 DI 120V AC AC input Legacy AC field devices; 120V control circuits Similar range

If your I/O count genuinely requires 32 points per slot and your field devices are 24V DC, the 1769-IQ32 is the correct choice. If you are working with a 120V AC control circuit, the 1769-IA16 is the module you need — not the 1769-IQ32. For applications where 16 points is sufficient and wiring simplicity matters more than density, the 1769-IQ16 reduces terminal block congestion without sacrificing platform compatibility. Check current availability and pricing for the 1769-IQ32 at LeadTime.ca — and contact the team if you need help confirming the right variant for your system.

Expert Verdict on the Allen-Bradley 1769-IQ32

The Allen-Bradley 1769-IQ32 earns its place as a standard part number on a lot of BOM templates for one simple reason: it does exactly what it needs to do, consistently, in systems where the 1769 Compact I/O platform is already the foundation. Controls engineers and OEM machine builders who have standardized on CompactLogix will find it delivers 32 channels of dependable 24V DC discrete input coverage in a single slot, with sink/source flexibility that removes the need to specify separate modules for PNP and NPN sensor populations. For any organization that is already committed to the Rockwell ecosystem and needs to pack a lot of sensor inputs into a compact panel, this module is a sensible, well-understood choice backed by a large installed base and mature software integration in Studio 5000.

Where the 1769-IQ32 has real limits is equally worth stating plainly. It carries a cost premium relative to 32-point digital input modules from non-Rockwell ecosystems, which matters on cost-driven OEM builds where the platform is not yet locked in. The high wiring density of 32 conductors on a single removable terminal block creates genuine risk in shops where wiring discipline is inconsistent — sink/source confusion and miswired commons are the most frequently reported field problems, and they become harder to debug when 32 channels are tightly packed. Applications requiring built-in safety-rated input functionality, advanced per-channel diagnostics, or AC input capability need to look at different modules: the 1769-IA16 for 120V AC, or safety-rated I/O products outside the standard 1769 family. Engineers evaluating migration to newer Rockwell platforms should also check the current lifecycle status of the 1769 family before locking it into a new machine standard that will run for a decade.

On the procurement side, the 1769-IQ32 is widely available through authorized Allen-Bradley distributors worldwide, but like most Rockwell hardware, it can see lead time variability during periods of high demand or supply chain pressure. Buying through a specialist automation distributor — rather than a generic marketplace — gives you access to real-time stock information, backplane loading verification, and the kind of application-specific guidance that prevents costly wrong-part orders. View current availability and pricing for the 1769-IQ32 at LeadTime.ca, where the team can confirm compatibility with your specific CompactLogix or MicroLogix 1500 configuration before you commit to an order.

For volume pricing, project quantity quotes, or to confirm lead time before it affects your build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1769-IQ32

Community feedback collected from forums including Reddit r/PLC, PLCTalk, PLCS.net, MrPLC, and distributor Q&A sections tells a consistent story about the 1769-IQ32: it is the kind of hardware engineers describe as boring and reliable. Users report modules running for years in CompactLogix systems with minimal issues, and the recurring sentiment is that when problems do occur, they almost always trace back to wiring or ordering errors rather than module failures. The convenience of getting 32 discrete inputs in one slot is frequently cited as a deciding factor, particularly when retrofitting existing machines where rack space is already consumed.

The most consistent complaints in community discussions center on two issues that experienced practitioners take seriously. First, the wiring density of a fully populated 32-point terminal block is genuinely demanding — practitioners report that cramped terminals and a fiddly removable terminal block make field wiring and troubleshooting more time-consuming than on 16-point modules. Second, sink/source and PNP/NPN confusion comes up repeatedly. Multiple forum threads describe technicians wiring PNP sensors to sinking commons or NPN sensors to sourcing inputs and then spending hours diagnosing inputs that never activate or that read inverted logic states. The fix is always the same: study the Rockwell wiring diagram before starting, confirm sensor type, and standardize on one wiring convention per input group. The price premium relative to non-Rockwell 32-point input modules also draws criticism, though most practitioners in the Rockwell ecosystem accept it as a known trade-off for ecosystem consistency and software integration.

Three ordering mistakes come up repeatedly in community discussions and are worth treating as pre-order checkpoints. Ordering the 1769-IQ32 when the application actually requires 120V AC inputs — only discovered at commissioning when field wiring does not match — is the most disruptive. Assuming all 1769 IQ-series modules are equivalent and mixing up the 16-point and 32-point variants causes panel layout and I/O count problems that require rework. And forgetting to verify 1769 Compact I/O compatibility with the specific controller in the project has left buyers with hardware that does not integrate at all. When community feedback on a specific part is sparse or a project is outside standard application territory, specialist distributor advice fills the gap that forums cannot. The wrong-part prevention checklist below is the structured version of what experienced engineers check before every 1769-IQ32 order.

Wiring and Installation Overview

The following points cover the key requirements for installing and wiring the 1769-IQ32. For full wiring diagrams, terminal assignments, torque specifications, and conductor size limits, always refer to the current Rockwell Automation installation instructions for the 1769-IQ32.

  • The 1769-IQ32 uses a removable terminal block; power down the system and verify isolation before wiring or removing the terminal block from the module.
  • Inputs are grouped into commons on the terminal block — confirm the grouping from the Rockwell wiring diagram and wire sensor commons to the correct common terminals for each group to avoid cross-group wiring errors.
  • Sink/source wiring depends on sensor type: PNP (sourcing) sensors connect with the output driving the input terminal positive; NPN (sinking) sensors connect with the sensor output pulling the input terminal toward common. Refer to Rockwell's wiring examples for each configuration before terminating conductors.
  • The module snaps onto the 1769 bus using the tongue-and-groove design; verify full backplane connector engagement before applying power, and confirm the 1769 assembly is properly terminated with end caps at both ends.
  • After power-up, verify module health and channel status using the front-panel LEDs before loading the controller program — green module status LED and channel LEDs responding to sensor actuation confirm correct wiring before software commissioning begins.

Wrong-Part Prevention Checklist

Before placing your order for the Allen-Bradley 1769-IQ32, work through each item on this checklist. These are the exact points that prevent costly wrong-part orders and commissioning surprises:

  1. Confirm controller/platform supports 1769 Compact I/O (CompactLogix with 1769 bus or MicroLogix 1500 expansion base).
  2. Verify field devices are 24V DC and that sink/source wiring matches the sensor type (PNP/NPN).
  3. Check you truly need 32 input points in one module; otherwise consider 16-point options to simplify wiring.
  4. Verify this is an input module (1769-IQ32), not an output or AC input module (avoid confusing with 1769-IA16, 1769-OB32, etc.).
  5. Check power supply distance rating and overall 1769 backplane current consumption to avoid loading issues.
  6. Confirm environmental and certification requirements (temperature range, enclosure rating, industry standards) are met by 1769-IQ32.
  7. Ensure terminal style and wiring density match your shop standards (1769 removable terminal block, conductor size limits).
  8. Check lifecycle status and delivery time with a distributor if designing a new machine standard.

If any item on this checklist raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca team before ordering — confirming compatibility takes minutes; resolving a wrong-part order takes weeks.

Frequently Asked Questions

Is the 1769-IQ32 a sinking input module, a sourcing input module, or both — and what does that mean for my PNP and NPN sensors?

The 1769-IQ32 is a sink/source input module, meaning it accepts both sinking (NPN) and sourcing (PNP) field devices without hardware modification. The wiring configuration differs by sensor type: PNP sensors drive the input terminal positive relative to common, while NPN sensors pull the input terminal toward common. Rockwell provides specific wiring examples for each configuration in the 1769-IQ32 installation instructions — always review those diagrams before terminating conductors, as incorrect wiring is the most common source of inputs that do not activate.

Can I use the 1769-IQ32 as expansion I/O on a MicroLogix 1500, and does it configure the same way as on a CompactLogix?

Yes — Rockwell documentation confirms the 1769-IQ32 can be used as expansion I/O on a MicroLogix 1500 system in addition to its role as local I/O on CompactLogix controllers. The configuration process differs: on CompactLogix you add the module in Studio 5000 or RSLogix 5000 and access input data through controller tags, while on MicroLogix 1500 you configure it through RSLogix 500. Confirm your specific MicroLogix 1500 base unit and firmware support the 1769 expansion bus before ordering.

What is the difference between the 1769-IQ32 and the 1769-IQ16, and how do I decide which one to order?

The 1769-IQ32 provides 32 digital input channels in a single 1769 slot; the 1769-IQ16 provides 16 channels. Both operate at 24V DC with sink/source capability and share the same platform compatibility. Choose the 1769-IQ32 when panel space is constrained and you need to consolidate input capacity — 32 points per slot versus two separate 16-point modules. Choose the 1769-IQ16 when your I/O count is 16 or fewer and you want a less densely populated terminal block that is easier to wire and troubleshoot in the field.

My inputs are not turning on even though the field device shows 24V — what should I check first?

The most common causes are sink/source wiring mismatches and incorrect common connections. Verify that the sensor type (PNP or NPN) matches the wiring configuration at the terminal block, and confirm that the common terminal for each input group is wired correctly. Use a multimeter to measure voltage between the input terminal and the module common — you should see a voltage change that crosses the input threshold when the sensor activates. If individual channel LEDs on the module face are not responding, the issue is almost always in the field wiring rather than the module itself.

What should I check regarding power supply distance rating before finalizing my 1769 I/O stack layout?

Rockwell specifies distance rating rules for 1769 Compact I/O stacks that limit how far from the power supply a given module can be placed, based on the cumulative current draw of all modules in the stack. Exceeding the distance rating can cause intermittent I/O behavior or module faults that are difficult to diagnose. Use Rockwell's 1769 system design documentation to calculate backplane current consumption for your complete module list and verify that the 1769-IQ32 placement within the stack complies with the distance rating rules for your power supply.

Is the 1769-IQ32 still in active production, and is it safe to use as a machine standard for new builds?

The 1769-IQ32 has been part of the widely deployed 1769 Compact I/O family for an extended period and is referenced in current Rockwell literature, but lifecycle status for any Rockwell product should be verified directly against Rockwell's published lifecycle information before committing to a new machine standard. If the module is approaching active-mature or end-of-life status, it is worth evaluating whether a migration path to a newer Rockwell I/O family is appropriate for projects with long deployment horizons. A specialist distributor can provide current lifecycle context and alternative strategies if needed.

Why Order the 1769-IQ32 from LeadTime.ca

  • LeadTime.ca ships the Allen-Bradley 1769-IQ32 worldwide — not limited to any single country or region.
  • The team can confirm 1769-IQ32 compatibility with your specific CompactLogix or MicroLogix 1500 configuration before your order is placed, reducing wrong-part risk.
  • Real-time stock status and honest lead time expectations are available directly from the team — not estimated delivery windows from a generic marketplace.
  • Volume pricing and project quantity quotes are available for OEMs and plant buyers stocking multiple units.
  • Specialist distributors provide sourcing alternatives when the primary catalog number is on extended lead time, protecting your build schedule.

1769-IQ32 At-a-Glance Summary

  • Catalog number: Allen-Bradley 1769-IQ32 — Compact 32-point 24V dc Sink/Source Input Module.
  • 32 digital input channels in a single 1769 Compact I/O slot — higher density than 16-point alternatives.
  • Operating voltage range: 10…30V DC; nominal 24V DC.
  • Sink/source capability supports both PNP and NPN 24V DC field devices from the same module.
  • Isolation: 1200V AC (or equivalent DC) for 1 second between field and backplane.
  • Compatible platforms: CompactLogix controllers on a 1769 I/O bus and MicroLogix 1500 as expansion I/O — confirmed by Rockwell documentation.
  • Form factor: 1769 single-wide module; mounts on 35mm DIN rail or panel with standard 1769 end caps.
  • Primary ordering risks: AC vs DC module confusion, 16-point vs 32-point mix-up, sink/source wiring errors, and backplane distance rating violations.
  • Pricing is available on the product page; contact LeadTime.ca for volume or project quotes.
  • Ships worldwide from LeadTime.ca — verify lifecycle status with a specialist distributor before standardizing on new machine builds.
