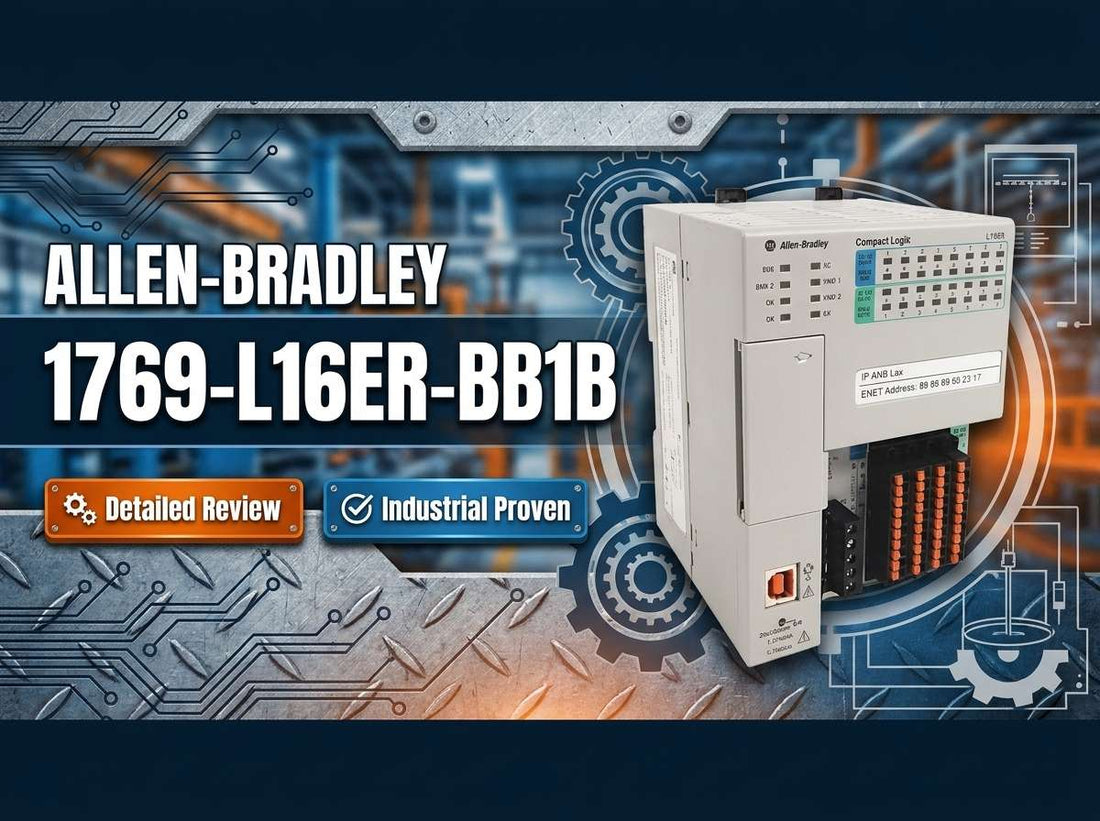

Allen-Bradley 1769-L16ER-BB1B CompactLogix 5370 L1 controller with embedded I/O for OEM machine applications

Allen-Bradley 1769-L16ER-BB1B CompactLogix 5370 L1 Controller — Specs, Pricing Context and Selection Guide

Controls engineers and OEM machine designers searching for the Allen-Bradley 1769-L16ER-BB1B are typically at the same crossroads: they need a full Logix-platform controller in a compact footprint, with dual EtherNet/IP ports and enough embedded I/O to handle a modest machine without a large chassis. The 1769-L16ER-BB1B is a CompactLogix 5370 L1 programmable automation controller with 16 embedded 24 VDC sinking digital inputs, 16 embedded 24 VDC sourcing digital outputs, 384 KB of user memory, and two EtherNet/IP ports supporting Device Level Ring topology — all in a panel-friendly package that expands through 1734 POINT I/O modules. The decision usually comes down to confirming that 4 EtherNet/IP nodes and up to 6 POINT I/O modules are enough for current and future needs, and that the site is standardized on Studio 5000 Logix Designer.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 1769-L16ER-BB1B — and Who Should Step Up

The 1769-L16ER-BB1B is the right controller when all of the following are true:

  • Your local digital I/O requirement fits within 16 sinking 24 VDC inputs and 16 sourcing 24 VDC outputs, plus a maximum of 6 POINT I/O (1734) expansion modules.
  • Your EtherNet/IP network connects no more than 4 nodes — counting drives, HMIs, remote I/O adapters, and peer controllers combined.
  • Program and data complexity falls within 384 KB of user memory, with realistic headroom for future revisions.
  • Your panel supplies 24 VDC only, with external overcurrent protection included in the design.
  • Your team programs in Studio 5000 Logix Designer and is already working within the Allen-Bradley ecosystem.

If your machine is likely to grow beyond 4 EtherNet/IP nodes or will require analog, motion, or safety integration at scale, the 1769-L18ER-BB1B or a larger CompactLogix 5370 L2 or L3 variant is the more appropriate starting point. Very small systems with tight budgets and no EtherNet/IP networking requirement may be better served by the Micro830 or Micro850 series.

On this page:

What the 1769-L16ER-BB1B Does in a Real Machine Architecture

The 1769-L16ER-BB1B is the main controller on a machine — it runs the ladder or structured text logic, manages the EtherNet/IP network, and handles local digital I/O, all from a single unit that mounts directly in the panel without requiring a separate I/O chassis or backplane. The CompactLogix 5370 L1 family was developed specifically for OEM machine builders who need genuine Logix-platform capability without the physical size or cost of a larger controller.

What separates the 1769-L16ER-BB1B from a micro-class PLC is that it runs the same Studio 5000 Logix Designer environment used across the entire Allen-Bradley portfolio, which means project code, function block libraries, and Add-On Instructions developed for larger CompactLogix or ControlLogix controllers can be reused directly. The embedded 16 inputs and 16 outputs eliminate the need for a separate 24 VDC digital I/O module in many compact machine designs, and the POINT I/O backplane lets the system grow to up to 6 additional 1734-series modules — covering analog, additional digital, or specialty I/O — without adding a separate chassis or rack.

The 384 KB of user memory is well-suited to machines with moderate sequence complexity. It accommodates multi-step motion interlocks, recipe management for a small number of products, and HMI tag structures without pressure, though applications with heavy data logging or unusually large Add-On Instruction libraries should evaluate memory headroom carefully before committing to this model.

Typical System Architecture

In most deployments, the 1769-L16ER-BB1B sits at the top of a machine-level Ethernet network, acting as the controlling node for all downstream devices. A typical component chain looks like this:

  • Plant SCADA or DCS connects over Ethernet to the controller's primary port, or the controller participates in a Device Level Ring using both ports on a ring segment.
  • The 1769-L16ER-BB1B manages up to 4 EtherNet/IP nodes — commonly a PanelView HMI, one or two Allen-Bradley drives, and a remote POINT I/O adapter on the machine.
  • Embedded 24 VDC digital inputs wire directly to pushbuttons, proximity sensors, and limit switches on the machine frame.
  • Embedded 24 VDC sourcing digital outputs drive solenoid valves, pilot lights, and small relay coils through the integrated output terminals.
  • Up to 6 POINT I/O (1734) modules mount on the integrated backplane, adding analog inputs, analog outputs, or additional digital I/O to cover sensors and actuators beyond the embedded point count.

Typical Applications and Deployment Scenarios

OEM machine builders account for the largest share of 1769-L16ER-BB1B deployments. A standalone packaging machine with an HMI, a variable-frequency drive on the main conveyor, and a handful of photo-eyes and pneumatic outputs is a near-perfect match: the embedded I/O handles the field devices, one EtherNet/IP node goes to the drive, one to the HMI, and a POINT I/O analog input module on the backplane manages a pressure sensor or encoder feedback — all within the 4-node and 6-module limits.

Compact pump and process skids in food and beverage or water treatment applications benefit from the same combination: 24 VDC field devices, an EtherNet/IP drive for the pump motor, and an HMI for operator setpoints, with the dual Ethernet ports enabling a DLR ring that adds network resilience without a managed switch.

The 1769-L16ER-BB1B is also a well-established upgrade path for facilities retiring MicroLogix 1100 or 1400 systems and SLC 5/03 or 5/04 controllers. The step to Logix architecture brings modern structured programming, better diagnostics, and EtherNet/IP connectivity, while the compact L1 footprint fits inside panels that were built around the smaller legacy hardware.

Material handling cells — small conveyors, diverters, or pick-and-place stations — use the controller for coordinating digital device sequences, with POINT I/O covering the analog weight or position signals if needed. Training and education environments favor the 1769-L16ER-BB1B because it provides real EtherNet/IP networking and full Studio 5000 programming in a configuration that fits on a desktop demonstration panel.

Application Typical Deployment
Standalone OEM packaging machine Controller plus embedded I/O, one EtherNet/IP drive, one PanelView HMI, POINT I/O analog modules on backplane
Compact pump or process skid Dual Ethernet DLR ring, drive on EtherNet/IP, HMI for operator setpoints, 24 VDC field devices on embedded I/O
Material handling cell Digital conveyors, diverters, and sensors on embedded I/O; POINT I/O for analog position or weight signals
Brownfield MicroLogix or SLC upgrade Drop-in controller upgrade to Logix platform; reuses existing 24 VDC field wiring and panel structure
Training and education rig Compact panel with embedded I/O, EtherNet/IP drive simulation, and full Studio 5000 environment for hands-on learning

Key Specifications at a Glance

Parameter Value Ordering Note
Catalog number 1769-L16ER-BB1B Verify exact suffix before ordering — do not substitute L18ER or other variants
Product family CompactLogix 5370 L1 Uses POINT I/O (1734) backplane — not compatible with traditional 1769 I/O modules
User memory 384 KB Evaluate program size and data logging needs; allow headroom for future revisions
Embedded digital inputs 16 x 24 VDC sinking Field devices must be sourcing type to match sinking input wiring
Embedded digital outputs 16 x 24 VDC sourcing Confirm load voltage and current; external protection required
Control power 24 VDC only External 24 VDC supply and overcurrent protection must be included in the panel BOM
Ethernet ports 2 x EtherNet/IP with DLR capability Supports linear and Device Level Ring topologies
EtherNet/IP nodes Up to 4 Count every connected device — drives, HMIs, remote I/O adapters, and peer controllers all consume nodes
POINT I/O expansion Up to 6 POINT I/O (1734) modules Plan current and future I/O needs before committing to this capacity limit
Operating temperature Approx. -20 °C to +60 °C Verify exact range in the current Rockwell datasheet for your installation environment

Full technical specifications are available on the product page at LeadTime.ca.

1769-L16ER-BB1B vs. Key CompactLogix and Compact Controller Alternatives

Choosing between the 1769-L16ER-BB1B and adjacent models is primarily a capacity decision. The table below compares the most frequently evaluated options side by side.

Model Family Embedded I/O EtherNet/IP Nodes Expansion User Memory Best Fit
1769-L16ER-BB1B CompactLogix 5370 L1 16 DI / 16 DO (24 VDC) Up to 4 Up to 6 POINT I/O modules 384 KB Compact OEM machines with modest I/O and a few EtherNet/IP devices
1769-L18ER-BB1B CompactLogix 5370 L1 18 DI / 18 DO (24 VDC) Higher than L16ER POINT I/O backplane Higher than L16ER Machines needing slightly more embedded I/O or node capacity than the L16ER provides
CompactLogix 5370 L2 CompactLogix 5370 L2 Varies by model Higher than L1 series 1769 or POINT I/O depending on variant Higher than L1 series Mid-size machines needing more nodes, memory, or mixed I/O types
CompactLogix 5370 L3 CompactLogix 5370 L3 None embedded Higher than L1 and L2 1769 I/O backplane (chassis-based) Higher than L1 and L2 Larger systems, integrated motion axes, high I/O density with traditional 1769 modules
Micro850 Micro800 series Varies by base unit Limited EtherNet/IP Plug-in and expansion I/O modules Lower than CompactLogix Very small systems where budget is the primary constraint and Logix architecture is not required

If your device count is already at or approaching 4 EtherNet/IP nodes, or if the machine roadmap includes additional drives or remote I/O, the 1769-L18ER-BB1B or a CompactLogix 5370 L2 is the safer long-term investment — check current availability at LeadTime.ca and the team can help you compare lead times across variants.

Expert Verdict: Is the 1769-L16ER-BB1B the Right Choice for Your Application?

The 1769-L16ER-BB1B earns its place in the CompactLogix lineup by delivering genuine Logix-platform performance — full Studio 5000 Logix Designer programming, EtherNet/IP with Device Level Ring, and a complete embedded I/O complement — in one of the smallest form factors in the Allen-Bradley controller portfolio. For a controls engineer or OEM machine designer who is already standardized on Allen-Bradley drives, PanelView HMIs, and the Studio 5000 environment, this controller eliminates the integration work that comes with mixing ecosystems while keeping the panel footprint small. The 16 embedded sinking inputs and 16 embedded sourcing outputs cover the majority of compact machine applications directly, and the POINT I/O backplane handles the remainder without requiring a separate chassis.

The honest limitation is capacity, and it matters. With a ceiling of 4 EtherNet/IP nodes and 6 POINT I/O modules, machines that grow — or that were never quite as simple as initially scoped — will reach that ceiling faster than expected. If there is any realistic chance the machine will add a second drive, a remote I/O drop, or additional analog instrumentation, the 1769-L18ER-BB1B or a CompactLogix 5370 L2 variant deserves serious evaluation before committing the BOM. Projects moving from ControlLogix or larger CompactLogix environments, and those requiring integrated motion or safety, should step up without hesitation. Buyers driven primarily by hardware and licensing cost who do not require EtherNet/IP or Logix architecture will find the Micro850 a more proportionate solution.

From a procurement standpoint, the 1769-L16ER-BB1B is a well-established catalog number with reasonable availability through authorized Allen-Bradley distributors in normal supply conditions, though lead times can extend during periods of broad industrial demand. Ordering through a specialist automation distributor rather than a generic channel matters here because confirming the exact firmware revision, validating your Studio 5000 license compatibility, and checking POINT I/O expansion against your I/O list are steps that prevent costly commissioning delays — not steps that generic channels reliably support. View current pricing and lead time at LeadTime.ca, where the team can validate your configuration before you commit to a purchase order.

For volume pricing, project BOM review, or to confirm lead time before locking in a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About the CompactLogix 5370 L1

Across communities including Reddit r/PLC, PLCTalk, PLCS.net, MrPLC, and Rockwell user forums, the dominant sentiment around the CompactLogix 5370 L1 family — and the 1769-L16ER-BB1B specifically — is genuinely positive, with one consistent theme: engineers appreciate getting the full Logix programming experience in a controller that fits a machine panel rather than a large cabinet. Users frequently describe it as the right balance between capability and footprint for OEM applications, and integration with EtherNet/IP drives and PanelView terminals is consistently cited as smoother than cross-brand alternatives. The dual Ethernet ports and DLR support receive particular praise from engineers building machine-level networks, where ring topology eliminates the need for a managed switch and adds resilience without adding hardware cost.

The complaints that come up repeatedly are specific and practical rather than fundamental. The 4-node EtherNet/IP ceiling is the most common frustration: engineers who specified the controller against an initial design scope frequently find that a machine revision — an additional drive, an added sensor network, or a customer-requested HMI addition — pushes past the limit and forces a controller swap. Studio 5000 licensing cost and complexity relative to competing platforms is a recurring complaint, particularly from engineers who also work with lower-cost PLC families and feel the licensing overhead is disproportionate for small machine applications. Cost of the hardware itself, benchmarked against comparable controllers from other brands, also comes up with some regularity.

Ordering mistakes in community discussions cluster around two issues. The most reported error is specifying the 1769-L16ER-BB1B based on I/O count alone without checking the EtherNet/IP node limit, discovering only at commissioning that the device count exceeds what the controller supports. The second is assuming the controller works with traditional 1769 backplane I/O modules — a misunderstanding that causes redesign late in the project when the POINT I/O requirement is discovered. A smaller number of users report commissioning delays traced to Studio 5000 version and firmware revision mismatches that were not caught at ordering. These are preventable mistakes, and each one is addressed directly in the checklist below.

Wiring and Installation Overview

The following points cover the key requirements and pre-installation checks. Full wiring diagrams, terminal specifications, and installation procedures are provided in the Rockwell Automation installation instructions for the 1769-L16ER-BB1B — always follow the current manufacturer documentation for your firmware revision.

  • The controller requires 24 VDC only — confirm the panel power supply is correctly rated and that external overcurrent protection devices are included in the design per applicable electrical codes.
  • Embedded digital inputs are sinking type — field devices must be wired as sourcing (PNP) sensors or dry contacts tied to the 24 VDC rail; verify polarity before connecting.
  • Embedded digital outputs are sourcing type — confirm the voltage and current draw of each connected load against the output specifications and include external protection for inductive loads.
  • Both Ethernet ports support either a linear daisy-chain or a Device Level Ring topology — select industrial-grade Ethernet cable and, for linear topologies, industrial unmanaged or managed switches rated for the environment.
  • Before applying power, perform a visual inspection of all terminal connections, verify grounding continuity, and confirm Ethernet cables are correctly seated and strain-relieved per Rockwell mounting clearance recommendations.

POINT I/O Expansion and Compatible Modules

The 1769-L16ER-BB1B includes an integrated POINT I/O backplane that accepts up to 6 modules from the Allen-Bradley 1734 POINT I/O series. This is the only supported expansion path — the controller does not connect to the traditional 1769 I/O backplane used by larger CompactLogix L3 controllers. The following module types are commonly used with this controller family:

  • 1734-IB8 — 8-point 24 VDC sinking digital input module for additional discrete field devices
  • 1734-OB8 — 8-point 24 VDC sourcing digital output module for additional actuators and pilot devices
  • 1734-IE4C — 4-channel current analog input module for 4-20 mA sensors such as pressure transmitters and flow meters
  • 1734-OE2C — 2-channel current analog output module for 4-20 mA signal conditioning to drives or control valves
  • 1734-IB8S / 1734-OB8S — Safety-rated digital I/O modules for applications integrating safety functions into the POINT I/O backplane (requires appropriate safety controller configuration)
  • 1734-AENT — POINT I/O EtherNet/IP adapter, used when a remote POINT I/O bank is connected over Ethernet rather than through the integrated backplane

Note that each POINT I/O module on the integrated backplane does not consume an EtherNet/IP node — the 4-node limit applies to separate EtherNet/IP devices connected through the Ethernet ports, not to the backplane expansion modules.

What to Verify Before You Order the 1769-L16ER-BB1B

The following checklist is drawn directly from pre-purchase validation practice for this controller. Work through every item before submitting a purchase order — skipping any one of these is the most common cause of costly ordering errors and commissioning delays with this part number.

  1. Confirm control voltage is 24 VDC only and that the panel has a suitable 24 VDC supply with external protection.
  2. Verify the required number and type of local digital I/O (sinking inputs / sourcing outputs) match the machine design.
  3. Check that up to 4 EtherNet/IP nodes and up to 6 POINT I/O modules are sufficient for current and future expansion.
  4. Ensure the team uses Studio 5000 Logix Designer and has the correct license revision for the controller firmware.
  5. Confirm environmental ratings (temperature, vibration, enclosure type) meet site conditions.
  6. Verify you are ordering the correct CompactLogix family (5370 L1 1769-L16ER-BB1B, not L18 or a different L-series variant).

If any item on this list raises a question, contact the LeadTime.ca team before ordering — confirming these details takes minutes and avoids week-long delays at commissioning.

Frequently Asked Questions

How many EtherNet/IP devices can I connect to the 1769-L16ER-BB1B, and what counts as a node?

The 1769-L16ER-BB1B supports up to 4 EtherNet/IP nodes. Every separately addressed EtherNet/IP device consumes one node — this includes drives, remote I/O adapters, PanelView HMIs, and peer controllers. POINT I/O modules installed on the integrated backplane do not consume nodes. If your device count reaches or exceeds 4, evaluate the 1769-L18ER-BB1B or a CompactLogix 5370 L2 variant before ordering.

Can I use standard 1769 I/O modules with this controller, or is it POINT I/O only?

The 1769-L16ER-BB1B uses a POINT I/O (1734) backplane exclusively and is not compatible with traditional 1769 chassis I/O modules. This is one of the most common ordering mistakes with this part number. If your design relies on 1769 I/O modules, you need a CompactLogix 5370 L3 controller with a 1769 backplane, not an L1.

Which Studio 5000 version supports the 1769-L16ER-BB1B firmware, and how do I confirm compatibility?

Studio 5000 Logix Designer version compatibility depends on the specific firmware revision shipped with or loaded onto the controller. Rockwell Automation publishes a compatibility matrix linking firmware revisions to Studio 5000 major and minor versions — consult this matrix and align your project, site software, and any future firmware updates before procuring. Mismatches between installed Studio 5000 version and controller firmware are a documented cause of commissioning delays with CompactLogix 5370 controllers.

Is the 1769-L16ER-BB1B a viable replacement for an existing MicroLogix 1400 or SLC 5/04?

The 1769-L16ER-BB1B is a functional upgrade path in terms of capability — it provides Logix architecture, EtherNet/IP connectivity, and a modern programming environment that MicroLogix and SLC controllers do not offer. However, it is not a drop-in hardware replacement: wiring, I/O addressing, and program logic must be redesigned for the Logix platform, and Studio 5000 licensing will be required. For applications where the MicroLogix footprint, wiring configuration, and 24 VDC I/O profile align with the L16ER-BB1B specifications, the migration is straightforward in engineering terms but requires planned project time.

What do the status LEDs indicate, and how do I diagnose a major fault on the controller?

The 1769-L16ER-BB1B has status LEDs for controller run/fault state, Ethernet link and activity on each port, and I/O status. A solid red fault LED indicates a major recoverable or non-recoverable fault — connect to the controller in Studio 5000, navigate to the controller properties fault log, and read the fault code to identify the cause. Common sources include program execution errors, I/O connection timeouts, and configuration mismatches with POINT I/O modules. Always check the Rockwell Automation fault code reference for the specific fault type before attempting a clear.

What are typical lead times for the 1769-L16ER-BB1B and what are my options if it is not in stock?

In normal supply conditions, the 1769-L16ER-BB1B is typically stocked or available on short lead time through authorized Allen-Bradley distributors. During periods of tightened industrial supply, lead times can extend significantly. If the unit is constrained, options include equivalent-specification refurbished units from reputable resellers (with attention to firmware revision and warranty terms), or engineering evaluation of the 1769-L18ER-BB1B if the application allows a slight capacity increase. Contact LeadTime.ca for current stock status and realistic lead time before committing to a build schedule.

Why Order the 1769-L16ER-BB1B From LeadTime.ca

  • LeadTime.ca ships worldwide — no regional restrictions on sourcing or quoting.
  • Specialist automation focus means pre-order configuration checks, firmware compatibility questions, and variant comparisons are handled by people who know the CompactLogix product line.
  • Hard-to-find and constrained Allen-Bradley catalog numbers are a core sourcing capability — not an afterthought.
  • Volume pricing and project BOM support are available directly through the contact team.
  • Fast response on lead time inquiries and alternative part options when the primary catalog number is on extended lead.

At-a-Glance Summary

  • Catalog number: 1769-L16ER-BB1B — CompactLogix 5370 L1 PAC with embedded I/O
  • Embedded I/O: 16 x 24 VDC sinking digital inputs and 16 x 24 VDC sourcing digital outputs
  • User memory: 384 KB — suitable for small to mid-size machine applications
  • EtherNet/IP: 2 ports with Device Level Ring capability, maximum 4 connected EtherNet/IP nodes
  • Expansion: Up to 6 POINT I/O (1734) modules on the integrated backplane — not compatible with 1769 backplane modules
  • Power requirement: 24 VDC only — external supply and overcurrent protection required
  • Operating temperature: Approx. -20 °C to +60 °C — verify exact range in current Rockwell datasheet
  • Programming environment: Studio 5000 Logix Designer — confirm license revision matches controller firmware
  • Primary use case: Compact OEM machines, packaging cells, pump skids, and brownfield Logix upgrades with modest I/O and few EtherNet/IP devices
  • Key limit to confirm before ordering: 4 EtherNet/IP nodes and 6 POINT I/O modules — if either is a constraint, evaluate 1769-L18ER-BB1B or CompactLogix 5370 L2
