Allen-Bradley 1769-L18ER-BB1B — CompactLogix 5370 L1 Buyer Review

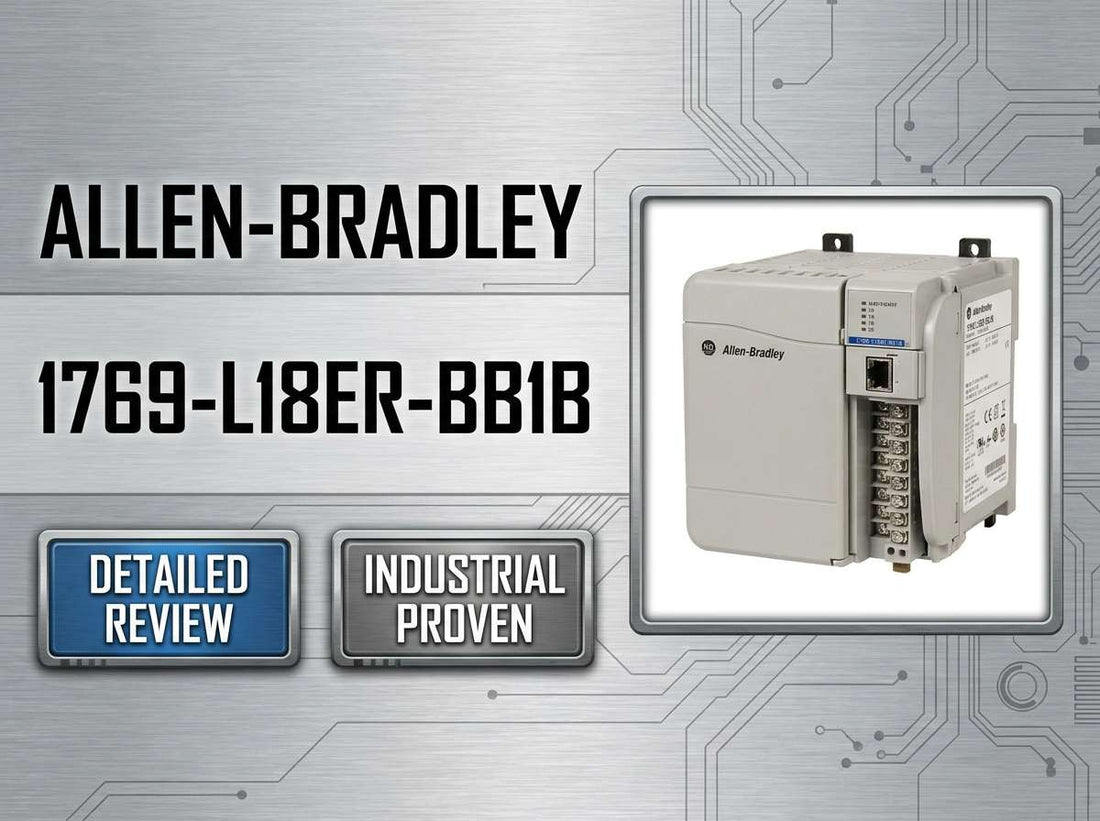

Allen-Bradley 1769-L18ER-BB1B CompactLogix 5370 L1 Controller, 0.5 MB, 16 DI/16 DO, Dual Ethernet with Device Level Ring, 24 VDC, POINT I/O Expansion — Specs, Pricing Context, and Best Alternatives
Controls engineers specifying a compact EtherNet/IP-based controller for a new OEM machine or a brownfield upgrade face a congested selection table — several CompactLogix 5370 L1 catalog numbers look similar until you read the fine print on memory, motion support, and expansion. The Allen-Bradley 1769-L18ER-BB1B resolves that decision clearly for a specific buyer: you get 0.5 MB of user memory, 16 sinking digital inputs and 16 sourcing digital outputs at 24 VDC, dual EtherNet/IP ports with Device Level Ring, and a local POINT bus backplane that accepts up to 8 POINT I/O (1734-series) modules — all in a footprint small enough to keep panels tight. Whether that profile fits your project depends on three numbers you need to verify before issuing the PO: memory, EtherNet/IP node count, and motion requirements.
If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.
Who Should Buy the 1769-L18ER-BB1B — and Who Shouldn't
This controller is the right fit when all of the following apply to your project:
- Your control program fits within 0.5 MB of user memory, including anticipated future additions.
- Your field devices are 24 VDC and match sinking inputs and sourcing transistor outputs.
- Your EtherNet/IP node count — counting drives, remote I/O, HMIs, and any other connected devices — stays within the supported limit for this model.
- You require dual Ethernet with Device Level Ring for network resilience in a ring topology or linear drop configuration.
- Local I/O expansion, if needed, will be handled by 1734 POINT I/O modules (not 1769 Compact I/O).
- Integrated motion over EtherNet/IP is not required by the application.
If your application requires integrated motion axes, step directly to the 1769-L18ERM-BB1B. If memory or node count is marginal, the 1769-L19ER-BB1B offers more headroom.
On this page:
- What the 1769-L18ER-BB1B Actually Does in a Running System
- Typical System Architecture and Signal Chain
- Real-World Applications and Deployment Scenarios
- Key Specifications That Drive the Purchase Decision
- 1769-L18ER-BB1B vs. Sibling Models — Which One Do You Actually Need?
- Expert Verdict: When This Controller Earns Its Place and When It Doesn't
- What Engineers Report After Working With the 1769-L18ER-BB1B
- Wiring and Installation Overview
- POINT I/O Expansion and Compatible Modules
- Wrong-Part Prevention: Confirm These Before You Order
- Frequently Asked Questions
- Why Order From LeadTime.ca
- At-a-Glance Summary
What the 1769-L18ER-BB1B Actually Does in a Running System
The Allen-Bradley 1769-L18ER-BB1B is a CompactLogix 5370 L1 programmable automation controller — a category that sits above the Micro800 and MicroLogix families in the Rockwell lineup while remaining well below the complexity and cost of a full CompactLogix 5380 or ControlLogix chassis. That middle position is intentional: it gives machine builders and integrators a genuine PAC with EtherNet/IP at the core, without requiring a larger chassis, additional I/O adapter modules, or a separate Ethernet card.
At its core, the 1769-L18ER-BB1B brings the controller, digital I/O, and Ethernet communications into a single integrated unit. The 16 digital inputs are sinking 24 VDC — meaning the field device sinks current through the input, with the controller providing the voltage rail. The 16 digital outputs are sourcing 24 VDC transistor outputs. This is not a configurable mix; the I/O type is fixed at the catalog level, which is why verifying field device wiring compatibility before ordering matters. The POINT bus backplane built into the right side of the controller accepts 1734-series POINT I/O modules — up to 8 modules — giving engineers a path to analog, specialty, or additional digital I/O without moving to a larger CPU.
The dual EtherNet/IP ports are the feature that most OEM designers cite when they choose this model over smaller Rockwell options. Those two ports support Device Level Ring topology, which allows the controller to participate in a self-healing ring network where a single cable break or device fault does not take the entire network segment offline. That capability, previously associated with higher-end platforms, makes the 1769-L18ER-BB1B appropriate for machine designs where network uptime directly affects production throughput.
Typical System Architecture and Signal Chain
The 1769-L18ER-BB1B typically sits at the machine-level controller layer, sitting between the plant-level SCADA or supervisory PLC above it and the field devices, drives, and I/O modules below it.
- Plant network or supervisory controller connects to one EtherNet/IP port; machine-level devices connect through the second port or via DLR ring.
- Drives, servo amplifiers (non-motion), and remote I/O adapters connect as EtherNet/IP nodes within the supported node count limit.
- HMI panels connect via EtherNet/IP to the same network segment, consuming node count allocation.
- 1734 POINT I/O modules snap onto the local POINT bus backplane on the right side of the controller for additional analog or digital I/O points.
- Field sensors and actuators wire directly into the 16 embedded DI and 16 embedded DO terminals or into the POINT I/O module terminals for additional points.
Real-World Applications and Deployment Scenarios
Packaging machine OEMs have adopted the 1769-L18ER-BB1B as a standard cell controller precisely because it delivers EtherNet/IP with DLR in a footprint that fits inside a compact control cabinet. On a typical filling or capping machine, the embedded I/O handles the core discrete signals while POINT I/O modules add the analog channels needed for pressure or temperature monitoring — all coordinated from a single 0.5 MB program.
Food and beverage integrators use it for conveyance zones and accumulation tables where the machine interacts with a plant SCADA over EtherNet/IP but does not require motion axes. The sinking input and sourcing output configuration is well-matched to the 24 VDC NPN and PNP sensor and actuator combinations common in those environments.
Brownfield teams replacing aging MicroLogix or first-generation CompactLogix CPUs find the 1769-L18ER-BB1B a pragmatic path forward when panel space is limited and the existing I/O count fits within the embedded 16 DI / 16 DO allocation plus a handful of POINT I/O modules. The SD card slot supports program backup and restore, which simplifies maintenance handoffs.
Utility skid builders — pumping stations, CIP skids, compressor packages — use it when the control scope is modest but a direct EtherNet/IP connection to the plant network is a specification requirement. The compact size keeps the skid-mounted panel small while the DLR ports provide the network resilience that plant engineers require.
| Application | Typical Deployment |
|---|---|
| OEM packaging machine | Cell controller managing discrete I/O, Ethernet to SCADA, POINT I/O for analog channels |
| Food and beverage conveyance | Zone controller on DLR ring, 24 VDC sensors and actuators, HMI on Ethernet |
| MicroLogix / CompactLogix retrofit | Drop-in upgrade to modern EtherNet/IP platform, existing 24 VDC I/O rewired to embedded terminals |
| Utility and process skid | Standalone skid controller, EtherNet/IP to plant DCS or SCADA, POINT I/O for analog process signals |
| Modular production cell | Standard cell controller on a line using distributed POINT I/O, ring topology across machine cells |
| Material handling zone | Conveyor zone controller, Ethernet integration to plant-level sorter or WMS system |
Key Specifications That Drive the Purchase Decision
| Parameter | Value | Notes |
|---|---|---|
| Catalog Number | 1769-L18ER-BB1B | CompactLogix 5370 L1 family |
| User Memory | 0.5 MB | Hard limit — confirm program size fits with growth margin |
| Embedded Digital Inputs | 16 x 24 VDC, sinking | Fixed type — field devices must match |
| Embedded Digital Outputs | 16 x 24 VDC, sourcing (transistor) | Fixed type — field devices must match |
| EtherNet/IP Ports | 2 x EtherNet/IP with Device Level Ring | Supports linear or ring topology |
| Local I/O Expansion | Up to 8 POINT I/O (1734-series) modules | POINT bus backplane only — not 1769 Compact I/O |
| Supply Voltage | 24 VDC only | No AC supply option; external protection required |
| Operating Temperature | -20 °C to +60 °C | Per manufacturer datasheet |
| USB Port | 1 x USB programming port | Typically mini-B connector |
| SD Card | 1 GB included, supports up to 2 GB | Used for program backup and restore |
Full technical specifications are available on the product page at LeadTime.ca.
1769-L18ER-BB1B vs. Sibling Models — Which One Do You Actually Need?
| Model | User Memory | Embedded I/O | Integrated Motion | Best Fit |
|---|---|---|---|---|
| 1769-L16ER-BB1B | Less than 1769-L18ER-BB1B | Fewer embedded points | No | Smallest scope applications where cost and footprint are the primary drivers |
| 1769-L18ER-BB1B | 0.5 MB | 16 DI / 16 DO, 24 VDC | No | Compact machines needing EtherNet/IP with DLR, no motion required |
| 1769-L18ERM-BB1B | 0.5 MB | 16 DI / 16 DO, 24 VDC | Yes — EtherNet/IP motion axes | Same footprint as -L18ER but with integrated motion axis support |
| 1769-L19ER-BB1B | More than 0.5 MB | Greater embedded I/O | No | Applications where memory and EtherNet/IP node count on the -L18ER is marginal |
If your application involves coordinated motion axes over EtherNet/IP, the 1769-L18ER-BB1B is not the correct catalog number — the 1769-L18ERM-BB1B is the direct upgrade path. If memory headroom is your concern, check current availability and discuss your sizing requirements with the LeadTime.ca team before committing to either model.
Expert Verdict: When This Controller Earns Its Place and When It Doesn't
The 1769-L18ER-BB1B is a well-positioned controller for the buyer profile it was designed for: a controls engineer or OEM machine builder who needs a genuine CompactLogix PAC with embedded 24 VDC I/O, dual EtherNet/IP with Device Level Ring, and 1734 POINT I/O expansion in the smallest possible package. For small packaging machines, food-grade conveyors, utility skids, and modular production cells where motion is not a requirement and the program scope stays within 0.5 MB, this is a stable, capable choice that avoids the cost and footprint of stepping up to a larger chassis-based system. The verified hardware — 16 sinking inputs, 16 sourcing transistor outputs, up to 8 POINT I/O modules on the local backplane, and a 1 GB SD card for backup — gives an OEM designer everything needed to build a professional machine without overengineering the platform.
The honest limits are just as important to state. If integrated motion over EtherNet/IP is part of the machine design, this model will not deliver it — the 1769-L18ERM-BB1B is the only CompactLogix 5370 L1 option that adds motion axes, and ordering the wrong suffix is one of the most frequently reported mistakes across the community forums. If the EtherNet/IP node count is tight — particularly when drives, multiple POINT I/O adapters, and an HMI are all on the same network — verify the supported node limit against your device list before the PO is issued. Programs that start close to 0.5 MB tend to grow during commissioning; if there is any doubt about memory, the 1769-L19ER-BB1B gives more room. For projects requiring broader platform scalability, higher axis counts, or very large I/O trees, the larger CompactLogix or ControlLogix families are the correct answer.
From a procurement standpoint, the 1769-L18ER-BB1B is a mainstream catalog number that authorized distributors typically stock, but demand spikes, firmware revision changes, and regional availability can affect lead time. A specialist distributor who knows the Rockwell catalog can verify current lifecycle status, confirm the correct firmware revision for your Studio 5000 version, and flag whether a lead-time extension is expected — information that rarely appears on a generic online storefront. Check current pricing and lead time for the 1769-L18ER-BB1B at LeadTime.ca — the team ships worldwide and can provide sourcing guidance for full BOM builds, not just individual line items.
For volume pricing, project BOM review, or to confirm availability before locking a delivery schedule, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Report After Working With the 1769-L18ER-BB1B
Across discussions on PLCTalk, Reddit r/PLC, PLCS.net, MrPLC, and Rockwell Automation user forums, the 1769-L18ER-BB1B consistently earns positive sentiment as a dependable small-machine controller. Experienced users describe it as a solid option for OEM applications where the feature set — EtherNet/IP, DLR, and POINT I/O flexibility — would previously have required a larger and more expensive platform. The compact footprint and clean integration with 1734 POINT I/O modules are frequently cited as practical advantages that keep panel sizes manageable on tight-budget machine builds.
The most repeated technical complaint is resource exhaustion on projects that grew beyond their original scope. Engineers report that 0.5 MB of user memory and the EtherNet/IP node count both become real constraints when a machine that started as a standalone unit later needs to connect additional drives, a second HMI, and a remote I/O rack. The consensus from experienced users is direct: validate the node count against every connected device at the time of specification, not just the primary controller-to-device connections. The second recurring complaint involves Rockwell software licensing — Studio 5000 subscription costs surface regularly in discussions from smaller shops or first-time Rockwell adopters, and this platform cost context should factor into any competitive comparison against lower-cost ecosystems.
The ordering confusion between the 1769-L18ER-BB1B and 1769-L18ERM-BB1B is the most consistently reported purchasing mistake in community threads. Buyers who needed integrated motion ordered the non-motion variant, discovered the gap during commissioning, and faced replacement and rework costs. A secondary ordering mistake involves I/O expansion: buyers accustomed to 1769 Compact I/O modules assume those modules attach directly, when in fact local expansion on this controller uses only 1734 POINT I/O. Both mistakes are avoidable with a thorough pre-order review against the Wrong-Part Prevention Checklist below.
Wiring and Installation Overview
- The controller requires a 24 VDC supply only — confirm the power source is sized correctly for the controller and all attached POINT I/O modules; no AC supply option exists for this catalog number.
- Embedded digital inputs are sinking 24 VDC: field devices must be wired to suit sourcing-output sensors or two-wire proximity switches configured to supply current to the input terminal.
- Embedded digital outputs are sourcing 24 VDC transistor outputs: loads connect between the output terminal and the DC common; verify load current does not exceed the per-output rating specified in the manufacturer datasheet.
- Both EtherNet/IP ports support standard industrial Ethernet cabling; DLR ring topology requires that all ring nodes support DLR — verify each connected device before configuring ring mode.
- Follow manufacturer installation instructions for DIN rail or panel mounting clearances, grounding lug connections, and cable routing separation between power and signal wiring to avoid noise coupling.
POINT I/O Expansion and Compatible Modules
The POINT bus backplane on the right side of the 1769-L18ER-BB1B accepts up to 8 modules from the 1734 POINT I/O series. This is the only local expansion path — 1769 Compact I/O modules are not compatible with the POINT bus backplane on this controller. Typical POINT I/O additions include:
- 1734-series digital input modules — for additional sinking or sourcing discrete inputs beyond the 16 embedded points.
- 1734-series digital output modules — for additional relay or transistor output channels.
- 1734-series analog input modules — for 4–20 mA or 0–10 V process signals such as pressure, temperature, or flow.
- 1734-series analog output modules — for analog control signals to drives, valves, or positioners.
- 1734-series specialty modules — including thermocouple, RTD, and high-speed counter modules for applications requiring those signal types.
When planning the POINT I/O configuration, account for physical panel space — each module adds to the overall assembly width — and verify that the total bus current draw of all connected POINT I/O modules does not exceed the POINT bus power budget for this controller.
Wrong-Part Prevention: Confirm These Before You Order
Run through every item on this checklist before issuing the PO. These are the exact points where orders go wrong on the 1769-L18ER-BB1B:
- Confirm motion requirements: if integrated motion over EtherNet/IP is needed, 1769-L18ER-BB1B is not suitable (requires -ERM or higher).
- Verify the required number of EtherNet/IP nodes does not exceed this model's supported limit.
- Check that 0.5 MB user memory is sufficient for the application, including future expansion.
- Confirm I/O type: 24 VDC, 16 sinking digital inputs and 16 sourcing digital outputs match field devices.
- Ensure 24 VDC power is available and sized correctly; this controller does not accept AC supply.
- Verify that POINT I/O (1734 series) is acceptable for expansion (this controller does not use 1769 I/O modules for local expansion).
- Check firmware revision compatibility with existing Studio 5000 Logix Designer version and plant standards.
- Confirm that mechanical mounting (panel/DIN) and enclosure space can accommodate controller and up to 8 POINT I/O modules.
If any item on this checklist is unresolved, contact the LeadTime.ca team before ordering — a five-minute conversation is faster than a return authorization.
Frequently Asked Questions
Is 0.5 MB of user memory enough for a typical OEM machine program?
For most small to mid-size machines with a focused discrete control scope, 0.5 MB is sufficient. The constraint becomes real when a program includes extensive data logging, large HMI data exchange tables, or a significant number of Add-On Instructions with large parameter sets. The practical recommendation from experienced users is to build a rough program estimate early in the design phase, allow a growth margin, and step to the 1769-L19ER-BB1B if the estimate lands within 20 percent of the limit.
Does the 1769-L18ER-BB1B support integrated motion over EtherNet/IP?
No. The -ER suffix designates the standard EtherNet/IP variant without integrated motion support. If your application requires servo or coordinated motion axes controlled over EtherNet/IP directly from the controller, the correct catalog number is the 1769-L18ERM-BB1B, where the -M suffix adds motion capability. This is the single most frequently reported ordering mistake for this model family.
Can I attach 1769 Compact I/O modules directly to the 1769-L18ER-BB1B?
No. The local expansion backplane on the 1769-L18ER-BB1B is a POINT bus, which is compatible only with 1734-series POINT I/O modules. Standard 1769 Compact I/O modules require a different controller or a separate 1769 CompactLogix chassis and are not supported on this controller's local expansion slot. Verify that your I/O expansion plan is based entirely on 1734 POINT I/O before ordering.
Do HMI panels consume EtherNet/IP node count on the 1769-L18ER-BB1B?
Yes. Every EtherNet/IP connection to the controller — including HMI panels, remote I/O adapters, drives, and any other device that establishes a CIP connection — counts against the supported node limit. This is a common undercount during initial sizing, particularly when a single machine has multiple operator stations or when a plant historian establishes its own connection. Count every connected device, not just the primary automation devices.
What is the correct approach for backing up and restoring a program on the 1769-L18ER-BB1B?
The controller includes a slot for an SD card, with a 1 GB card included and support for up to 2 GB cards. Programs can be stored to and loaded from the SD card, which provides a hardware-level backup and restore mechanism useful for maintenance and spare-part swaps. The SD card approach complements off-line project file storage in Studio 5000 — both methods should be used, with off-line files stored in a version-controlled location per plant standards.
How do I know if the 1769-L18ER-BB1B firmware is compatible with my current Studio 5000 version?
Each controller firmware revision corresponds to a specific range of supported Studio 5000 Logix Designer versions. Before downloading an existing project to a new or replacement controller, verify that the firmware revision on the hardware matches the revision used when the project was last saved. Mismatches produce download errors or unexpected behavior. Check the firmware revision printed on the controller label, compare it against the Rockwell compatibility matrix in the product documentation, and update firmware via ControlFLASH if required before attempting a download.
Why Order From LeadTime.ca
- LeadTime.ca sources and ships industrial automation parts worldwide — not limited to any single country or region.
- The team is familiar with Rockwell catalog structures and can verify part number suffixes, firmware revisions, and lifecycle status before an order is placed.
- Volume pricing and BOM-level quoting are available — contact the team directly for project builds involving controllers, POINT I/O modules, and accessories together.
- Hard-to-find catalog numbers and parts facing extended factory lead times are a sourcing specialty — if stock availability on the 1769-L18ER-BB1B is a concern, the team can advise on alternatives or expected timelines.
- View current pricing and availability for the 1769-L18ER-BB1B at LeadTime.ca
- Contact the LeadTime.ca team for a quote or sourcing enquiry
At-a-Glance Summary
- Catalog number: Allen-Bradley 1769-L18ER-BB1B — CompactLogix 5370 L1 controller with embedded I/O and EtherNet/IP.
- User memory: 0.5 MB — fixed at this catalog number; verify program size before ordering.
- Embedded I/O: 16 sinking digital inputs and 16 sourcing digital outputs, both at 24 VDC only.
- Ethernet: 2 x EtherNet/IP ports with Device Level Ring (DLR) — supports both linear and ring topologies.
- Local expansion: up to 8 POINT I/O (1734-series) modules on the integrated POINT bus backplane — not 1769 Compact I/O.
- Power: 24 VDC only; operating temperature -20 °C to +60 °C.
- SD card: 1 GB included, up to 2 GB supported — used for program backup and restore.
- Motion: not supported on this variant — 1769-L18ERM-BB1B required for integrated motion over EtherNet/IP.
- Programming: Studio 5000 Logix Designer — verify firmware revision compatibility before downloading projects.
- Pricing and availability: current figures on the product page at LeadTime.ca; contact for volume or project-level pricing.
