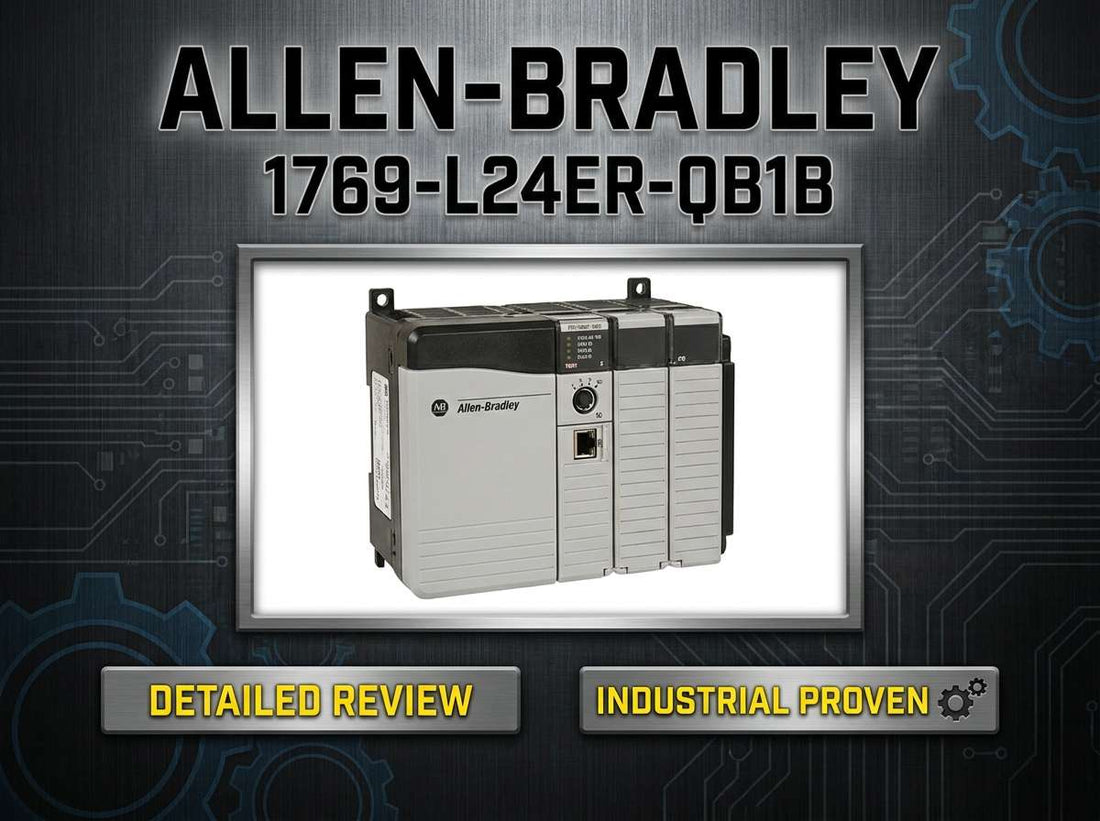

Allen-Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 controller with dual EtherNet/IP ports mounted on DIN rail in industrial control panel

Allen-Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 Controller, 2 EtherNet/IP ports with Device Level Ring capability, 750 KB memory, 16 DC inputs, 16 DC outputs, up to 4 1769 I/O expansion modules — Specs, Price & Review

Controls engineers specifying a compact discrete machine controller within the Rockwell ecosystem face a familiar shortlisting challenge: choosing the right CompactLogix 5370 L2 variant without overbuilding or underspecifying. The Allen-Bradley 1769-L24ER-QB1B answers that question for a specific, well-defined machine profile — 16 embedded 24 V DC digital inputs, 16 embedded 24 V DC digital outputs, 750 KB of user memory, dual EtherNet/IP ports with Device Level Ring capability, and room for up to 4 local 1769 Compact I/O expansion modules, all in a DIN-rail or panel-mount package programmed in Studio 5000 Logix Designer.

If you have already confirmed this is the right catalog number for your project, check current pricing and availability for the 1769-L24ER-QB1B at LeadTime.ca — ships worldwide.

Is the 1769-L24ER-QB1B the Right Controller for Your Machine?

This controller is the right fit when your machine's I/O profile, network architecture, and expansion needs align precisely with its built-in capabilities. It is right for you if:

  • Your embedded I/O requirement is 16 x 24 V DC digital inputs and 16 x 24 V DC digital outputs — and all onboard points are discrete, not analog.
  • Your program fits within 750 KB of user memory, which covers typical discrete sequencing, moderate device counts, and standard OEM machine logic.
  • Your network architecture uses EtherNet/IP with linear, star, or Device Level Ring topology, and dual RJ45 ports on the controller are a requirement or strong preference.
  • Local I/O expansion of up to 4 x 1769 Compact I/O modules is sufficient for the full lifecycle of the machine — not just initial commissioning.
  • Your facility or OEM product line is standardized on Rockwell, Studio 5000 Logix Designer, and 1769 Compact I/O infrastructure.

If your application requires onboard analog I/O, more than four local 1769 expansion slots, advanced motion coordination, or safety integration at the controller level, the 1769-L24ER-QBFC1B (which adds analog capability) or the 1769-L27ERM-QBFC1B (which adds more memory, motion, and analog) are the correct next step — not this model.

On this page:

Where the 1769-L24ER-QB1B Fits in a Machine Control Architecture

The Allen-Bradley 1769-L24ER-QB1B is a packaged CompactLogix 5370 L2 controller — meaning the processor, embedded I/O, and dual EtherNet/IP ports are delivered as a single integrated unit, not assembled from separate modules. This positions it as the primary logic engine and local I/O head for small to mid-size machines, OEM skids, and production cells where panel space is constrained and the I/O profile is discrete.

Within the Rockwell ecosystem, it sits above the MicroLogix and Micro800 families in capability and squarely within the CompactLogix 5370 L2 tier — sharing Studio 5000 Logix Designer as its programming environment with the broader CompactLogix and ControlLogix families. This consistency is a real operational advantage for plants that have standardized on Rockwell: one programming tool, one I/O philosophy, one tag-based architecture across machine-level and system-level controllers.

The dual EtherNet/IP ports with Device Level Ring capability make this controller particularly well suited to machine-level ring topologies — a media redundancy approach that keeps the machine running if a single cable fault occurs in the ring. This is a meaningful architectural feature for OEM equipment where unplanned downtime is costly, and it distinguishes the 1769-L24ER-QB1B from single-port compact controllers at a similar price point.

For plants migrating from MicroLogix or SLC-500 systems with existing 1769 Compact I/O modules, the 1769-L24ER-QB1B represents a natural upgrade path — retaining compatible I/O hardware while moving to the Logix architecture and EtherNet/IP communications.

Typical System Architecture for the 1769-L24ER-QB1B

The 1769-L24ER-QB1B sits at the machine-level controller layer, serving as the central logic engine that connects field I/O, network devices, and supervisory systems in a compact, self-contained assembly.

  • Plant network or SCADA system connects to the controller via EtherNet/IP — one port typically for the upstream network, one port for the device-level ring or downstream device daisy chain.
  • The controller's 16 embedded DC inputs wire directly to field sensors, pushbuttons, and discrete feedback signals; the 16 embedded DC outputs drive actuators, relays, and indicators.
  • Up to 4 local 1769 Compact I/O modules attach directly to the right side of the controller on the local 1769 bus, adding specialty I/O types such as analog, high-speed counter, or additional discrete points.
  • EtherNet/IP devices — variable frequency drives, PanelView HMIs, remote I/O adapters, and safety controllers — connect into the ring or star topology via the dual RJ45 ports.
  • A USB port on the controller provides direct laptop connection for programming, firmware updates, and on-site diagnostics without requiring network access.

Typical Applications and Deployment Scenarios

Packaging machine OEMs represent one of the most common applications for the 1769-L24ER-QB1B. A typical case filler or labeler has a discrete-heavy I/O profile — conveyor sensors, reject gates, label applicator solenoids, photoeyes — that maps well to 16 inputs and 16 outputs, with one or two 1769 I/O modules adding analog speed reference or temperature monitoring. The DLR capability keeps the machine's internal device network live even through a single cable fault.

Material handling cells and automated assembly stations in automotive or general manufacturing plants use this controller for cell-level sequencing: coordinating robot handshake signals, fixture clamps, part-present sensors, and conveyor interlocks over EtherNet/IP while maintaining a tight panel footprint. The Studio 5000 consistency means plant engineers can open and support OEM machine programs without learning a separate programming environment.

Small process skids — mixing stations, dosing systems, batching panels — that operate primarily on discrete I/O (valve feedback, level switches, motor run/fault) with a modest analog requirement served by a 1769 analog module represent another well-matched deployment. The 750 KB memory handles the sequencing logic and HMI data exchange for typical single-product or dual-recipe skids without constraint.

Controls engineers building training rigs or commissioning test stands for Rockwell-standard facilities also specify the 1769-L24ER-QB1B as a cost-effective, full-featured platform that mirrors the production hardware environment exactly — including DLR network practice — without requiring a larger ControlLogix rack.

Application Typical Deployment
OEM Packaging Machinery Single-machine controller with embedded discrete I/O and EtherNet/IP drives and HMI on DLR ring
Material Handling Cell Cell-level sequencing of conveyors, fixtures, and robot handshake I/O; upstream EtherNet/IP SCADA connection
Process Skid (Mixing/Batching) Discrete valve and motor control with 1769 analog expansion module for process variable monitoring
Automotive Assembly Station Compact panel controller for fixture, clamp, and sensor I/O with drive integration via EtherNet/IP
MicroLogix/SLC Migration Drop-in Logix platform upgrade reusing existing 1769 Compact I/O modules on local bus
Training Rig / Test Stand Full CompactLogix 5370 development and commissioning environment with DLR network practice

Key Specifications and Variant Comparison for the 1769-L24ER-QB1B

Parameter Value
Catalog Number 1769-L24ER-QB1B
Product Family CompactLogix 5370 L2
User Memory 750 KB
Embedded Digital Inputs 16 x 24 V DC
Embedded Digital Outputs 16 x 24 V DC
Onboard Analog I/O None — requires external 1769 I/O modules
Local 1769 I/O Expansion Up to 4 x 1769 Compact I/O modules
EtherNet/IP Ports 2 x RJ45, supports DLR topology
Mounting DIN rail or panel mount
Programming Software Studio 5000 Logix Designer

Full technical specifications are available on the product page at LeadTime.ca.

1769-L24ER-QB1B vs. Key CompactLogix 5370 L2 Variants

Model User Memory Embedded Digital I/O Onboard Analog Local Expansion Best For
1769-L24ER-QB1B 750 KB 16 in / 16 out DC None Up to 4 x 1769 modules Discrete-only machines, DLR required
1769-L24ER-QBFC1B 750 KB 16 in / 16 out DC Yes (onboard) Up to 4 x 1769 modules Machines needing both discrete and analog I/O
1769-L27ERM-QBFC1B 1 MB 16 in / 16 out DC Yes (onboard) Up to 4 x 1769 modules More memory, motion, and analog requirements
1769-L18ER series Smaller than 750 KB Fewer embedded points Varies by variant Fewer expansion slots Smaller machines with lower I/O counts
CompactLogix L3 series Larger Module-based Via modules More than 4 modules Larger systems, more expansion, motion

If your machine design requires onboard analog channels, the 1769-L24ER-QBFC1B is the direct next step — same form factor, same memory, same expansion limit, but with the analog I/O you need. Check current availability and pricing at LeadTime.ca and our team can confirm which variant is in stock.

Expert Verdict: Who Should Buy the 1769-L24ER-QB1B and Who Shouldn't

The 1769-L24ER-QB1B hits a genuine practical sweet spot for controls engineers and OEM machine designers who are already operating within the Rockwell ecosystem and building machines with a discrete-dominant I/O profile. The combination of 32 embedded digital points, 750 KB of user memory, and dual EtherNet/IP ports with Device Level Ring in a single packaged unit means you get a clean, compact controller assembly without bolting on separate CPU and I/O modules. For a standalone packaging machine, a material handling cell, or a process skid running primarily on discrete valve and motor I/O, this controller handles the architecture well — and the DLR capability adds a level of network resilience that matters in production environments where a single cable fault cannot bring the machine down.

Where the 1769-L24ER-QB1B shows its limits is equally clear. If your machine carries significant analog I/O — process transmitters, valve positioners, analog speed references — this model forces you to consume local expansion slots for analog 1769 modules, and with only four slots available, you will hit the ceiling faster than expected on mixed-I/O machines. The correct catalog number in that case is the 1769-L24ER-QBFC1B, which provides onboard analog I/O and preserves expansion headroom for other module types. For larger systems requiring more than four local modules, more memory, integrated motion coordination, or safety controller integration, the 1769-L27ERM-QBFC1B or a CompactLogix L3 platform is the right architecture. Buyers with strict budget constraints who are open to non-Rockwell platforms will also find that comparable discrete I/O counts and Ethernet-based networking are available from other vendors at a lower entry cost — the trade-off being an entirely different programming ecosystem and no native compatibility with existing Studio 5000 projects or 1769 I/O hardware.

From a procurement standpoint, the 1769-L24ER-QB1B is an actively stocked item at authorized distributors, but Rockwell lead times can vary significantly with demand cycles — a reality that makes early ordering and stock confirmation essential for project timelines. Buying through a specialist industrial automation distributor rather than a generic channel gives you real-time stock visibility, firmware revision confirmation, and the ability to validate that the exact catalog number matches your Studio 5000 project file and plant standards before the unit ships. Check current pricing and lead time for the 1769-L24ER-QB1B at LeadTime.ca — we ship worldwide and can advise on compatible expansion modules and alternatives if this variant is constrained.

For volume pricing, build-of-material review, or lead time confirmation before committing to a production schedule, contact the LeadTime.ca team directly — we serve controls engineers and procurement specialists worldwide.

What Engineers Need to Know Before Ordering the 1769-L24ER-QB1B

Community feedback from forums including Reddit r/PLC, PLCTalk, PLCS.net, and MrPLC reflects a consistently positive baseline sentiment toward the 1769-L24ER-QB1B when it is applied within its intended operating range. Engineers working within established Rockwell environments consistently praise the compact footprint with integrated I/O — the fact that 32 digital points, a dual-port EtherNet/IP interface, and the CompactLogix processor arrive in one assembly is a genuine panel-space and wiring-labor advantage on small machines. The integration story with Studio 5000, PanelView HMIs, and PowerFlex drives is described as smooth and predictable, which matters for OEM machine builders who need fast commissioning and minimal integration troubleshooting on each build.

Recurring complaints cluster around two themes: cost relative to smaller Rockwell platforms and non-Rockwell alternatives, and friction around Studio 5000 licensing and firmware version management. The licensing model for Studio 5000 Logix Designer is a real overhead cost that engineers frequently flag, particularly for smaller shops or OEMs supporting diverse customer plants with different firmware revision standards. Firmware mismatch — where the controller's installed revision does not match the project file — is cited as a common commissioning delay. The fix is straightforward but requires attention: always confirm the firmware revision on the physical unit against the project file before attempting a download, and align with plant standards before the unit is ordered if possible.

The most common ordering mistake documented in community discussions is confusing the 1769-L24ER-QB1B with the 1769-L24ER-QBFC1B. The catalog numbers are visually similar, but the QBFC1B includes onboard analog I/O that the QB1B does not. Engineers who order the QB1B for a machine that carries process analog signals discover the gap only at the I/O wiring stage — a costly redesign moment. The second most frequently reported mistake is designing a local I/O rack that exceeds four 1769 expansion modules, only discovering the hardware limit during detailed engineering. The checklist below addresses both of these directly.

Wiring and Installation Overview for the 1769-L24ER-QB1B

  • Mount the controller on DIN rail or panel per manufacturer clearance requirements, ensuring adequate spacing on all sides for heat dissipation and terminal access; confirm proper protective earth bonding before energizing.
  • Connect the 24 V DC supply to the controller's power terminals, observing polarity and conductor sizing as specified in the Rockwell installation instructions; size the supply to cover the controller, embedded I/O load, and any 1769 expansion modules on the local bus.
  • Wire the 16 DC digital inputs to the removable terminal blocks, grouping commons correctly for each input bank; verify sourcing or sinking configuration for your field devices against the controller's I/O documentation before wiring.
  • Wire the 16 DC digital outputs to actuator loads, relays, and indicators using appropriately rated conductors; protect output circuits with external fusing or circuit protection as required by the installation — this controller does not provide integrated output protection.
  • Keep EtherNet/IP communication cables physically separated from high-voltage I/O wiring in the enclosure; label all field wiring at both ends at installation time to support future maintenance and fault-finding.

Compatible 1769 Compact I/O and System Expansion

The 1769-L24ER-QB1B supports up to 4 local 1769 Compact I/O modules on its right-side local bus. Module selection must respect the backplane current budget as well as the four-slot physical limit. Common module types used with this controller include:

  • 1769-IQ16 — 16-point 24 V DC digital input module, commonly added when the 16 embedded inputs are insufficient.
  • 1769-OB16 — 16-point 24 V DC digital output module, for applications requiring additional discrete output capacity.
  • 1769-IF4 — 4-channel analog input module, the standard path for adding process variable monitoring when using the QB1B variant (no onboard analog).
  • 1769-OF2 — 2-channel analog output module, for analog speed references or valve positioner signals via a local expansion slot.
  • 1769-HSC — High-speed counter module, for encoder feedback or high-frequency pulse inputs not supported at the embedded I/O level.

For I/O requirements beyond four local modules, the recommended approach is EtherNet/IP remote I/O via a 1734 POINT I/O or 1738 ArmorPoint adapter connected through the controller's EtherNet/IP ports — or stepping up to a CompactLogix L3 controller with greater local expansion capacity.

Wrong-Part Prevention Checklist Before Ordering the 1769-L24ER-QB1B

Review every item below before placing your order. This checklist is drawn directly from documented ordering mistakes and application mismatches for this catalog number:

  1. Confirm required I/O includes only 24 V DC digital points; this model does not provide onboard analog I/O.
  2. Verify 750 KB controller memory and supported task/program size are sufficient for the application.
  3. Check that a maximum of 4 local 1769 Compact I/O modules is acceptable; if more local I/O is needed, another controller is required.
  4. Ensure network design matches dual Ethernet ports with DLR; it is not a built-in managed switch for general IT traffic.
  5. Confirm power supply sizing for 24 V DC and 5 V DC loads, including expansion modules and external field devices.
  6. Verify Studio 5000 Logix Designer version support and firmware revision compatibility with plant standards.
  7. Confirm operating temperature and environmental ratings match enclosure and site conditions.
  8. Make sure the controller's EtherNet/IP capabilities meet requirements for motion, drives, and remote I/O (connection count, update rates).

If any item on this list raises a question before you order, contact the LeadTime.ca team — we can validate the catalog number against your application requirements and confirm stock before you commit.

Frequently Asked Questions

Can I add analog I/O to the 1769-L24ER-QB1B, or do I need to switch to a different catalog number?

You can add analog I/O by using 1769 analog modules — such as the 1769-IF4 for inputs or 1769-OF2 for outputs — in the local expansion slots. However, since this controller supports a maximum of 4 local 1769 modules, every slot used for analog reduces the slots available for other I/O types. If your analog I/O requirement is significant, the 1769-L24ER-QBFC1B, which includes onboard analog channels, is the more appropriate catalog number and preserves your expansion slots for other uses.

What is the practical expansion ceiling — when should I move from the 1769-L24ER-QB1B to a larger CompactLogix CPU?

The hardware ceiling is 4 local 1769 expansion modules beyond the 16-input/16-output embedded assembly. When your local I/O design requires a fifth module, the 1769-L24ER-QB1B cannot accommodate it regardless of backplane current budget. Similarly, if your program logic, task structure, or EtherNet/IP connection count begins to challenge the 750 KB memory ceiling or the controller's connection capacity, that is the signal to evaluate a CompactLogix L3 platform. Plan the full machine lifecycle I/O count — not just the initial build — before finalizing the controller selection.

How does the Device Level Ring affect EtherNet/IP device count and connection capacity?

Device Level Ring is a media redundancy topology — it does not reduce the number of EtherNet/IP connections the controller can support, but it does require that all devices in the ring support DLR. The two EtherNet/IP ports on the 1769-L24ER-QB1B are the controller's ring ports; one is typically used as the upstream network connection and one connects to the first device in the ring or the next port in a linear daisy chain. For exact connection count limits, consult the current Rockwell technical specifications for your firmware revision, as these values are firmware-dependent and should be verified against your device list before finalizing the architecture.

Which Studio 5000 Logix Designer version is required for the 1769-L24ER-QB1B?

The minimum Studio 5000 version required depends on the firmware revision installed on the physical controller. Rockwell publishes firmware and software compatibility tables in the CompactLogix 5370 L2 release notes and the Studio 5000 compatibility documentation. Always match the project file's firmware revision to the installed controller firmware before downloading — a mismatch is the most common commissioning delay reported for this platform. If you are ordering a new unit and need to align with an existing plant standard revision, confirm the factory firmware level with your distributor at time of order.

How do I replace a failed 1769-L24ER-QB1B with minimal machine downtime?

The replacement procedure centers on three steps: ensuring the replacement unit carries the same firmware revision as the original (or downloading the matching project file to match the new unit's firmware), transferring the removable terminal blocks from the failed unit to the replacement without rewiring field cables, and downloading the saved project from your engineering workstation. Maintaining a spare 1769-L24ER-QB1B with pre-loaded firmware on the shelf for critical machines significantly reduces mean time to repair. If the exact catalog number is not in stock locally, contact LeadTime.ca for current availability and expedited sourcing options worldwide.

Why Order the 1769-L24ER-QB1B from LeadTime.ca

  • Real-time stock and lead time visibility on Rockwell CompactLogix controllers, including 1769-L24ER-QB1B and related variants — no generic availability placeholders.
  • Specialist sourcing for hard-to-find or long-lead Rockwell catalog numbers, with worldwide shipping from a single point of contact.
  • Application support to validate catalog number selection, confirm compatible 1769 expansion modules, and flag firmware revision considerations before your order ships.
  • Volume and project pricing available on request — contact the team directly for BOM-level review and quantity breaks.

At-a-Glance Summary: Allen-Bradley 1769-L24ER-QB1B

  • CompactLogix 5370 L2 packaged controller with 750 KB user memory in a single integrated assembly.
  • 16 embedded 24 V DC digital inputs and 16 embedded 24 V DC digital outputs — discrete only, no onboard analog.
  • Dual RJ45 EtherNet/IP ports with Device Level Ring (DLR) topology support for machine-level media redundancy.
  • Supports up to 4 local 1769 Compact I/O expansion modules — the hard ceiling for local bus expansion.
  • Programmed with Studio 5000 Logix Designer; firmware revision must match project file before downloading.
  • No onboard analog I/O — add 1769 analog modules in expansion slots or specify the 1769-L24ER-QBFC1B for onboard analog.
  • Mounts on DIN rail or panel; requires 24 V DC supply sized for controller, embedded I/O, and all expansion modules.
  • Best fit: discrete-dominant OEM machines, material handling cells, and process skids in Rockwell-standardized facilities.
  • Wrong fit: analog-heavy processes, systems requiring more than 4 local expansion modules, or advanced motion and safety integration.
