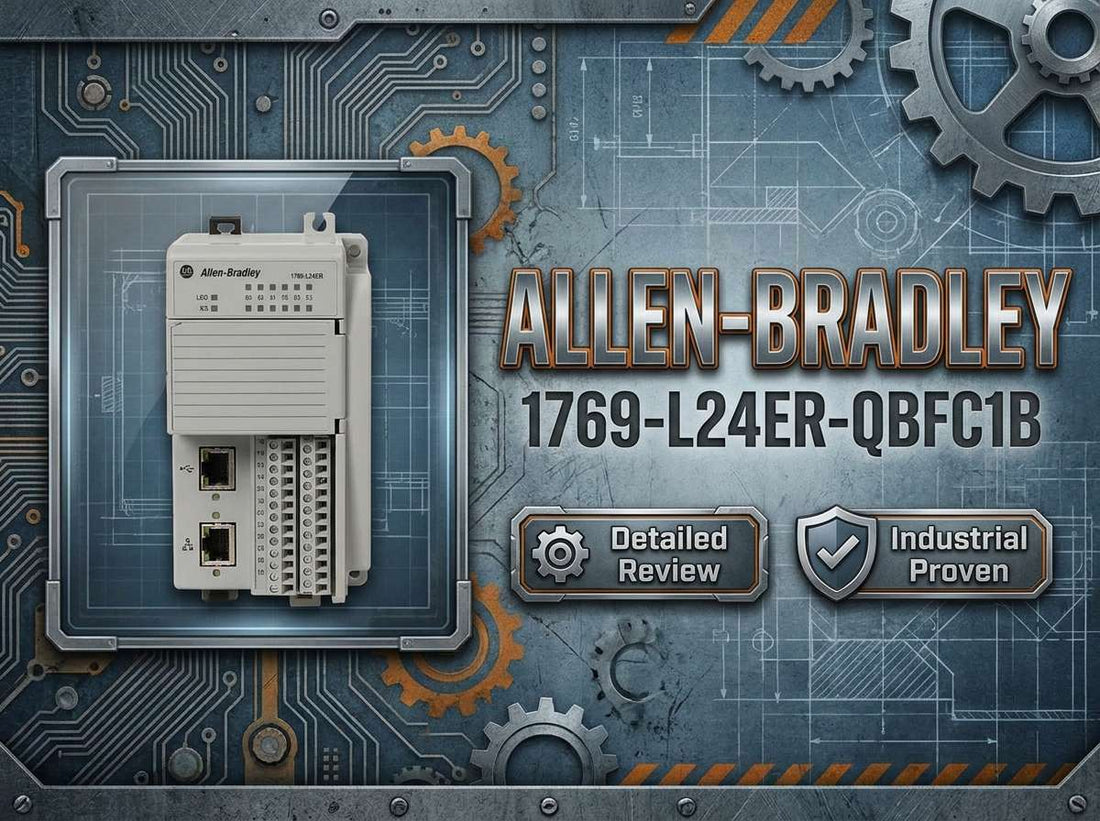

Allen-Bradley 1769-L24ER-QBFC1B CompactLogix 5370 L2 controller with dual EtherNet/IP ports and embedded analog I/O for OEM machine control

Allen-Bradley 1769-L24ER-QBFC1B CompactLogix 5370 L2 Controller, Dual Ethernet w/ DLR capability, 750KB Memory, 4 I/O Expansion, 8 EtherNet/IP Nodes, 24V DC, embedded digital and analog I/O — Specs, Price & Buying Guide

Controls engineers specifying a compact EtherNet/IP controller with embedded analog I/O land on the Allen-Bradley 1769-L24ER-QBFC1B for a specific reason: it combines 16 DC digital inputs, 16 DC digital outputs, 4 universal analog inputs, 2 analog outputs, and 4 high-speed counters on the CPU itself — eliminating the need for separate analog modules in a large share of OEM and skid applications. Paired with dual EtherNet/IP ports, Device Level Ring capability, 750 KB of user memory, and support for up to 4 local 1769 I/O modules, this CompactLogix 5370 L2 controller is designed for the machine builder who needs genuine mixed I/O capability in a compact panel footprint without stepping up to a full L3 chassis. If you are confirming a BOM line item or comparing this to the 1769-L24ER-QB1B or a larger CompactLogix 5370, this review covers everything you need to make that call with confidence.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 1769-L24ER-QBFC1B — and Who Shouldn't

This controller is the right fit for controls engineers and OEM designers who need all of the following to be true:

  • The application requires embedded mixed I/O — specifically 16 DC digital inputs, 16 DC digital outputs, 4 universal analog inputs, 2 analog outputs, and 4 high-speed counters on the CPU without additional analog modules.
  • Program size and network scale fit within 750 KB user memory and a maximum of 8 EtherNet/IP nodes.
  • Local expansion needs are satisfied by up to 4 additional 1769 I/O modules on the bus.
  • The panel supplies 24 V DC and the installation environment meets the controller's environmental and certification requirements.
  • The project runs Studio 5000 Logix Designer and aligns with plant firmware standards for CompactLogix 5370.
  • Network architecture can use or tolerate Device Level Ring topology for drive, I/O, and HMI connectivity.

If your application exceeds 8 EtherNet/IP nodes, needs more than 4 local expansion slots, or requires motion axes beyond what this L2 controller supports, you should be looking at the 1769-L27ERM-QBFC1B or a CompactLogix 5370 L3. If embedded analog is not needed and cost is the primary driver, the 1769-L24ER-QB1B is the more appropriate choice.

On this page:

What the 1769-L24ER-QBFC1B Actually Does in a Machine

The 1769-L24ER-QBFC1B is a CompactLogix 5370 L2 programmable automation controller — the CPU that runs your ladder, function block, or structured text program, manages all connected I/O, and handles EtherNet/IP communication to drives, HMIs, remote I/O blocks, and plant network infrastructure. Unlike a bare CPU module that requires separate I/O cards for every signal, this model carries its analog and digital I/O directly on the controller housing. That integration matters practically: a machine builder building a packaging line with pressure and flow sensors, solenoid valves, and a PowerFlex drive can wire directly to the controller terminals for the analog loops and digital control signals without reserving additional bus slots for analog modules.

The 750 KB of user memory supports a meaningful program size for multi-step sequences, PID loops, data logging, and communication messaging typical of mid-range OEM machines. The controller ships with a 1 GB SD card installed and supports SD cards up to 2 GB, which directly enables backup-and-restore workflows that maintenance teams rely on for rapid machine recovery. The dual EtherNet/IP ports are not simply two independent network connections — they support Device Level Ring topology, meaning that a single physical break in a ring of EtherNet/IP devices does not cause a network dropout. This is meaningful for machine builders who wire drives and I/O blocks in a loop rather than a star, and for applications where downtime cost justifies the added resiliency.

The 4 high-speed counters built into the controller handle encoder feedback, flow meter pulse counting, and rate measurements without requiring a specialty high-speed counter module — another embedded function that reduces slot count and BOM complexity for test stands, filling machines, and assembly lines.

Typical System Architecture for the 1769-L24ER-QBFC1B

This controller typically sits as the primary CPU in a standalone machine or process skid, directly below an HMI or SCADA layer and directly above the field devices it manages. A representative component chain looks like this:

  • Plant network or SCADA system connects to one of the two EtherNet/IP ports for supervisory data exchange and remote access.
  • The 1769-L24ER-QBFC1B serves as the machine controller — running the program, managing I/O, and acting as the EtherNet/IP scanner for connected devices.
  • Up to 4 local 1769 I/O modules extend the digital, analog, or specialty I/O count on the right side of the controller on the same local bus.
  • EtherNet/IP field devices — drives, HMIs, remote I/O blocks, and smart instruments — connect across the two Ethernet ports, with up to 8 EtherNet/IP nodes supported; Device Level Ring topology connects these in a loop between the two ports.
  • A PanelView HMI or third-party touchscreen communicates over EtherNet/IP, sharing tag data natively from the Logix controller.

Where This Controller Gets Specified: Applications and Deployment Scenarios

OEM machinery builders in packaging, material handling, and assembly account for a large share of specifications for this controller. A machine with a modest I/O count — say, a conveyor section with a few photo eyes, solenoids, a variable-speed drive, and a pressure transducer — fits squarely within the 1769-L24ER-QBFC1B's embedded I/O footprint without consuming any of the 4 local expansion slots.

Process skids in food and beverage, water and wastewater treatment, or small chemical units use this controller where the combination of analog loops for flow, pressure, and temperature with discrete control of pumps and valves needs to connect to a plant DCS or historian over EtherNet/IP. The embedded 4 universal analog inputs and 2 analog outputs handle basic PID loop requirements directly on the CPU.

Retrofit projects replacing older CompactLogix controllers or MicroLogix systems are a natural application for this model, particularly when the retrofit includes upgrading the network architecture to EtherNet/IP and the existing panel has 1769 I/O modules that can be reused on the new controller's local bus.

Test stands and R&D rigs that need pulse counting or encoder feedback from the 4 built-in high-speed counters — without paying for a dedicated HSC module — are another use case where the embedded feature set on the 1769-L24ER-QBFC1B directly reduces hardware cost and panel complexity.

Application Typical Deployment
OEM Packaging Machine Embedded analog for fill pressure and weight; drives and HMI over EtherNet/IP DLR ring
Process Skid (Food & Beverage) 4 analog inputs for flow and temperature PID loops; EtherNet/IP to plant historian
Material Handling Cell Drives and remote I/O blocks in a Device Level Ring; high-speed counters for conveyor speed
Legacy CompactLogix Retrofit Reuse of existing 1769 I/O modules on local bus; upgrade to EtherNet/IP networking
Test Stand / R&D Rig High-speed counters for encoder or flow meter pulses; analog inputs for sensor measurement
Water/Wastewater Skid Mixed discrete and analog I/O; EtherNet/IP communication to plant SCADA

Key Specifications: What the Purchase Decision Comes Down To

Parameter Value Notes
Controller Family CompactLogix 5370 L2 Mid-range PAC; sits below L3 in the CompactLogix lineup
User Memory 750 KB Supports mid-size programs; verify headroom for future growth
Embedded Digital I/O 16 DC inputs / 16 DC outputs 24 V DC; on-board, no additional module required
Embedded Analog I/O 4 universal analog inputs / 2 analog outputs Key differentiator vs 1769-L24ER-QB1B which has no embedded analog
High-Speed Counters 4 Supports encoder, flow meter, and rate measurement applications
Local 1769 I/O Expansion Up to 4 modules Hard limit; plan expansion architecture accordingly
EtherNet/IP Ports 2 (with Device Level Ring support) Supports DLR ring topology and daisy-chain; up to 8 EtherNet/IP nodes
Supply Voltage 24 V DC External protection and power budget must be verified
SD Card (included / max) 1 GB included / up to 2 GB supported Used for program backup, restore, and nonvolatile storage
Programming Software Studio 5000 Logix Designer Firmware major revision must match Studio 5000 version in use

Full technical specifications are available on the product page at LeadTime.ca.

1769-L24ER-QBFC1B vs Other CompactLogix 5370 L2 Variants

The most consequential comparison for engineers specifying this controller is the difference between the 1769-L24ER-QBFC1B and its closest sibling models in the CompactLogix 5370 L2 family. The table below covers the practical trade-offs:

Model Embedded Analog I/O User Memory EtherNet/IP Nodes Best Fit
1769-L24ER-QBFC1B 4 AI / 2 AO + 4 HSC 750 KB Up to 8 Mixed discrete and analog OEM machines; DLR networking required
1769-L24ER-QB1B None 750 KB Up to 8 Discrete-only applications; lower cost when no analog needed on CPU
1769-L27ERM-QBFC1B 4 AI / 2 AO + 4 HSC 1 MB Up to 16 Larger machines needing more memory, more EtherNet/IP nodes, or motion control
CompactLogix 5370 L3 Via expansion modules Higher (varies by model) Higher (varies by model) Applications requiring more expansion slots, higher node counts, or more memory
CompactLogix 5380 Via expansion modules Higher (varies by model) Higher (varies by model) Next-generation platform; higher performance, updated instruction set, future-proof architecture

If your system already pushes close to 8 EtherNet/IP nodes at design time, the 1769-L27ERM-QBFC1B is the correct next step — check current availability of the 1769-L24ER-QBFC1B at LeadTime.ca while you finalize your architecture.

Expert Verdict: Is the 1769-L24ER-QBFC1B the Right Controller for Your Project?

The 1769-L24ER-QBFC1B earns its place in the CompactLogix 5370 lineup by delivering a genuinely useful combination of embedded mixed I/O and EtherNet/IP networking in a compact, 24 V DC-powered form factor. For OEM machine builders and systems integrators who are already standardized on the Rockwell Allen-Bradley ecosystem, this controller eliminates a common BOM line item — the separate analog input module — and provides Device Level Ring capability that most competing compact controllers do not offer as a standard dual-port feature. The 750 KB user memory, 16 DC inputs, 16 DC outputs, 4 universal analog inputs, 2 analog outputs, 4 high-speed counters, and SD card backup round out a specification that fits a wide range of packaging, assembly, and process skid applications without requiring additional hardware beyond the local 1769 expansion bus.

The limits are real and must be respected at the design stage. The 8-node EtherNet/IP ceiling is the one most likely to surprise engineers who start adding drives, remote I/O blocks, HMIs, and smart instruments to a ring without counting. The 4-module local expansion limit defines the outer boundary of the local I/O footprint, and the 750 KB memory, while sufficient for most compact machines, will constrain applications with large data tables, extensive communication messaging, or programs that grow over machine revisions. When any of those limits are approached at design time rather than discovered at commissioning, the correct response is to move to the 1769-L27ERM-QBFC1B, a CompactLogix 5370 L3, or — for projects that will have a long active life — to consider the CompactLogix 5380 platform for its next-generation architecture and firmware trajectory.

From a procurement standpoint, the 1769-L24ER-QBFC1B is a widely recognized CompactLogix catalog number with established distributor inventory patterns across North America and globally. Delivery timing, firmware revision alignment, and confirming whether a specific build revision is in stock are the variables that most affect commissioning schedules — and those are exactly the questions a specialist distributor can answer before you commit to a build date. View current pricing and availability for the 1769-L24ER-QBFC1B at LeadTime.ca, or contact the team if your project requires firmware verification or volume sourcing.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Actually Report After Deploying This Controller

Across engineering communities including Reddit r/PLC, PLCTalk, PLCS.net, MrPLC, and the Rockwell Automation user forums, the 1769-L24ER-QBFC1B consistently draws positive feedback from engineers who have matched it to the right application. The most frequently cited strength is the embedded analog I/O combination — engineers report that having 4 universal analog inputs and 2 analog outputs on the CPU itself removes the need for a separate analog module in compact machines, reducing both cost and enclosure space. The dual EtherNet/IP ports and Device Level Ring support are also regularly highlighted as practical advantages, particularly for machine builders who route drives, remote I/O, and HMIs through a single ring and want a degree of physical network resiliency without adding a managed switch. Engineers also note that because it runs standard Logix architecture, the programming and troubleshooting experience carries over directly from larger CompactLogix and ControlLogix systems — a genuine benefit for maintenance teams who support mixed fleets of Rockwell hardware.

The recurring criticisms are equally consistent. Cost is the most commonly cited concern: the 1769-L24ER-QBFC1B is positioned at a price point that some engineers describe as difficult to justify when the analog I/O is not fully utilized or when the application could have been handled by a simpler controller. The 8-node EtherNet/IP limit is the second most common complaint — community discussions include multiple accounts of engineers who designed a system that worked within the node count at first deployment but exceeded it after adding a second drive, a gateway, or an additional remote I/O block during a machine upgrade cycle. Firmware and Studio 5000 version management is the third persistent theme: plants with a mix of older and newer CompactLogix hardware report that keeping firmware baselines aligned across controllers requires active discipline, and that commissioning delays caused by major-revision mismatches between the controller and the programming environment are avoidable but common.

The ordering mistakes documented in community threads are instructive. The most frequent error is purchasing the 1769-L24ER-QB1B — which has the same memory, same digital I/O, and same network capability but no embedded analog — when the machine actually required analog on the CPU. This mistake is easy to make when specifying from a list of similar catalog numbers without closely reading the suffix characters. A second common mistake is selecting the 1769-L24ER-QBFC1B for a system that later grows beyond 8 EtherNet/IP nodes, resulting in a controller change mid-project. The third is purchasing the correct hardware without verifying the firmware revision against the Studio 5000 version already in use at the plant, which surfaces as a commissioning blocker rather than a pre-order issue.

Wiring and Installation Overview

  • Mount the controller on DIN rail or panel according to manufacturer spacing and orientation guidelines; verify clearances for thermal management inside the enclosure.
  • Wire 24 V DC supply with appropriate external overcurrent protection and protective earth connections as specified in the installation manual; verify the power budget for the controller and any connected 1769 I/O modules on the local bus.
  • Connect embedded digital I/O field wiring to the labeled terminals for the 16 DC input and 16 DC output channels; connect analog field wiring using shielded cable, with attention to grounding and physical separation from high-voltage conductors.
  • Wire the EtherNet/IP ports based on the chosen topology: for Device Level Ring, connect devices in a loop between the two ports; for standard linear or star topologies, use one port for the network and leave the second port for the ring or daisy-chain as the architecture requires.
  • Use the USB port for initial configuration and firmware verification; confirm status LED indications on the controller, I/O, and network ports before downloading the program and switching to run mode.

Compatible 1769 I/O Modules and System Expansion

The 1769-L24ER-QBFC1B supports up to 4 local 1769 Compact I/O modules on its right-side expansion bus, drawing from the broad 1769 module family. Common compatible module types include:

  • 1769 Digital Input modules — 24 V DC sinking/sourcing, 120 V AC, and other discrete input variants for extending the on-board 16-input count.
  • 1769 Digital Output modules — additional relay, sourcing DC, or transistor output channels beyond the 16 embedded outputs.
  • 1769 Analog Input modules — for applications requiring more than the 4 embedded universal analog inputs, including additional current, voltage, thermocouple, or RTD channels depending on the module selected.
  • 1769 Analog Output modules — for additional analog output channels beyond the 2 embedded outputs.
  • 1769 Specialty modules — including serial communication, counter, and other function-specific modules supported by the 1769 platform.

The 4-module hard limit on the local bus is the binding constraint for expansion planning. Applications that require more than 4 additional modules must use EtherNet/IP-connected remote I/O or a larger CompactLogix platform.

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the 1769-L24ER-QBFC1B, verify each of the following against your design documents:

  1. Confirm you specifically need embedded analog I/O – do not confuse 1769-L24ER-QBFC1B with 1769-L24ER-QB1B (no analog).
  2. Verify 750 KB memory and 8 EtherNet/IP node limit are sufficient for the intended I/O, drives, and network architecture.
  3. Check that up to 4 local 1769 I/O modules is enough; if you need more slots, consider a different CompactLogix platform.
  4. Match controller firmware major revision with your existing Studio 5000 Logix Designer version and plant standard.
  5. Confirm 24 V DC power is available, with appropriate external protection and power budget for the controller and I/O.
  6. Validate environmental ratings (temperature, vibration, certifications) against panel location and customer specifications.
  7. Ensure the Device Level Ring topology is supported by the rest of the network if you plan to use DLR.
  8. Check terminal kit and mounting hardware requirements so you are not missing plugs or accessories at installation.

If any item on this checklist raises a question about the right catalog number for your project, contact the LeadTime.ca team before ordering — we can validate your selection against your application requirements before the part ships.

Frequently Asked Questions

Does the 8-node EtherNet/IP limit on the 1769-L24ER-QBFC1B include HMIs and drives, or just remote I/O?

The 8-node limit applies to all EtherNet/IP devices the controller scans, including drives, HMIs, remote I/O blocks, and any other EtherNet/IP adapter or scanner on the network. A system with one PanelView HMI, two PowerFlex drives, and one remote I/O block already accounts for 4 of the 8 available nodes. Count all EtherNet/IP devices at design time and include headroom for future additions.

Can I reuse 1769 I/O modules from an older CompactLogix or MicroLogix system on the 1769-L24ER-QBFC1B?

The 1769-L24ER-QBFC1B supports 1769 Compact I/O modules on its local bus, so existing 1769 digital, analog, and specialty modules are generally compatible subject to firmware and configuration support. MicroLogix I/O is a different physical and electrical family and is not directly reusable on the 1769 bus. Verify specific module compatibility against the controller's supported module list in the Rockwell documentation before assuming reuse.

Does the 1769-L24ER-QBFC1B support motion control over EtherNet/IP?

The 1769-L24ER-QBFC1B provides basic drive control over EtherNet/IP, including speed and torque references to PowerFlex drives within the 8-node EtherNet/IP limit. Full coordinated motion control using CIP Motion requires a controller with integrated motion capability, such as the 1769-L27ERM-QBFC1B. If your application requires servo axis coordination or multi-axis motion profiles, verify whether this L2 controller's capabilities meet your requirement or whether the motion-capable variant is needed.

What is the correct procedure for backing up and restoring a program using the SD card?

The 1769-L24ER-QBFC1B ships with a 1 GB SD card installed and supports SD cards up to 2 GB. Program backup to the SD card can be triggered from Studio 5000 or through the controller's nonvolatile storage settings. For a replacement scenario, the SD card from the original controller is inserted into the replacement unit and the stored project and firmware are loaded following the manufacturer's documented restore procedure. Always verify firmware and logic versions after a restore and complete a functional test before returning the machine to service.

Is the 1769-L24ER-QBFC1B a direct replacement for older CompactLogix models like the 1769-L32E or 1769-L35E?

The 1769-L24ER-QBFC1B runs on the CompactLogix 5370 platform, while the 1769-L32E and 1769-L35E are CompactLogix 5300-series controllers with different memory structures, firmware lineage, and project file formats. A project conversion in Studio 5000 is required — it is not a simple firmware download or drop-in swap. Physical I/O wiring may be reusable if the terminal layout matches, but the program must be converted and validated against the new controller's I/O configuration and network limits before deployment.

What do the status LEDs on the 1769-L24ER-QBFC1B indicate, and how do I read a fault condition?

The controller provides status LEDs for controller health, run/fault state, I/O bus status, and network port activity. A solid red RUN/FAULT LED indicates a major fault that has stopped the controller and requires fault clearing in Studio 5000 before the program can restart. Flashing patterns on the network LEDs can indicate communication errors, DLR ring break detection, or node connection issues. The specific LED pattern definitions are documented in the installation and user manuals from Rockwell Automation, which should be the primary reference for fault diagnosis.

Why Order the 1769-L24ER-QBFC1B Through LeadTime.ca

  • LeadTime.ca ships worldwide — the 1769-L24ER-QBFC1B can be sourced and delivered globally, not just within a single region or country.
  • Specialist distributor knowledge: the team can validate catalog numbers, confirm firmware revision availability, and flag expansion or compatibility questions before the order ships.
  • Access to hard-to-find and short-lead-time inventory for CompactLogix 5370 controllers, including support for urgent requirements and volume procurement planning.
  • Volume pricing and project-based quoting available — contact the team directly for builds requiring multiple units or associated 1769 I/O modules.
  • Pricing is live on the product page; no need to wait for a quote for standard single-unit orders.

At-a-Glance Summary

  • Controller: Allen-Bradley 1769-L24ER-QBFC1B, CompactLogix 5370 L2 platform, 24 V DC supply.
  • Embedded I/O: 16 DC digital inputs, 16 DC digital outputs, 4 universal analog inputs, 2 analog outputs, 4 high-speed counters — all on the controller housing.
  • Memory: 750 KB user memory; plan for program growth and data table size at design time.
  • Networking: Dual EtherNet/IP ports with Device Level Ring capability; maximum 8 EtherNet/IP nodes.
  • Local expansion: Up to 4 additional 1769 I/O modules on the right-side bus — hard limit.
  • Storage: Ships with 1 GB SD card installed; supports SD cards up to 2 GB for backup and restore.
  • Programming: Studio 5000 Logix Designer; firmware major revision must align with plant standard.
  • Key differentiator vs 1769-L24ER-QB1B: embedded analog I/O and high-speed counters are present on QBFC1B, absent on QB1B.
  • Step up to 1769-L27ERM-QBFC1B or a CompactLogix 5370 L3 if node count, memory, motion axes, or local expansion slots exceed this model's limits.
  • Pricing: Available on the product page at LeadTime.ca; contact for volume or project pricing.
