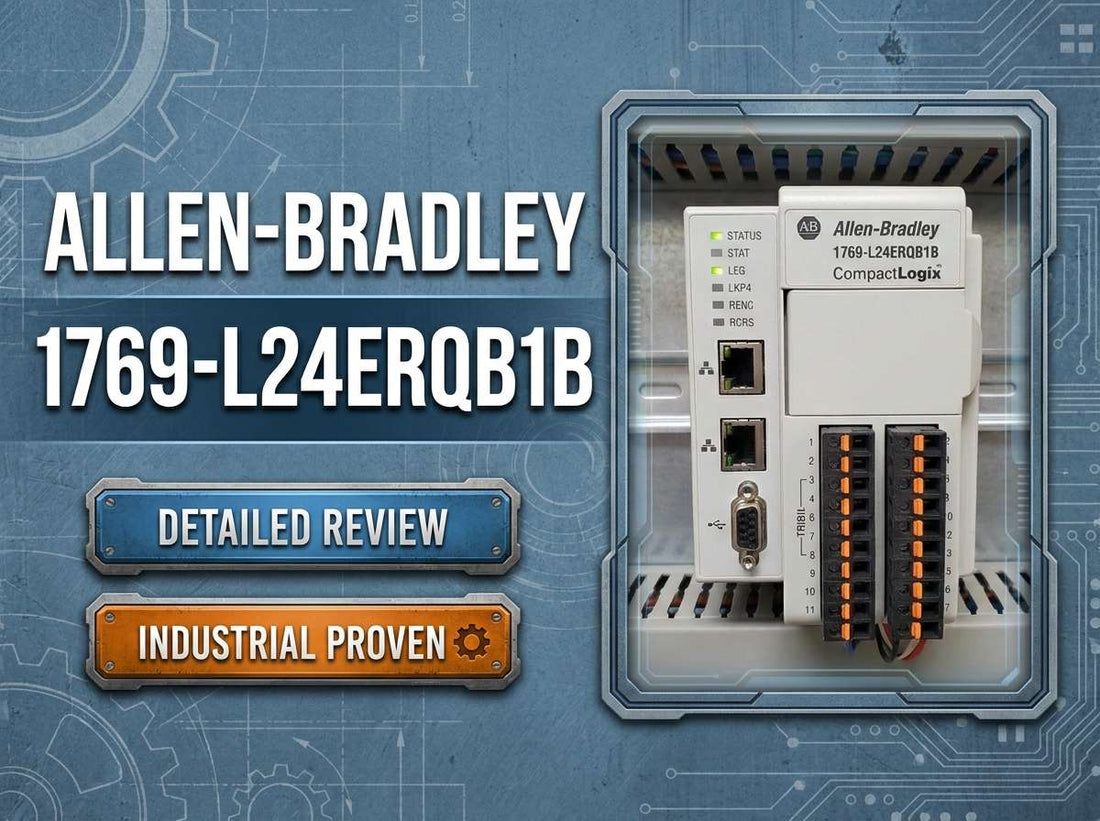

Allen-Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 controller with embedded 24VDC digital I/O for OEM machine automation

Allen-Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 Controller, 750KB DI/O — Specs, Price and Best Alternatives

Controls engineers and procurement teams searching for the Allen-Bradley 1769-L24ER-QB1B are typically at the final stage of a decision: they have a machine design or upgrade project in hand, a BOM to validate, and they need to confirm that this specific CompactLogix 5370 L2 controller — with its 750 KB application memory, 16 embedded 24 VDC digital inputs, 16 embedded 24 VDC digital outputs, and dual EtherNet/IP ports — is the right fit before committing to a purchase. This review covers exactly that: what the controller does, where it excels, where it does not, and how to order it with confidence.

If you have already confirmed this is the correct part for your project, check current pricing and availability for the 1769-L24ER-QB1B at LeadTime.ca — ships worldwide.

Who Should Buy the 1769-L24ER-QB1B — and Who Should Not

The Allen-Bradley 1769-L24ER-QB1B is the right controller for engineering teams and OEMs already standardized on the Rockwell Logix platform who need a compact, panel-friendly PAC with embedded digital I/O and EtherNet/IP connectivity. Specify this controller when your project meets all of the following criteria:

  • Your system runs on Studio 5000, EtherNet/IP, and other Allen-Bradley components including PanelView HMIs and AB drives
  • The embedded 16 x 24 VDC digital inputs and 16 x 24 VDC digital outputs are sufficient, with no requirement for built-in analog I/O
  • Application memory of 750 KB is adequate for your program size, data logging, and add-on instructions
  • Your network architecture requires two EtherNet/IP ports and Device Level Ring capability for cell-level resilience
  • Local I/O expansion of up to 4 additional 1769 modules satisfies the project's I/O count, and the panel can accommodate the controller plus those modules on a 24 VDC supply

If your project requires embedded analog I/O, look at the 1769-L24ER-QBFC1B instead. If you need more memory, higher I/O capacity, or advanced motion capability, the 1769-L27ERM-QBFC1B or a larger CompactLogix L3 controller is the more appropriate path.

On this page:

What the 1769-L24ER-QB1B Actually Does in a Running System

The Allen-Bradley 1769-L24ER-QB1B is a CompactLogix 5370 L2 programmable automation controller that combines the CPU, 750 KB of application memory, and embedded 24 VDC digital I/O into a single unit. It serves as the primary logic engine on a machine or skid: executing ladder logic and structured text programs, scanning 16 digital inputs and driving 16 digital outputs directly from the controller body, and communicating with EtherNet/IP devices — drives, HMIs, remote I/O adapters, and higher-level controllers — through its two onboard RJ45 EtherNet/IP ports.

The embedded I/O eliminates the need for a separate I/O module to handle the most common discrete signals on a machine, reducing both the module count and the amount of internal wiring in the panel. When the project demands more than the 16 inputs and 16 outputs provided on the controller, up to 4 additional 1769 I/O modules can be mounted directly to the right of the controller, covering a range of discrete, specialty, or communication functions without moving to remote I/O. The 750 KB application memory accommodates moderate to complex programs, including add-on instructions and data logging, though very large programs or extensive motion instruction libraries may approach that ceiling on complex machines.

The two EtherNet/IP ports are not simply redundant connections to the same network. They support Device Level Ring topology, which allows the controller to participate in a self-healing ring network at the cell level. In a DLR ring, a single cable break does not interrupt communication — the ring closes automatically. This is a meaningful uptime feature for food and beverage lines, packaging machines, and other applications where a network fault during production has direct cost consequences.

Typical System Architecture for the CompactLogix 5370 L2

The 1769-L24ER-QB1B sits at the machine or cell level in the control hierarchy, sitting below a plant-wide ControlLogix or SCADA system and above the field devices it controls and monitors.

  • Plant network or SCADA — communicates with the CompactLogix via EtherNet/IP using one of the two onboard ports
  • 1769-L24ER-QB1B controller — executes program logic, manages I/O, and acts as the EtherNet/IP originator for downstream devices
  • Up to 4 local 1769 I/O modules — mounted directly to the right of the controller for additional discrete, analog, or specialty I/O
  • EtherNet/IP drives, PanelView HMIs, and remote I/O adapters — connected via the second EtherNet/IP port in star or Device Level Ring topology
  • Field devices — sensors and actuators wired directly to the embedded 16 DI / 16 DO terminals or to the local 1769 expansion modules

Typical Applications and Deployment Scenarios

The 1769-L24ER-QB1B is most commonly specified as the main machine controller on mid-range OEM equipment — packaging lines, conveyors, material handling systems, printing machines, and assembly stations where the I/O count stays within the embedded plus four-module limit and the program complexity fits within 750 KB. The compact footprint and integrated I/O make it attractive for tight panel enclosures where a separate CPU rack and I/O chassis would not fit.

In manufacturing plants that standardize on Rockwell hardware, the 1769-L24ER-QB1B functions as a cell-level controller, running a section of a production line and reporting status to a higher-level ControlLogix system or SCADA platform via EtherNet/IP. Integration with PanelView HMIs and Allen-Bradley drives over EtherNet/IP is native to the platform and requires no gateway hardware.

Retrofit and migration projects represent another strong use case. Plants replacing MicroLogix or SLC 500 systems that want to move into the Logix environment — with Studio 5000 programming, EtherNet/IP connectivity, and tag-based programming — find the 1769-L24ER-QB1B a natural step up that preserves much of the panel wiring infrastructure while modernizing the control platform.

The controller is less appropriate for large distributed systems requiring extensive remote I/O across multiple network drops, for applications that need embedded analog or safety I/O without additional modules, or for projects where first cost is the primary driver and Rockwell standardization is not a requirement.

Application Typical Deployment
OEM packaging machine Main CPU with embedded DI/DO controlling servo drives and HMI over EtherNet/IP
Conveyor and material handling system Cell controller with DLR network connecting distributed drives and sensors
Food and beverage production cell Local controller reporting to plant ControlLogix via EtherNet/IP star topology
MicroLogix or SLC 500 retrofit Drop-in replacement preserving field wiring, upgrading to Logix and EtherNet/IP
Small process skid Standalone controller with up to 4 local 1769 I/O modules for skid instrumentation
Assembly and test station Compact panel with embedded I/O and PanelView HMI on single EtherNet/IP segment

Purchase-Decision Specs and Variant Comparison

Parameter 1769-L24ER-QB1B Value
Catalog Number 1769-L24ER-QB1B
Controller Family CompactLogix 5370 L2
Application Memory 750 KB
Embedded Digital Inputs 16 x 24 VDC
Embedded Digital Outputs 16 x 24 VDC
Embedded Analog I/O None
Local 1769 I/O Expansion Up to 4 modules
EtherNet/IP Ports 2 x RJ45
Network Topologies Supported Star, linear, Device Level Ring (DLR)
Supply Voltage 24 VDC

Full technical specifications are available on the product page at LeadTime.ca.

Model Embedded I/O Memory Key Difference
1769-L24ER-QB1B 16 DI / 16 DO (24 VDC) 750 KB Digital I/O only — no embedded analog
1769-L24ER-QBFC1B 16 DI / 16 DO + embedded analog I/O 750 KB Adds embedded analog; same footprint as QB1B
1769-L27ERM-QBFC1B 16 DI / 16 DO + embedded analog I/O Higher than 750 KB More memory, motion capability, higher node count

If your application requires embedded analog I/O or your program complexity exceeds 750 KB, the 1769-L24ER-QBFC1B or 1769-L27ERM-QBFC1B is the correct part — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the 1769-L24ER-QB1B the Right Choice?

The Allen-Bradley 1769-L24ER-QB1B earns its place as the go-to compact controller for engineering teams committed to the Rockwell Logix ecosystem. The combination of 750 KB application memory, 16 embedded 24 VDC inputs, 16 embedded 24 VDC outputs, and two EtherNet/IP ports with Device Level Ring support delivers a capable, panel-efficient platform that genuinely simplifies commissioning when the rest of the system speaks EtherNet/IP and Studio 5000. For OEM machine builders, system integrators working on mid-range production cells, or plant engineers managing a MicroLogix or SLC 500 migration, this controller is a technically sound, future-aware choice.

Its limitations are real and worth naming. The 1769-L24ER-QB1B carries no embedded analog I/O — if your machine design includes pressure, temperature, or position signals wired as analog, you are adding 1769 analog modules from the outset and burning into your four-module expansion budget. The local expansion limit of four 1769 modules is a firm ceiling, not a soft guideline; projects that grow past it will require remote I/O or a controller upgrade. Memory at 750 KB is sufficient for typical mid-range programs but can become a constraint on machines with extensive add-on instruction libraries or large data sets. For those cases, the 1769-L27ERM-QBFC1B or a CompactLogix L3 controller is the more honest recommendation. And for any project where Rockwell standardization is not a hard requirement and first cost dominates the decision, other compact PLC platforms will offer more capacity per dollar.

From a procurement standpoint, the 1769-L24ER-QB1B is active Rockwell hardware, but the CompactLogix 5370 family is mature enough that lead times and regional stock levels vary more than they do for the newest CompactLogix generations. Ordering through a specialist distributor that tracks Rockwell lifecycle status and holds relationships with multiple stocking locations reduces the risk of a six-week wait disrupting your build schedule. Verify current lead time before the BOM is finalized — that single step has saved more than a few project timelines. Check current availability and pricing for the 1769-L24ER-QB1B at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Report About the 1769-L24ER-QB1B

Across forums including PLCTalk, Reddit r/PLC, PLCS.net, MrPLC, and Rockwell Automation user communities, the 1769-L24ER series consistently draws positive feedback for the same core reasons engineers specify it. The compact footprint with onboard CPU and digital I/O is repeatedly cited as the standout practical advantage — engineers building OEM panels report that combining the controller and I/O into a single housing simplifies both the physical layout and the wiring schedule. Comments about Studio 5000 integration are uniformly positive among users already working in the Logix environment: the controller programs and commissions the same way as larger Logix systems, which shortens the learning curve and reduces commissioning errors. The dual Ethernet ports and Device Level Ring support attract specific praise from engineers who have dealt with network cable damage on production lines and value the self-healing capability without needing a managed switch infrastructure.

The complaints that surface consistently are about specification management rather than hardware reliability. The most common community warning is the confusion between 1769-L24ER-QB1B and 1769-L24ER-QBFC1B — engineers have ordered the QB1B only to discover during commissioning that the project actually required embedded analog I/O, forcing a controller swap or the addition of analog modules. A related ordering mistake is assuming the local expansion supports more than four 1769 I/O modules, which becomes apparent during panel layout or commissioning. The second persistent complaint is cost: engineers working outside a Rockwell-standardized environment consistently note that the CompactLogix 5370 carries a significant price premium over compact PLCs from other vendors, and that for budget-sensitive or non-standardized projects, the cost-to-capability ratio pushes buyers toward alternatives. Firmware and Studio 5000 version mismatch is the third recurring theme — controllers arriving with firmware that does not align with the plant-standard Studio 5000 installation cause delays, and this is a preventable problem that appears in community threads often enough to treat as a known risk.

Community advice on managing these risks is practical and consistent: verify the full catalog number character by character before ordering, not just the family designation; confirm embedded analog requirements before finalizing the part number; standardize firmware revisions across the plant and include firmware version in the purchase specification; and check SD card backup procedures so that a controller replacement can be loaded from the card with minimal downtime.

Wiring and Installation Overview

  • Mount the controller on DIN rail or panel per Rockwell's clearance requirements for the CompactLogix 5370 L2 family; the 24 VDC power supply must be sized to support the controller and any attached 1769 I/O modules, with external overcurrent protection as specified in the Rockwell installation manual
  • The 16 embedded digital inputs accept 24 VDC signals; verify sourcing or sinking configuration and common terminal wiring to match field device output types before terminating field cables
  • The 16 embedded digital outputs are 24 VDC; confirm load types and current requirements against Rockwell's output specifications and install appropriate external protection for inductive loads
  • Connect EtherNet/IP devices to the two RJ45 ports in the topology required — star topology uses one port upstream and one port downstream, while Device Level Ring connects the controller into the ring using both ports with DLR-enabled devices
  • Before first power-up, confirm the controller firmware revision matches the Studio 5000 Logix Designer version installed at the site; set IP address via BootP, DHCP, or directly in Studio 5000 per the site's IP addressing standard

Wrong-Part Prevention Checklist Before You Order

Review each item against your project requirements before placing an order for the 1769-L24ER-QB1B:

  1. Confirm catalog number is exactly 1769-L24ER-QB1B (not 1769-L24ER-QBFC1B or 1769-L27ERM variants with different I/O and memory).
  2. Verify 24 VDC supply available and that panel power budget can support the controller plus up to 4 1769 I/O modules.
  3. Check that 750 KB memory is sufficient for program size, data logging, motion, and add-on instructions in the project.
  4. Confirm required I/O count and type: 16 DC inputs and 16 DC outputs on-board are enough, or plan for additional 1769 modules if needed.
  5. Ensure the controller firmware revision is compatible with the installed Studio 5000 Logix Designer version on site.
  6. Verify EtherNet/IP architecture: need for Device Level Ring, number and type of EtherNet/IP devices, and IP addressing scheme.
  7. Check enclosure/environment ratings (temperature, vibration, panel depth) versus actual installation conditions.
  8. Confirm regional product status (active vs mature/near-obsolete) and lead time with a distributor before finalizing the spec.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — getting the catalog number right on the first purchase avoids costly returns and project delays. You can also review full product details on the 1769-L24ER-QB1B product page.

Frequently Asked Questions

How many 1769 I/O modules can I add to the 1769-L24ER-QB1B, and is there a power budget impact?

The 1769-L24ER-QB1B supports a maximum of 4 local 1769 I/O modules mounted directly to the right of the controller. This is a hard limit defined in the CompactLogix 5370 L2 documentation — it cannot be extended by any configuration change. Each additional module draws from the local I/O bus power budget, so the 24 VDC supply must be sized to cover the controller and all attached modules. Exceeding four modules requires moving to remote EtherNet/IP I/O or a higher-capacity controller.

What Studio 5000 version is required for the 1769-L24ER-QB1B, and how do I handle a firmware mismatch?

The required Studio 5000 Logix Designer version depends on the specific firmware revision loaded on the controller. Rockwell publishes compatibility matrices that map firmware revisions to the minimum and maximum Studio 5000 versions supported. If a controller arrives with a firmware revision that does not match the plant-standard Studio 5000 version, a firmware update through Studio 5000 or the ControlFLASH utility is required before programming. Including the required firmware revision in the purchase specification — and specifying it at the time of ordering through your distributor — is the most reliable way to avoid this delay.

Can I use both EtherNet/IP ports as a general-purpose unmanaged switch, or are they dedicated to EtherNet/IP and DLR only?

The two EtherNet/IP ports on the 1769-L24ER-QB1B are designed for EtherNet/IP device communication, linear daisy-chain, and Device Level Ring topologies — they are not general-purpose unmanaged switch ports for mixed traffic. Using them to pass non-EtherNet/IP traffic or as a general LAN switch can introduce latency and communication issues on the EtherNet/IP network. Separate managed switches should handle general plant network traffic; the controller ports should be reserved for the EtherNet/IP device network.

What is the most practical approach to migrating from a MicroLogix or SLC 500 to a 1769-L24ER-QB1B while reusing existing wiring?

The migration path involves converting the existing program using Rockwell's migration tools in Studio 5000 and remapping I/O addresses to the CompactLogix tag-based architecture. Field wiring to discrete I/O terminals can often be reused by matching terminal assignments to the embedded DI/DO on the 1769-L24ER-QB1B or to the local 1769 expansion modules. Analog signals previously handled by SLC or MicroLogix analog modules will require 1769 analog I/O modules, counting against the four-module expansion limit. Network migration from DH+ or serial to EtherNet/IP is typically the most significant infrastructure change and should be scoped separately.

Does the 1769-L24ER-QB1B support SD card backup, and how should it be managed for spare controller replacement?

The CompactLogix 5370 L2 supports an SD card for non-volatile storage of the controller project and firmware. Saving the running project to the SD card with a clear revision label — and storing a matching copy on a secure server — means a replacement 1769-L24ER-QB1B can be loaded directly from the card during commissioning, reducing replacement downtime significantly. The SD card backup should be updated whenever program changes are made to the running controller, and the card contents should be verified as part of any planned maintenance cycle.

Why Order the 1769-L24ER-QB1B From LeadTime.ca

  • Ships worldwide — no geographic restriction on order sourcing or delivery
  • Specialist knowledge of Rockwell lifecycle status and CompactLogix 5370 family variants, including the distinction between QB1B and QBFC1B catalog numbers
  • Access to multiple stocking locations to reduce lead time risk on mature Rockwell hardware
  • Volume pricing available — contact the team directly for project quantities or blanket orders
  • Pre-order support for confirming catalog number, firmware revision requirements, and compatibility before the purchase is placed

At-a-Glance Summary: Allen-Bradley 1769-L24ER-QB1B

  • CompactLogix 5370 L2 controller with 750 KB application memory
  • 16 embedded 24 VDC digital inputs and 16 embedded 24 VDC digital outputs on the controller body
  • No embedded analog I/O — analog requires 1769 expansion modules counting against the four-module limit
  • Local expansion limited to 4 x 1769 I/O modules mounted directly to the right of the controller
  • Two RJ45 EtherNet/IP ports supporting star, linear, and Device Level Ring topologies
  • Operates on 24 VDC external supply; panel must be sized for controller plus expansion modules
  • Programs via Studio 5000 Logix Designer — firmware revision must match installed Studio 5000 version
  • Best fit: Rockwell-standardized OEM machines, manufacturing cells, and MicroLogix/SLC 500 migrations with moderate I/O and memory needs
  • Not the right part if analog I/O, more than four local modules, or memory above 750 KB is required
  • Verify lifecycle status and current lead time with a specialist distributor before finalizing the BOM
