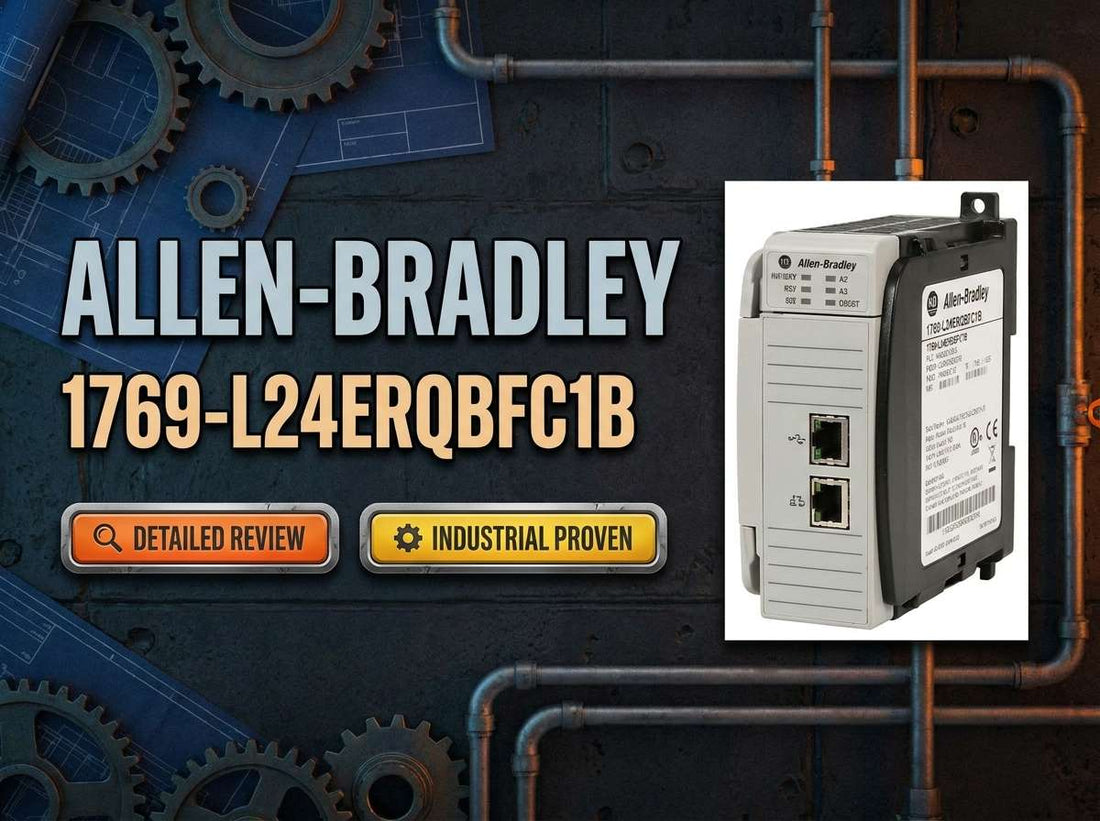

Allen-Bradley 1769-L24ER-QBFC1B CompactLogix 5370 L2 packaged controller with dual EtherNet/IP ports for small machine automation

Allen-Bradley 1769-L24ER-QBFC1B CompactLogix 5370 L2 Controller, 2 EtherNet/IP ports with Device Level Ring capability, 750KB memory, 16 DC inputs, 16 DC outputs, 4 universal analog inputs, 2 analog outputs, 4 high-speed counters — Specs, Price and Alternatives Review

Controls engineers specifying a compact Rockwell controller for a new machine build or retrofit project often arrive at the Allen-Bradley 1769-L24ER-QBFC1B after narrowing down the CompactLogix 5370 L2 family to the one model that covers both analog and high-speed I/O in a single packaged CPU. With 750 KB of user memory, 16 DC digital inputs, 16 DC digital outputs, 4 universal analog inputs, 2 analog outputs, 4 high-speed counter channels, and dual EtherNet/IP ports with Device Level Ring capability, this controller eliminates the need for several separate I/O modules in a typical small machine cabinet — and that tradeoff between integrated convenience and expansion headroom is exactly the decision this review helps you make confidently.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 1769-L24ER-QBFC1B — and Who Shouldn't

This controller is the right fit for OEMs, system integrators, and plant engineering teams standardized on the Rockwell CompactLogix platform who need an all-in-one packaged CPU for small to mid-size machinery or process skids. You are in the right place if all of the following apply to your project:

  • Your I/O requirement is covered by 16 x 24 V DC digital inputs, 16 x 24 V DC digital outputs, 4 universal analog inputs, 2 analog outputs, and 4 high-speed counter channels — either as embedded I/O alone or supplemented by no more than 4 local 1769 Compact I/O expansion modules.
  • Your application fits within 750 KB of user memory and no more than 8 EtherNet/IP nodes with up to 120 TCP connections.
  • Your network architecture calls for dual EtherNet/IP ports, and Device Level Ring topology is either required or preferred for network resilience.
  • Your panel has a 24 V DC control power supply available to drive the controller's embedded power input.
  • Your organization uses Studio 5000 Logix Designer and your engineering team has approved CompactLogix 5370 firmware revisions in its site standards.

If your machine needs integrated motion control, look at the 1769-L27ERM-QBFC1B. If you need a safety PLC, Compact GuardLogix is the correct platform. If your I/O count will grow beyond four expansion modules, a CompactLogix L3 is the more appropriate starting point.

On this page:

What the 1769-L24ER-QBFC1B Actually Does in a Control System

The Allen-Bradley 1769-L24ER-QBFC1B is a packaged controller in the CompactLogix 5370 L2 family — meaning the CPU, power supply input, and a fixed complement of I/O channels are integrated into a single housing rather than assembled from separate rack-mounted modules. In practical terms, this eliminates an external power supply module, one or more digital I/O modules, an analog I/O module, and a high-speed counter module from a typical small machine bill of materials, reducing both panel footprint and wiring time.

The 750 KB user memory positions this controller above entry-level Micro800 and MicroLogix platforms, where tag-based programming and full EtherNet/IP adapter/scanner capability are absent or limited, and below the larger CompactLogix L3 family where distributed I/O networks, higher node counts, and more complex motion profiles are routinely managed. Within the 5370 L2 family, the QBFC1B suffix specifically identifies the variant with embedded analog I/O — a distinction that matters when comparing catalog numbers at the shortlisting stage.

Programming is done in Studio 5000 Logix Designer, the same environment used across the CompactLogix and ControlLogix families. This means tag-based programming, Add-On Instructions, and the same EtherNet/IP device integration workflow apply regardless of whether this controller is running a standalone skid or one cell within a larger networked line.

Where This Controller Sits in a Typical System Architecture

The 1769-L24ER-QBFC1B sits at the top of the local control loop, acting as both the CPU and the primary I/O gateway for a machine or skid. Understanding where it connects in the signal chain helps clarify what it can and cannot do without additional hardware.

  • Plant network or SCADA layer connects to the controller through one of the two EtherNet/IP ports — the second port is reserved for Device Level Ring continuity or daisy-chaining to downstream devices.
  • An HMI (panel view or PC-based) communicates over EtherNet/IP, consuming one of the 8 available EtherNet/IP node connections.
  • Field devices — sensors, pushbuttons, contactors, and pilot lights — wire directly into the embedded 16 digital inputs and 16 digital outputs on the controller housing.
  • Analog field instruments (transmitters, transducers, positioners) connect to the 4 universal analog input channels and 2 analog output channels embedded in the same housing.
  • Encoders, flow meters, or other fast-pulse devices connect to the 4 high-speed counter channels; additional 1769 Compact I/O modules (up to 4) extend the local I/O count for devices that exceed the embedded complement.

Typical Applications: OEM Machines, Skids, and Retrofit Projects

OEM machine builders building packaging machines, indexing tables, and small conveyor systems account for a large share of 1769-L24ER-QBFC1B installations. The integrated I/O mix — particularly the combination of analog and high-speed counter channels in the same CPU housing — covers the sensor feedback, actuator control, and pulse-counting demands of these machines without adding modules. Staying on the Logix platform also means the OEM's standard Add-On Instructions and HMI faceplates transfer directly from one machine variant to the next.

Process skid builders — pump skids, dosing systems, filtration units — use this controller when the application involves a handful of analog signals (flow, pressure, level, temperature) alongside discrete I/O for motor starters, solenoid valves, and alarms. Having 4 universal analog inputs and 2 analog outputs embedded in the CPU avoids a separate analog module and simplifies the panel layout on skids where space is constrained.

Retrofit projects replacing aging SLC 500 or MicroLogix installations benefit from moving to a Logix-based platform for EtherNet/IP connectivity, modern HMI integration, and a programming environment that current engineers know. The 1769-L24ER-QBFC1B's dual EtherNet/IP ports mean the retrofitted machine can connect to both a plant historian and a local panel HMI simultaneously without a separate switch, which simplifies the retrofit scope.

High-speed counting and encoder feedback applications — position verification on indexing systems, flow measurement via pulse inputs — fit within the 4 high-speed counter channels embedded in this controller, avoiding the cost of a separate high-speed counter module for applications that stay within that channel count.

Application Typical Deployment
OEM packaging machine Single cabinet, embedded digital and analog I/O, EtherNet/IP to HMI and line PLC
Pump or dosing skid Standalone skid controller, analog inputs for flow/pressure, digital outputs for valve and motor control
Small conveyor or indexing table Integrated high-speed counter channels for encoder feedback, digital I/O for sensors and drives
MicroLogix or SLC retrofit Drop-in replacement for aging CPU, EtherNet/IP for SCADA and HMI integration, Studio 5000 programming
Standardized multi-cell line One controller per cell, DLR ring topology across cells, common Logix code base

Purchase-Decision Specs: What the Datasheet Numbers Actually Mean

Parameter Value
Controller family CompactLogix 5370 L2
User memory 750 KB
Integrated SD card 1 GB included; up to 2 GB supported
Digital inputs 16 x 24 V DC (sinking/sourcing — confirm wiring against field devices)
Digital outputs 16 x 24 V DC (confirm output type matches field device requirements)
Analog inputs 4 universal channels (signal types and resolution: refer to Rockwell datasheet)
Analog outputs 2 channels (voltage/current range: refer to Rockwell datasheet)
High-speed counters 4 channels (encoders, flow meters, high-speed pulse inputs)
EtherNet/IP ports 2 x RJ45 — supports linear topology and Device Level Ring (DLR)
EtherNet/IP nodes / TCP connections Up to 8 EtherNet/IP nodes / 120 TCP connections

Full technical specifications are available on the product page at LeadTime.ca.

1769-L24ER-QBFC1B vs Sibling Models: Which CompactLogix L2 Do You Actually Need?

Model Memory Embedded Analog I/O High-Speed Counters Motion Support EtherNet/IP Nodes Local Expansion Best For
1769-L24ER-QBFC1B 750 KB 4 AI / 2 AO 4 channels No 8 nodes / 120 TCP Up to 4 x 1769 Small machines needing integrated analog and high-speed I/O on Logix platform
1769-L24ER-QB1B 750 KB None 4 channels No 8 nodes / 120 TCP Up to 4 x 1769 Same machine class without need for embedded analog — lower cost if analog is not required
1769-L27ERM-QBFC1B Higher than L24 (refer to Rockwell datasheet) 4 AI / 2 AO 4 channels Yes (EtherNet/IP motion) Higher than L24 (refer to Rockwell datasheet) Up to 4 x 1769 Applications requiring integrated servo or motion axis control over EtherNet/IP
CompactLogix L3 (family) Larger options available Via separate modules Via separate modules Model-dependent Higher than L2 More than 4 modules Systems outgrowing 4 expansion modules or 8 EtherNet/IP nodes

If your design requires servo motion or the EtherNet/IP node count edges past 8 devices, the 1769-L27ERM-QBFC1B or a CompactLogix L3 is the more appropriate platform — check current availability and confirm the right catalog number at LeadTime.ca.

Expert Verdict on the 1769-L24ER-QBFC1B

The 1769-L24ER-QBFC1B earns its place in a controls engineer's shortlist because it genuinely reduces the bill of materials for small machine applications that need analog and high-speed I/O alongside standard discrete control. The combination of 750 KB of user memory, 4 universal analog inputs, 2 analog outputs, 4 high-speed counter channels, and 16-point digital I/O in a single housing is not just a convenience feature — on a skid or OEM machine where every DIN rail inch is budgeted, it translates directly into a smaller enclosure and a simpler wiring schedule. Add dual EtherNet/IP ports with Device Level Ring capability and the full Studio 5000 Logix Designer programming environment, and this controller punches well above what its physical footprint suggests. The right buyer is an OEM machine builder, a system integrator deploying a standardized Rockwell platform across multiple small cells, or a plant engineer replacing aging SLC or MicroLogix hardware with a fully supported Logix-based architecture.

The limits are real and worth stating plainly. The 8 EtherNet/IP node ceiling and the 4-module local expansion cap define where this controller stops being the right tool. If your machine architecture will grow — more drives, more remote I/O blocks, a second HMI — do the node and expansion math before committing, not after. For applications requiring integrated servo motion over EtherNet/IP, the 1769-L27ERM-QBFC1B is the correct next step. For functional safety on the same Logix platform, Compact GuardLogix is the appropriate choice. And if the application genuinely does not require embedded analog I/O, the 1769-L24ER-QB1B delivers the same digital I/O and high-speed counter capability at a lower cost — that is an honest alternative worth considering when budget is a factor.

On the procurement side, the 1769-L24ER-QBFC1B is an active catalog number in the CompactLogix 5370 family, but lead times on Rockwell controllers can shift with demand cycles and global supply conditions. Ordering through a specialist distributor matters here not just for availability checks — a knowledgeable distributor can confirm that the firmware revision shipped with your unit aligns with the Studio 5000 version currently deployed at your site, flag any catalog option nuances between QBFC1B and QB1B variants before the order ships, and provide realistic lead time visibility for project scheduling. Check current pricing, availability, and lead time for the 1769-L24ER-QBFC1B at LeadTime.ca — LeadTime.ca ships worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1769-L24ER-QBFC1B

Model-specific community discussions for the exact catalog number 1769-L24ER-QBFC1B are sparse across the major PLC forums and automation communities. What exists at the forum level tends to address the CompactLogix 5370 family broadly — EtherNet/IP integration practices, general Studio 5000 workflow, and platform migration guidance — rather than anything that can be attributed specifically to this controller. When community data is thin, the practical implication for a buyer is straightforward: the purchase decision has to rest on verified manufacturer specifications, internal engineering standards, and direct distributor guidance rather than anecdotal forum posts.

That gap in community feedback is not a concern about the product — it reflects that this is a well-understood, professionally specified controller that tends to be selected by experienced controls engineers who confirm fit against official documentation rather than searching forums for reassurance. What those engineers consistently flag as worth getting right before the order ships aligns closely with the manufacturer's own application notes: confirming the exact I/O complement covers both current and near-term needs, verifying that the output circuit type matches field devices, and ensuring the firmware revision arriving with the hardware aligns with the Studio 5000 version approved at the site. These are not abstract warnings — they are the exact points where mis-orders happen and commissioning delays occur.

LeadTime.ca's technical team handles these pre-order confirmation steps as a matter of course for CompactLogix controllers. If you are unsure whether the 1769-L24ER-QBFC1B is the correct catalog number for your project, or if you need to cross-reference firmware revisions against your existing Studio 5000 environment before ordering, contact LeadTime.ca directly for specialist guidance before the order is placed.

Wiring and Installation: Key Checks Before You Commission

The following overview covers the key installation and wiring considerations for the 1769-L24ER-QBFC1B. Full procedures, torque specifications, and wiring diagrams are contained in Rockwell Automation's CompactLogix 5370 user manual and installation instructions — consult those documents before beginning installation work.

  • The controller requires an external 24 V DC power supply with appropriate external protection (fusing or circuit breaker per the Rockwell installation documentation); do not power from an unprotected supply rail.
  • Digital output circuit type (sinking or sourcing) must be confirmed against field device requirements before wiring; a mismatch will prevent correct device operation and may cause damage.
  • Analog I/O wiring requires shielded cable routed separately from power wiring and digital I/O cables; connect cable shields as specified in the Rockwell manual to minimize noise on analog signals.
  • The two EtherNet/IP ports support either a linear daisy-chain topology or a Device Level Ring; if deploying DLR, all devices in the ring must support DLR and the ring must be configured correctly in Studio 5000 before going live.
  • Before applying power, verify that protective earth grounding is connected to the designated grounding terminal on the controller per the installation instructions, and that panel layout meets the clearance and ventilation requirements specified in the manual.

Compatible Local Expansion: 1769 Compact I/O Modules

The 1769-L24ER-QBFC1B supports up to 4 local 1769 Compact I/O expansion modules mounted directly adjacent to the controller on DIN rail or panel. These modules extend the local I/O count when the embedded 16 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs, and 4 high-speed counter channels are insufficient for the full machine I/O requirement.

  • 1769 digital input modules — extend DC or AC discrete input capacity beyond the embedded 16-point complement.
  • 1769 digital output modules — add relay, transistor, or triac output capacity for additional actuators.
  • 1769 analog input and output modules — supplement the 4 embedded universal analog inputs and 2 analog outputs when more analog channels are needed.
  • 1769 specialty modules (thermocouple, RTD, high-speed counter) — address signal types not covered by the embedded I/O complement.

Planning to use all 4 expansion slots during the initial build effectively removes future headroom. If the current design uses 3 or 4 slots, evaluate whether a CompactLogix L3 controller with a higher expansion capacity is a better long-term investment before the machine is commissioned.

Wrong-Part Prevention Checklist

Before placing your order for the 1769-L24ER-QBFC1B, verify each of the following against your project documentation:

  1. Confirm 24 V DC control power is available; this controller has an embedded 24 V DC power input and requires an external 24 V DC supply with appropriate protection.
  2. Verify required I/O count and types: 16 DC inputs, 16 DC outputs, 4 universal analog inputs, 2 analog outputs, 4 high-speed counters; if more are needed, check expansion limits.
  3. Check that up to 4 local 1769 Compact I/O modules are sufficient for future expansion; if not, consider larger CompactLogix L3 or ControlLogix.
  4. Confirm DC output type and wiring (sinking/sourcing compatibility) match field devices and existing panel design.
  5. Ensure dual EtherNet/IP with DLR is compatible with plant network design and managed switch strategy.
  6. Verify that Studio 5000 Logix Designer and appropriate firmware revisions are approved in the site's standards and available to engineering staff.

If any item on this checklist raises a question before your order is placed, contact the LeadTime.ca team — our technical team can help confirm the correct catalog number and firmware revision for your application before you commit.

Frequently Asked Questions

Is 750 KB of user memory enough for a typical small machine application?

For most small to mid-size machine control programs — discrete sequencing, analog PID loops, HMI tag serving, and EtherNet/IP device integration — 750 KB is sufficient. Where engineers run into limits is when the application accumulates large data logging arrays, complex recipe management, or extensive motion data structures. If your program size is unknown at specification time, map out the major data structures and instruction count before committing; if there is any doubt, the 1769-L27ERM-QBFC1B or a CompactLogix L3 with higher memory is the safer choice.

How many EtherNet/IP devices can the 1769-L24ER-QBFC1B reliably manage?

The controller supports up to 8 EtherNet/IP nodes and 120 TCP connections per official Rockwell specifications. In a typical small machine, those 8 nodes cover a panel HMI, one or two variable frequency drives, a remote I/O block or safety relay, and a SCADA or historian connection with room to spare. If your machine architecture requires more than 8 EtherNet/IP devices, the 1769-L27ERM-QBFC1B or a CompactLogix L3 is the appropriate platform.

Can I add more I/O later, or am I locked to the embedded complement at installation?

Up to 4 local 1769 Compact I/O expansion modules can be added to the right side of the controller, covering digital, analog, thermocouple, RTD, and specialty I/O types. This is a hard limit — the platform does not support additional local expansion modules beyond 4. If your initial installation already uses 3 or 4 slots, plan for this ceiling before the machine is built; retrofitting a larger controller family later is significantly more expensive than sizing correctly at specification time.

What does Device Level Ring actually mean for my network, and do I need a special switch?

Device Level Ring is an EtherNet/IP network topology where ring-capable devices connect in a closed loop using their two embedded EtherNet/IP ports. If a cable segment in the ring fails, traffic automatically reroutes around the break, maintaining communication without human intervention. DLR does not require a managed switch between DLR-capable devices in the ring segment — this is one of its practical advantages for machine-level networking. However, if you are connecting the ring to a plant network, the uplink connection to the plant switch should be reviewed against your network architecture documentation.

What is actually involved in migrating from a MicroLogix or SLC 500 to the 1769-L24ER-QBFC1B?

The migration is a platform change, not a firmware upgrade — MicroLogix and SLC 500 programs cannot be directly imported into Studio 5000 without conversion. Rockwell Automation provides migration guides and conversion tools to assist with translating ladder logic and I/O addressing, but engineering time should be budgeted for re-verification and testing. On the hardware side, the 1769-L24ER-QBFC1B's embedded I/O complement often replaces multiple legacy modules, which can reduce the panel footprint significantly. EtherNet/IP connectivity to existing drives and HMIs that already support EtherNet/IP is typically the fastest part of the integration.

What do the status LEDs indicate, and how do I identify a fault condition at the controller?

The 1769-L24ER-QBFC1B uses status LEDs for controller power, run/program state, major and minor fault conditions, and EtherNet/IP link status. The exact LED patterns and fault codes are documented in the CompactLogix 5370 controllers user manual published by Rockwell Automation — consult that document for a definitive fault interpretation table. In Studio 5000, the controller diagnostics screen provides fault codes and plain-language fault descriptions that are faster to interpret during commissioning than LED patterns alone.

Why Order the 1769-L24ER-QBFC1B Through LeadTime.ca

  • LeadTime.ca ships worldwide — whether your machine build is in Canada, the United States, or internationally, orders are processed and dispatched to your location.
  • Specialist distributors can confirm firmware revision compatibility with your existing Studio 5000 environment before the order ships — a step that generic channels skip and that causes commissioning delays when overlooked.
  • Hard-to-source or tight-lead-time CompactLogix controllers are a sourcing specialty — LeadTime.ca maintains active sourcing relationships to find availability when standard distribution channels show extended wait times.
  • Volume pricing for multi-unit OEM machine builds and repeat procurement orders is available — contact the team directly for current pricing on quantities.
  • Pre-order technical support for catalog number confirmation, variant comparison, and expansion planning is available without obligation.

At-a-Glance Summary

  • Controller family: CompactLogix 5370 L2, catalog number 1769-L24ER-QBFC1B
  • User memory: 750 KB; SD card ships with 1 GB, supports up to 2 GB
  • Embedded digital I/O: 16 x 24 V DC inputs, 16 x 24 V DC outputs
  • Embedded analog I/O: 4 universal analog inputs, 2 analog outputs
  • High-speed counter channels: 4 (encoders, flow meters, fast-pulse inputs)
  • EtherNet/IP ports: 2 x RJ45 with Device Level Ring capability
  • EtherNet/IP node limit: 8 nodes, 120 TCP connections
  • Local expansion: up to 4 x 1769 Compact I/O modules
  • Power input: 24 V DC — requires external supply with appropriate protection
  • Programming environment: Studio 5000 Logix Designer
  • Certifications: C-TICK, CE, cUL, GOST, KC, Marine, UL (verify current list against latest datasheet)
  • Pricing: available on the product page at LeadTime.ca — contact for current pricing on volume orders
